10 Pairs XT60E XT60H Male Female Bullet Connector Panel Mount Plug

10 Pairs XT60E XT60H Male Female Bullet Connectors – Panel Mount Screw Fixed Plugs

Upgrade your RC builds with these high-quality XT60E Male / XT60H Female bullet connectors. Designed for RC LiPo batteries, FPV drones, multirotors, RC cars, planes, and DIY electronics projects, these panel-mount screw-fixed plugs deliver reliable, low-resistance connections that handle serious power demands.

Made from durable PA66 nylon insulation and brass contacts, these connectors feature a half-open end design that makes soldering fast and easy — even for beginners. The straight-style body mounts securely to panels or chassis with standard screws for a clean, professional finish. Made in China.

Key Features

• Models: XT60E1-M (Male Plug) & XT60H-F (Female Socket)
• Color: Yellow
• Material: Plastic (PA66 Nylon) & Brass contacts
• Max Continuous / Instantaneous Current: 20A / 40A
• Withstand Voltage: DC 500V
• Recommended Wire Gauge: 12AWG, 14AWG, 16AWG
• Wiring Method: Soldering (half-open end for easy soldering)
• Style: Straight, panel-mount screw fixed

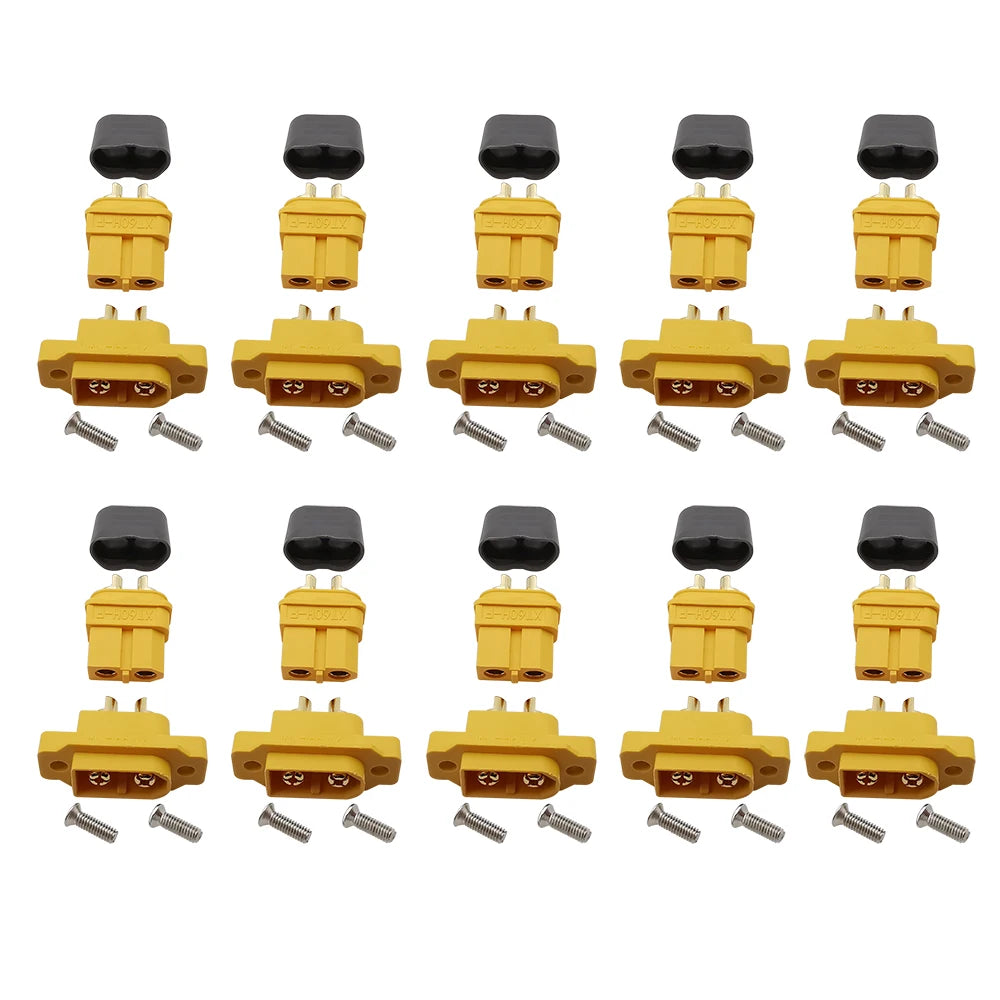

• Package: 10 Pairs (10× Male + 10× Female)

Compatible Applications

• RC LiPo Battery packs & battery harnesses
• FPV drones & multirotors
• RC planes, cars, and boats
• DIY electronics & robotics projects
• ESC (Electronic Speed Controller) wiring

Why Choose XT60 Bullet Connectors?

The XT60 series is the industry-standard connector for high-current RC and FPV applications. With robust brass bullet contacts and a keyed design that prevents accidental reverse polarity, they offer a secure, low-resistance connection every time. The panel-mount screw-fixed (XT60E/XT60H) variant adds extra mounting stability, making it ideal for battery enclosures, charging stations, and chassis builds.

If you're building out your RC wiring setup, you may also find these related accessories useful:
10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories
12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is the difference between XT60E and XT60H connectors?

A: The XT60E (Male Plug) is designed with a panel-mount flange and screw holes, allowing it to be fixed directly to a battery box or chassis panel. The XT60H (Female Socket) is the matching housing-style female connector. Together they form a secure, screw-mounted bullet connector pair ideal for RC LiPo battery and FPV drone builds.

Q: What wire gauge is recommended for these XT60 connectors?

A: These XT60E/XT60H connectors are rated for 12AWG, 14AWG, and 16AWG wire. For most RC LiPo battery and FPV drone applications handling up to 20A continuous current, 14AWG is a popular choice. For higher-current builds approaching the 40A instantaneous rating, 12AWG is recommended.

Q: Do these connectors require soldering?

A: Yes. These connectors use a soldering wiring method. The half-open end design exposes the brass contact barrel, making it straightforward to solder wires securely. Basic soldering tools and skills are required for installation.

Q: How many connectors are included in the package?

A: Each package contains 10 pairs — that's 10 XT60E Male Plugs and 10 XT60H Female Sockets, giving you a total of 20 individual connectors.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
