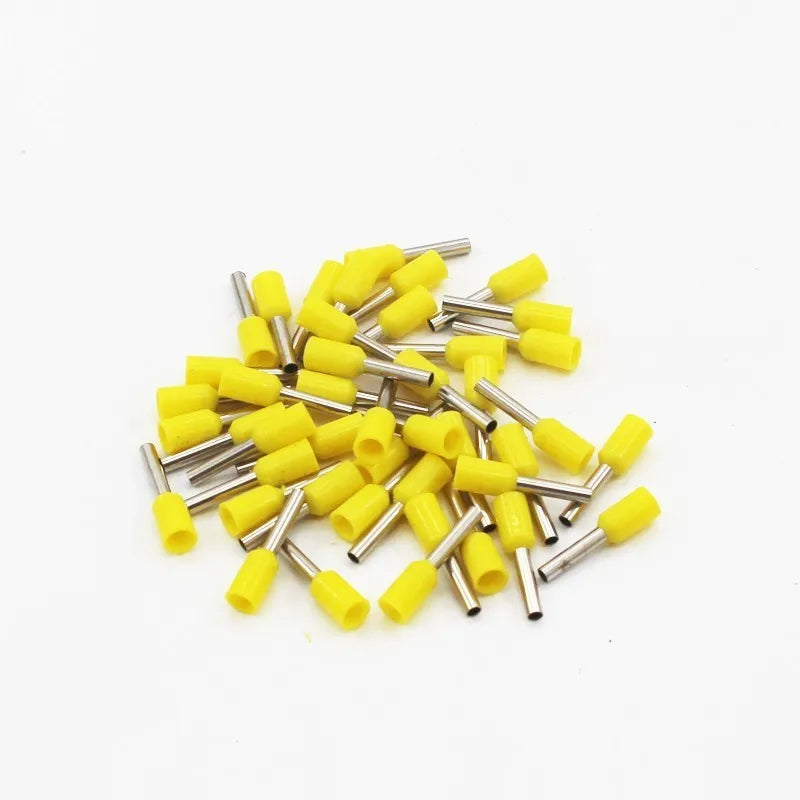

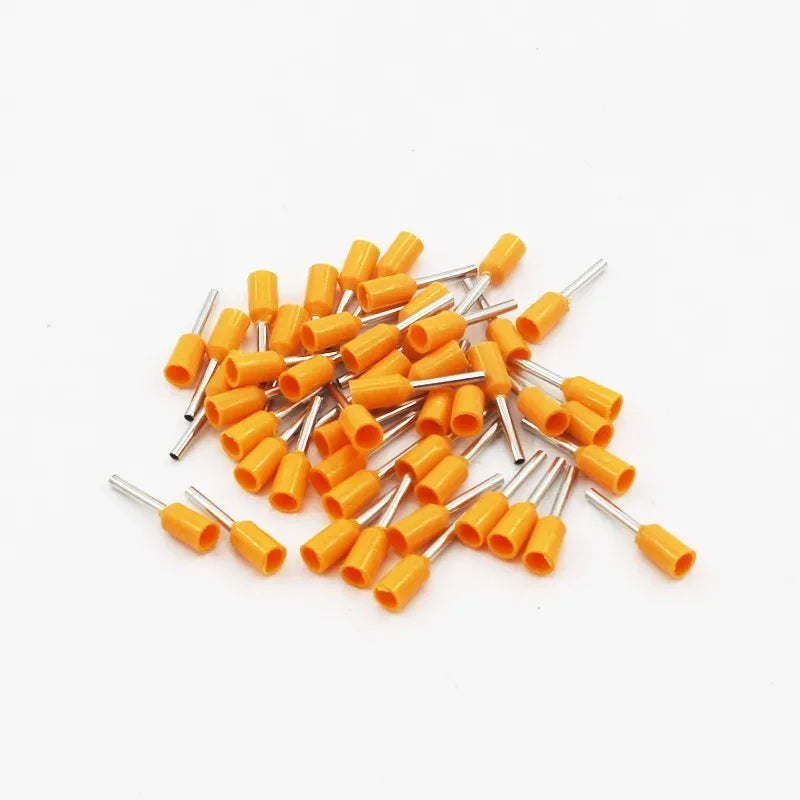

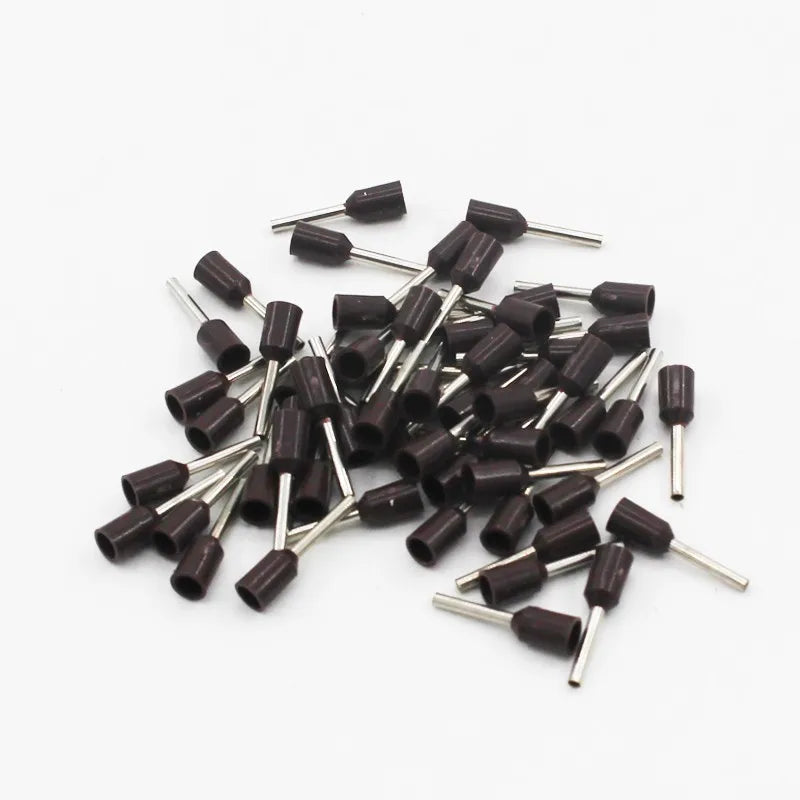

100-Pack Insulated Ferrule Terminals — Secure, Color-Coded Crimp Connections
Get reliable, professional-grade wire terminations every time with these 100-piece insulated ferrule cord end terminals. Available in multiple sizes (E0508, E7508, E1008, E1508, E2508, E4009, E6012), these crimp connectors are perfect for panel wiring, control cabinets, electrical enclosures, and DIY electrical projects. The color-coded PVC/Nylon insulating sleeves make it easy to identify wire gauges at a glance, reducing errors and speeding up installations.
Key Features

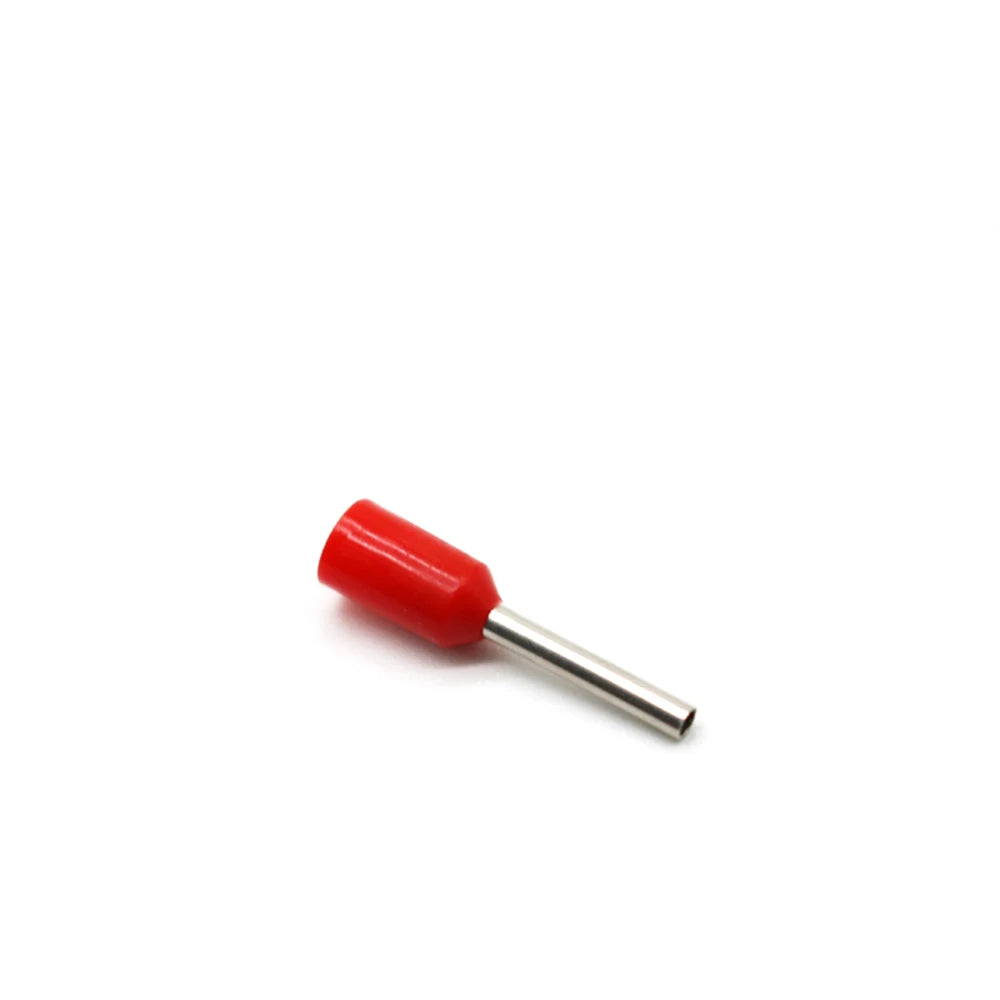

- Material: Pure copper barrel with electro-plated tin finish for excellent conductivity and corrosion resistance
- Insulation: PVC + Nylon sleeve for secure, durable insulation
- Max Voltage/Temp: UI = 300V, rated up to 150°C
- Wire Range: AWG 22–10 (0.5 mm² – 6.0 mm²)
- Copper Length: 8 mm (12 mm for E6012)

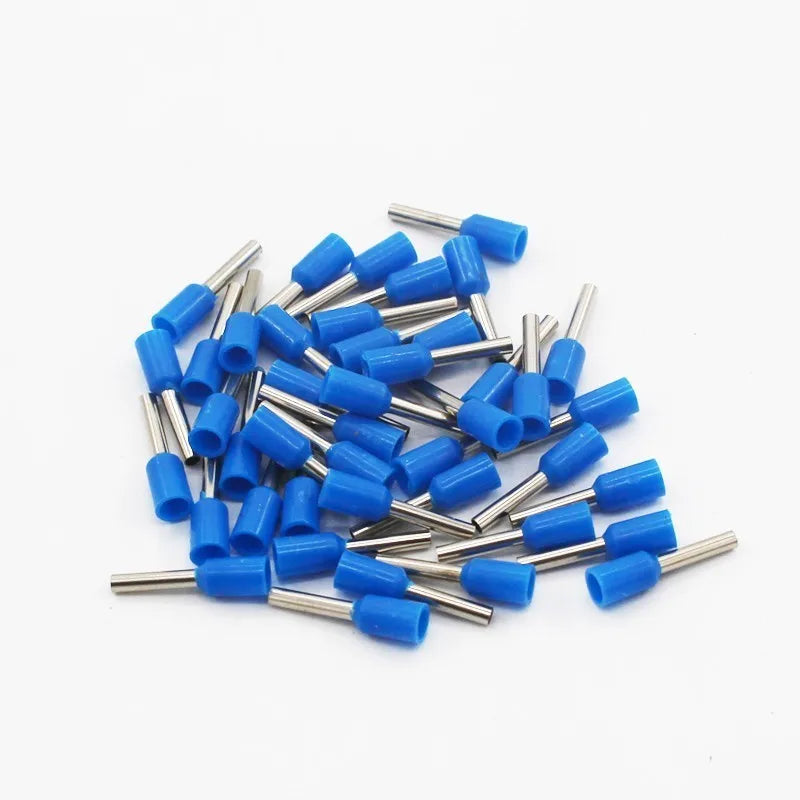

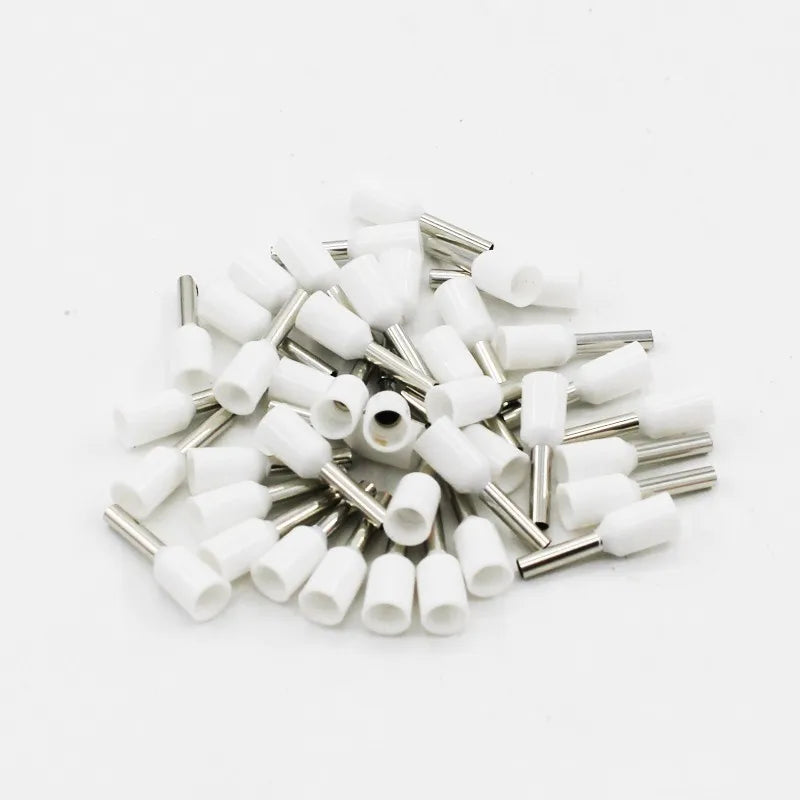

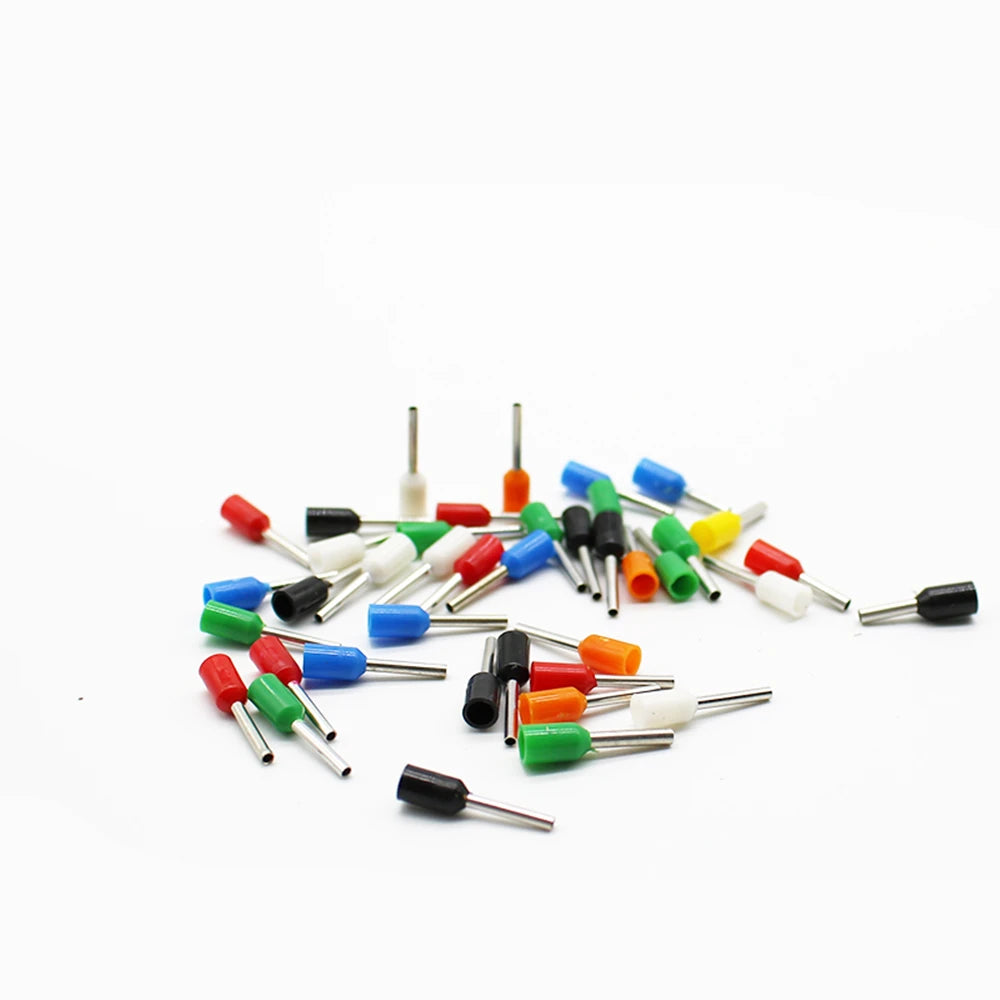

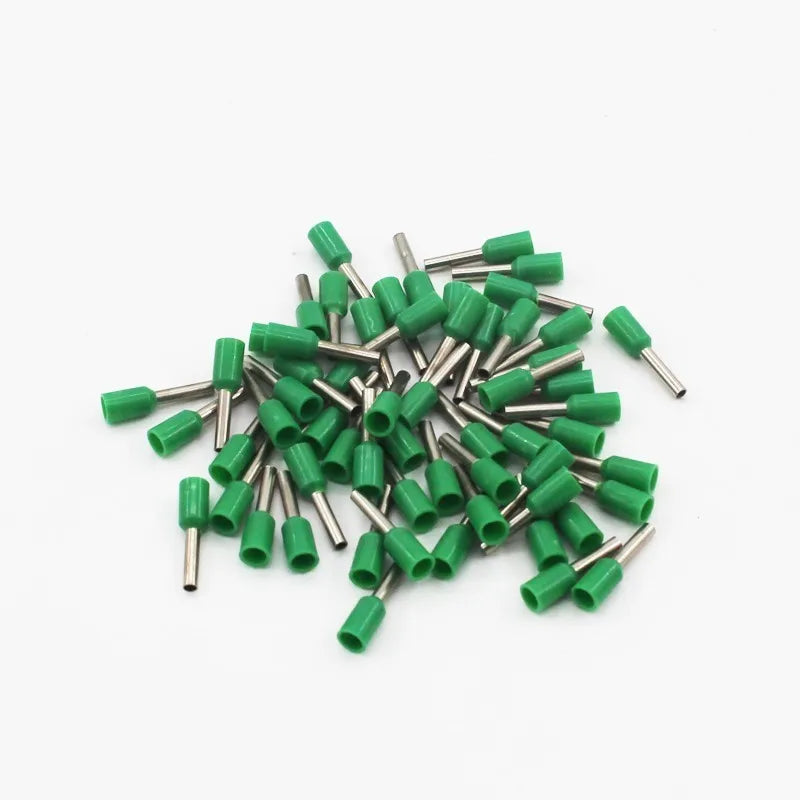

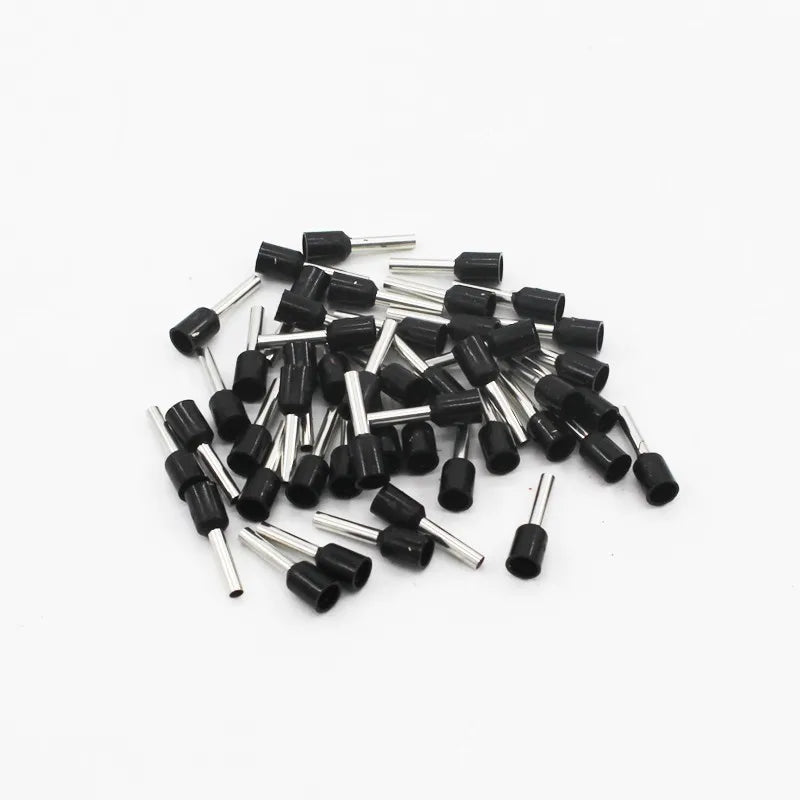

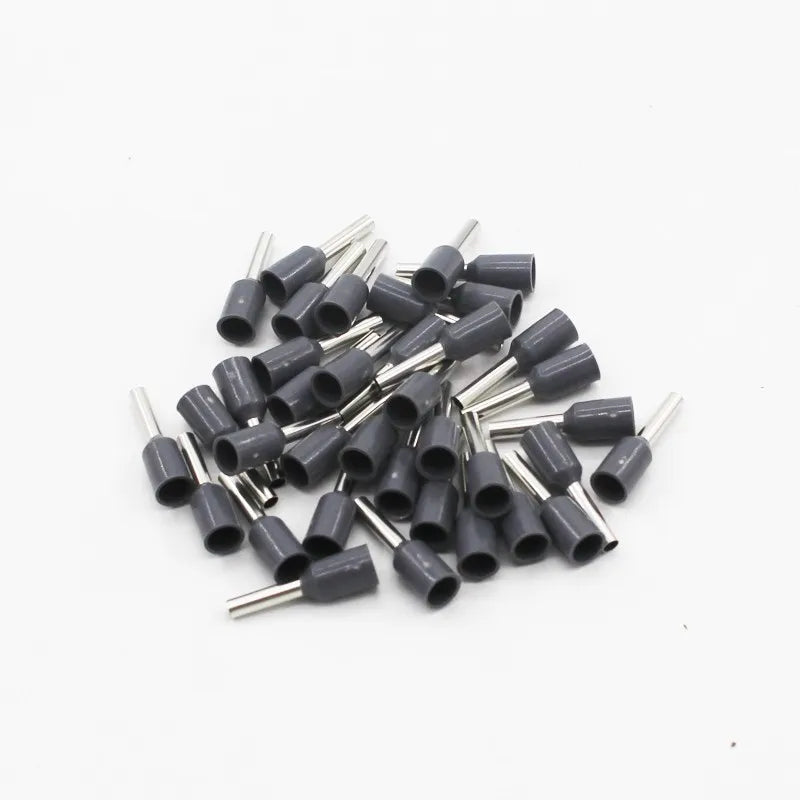

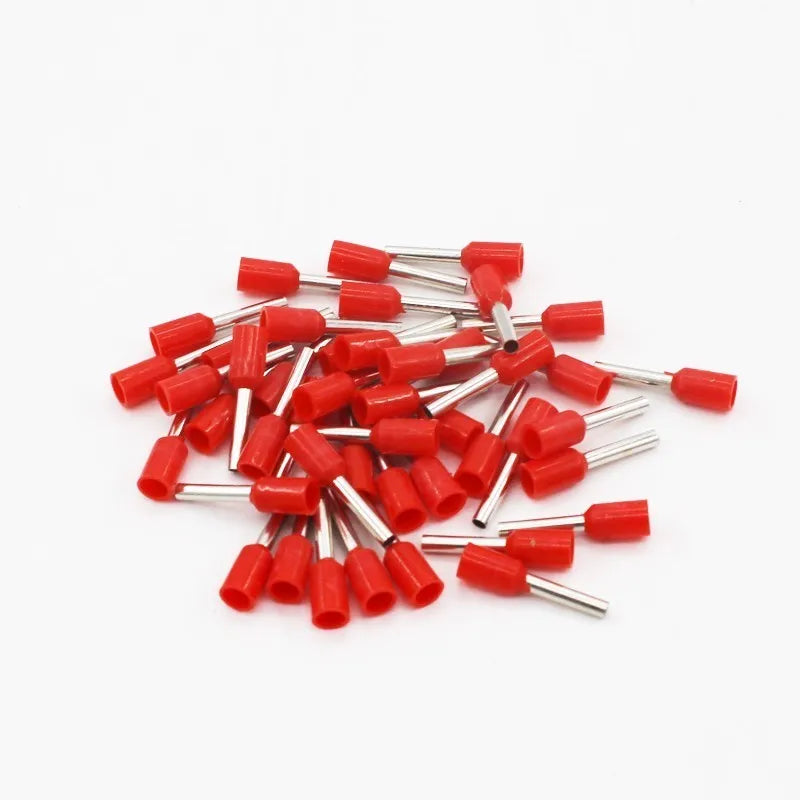

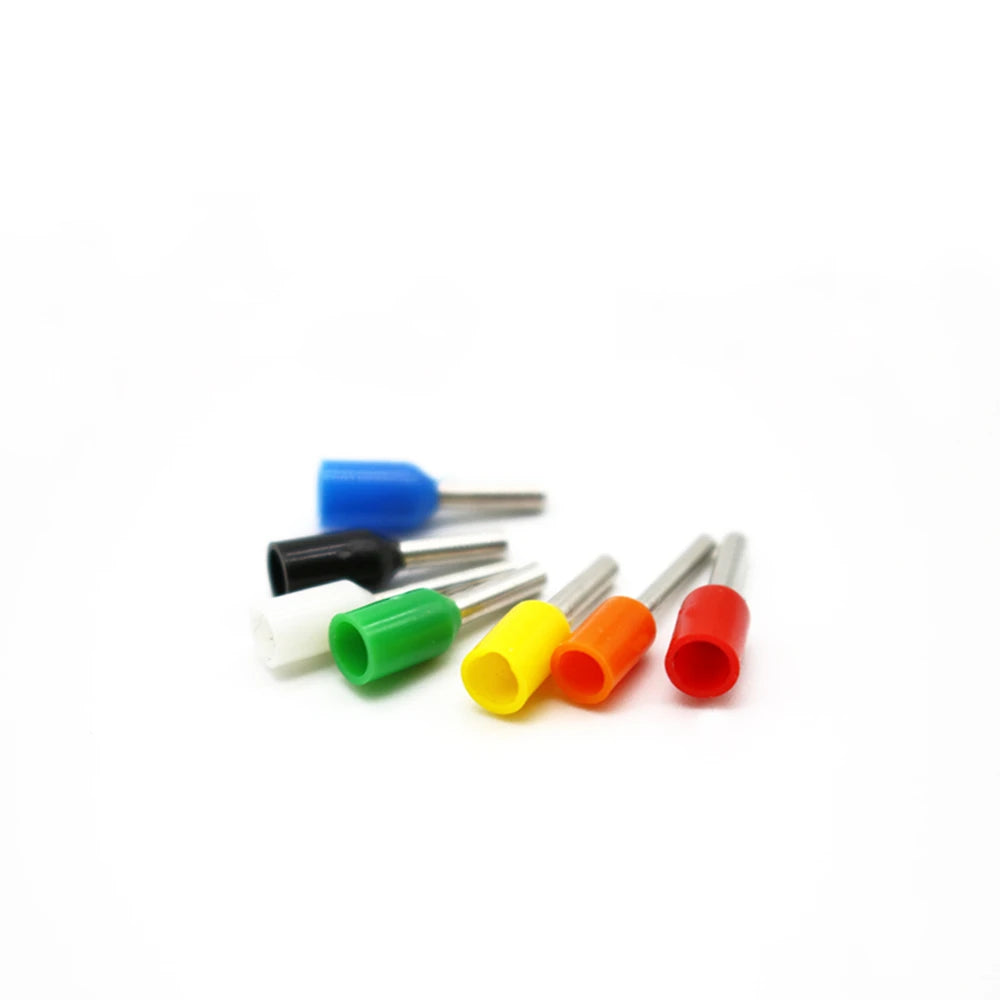

- Colors Available: Red, Yellow, Blue, Black, Green, White, Gray, Brown, Orange
- Quantity: 100 pcs per pack
- Made in Mainland China
Specifications Table
| Item No. | F (mm) | L (mm) | W (mm) | DΦ (mm) | CΦ (mm) | AWG | Cable Size (mm²) |
|---|---|---|---|---|---|---|---|
| E0508 | 8.0 | 14.0 | 2.6 | 1.3 | 1.0 | #22 | 0.5 |
| E7508 | 8.0 | 14.4 | 2.8 | 1.5 | 1.2 | #20 | 0.75 |
| E1008 | 8.0 | 14.4 | 3.0 | 1.7 | 1.4 | #18 | 1.0 |
| E1508 | 8.0 | 14.4 | 3.5 | 2.0 | 1.7 | #16 | 1.5 |
| E2508 | 8.0 | 15.2 | 4.0 | 2.6 | 2.3 | #14 | 2.5 |
| E4009 | 9.0 | 16.5 | 4.4 | 2.6 | 2.8 | #12 | 4.0 |
| E6012 | 12.0 | 20.5 | 6.3 | 3.2 | 3.5 | #10 | 6.0 |
Why Choose These Ferrule Terminals?
The tin-plated copper barrel ensures a low-resistance, vibration-resistant crimp that won't loosen over time. The sturdy PVC/Nylon insulating collar protects the wire entry point from fraying, short circuits, and mechanical stress — essential for long-lasting electrical installations in homes, workshops, and industrial settings.
Compatible With
- Terminal blocks and DIN rail systems
- Control panels and switchboards
- Automotive wiring harnesses
- Home and industrial electrical projects
Related Products You May Like
- 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
- 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What wire sizes are compatible with these insulated ferrule terminals?
A: These ferrule terminals support wire gauges from AWG 22 to AWG 10, covering cable cross-sections from 0.5 mm² up to 6.0 mm², making them suitable for a wide range of light to medium-duty electrical wiring applications.
Q: What tool do I need to crimp these ferrule terminals?
A: A dedicated ferrule crimping tool (also called a cord-end crimper) is recommended for best results. Match the crimping tool jaw size to the terminal size (e.g., E0508 for 0.5 mm² wire). Standard pliers are not recommended as they may not provide a secure, uniform crimp.
Q: Are these ferrule terminals safe for panel wiring and terminal blocks?
A: Yes. The tin-plated copper barrel and PVC/Nylon insulation sleeve ensure a secure, low-resistance connection rated up to 300V and 150°C, making them well-suited for use in terminal blocks, control cabinets, and other standard panel wiring applications.
Q: How do the color codes help with wiring projects?
A: The color-coded insulating sleeves (Red, Yellow, Blue, Black, Green, White, Gray, Brown, Orange) allow you to quickly identify different wire gauges and circuits at a glance, making installations faster, more organized, and easier to troubleshoot.
