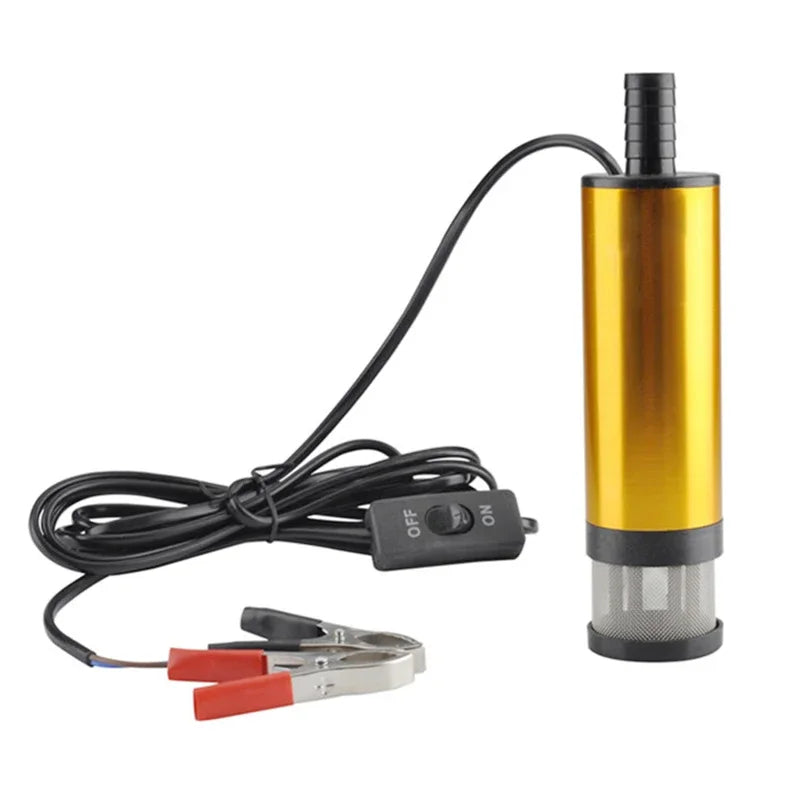

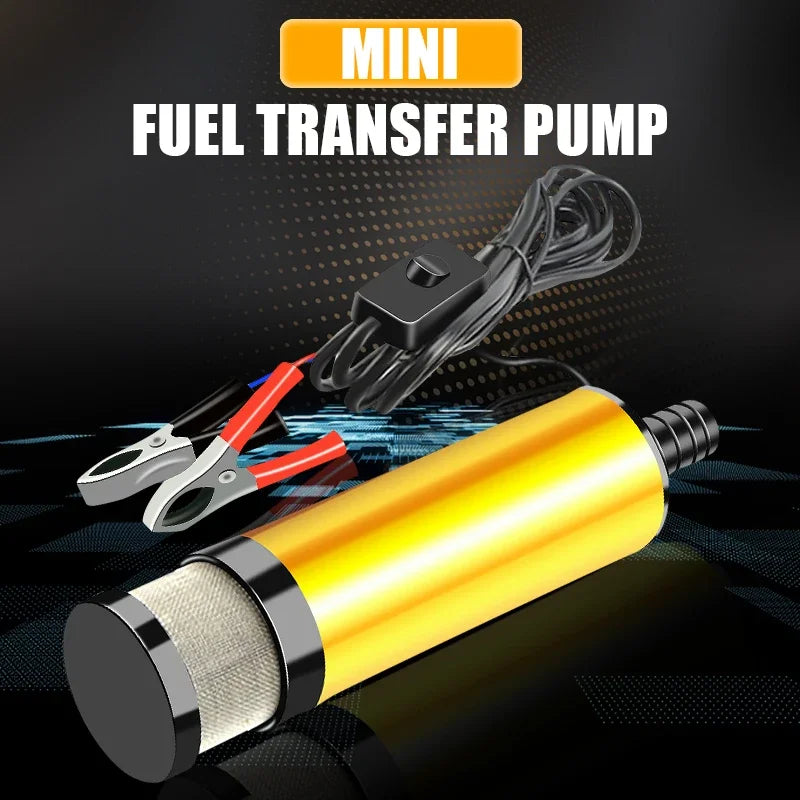

12V Submersible Electric Fuel Transfer Pump – Diesel & Water 12L/min

12V Submersible Electric Fuel Transfer Pump – Diesel, Oil & Water

Move diesel, kerosene, water, and other compatible liquids quickly and efficiently with this 12V DC submersible electric transfer pump. Featuring a robust aluminum alloy and stainless steel construction, a high-speed centrifugal pump design, and a flow rate of up to 12L/min (38mm) or 32L/min (51mm), this portable pump is a must-have for agricultural machinery, construction equipment, large tractors, and field refueling where access to a fuel station is not practical.

Key Features

• Electric Powered: Runs on 12V or 24V DC power — efficient and reliable without consuming fuel.
• Centrifugal Pump Structure: Delivers high-volume flow for fast liquid transfer, minimizing downtime during refueling or water-transfer tasks.
• Durable Aluminum Alloy & Stainless Steel Shell: Corrosion-resistant construction ensures long service life even in demanding environments.
• Fully Submersible Design: Can be fully submerged in the liquid being transferred — no priming needed.

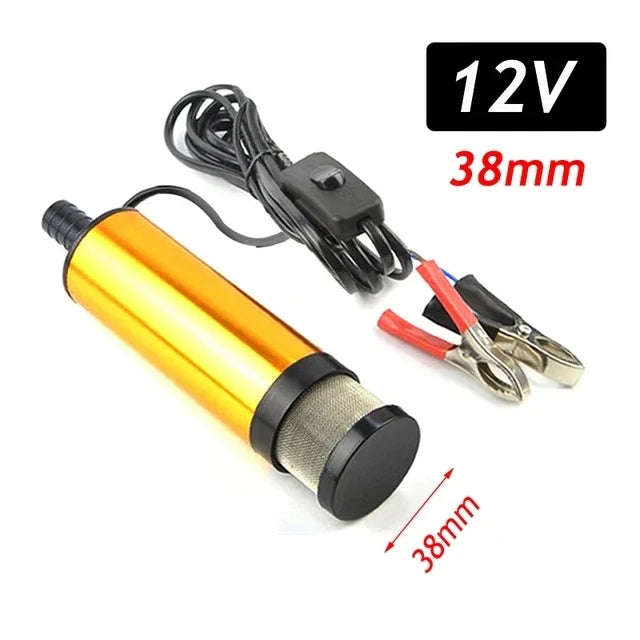

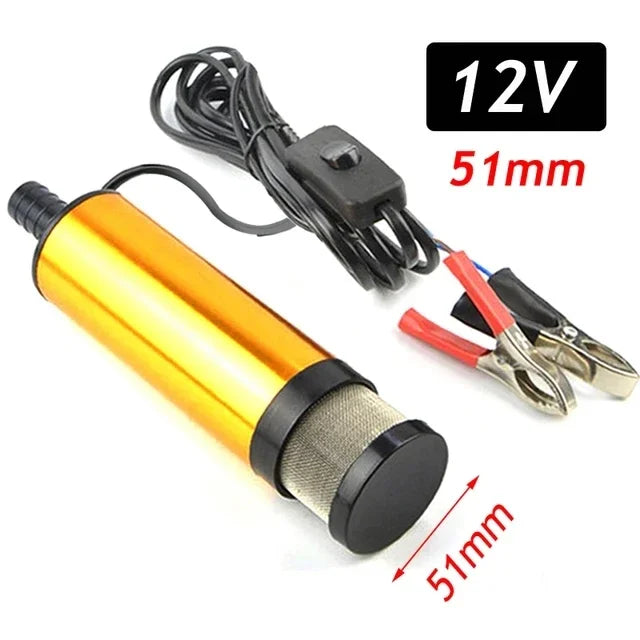

• High Transfer Rate: 12L/min at 38mm diameter; 32L/min at 51mm diameter — quickly moves large volumes to reduce wait times.

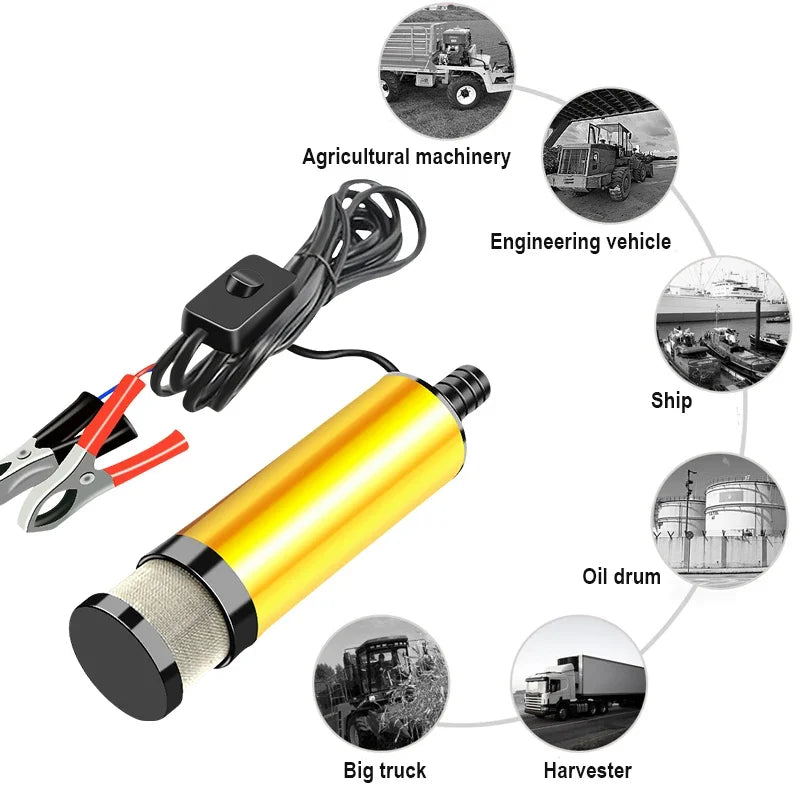

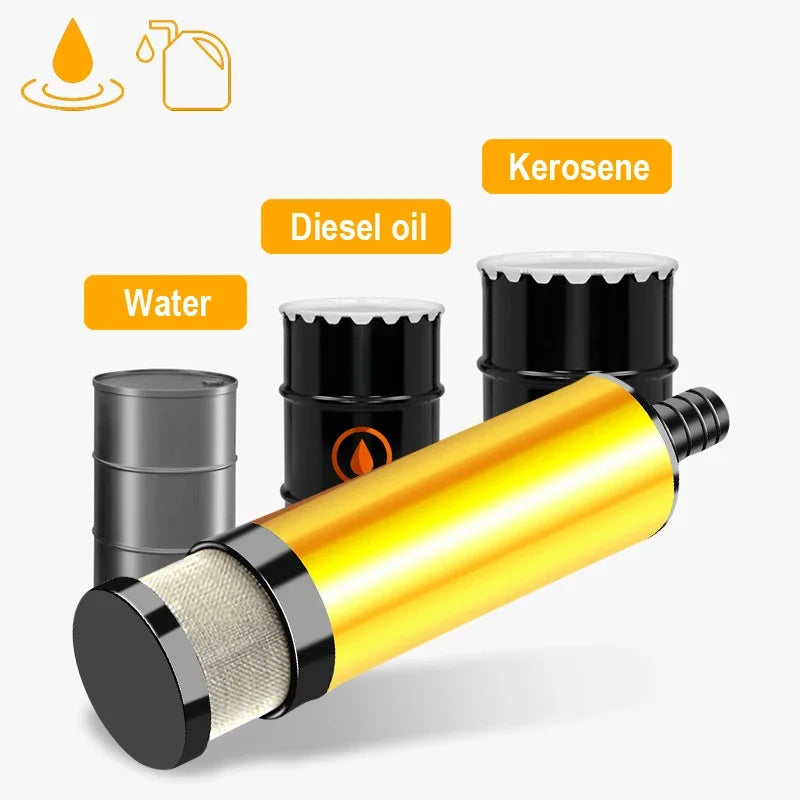

• Versatile Liquid Compatibility: Suitable for diesel, kerosene, and water. Works with harvesters, agricultural machinery, construction equipment, and more.

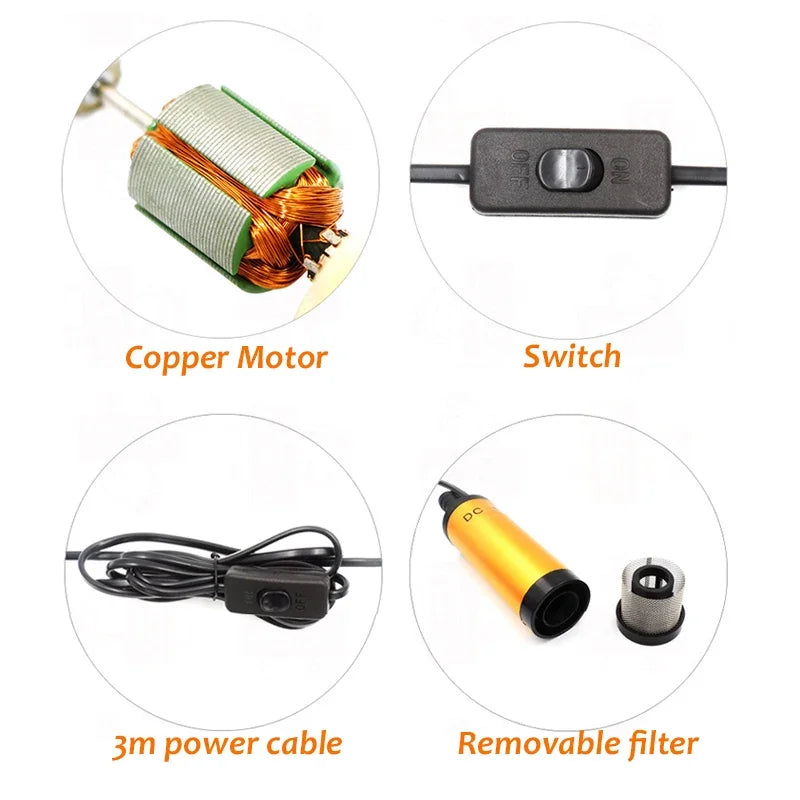

• Built-In Stainless Steel Bottom Filter: Keeps extracted liquids clean; threaded filter cap allows easy removal, cleaning, and replacement.
• Multi-Channel Sealing: Fully sealed and insulated design prevents leaks and extends motor life.
• Low Noise DC Motor: 8,500 RPM motor delivers strong performance with minimal noise.
• Portable & Lightweight: Compact form factor with a 3-meter wire for easy setup anywhere.

Product Specifications

Important Safety Notes

• Always fully submerge the pump in liquid before operating — do not run dry.
• Do NOT use for gasoline, alcohol, or other flammable/explosive liquids.
• Do NOT use for transporting chemical or corrosive liquids.
• Connect positive and negative poles correctly; do not reverse polarity.
• Maximum continuous operating time: 30 minutes. Remove from liquid promptly after use.

What's in the Box

• 1× 12V DC Electric Submersible Diesel/Fuel Transfer Pump
• Note: Oil outlet hose is not included and must be self-provided.

You May Also Like

Looking for more workshop and utility accessories? Check out our 1000D Tactical EDC Tool Storage Bag — ideal for organizing pump accessories and field equipment. For adhesive automotive accessories, explore our Car Molding Trim Tape.

Learn more: FuelEconomy.gov on vehicle maintenance

Frequently Asked Questions

Q: What liquids is this submersible electric fuel transfer pump compatible with?

A: This 12V submersible pump is designed for diesel, kerosene, and water. It is NOT suitable for gasoline, alcohol, or any flammable or chemically corrosive liquids. Always verify liquid compatibility before use.

Q: Does this pump need to be primed before use?

A: No priming is required. The submersible design means the pump draws liquid directly when fully submerged. Simply place the pump into the liquid, connect the power supply, and it is ready to operate.

Q: Can I use this pump with a 24V power supply?

A: Yes. This pump supports both 12V and 24V DC power supplies, making it flexible for use with a wide range of vehicles and machinery including trucks, tractors, and agricultural equipment.

Q: How long can the pump run continuously?

A: The maximum recommended continuous operating time is 30 minutes. After use, remove the pump from the liquid promptly to preserve motor life and overall pump longevity.

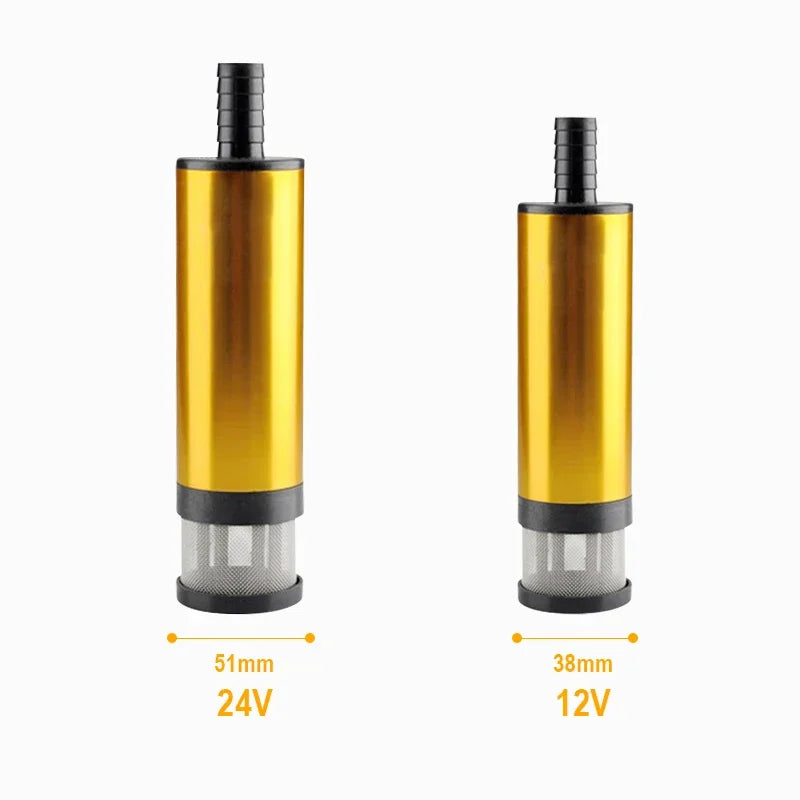

Q: What is the difference between the 38mm and 51mm versions?

A: The 38mm outer diameter model delivers a flow rate of 12L/min, while the 51mm outer diameter model delivers a higher flow rate of 32L/min. Choose based on how quickly you need to transfer liquid and the capacity of your equipment or containers.
