15EDG 3.81mm PCB Screw Terminal Block 5 Pair 2–12 Pin Connector

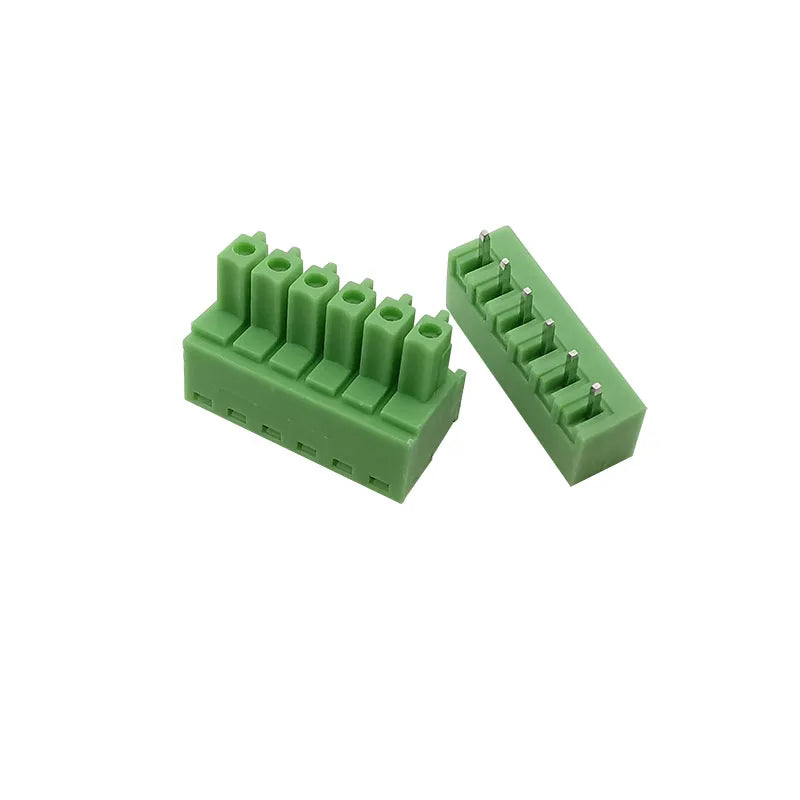

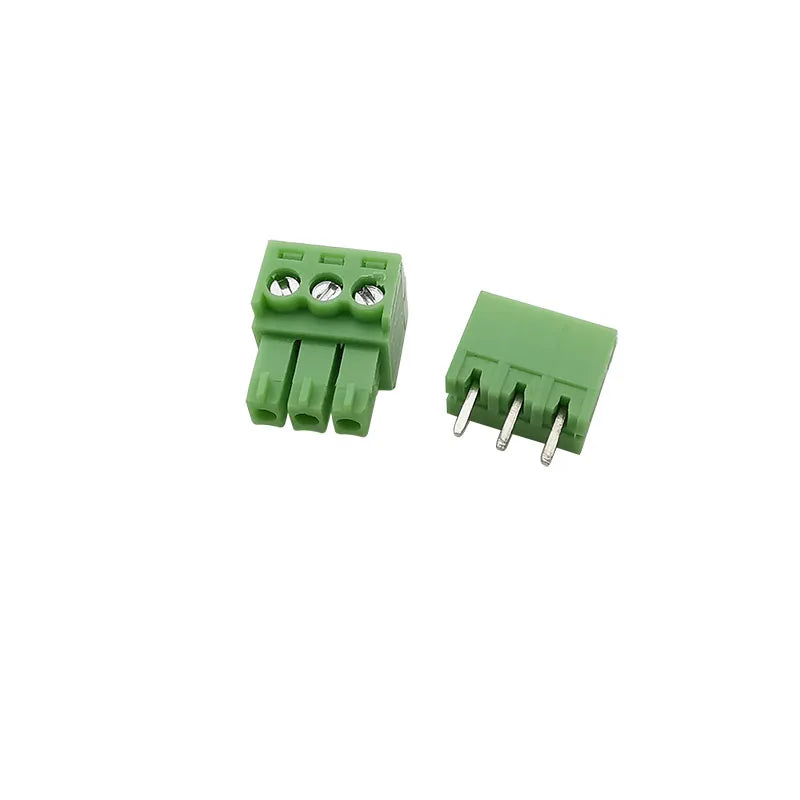

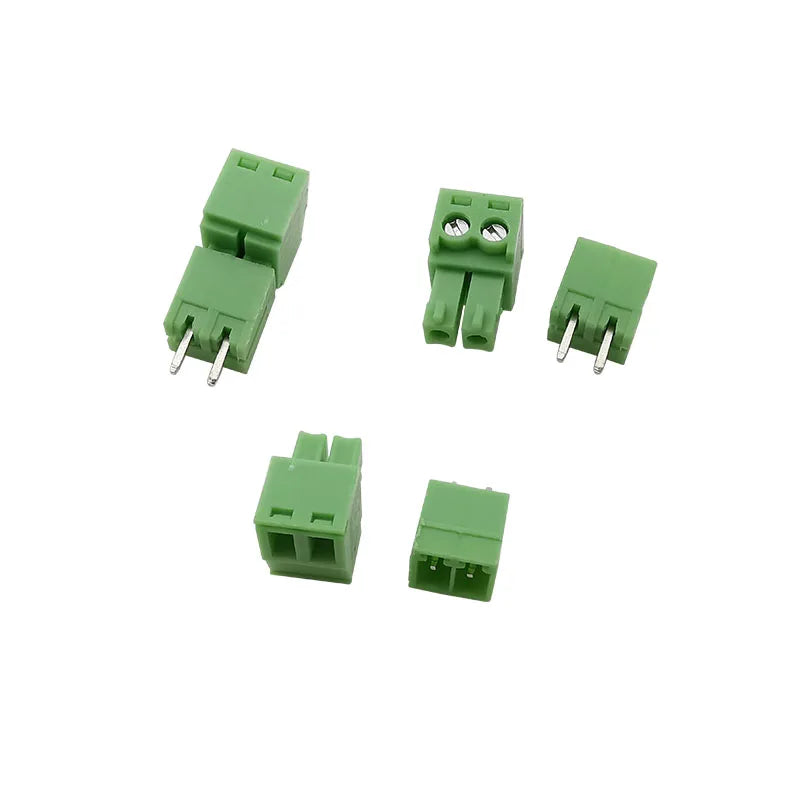

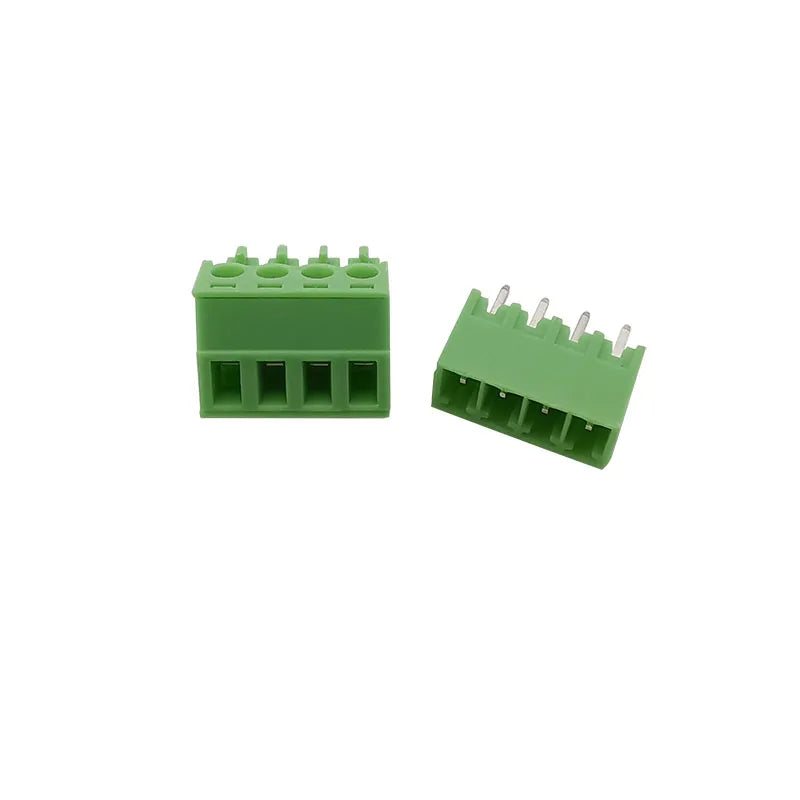

15EDG 3.81mm Pitch PCB Screw Terminal Block – 5 Pair Set

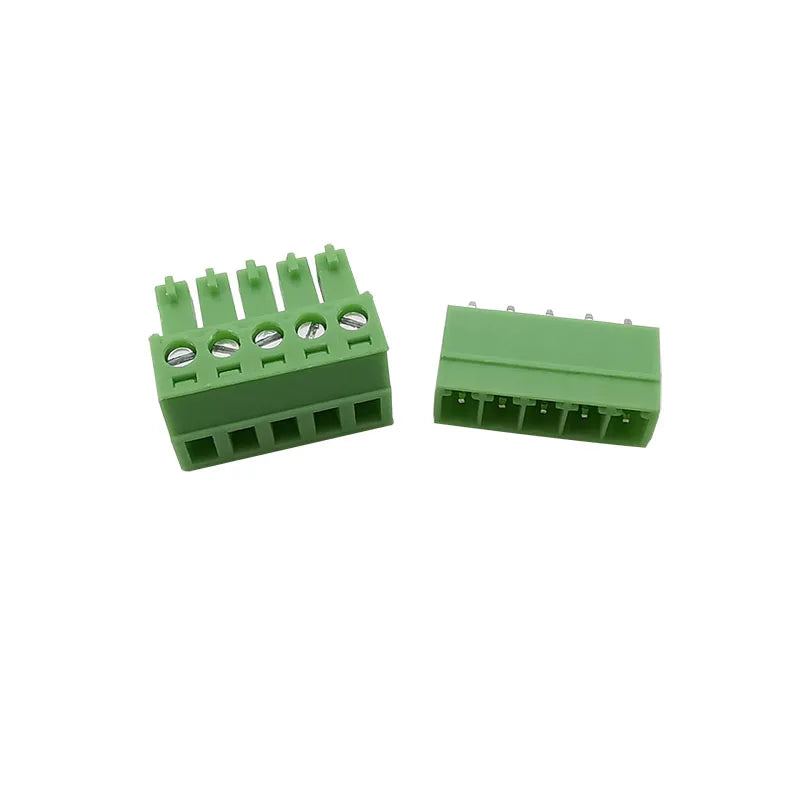

Upgrade your PCB wiring projects with these reliable 15EDG 3.81mm pitch screw terminal block connectors. Each set includes 5 male plugs and 5 female sockets, giving you secure, tool-free mating connections for a wide range of electronic applications. Available in 2 to 12 pin configurations to suit any circuit layout.

Built with a flame-retardant PA66 UL94V-0 housing, phosphor bronze nickel-plated contacts, and a brass nickel-plated wire cage, these connectors are designed for dependable performance in both hobbyist and professional environments. Made in China.

Key Specifications

• Model: 15EDG / KF2EDG 3.81mm
• Pitch: 3.81 mm

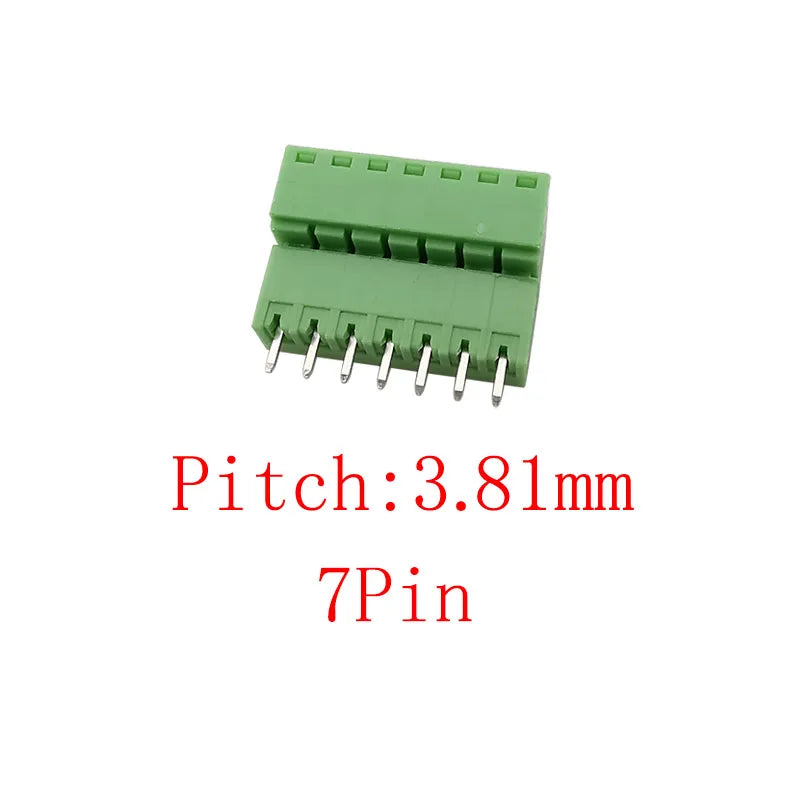

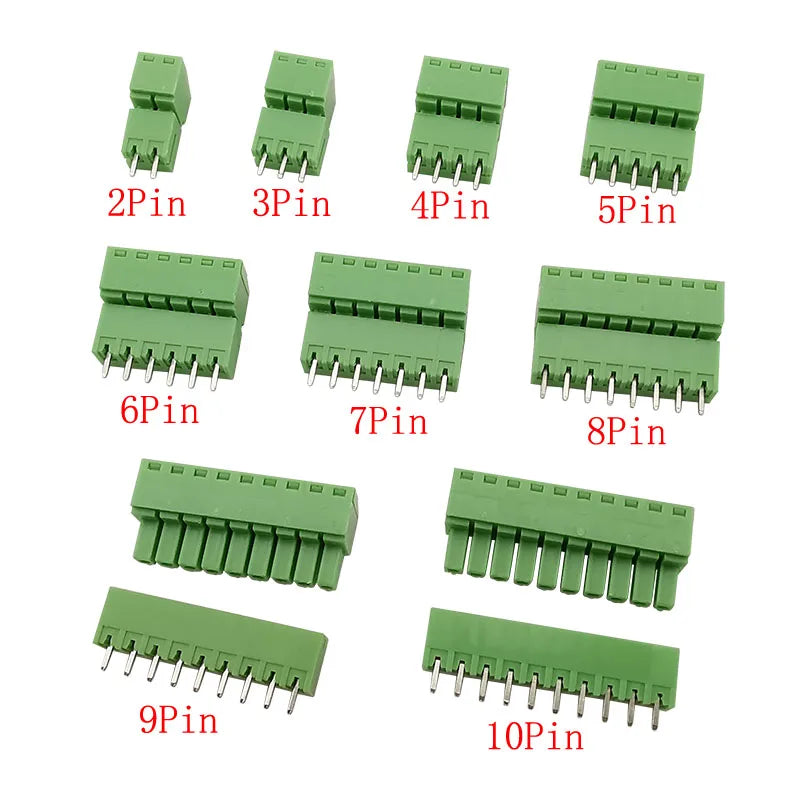

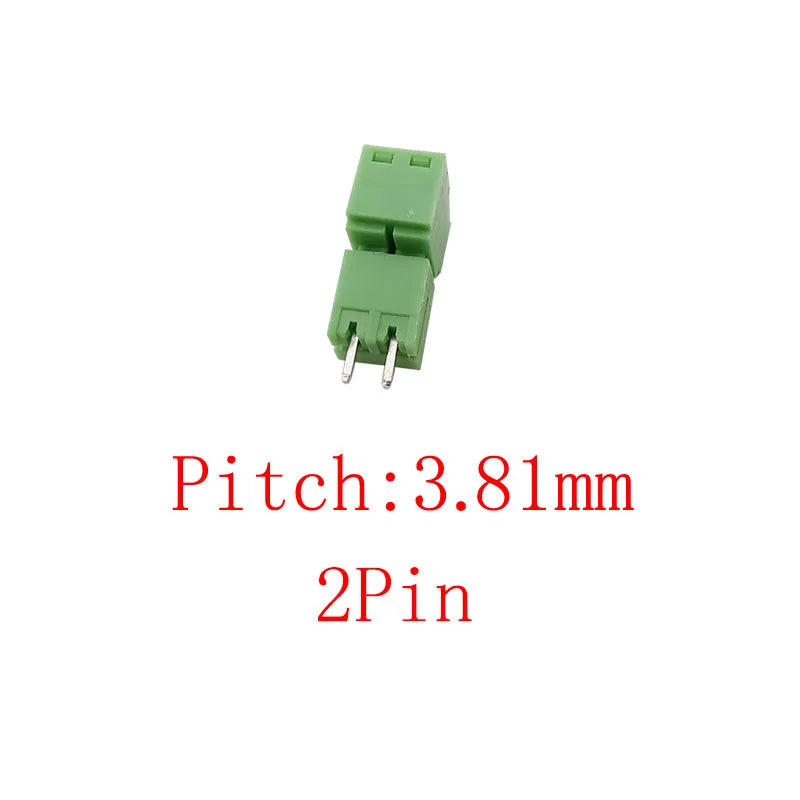

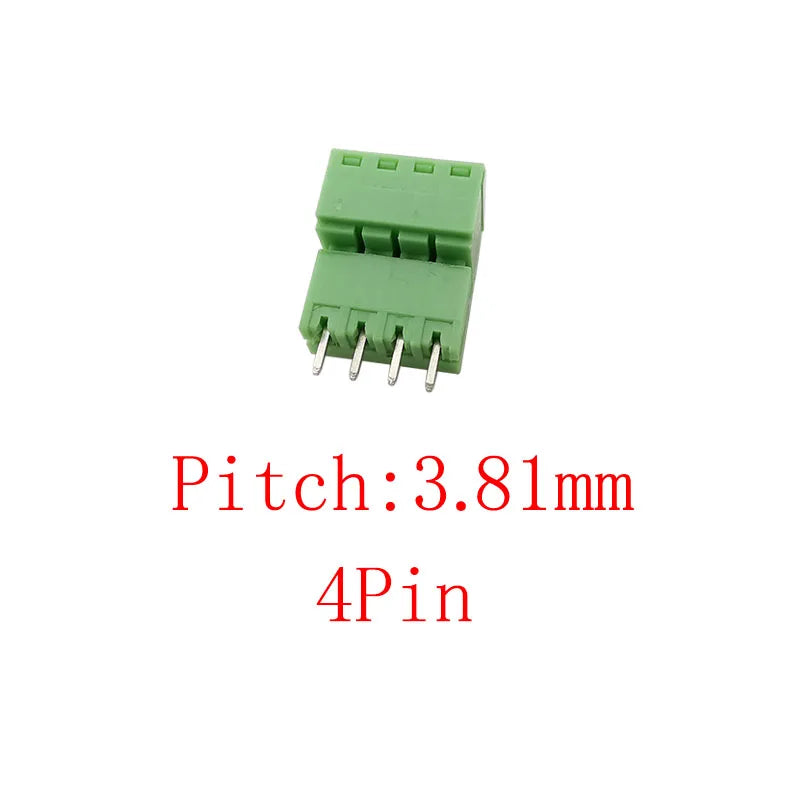

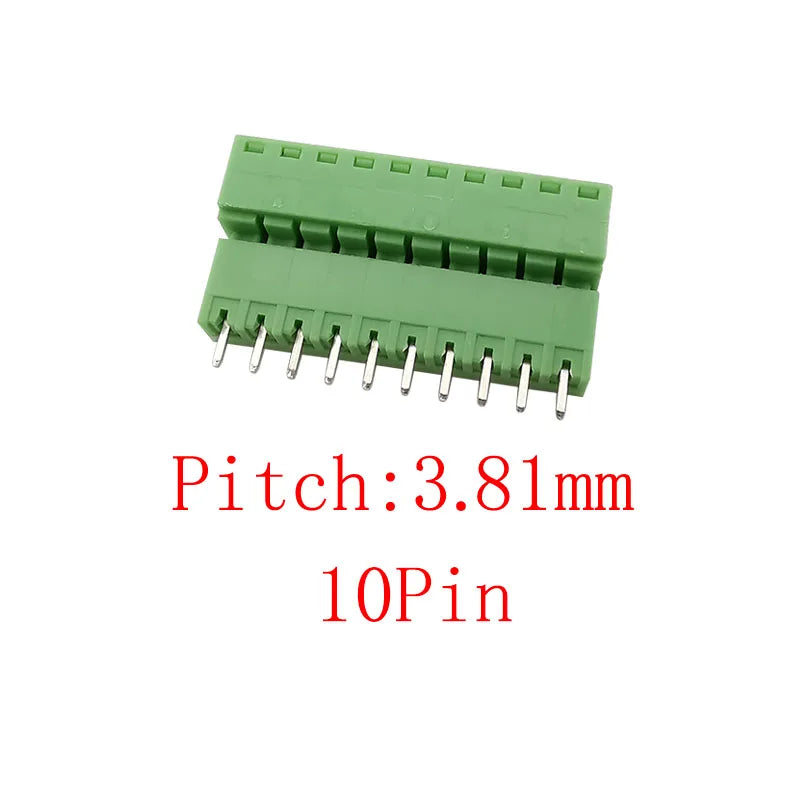

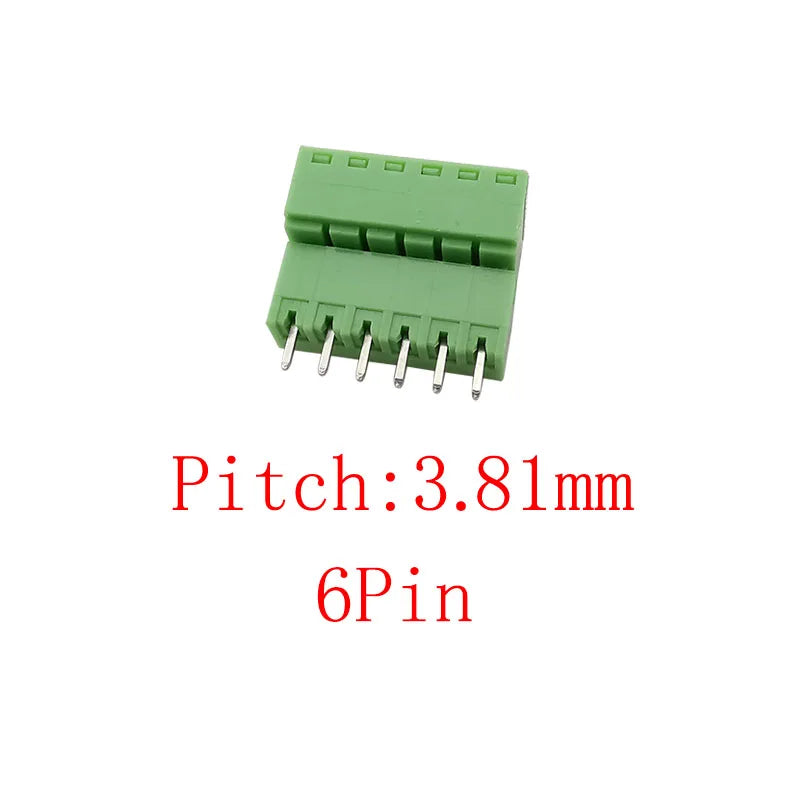

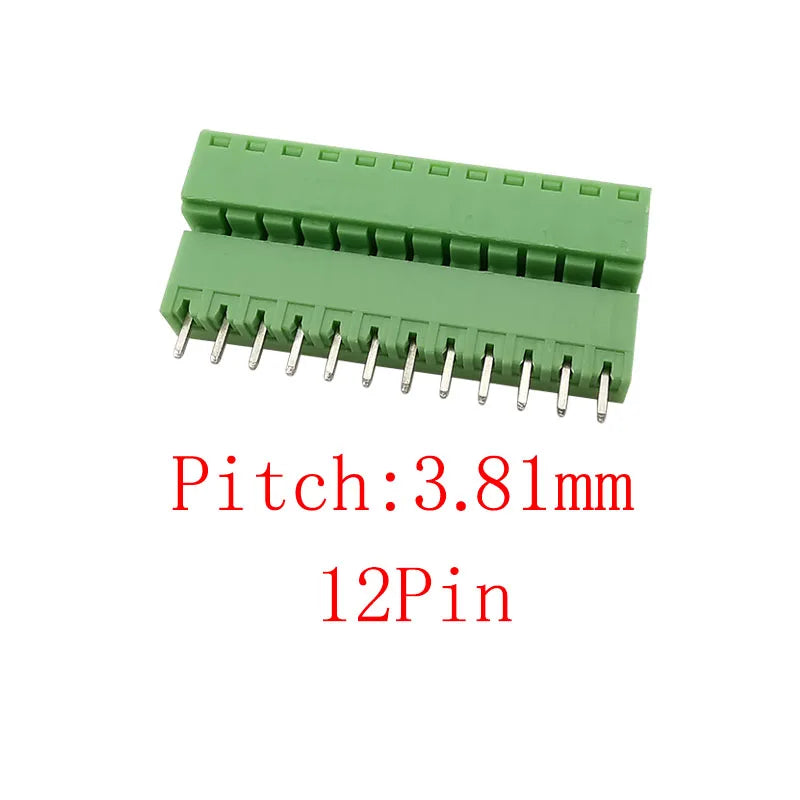

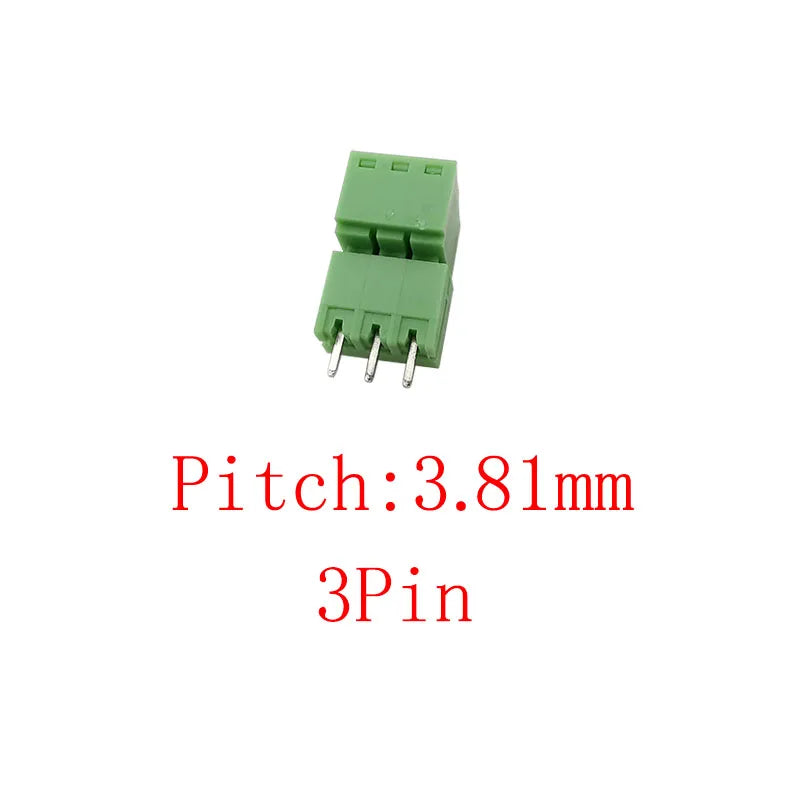

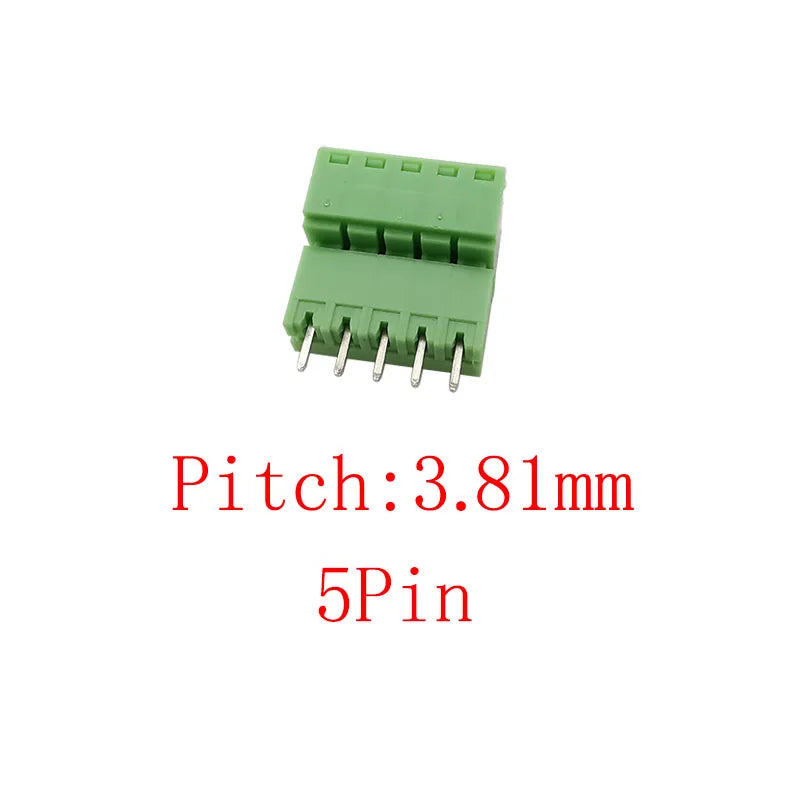

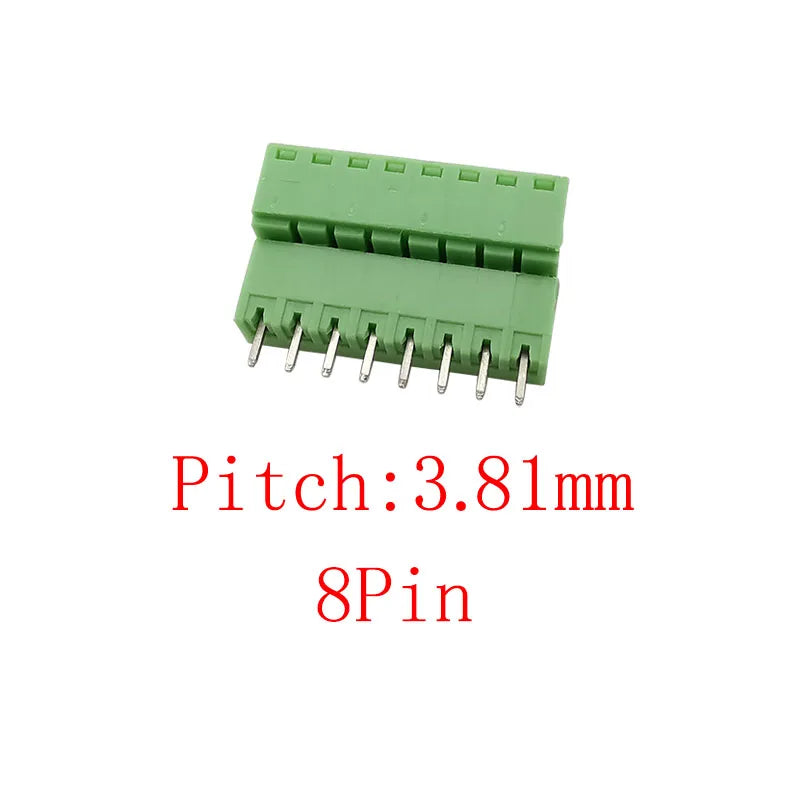

• Pin Options: 2, 3, 4, 5, 6, 7, 8, 9, 10, 12 Pin
• Style: Straight Pin (Male Plug + Female Socket)
• Rated Voltage: 125V (EU LVD: below 50Vac / 75Vdc)
• Rated Current: 8A
• Wire Range: 26–16 AWG
• Strip Length: 7 mm
• Screw: M2, Steel – Zinc Plated
• Contact Material: Phosphor Bronze, Nickel Plated
• Wire Cage: Brass, Nickel Plated
• Housing: PA66 UL94V-0 (Flame Retardant)
• Package: 5 Pairs (5 × Male + 5 × Female)
• Color: Green

Why Choose These Terminal Blocks?

• ✅ Compact 3.81mm pitch — ideal for space-constrained PCB layouts
• ✅ Easy plug-and-play design — male plug separates from female socket for hassle-free maintenance
• ✅ Secure screw-clamped connections — prevents wire loosening under vibration
• ✅ Wide wire compatibility — accepts 26–16 AWG wire for versatile use
• ✅ Flame-retardant housing — meets UL94V-0 safety standard
• ✅ Nickel-plated contacts — resist corrosion and ensure consistent conductivity

Common Applications

• PCB prototyping and development boards
• Industrial control panels and automation systems
• LED driver and power supply wiring
• Sensor and signal wiring in embedded systems
• DIY electronics projects and repairs

Related Products

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is included in each 5-pair PCB screw terminal block set?

A: Each set contains 5 pairs — that is 5 male plug connectors and 5 female socket connectors — for a total of 10 pieces. All pieces share the same pin count (your selected option: 2 to 12 pins) and 3.81mm pitch.

Q: What wire gauge is compatible with these 15EDG 3.81mm terminal blocks?

A: These connectors accept wires in the range of 26 AWG to 16 AWG, covering most standard signal and low-power wiring needs. Ensure the wire is stripped to approximately 7mm before insertion.

Q: Are these terminal block connectors safe for use in enclosed electronics enclosures?

A: Yes. The housing is made from PA66 UL94V-0 flame-retardant material, meaning it meets a recognized standard for resistance to ignition. They are rated for up to 125V and 8A, making them suitable for low-voltage PCB applications in enclosed and semi-enclosed environments.

Q: Can these connectors be used for both PCB prototyping and production boards?

A: Absolutely. The 15EDG series is widely used across both prototype development and small-batch production environments. The plug-in design allows the female socket to be soldered onto the PCB permanently while the male plug can be disconnected and reconnected as needed for easy servicing.
