1U Rack Patch Panel 4–16 Way XLR Connector Flight Case Mount

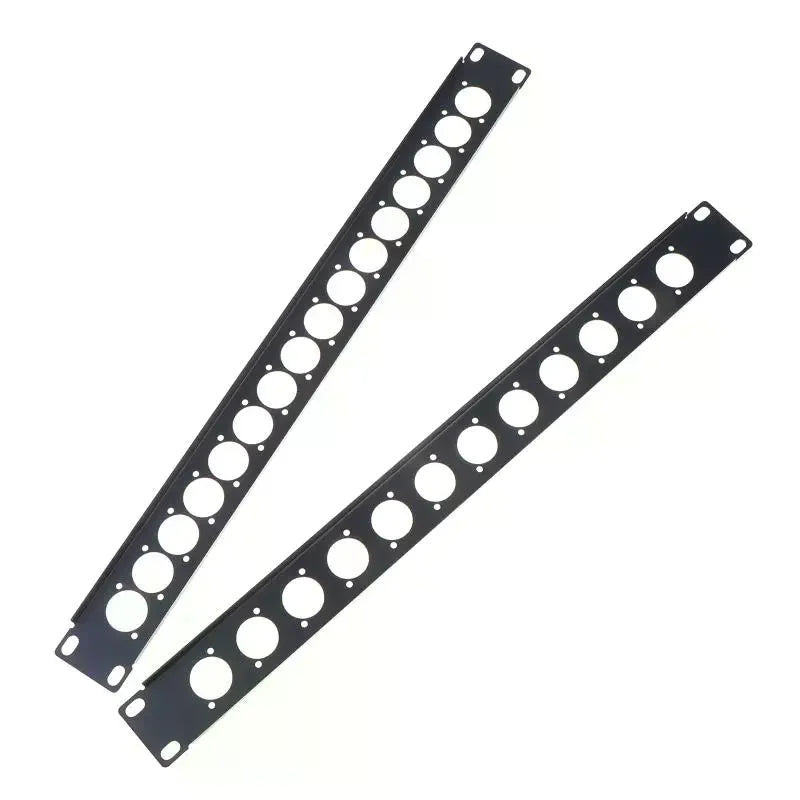

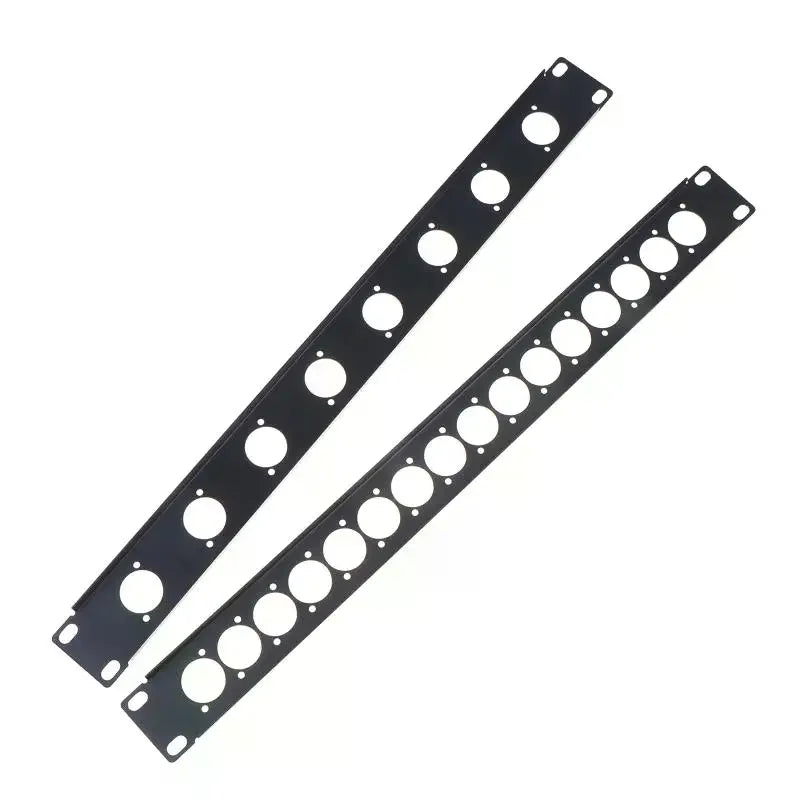

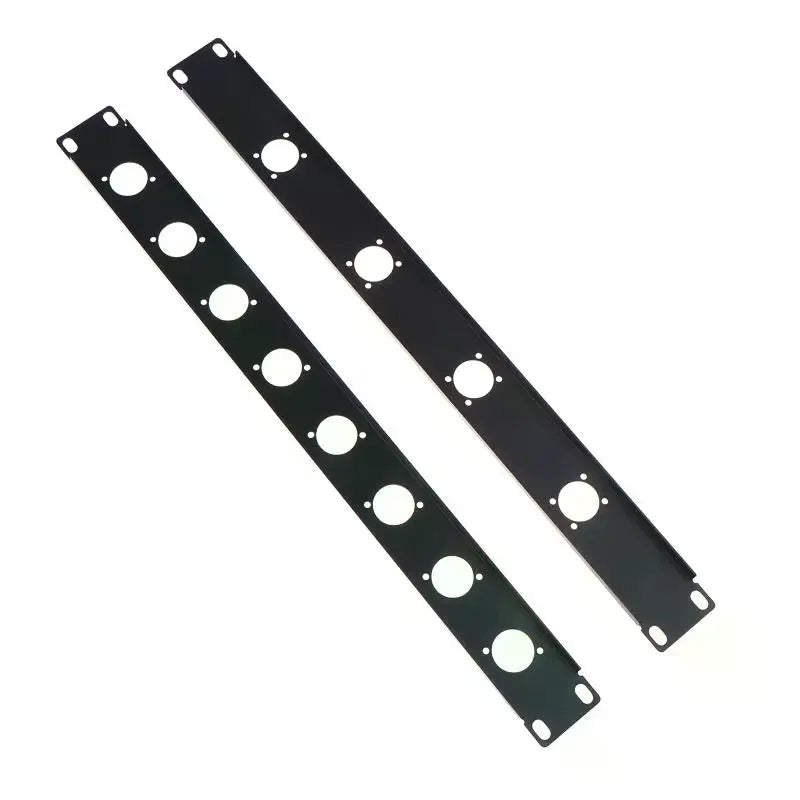

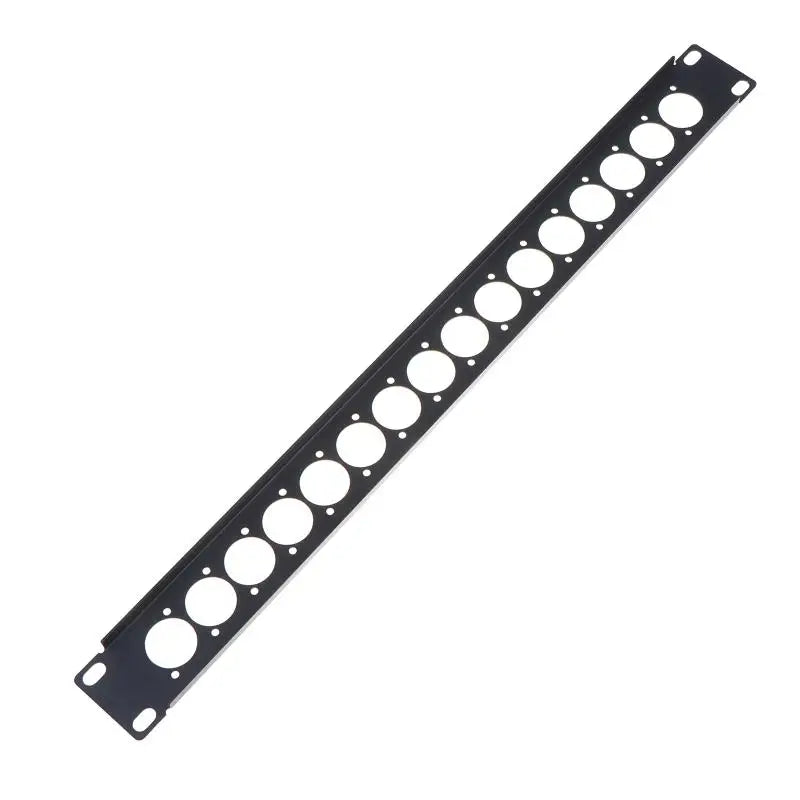

1U Rack Patch Metal Panel – 4/8/12/16 Way XLR Connector Mount

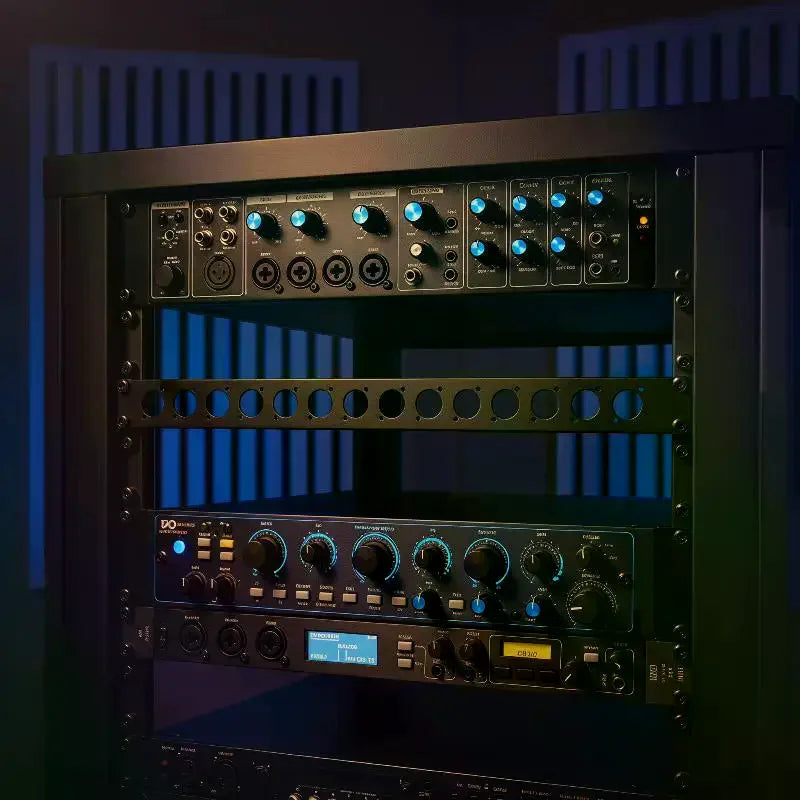

Organize your studio, stage, or broadcast rack with this professional-grade 1U Rack Patch Panel. Designed for XLR connectors, speaker jacks, and audio cable plugs, this metal panel keeps your signal chain tidy, clearly labeled, and easy to manage — whether you're setting up a small home studio or a full live sound rig.

Key Features

• Clear Digital Port Labeling: Every hole is printed with sequential numbers for instant port identification, eliminating confusion during cabling and troubleshooting in complex studio or stage setups.
• Detachable Jumper Rack Design: Removable sections behind the punch area allow easy connector installation and cable routing without removing the entire panel — simplifying maintenance and reconfiguration.
• Powder-Coated Metal Construction: Scratch-resistant and corrosion-resistant finish ensures long-lasting durability while providing EMI shielding and solid mechanical protection for your connectors.
• Universal 19" 1U Rack Standard: Fits standard 19-inch rack enclosures, flight cases, and studio furniture. Available in 4, 8, 12, and 16-way channel configurations.
• Versatile Applications: Ideal for professional audio racks, live sound stage boxes, snake systems, broadcast and video production racks, custom patch bays, signal distribution, and DIY amplifier or speaker processor installations.

Specifications

• Material: Metal (powder-coated)
• Size: 19.0 × 1.73 in / 48.3 × 4.4 cm (standard 1U)
• Color: Black

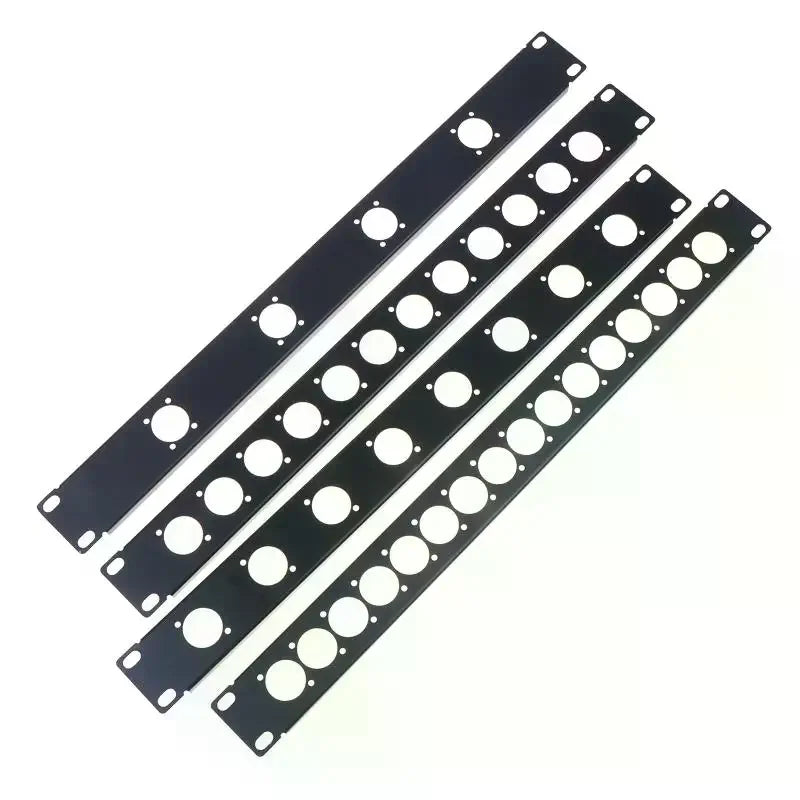

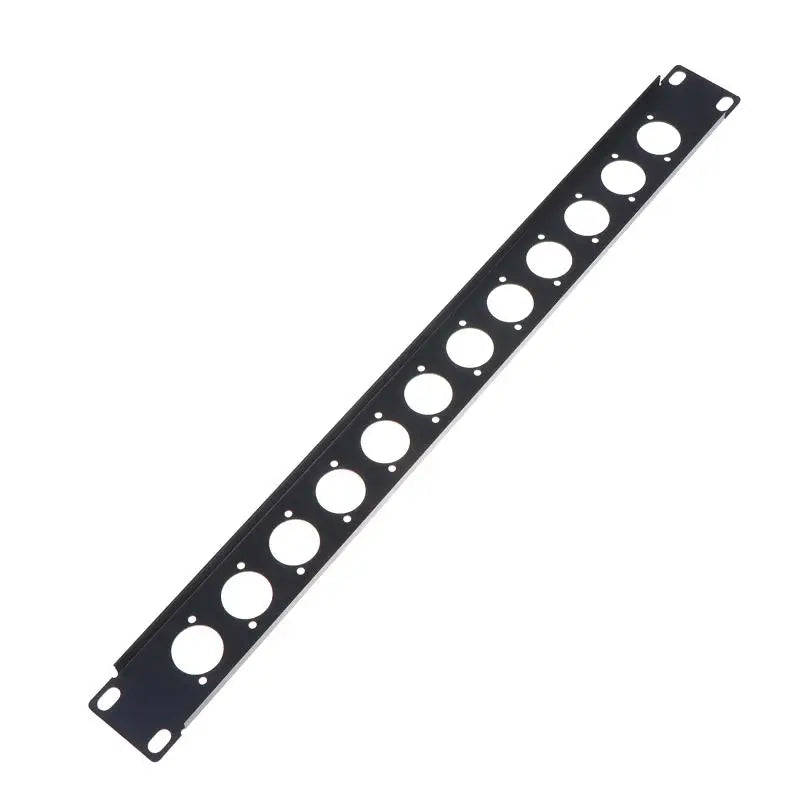

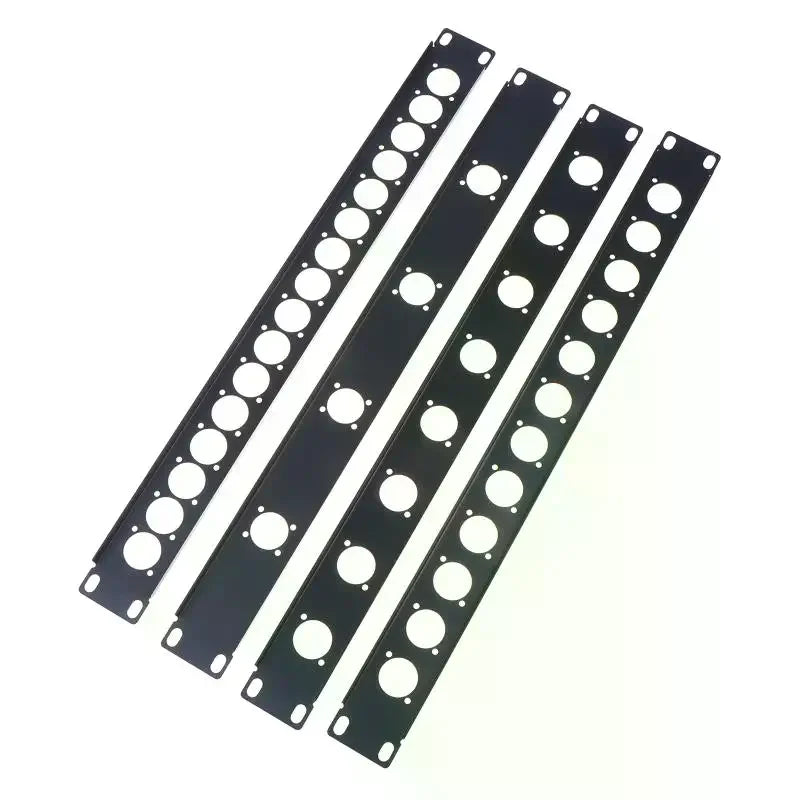

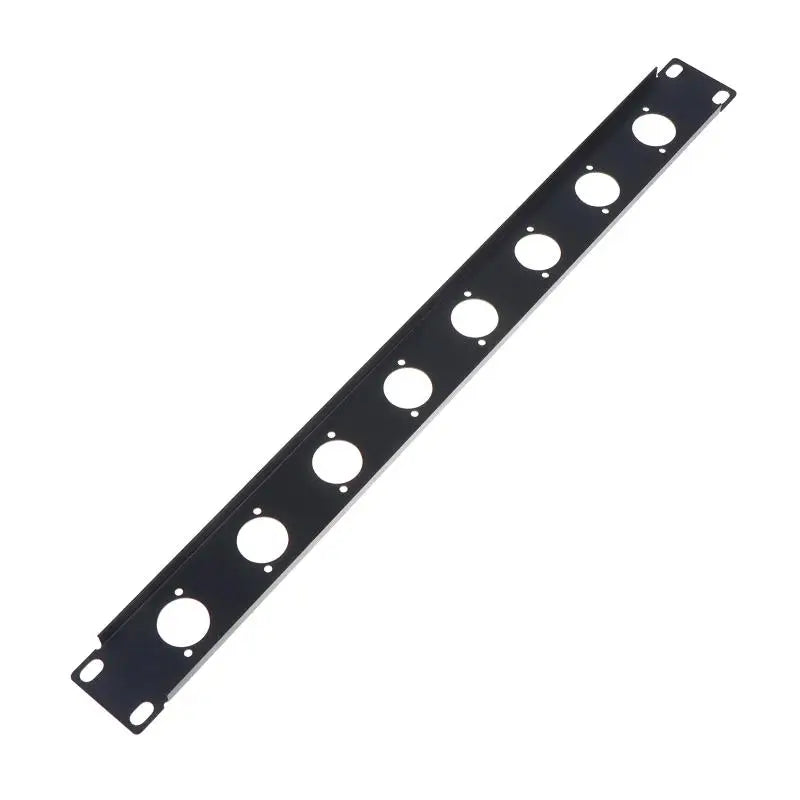

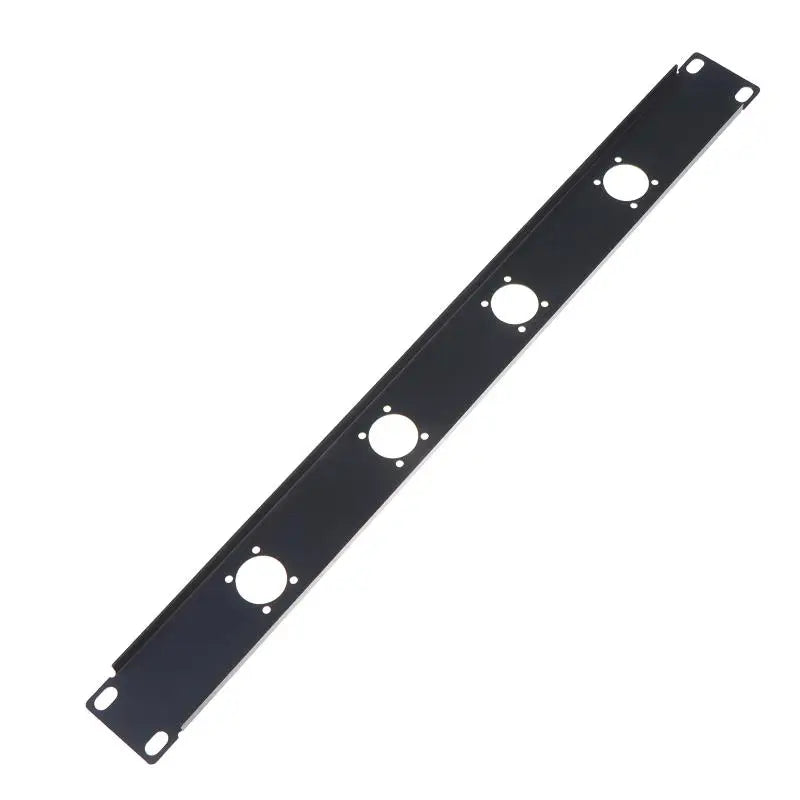

• Configurations Available: 4 / 8 / 12 / 16 Way Channel
• Connector Type: XLR, Speaker Jack, Audio Cable Plug Socket

Package Includes

• 1 × Punched Blind Panel (mounting screws not included)

Made in Mainland China.

You May Also Like

• 1000D Tactical EDC Bag – Portable Tool Storage Handbag
• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch – 1NO Metal 2-Pin Self-Reset

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What connector types does this 1U rack patch panel support?

A: This rack patch panel is designed for XLR connectors, speaker jacks, and standard audio cable plug sockets. It is available in 4, 8, 12, and 16-way channel configurations to suit a range of professional audio and broadcast setups.

Q: Will this panel fit a standard 19-inch rack or flight case?

A: Yes. The panel measures 19.0 × 1.73 inches (48.3 × 4.4 cm), which is the universal 1U standard for 19-inch rack enclosures, flight cases, and studio rack furniture. Please note that mounting screws are not included.

Q: Can I route cables without removing the entire panel?

A: Absolutely. The detachable jumper rack design features removable sections behind the punch area, allowing you to install connectors and route cables without taking the full panel out of the rack — making maintenance and reconfiguration much faster and easier.

Q: Is the panel durable enough for live stage use?

A: Yes. The panel is constructed from metal with a powder-coated finish that resists scratches and corrosion. It also provides EMI shielding and solid mechanical protection for your connectors, making it well-suited for both studio environments and live sound stage applications.
