304 SS Tee Fitting Double Ferrule T-Type Connector 3–12mm

$25.86 $29.22

Shipping calculated at checkout.

Thread Specification

304 Stainless Steel Tee Fitting – 3-Way Double Ferrule Pipe Connector

Upgrade your fluid or gas line with this precision-engineered 304 Stainless Steel T-Type Double Ferrule Tee Fitting. Designed for high-pressure applications, this 3-way connector delivers a leak-free, reliable seal for stainless steel tubing across a wide range of pipe outer diameters — from 3 mm all the way to 1/2 inch. Whether you're working on hydraulic systems, pneumatic lines, chemical transport, or precision instrumentation, this connector is built to perform.

Key Features

Material: Premium 304 Stainless Steel — corrosion-resistant, durable, and built for demanding environments
Type: TEE (T-Shape) — 3-way equal connector for splitting or joining lines
Double Ferrule Design: Forged construction ensures a secure, vibration-resistant compression seal
Hexagon Head Code: Easy wrench installation and removal
Operating Pressure: Up to 16 MPa (163.15 kgf/cm²) — rated ≥850 kPa
Operating Temperature: Up to 450°C — suitable for high-temperature applications
Fluid Compatibility: Oil, water, and gas
Finish: Silver tone — clean, professional appearance

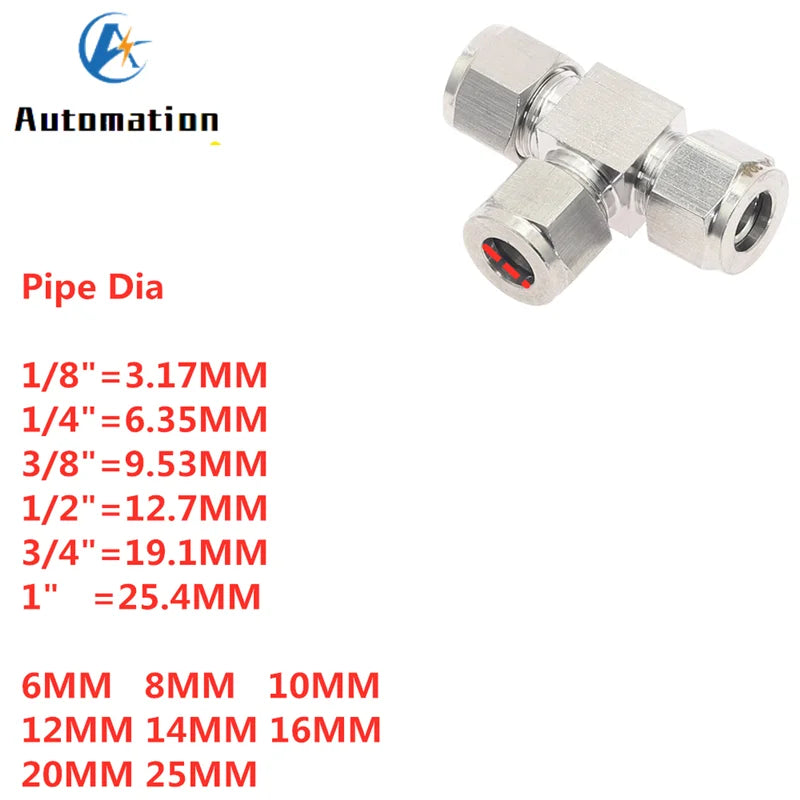

Compatible Pipe Outer Diameters

This fitting is compatible with the following stainless steel pipe OD sizes:

Metric: 3 mm, 4 mm, 6 mm, 8 mm, 10 mm, 12 mm
Imperial: 1/8" (≈3.17 mm), 1/4" (6.35 mm), 3/8" (≈9.52 mm), 1/2" (12.7 mm)

Specifications at a Glance

Material	304 Stainless Steel
Shape	Equal Tee (T-Type)
Connection Type	Double Ferrule Compression
Head Code	Hexagon
Max Operating Pressure	16 MPa (163.15 kgf/cm²)
Max Temperature	450°C
Fluid Type	Oil, Water, Gas
Package	1 PC Connector

Made in Mainland China.

Related Products You May Like

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What pipe sizes does this 304 stainless steel tee fitting support?

A: This double ferrule tee fitting supports stainless steel pipe outer diameters of 3 mm, 4 mm, 6 mm, 8 mm, 10 mm, and 12 mm in metric sizes, as well as 1/8", 1/4", 3/8", and 1/2" in imperial sizes. Be sure to match your tubing's outer diameter (OD) when ordering.

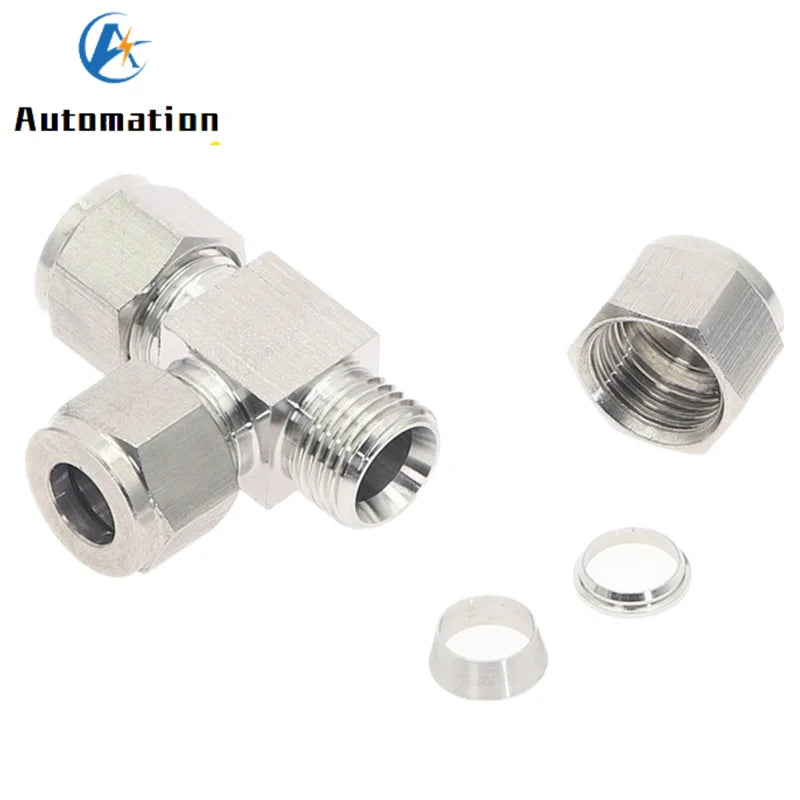

Q: What is a double ferrule compression fitting and why is it better?

A: A double ferrule (two-ring) compression fitting uses both a front ferrule and a back ferrule to grip and seal tubing. This two-piece system creates a stronger, more vibration-resistant, and leak-free connection compared to single ferrule designs — making it ideal for high-pressure gas, oil, and water lines up to 16 MPa.

Q: Is this fitting suitable for high-temperature applications?

A: Yes. This 304 SS tee connector is rated for operating temperatures up to 450°C, making it suitable for a wide range of industrial, hydraulic, and instrumentation applications where elevated temperatures are a factor.

Q: How do I install this tee fitting?

A: Simply insert your stainless steel tubing into each port of the tee fitting and tighten the hexagon nut with a wrench. The double ferrule design compresses around the tube OD to form a secure, leak-tight seal. No soldering or special tools are required beyond a standard wrench.
