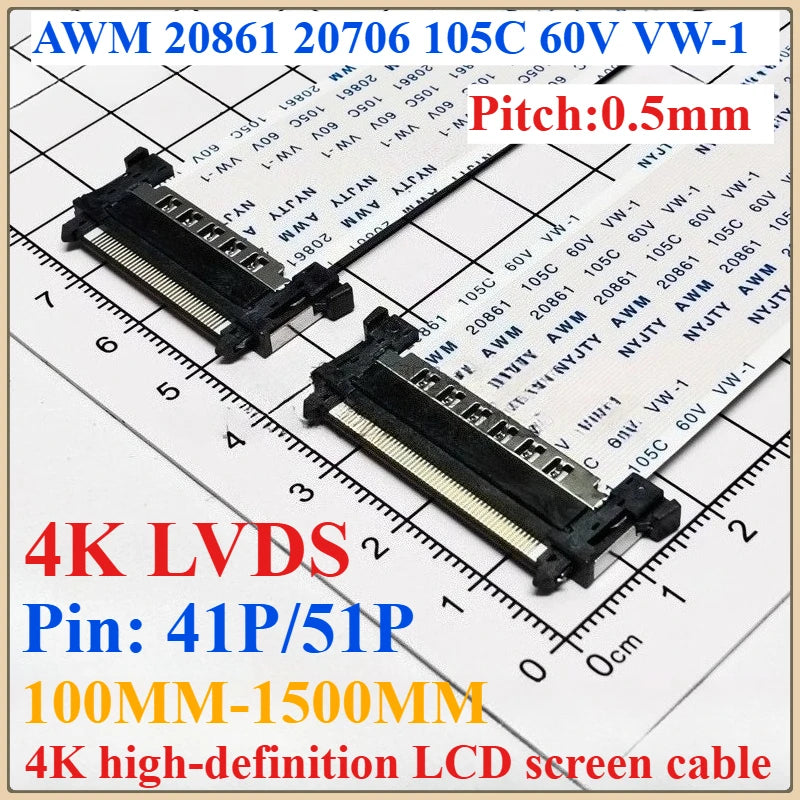

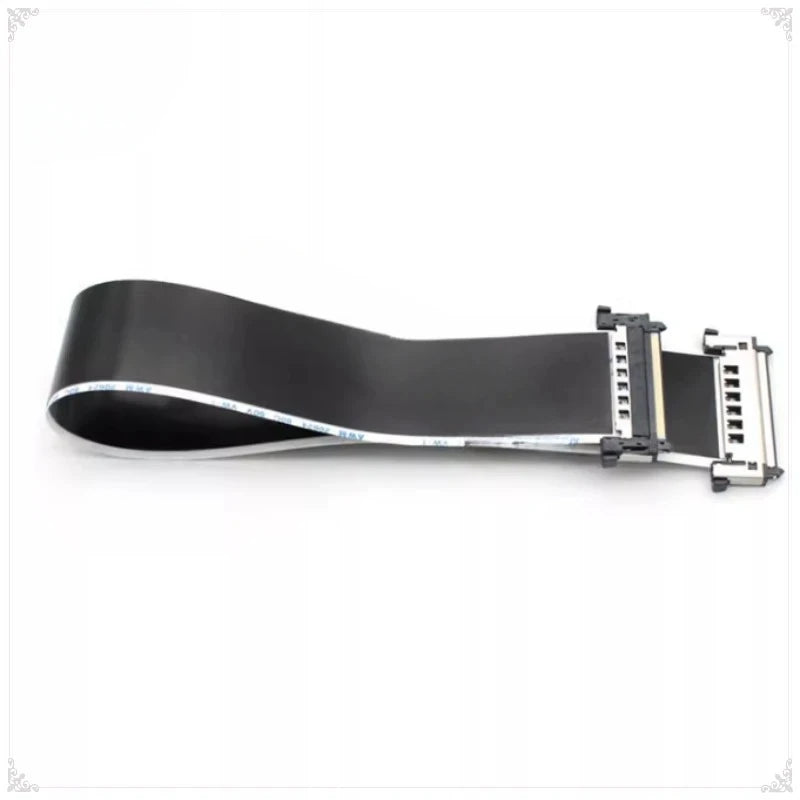

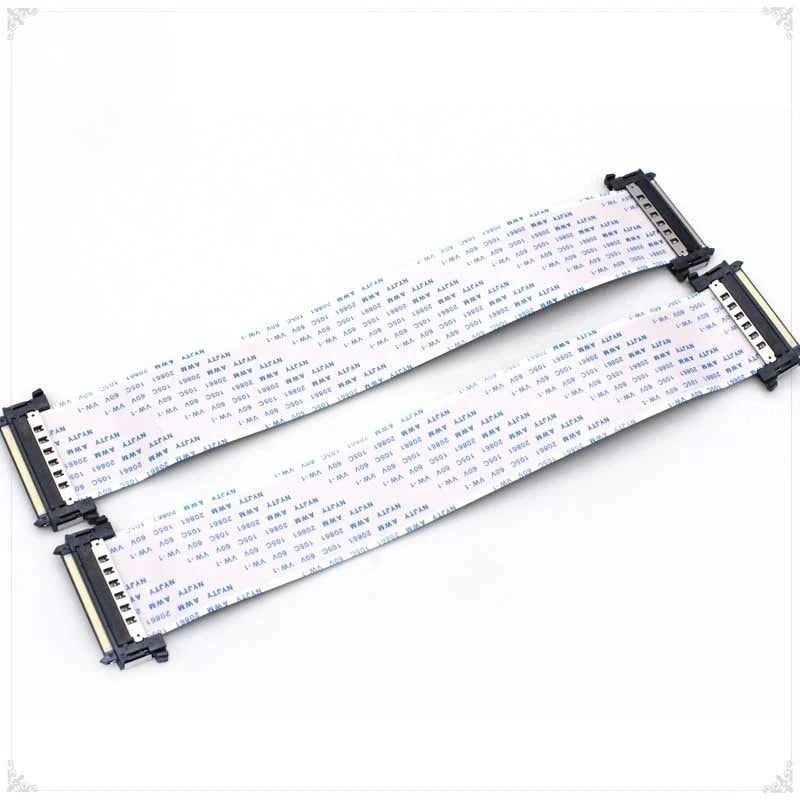

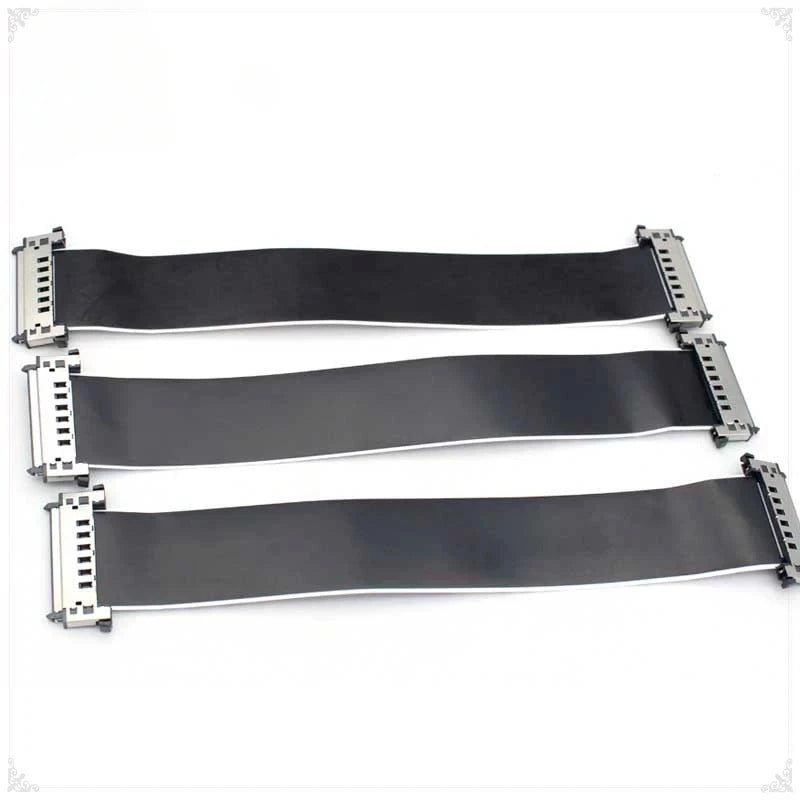

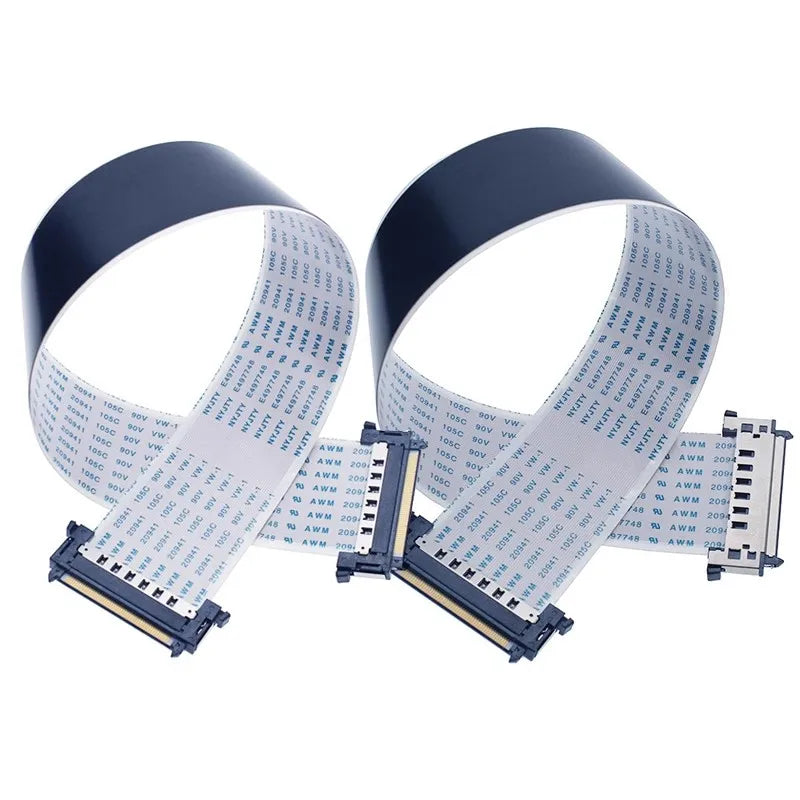

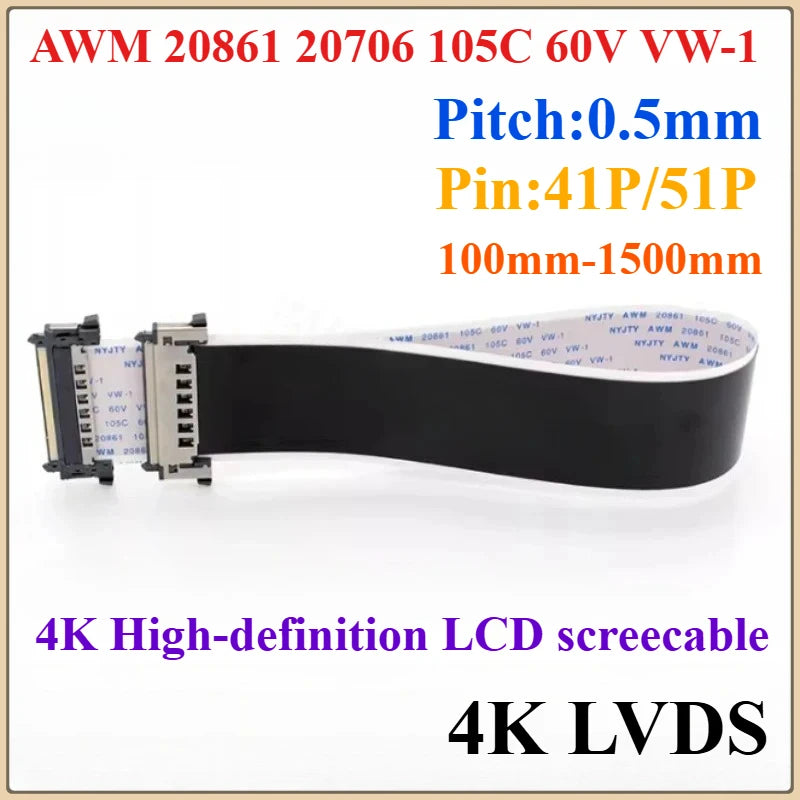

41/51 Pin 4K LVDS Ultra HD LCD Strip Cable – Double Head FFC
Upgrade or replace your LCD display connection with this high-quality 41-Pin / 51-Pin 4K LVDS Ultra HD LCD Strip Cable. Engineered to AWM 20861 / 20706 standards with a fine 0.5mm pitch, this flexible flat cable (FFC) features a double-head design compatible with V-by-One and standard LVDS interfaces — ideal for 4K panel repairs, DIY display builds, and electronics prototyping.
Key Features
- Pin Options: Available in 41-pin and 51-pin configurations to suit a wide range of LCD panels
- 4K / Ultra HD Ready: Designed to carry high-bandwidth LVDS and V-by-One signals for crisp 4K resolution displays
- Fine 0.5mm Pitch: Precision spacing ensures secure, reliable contact with display connectors
- Double-Head Design: Both ends are terminated for straightforward plug-and-play installation
- AWM Rated: Meets AWM 20861 & 20706 specifications — rated at 105°C / 60V, UL VW-1 flame-rated insulation
- Certified: CE and RoHS compliant; no restricted high-concern chemicals
- Operating Voltage: Compatible with 5V, 12V, 20V, 30V supply rails
Specifications
| Pin Count | 41 Pin / 51 Pin |
| Pitch | 0.5 mm |
| Cable Type | FFC (Flexible Flat Cable), Double Head |
| Standard | AWM 20861 / AWM 20706 |
| Rating | 105°C / 60V / VW-1 |
| Interface | LVDS / V-by-One |
| Voltage Compatibility | 5V, 12V, 20V, 30V |
| Certifications | CE, RoHS |
| Country of Origin | Made in China |
What's in the Box?
- 1 × LVDS / V-by-One FFC Strip Cable (your chosen pin count)
Related Products You May Like
- 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
- 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What display types is this 51-pin LVDS cable compatible with?
A: This 51-pin 4K LVDS / V-by-One FFC cable is designed for Ultra HD LCD panels that use a 0.5mm pitch ZIF connector, commonly found in large-format TVs, monitors, and industrial display screens. Always verify your panel's pin count and pitch before ordering.
Q: What is the difference between the 41-pin and 51-pin versions?
A: The pin count determines which specific LCD panel controller board the cable will fit. 41-pin cables suit certain panel driver boards, while 51-pin cables accommodate higher pin-count connectors used in many 4K Ultra HD panels. Check your panel's datasheet or existing cable label to confirm the correct variant.
Q: Is this cable truly AWM rated and what does that mean?
A: Yes. AWM (Appliance Wiring Material) ratings 20861 and 20706 are UL-recognized insulation standards. This cable is rated to 105°C operating temperature, 60V, and carries a VW-1 (Vertical Wire) flame resistance rating — confirming it meets safety and performance standards for electronics assemblies.
Q: Does this cable require any soldering to install?
A: No soldering is required. The double-head FFC design plugs directly into compatible ZIF (Zero Insertion Force) connectors on both ends, making installation straightforward for technicians and experienced DIY enthusiasts.
