41/51 Pin LVDS Ribbon Cable – AWM 20706 & 20861 | 4K HDTV LCD/LED Displays

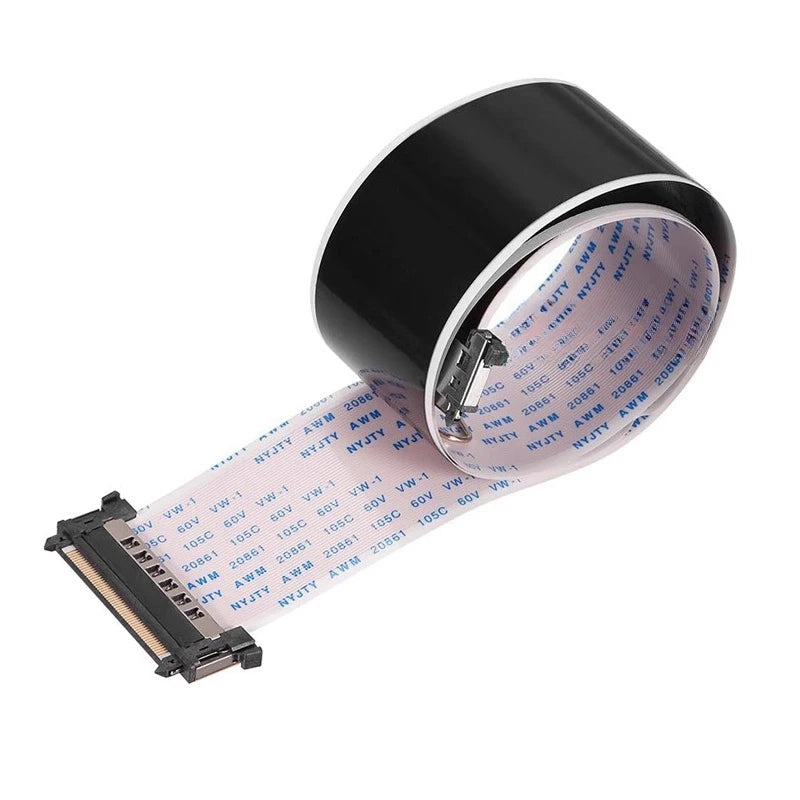

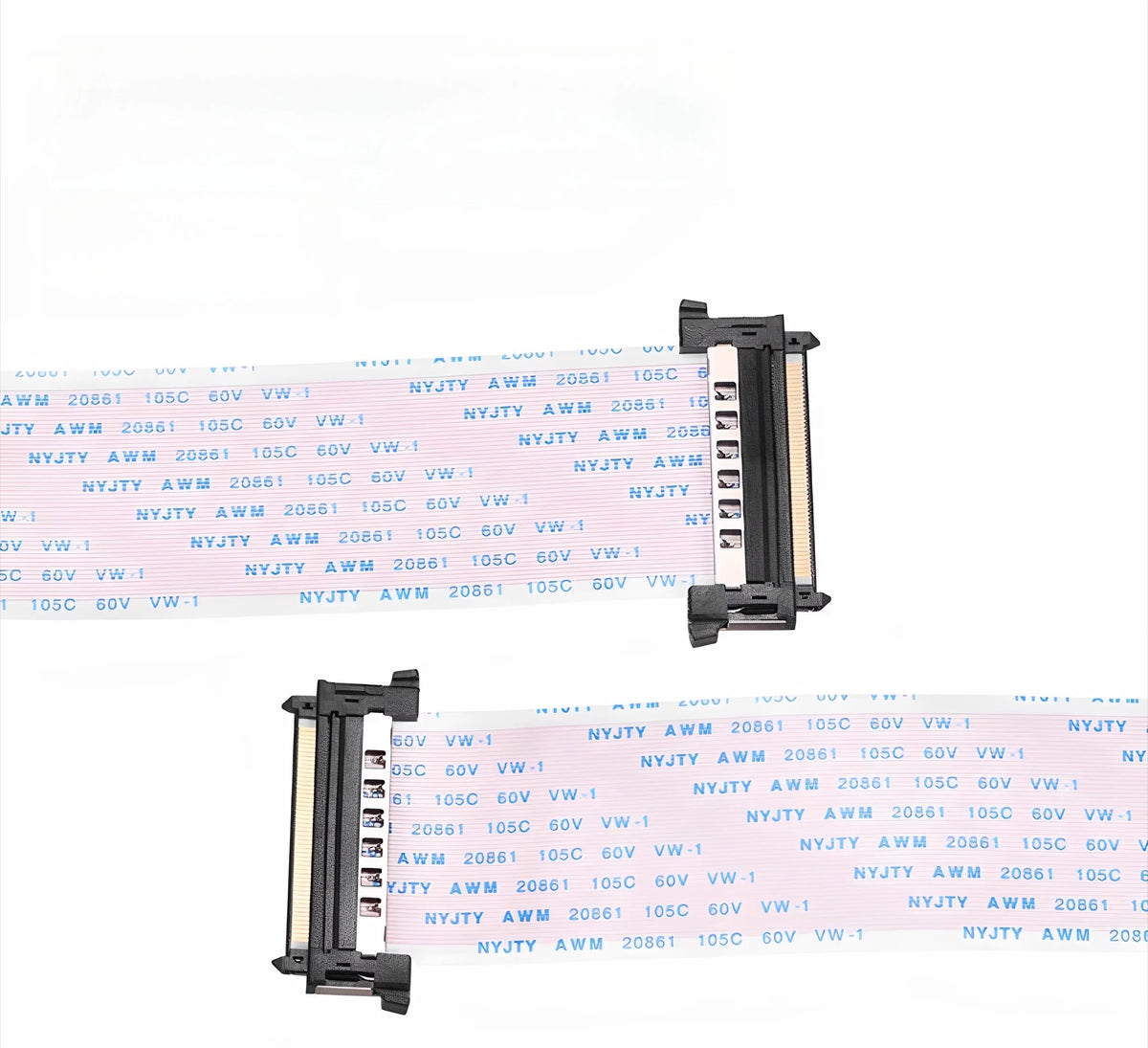

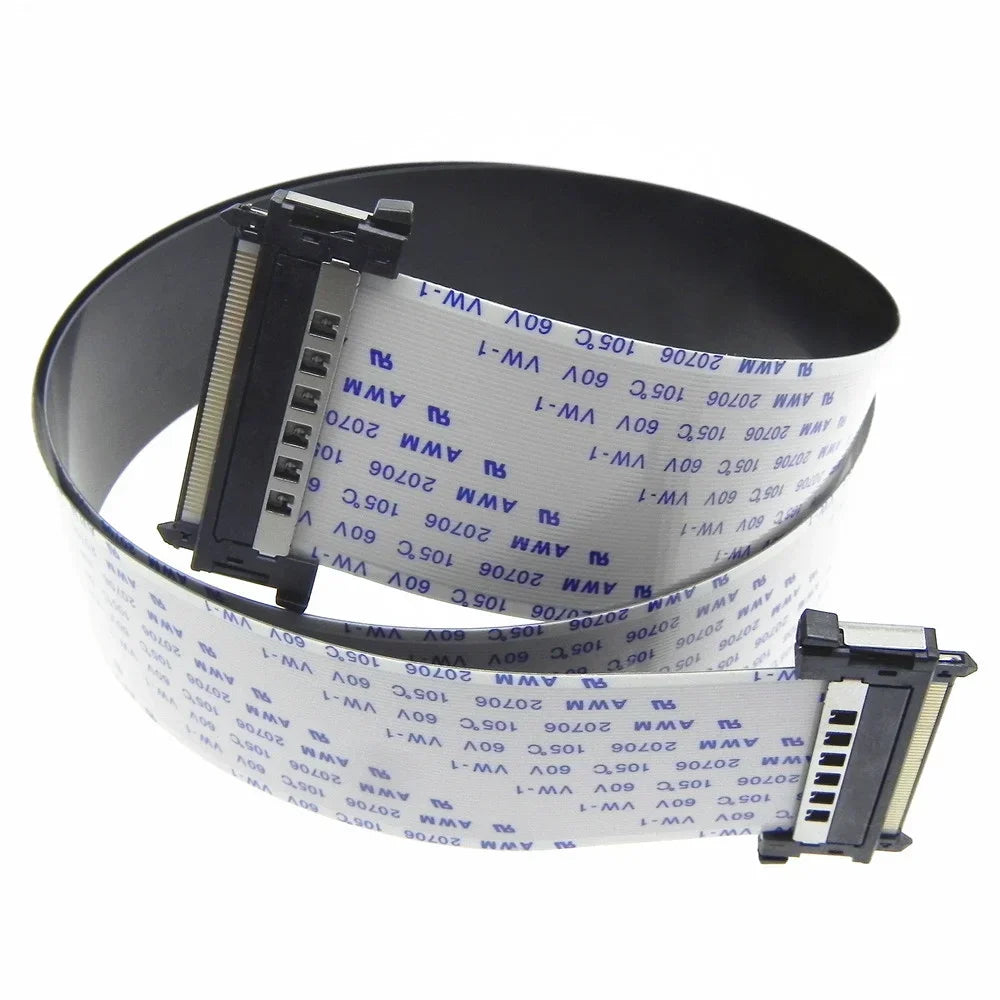

Upgrade or replace your display's internal connection with this high-quality 41-Pin / 51-Pin LVDS Ribbon Cable, rated AWM 20706 / 20861, 105°C, 60V, VW-1. Engineered for compatibility with a wide range of 4K HDTV, LCD, and LED panel assemblies, this flat ribbon cable delivers stable, low-voltage differential signal transmission for crisp, reliable image output.

Whether you're repairing a flat-panel television, upgrading a monitor, or working on an electronics project, this LVDS cable provides a dependable connection between your display panel and main board — reducing signal noise and maintaining consistent video quality.

Key Features

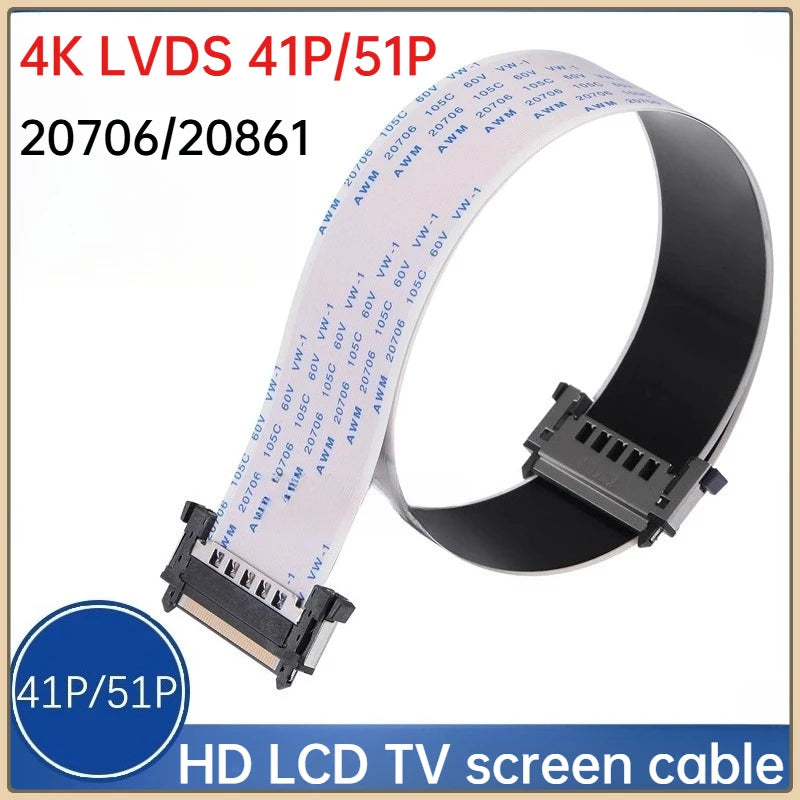

• Pin Configuration: Available in both 41-Pin (41P) and 51-Pin (51P) configurations
• Standard: AWM 20706 / AWM 20861 rated
• Temperature Rating: 105°C for reliable performance in warm operating environments
• Voltage Rating: 60V, supports 5V, 12V, 20V, 30V systems
• Flame Rating: VW-1 flame-retardant construction
• Compatibility: Designed for use with 4K HDTV, LCD, and LED display panels
• Certifications: CE and RoHS compliant — no high-concern chemicals
• Battery / Wireless: No battery or wireless components included
• EU LVD Voltage: Below 50Vac or 75Vdc (low voltage directive compliant)

Specifications

Compatible Applications

• 4K HDTV flat-panel displays
• LCD and LED monitor screen replacements
• TV mainboard-to-panel LVDS connections
• DIY electronics and display repair projects

Related Products You May Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is an LVDS ribbon cable and what does it do in an LCD/LED display?

A: An LVDS (Low-Voltage Differential Signaling) ribbon cable transmits video signal data between the display panel and the mainboard of an LCD or LED TV or monitor. It carries high-speed digital signals while minimizing electromagnetic interference, helping deliver a stable, high-quality 4K image with reduced signal noise.

Q: How do I know if the 41-Pin or 51-Pin version is right for my display?

A: Check the pin count on your existing LVDS connector or refer to your TV or monitor's service manual. Count the number of pins on both the panel connector and mainboard connector. The 41P variant suits panels with a 41-pin interface, while the 51P variant is for 51-pin interfaces. When in doubt, consult your display's model number for compatibility information.

Q: Is this cable CE and RoHS certified?

A: Yes. This LVDS ribbon cable is CE certified and RoHS compliant, meaning it meets European safety standards and contains no high-concern restricted substances, making it suitable for use across a wide range of markets.

Q: What voltage systems is this ribbon cable compatible with?

A: This cable supports operating voltages including 5V, 12V, 20V, and 30V, with custom voltage options available. It has a maximum voltage rating of 60V and complies with EU Low Voltage Directive standards (below 50Vac or 75Vdc).
