4K HDMI Audio Extractor SPDIF Optical & 3.5mm Stereo Output

4K HDMI Audio Extractor with SPDIF Optical TOSLINK & 3.5mm Stereo Output

Unlock the full audio potential of your HDMI setup with this compact 4K x 2K HDMI Audio Extractor by OllyMurs. Whether you're connecting a soundbar, stereo receiver, or headphones, this splitter adapter lets you pull digital audio directly from any HDMI source — simultaneously outputting to both SPDIF Optical (TOSLINK) and a 3.5mm analog headphone jack, all while passing through your full 4K video signal untouched.

Key Features

• 4K x 2K Pass-Through Video: Supports resolutions up to 4K (24/50/60fps), 1080p, 1080i, 720p, and legacy formats including 576p/576i/480p/480i — no compromise on picture quality.
• Dual Audio Output: Extracts embedded digital audio and delivers it simultaneously via SPDIF Optical TOSLINK and 3.5mm analog stereo jack.

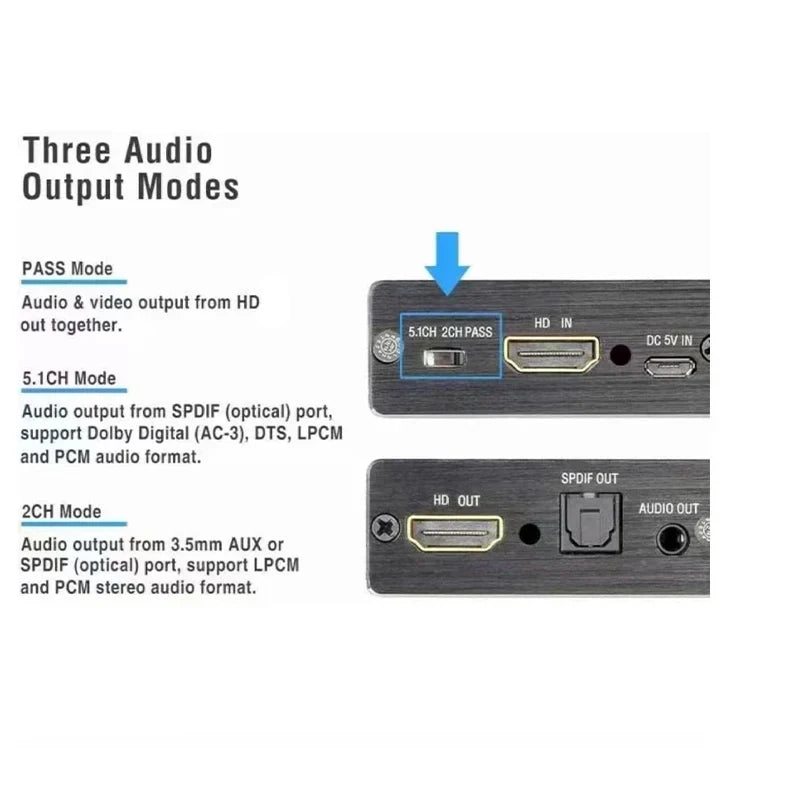

• Surround Sound Ready: SPDIF output supports 2CH stereo and 5.1CH surround sound, including Dolby Digital 5.1CH and DTS 5.1CH formats.
• Wide Compatibility: Works seamlessly with computers, monitors, projectors, TV boxes, DVD/Blu-ray players, multimedia players, and televisions.
• HDMI 1.4 Compliant: Max bandwidth of 225MHz and max baud rate of 6.75Gbps for crisp, reliable signal transmission.
• Deep Color Support: Compatible with 24-bit and deep color formats (30-bit and 36-bit).
• Metal Build: Durable metal construction for long-lasting, stable connections.
• USB Powered: Powered via included Micro USB cable — use a standard 5V/1A phone adapter (not included) for devices with low-power HDMI ports.

Technical Specifications

Important Notes

• Does not support Dolby Digital Plus audio (supports DTS and standard Dolby Digital only).
• Does not support copyright-protected (HDCP) content.
• For low-power HDMI ports, connect the included Micro USB cable to a 5V/1A adapter (not included).

What's in the Box

• 1 × HDMI Audio Extractor (H5)
• 1 × Micro USB Cable

Made in Mainland China.

You May Also Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: Does this HDMI audio extractor support 5.1 surround sound?

A: Yes! The SPDIF Optical (TOSLINK) output supports both 2-channel stereo and 5.1-channel surround sound, including Dolby Digital 5.1CH and DTS 5.1CH. Please note it does not support Dolby Digital Plus.

Q: Will this extractor affect my 4K video quality?

A: No. This device passes through your 4K x 2K video signal at full quality — supporting resolutions up to 4K (24/50/60fps), 1080p, and lower, with deep color formats up to 36-bit. Your picture is fully preserved while audio is simultaneously extracted.

Q: What devices is this HDMI audio extractor compatible with?

A: It is compatible with a wide range of HDMI-enabled devices including computers, monitors, projectors, TV boxes, DVD and Blu-ray players, smart TVs, multimedia players, and more — essentially any device with a standard HDMI 1.4 output port.

Q: Does it need external power?

A: The extractor is powered via the included Micro USB cable. For most setups, USB power from your TV or device is sufficient. If your HDMI source has a low-power port, connect the Micro USB cable to a standard 5V/1A phone charger adapter (not included).
