5pcs 4mm Banana Jack Socket Binding Post M4×36 Brass 24A
5pcs 4mm Banana Jack Socket Binding Post M4×36 Brass 24A
Details

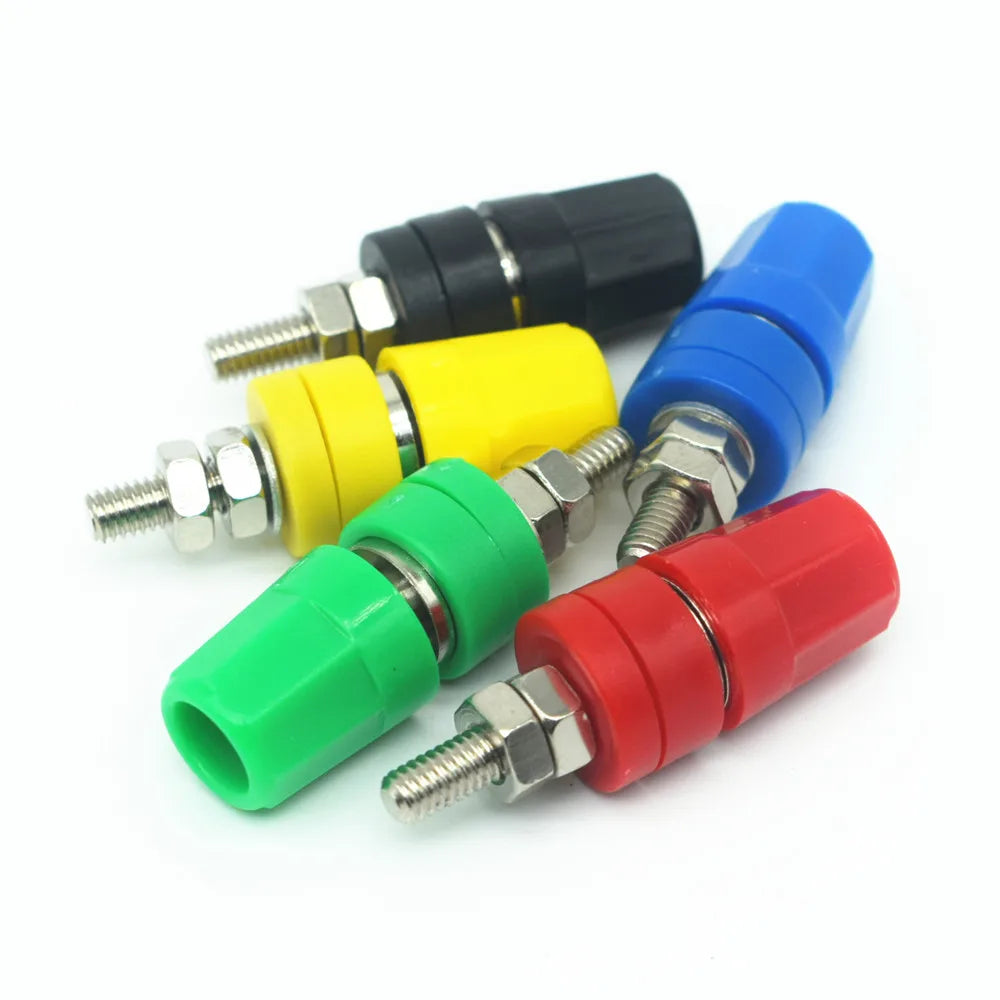

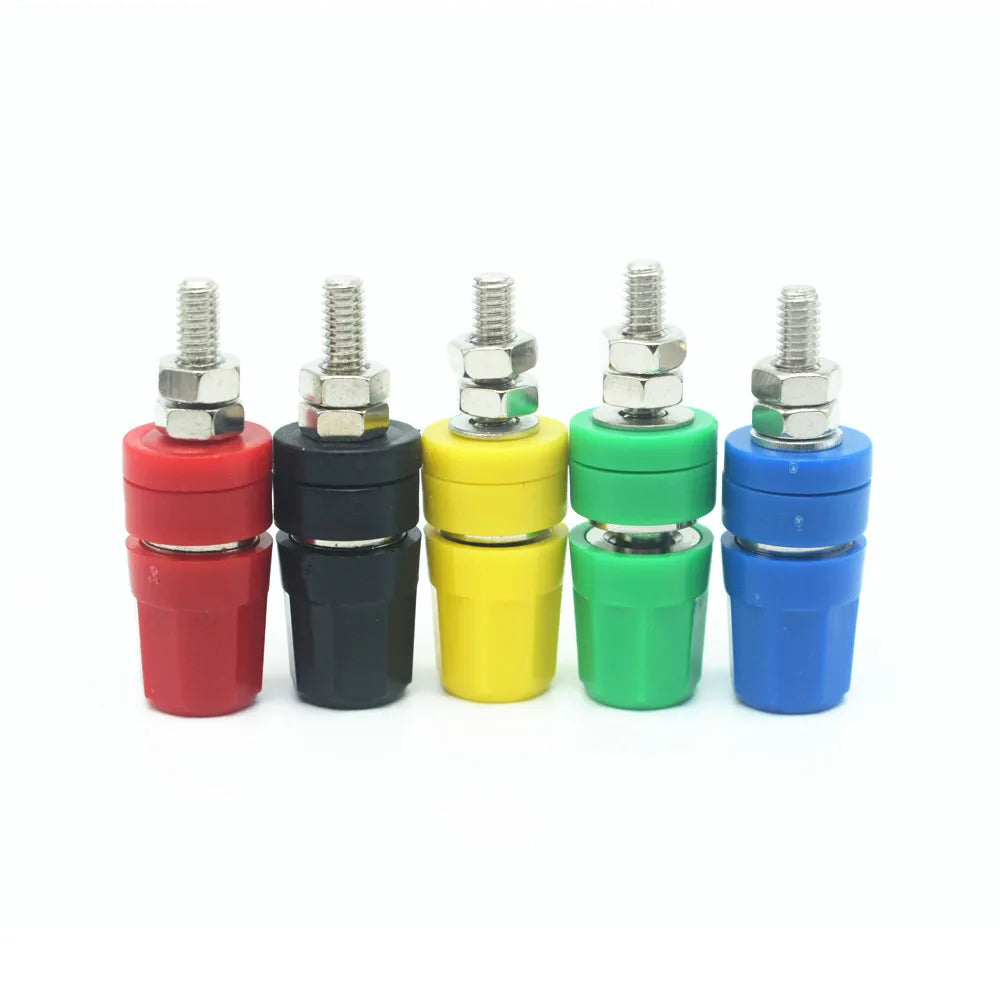

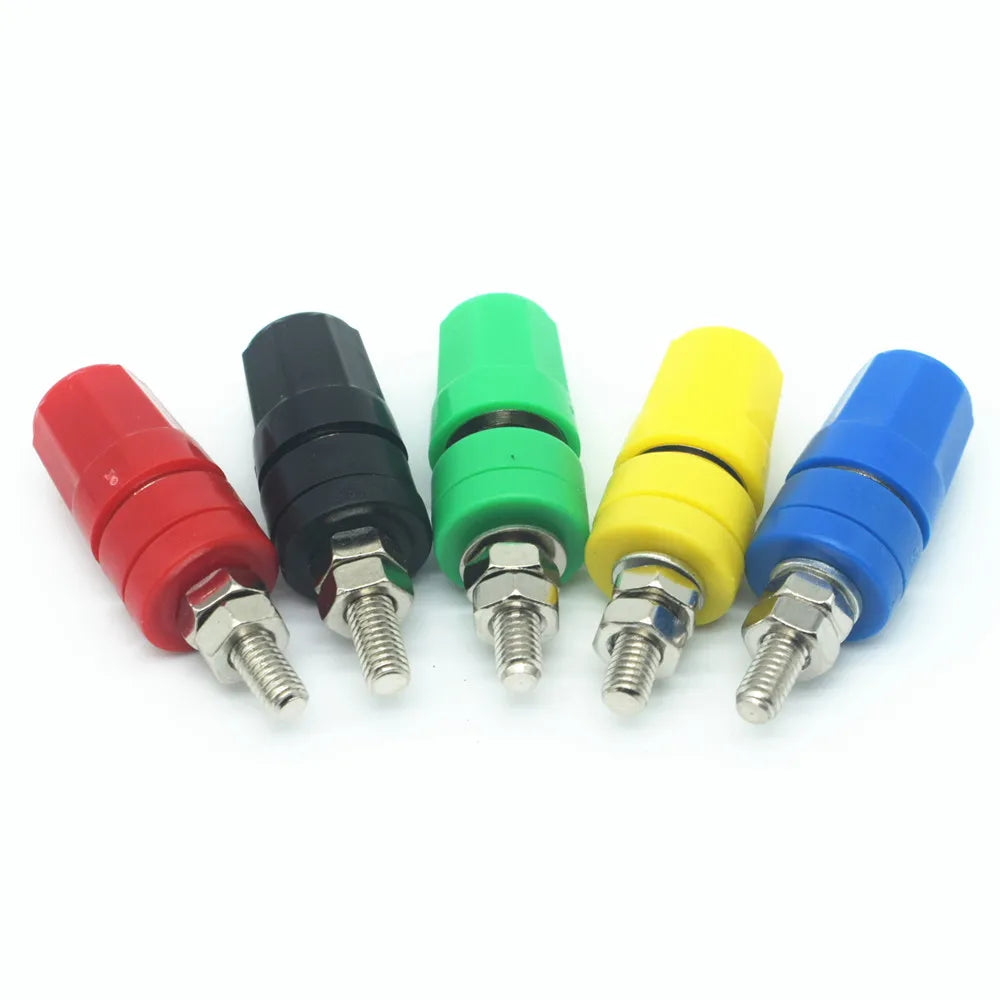

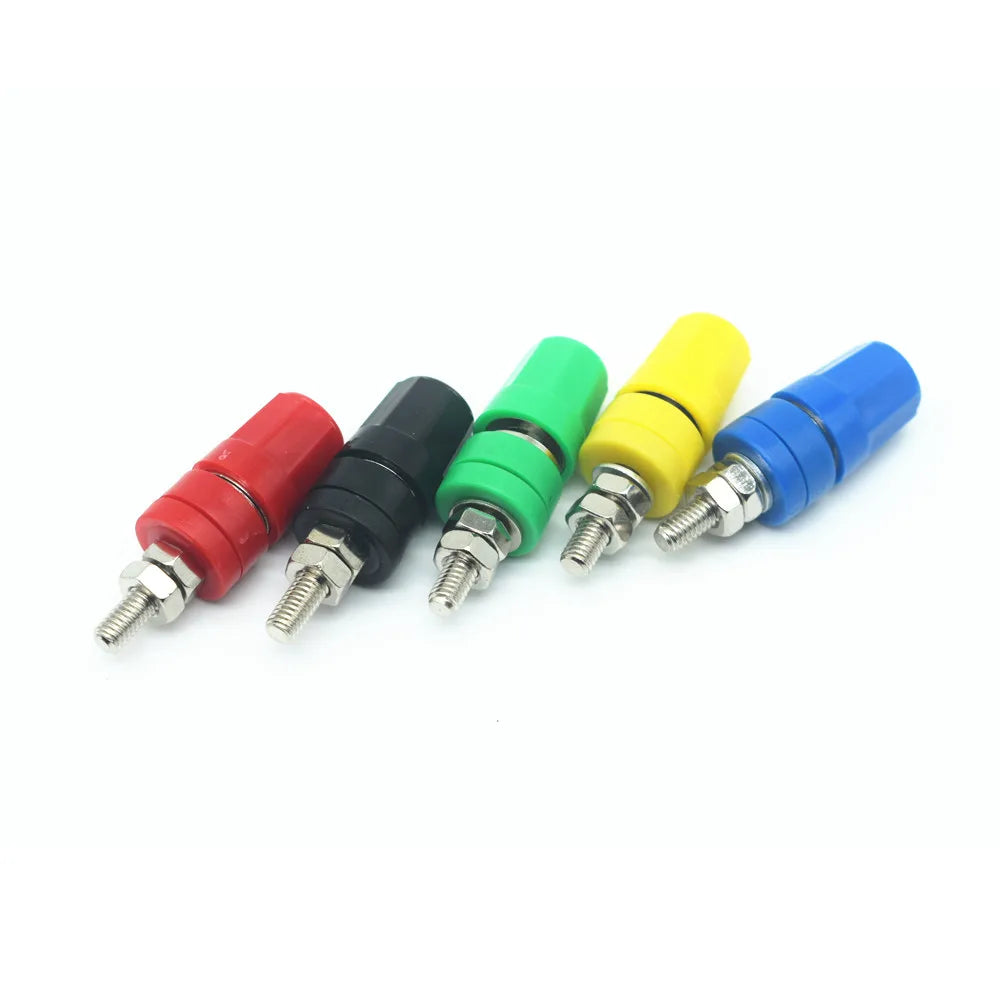

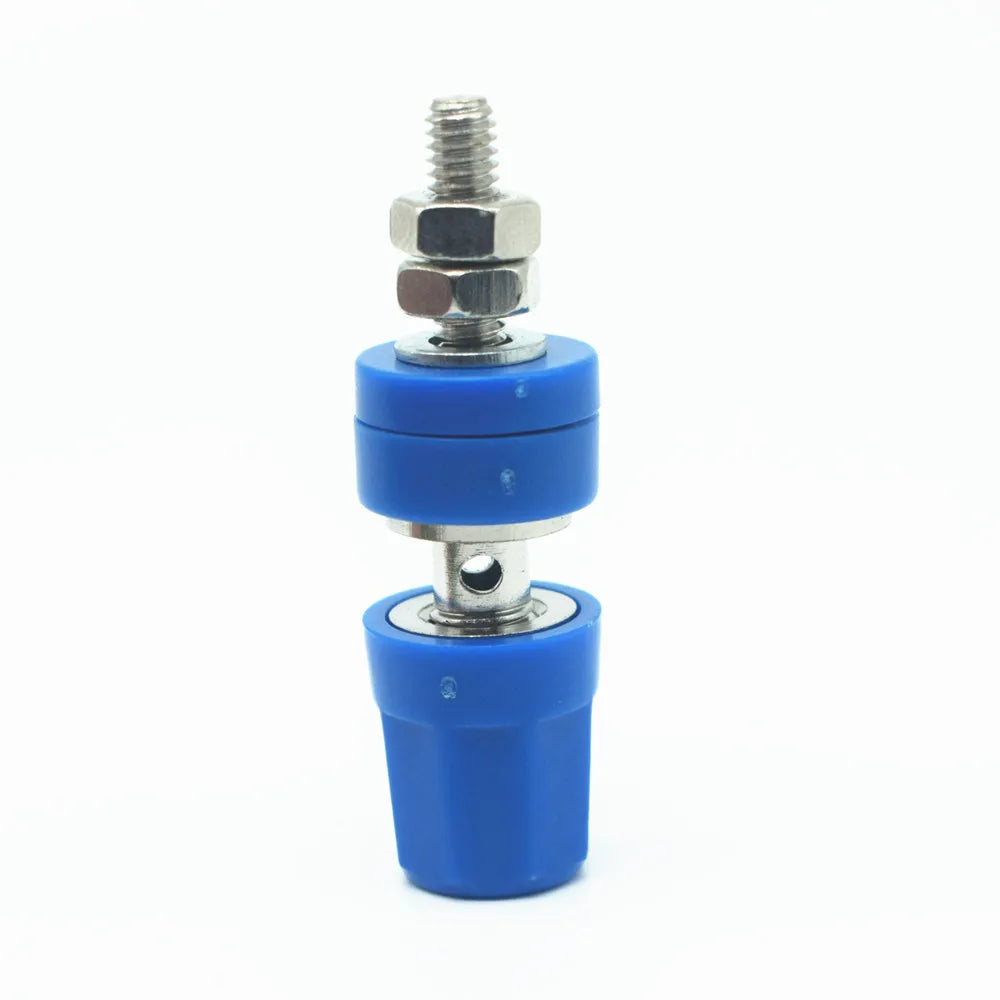

5-Pack Pure Brass 4mm Banana Jack Socket Binding Posts
Upgrade your test bench, audio equipment, or DIY electronics projects with these heavy-duty 4mm banana jack socket binding posts. Made from solid brass with a nickel-plated surface, these connectors deliver reliable, low-resistance electrical contact rated up to 24A / 30VAC – 60VDC. The M4×36 stud thread makes panel mounting quick and secure, while the ABS insulator housing keeps connections safe and well-organised.
Key Features
- Material: Brass core with nickel-plated finish for corrosion resistance and long-lasting conductivity
- Insulator: Moulded ABS housing for reliable electrical isolation
- Rated Voltage / Current: 30VAC – 60VDC / Max. 24A
- Hole Size: 7 × 6 mm – accepts standard 4mm banana plugs
- Thread: M4 × 36 for secure panel mounting
- Pack: 5 pieces per set – great value for multi-channel setups
- Application: Test & measurement equipment, power supplies, audio amplifiers, laboratory benches, DIY electronics
Specifications
| Material | Brass |
| Surface Finish | Nickel Plated |
| Insulator | ABS Plastic |
| Rated Current | Max. 24A |
| Rated Voltage | 30VAC – 60VDC |
| Hole Size | 7 × 6 mm |
| Thread Size | M4 × 36 |
| Quantity | 5 Pieces |
| Country of Origin | Made in China |
Who Is This For?
Whether you're building a custom power supply, setting up a lab test station, or wiring an audio amplifier, these banana jack binding posts provide a professional, colour-coded, and firmly secured connection point. The nickel-plated brass ensures minimal signal loss and lasting durability even with frequent plug-in/plug-out cycles.
You May Also Like
- 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
- 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What is the maximum current rating for these banana jack binding posts?
A: These 4mm banana jack socket binding posts are rated for a maximum of 24A continuous current at 30VAC or 60VDC, making them suitable for most bench power supply and audio amplifier applications.
Q: What size banana plugs fit these sockets?
A: These binding posts feature a 7 × 6 mm hole designed to accept standard 4mm banana plugs, which are the most commonly used size in test & measurement and audio equipment.
Q: How are these binding posts mounted to a panel?
A: Each binding post uses an M4 × 36 threaded stud for secure panel mounting. Simply drill the appropriate hole in your panel or enclosure, insert the post, and secure it with the included nut for a firm, professional installation.
Q: Are these binding posts suitable for audio equipment?
A: Yes — the nickel-plated brass construction provides excellent conductivity and corrosion resistance, making these banana jack sockets a popular choice for speaker terminals, amplifier outputs, and other audio wiring applications.
