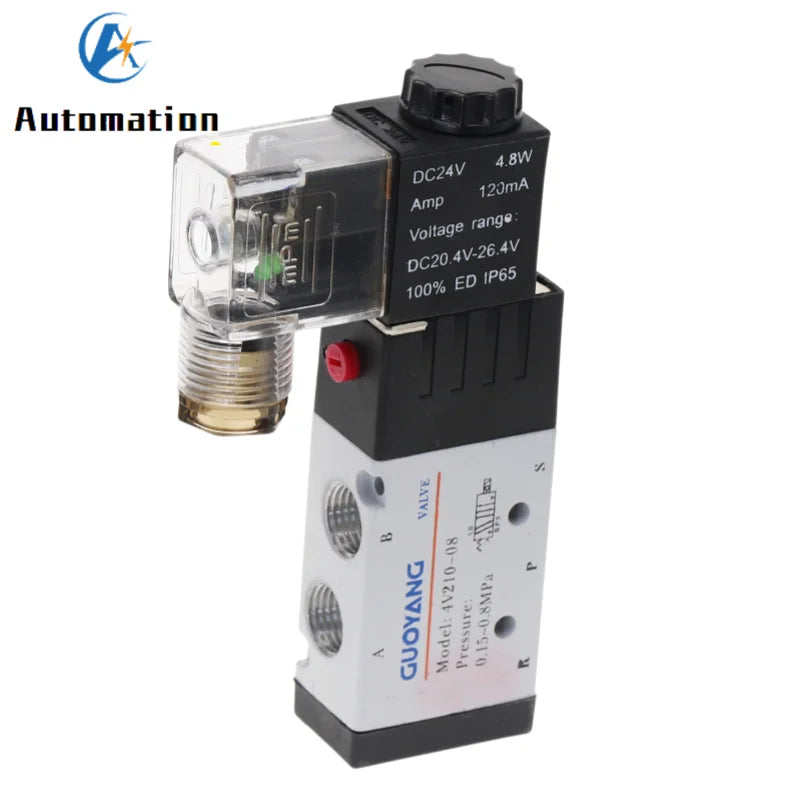

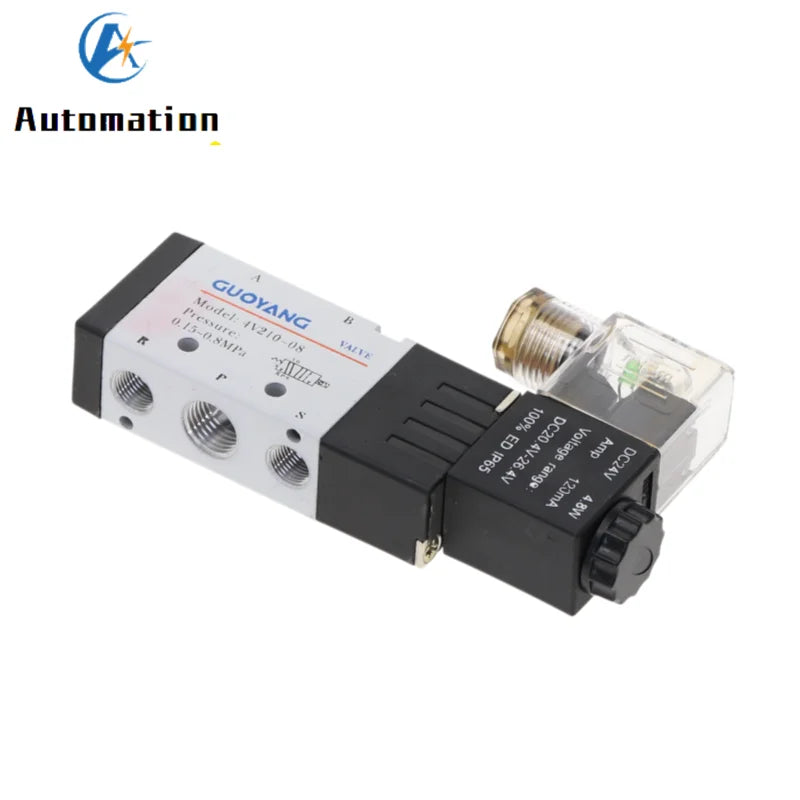

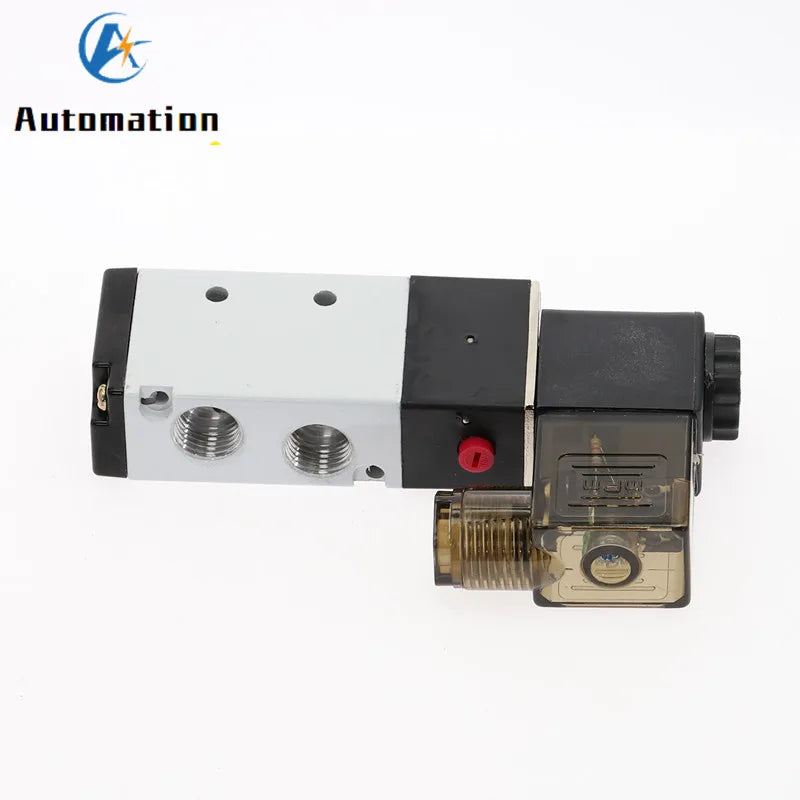

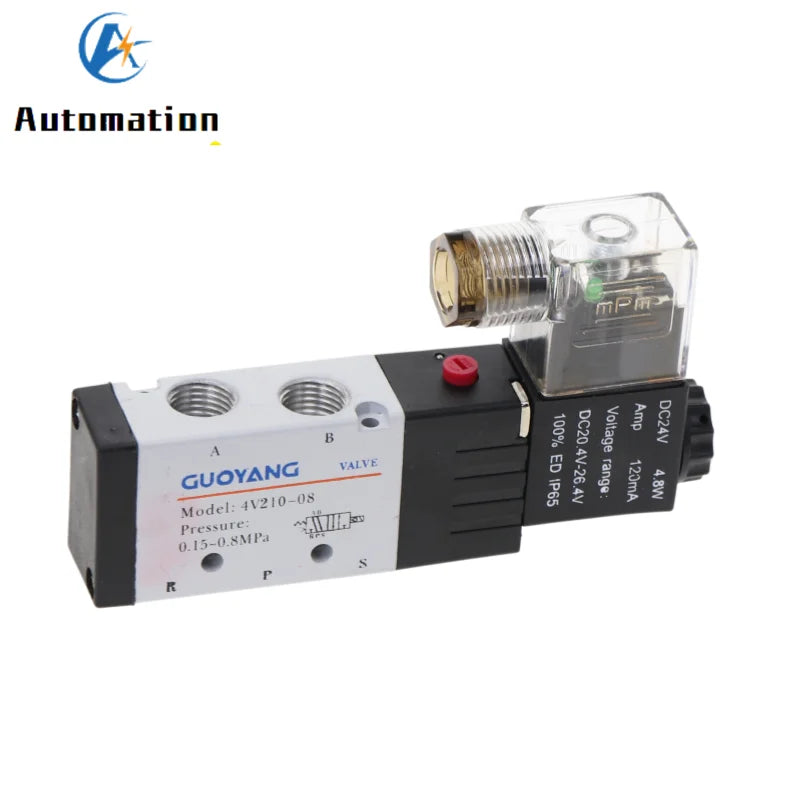

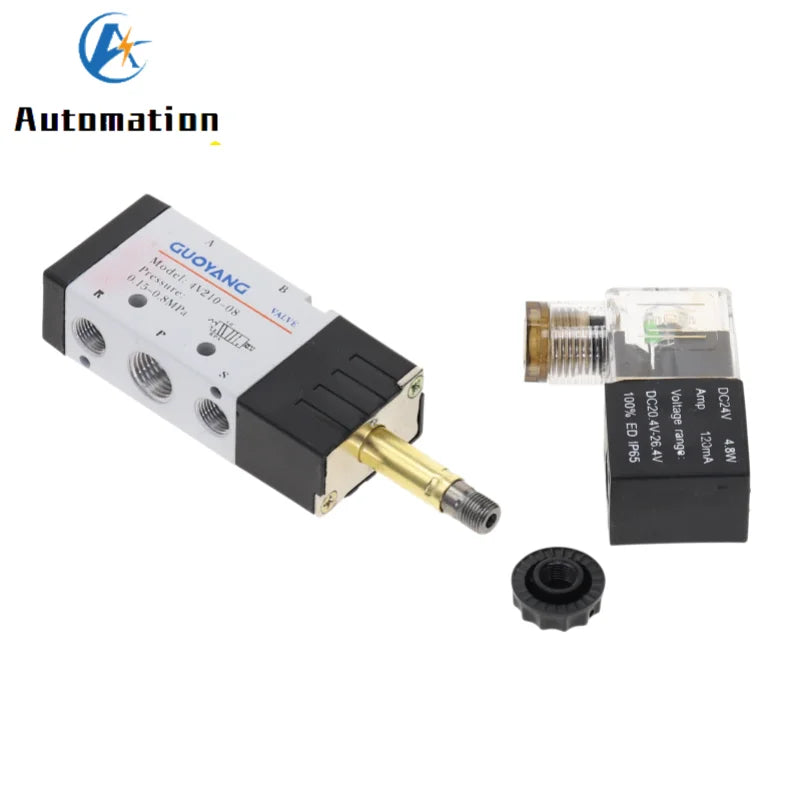

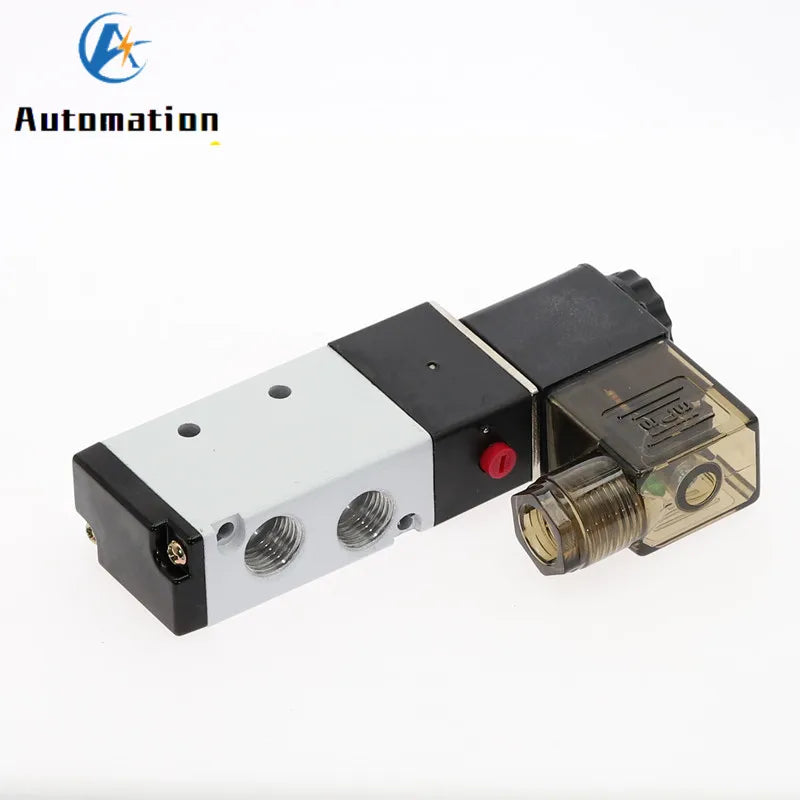

4V210-08 Pneumatic Solenoid Valve 5/2-Way 1/4" DC12V/24V AC110V/220V

4V210-08 Five-Way Two-Position Electric Solenoid Valve

The 4V210-08 Pneumatic Solenoid Valve is a precision-engineered 5-way, 2-position air control valve designed for reliable directional control in pneumatic automation systems. With multi-voltage compatibility — DC 12V, DC 24V, AC 110V, and AC 220V — this valve fits seamlessly into a wide range of industrial, workshop, and DIY pneumatic setups. Its compact body, fast 0.05-second excitation time, and low 2.0W power consumption make it a highly efficient choice for controlling cylinders, actuators, and other pneumatic components.

Made in Mainland China.

Key Features

• 5-Way / 2-Position Configuration: Provides full directional control for double-acting pneumatic cylinders and actuators.
• Multi-Voltage Options: Available in DC 12V, DC 24V, AC 110V, and AC 220V to suit your power source.
• Fast Response: Excitation time of just 0.05 seconds for rapid, precise switching.
• Wide Working Pressure Range: Operates reliably at 1.5 – 8 kgf/cm² for versatile applications.
• Wide Temperature Tolerance: Rated for operating temperatures from -5°C to 50°C.
• Low Power Consumption: Only 2.0W — energy-efficient for continuous-duty applications.
• Standard Port Sizing: 1/4" inlet/outlet and 1/8" exhaust ports for easy integration.
• Compact & Lightweight: Dimensions of 11.8 × 6.6 × 2.1 cm for tight installation spaces.

Technical Specifications

What Can You Use It With?

This solenoid valve is an ideal component for building or upgrading pneumatic control circuits. Pair it with air compressors, manifold systems, and pneumatic cylinders for automated direction control. Looking for other tools and hardware accessories? Check out these related products from our store:

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What does "5-way, 2-position" mean for this solenoid valve?

A: A 5-way, 2-position solenoid valve has five ports (supply, two cylinder ports, and two exhaust ports) and switches between two flow states. This configuration is ideal for controlling double-acting pneumatic cylinders, allowing air to flow in and out of both sides of the cylinder in alternating directions.

Q: Which voltage should I select for the 4V210-08 solenoid valve?

A: Choose the voltage that matches your control system's power supply. DC 12V and DC 24V are common in PLC and automotive-style pneumatic setups, while AC 110V suits North American systems and AC 220V is standard for European or industrial applications. Always verify your power source before ordering.

Q: What type of media (fluid) can this solenoid valve handle?

A: The 4V210-08 is designed specifically for compressed air (pneumatic applications). It is not intended for use with liquid media, gases other than clean dry air, or corrosive substances. Always ensure air is filtered and adequately dried before passing through the valve for optimal longevity.

Q: How do I install and connect the 4V210-08 solenoid valve?

A: The valve features standard 1/4" NPT inlet and outlet ports and a 1/8" exhaust port. Connect your compressed air supply line to the inlet port and attach your pneumatic actuator lines to the outlet ports. The electrical coil connector accepts standard DIN-style plug connections compatible with most automation wiring setups. Ensure the operating pressure stays within 1.5–8 kgf/cm² for reliable performance.
