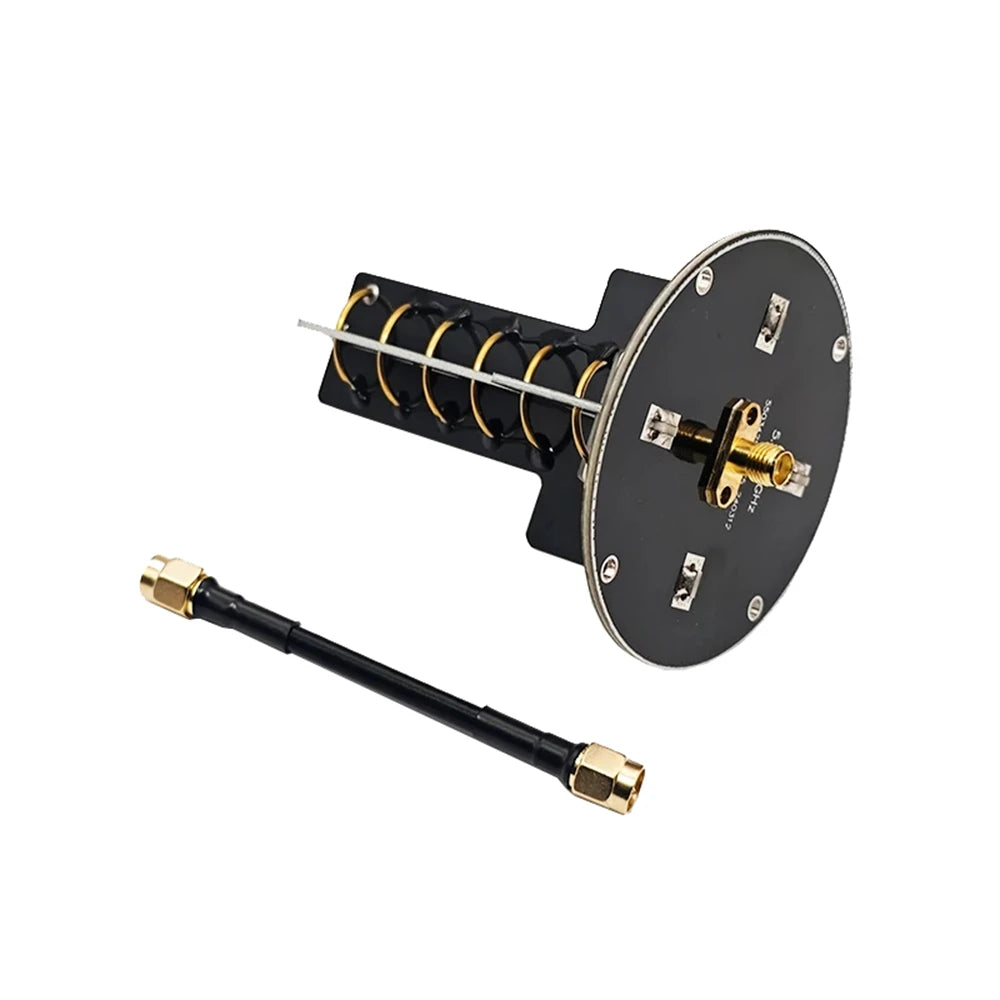

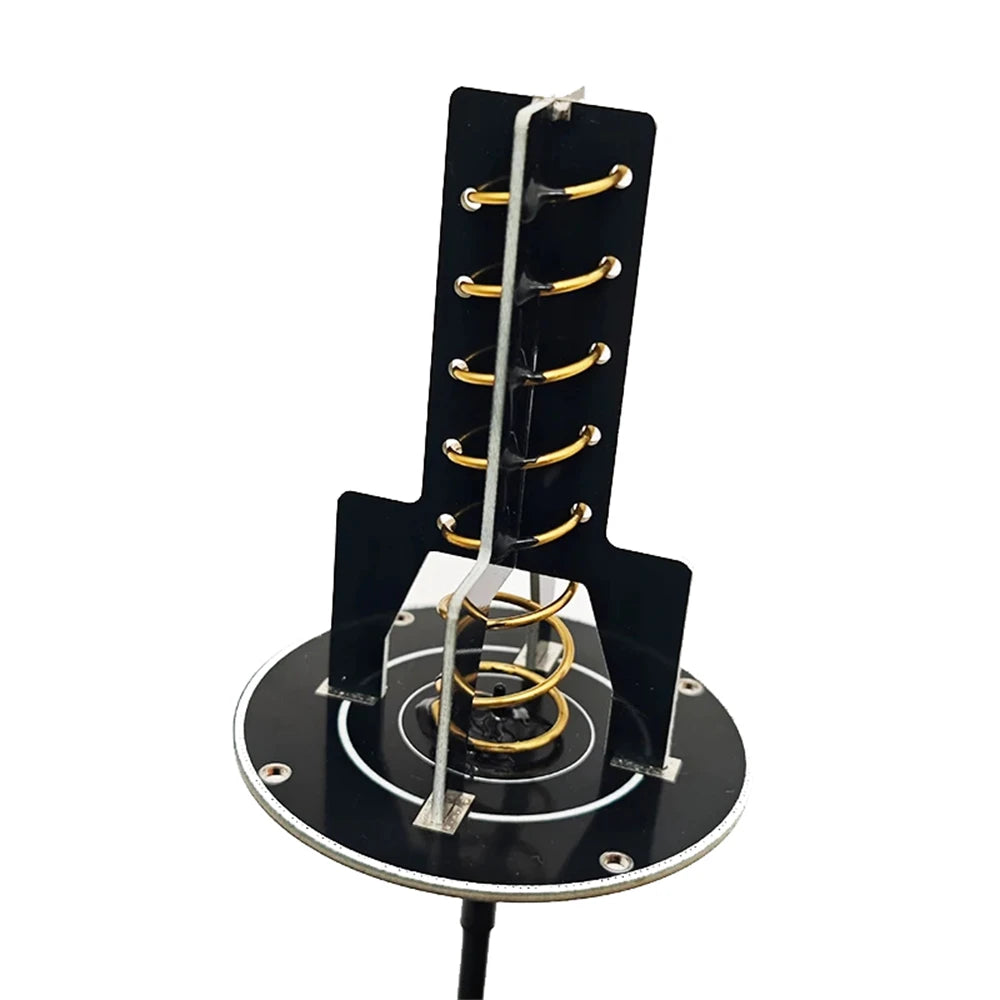

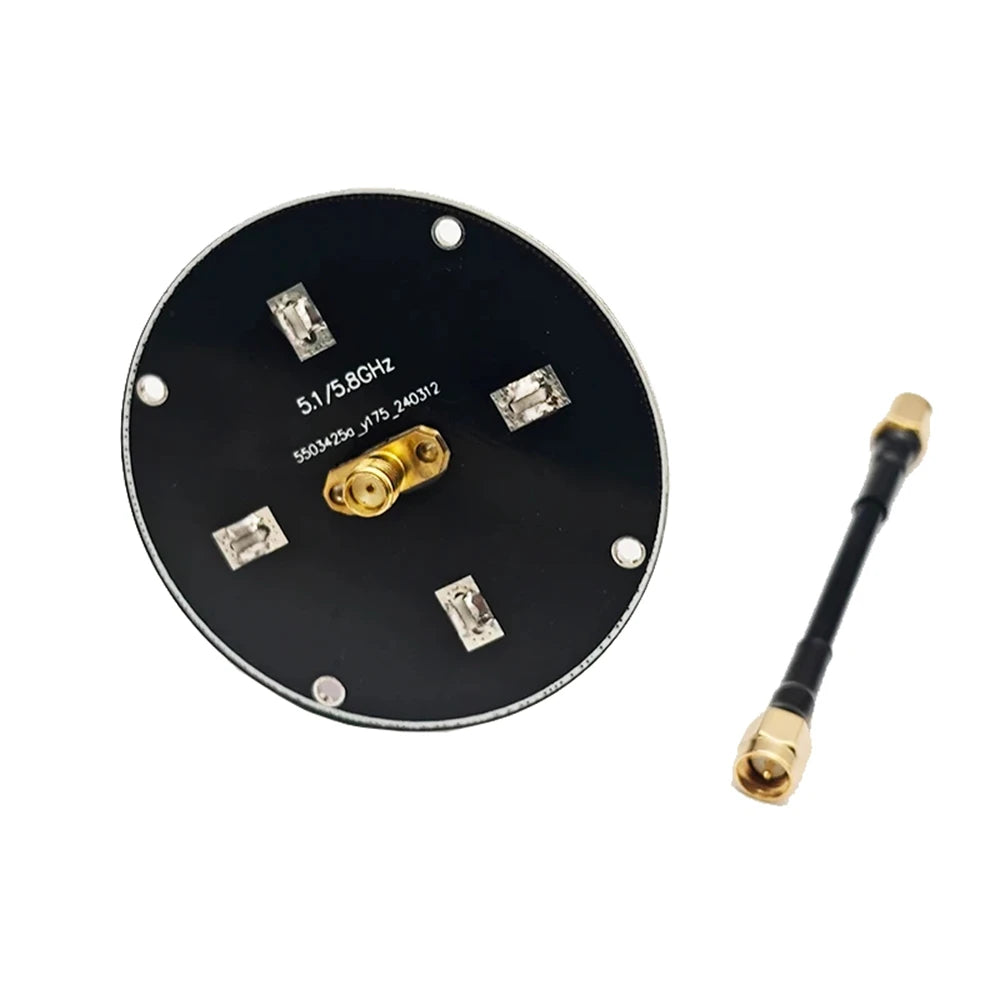

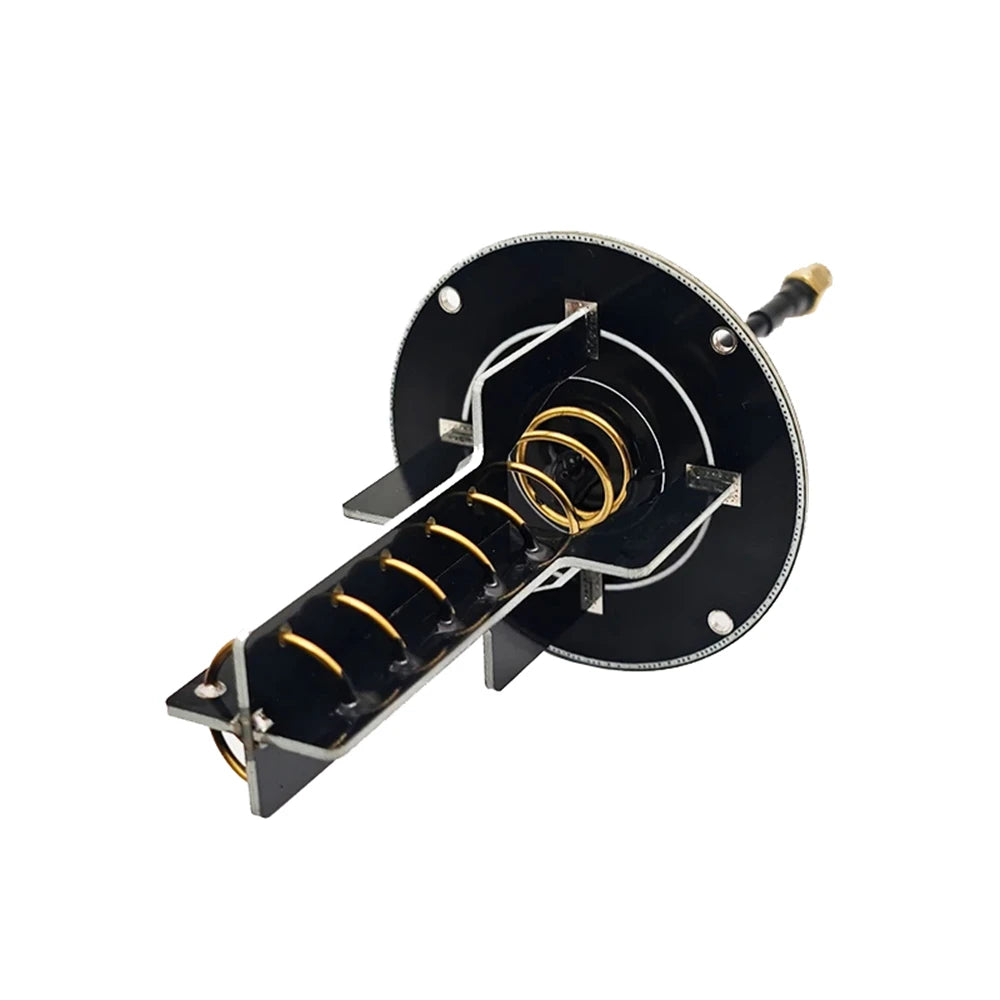

5.8GHz 13dBi RHCP Directional FPV Antenna SMA RP-SMA 50W

5.8GHz 13dBi High Gain Directional RHCP FPV Antenna

Take your FPV drone flights to the next level with this precision-engineered 5.8GHz 13dBi Directional Antenna. Designed for FPV goggle, ground station, and VRX module mounting, it concentrates your signal into a focused beam — dramatically extending your effective range and maintaining crisp, stable video where standard omnidirectional antennas fall short.

Key Features

• 13dBi High Gain Performance: Covers the full 4800–6000MHz frequency range, focusing transmitted energy to maximize effective range and signal clarity for long-distance flights, building penetration, and demanding RF environments.
• RHCP Circular Polarisation: Right-Hand Circular Polarisation (RHCP) rejects multipath interference — the signal distortion caused by reflections off trees, buildings, and terrain. Pair with a matching RHCP transmitting antenna on your drone for a fully matched, high-purity signal system.
• Industry-Leading VSWR ≤1.5: A Voltage Standing Wave Ratio of 1.5 or better across the entire 4900–6000MHz band means nearly all your VTX power is radiated efficiently — no wasted power, no channel dead spots, and no risk of overheating your transmitter from reflected energy.
• 50W Maximum Input Power: Built on premium 141-line cable with a robust PCB radome, this antenna handles up to 50W input. Compatible with everything from a 25mW whoop VTX to a 2W long-range transmitter — operating cool and linear across the full power range.
• Compact & Lightweight: At just 30g and 92×68mm, this flat-panel antenna is easy to mount on goggles, a tripod, or a ground station. Fits neatly into any FPV backpack without adding bulk.

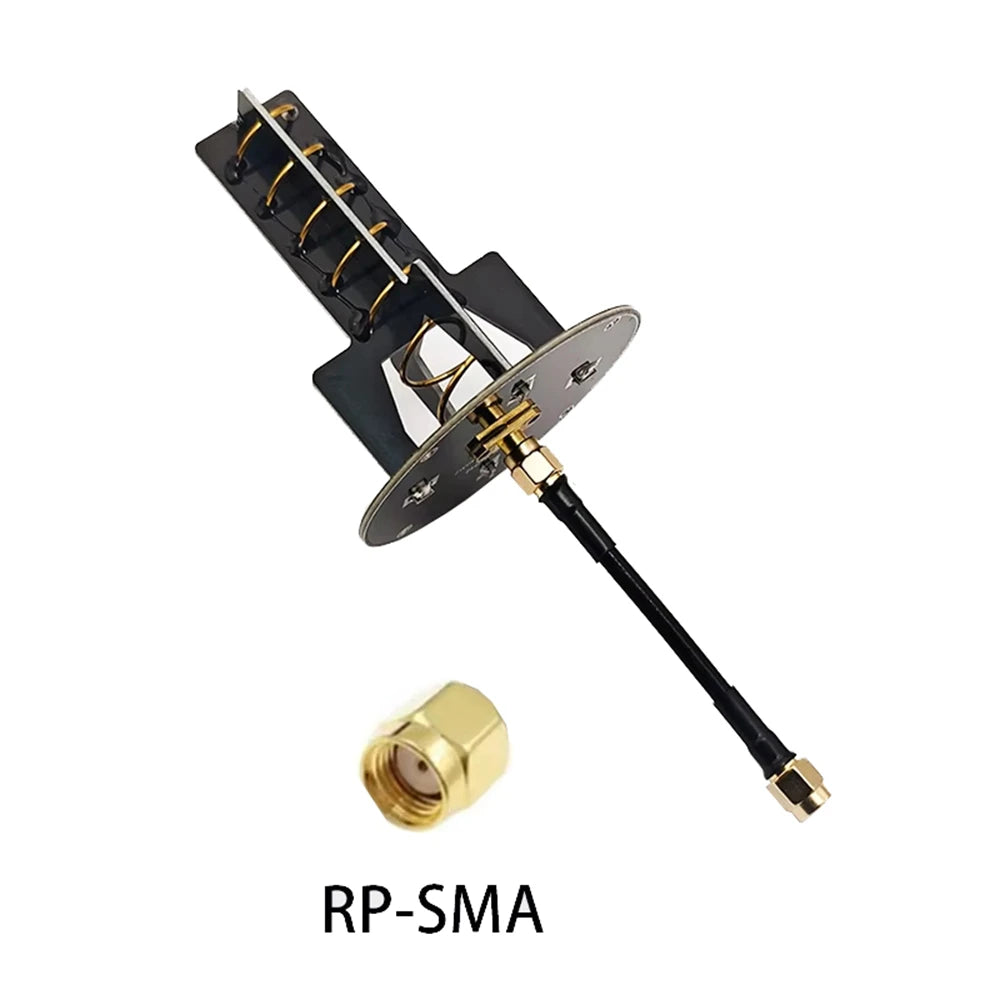

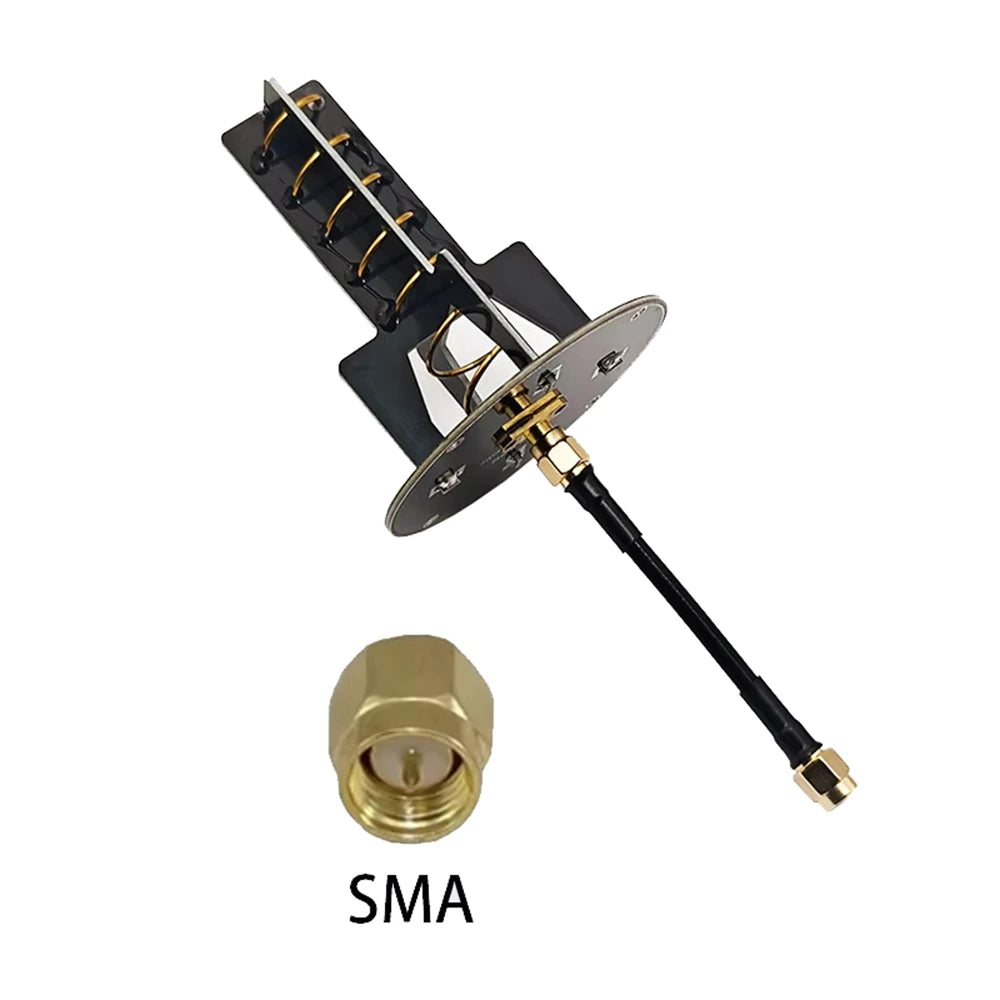

• Universal Connector Compatibility: Ships with a standard SMA male connector; RP-SMA compatible via adapter for plug-and-play use with most FPV goggles, external VRX modules, and ground station receivers.
• All-Weather Rated: Engineered for operating temperatures of −40°C to 60°C and rated for wind velocities up to 60 m/s, so it performs reliably in virtually any flying condition.

Why a Directional Antenna?

Omnidirectional antennas spray your VTX power in every direction — including straight into the ground and sky where no receiver exists. This 13dBi directional antenna concentrates that energy into a focused beam, multiplying effective range and signal clarity. Mount it on your goggles, aim it toward your drone, and keep your FPV video locked even when omni antennas would have dissolved into static.

Why RHCP Circular Polarisation Matters

Linear antennas suffer significant signal loss when your drone banks, rolls, or pitches. Circular polarisation maintains signal integrity through every manoeuvre. RHCP on both transmit and receive sides creates a matched system that rejects reflected signals — the multipath ghosting that blurs your video feed when flying near buildings, through forests, or at busy race events.

Technical Specifications

Package Includes

• 1 × 5.8GHz 13dBi Directional RHCP FPV Antenna

You May Also Like

• 1000D Tactical EDC Bag – Military Utility Storage Pouch
• 100L Waterproof Tent Storage Bag with Combination Lock

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is the difference between an SMA and RP-SMA connector, and which one does this FPV antenna use?

A: Standard SMA (SubMiniature version A) has the pin on the male connector, while RP-SMA (Reverse Polarity SMA) has the pin on the female side. This 5.8GHz directional FPV antenna ships with an SMA male connector and is compatible with RP-SMA goggles or receivers via a simple adapter (not included). Always check your FPV goggle or VRX module connector type before purchasing.

Q: Can I use this directional antenna with any 5.8GHz FPV system?

A: Yes. The antenna covers 4800–6000MHz, making it compatible with all standard 5.8GHz FPV video transmitters and receivers — from 25mW whoop VTXs to 2W long-range ground stations. For best performance, pair it with a matching RHCP transmitting antenna on your drone.

Q: Why is the VSWR specification important for an FPV antenna?

A: VSWR (Voltage Standing Wave Ratio) measures how efficiently power is transferred from your transmitter to the antenna. A VSWR of 1.5 or better means very little power is reflected back into your VTX — maximising actual radiated signal strength, protecting your transmitter, and ensuring consistent video quality across all 5.8GHz channels.

Q: Is this antenna suitable for FPV racing as well as long-range flights?

A: This directional antenna is best suited for long-range and distance flying where you aim it toward your drone. For close-range or proximity racing where your drone moves in all directions rapidly, a high-quality omnidirectional antenna may be more practical. Many pilots use a directional antenna for their primary long-range receiver and combine it with an omni as a diversity backup.
