5-Pack DPDT Momentary Rocker Switch 6-Pin 3-Position On-Off-On

5-Pack DPDT Momentary Rocker Switch – 6-Pin, 3-Position, Spring Return to Center

Get reliable circuit control with this set of five heavy-duty DPDT (Double Pole Double Throw) momentary rocker switches. Featuring a spring-return-to-center On-Off-On action, each switch automatically returns to the neutral middle position when released — ideal for precision control applications in electrical panels, DIY electronics, automotive wiring, marine setups, and industrial equipment.

Rated at AC 250V/15A and 125V/20A, these switches are built for both standard and high-current applications. The sturdy plastic and metal construction ensures long-lasting durability, and the compact form factor makes them easy to install in standard panel cutouts.

Key Features

• Switch Type: DPDT (Double Pole Double Throw) Momentary Rocker

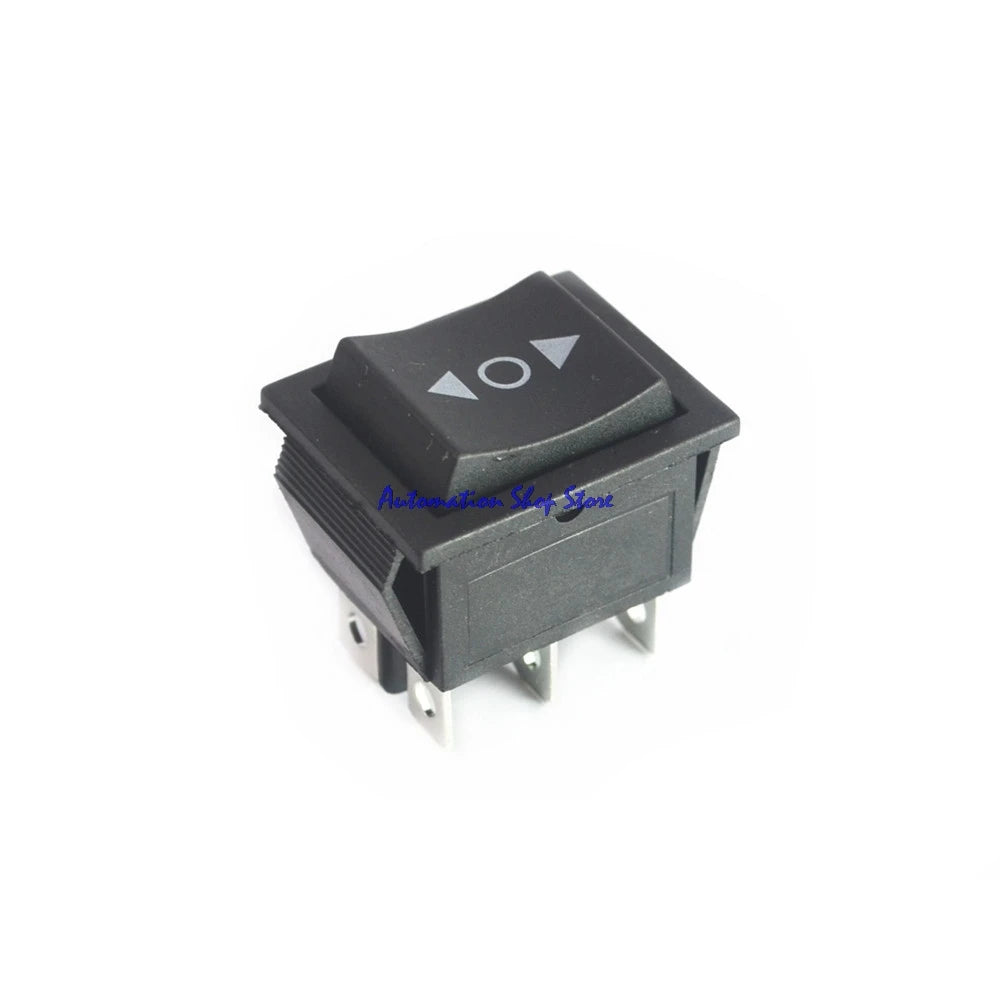

• Positions: 3-Position On-Off-On with spring return to center

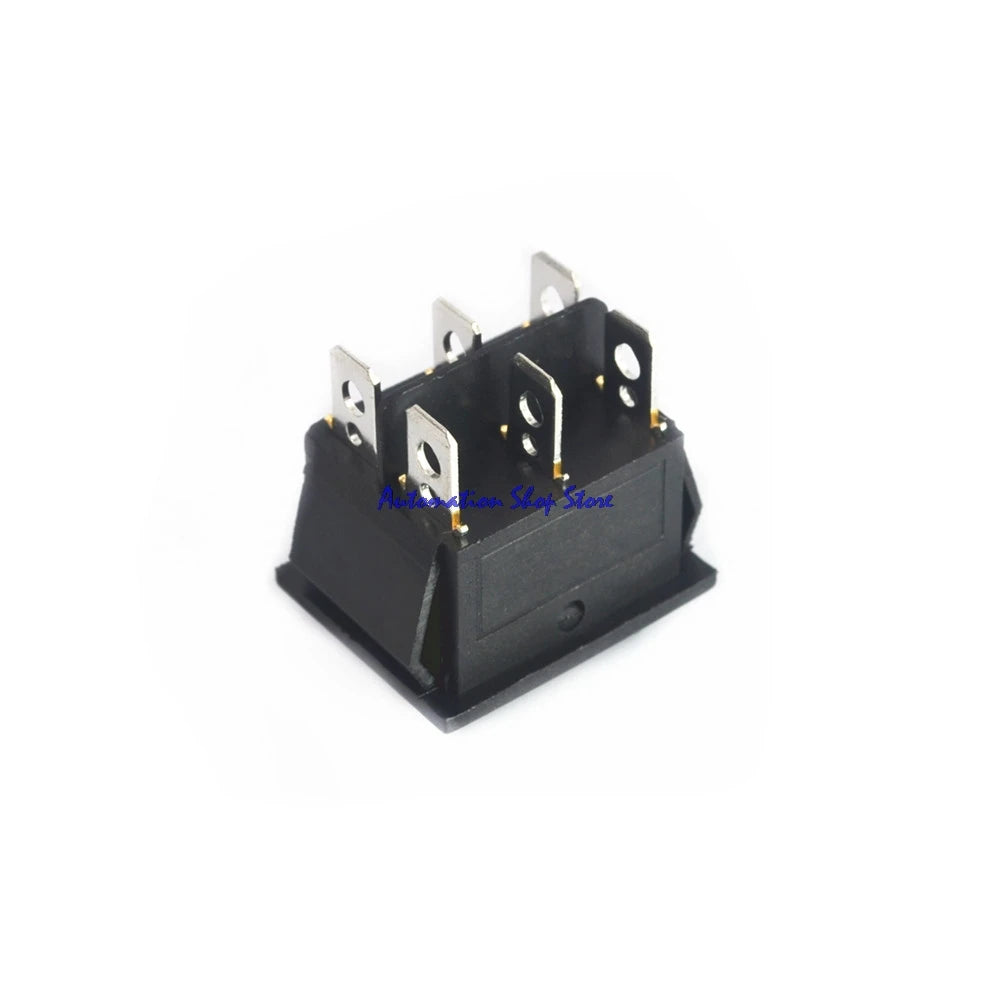

• Terminals: 6-Pin configuration for versatile wiring
• Voltage/Current Rating: AC 250V / 15A & AC 125V / 20A
• Overall Dimensions: 31mm × 25mm × 35mm (1.2" × 1" × 1.4")
• Mounting Cutout Size: 27mm × 21mm (1.1" × 0.8")
• Material: Plastic body with metal contacts
• Color: Black
• Model: KCD4
• Certification: CCC
• Package Includes: 5 × Rocker Switches

Technical Specifications

Great Pairing Picks

Looking for more electrical components and project accessories? Check out these related products from our store:

• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What does "momentary" mean for this DPDT rocker switch?

A: A momentary switch only stays in the activated (On) position while you are pressing it. The moment you release it, the internal spring automatically returns the rocker to the center (Off) position. This makes momentary DPDT rocker switches ideal for applications like motor direction control, signal switching, or any use case where you want the circuit to open again as soon as you let go.

Q: What does the DPDT 6-pin configuration allow me to do?

A: DPDT (Double Pole Double Throw) means the switch controls two separate circuits simultaneously. With 6 pins (two rows of 3: common, normally-open, and normally-closed per pole), you can route and redirect two independent electrical circuits at the same time — perfect for controlling forward/reverse motor direction, toggling between two power sources, or managing dual-channel lighting setups.

Q: Can these switches be used in both 120V and 240V AC applications?

A: Yes. Each switch is dual-rated at AC 250V/15A and AC 125V/20A, making them suitable for both standard North American (120V) and European/international (230–240V) AC circuits, within the stated current limits. Always ensure your wiring and installation comply with local electrical codes and safety standards.

Q: What is the panel cutout size needed to mount these switches?

A: The required mounting cutout is 27mm × 21mm (approximately 1.1" × 0.8"). The overall body of the switch measures 31mm × 25mm × 35mm, which sits behind the panel once installed. This is a standard KCD4 form factor, compatible with many off-the-shelf enclosures and project boxes.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
