50Pcs 6x6mm Momentary Tactile Push Button Switch PCB Right Angle
50Pcs 6x6mm Momentary Tactile Push Button Switch PCB Right Angle
Details

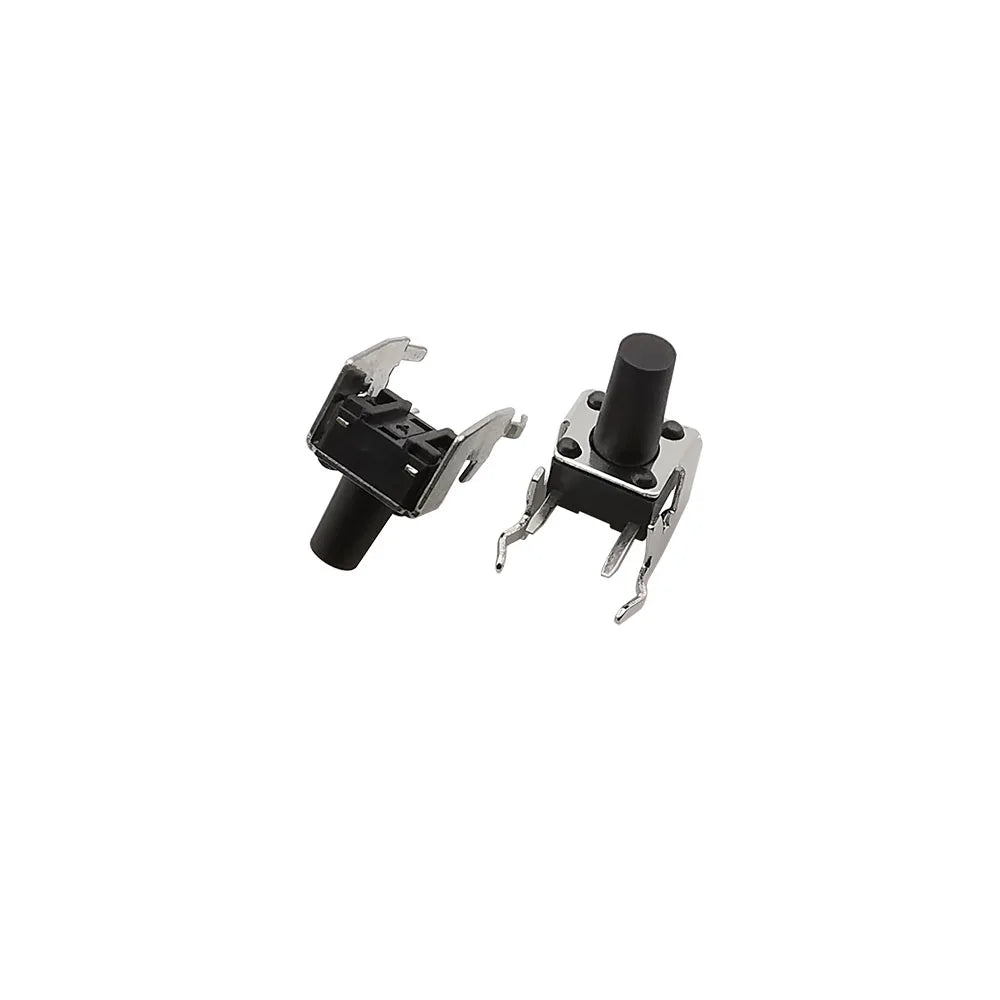

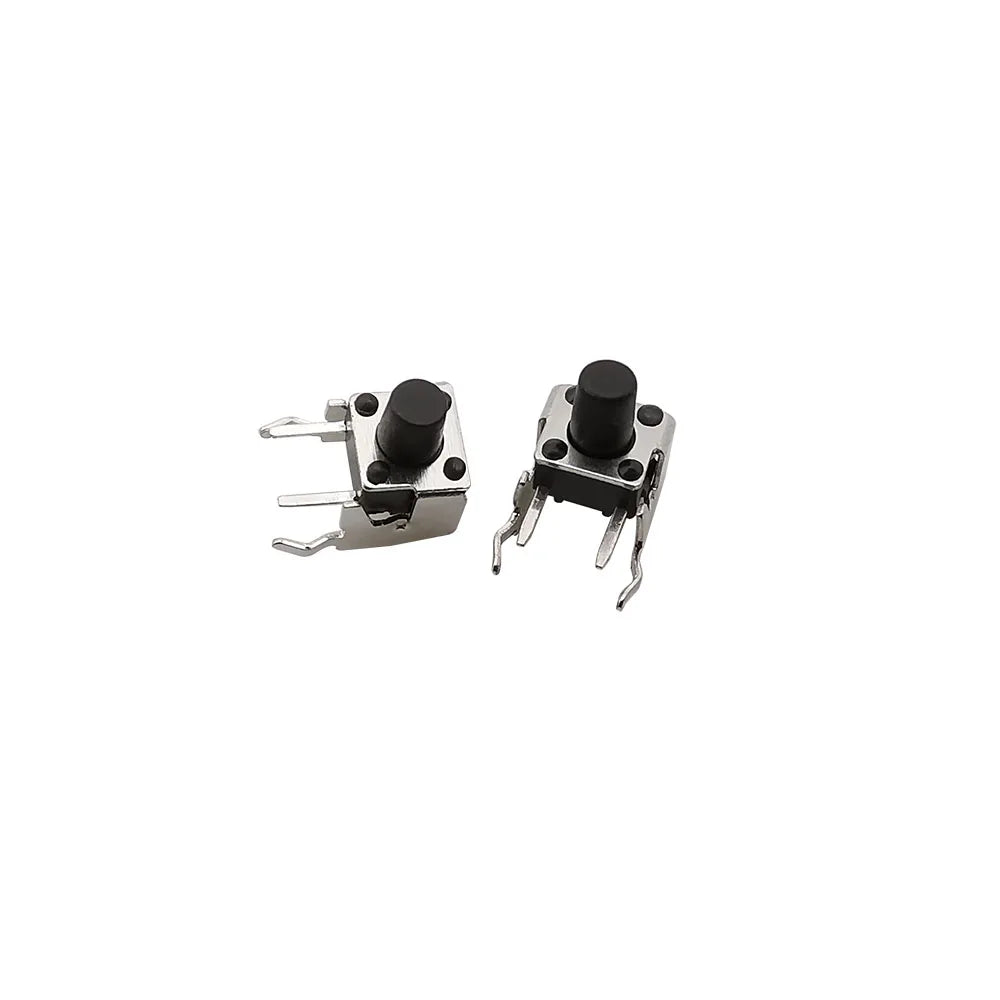

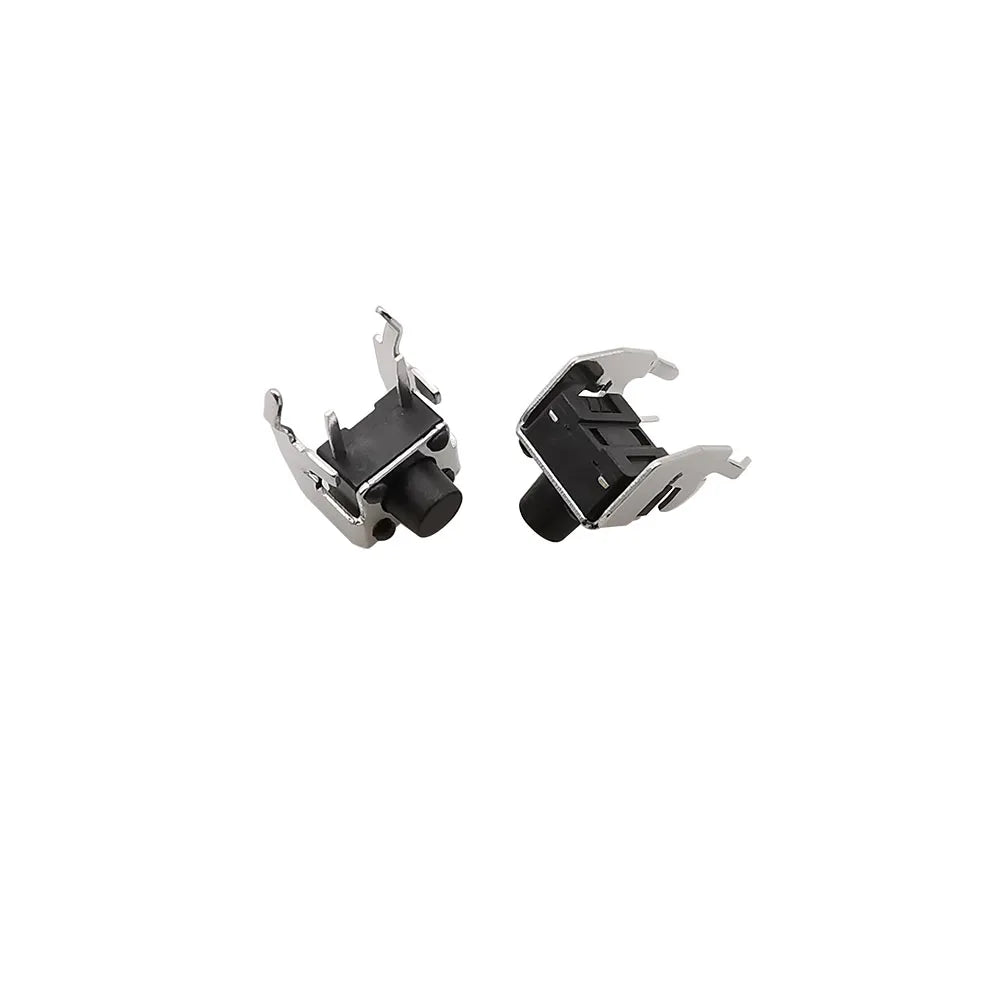

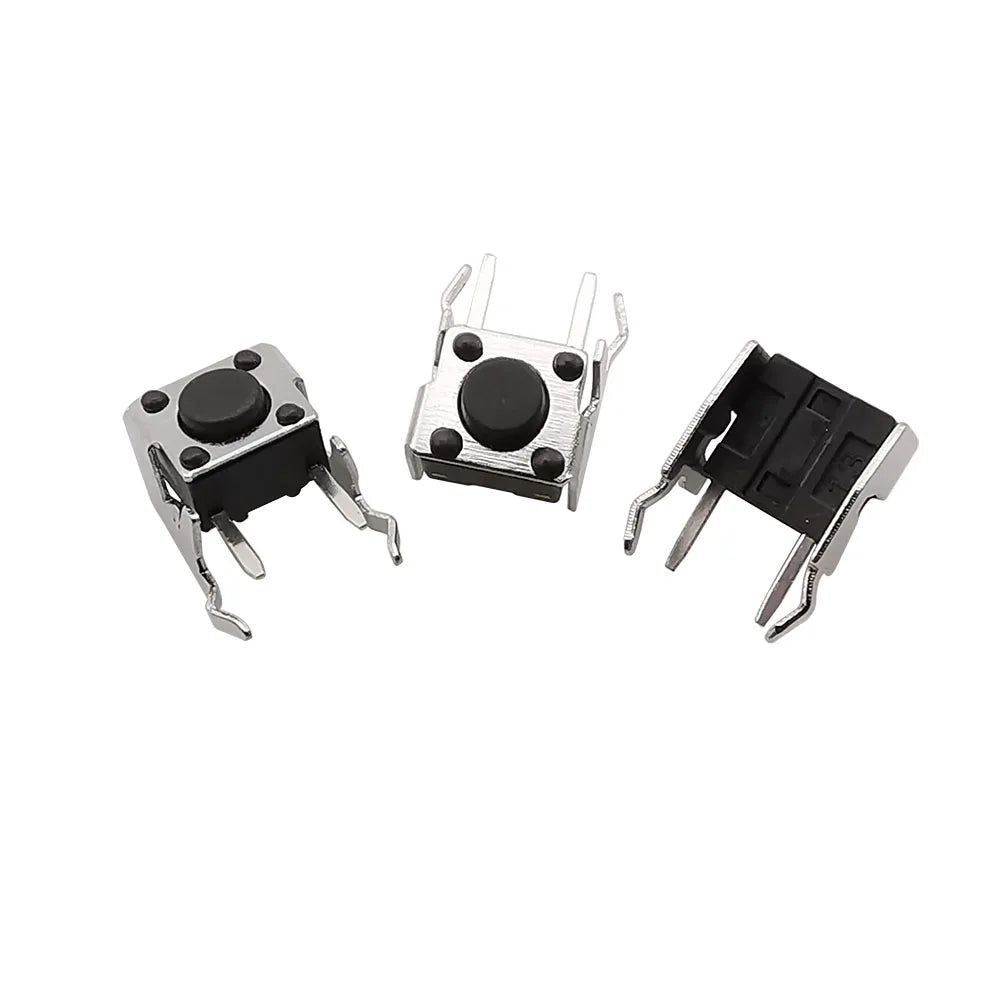

50-Pack 6×6mm Momentary Tactile Push Button Switches — Right Angle PCB Mount
Upgrade your electronics projects with this versatile pack of 50 mini tactile push button switches. Designed for right-angle PCB panel mounting, these self-resetting momentary tact switches are compact, reliable, and compatible with a wide range of electronic products, household appliances, DIY kits, and hobbyist builds. Available in multiple height options so you can pick the exact fit for your board layout.
Made in Mainland China.
Key Features
- Dimensions: 6×6mm footprint — compact and space-saving

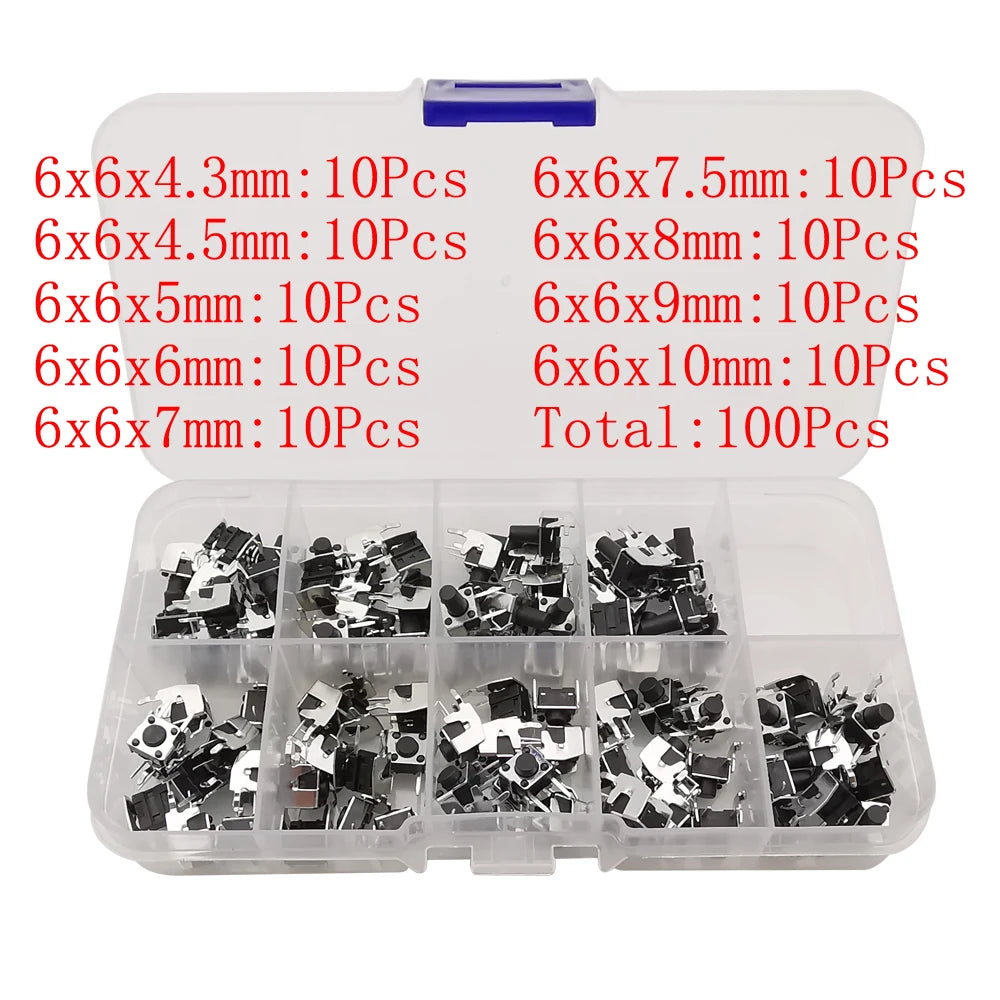

- Height Options: 4.3mm, 4.5mm, 5mm, 6mm, 7mm, 7.5mm, 8mm, 9mm, 10mm — select the height you need
- Switch Action: Momentary self-reset (returns to open position on release)
- Mount Type: Right-angle PCB panel mount
- Rated Load: DC 12V / 50mA
- Voltage Rating: Low voltage — below 50V AC or 75V DC (EU LVD compliant)
- Material: Durable plastic housing
- Colors Available: Silver and Black
- Package Quantity: 50 pieces (counted by weight; ±1% tolerance applies)
Understanding Switch Height

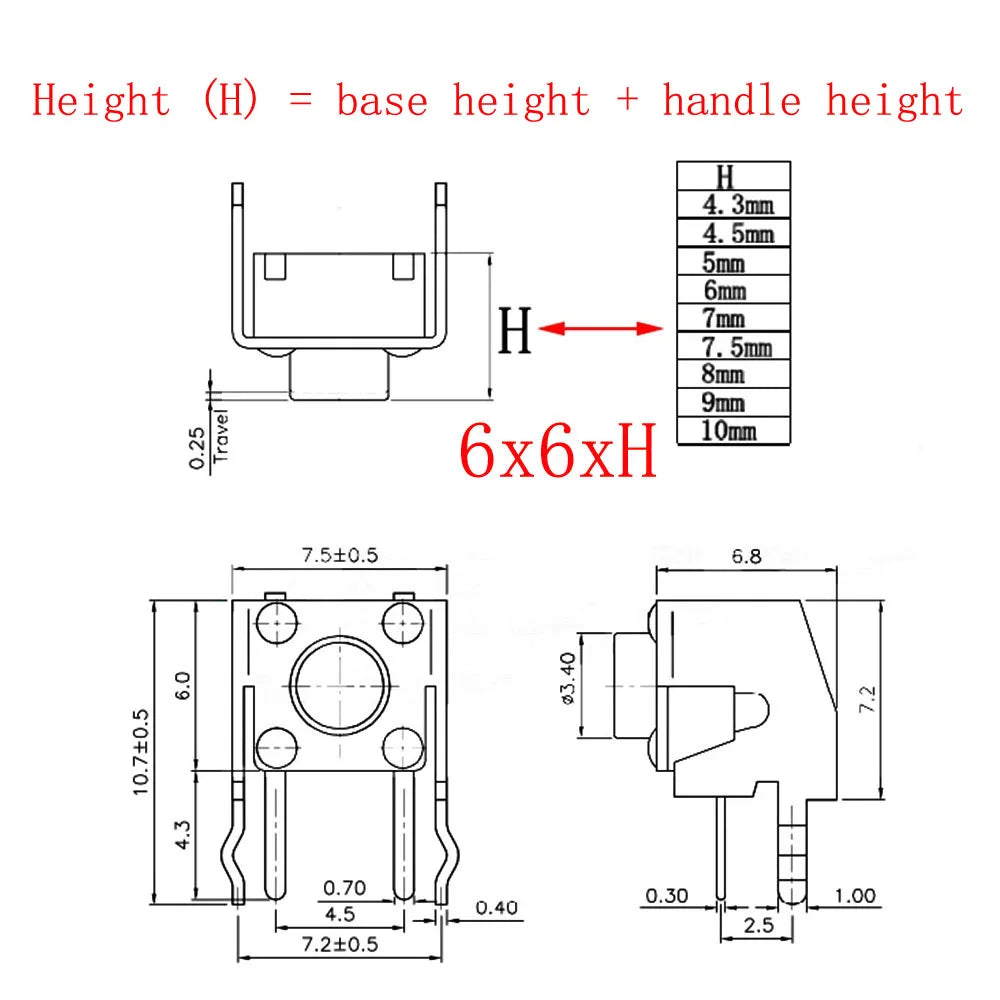

The height of a tactile switch refers to the total vertical height of the assembled component, measured from the bottom of the base (PCB mounting surface) to the top of the actuator. This is a standard industry measurement: Height (H) = Base Height + Handle Height. For example, in a 6×6×5mm switch, the "5mm" is the total height (H). Choose your height based on your enclosure clearance and panel depth requirements.
Typical Applications
- Consumer electronics and DIY PCB projects
- Household appliance control panels
- Arduino, Raspberry Pi, and microcontroller prototyping
- Remote controls, test equipment, and custom enclosures
- Any application requiring a compact, self-resetting momentary switch
Specifications at a Glance
| Footprint | 6 × 6 mm |
| Height Variants | 4.3 / 4.5 / 5 / 6 / 7 / 7.5 / 8 / 9 / 10 mm |
| Switch Type | Momentary (Self-Reset) |
| Rated Voltage | DC 12V |
| Rated Current | 50mA |
| Mount | Right-Angle PCB Panel Mount |
| Material | Plastic |
| Color | Silver / Black |
| Quantity | 50 Pieces |
| Origin | Mainland China |
Important Notes
- Please verify the switch height and specifications match your project requirements before ordering.
- Allow ±0–2mm tolerance due to manual measurement (1 inch = 25.4mm).
- Piece count is determined by weight; a ±1% variance is normal.
- Actual product color may vary slightly from product images.
Related Products You May Like
- 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
- 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What does "momentary self-reset" mean for these tactile push button switches?
A: A momentary self-reset switch only completes the circuit while the button is actively being pressed. As soon as you release it, the internal spring mechanism automatically returns the actuator to its original (open/off) position. This makes the 6×6mm tactile switch ideal for trigger inputs, menu navigation buttons, and reset functions in PCB designs.
Q: How do I choose the correct height for my 6×6mm tactile switch?
A: The height is measured from the bottom of the PCB mounting surface to the top of the actuator. Choose based on your panel thickness and enclosure depth. For example, if your panel is 2mm thick and you need the button to protrude 3mm above the panel, you would need a switch taller than 5mm total height. This pack offers heights from 4.3mm up to 10mm to cover most standard PCB and enclosure combinations.
Q: Are these switches compatible with Arduino and Raspberry Pi projects?
A: Yes — the 6×6mm right-angle momentary tact switches are widely used in Arduino, Raspberry Pi, and other microcontroller prototyping setups. Their standard 6×6mm footprint fits most breadboards and PCB layouts designed for common tact switches, and the 50mA / 12V DC rating is well within the range of typical hobbyist GPIO applications.
Q: What is the difference between right-angle mount and vertical mount tactile switches?
A: A right-angle (horizontal) mount tactile switch has its leads bent at 90° so the actuator faces sideways (parallel to the PCB surface). This is ideal when the button needs to be accessed from the side of an enclosure or panel. A vertical mount switch, by contrast, has the actuator pointing upward, perpendicular to the PCB. These switches in this listing are right-angle mount.
