7" HD LCD Digital Microscope 12MP 1200X – Soldering & Repair

7-Inch HD LCD Digital Microscope — See Every Detail in Stunning Clarity

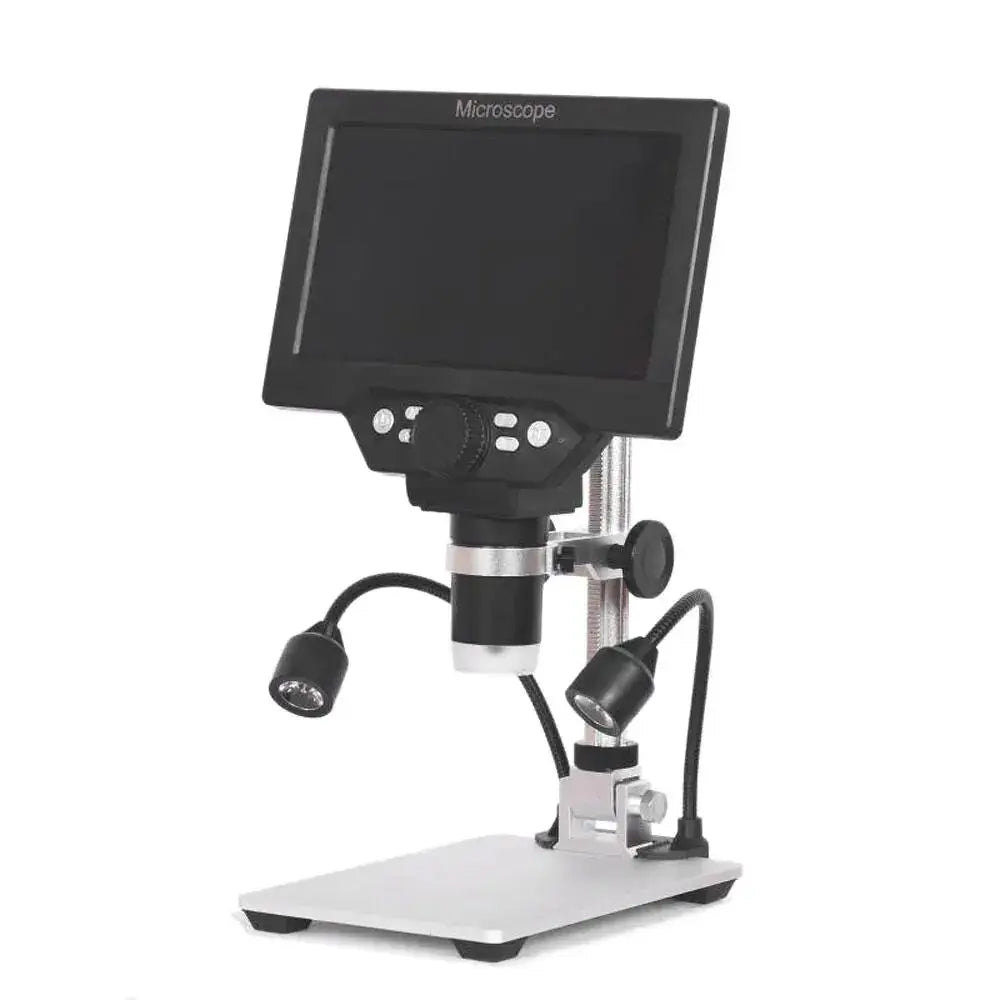

The G1200 Digital Microscope is a professional-grade, all-in-one inspection tool featuring a large 7-inch HD LCD screen, 12-megapixel sensor, and 1–1200x continuous zoom. Whether you're working on PCB soldering, electronics repair, jewelry inspection, coin collecting, or detailed crafts, this microscope gives you a crystal-clear view of even the tiniest components — hands-free and without the eyestrain of traditional optical models.

Made in Mainland China.

Key Features at a Glance

• 7-Inch HD LCD Display: Large, bright screen provides a wide, comfortable field of view for photos, videos, and live observation — no squinting through an eyepiece required.
• 12MP Sensor & 1–1200x Continuous Zoom: Smoothly dial in the perfect magnification level for any task, from broad overviews to extreme close-ups of tiny chip markings or solder joints.

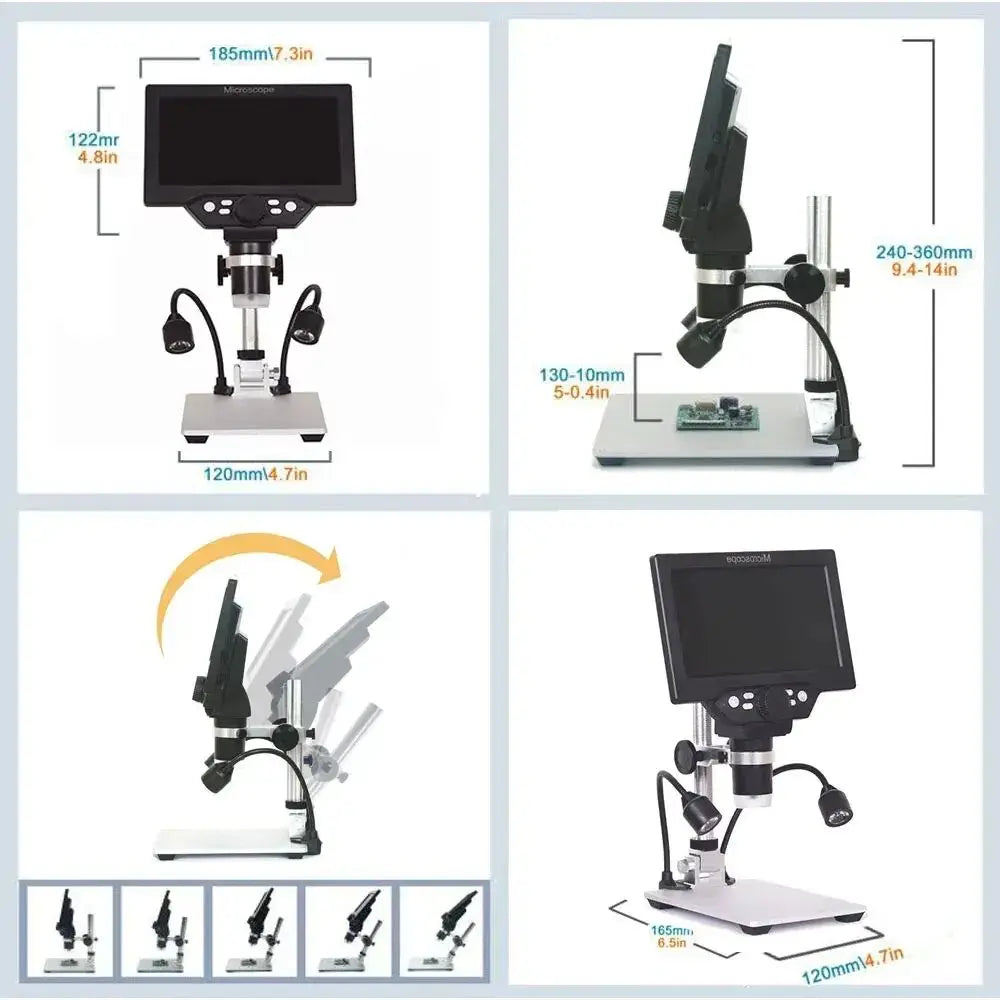

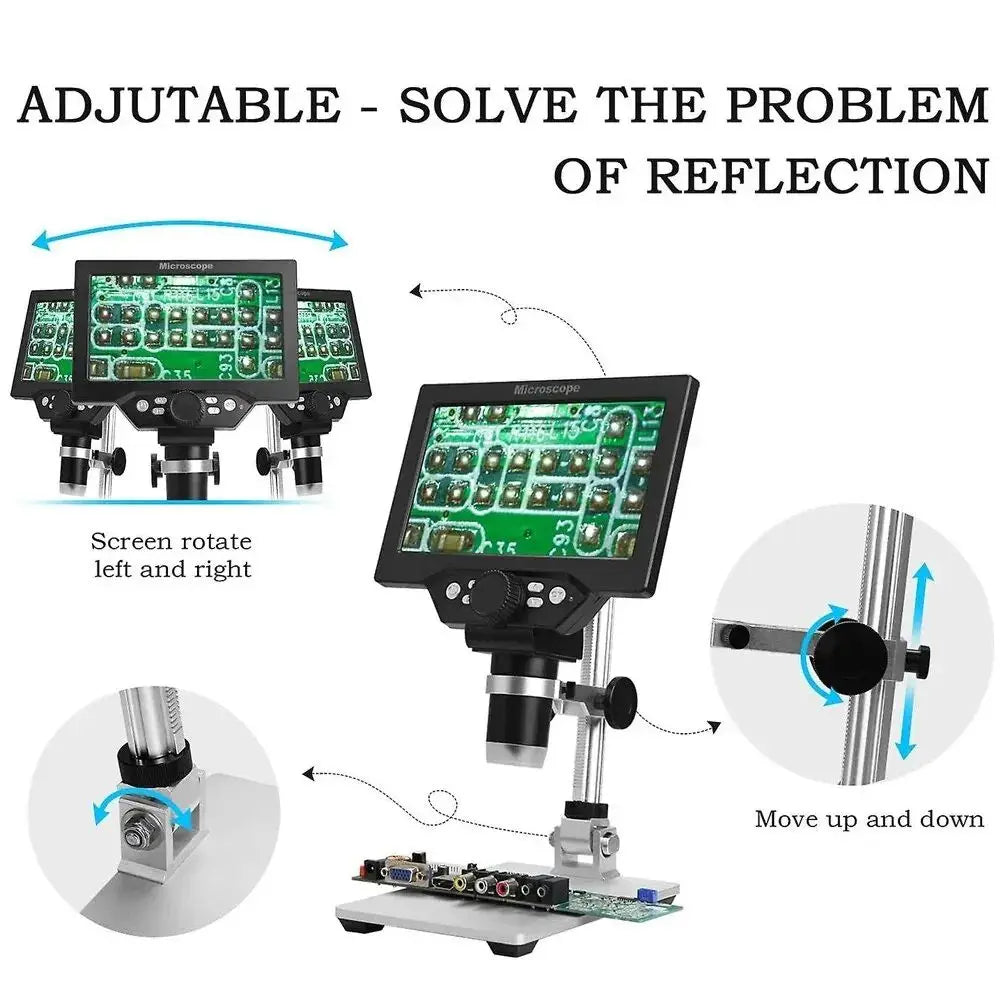

• Angle-Adjustable Aluminum Alloy Stand: The bracket rotates forward and backward at any angle, solving the common reflection problem that plagues vertical microscopes. Ample working clearance lets you comfortably maneuver tweezers or a soldering iron under the lens.

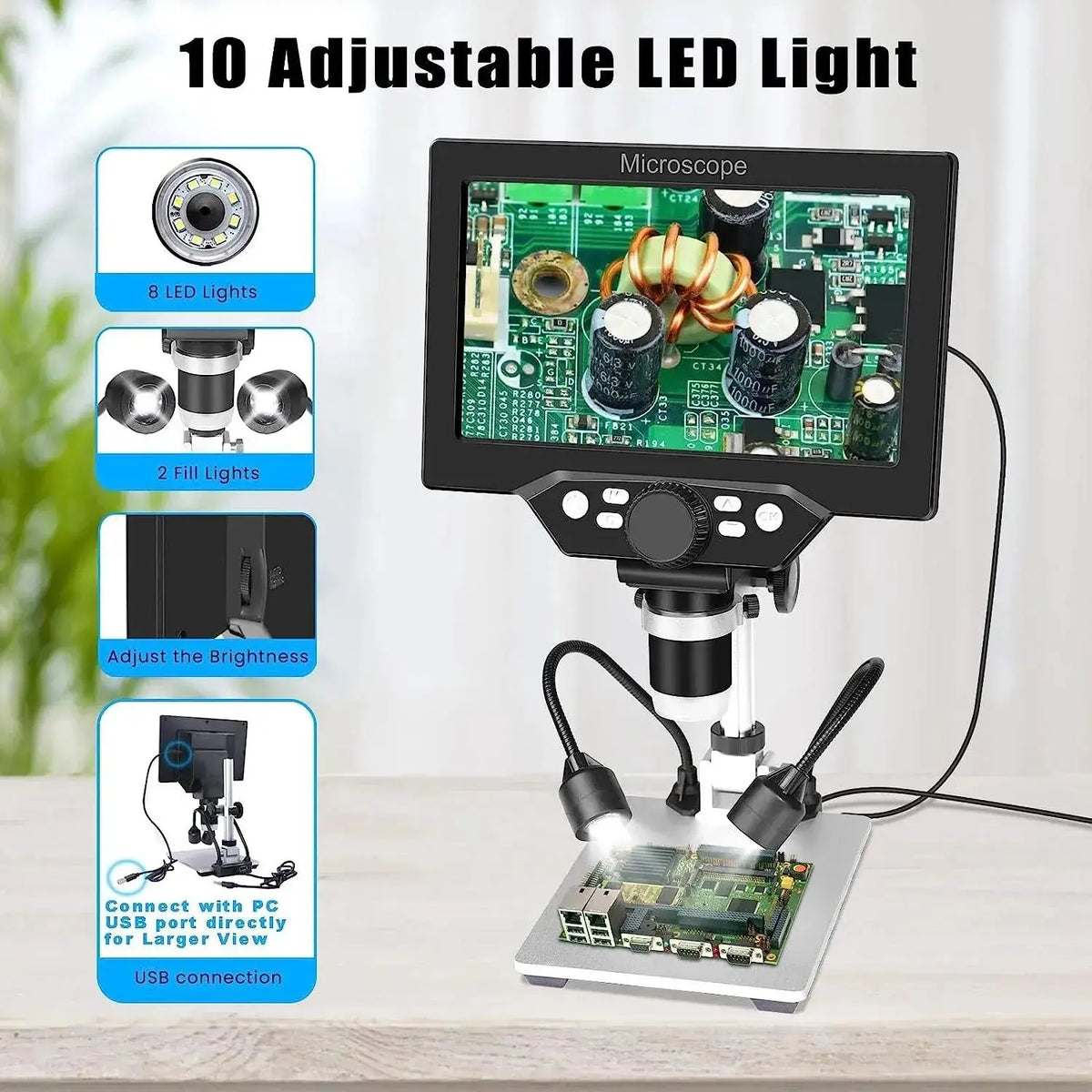

• 8 LED Lights + 2 Auxiliary Fill Lights: Ten independently adjustable LED lights (rated up to 100,000 hours) ensure bright, even, glare-free illumination in any environment — even in dimly lit workspaces.
• Built-in Rechargeable Battery: Powered by a 3.7V 3000mAh lithium-ion battery or directly via Micro USB — making it truly portable and independent of a power outlet.
• PC Connectivity: Connect via USB cable for real-time live viewing on your PC or Mac. Compatible with Windows XP SP2 / Win7 / Win8 / Win10 and macOS 10.5 or higher.
• Micro SD Card Storage: Save photos and video directly to a Micro SD card (supports up to 128GB, Class 10). Comes equipped with a 32GB card included.
• 16-Language Interface: Supports English, Spanish, Russian, Korean, Japanese, Thai, Hebrew, Portuguese, German, French, Italian, Turkish, Czech, Polish, Traditional Chinese, and Simplified Chinese.

Full Specifications

Who Is This Microscope For?

This digital microscope is an excellent fit for electronics technicians, PCB inspectors, phone repair professionals, jewelers, hobbyist collectors, educators, and anyone who needs magnified, hands-free visibility for precision tasks. The generous working clearance beneath the lens means you can freely use tools like tweezers or a soldering iron while observing — a critical advantage that traditional vertical microscopes often lack.

Usage Tips

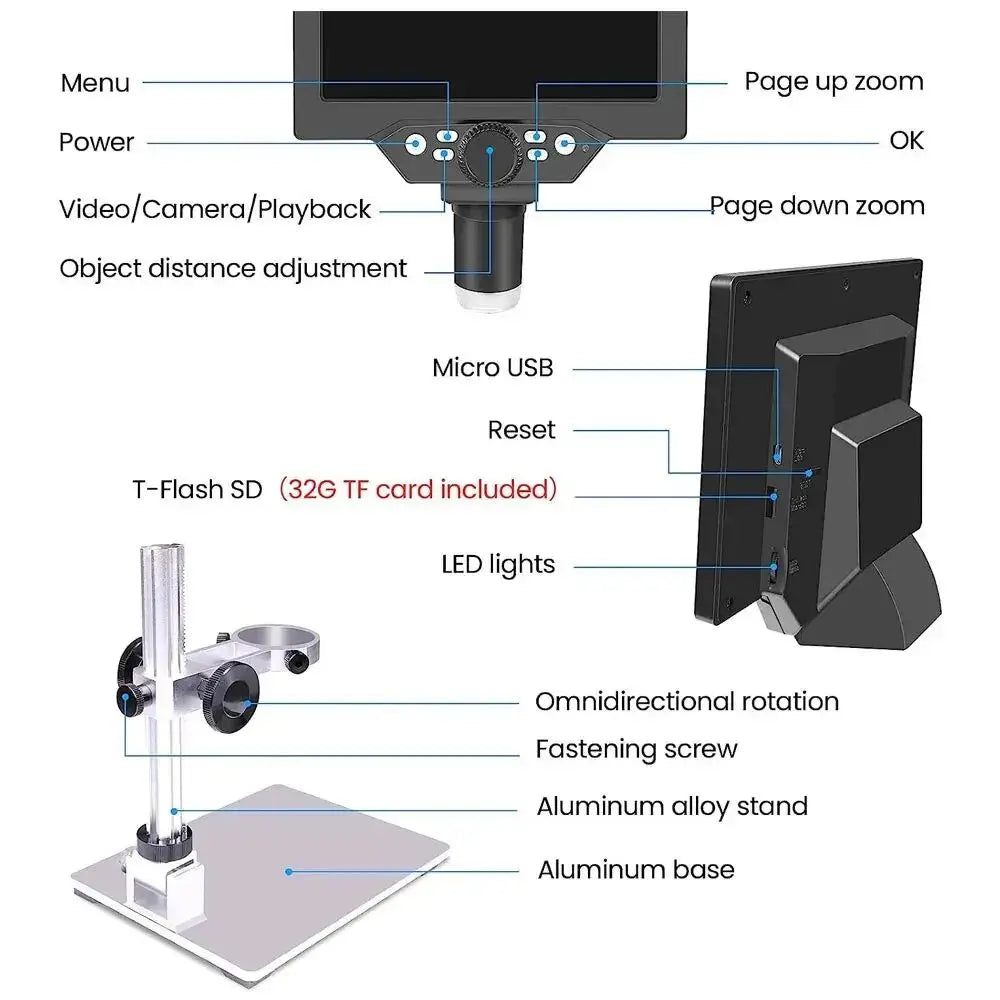

• Turn the knobs on both sides of the bracket clockwise to raise the microscope, counterclockwise to lower it.

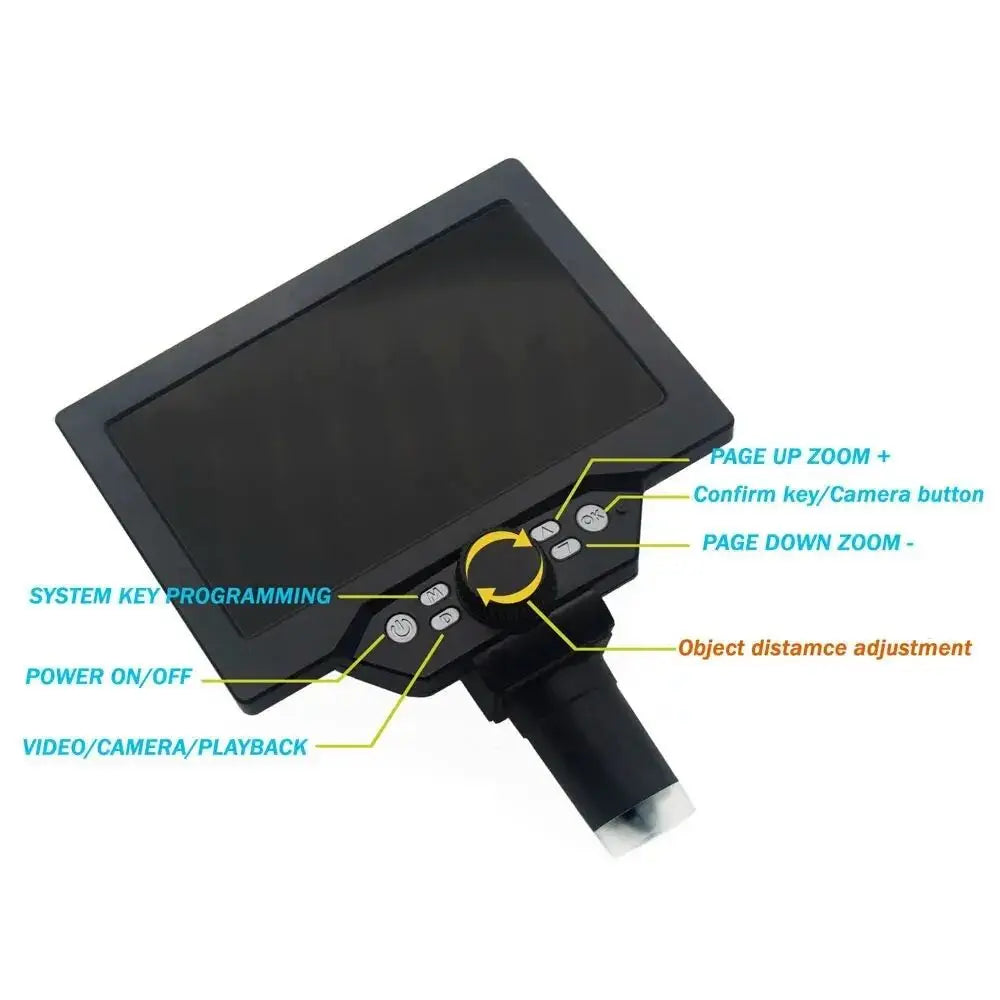

• Rotate the knob beneath the screen to fine-tune focal length for a sharp, clear image.
• Use the back-panel knob to adjust auxiliary fill light brightness and reduce glare or shadows.
• Connect to your PC via USB only when you are ready to observe — then launch the companion software.
• If the unit becomes unresponsive, use a needle-like object to press the recessed RESET button to restart.

What's in the Box?

• 1 × G1200 Digital Microscope with metal stand
• 1 × 32GB Micro SD Card (pre-installed)
• 1 × Built-in 3000mAh Li-ion Battery

You May Also Like

Looking for more precision tools and accessories? Check out these related products from our store:

• 10/20mm Diamond Flat Grinding Wheel – Heavy Duty Concrete Grinder
• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: Can I use the G1200 digital microscope without a computer?

A: Yes! The microscope has a built-in 7-inch HD LCD screen and a rechargeable 3000mAh lithium-ion battery, so it operates completely standalone — no computer required. You can view, photograph, and record video entirely on the device itself. PC connectivity is an optional add-on feature for an even larger display view.

Q: What magnification range does this digital microscope offer?

A: The G1200 offers continuous zoom from 1x up to 1200x magnification. Unlike two-step zoom models that jump between fixed levels, the continuous zoom lets you find the exact magnification that suits your task — whether that's a broad circuit board overview or an extreme close-up of a tiny chip marking.

Q: How do I save photos and videos taken with this microscope?

A: The microscope is equipped with a Micro SD card slot that supports cards up to 128GB (Class 10 recommended). It comes with a 32GB card included. You can save images and videos directly to the card for easy transfer to your computer. When connected to a PC via USB, you can also view and capture live footage directly on your monitor using the included software.

Q: Is this digital microscope suitable for PCB soldering and electronics repair?

A: Absolutely. The angle-adjustable aluminum alloy stand is specifically designed to address the glare and reflection issues common with vertical microscopes used on PCBs and metal components. The generous working clearance beneath the lens gives you room to handle a soldering iron, tweezers, or other tools comfortably while observing your work in real time on the 7-inch screen.
