90° Brass Hose Barb Elbow Fitting 6–19mm, 1/8"–1/2" Male Thread

Q: What hose sizes are compatible with this brass elbow barb fitting?

This fitting is designed to work with hoses that have an inner diameter (ID) matching the barb OD — available in 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, and 19 mm. Always match the barb OD to your hose's inner diameter for a secure, leak-resistant seal.

Q: What male thread size do I need for my application?

This 90-degree brass hose barb elbow fitting is available with male thread sizes of 1/8" (~9.7 mm), 1/4" (~12 mm), 3/8" (~16 mm), and 1/2" (~20 mm). Check the female thread size on your pipe, valve, or pump port before ordering to ensure a proper match.

Q: Is this fitting suitable for both water and air systems?

Yes. The brass construction and pressure rating of under 850 kPa make this fitting suitable for water, air, and other compatible fluid systems, including garden irrigation, pneumatic lines, and aquarium equipment.

Q: How do I install the brass hose barb elbow fitting?

Apply thread seal tape (PTFE) to the male threads, hand-tighten into the female port, then use a wrench on the hexagon head for a snug, leak-free fit. Push your hose firmly over the barbed end and secure with a hose clamp if needed for high-pressure applications.

$46.64 $52.72

Shipping calculated at checkout.

Size

Thread Specification

90° Brass Hose Barb Elbow Fitting — Versatile Coupler & Adapter

Route hoses cleanly around corners with this precision-cast 90-degree brass hose barb elbow fitting. Available in a wide range of barb outer diameters (6 mm to 19 mm) and male thread sizes (1/8" to 1/2"), this gold-tone copper alloy connector is built to handle demanding plumbing, irrigation, pneumatic, and fluid-transfer applications. The hexagon head makes installation fast and secure with a standard wrench.

Key Features

Premium Brass Construction: Cast from durable brass for excellent corrosion resistance and long service life.
90-Degree Elbow Design: Redirects hose runs at a right angle — ideal for tight spaces and neat installations.
Wide Size Range: Barb OD from 6 mm to 19 mm; male thread sizes 1/8", 1/4", 3/8", and 1/2" to suit most standard hoses and fittings.
Hexagon Head: Easy tightening and removal with a standard wrench — no slipping, no frustration.
High-Pressure Rated: Handles up to 850 kPa, suitable for water, air, and other compatible fluid systems.
Secure Barbed Grip: The barbed end bites into hose walls for a leak-resistant, pull-resistant connection.

Specifications

Material	Brass (Copper Alloy)
Color	Gold Tone
Angle	90 Degrees
Connection Type	Male Thread

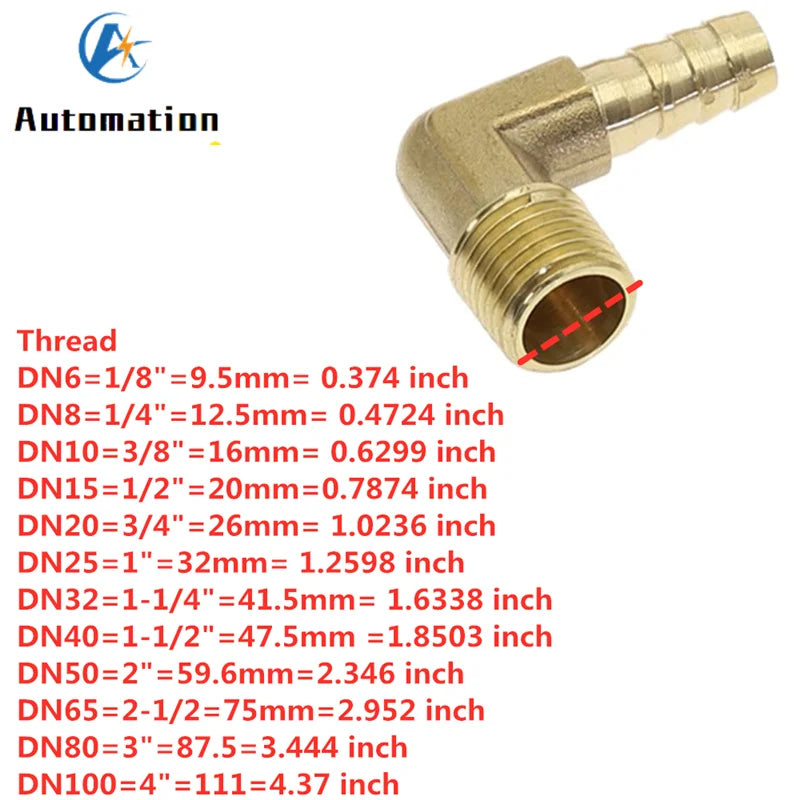

Male Thread Sizes	1/8" (~9.7 mm), 1/4" (~12 mm), 3/8" (~16 mm), 1/2" (~20 mm)
Barb OD / Hose ID	6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 19 mm
Head Style	Hexagon
Max Pressure	< 850 kPa
Manufacturing Method	Casting
Package Contents	1 × Brass Elbow Hose Barb Fitting
Country of Origin	Made in China

Common Applications

Garden and drip irrigation systems
Pneumatic air lines and compressor hose routing
Automotive cooling and fluid transfer lines
Water pumps, fish tanks, and aquarium equipment
Industrial and workshop fluid systems

Frequently Asked Questions

Q: What hose sizes are compatible with this brass elbow barb fitting?

A: This fitting is designed to work with hoses that have an inner diameter (ID) matching the barb OD — available in 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, and 19 mm. Always match the barb OD to your hose's inner diameter for a secure, leak-resistant seal.

Q: What male thread size do I need for my application?

A: This 90-degree brass hose barb elbow fitting is available with male thread sizes of 1/8" (~9.7 mm), 1/4" (~12 mm), 3/8" (~16 mm), and 1/2" (~20 mm). Check the female thread size on your pipe, valve, or pump port before ordering to ensure a proper match.

Q: Is this fitting suitable for both water and air systems?

A: Yes. The brass construction and pressure rating of under 850 kPa make this fitting suitable for water, air, and other compatible fluid systems, including garden irrigation, pneumatic lines, and aquarium equipment.

Q: How do I install the brass hose barb elbow fitting?

A: Apply thread seal tape (PTFE) to the male threads, hand-tighten into the female port, then use a wrench on the hexagon head for a snug, leak-free fit. Push your hose firmly over the barbed end and secure with a hose clamp if needed for high-pressure applications.
