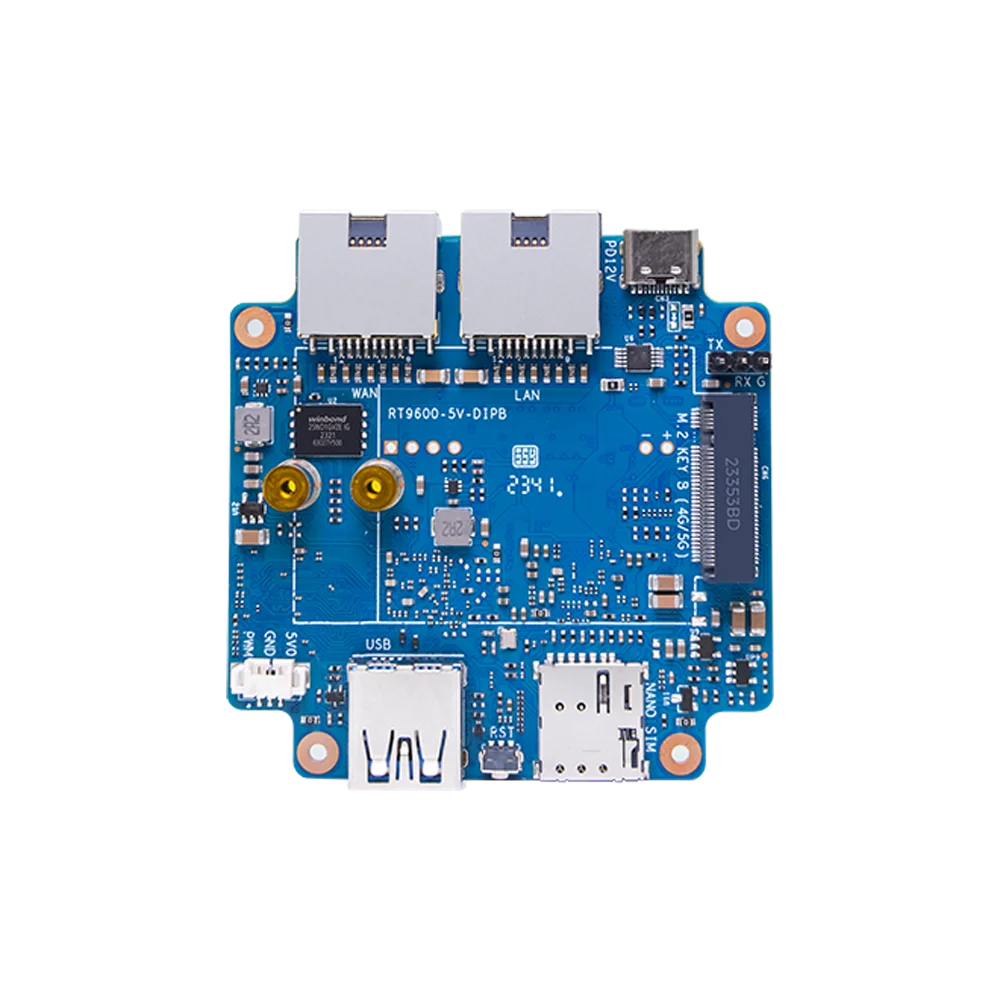

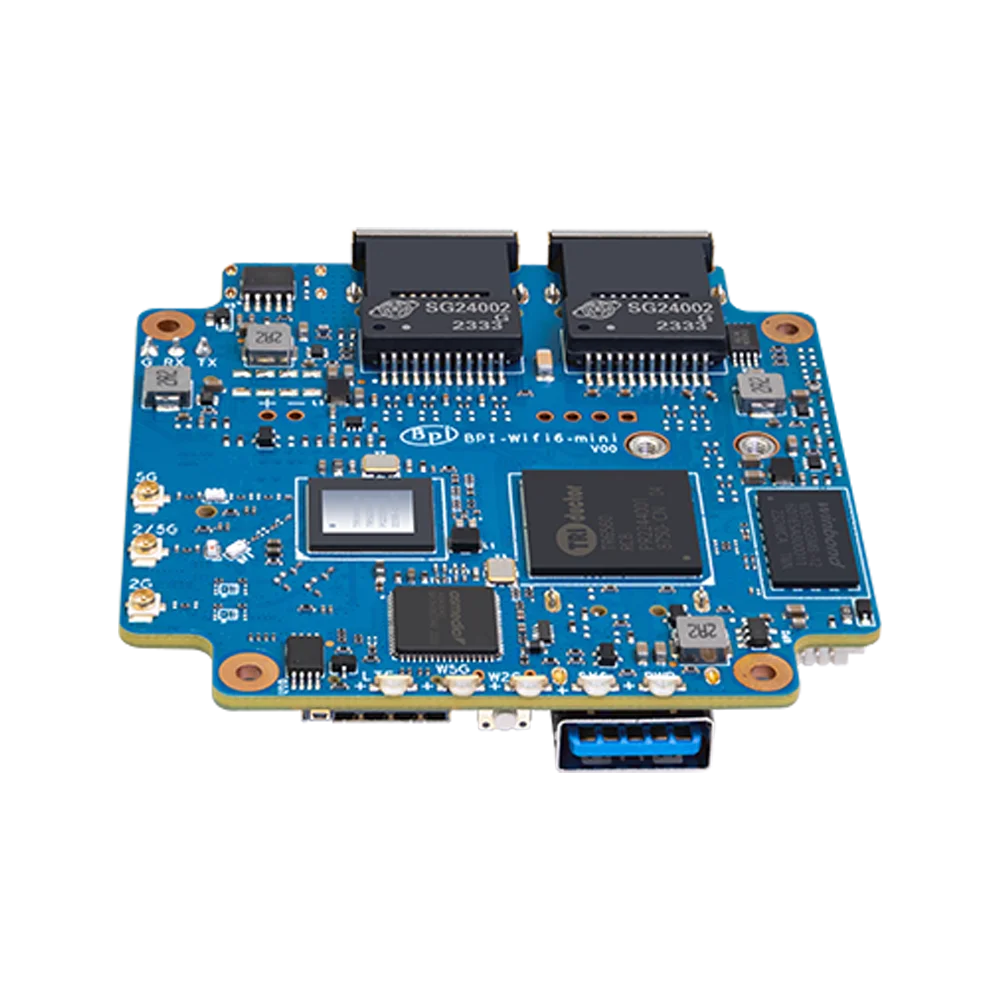

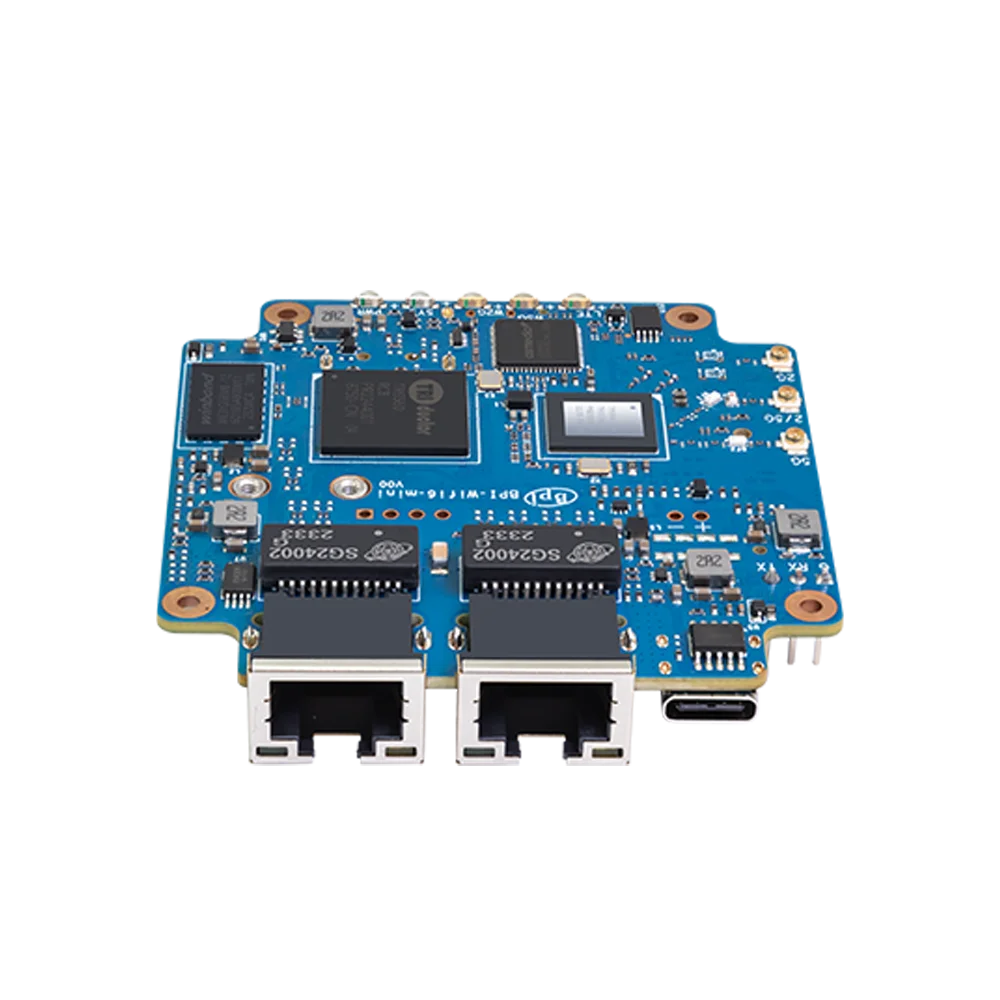

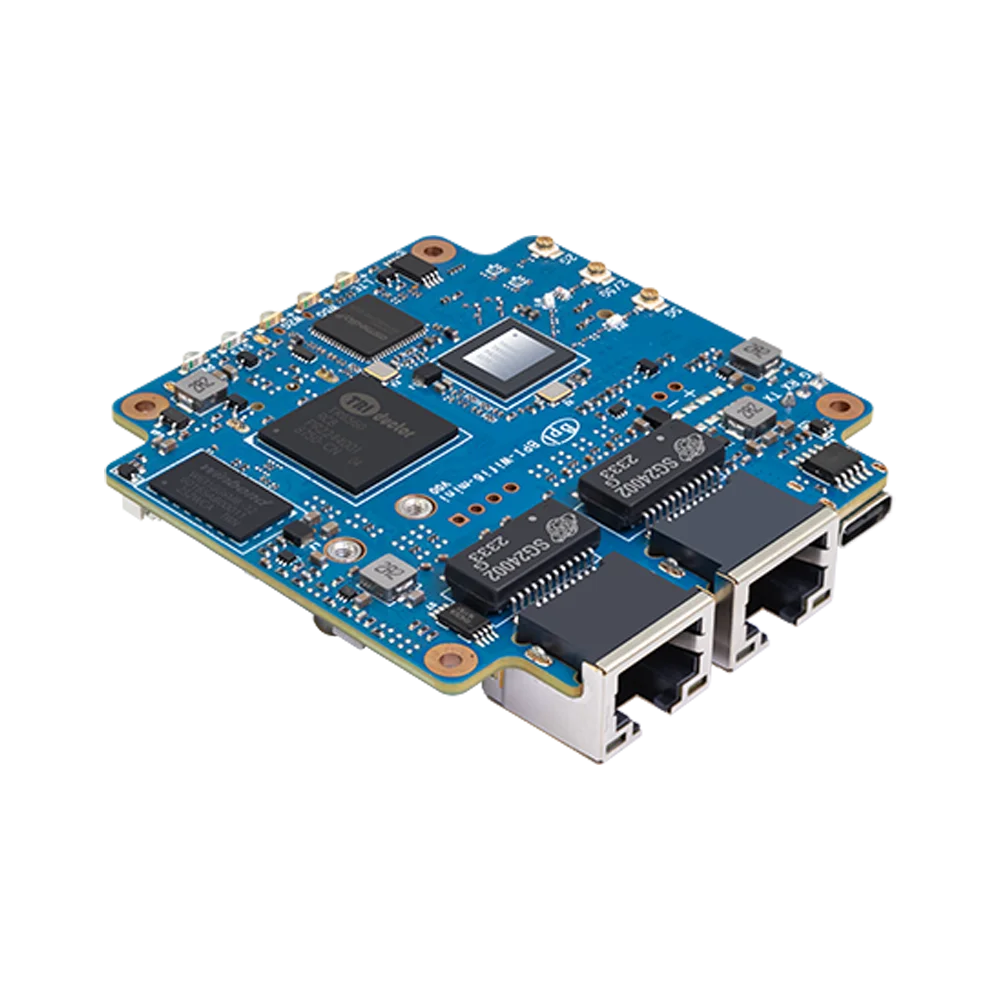

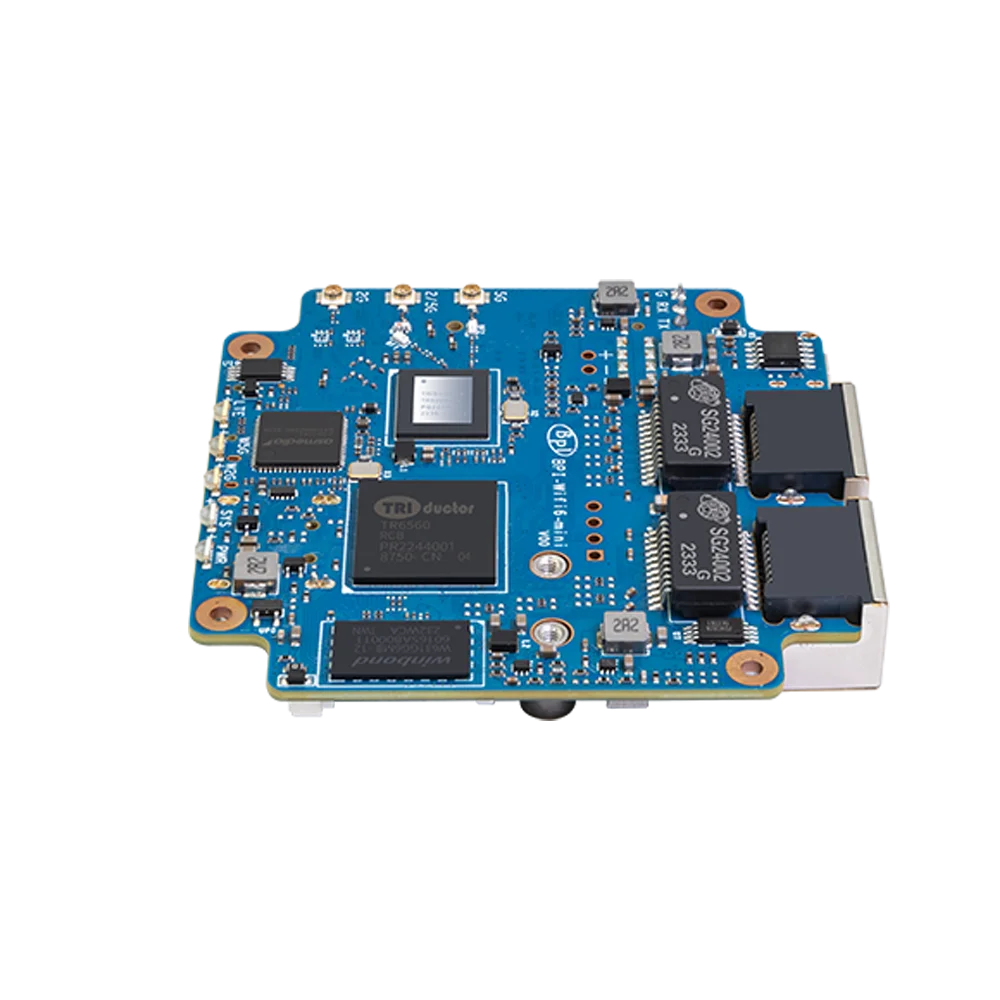

Banana Pi BPI-WIFI6 Mini Open Source Router – WiFi 6 Board

Meet the Banana Pi BPI-WIFI6 Mini — a compact, open-source router board powered by the Triductor TR6560 + TR5220 WiFi SoC. Engineered for developers, makers, and networking enthusiasts, this mini router delivers serious WiFi 6 (802.11ax) performance in a small footprint, making it perfect for custom routing projects, smart home networks, embedded systems, and IoT deployments.

Why Choose the BPI-WIFI6 Mini?

This board packs a high-performance dual-core ARM Cortex-A9 @ 1.2 GHz processor optimized for both packet forwarding and intelligent application processing. With integrated hardware NAT and a high-performance layer-2 switch, it supports message forwarding speeds of up to 5 Gbps — far beyond the needs of most home or small-office setups.

Key Features

• Dual-Core ARM Cortex-A9 @ 1.2 GHz — powerful processing for routing and smart business logic
• Integrated 5× Gigabit Ethernet PHY — 1000 Mbps network access with auto-negotiation (1000M/100M/10M)
• Dual WAN Port Support — added redundancy and load-balancing capability
• WiFi 6 (802.11ax) — backward compatible with 802.11a/b/g/n/ac; max combined rate up to 3 Gbps
• Dual-Band DBDC — 2.4 GHz (40 MHz, 2×2, up to 573.5 Mbps) + 5 GHz (160 MHz, 2×2, up to 2401.9 Mbps)
• Hardware Intelligent QoS — prioritize traffic automatically
• M.2 Key B Interface — supports USB 4G LTE / 5G NR modules (tested with Quectel RM500U 5G module)
• WPA / WPA2 / WPA3 Encryption — plus WAPI standard support
• AP Mode & STA Mode — flexible deployment options
• Open Source — fully hackable and community-supported

Technical Specifications

Who Is This For?

Whether you're building a custom OpenWRT router, experimenting with 5G connectivity, or prototyping a network device, the BPI-WIFI6 Mini gives you enterprise-grade features in an open, developer-friendly package. The open-source nature means you get full community documentation, firmware customization, and ongoing development support.

You May Also Like

• 1000D Tactical EDC Bag – Portable Tool Storage Handbag
• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch – 1NO Metal 2-Pin Self-Reset

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: Does the Banana Pi BPI-WIFI6 Mini support 5G cellular connectivity?

A: Yes! The BPI-WIFI6 Mini features an M.2 Key B interface that supports USB-based 4G LTE and 5G NR modules. It has been tested with the Quectel RM500U 5G module, making it a great platform for cellular-connected routing projects.

Q: What WiFi speeds can I expect from the BPI-WIFI6 Mini router board?

A: The BPI-WIFI6 Mini supports dual-band WiFi 6 (802.11ax). On the 2.4 GHz band (40 MHz, 2×2) you can reach up to 573.5 Mbps, and on the 5 GHz band (160 MHz, 2×2) up to 2401.9 Mbps, for a combined maximum rate of approximately 3 Gbps.

Q: Is the BPI-WIFI6 Mini open source? Can I install custom firmware?

A: Absolutely. The Banana Pi BPI-WIFI6 Mini is a fully open-source router board with community documentation and support. It is compatible with customizable firmware options, making it ideal for developers who want full control over their routing environment.

Q: How many Ethernet ports does the BPI-WIFI6 Mini have?

A: The board integrates 5× Gigabit Ethernet PHY ports with support for dual WAN configurations, auto-negotiation between 10M/100M/1000M speeds, and up to 5 Gbps hardware packet forwarding.
