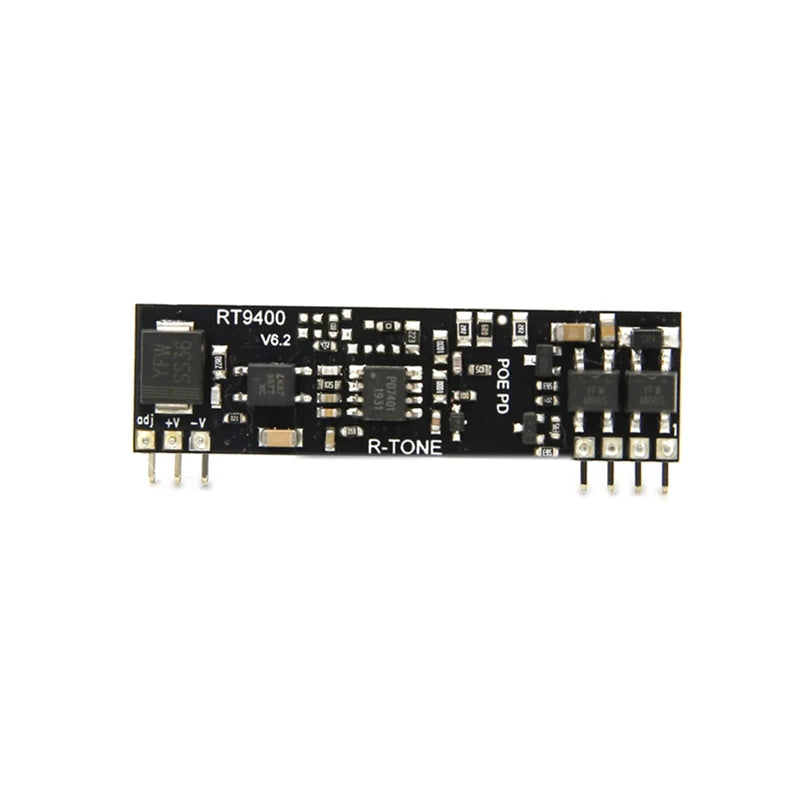

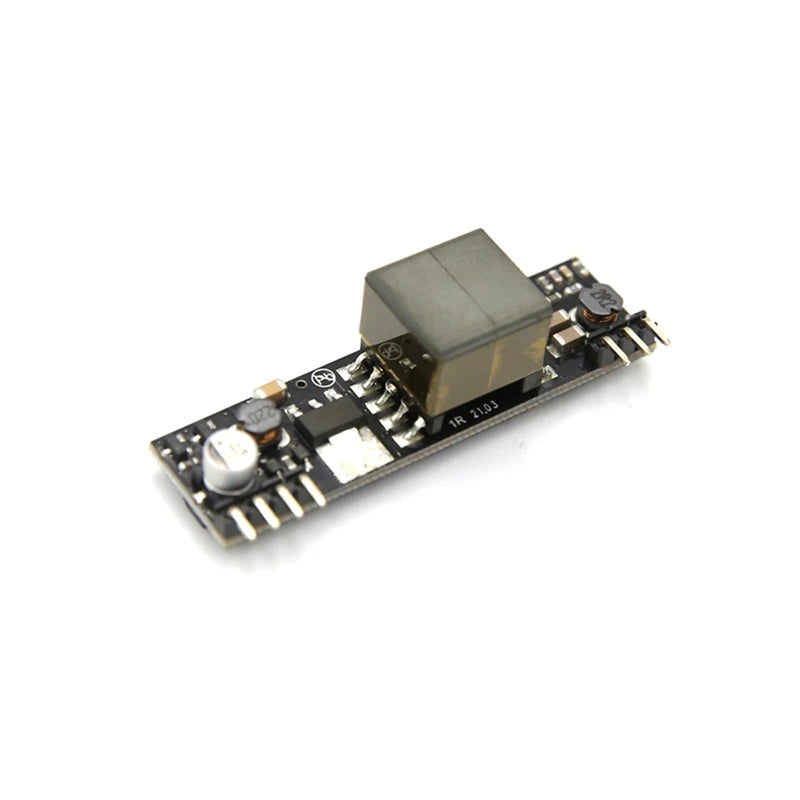

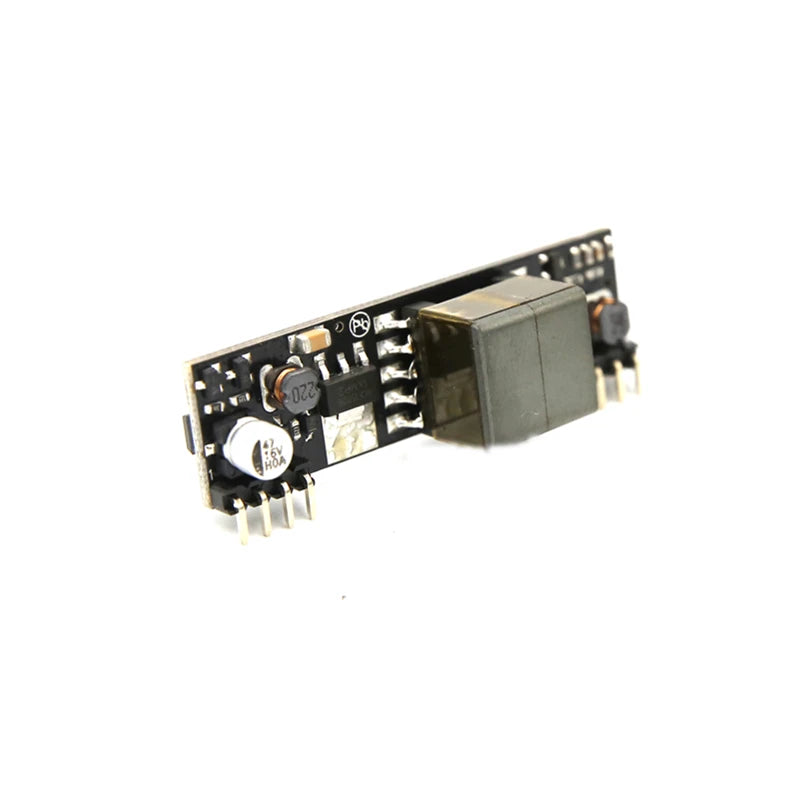

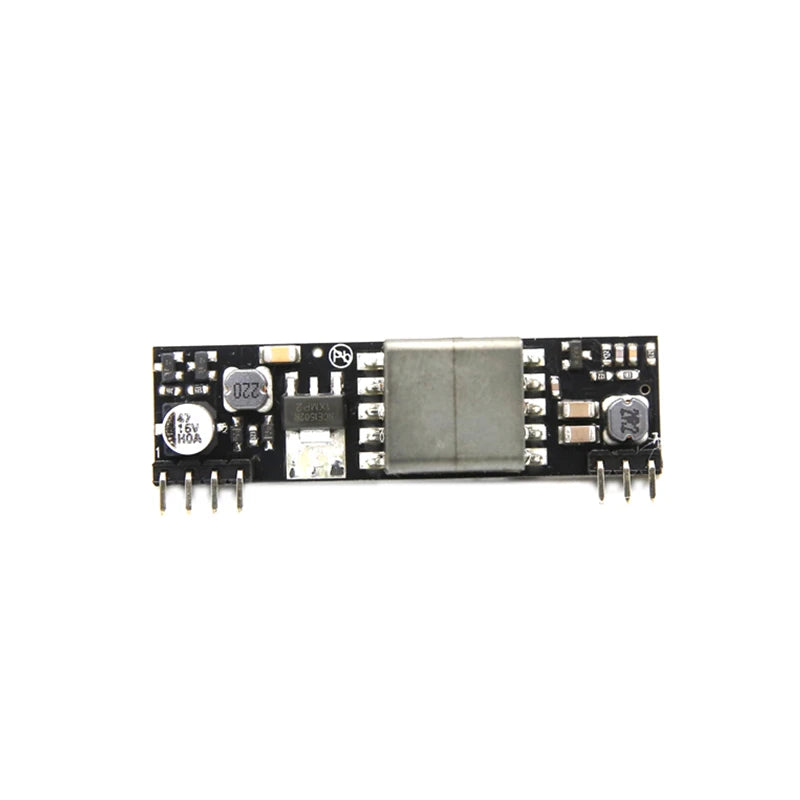

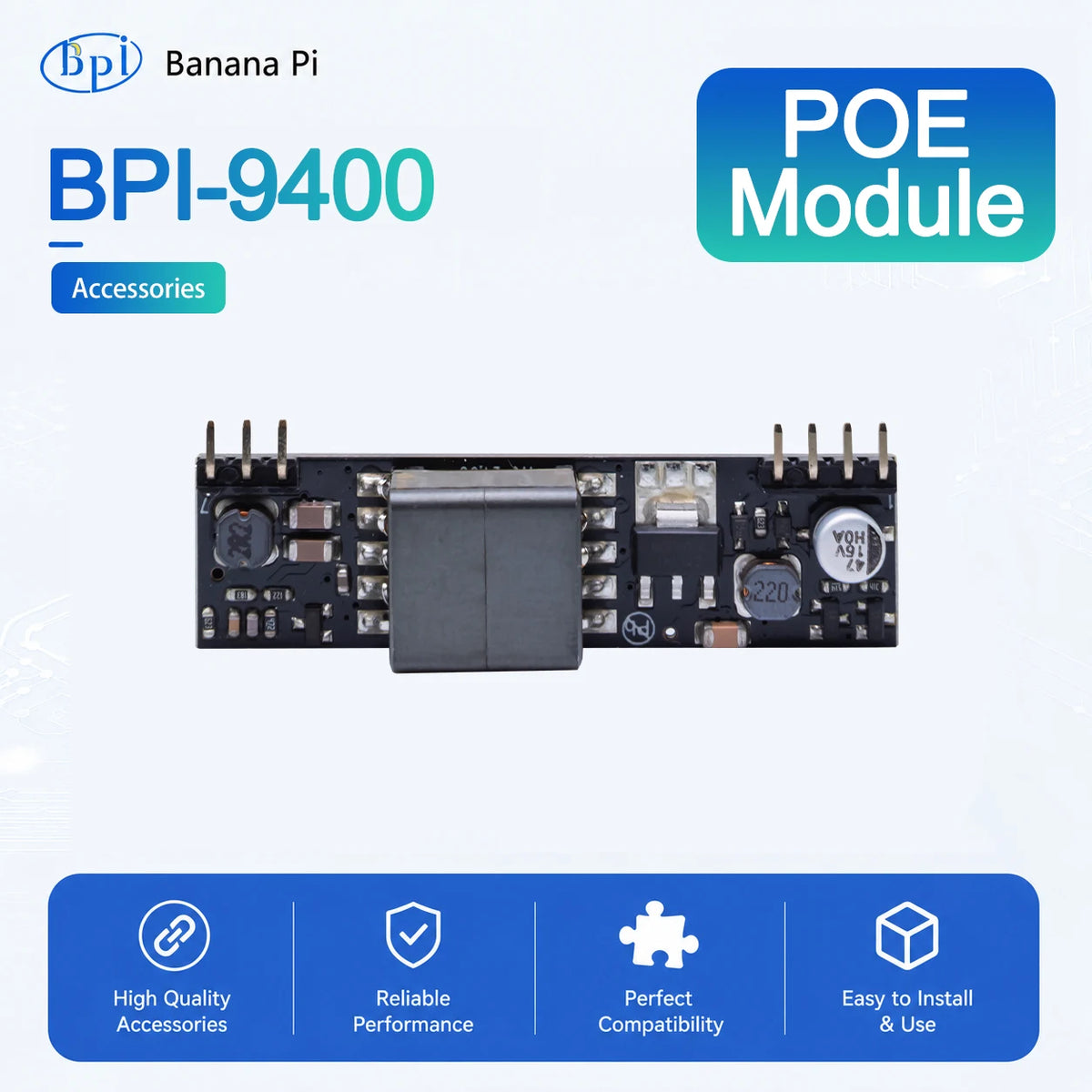

Banana PI RT9400 13W PoE PD Isolation Module
The Banana PI RT9400 is a high-efficiency, IEEE 802.3af-compliant Power over Ethernet (PoE) Powered Device (PD) module designed to extract power directly from a standard Cat5 Ethernet cable. Featuring transformer isolation with a 1500V peak isolation voltage, an integrated DC/DC converter, and flexible multi-voltage output options (3.3V, 5V, 12V, or 24V), this compact SIL-package module is ideal for network-connected devices, IP cameras, wireless access points, VOIP phones, and security systems.
Made in Mainland China.
Key Features
- IEEE 802.3af PoE compliant – Class 0 signature
- Input voltage range: 36V to 57V (nominal 48V)
- Integral high-efficiency DC/DC converter with low output ripple and noise
- Transformer isolation: 1500V peak (input to output)
- Adjustable output voltage via external resistor
- Multi-voltage output options: 3.3V, 5V, 12V, 24V
- Built-in short-circuit protection (continuous)
- Minimal external components required for easy integration
- Operating temperature range: –20°C to 70°C
- RoHS compliant
Typical Applications
- IP cameras and surveillance systems
- Wireless access points
- Security and alarm systems
- VOIP telephones
- Point-of-sale network terminal equipment
RT9400 Product Selector
| Part Number | Output Voltage | Output Current | Max Output Power* | Package |
|---|---|---|---|---|
| RT9400-3.3V | 3.3V | 2A | 8W** | SIL |
| RT9400-5V | 5V | 2A | 13W** | SIL |
| RT9400-12V | 12V | 1A | 13W** | SIL |
| RT9400-24V | 24V | 0.5A | 13W** | SIL |
*At 25°C with VIN = 48V **Maximum Output Power is not for continuous operation; intended for short-term boot-up or heavy-load events only.
Pin Description
| Pin # | Name | Description |
|---|---|---|
| 1 | VA1 | RX Input (1) – connects to centre tap of transformer on RJ45 pins 1 & 2. Not polarity sensitive. |
| 2 | VA2 | TX Input (2) – connects to centre tap of transformer on RJ45 pins 3 & 6. Not polarity sensitive. |
| 3 | VB1 | Direct Input (1) – connects to RJ45 pins 4 & 5. Not polarity sensitive. |
| 4 | VB2 | Direct Input (2) – connects to RJ45 pins 7 & 8. Not polarity sensitive. |
| 5 | –VDC | DC Return – return path for the +VDC output. |
| 6 | +VDC | DC Output – regulated output from the DC/DC converter. |
| 7 | ADJ | Output Adjust – fine-tune output voltage with an external resistor to +VDC or –VDC. |
Electrical Specifications at a Glance
- Input Voltage Range: 36V – 57V (typ. 48V)
- Isolation Voltage (I/O): 1500V pk (impulse test)
- Efficiency @ 80% Load: Up to 87% (12V/24V variants)
- Output Ripple & Noise: 100mVp-p typical at max load
- Operating Temperature: –20°C to 70°C
- Storage Temperature: –40°C to 100°C
You May Also Like
- 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
- 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What is the Banana PI RT9400 PoE PD module used for?
A: The RT9400 is a Power over Ethernet (PoE) Powered Device (PD) module that extracts power from a standard Cat5 Ethernet cable (IEEE 802.3af standard) and converts it to a regulated DC output (3.3V, 5V, 12V, or 24V). It is commonly used to power IP cameras, wireless access points, VOIP phones, security systems, and other network-connected devices without requiring a separate power supply.
Q: What output voltages are available for the RT9400 module?
A: The RT9400 series is available in four output voltage variants: 3.3V (up to 2A), 5V (up to 2A), 12V (up to 1A), and 24V (up to 0.5A). The output can also be fine-tuned using an external resistor connected to the ADJ pin.
Q: What does "isolation model" mean for the RT9400?
A: The "isolation model" refers to the transformer isolation between the input (PoE Ethernet side) and output (DC power side) of the module. The RT9400 provides 1500V peak isolation voltage, which protects connected devices from electrical interference and improves overall safety in network installations.
Q: Is the RT9400 RoHS compliant?
A: Yes, the Banana PI RT9400 PoE PD module is fully RoHS compliant, meaning it meets international standards for restriction of hazardous substances in electronic equipment.
