22.5W Bidirectional Fast Charger Module DIY Power Board Type-C USB

Bidirectional Fast Charger Converter Module – 22.5W DIY Power Motherboard with Display

Upgrade your DIY power bank or battery project with this compact 22.5W Bidirectional Fast Charging Module. Featuring a built-in display and both Type-C and USB ports, this all-in-one power motherboard delivers fast, stable charging and discharging for a wide range of DIY electronics applications.

Key Features

• Bidirectional Fast Charging: Supports simultaneous input and output, making it ideal for custom power bank builds and battery management projects.
• 22.5W Output Power: Delivers up to 22.5W (10V/2.25A) for rapid device charging.
• Multiple Voltage Support: Input: 5V/3A, 9V/2A, 12V/1.5A — Output: 5V/3A, 9V/2A, 12V/1.5A, 10V/2.25A.

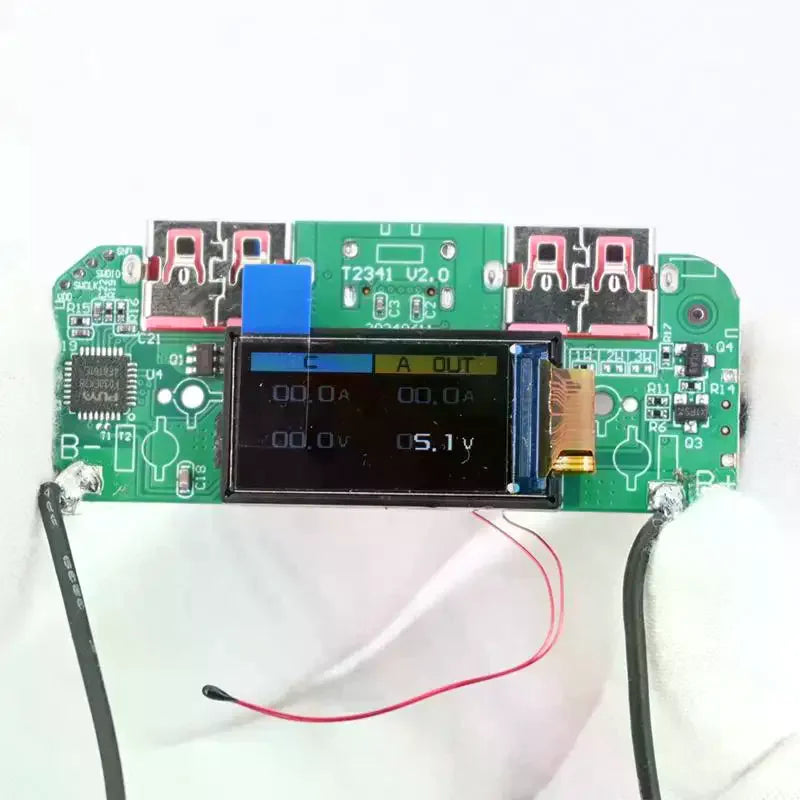

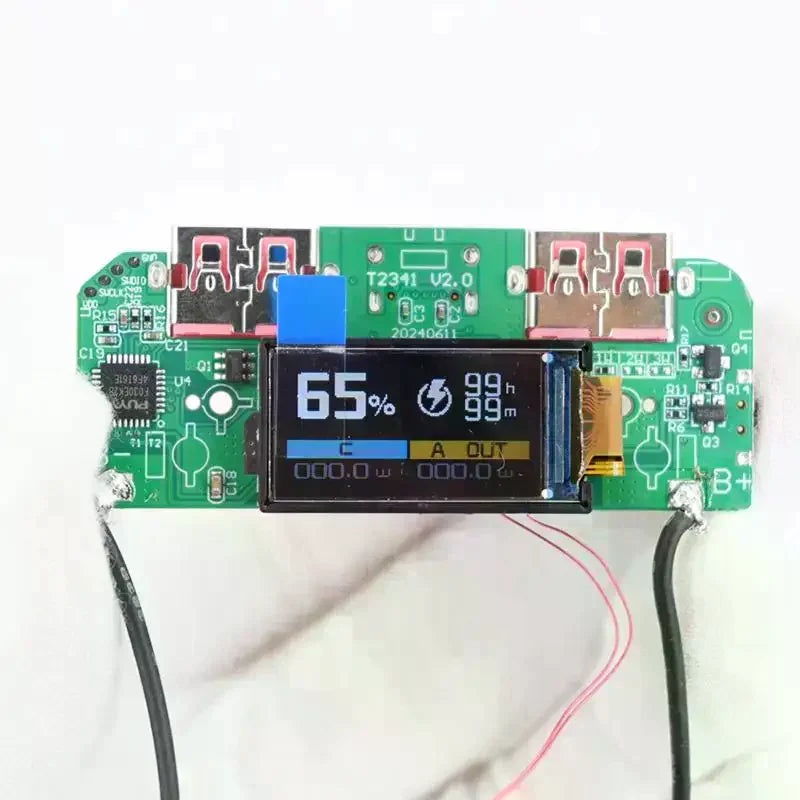

• Built-In Display: Real-time monitoring of voltage and current for easy project management.
• Type-C & USB Ports: Versatile connectivity for a broad range of devices and DIY setups.
• Multi-Layer Protection: Built-in safeguards against overcharge, over-discharge, overvoltage, and overheating keep your build safe and reliable.
• High Conversion Efficiency: Stable current and voltage output ensure consistent, efficient performance.

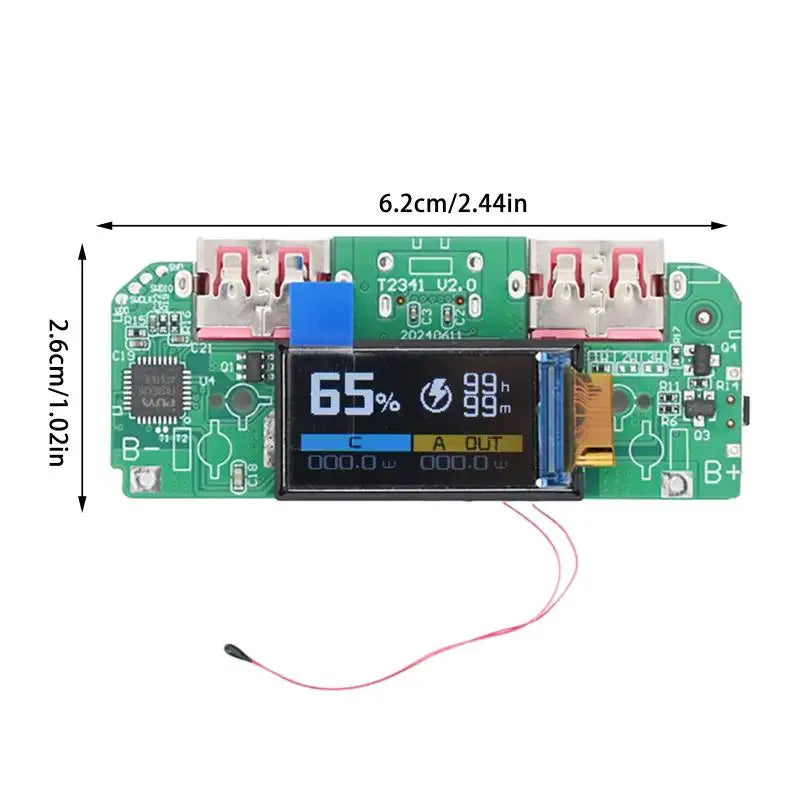

• Compact Size: Approx. 6.2 × 2.6 cm (2.44 × 1.02 in) — fits neatly into custom enclosures and DIY builds.
• 100% New & High Quality: Brand-new components for dependable, long-lasting use.

Specifications

• Input: 5V/3A | 9V/2A | 12V/1.5A
• Output: 5V/3A | 9V/2A | 12V/1.5A | 10V/2.25A
• Max Output Power: 22.5W

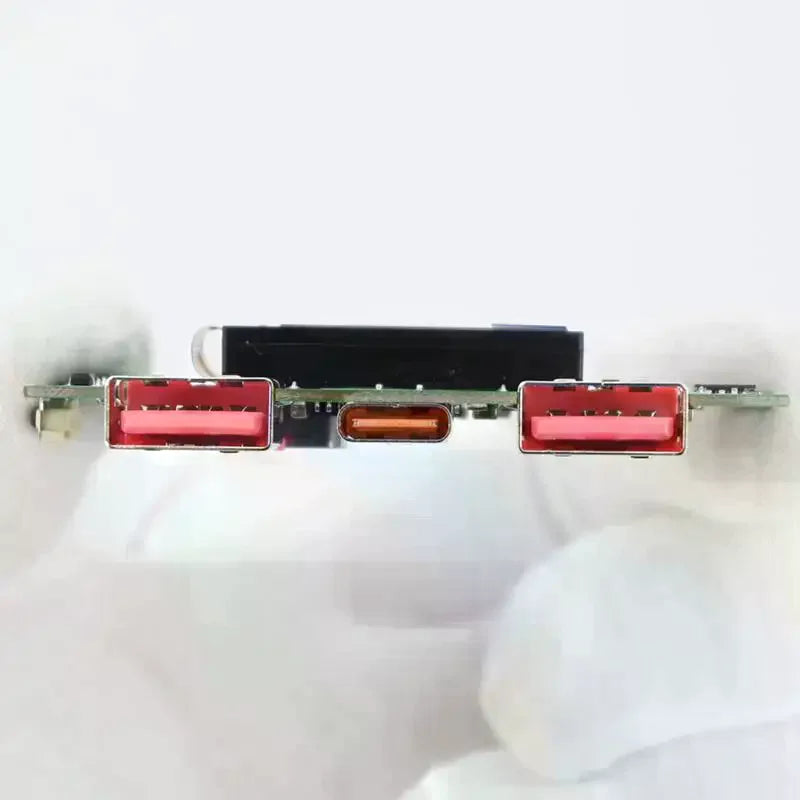

• Ports: Type-C + USB
• Display: Yes (voltage/current readout)
• Dimensions: ~6.2 × 2.6 cm / 2.44 × 1.02 in
• Battery Included: No
• Charger Included: No
• Package Contents: 1 × Charger Converter Module
• Made in Mainland China

Perfect For

• DIY power bank builds
• Custom battery packs and portable chargers
• Electronics hobbyists and makers
• Rapid prototyping and engineering projects

Looking for more DIY electronics and project accessories? Check out these related items from our store:

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips

Note: Due to manual measurement, there may be a ±5mm deviation in dimensions. Slight color differences may occur due to lighting conditions in product photography.

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What devices is this fast charger module compatible with?

A: This bidirectional fast charging module is designed for DIY power bank builds and custom battery projects. It supports any device compatible with 5V, 9V, 10V, or 12V charging via Type-C or standard USB, making it versatile for smartphones, tablets, and other USB-powered electronics in DIY setups.

Q: Does this module include a battery or charger?

A: No, the package contains only the charger converter module board (1 piece). Batteries, enclosures, and external chargers are not included and must be sourced separately for your DIY project.

Q: What protections does this power module have?

A: The module features built-in overcharge, over-discharge, overvoltage, and overheating protections, ensuring safe and stable operation for your DIY power projects. The high conversion efficiency also helps maintain consistent voltage and current output.

Q: Can this module charge and discharge at the same time?

A: Yes! This is a bidirectional module, meaning it can handle both charging (input) and discharging (output) functions, making it ideal for simultaneous pass-through charging applications in custom power bank designs.
