BMS 10S 36V 30A Battery Protection Board with Balancing PCB

Q: What is the difference between Same Port and Split Port configurations?

In a Same Port configuration, the charge and discharge circuits share a common port (P+ and P-). In a Split Port configuration, the charge port (C+/C-) and discharge port (P+/P-) are separated, allowing independent control of charging and discharging — useful for applications requiring simultaneous charge and discharge.

$59.37 $67.11

Shipping calculated at checkout.

APWIKOGER BMS 10S 36V 30A Battery Balanced Protection Board with Equalization Charging

Upgrade your lithium battery pack with the APWIKOGER BMS 10S 36V 30A Battery Balanced Protection Board. Engineered for 10-series 3.7V lithium battery configurations, this compact PCB module delivers intelligent overcharge, over-discharge, overcurrent, and short-circuit protection — all in one robust board. Available in Same Port and Split Port configurations to suit your specific build requirements.

Made in Mainland China.

Key Features

Accurate Voltage Monitoring: Continuously detects and regulates individual cell voltage, ensuring each cell operates safely within optimal parameters for peak performance.
High Current Output: Supports up to 30A maximum operating current and 20A continuous discharge current — ideal for demanding electric vehicle and e-bike applications.
Built-in Active Balancing Circuit: The integrated equalization circuit actively balances cells at 4.2V, extending overall battery pack lifespan and maintaining consistent output.
Intelligent Temperature Control: Smart thermal management prevents overheating during discharge (protection at 75°C) and protects against charging in extreme cold (protection at -7°C).
Premium Components: Built with high-quality MOSFETs and capacitors for long-lasting reliability in advanced energy storage systems.

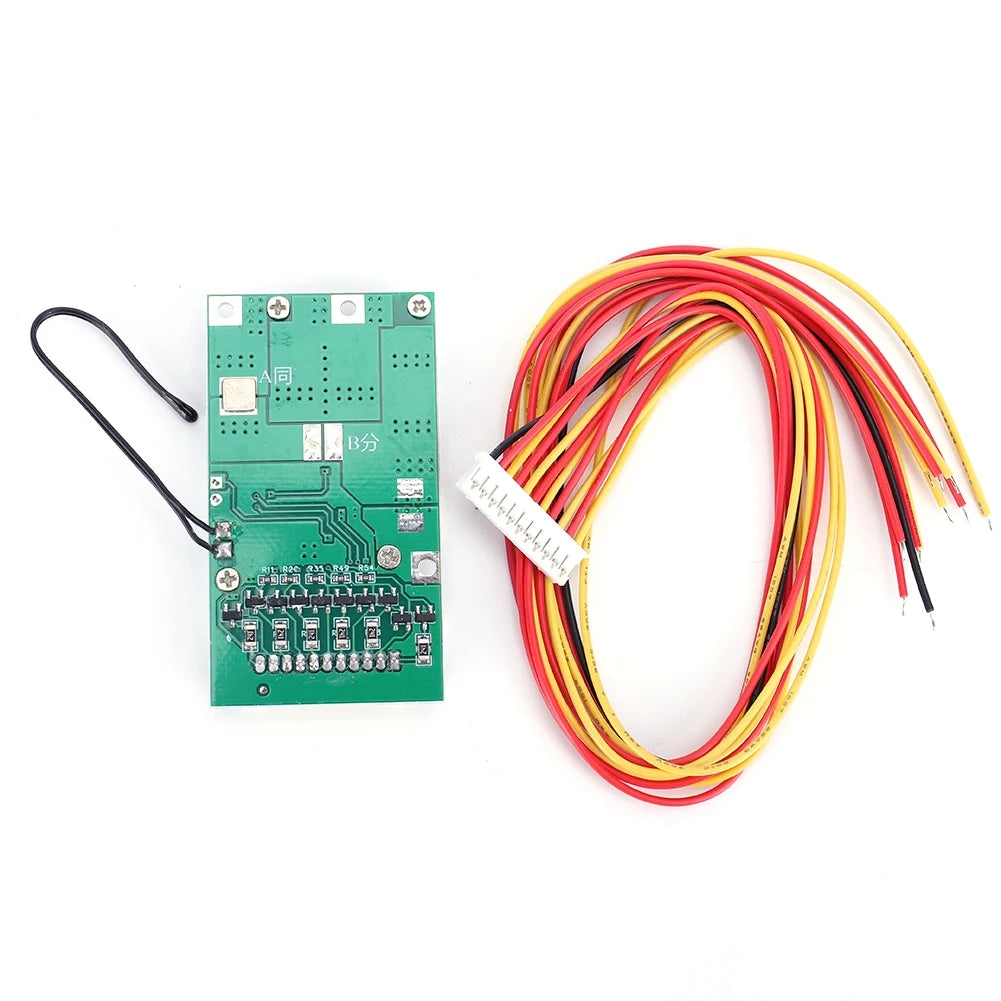

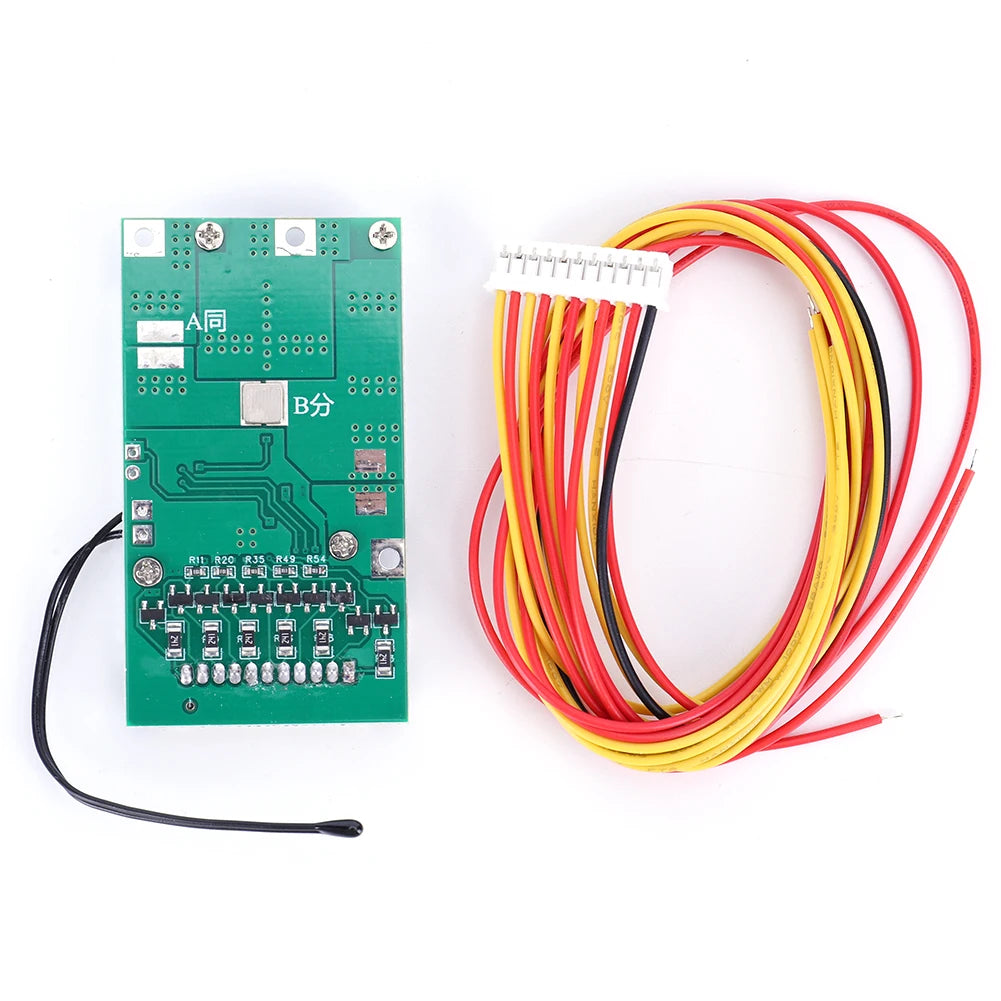

Same Port / Split Port Options: Choose the configuration that matches your battery management system wiring setup.

Specifications

Brand	APWIKOGER
Configuration	10S (10 Series)
Charging Voltage	DC 36V
Maximum Operating Current	30A MAX
Charging Current	20A MAX
Continuous Discharge Current	20A MAX
Overcharge Protection Voltage	4.25V
Over-discharge Protection Voltage	2.6V
Balanced Charging Voltage	4.2V
Temperature Protection (Discharge)	High temp: 75°C
Temperature Protection (Charge)	Low temp: -7°C
Compatible Battery Types	3.7V Ternary Lithium, Lithium Cobalt Oxide, Lithium Manganese Oxide

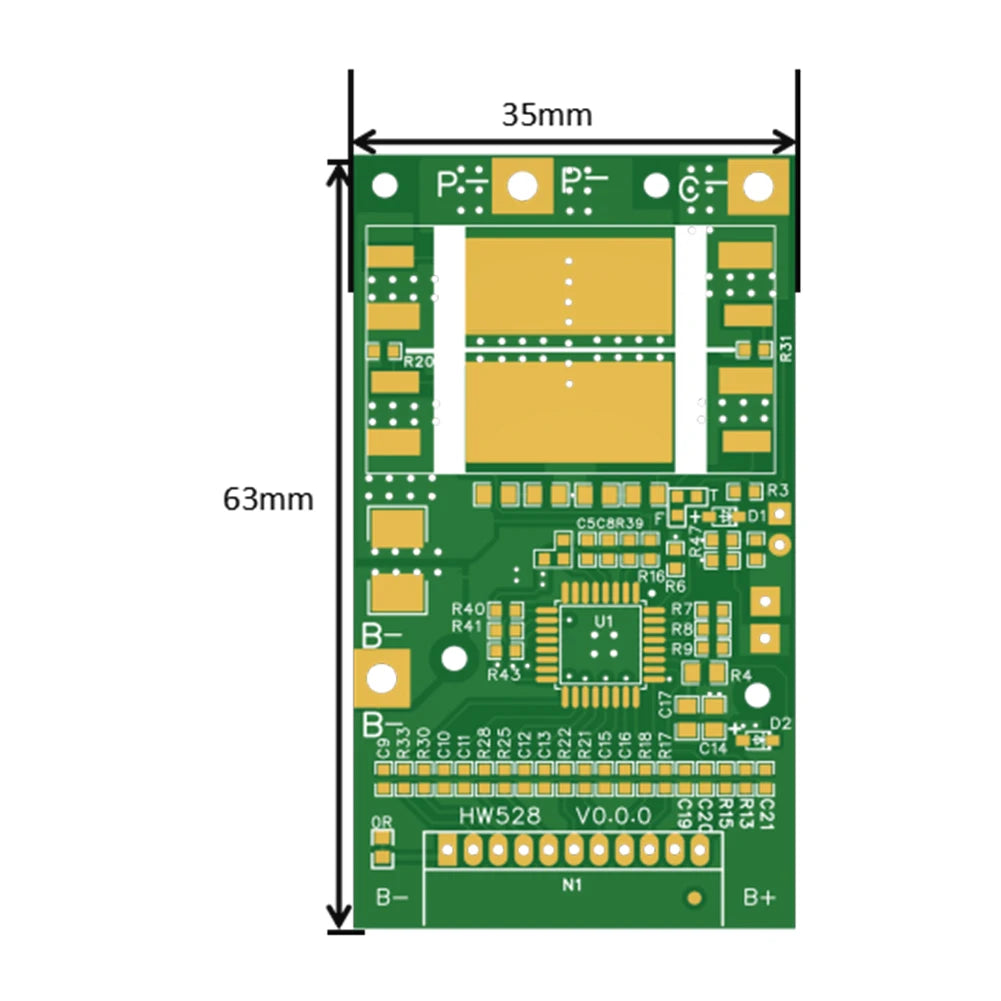

Board Dimensions	63.00 × 35.00 mm / 2.48 × 1.38 inch
Condition	Brand New
Origin	Mainland China

Package Contents

1 × BMS Protection Board
1 × Cable

Assembly & Wiring Notes

Match battery voltages before assembly — cell voltage difference should be less than 0.1V.
Match internal resistance — difference should be less than 5 mΩ.
After spot welding the battery pack, verify voltage is normal before connecting the board.

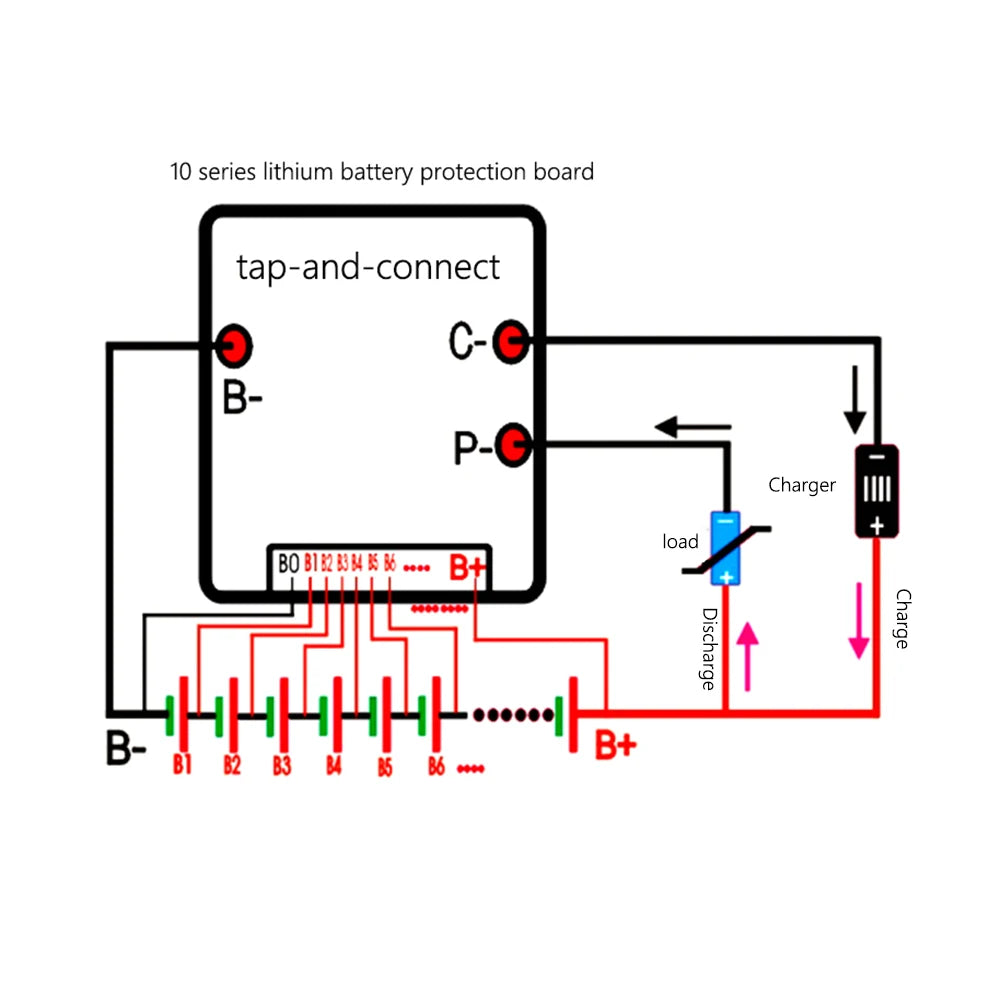

Connect cells to the board in sequence: B0, B1, B2 … B.
Connect the B- lead from the protection board to the total negative (B-) of the battery pack — ensure a solid, reliable solder joint.
Connect the cable plug to the board socket only after all solder connections are complete.
Connect B+ and C- to the positive and negative terminals of the charging interface respectively.
Always observe anti-static precautions and keep the board free from moisture, conductive debris, and physical stress.

⚠️ Important Cautions

Follow the wiring diagram carefully — incorrect wiring may damage the board.
Avoid repeatedly short-circuiting P+ and P- — voltage spikes may damage the MOSFET.
Protect the board from collision, compression, and extrusion during installation and operation.
Colour may vary slightly from photos due to monitor settings and lighting conditions.
Allow ±1–2 cm tolerance in measurements due to manual measuring.

Related Products You May Like

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What battery types are compatible with this 10S 36V BMS protection board?

A: This BMS board is compatible with 3.7V ternary lithium batteries, lithium cobalt oxide (LiCoO₂), and lithium manganese oxide (LiMnO₂) cells arranged in a 10-series (10S) configuration. It is not designed for LiFePO₄ (lithium iron phosphate) cells.

Q: What is the difference between Same Port and Split Port configurations?

A: In a Same Port configuration, the charge and discharge circuits share a common port (P+ and P-). In a Split Port configuration, the charge port (C+/C-) and discharge port (P+/P-) are separated, allowing independent control of charging and discharging — useful for applications requiring simultaneous charge and discharge.

Q: What protections does this BMS board provide?

A: This 10S 36V 30A BMS module provides overcharge protection (4.25V per cell), over-discharge protection (2.6V per cell), overcurrent protection (30A max), short-circuit protection, high-temperature discharge protection (75°C), and low-temperature charge protection (-7°C), plus active cell balancing at 4.2V.

Q: Can this BMS board handle e-bike or electric scooter applications?

A: Yes. With a maximum operating current of 30A and a 36V nominal voltage, this protection board is well-suited for e-bikes, electric scooters, and similar electric vehicle battery packs that use 10-series lithium cell configurations.
