BNC Q9 Male to Alligator Clips Test Lead Cable ~1M
BNC Q9 Male to Alligator Clips Test Lead Cable ~1M
Details

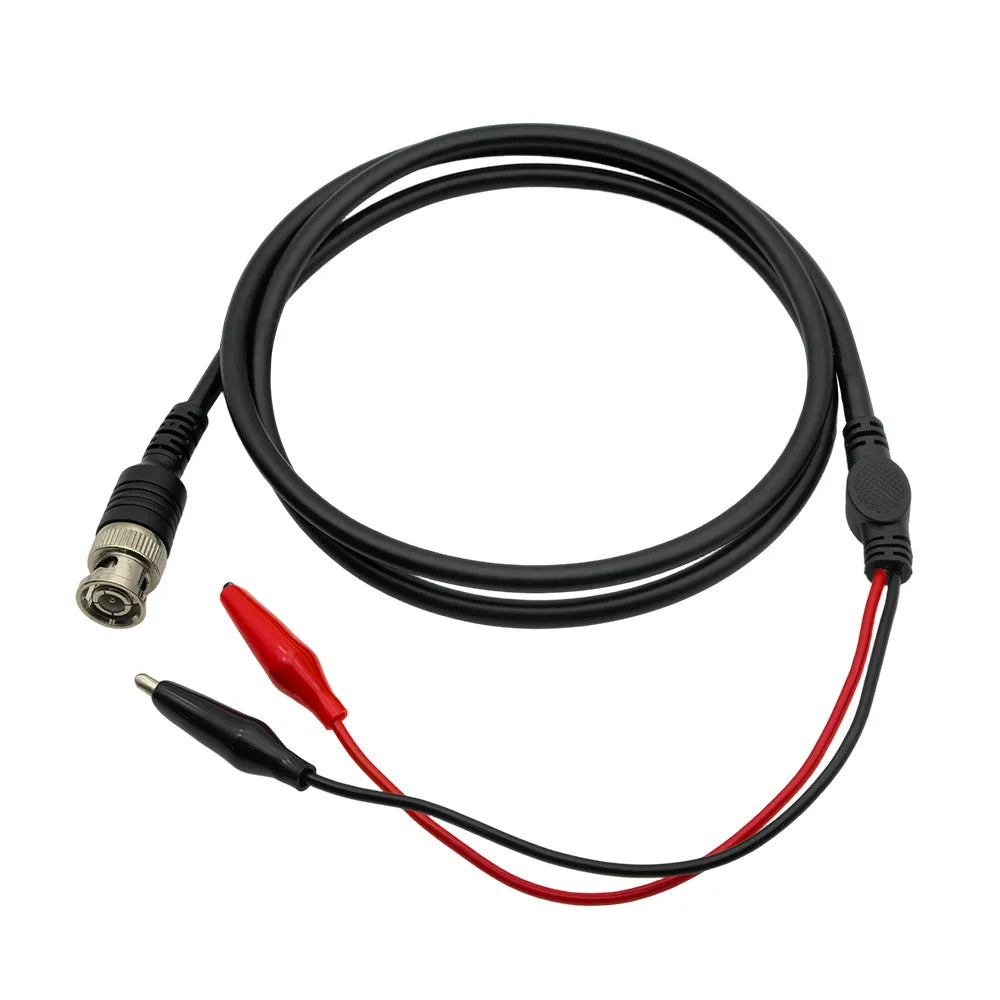

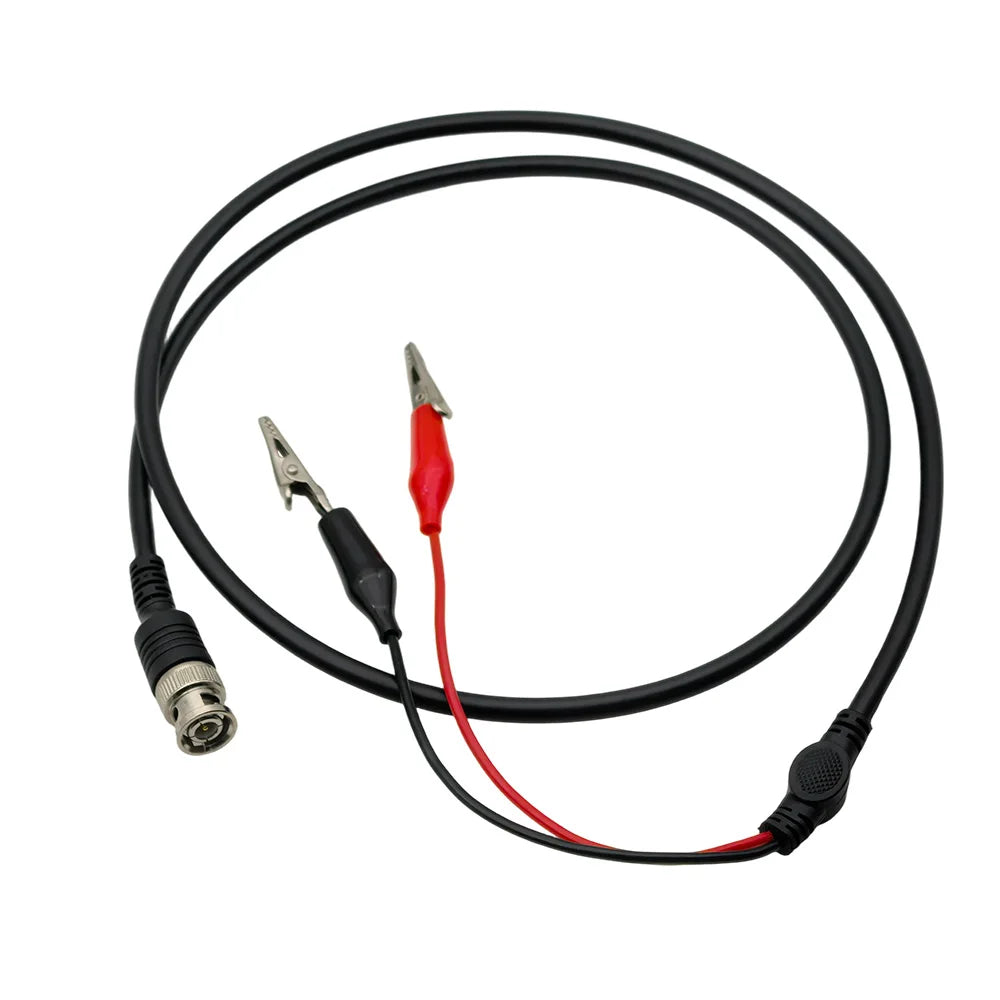

BNC Q9 Male Plug to Alligator Clips Test Lead Cable
Get precise and reliable signal connections with this BNC Q9 Male to Alligator Clips Test Lead Cable. Designed for electronics testing and lab work, this ~1-meter cable bridges your BNC-equipped instruments to virtually any test point with ease. Whether you're working with oscilloscopes, signal generators, or video surveillance equipment, this lead delivers clean, stable signal transfer every time.
Key Features

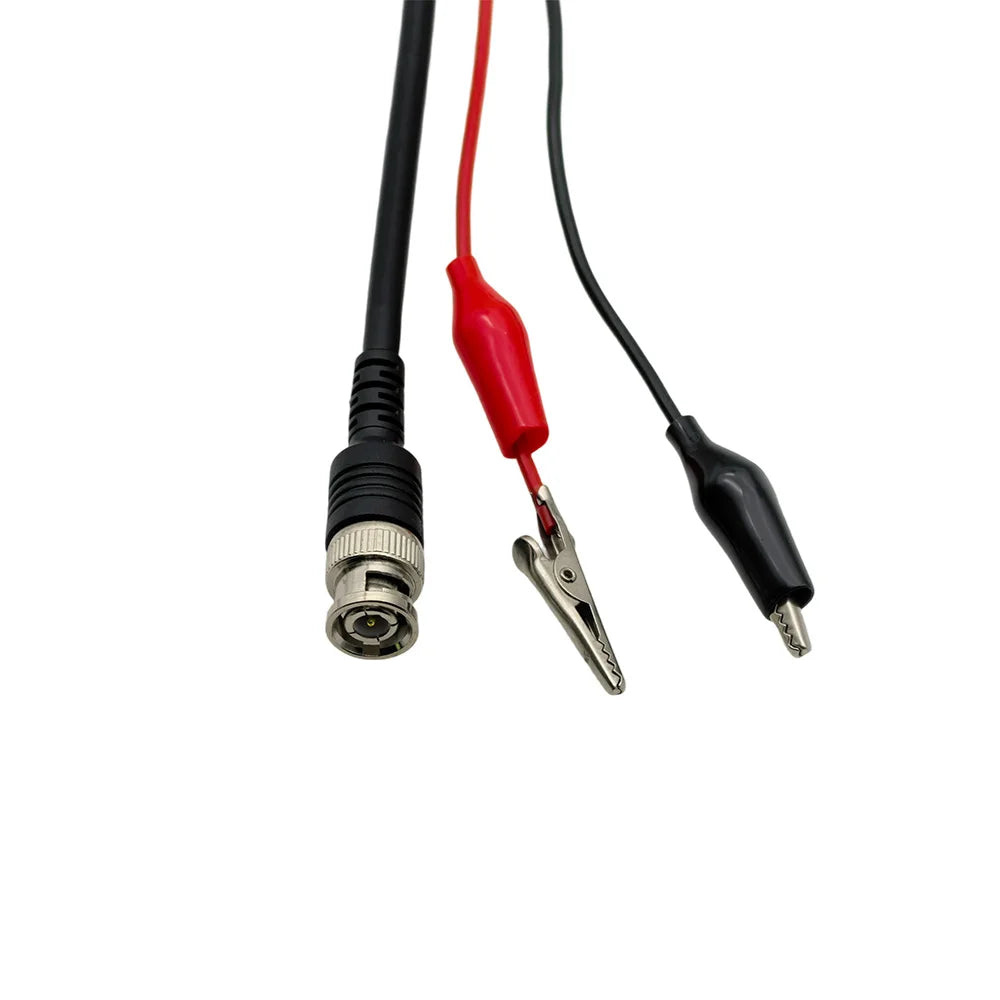

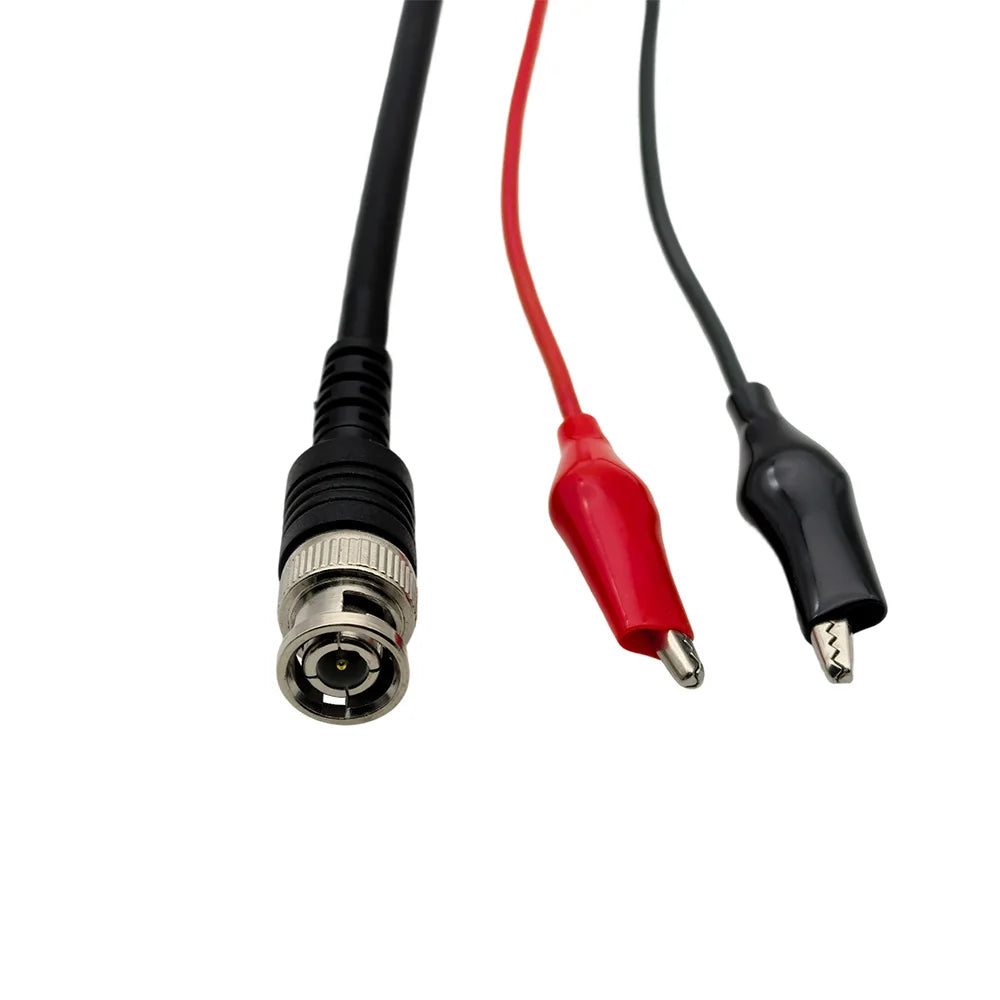

- Connector A: BNC Q9 Male Plug — industry-standard bayonet connector for quick, secure attachment

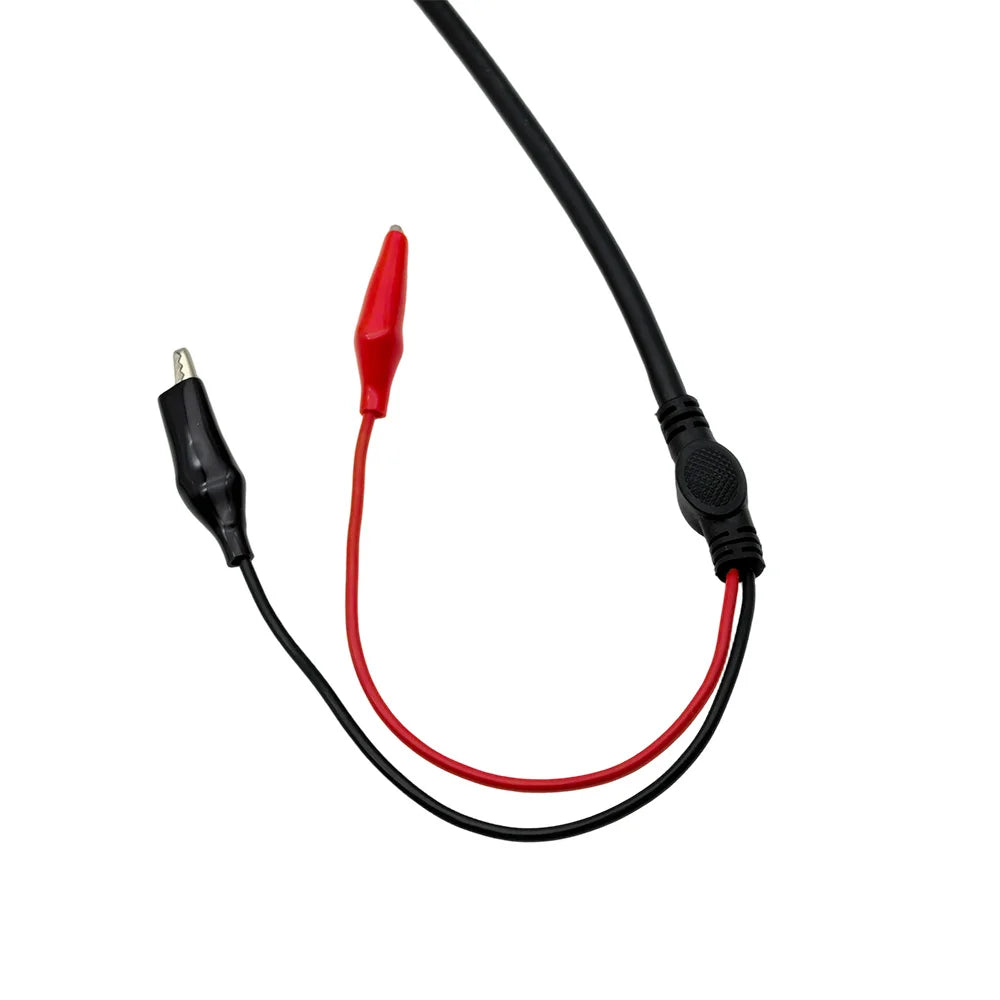

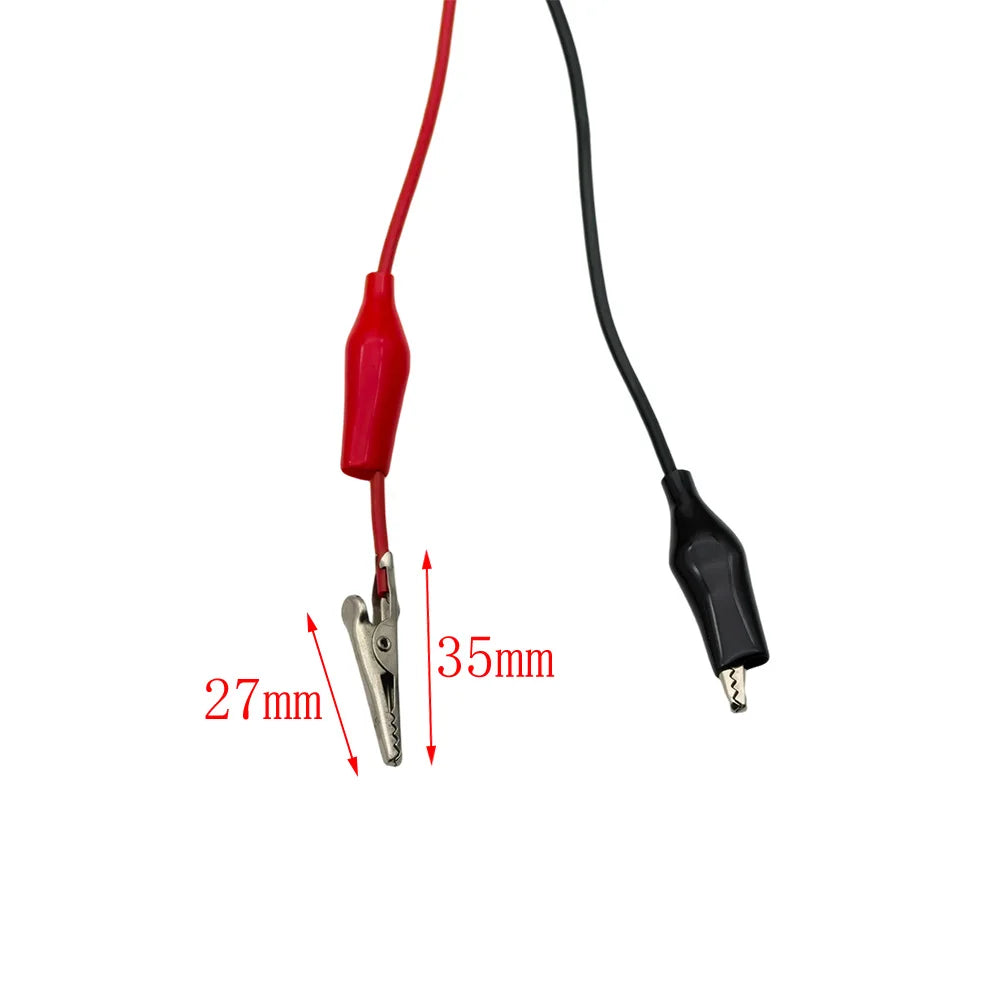

- Connector B: 2× Alligator Clips (Red & Black) — colour-coded for positive and negative identification
- Cable Length: Approximately 1 metre — ideal for bench-top testing setups
- Sheath Colours: Red and Black insulation for easy polarity distinction
- Low Voltage Rated: Below 50V AC or 75V DC (EU LVD compliant)
- No Battery Required: Fully passive cable — plug in and test immediately
- Wide Compatibility: Suitable for oscilloscopes, function/signal generators, video surveillance systems, and other BNC-equipped instruments
- Package Includes: 1× BNC to Alligator Clips Test Lead Cable
Specifications
| Connector A | BNC Q9 Male Plug |
| Connector B | 2× Alligator Clips (Red & Black) |
| Cable Length | ~1 Metre |
| Voltage Rating | Below 50V AC / 75V DC |
| Colours | Red, Black, Silver |
| Quantity | 1 Piece |
| Country of Origin | Made in China |
Compatible With
- Oscilloscopes
- Signal & Function Generators
- Video Surveillance / CCTV Systems
- RF Test Equipment
- Any BNC-port instrument requiring alligator clip access
Related Products You May Like
- 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
- 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
- 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What instruments is this BNC to alligator clip cable compatible with?
A: This test lead cable is compatible with any instrument featuring a standard BNC Q9 female port, including oscilloscopes, signal generators, function generators, and video surveillance (CCTV) equipment. The alligator clips allow you to connect to virtually any exposed wire, terminal, or component during testing.
Q: What is the maximum voltage this cable can handle?
A: This cable is rated for low voltage applications — below 50V AC or 75V DC — in compliance with EU LVD standards. It is intended for signal-level and low-voltage bench testing and should not be used with high-voltage circuits.
Q: How long is the cable and what do the colours indicate?
A: The cable is approximately 1 metre (100 cm) in length, providing comfortable reach for most bench-top setups. The Red sheath and clip indicate the positive (+) connection, while the Black sheath and clip indicate the negative (−) or ground connection, making polarity identification quick and straightforward.
