BTB ZIF Test Cable 0.3/0.5mm Pitch 13–45 Pin Extension Adapter

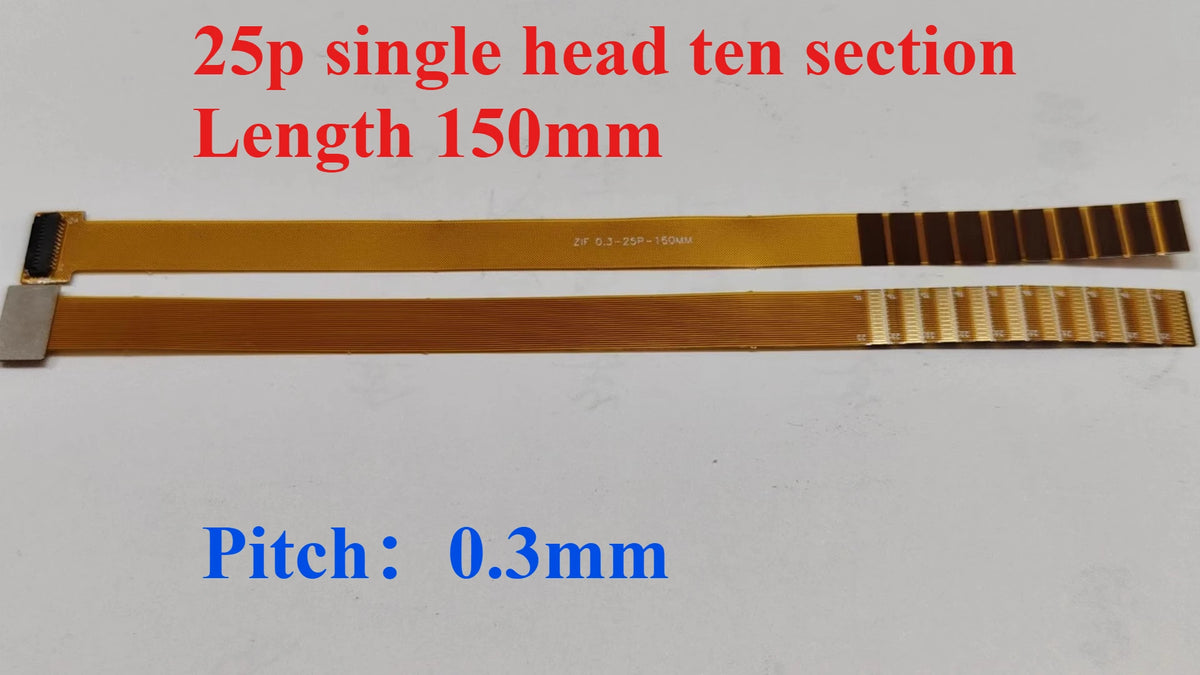

BTB ZIF Connector Extension Test Cable — 0.3 / 0.5mm Pitch, 13 to 45 Pin

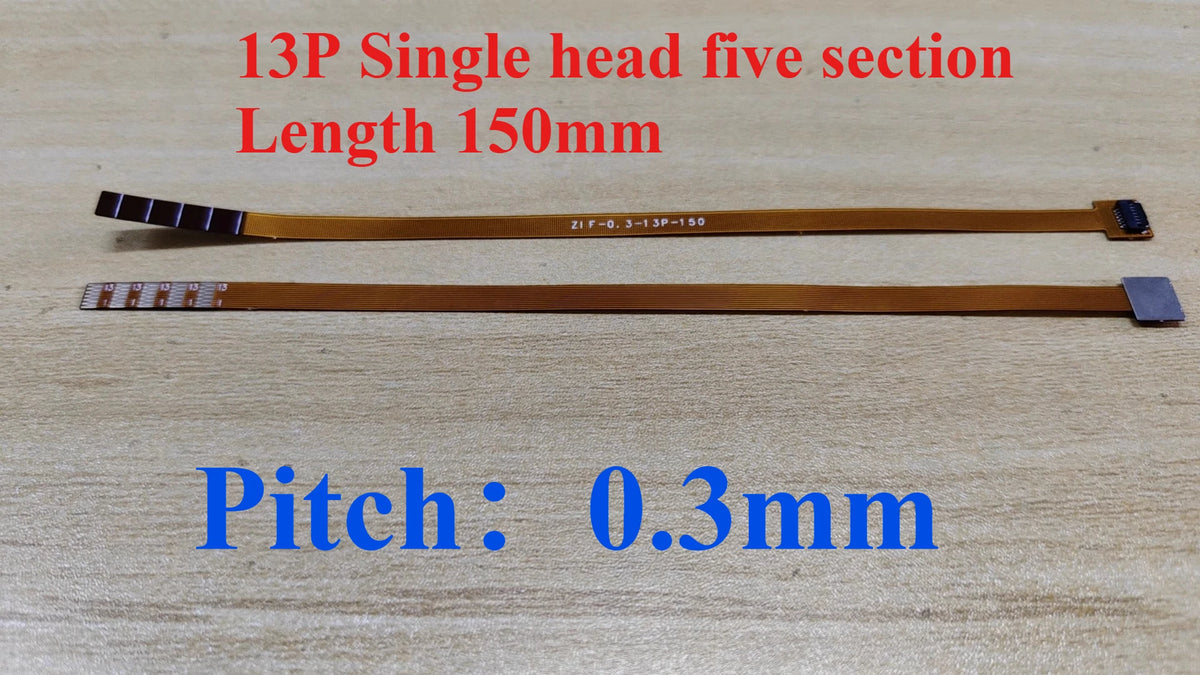

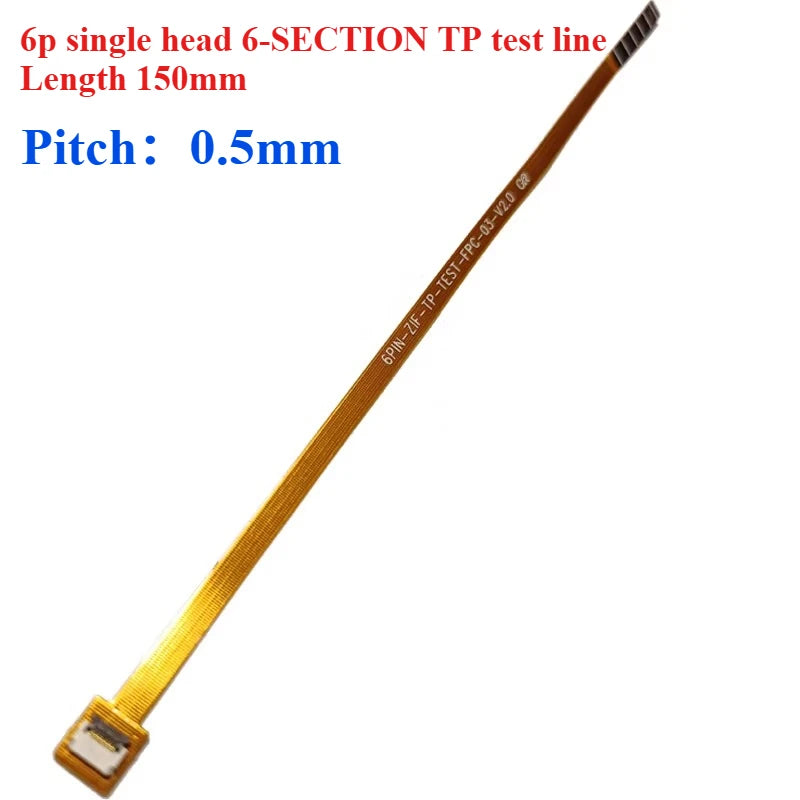

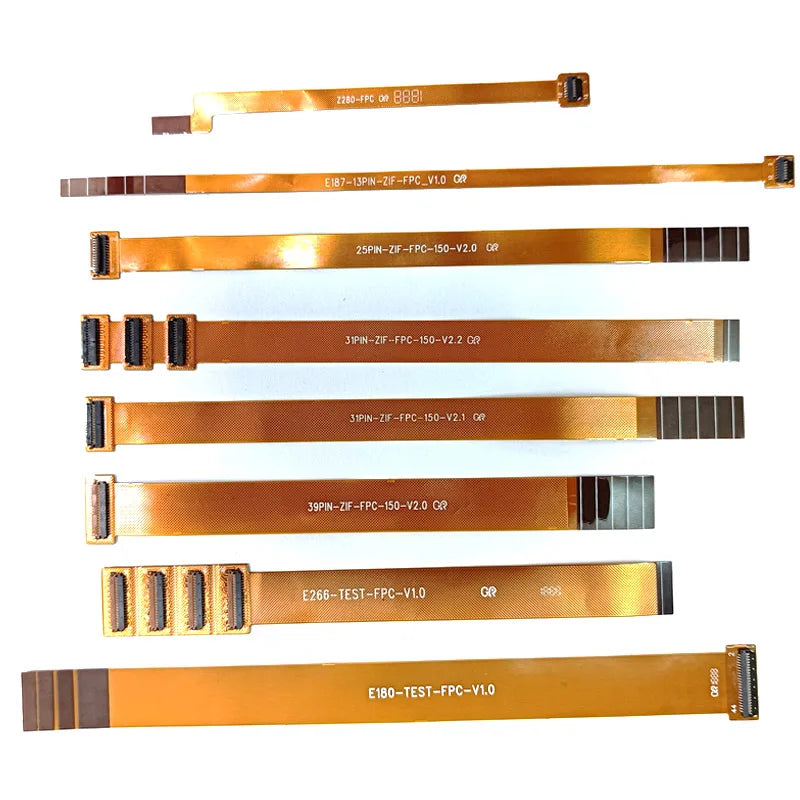

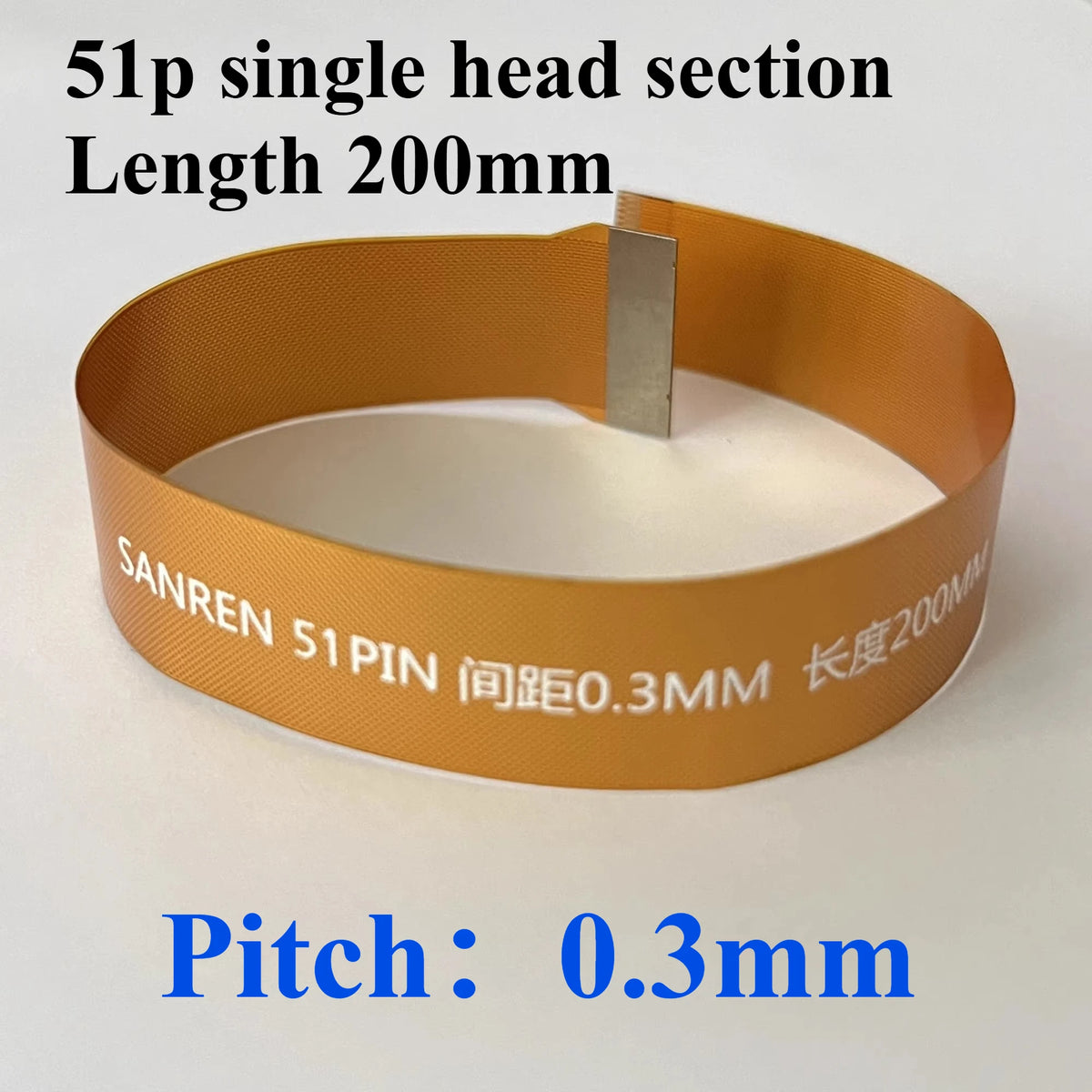

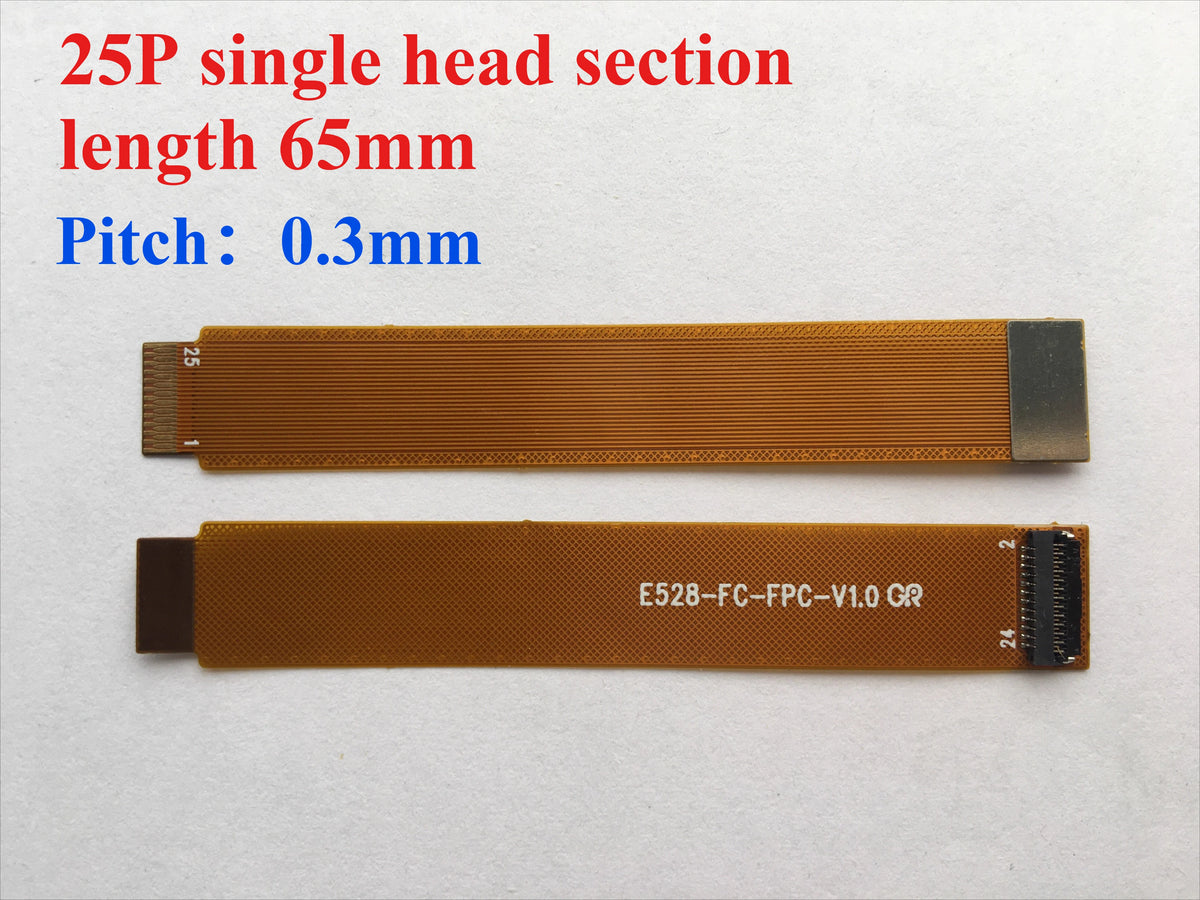

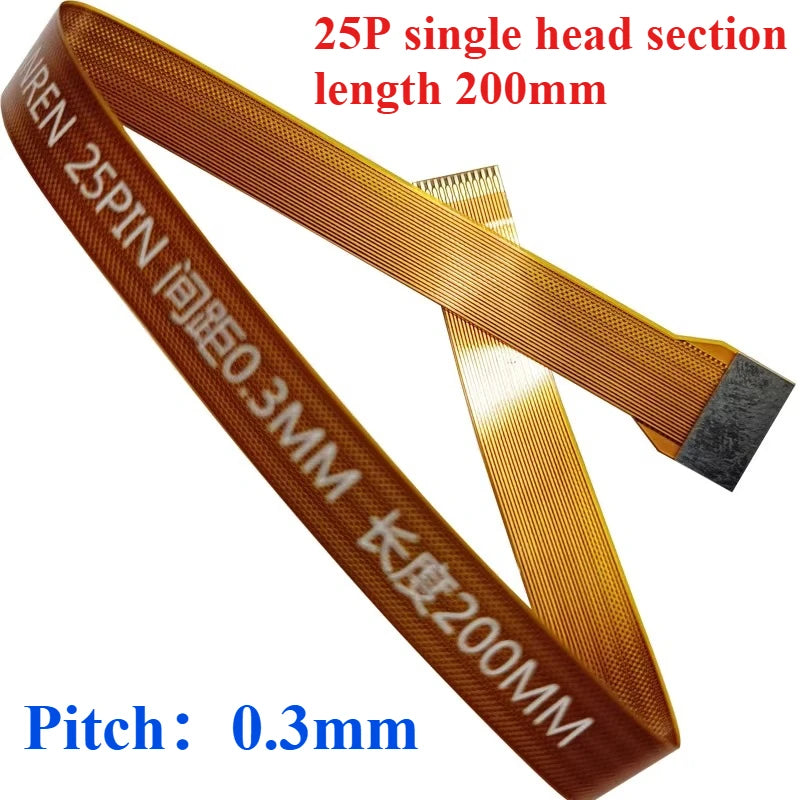

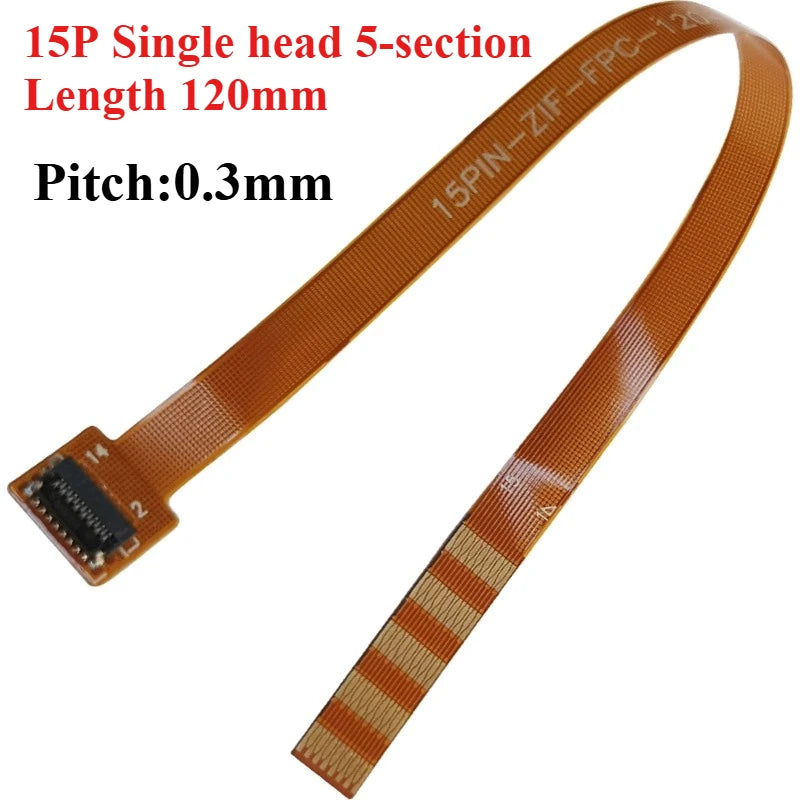

Whether you're prototyping, debugging, or bench-testing electronics, this multi-section BTB (Board-to-Board) test cable with ZIF (Zero Insertion Force) connector delivers a reliable, low-force connection every time. Available in 0.3mm and 0.5mm pitch spacings and in 13, 25, 31, 39, and 45 pin core configurations, it's the versatile adapter you need for a wide range of PCB and flex-cable testing applications.

Key Features

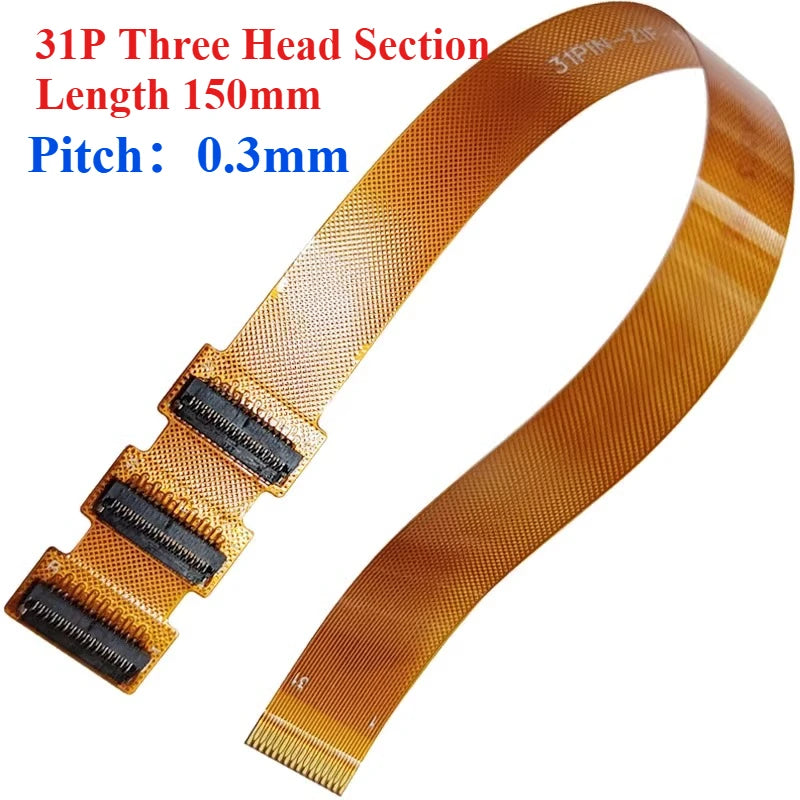

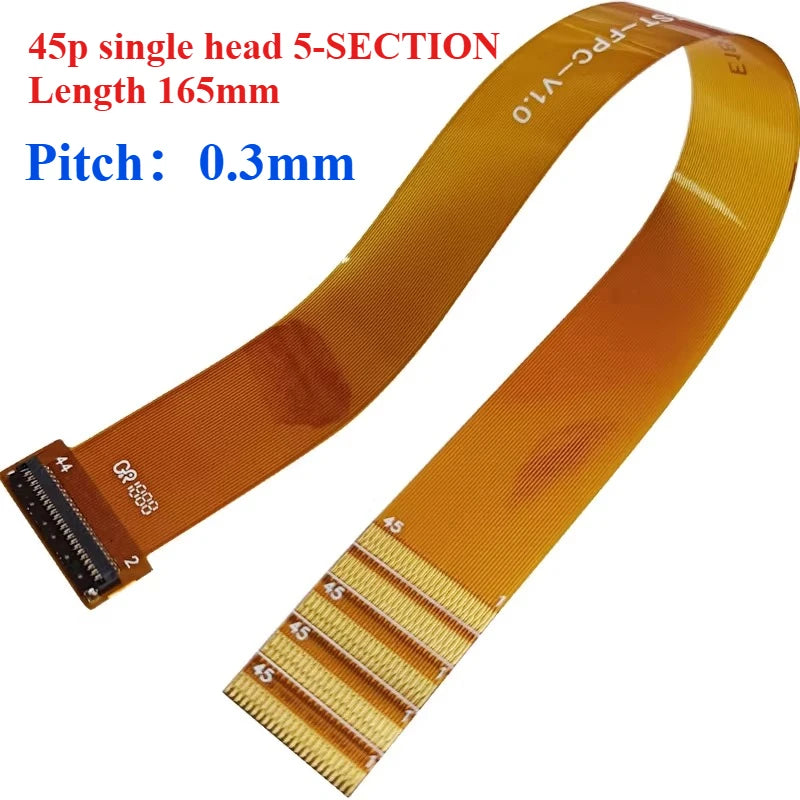

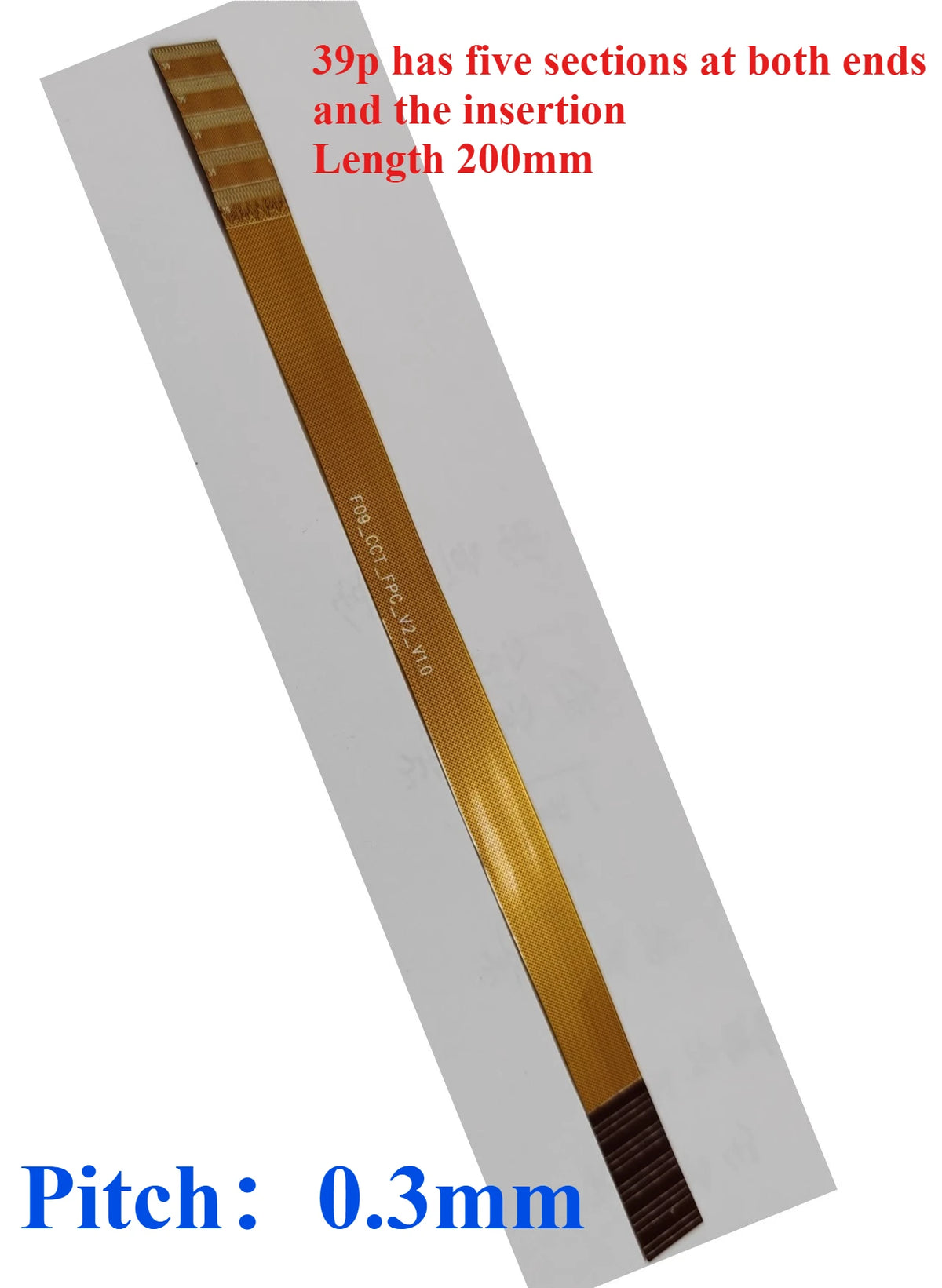

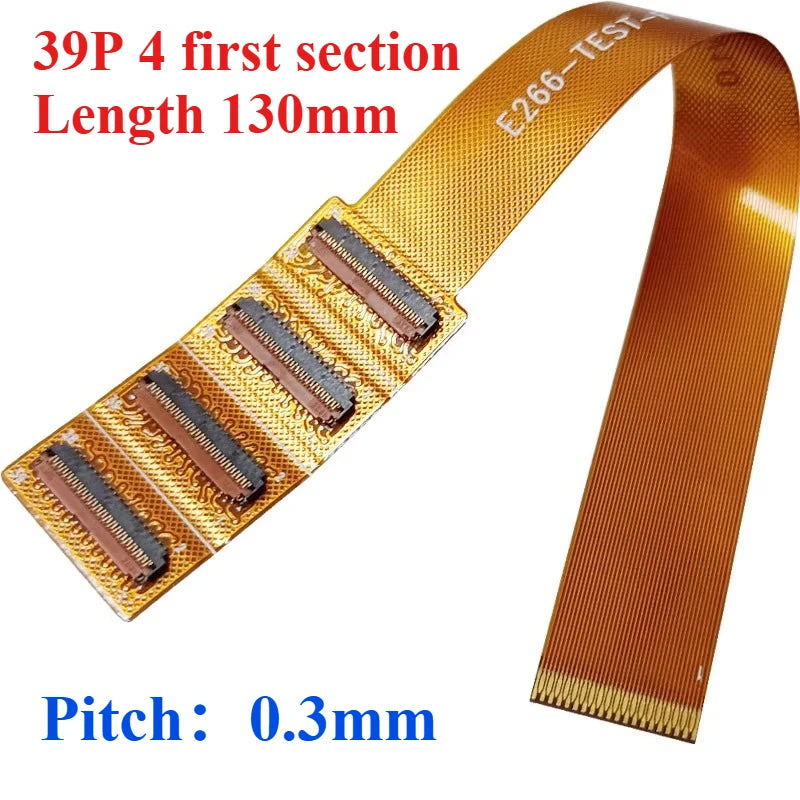

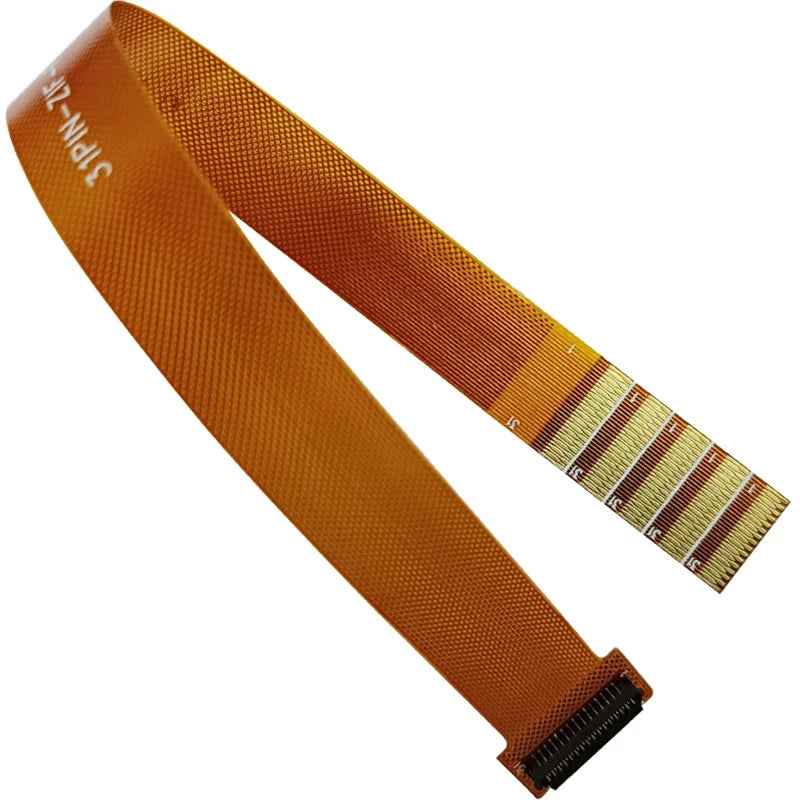

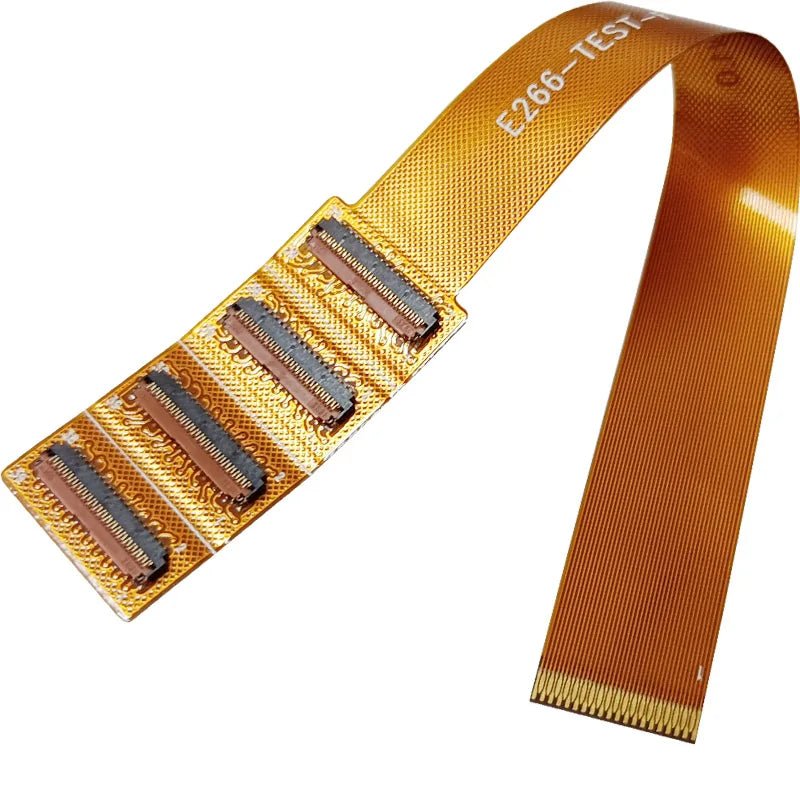

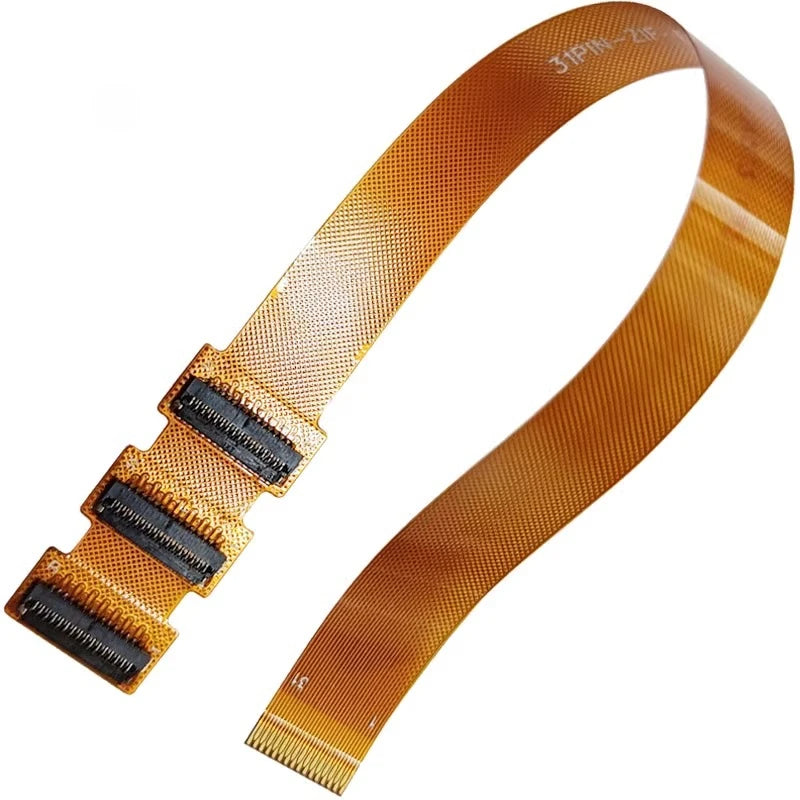

• Multi-Section Design: Extends usable life — simply cut one section after use and continue with the next. Three sections in one cable means long-term value and less waste.
• Dual Pitch Options: Choose 0.3mm or 0.5mm spacing to match your connector footprint precisely.
• Wide Pin Range: Available in 13, 25, 31, 39, and 45 pin core configurations for broad compatibility.
• ZIF Connector: Zero Insertion Force locking mechanism ensures easy, damage-free insertion and removal during repeated test cycles.
• CE & RoHS Certified: Compliant with CE and RoHS standards — built to meet quality and environmental safety requirements.
• Low Voltage Compatible: Supports voltages below 50V AC or 75V DC (EU LVD compliant), as well as common DC levels (5V, 12V, 20V, 30V).
• No Battery / No Wireless Required: Purely passive adapter — plug in and test immediately.

Specifications

• Pitch Spacing: 0.3mm / 0.5mm

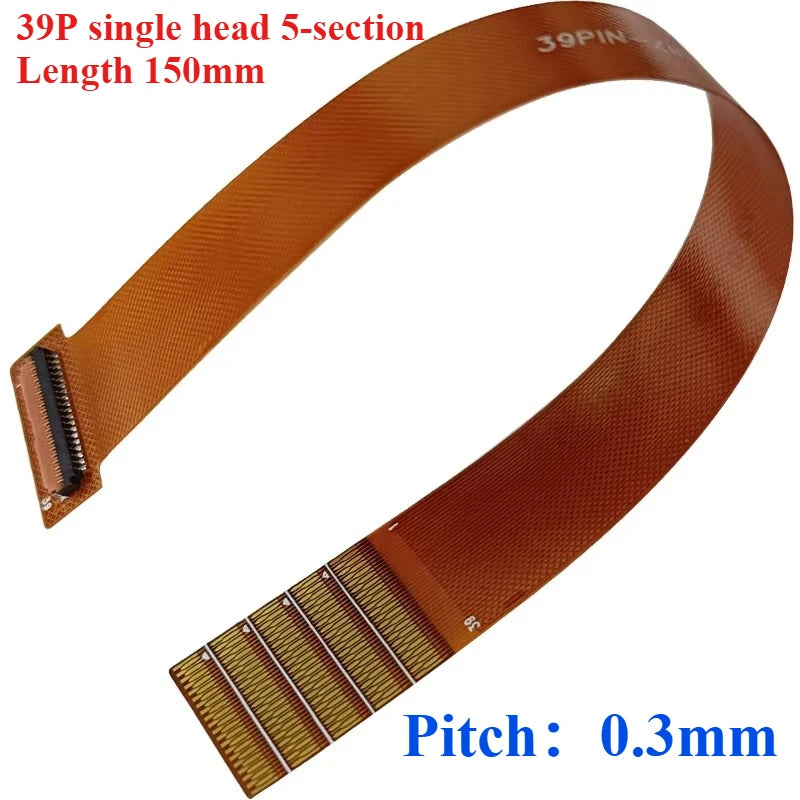

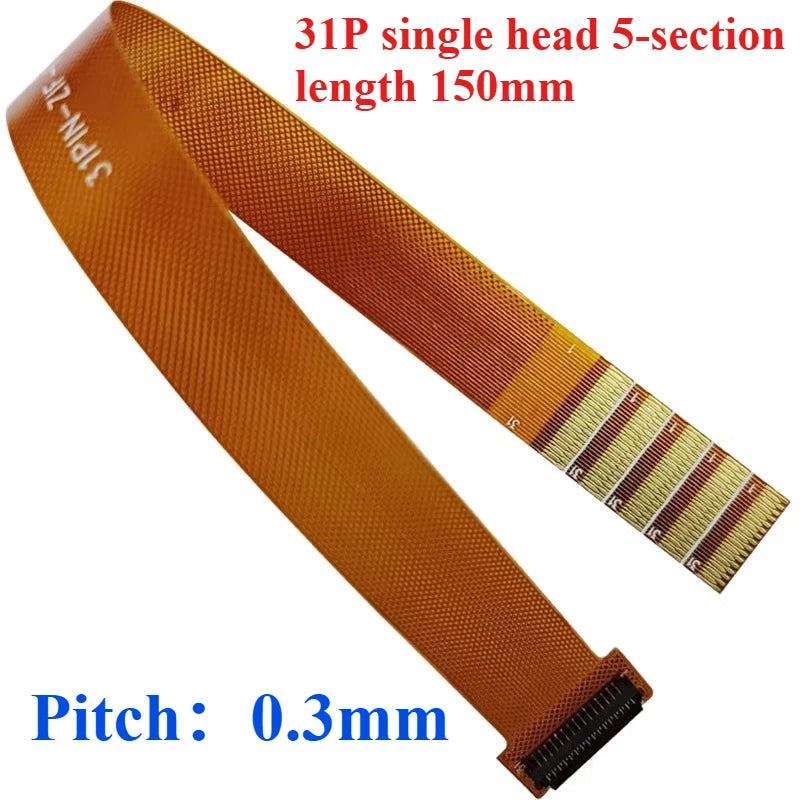

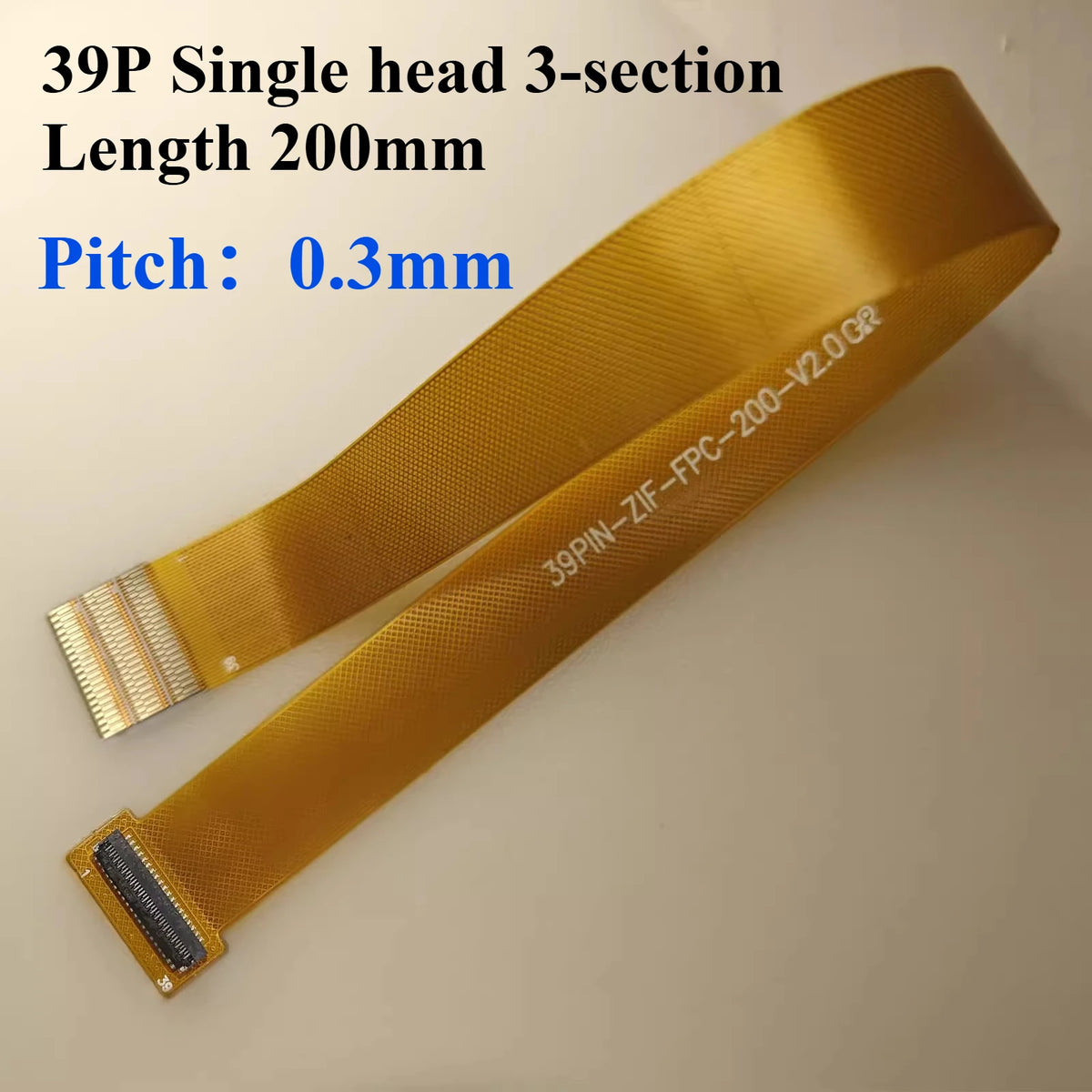

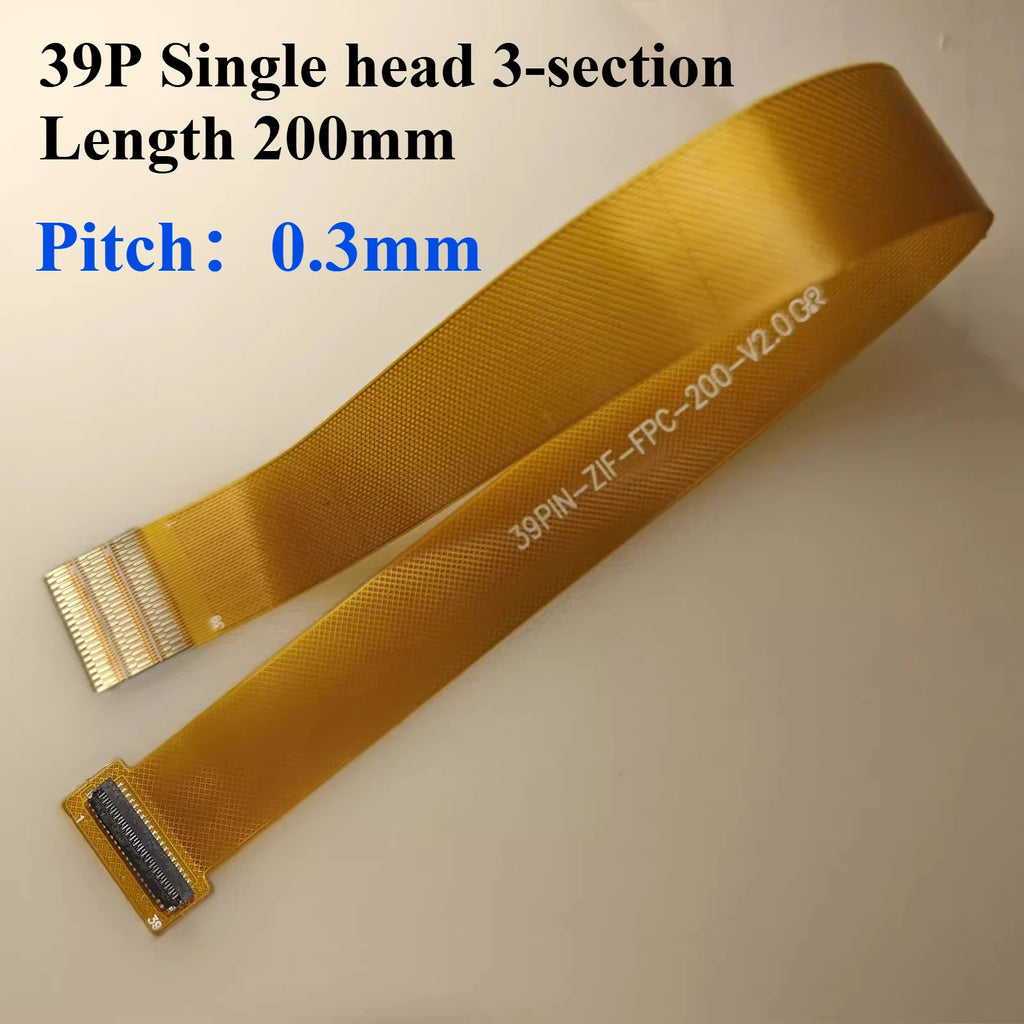

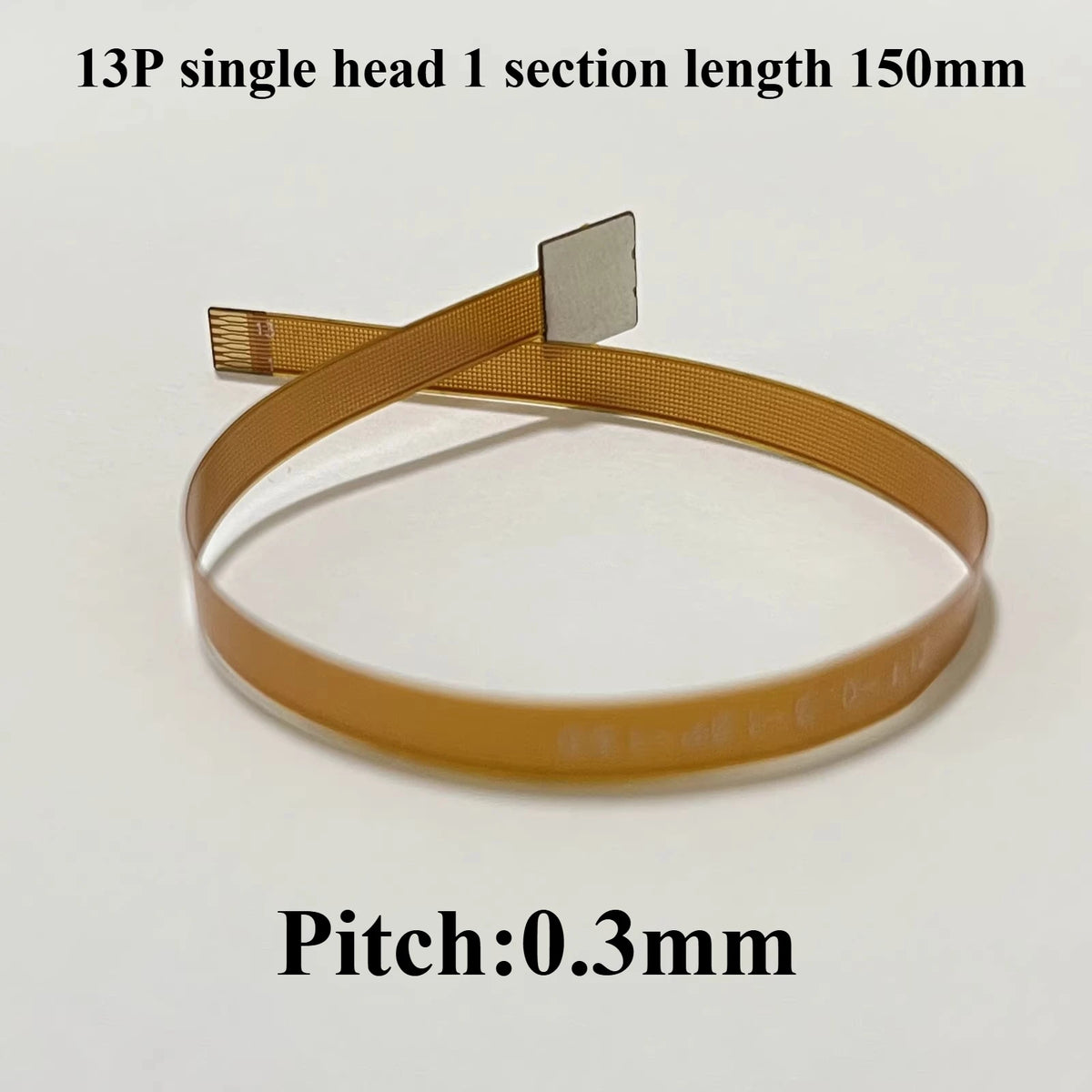

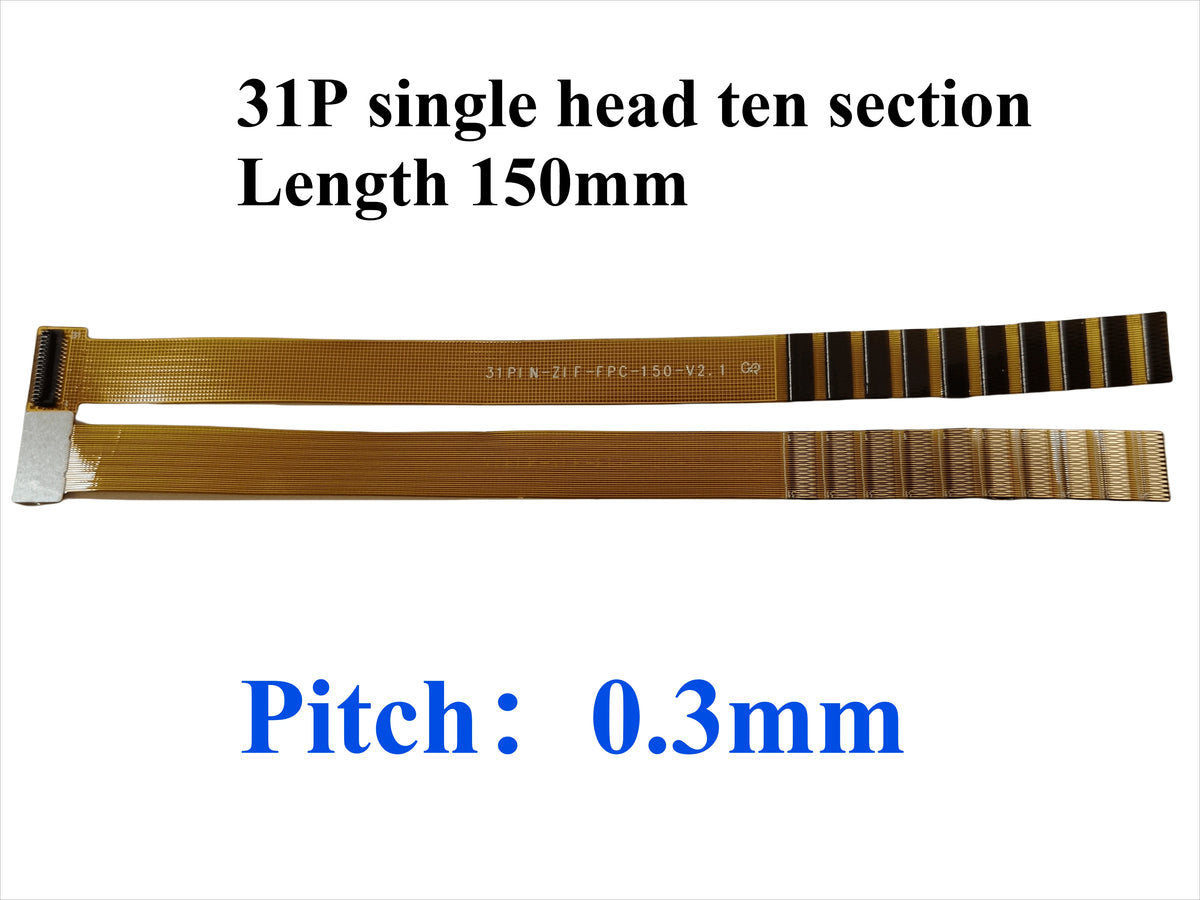

• Pin Core Options: 13 / 25 / 31 / 39 / 45
• Connector Type: BTB with ZIF
• Supported Voltages: 5V, 12V, 20V, 30V (below 50V AC / 75V DC)
• Certifications: CE, RoHS
• Battery Included: No
• Wireless: No
• Made in Mainland China

Who Is This For?

This test cable is ideal for electronics engineers, hobbyists, repair technicians, and DIY makers who regularly work with flexible PCBs, display modules, or compact board connectors that require a precise, repeatable connection during testing and development.

Related Products You May Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What does the multi-section design mean for this BTB ZIF test cable?

A: The cable is divided into multiple segments. After one section has been used and its contacts wear, you simply cut it off and use the next fresh section. This extends the overall lifespan of the cable significantly, giving you more value per unit.

Q: What is the difference between 0.3mm and 0.5mm pitch spacing?

A: Pitch spacing refers to the distance between the center of one pin and the center of the adjacent pin. A 0.3mm pitch is used for finer, more compact connectors, while 0.5mm is more common on standard FPC/FFC flex cables. Always match the pitch to your connector to ensure proper signal contact.

Q: Is this cable compatible with FPC (Flexible Printed Circuit) connectors?

A: Yes — the ZIF (Zero Insertion Force) connector design is widely compatible with FPC and FFC flex cables of matching pitch and pin count, making it suitable for display modules, camera modules, and other compact electronics testing scenarios.

Q: What pin counts are available?

A: This adapter is available in 13, 25, 31, 39, and 45 pin core options. Be sure to select the configuration that matches your target connector.
