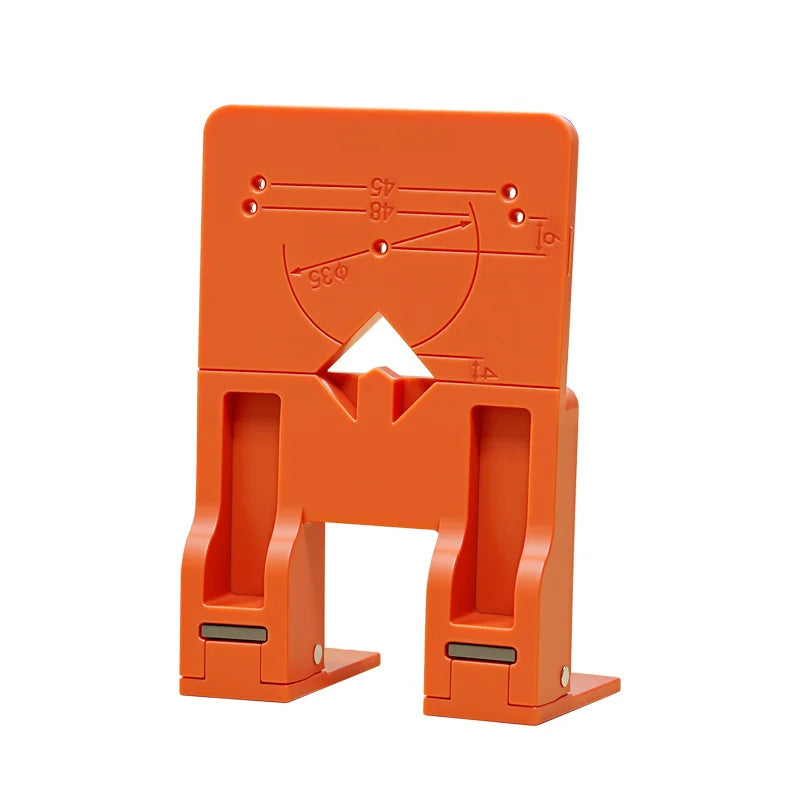

Cabinet Hinge Positioning Plate – Quick Install Seam Spacing Jig

Cabinet Hinge Positioning Plate – Precision Installation Made Easy

Take the guesswork out of cabinet hinge installation with this Hinge Positioning Plate. Engineered for woodworkers, DIY enthusiasts, and professional cabinet makers alike, this all-in-one jig ensures perfectly aligned hinges and consistent door gaps every single time — no measuring, no fussing, no misaligned doors.

Key Features

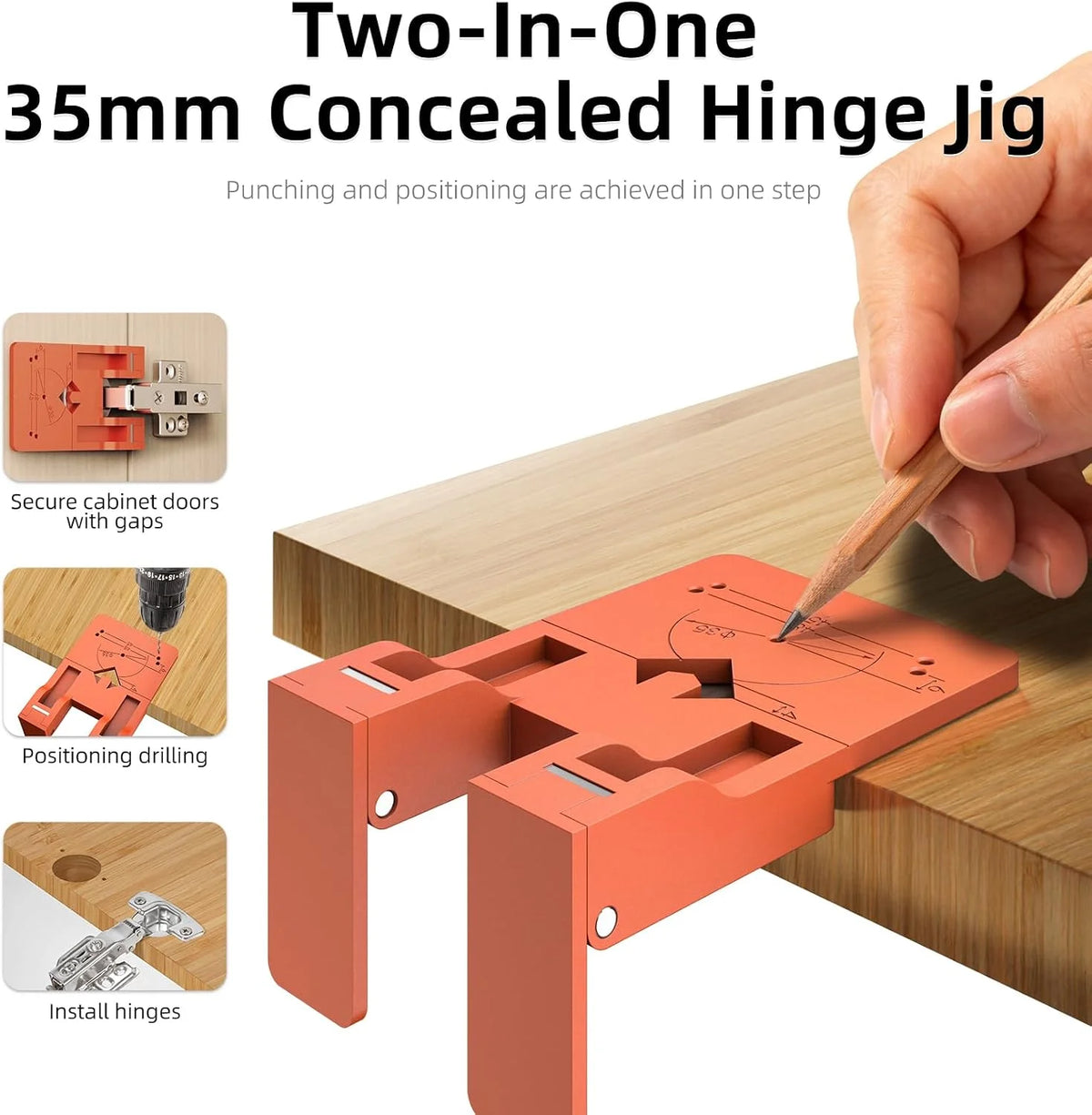

• Universal 35mm Hinge Compatibility: Designed to fit standard 35mm cup hinges used in most modern cabinetry and wardrobes.
• Extended Backing Plate: The wider backing plate design gives extra stability during installation for a rock-solid result.
• Precise 2.6mm Door Gap: Engineered to maintain a consistent 2.6mm cabinet door gap, delivering a clean and professional-looking finish on every project.
• Multi-Hinge Type Support: Compatible with full overlay (straight arm) and half overlay (middle bend) hinges, making it a truly versatile tool for a wide range of cabinet door configurations.

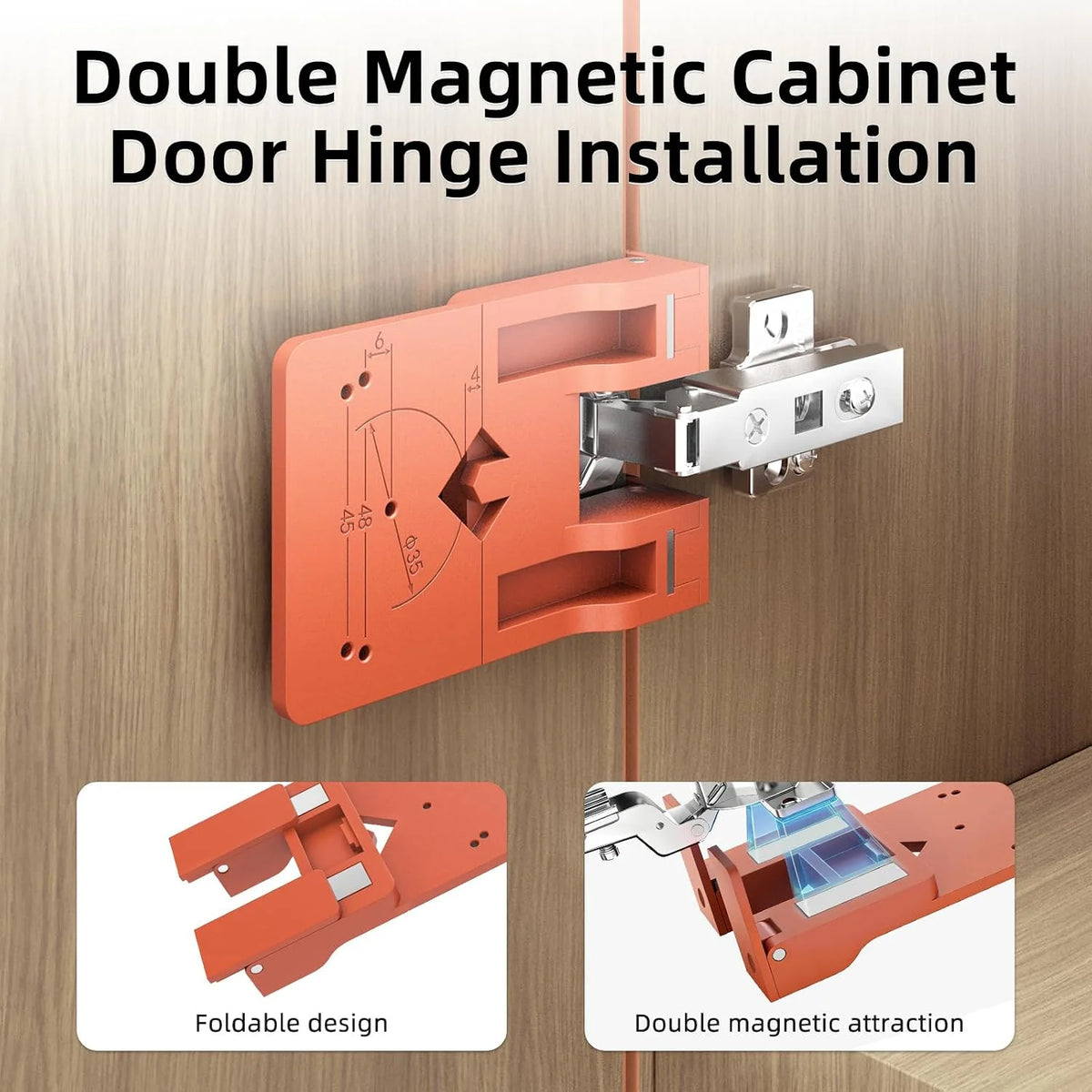

• Powerful Double-Sided Magnets: The integrated double-sided magnets securely hold the positioning plate against your workpiece, keeping everything firmly in place while you work.
• Quick Seam Retention: Locks in perfect seam spacing effortlessly, so your cabinet doors hang evenly and look their best.

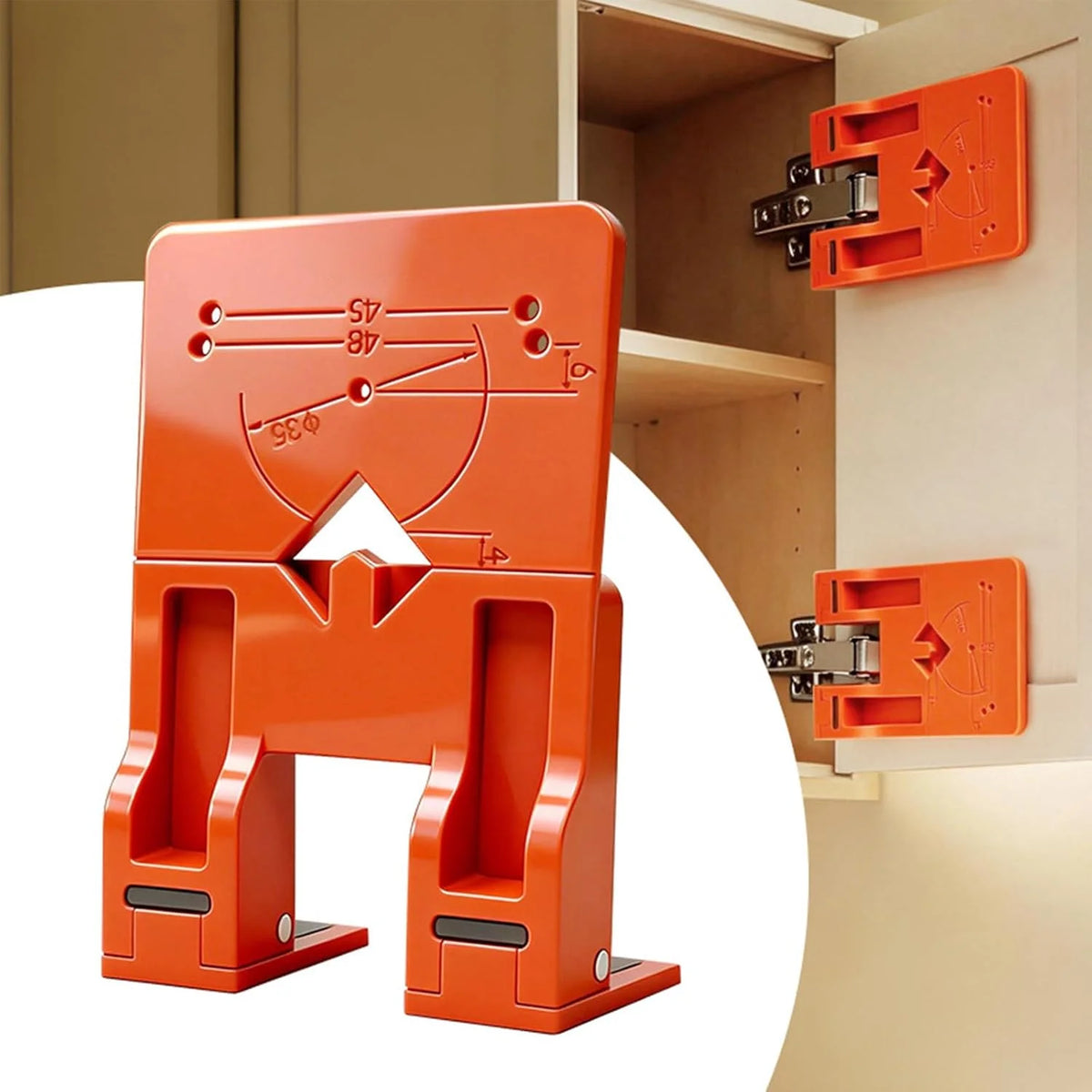

• Ideal for Cabinets & Wardrobes: Suitable for kitchen cabinets, bathroom vanities, bedroom wardrobes, and any furniture project requiring precise hinge alignment.

Product Specifications

• DIY Category: Woodworking
• Hinge Type Compatibility: Full overlay (straight arm), Half overlay (middle bend)
• Standard Hinge Cup Size: 35mm
• Door Gap: 2.6mm
• Magnet Type: Double-sided
• Made in: Mainland China

Why You'll Love It

Whether you're a seasoned cabinetmaker or tackling your first furniture project, this hinge positioning plate saves time and eliminates costly installation errors. Simply place the jig, let the magnets do the holding, and install with confidence. The result? Perfectly spaced, perfectly aligned cabinet doors that look like they were hung by a professional.

Related Products You May Like

• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips – perfect for securing hinges and cabinet hardware
• 10Pcs No-Drill Non-Trace Screw Hooks – a great addition to your cabinet and wall-mounting toolkit

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What size hinges is this cabinet hinge positioning plate compatible with?

A: This hinge positioning plate is specifically designed for standard 35mm cup hinges — the most common hinge size used in kitchen cabinets, wardrobes, and furniture doors. It supports both full overlay (straight arm) and half overlay (middle bend) hinge types.

Q: What door gap does this hinge jig maintain?

A: The positioning plate is precision-engineered to maintain a consistent 2.6mm cabinet door gap, ensuring your doors are evenly spaced and aesthetically aligned across all installations.

Q: How do the magnets help during installation?

A: The built-in double-sided magnets allow the positioning plate to adhere firmly to your workpiece without any clamps or extra tools. This keeps the jig perfectly in place while you drive screws, making solo installations much easier and more accurate.

Q: Is this hinge positioning plate suitable for beginners?

A: Absolutely! This tool is designed to simplify hinge installation for all skill levels. By eliminating manual measuring and reducing alignment errors, it makes professional-quality cabinet hinge installation accessible even for first-time DIYers.
