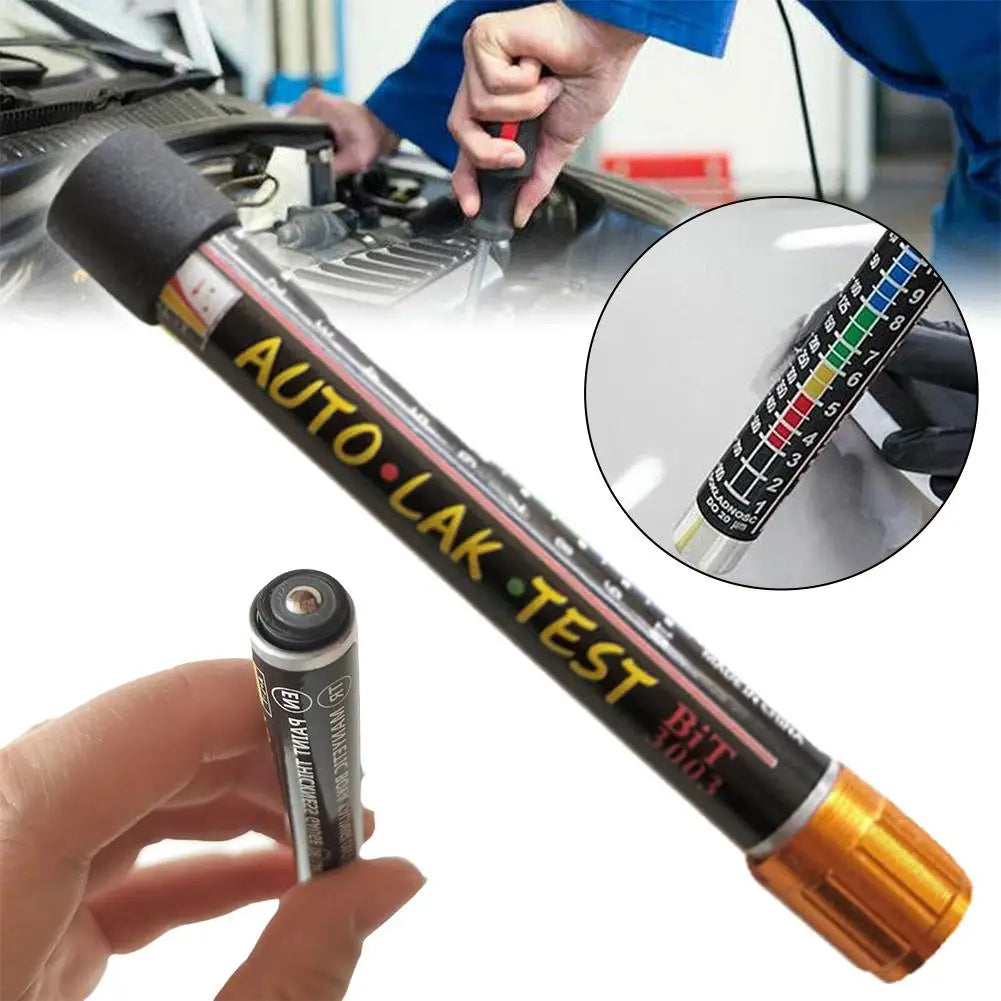

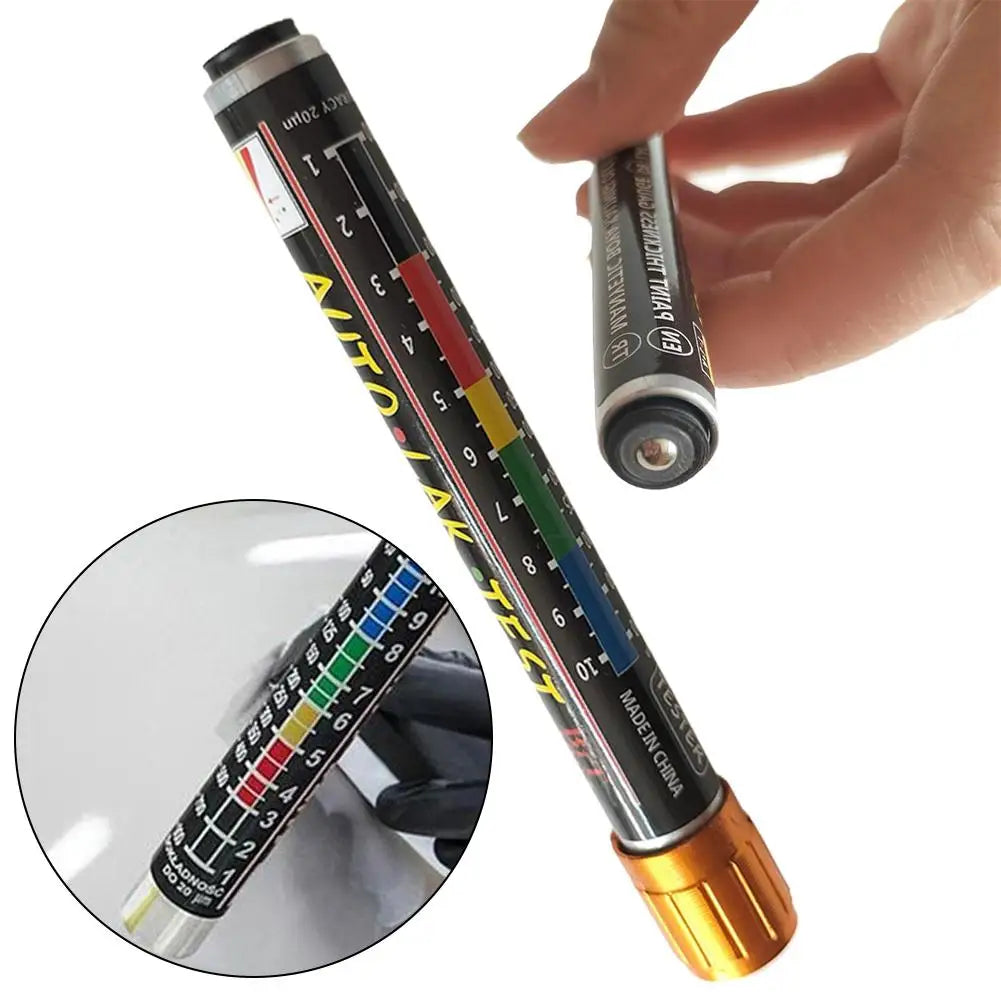

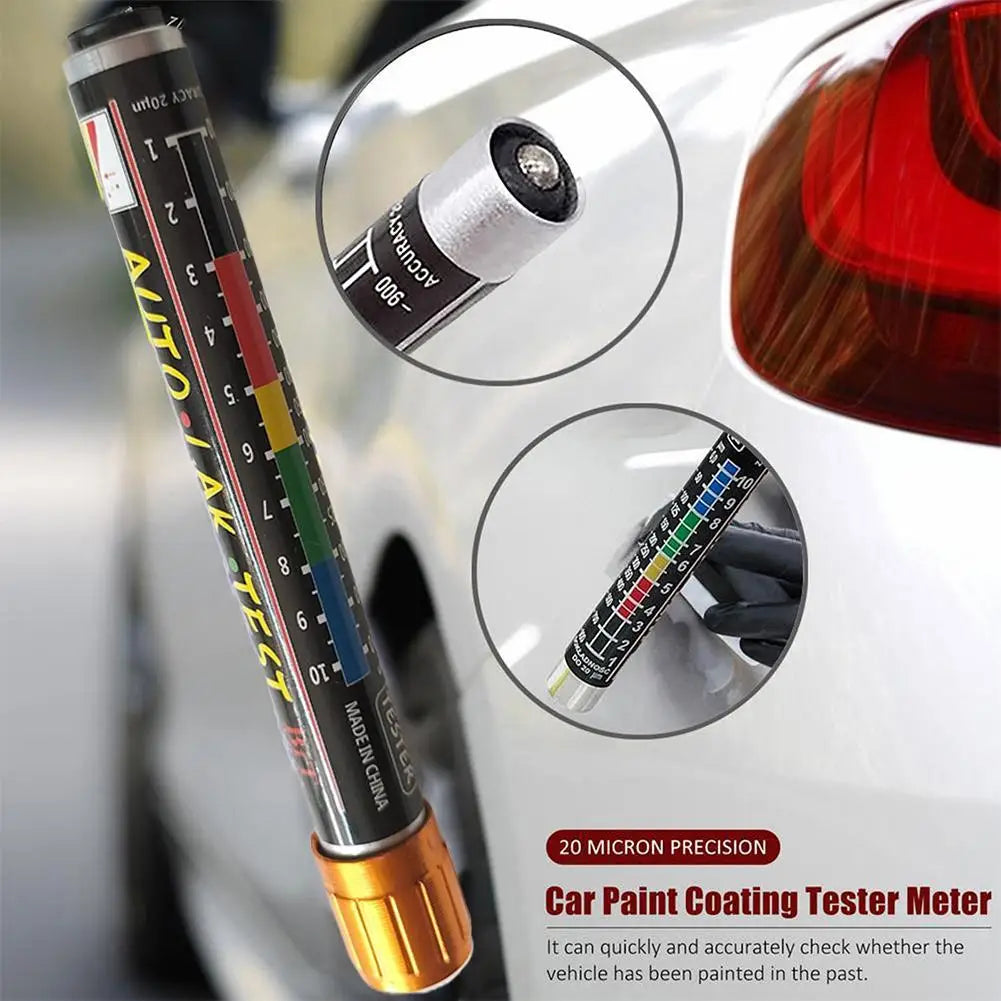

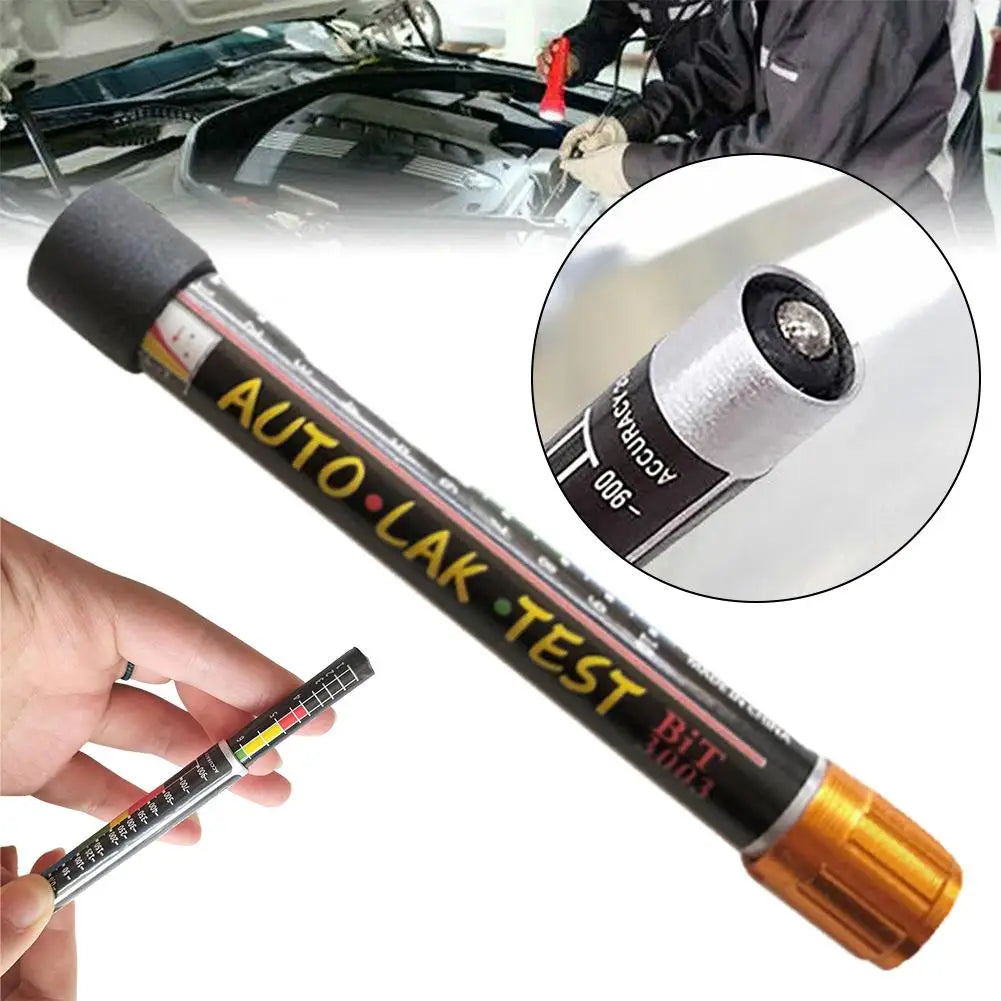

Car Paint Thickness Tester – Coating Test Pen for Vehicles

Instantly Check Your Car's Paint Coating Thickness

The Car Paint Thickness Tester is a compact, battery-free coating test pen designed to help you quickly and accurately assess the paint condition on any steel or galvanized steel vehicle panel. Whether you're buying a used car, checking bodywork quality, or assessing previous repair work, this handy tool gives you clear, colour-coded readings in seconds — no experience required.

Made in Mainland China.

How It Works

Simply press the magnetic tip against any clean, flat or curved steel surface. The colour scale (measured in microns) instantly tells you the thickness of the paint or coating layer — helping you spot repainted panels, body filler, or sheet metal repairs at a glance.

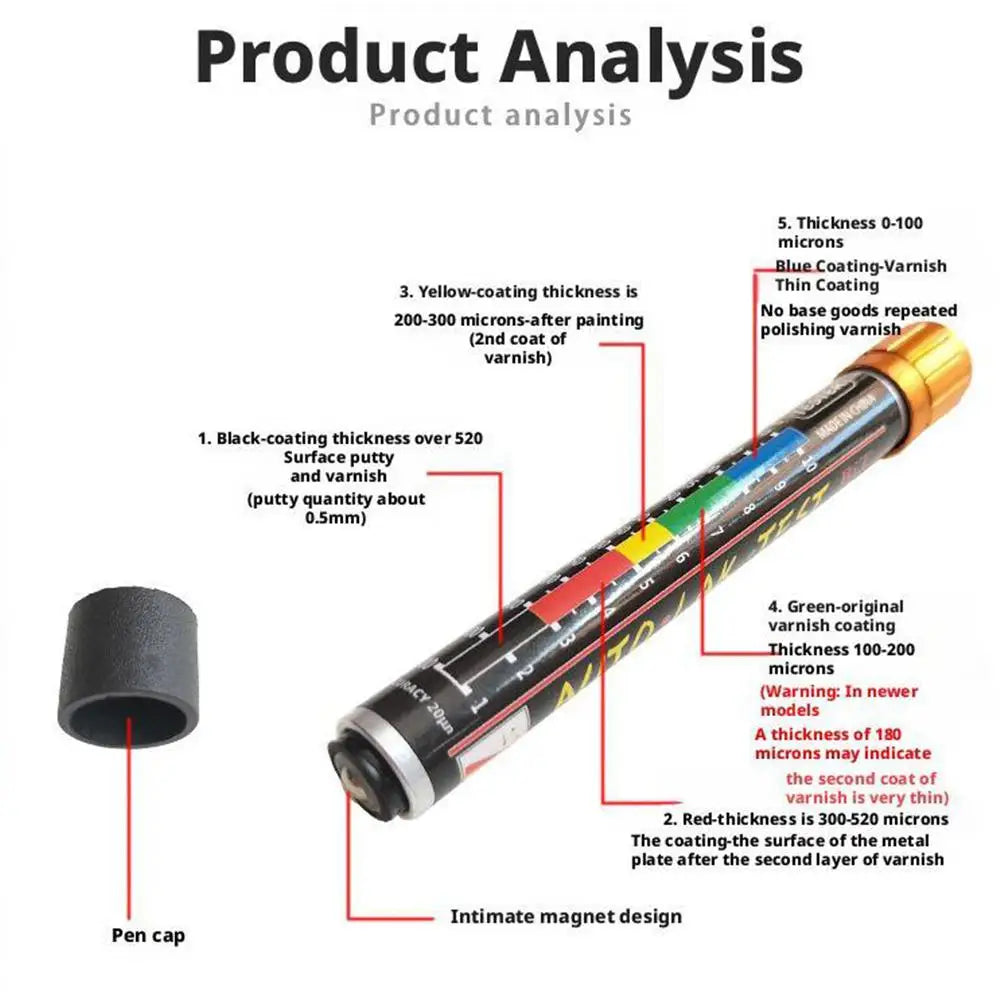

Colour Scale Guide

• 🔵 Blue (0–100 µm): Very thin coat — likely bare varnish or a heavily polished finish.
• 🟢 Green (100–200 µm): Original factory varnish. Note: on newer models, readings near 180 µm may suggest a secondary varnish layer.
• 🟡 Yellow (200–300 µm): Repair repaint — a second coat of varnish has been applied.
• 🔴 Red (300–520 µm): Sheet metal repair plus a second coat of varnish detected.
• ⚫ Black (520+ µm): Heavy body filler and varnish present (approximately 0.5mm+ of filler).

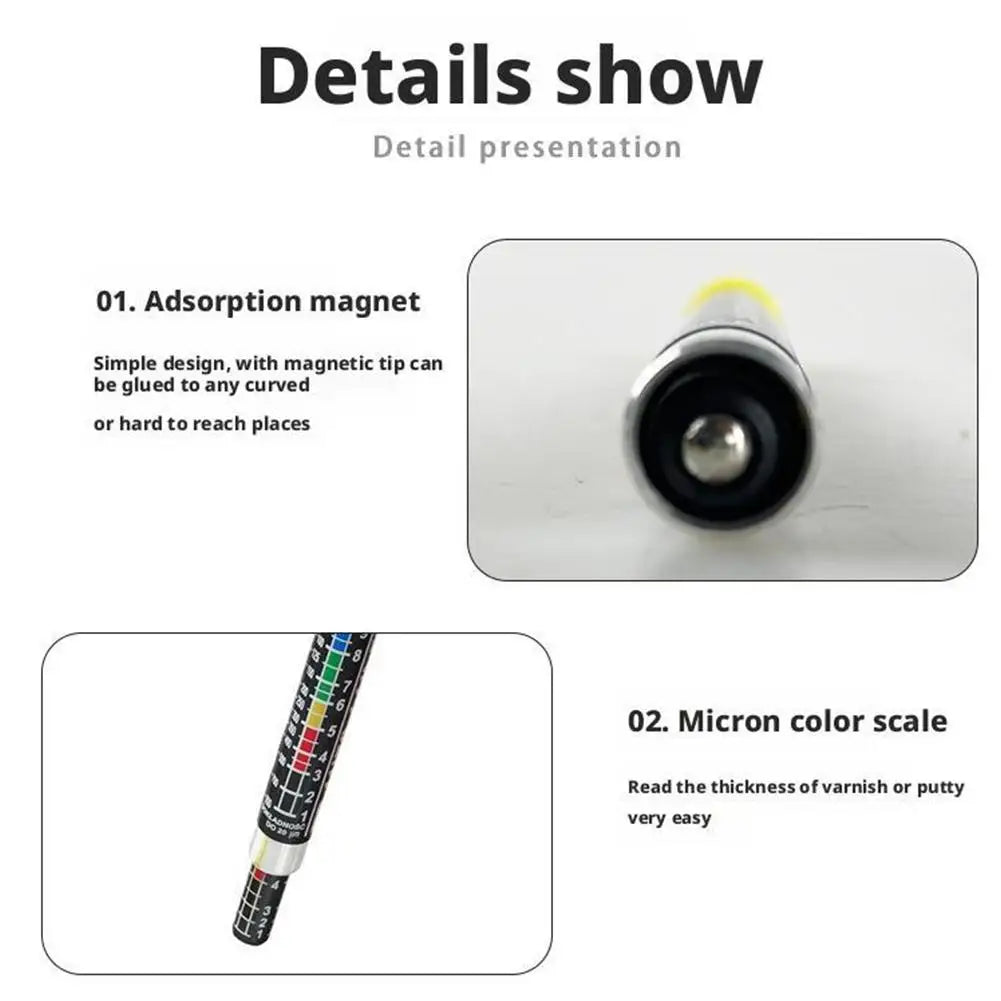

Key Features

• ✅ Battery-free operation — no charging or power source needed
• ✅ Magnetic tip — adheres to curved or hard-to-reach surfaces
• ✅ High accuracy — measurement precision to 20 microns
• ✅ Water-resistant construction for use in various conditions
• ✅ Durable ABS body — lightweight and ergonomic
• ✅ Works on sheet steel and galvanized steel vehicle panels
• ✅ Compact size — fits easily in a glove box or toolkit

Specifications

What's in the Box?

• 1 × Car Paint Thickness Tester Pen

Related Products You May Like

• 1 Roll Car Molding Trim Tape – Decorative Auto Adhesive Strip
• Tactical EDC Tool Storage Bag – Portable Utility Organizer

Learn more: FuelEconomy.gov on vehicle maintenance

Frequently Asked Questions

Q: Does the car paint thickness tester require batteries or charging?

A: No — this paint thickness tester pen is entirely battery-free. It uses a passive magnetic tip that reacts with the ferrous metal surface of the vehicle panel, requiring no power source whatsoever. Simply press the tip against the panel and read the colour scale instantly.

Q: What surfaces is this paint thickness tester compatible with?

A: This coating test pen works on vehicle panels made of sheet steel and galvanized steel. It is not suitable for aluminium, fibreglass, or plastic panels, as those materials do not have the magnetic properties needed for accurate measurement.

Q: How accurate is the paint thickness tester?

A: The tester offers an accuracy of approximately ±20 microns, making it reliable enough to detect repainted panels, body filler, and repair layers on most standard vehicles. Always ensure the surface is clean and free of dust before testing for the most accurate reading.

Q: Can I use this tester to check a used car before purchase?

A: Absolutely. This is one of the most popular uses for a paint thickness tester. By running the pen across each panel, you can quickly identify areas that have been repainted or repaired — information that's invaluable when evaluating the true condition of a pre-owned vehicle.
