Carbon Steel Hydraulic Elbow Pipe Fitting 6–14mm Tube Connector
Carbon Steel Hydraulic Elbow Pipe Fitting 6–14mm Tube Connector
Details

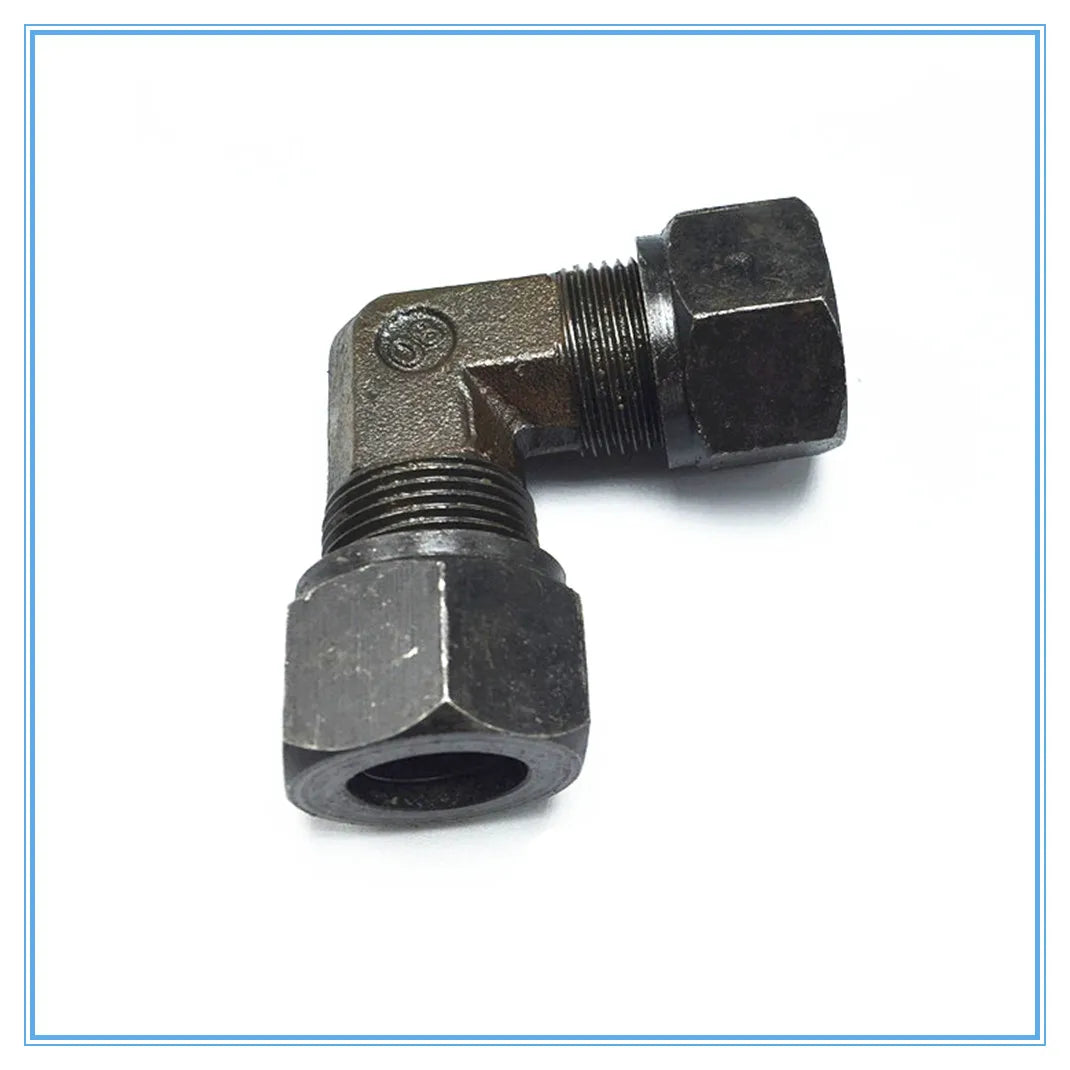

Carbon Steel Hydraulic Elbow Pipe Fitting – 6 to 14mm
Keep your hydraulic, fluid, and marine tubing systems running efficiently with this precision-cast carbon steel elbow pipe fitting. Designed as a card-sleeve (compression) end connector, it delivers a secure, leak-resistant joint for a wide range of tubing sizes from 6mm to 14mm. The hexagonal head makes installation quick and tool-friendly, while the equal-shape elbow design ensures a clean 90° directional change in tight spaces.
Key Features
- Material: Durable carbon steel construction for long-lasting performance in demanding environments
- Fitting Type: Elbow (90°) with card-sleeve (compression) end for a secure, vibration-resistant connection
- Connection: Female connection with hexagonal head for easy wrench installation
- Compatible Tube Sizes: 6mm, 8mm, 10mm, 12mm, and 14mm outer diameter tubing
- Working Pressure: Rated at ≥850 kPa — suitable for hydraulic, fluid transfer, and marine applications
- Shape: Equal elbow for consistent flow direction changes
- Manufacturing: Precision casting for consistent dimensional accuracy and reliable sealing
Applications
- Hydraulic systems and fluid transfer lines
- Marine tubing and plumbing installations
- Industrial and mechanical piping assemblies
- General-purpose carbon steel pipe fitting projects
Specifications
| Specification | Detail |
|---|---|
| Material | Carbon Steel |
| Type | Elbow (Equal) |
| Connection | Female |
| Head Code | Hexagon |
| Sizes Available | 6mm / 8mm / 10mm / 12mm / 14mm |
| Pressure Rating | ≥850 kPa |
| Manufacturing Method | Casting |
| Country of Origin | Made in China |
Related Products You May Like
- 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
- 10/20mm Diamond Flat Grinding Wheel – Heavy Duty Concrete Grinder
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What tubing sizes are compatible with this carbon steel elbow pipe fitting?
A: This hydraulic elbow pipe fitting is available in five outer-diameter sizes: 6mm, 8mm, 10mm, 12mm, and 14mm, making it suitable for a wide range of hydraulic and fluid tubing systems.
Q: Is this pipe fitting suitable for marine applications?
A: Yes. The carbon steel construction and high-pressure rating of ≥850 kPa make this elbow fitting appropriate for marine tubing, hydraulic lines, and industrial fluid transfer assemblies.
Q: How is this fitting installed?
A: The hexagonal head allows for easy installation with a standard wrench. The female card-sleeve (compression) end design creates a secure, leak-resistant connection without the need for special tools.
Q: What is the pressure rating for this pipe fitting?
A: This fitting is rated at ≥850 kPa, making it suitable for pressurized hydraulic and fluid transfer systems in industrial and marine environments.
