High Accuracy Cassette Head & Guide Gauge Kit + 2 Check Bars

High Accuracy Cassette Head & Guide Gauge Kit — Precision Mechanical Alignment

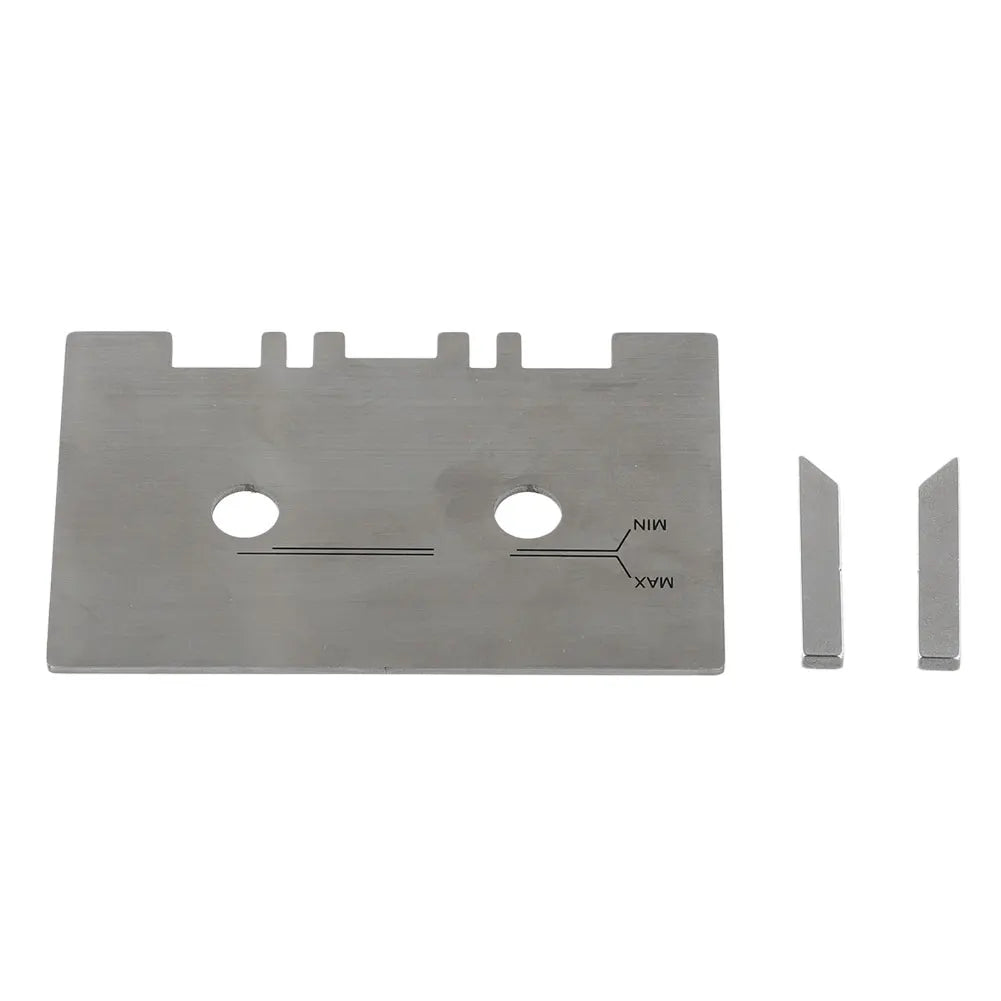

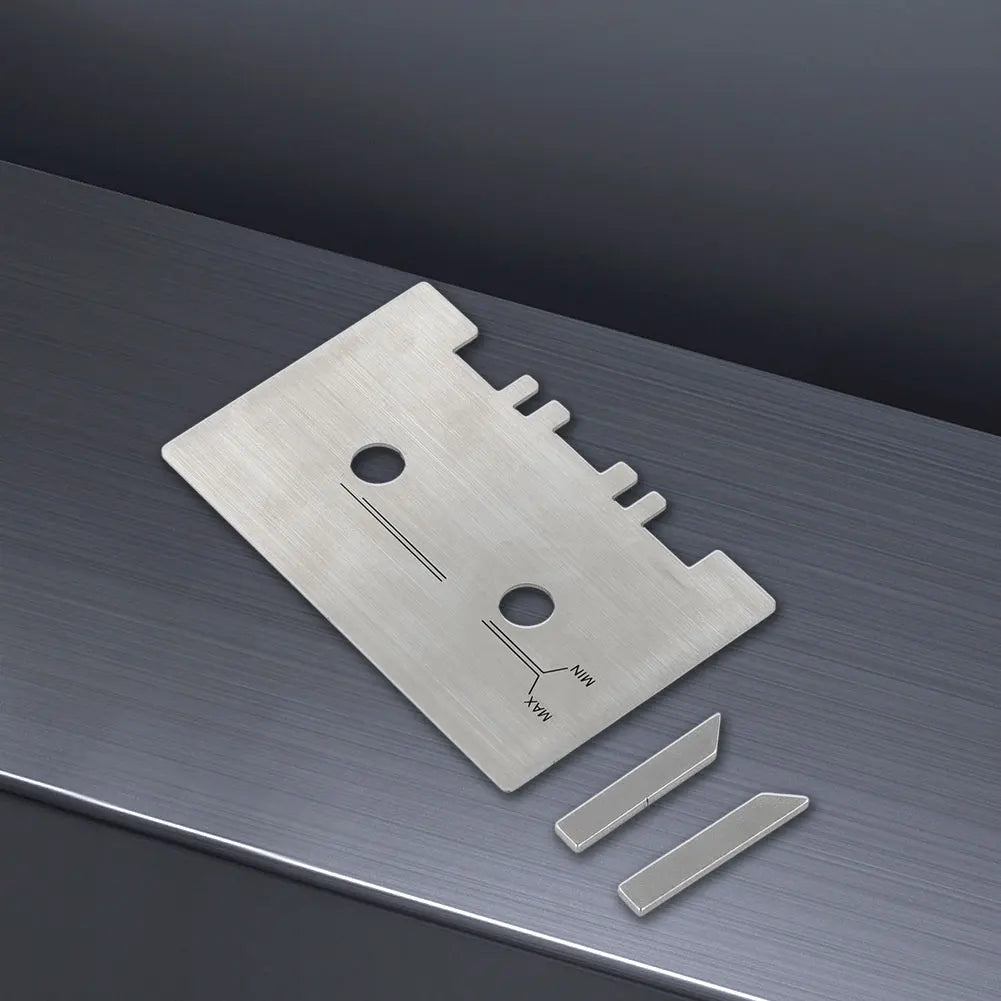

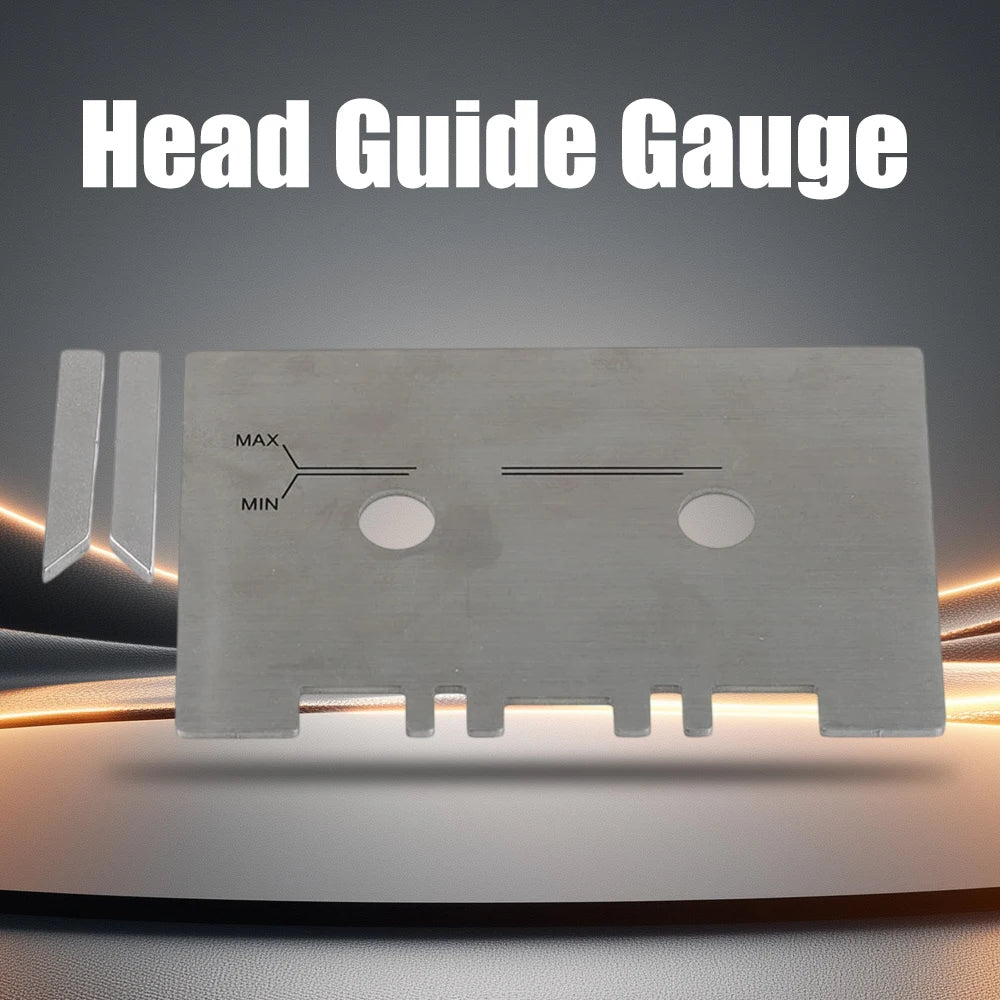

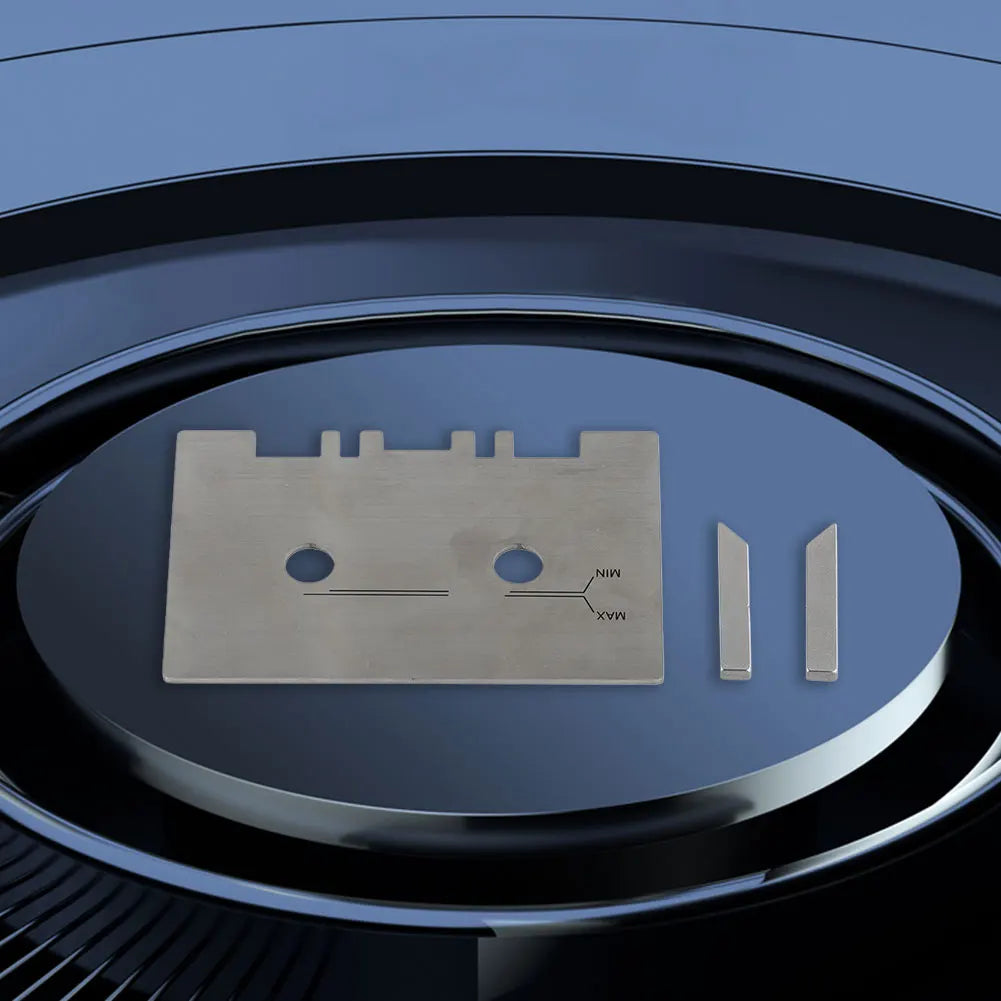

Achieve flawless mechanical alignment with the APWIKOGER High Accuracy Head and Guide Gauge Kit. Engineered from premium aluminum alloy, this professional-grade gauge set delivers the precision your cassette player or audio equipment demands — right out of the box. The kit includes 1 Guide Gauge and 2 Inspection/Check Bars, giving you everything needed for accurate head and guide alignment in one compact package.

Key Features

• High-Quality Aluminum Alloy Construction: Crafted from durable aluminum alloy (incorporating elements such as copper, magnesium, and manganese) for outstanding strength, corrosion resistance, and a lightweight form factor.
• Superior Strength & Toughness: The alloy core provides excellent structural integrity, protecting internal components from external factors while offering reliable electrical and thermal conductivity.

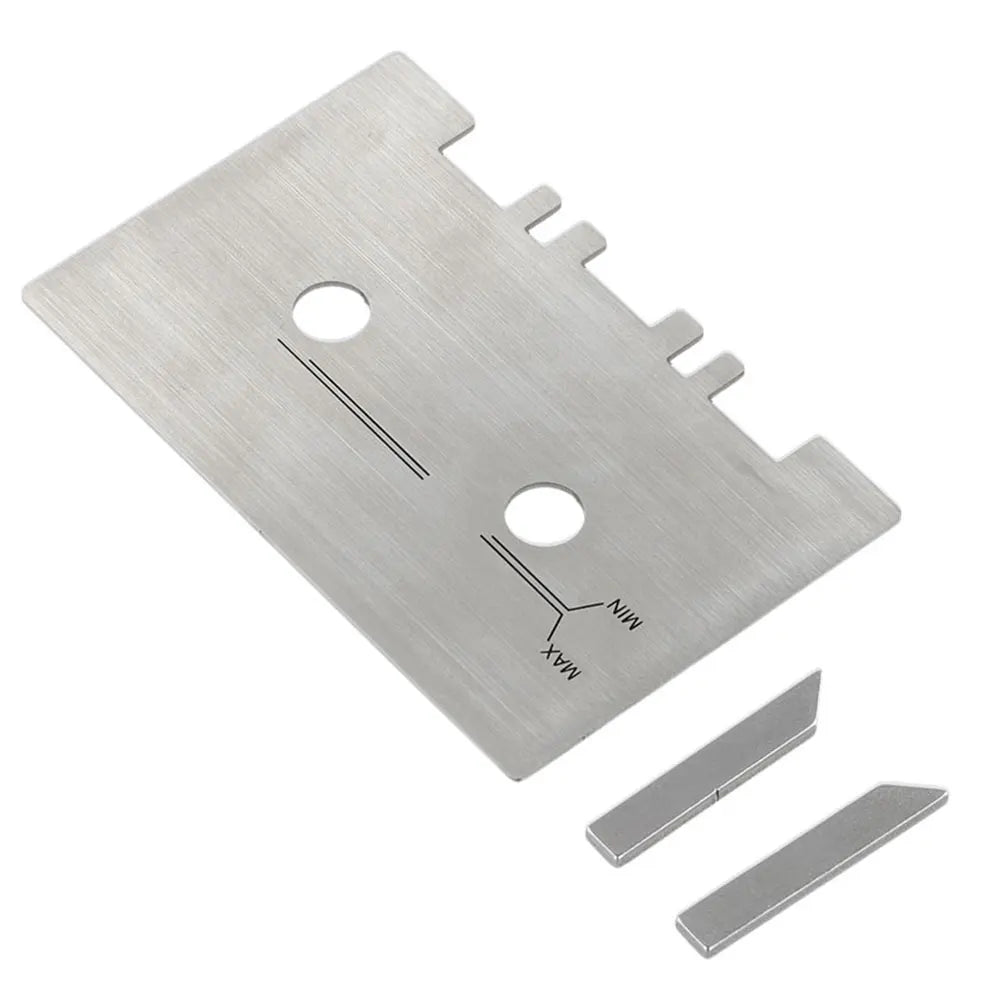

• Precision Measurement Plate: Standard measuring plate thickness of 2.445 ± 0.02 mm; strip thickness of 3.81 – 0.025 mm. The gauge plate is engraved with magnetic head upper and lower limit lines, and is compatible on both sides — ensuring repeatable, professional-level results.
• Sleek Silver Finish: The elegant silver colour adds a polished, professional look to your workbench or service setup.

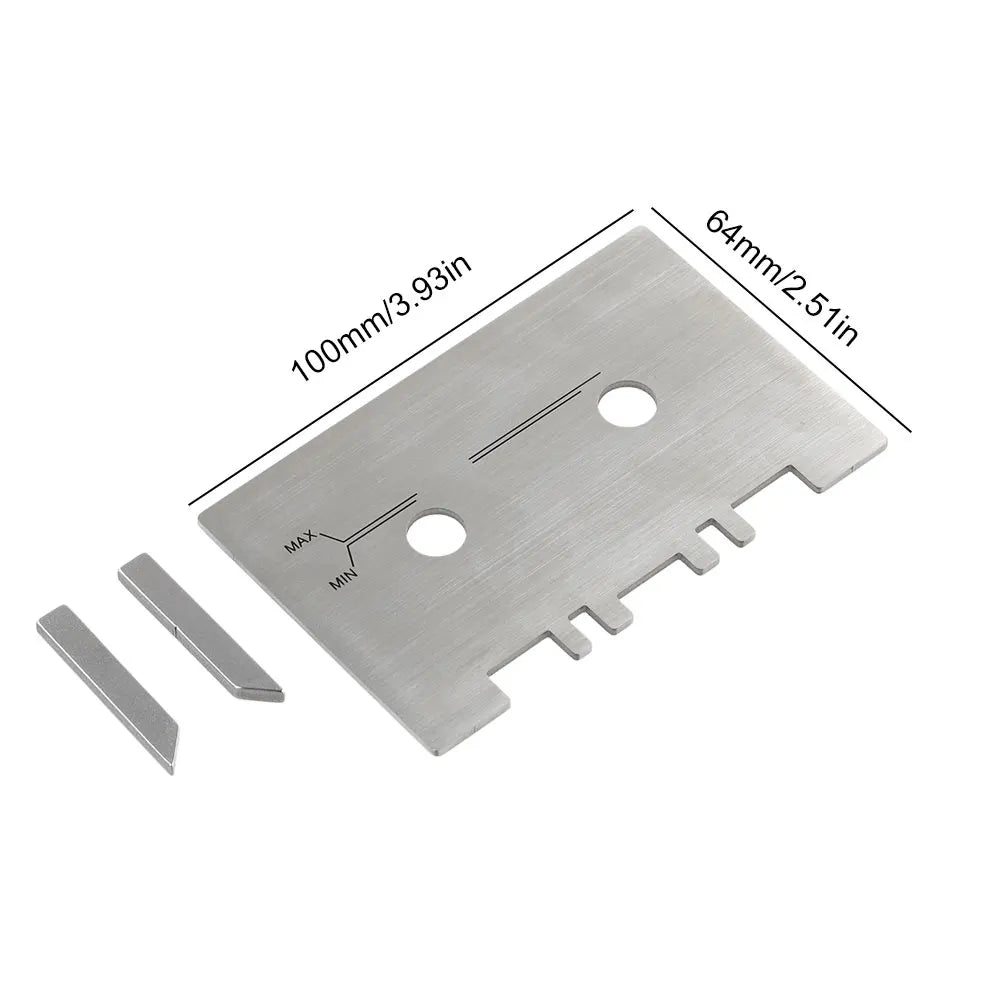

• Lightweight & Portable: At just 102 g and compact dimensions of 100 × 64 × 2 mm, this kit is easy to handle, store, and carry to any service location.
• Versatile Compatibility: Suitable for cassette players, professional audio equipment, and a broad range of electronics alignment and servicing applications.

Specifications

Package Contents

• 1 × Head & Guide Gauge
• 2 × Check / Inspection Bars

Note: Due to variations in monitor settings and lighting, the actual colour may differ slightly from images. Please allow ±1–2 cm measurement deviation due to manual measurement.

You May Also Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 1000D Tactical EDC Bag – Portable Tool Storage & Utility Pouch
• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What is a cassette head and guide gauge kit used for?

A: A cassette head and guide gauge kit is used to precisely align the magnetic head and tape guides in cassette tape players and professional audio equipment. Correct alignment ensures optimal playback quality and accurate tape tracking. This kit's engraved limit lines make it easy to set both upper and lower head positions with high repeatability.

Q: Is this guide gauge compatible with all cassette players?

A: This gauge is designed to be compatible with standard cassette players and professional audio equipment. The measuring plate adheres to standard cassette alignment tolerances (2.445 ± 0.02 mm plate thickness; 3.81 – 0.025 mm strip thickness), making it suitable for most consumer and professional cassette decks. Always verify your specific deck's service manual requirements before use.

Q: Why does this kit include 2 check bars?

A: The two included inspection/check bars allow you to verify alignment on both sides of the gauge plate simultaneously, improving accuracy and efficiency during the alignment process. Having a spare bar also ensures you can complete the job even if one is unavailable during a service session.

Q: How durable is the aluminum alloy construction?

A: The aluminum alloy used in this kit offers a high strength-to-weight ratio, excellent corrosion resistance, and long-term dimensional stability. At just 102 g, the gauge is sturdy enough for repeated professional use while remaining easy to handle and transport.
