CBM-443BF AM/FM Dual Variable Capacitor 270PF+20PF Radio

CBM-443BF Dual Variable Capacitor for AM/FM Radio Tuning Circuits

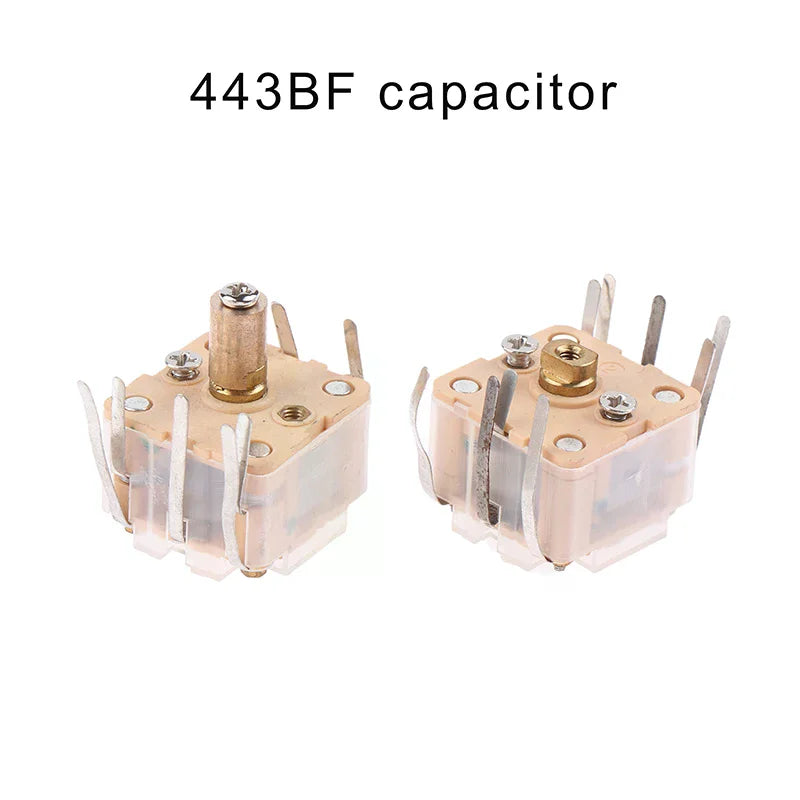

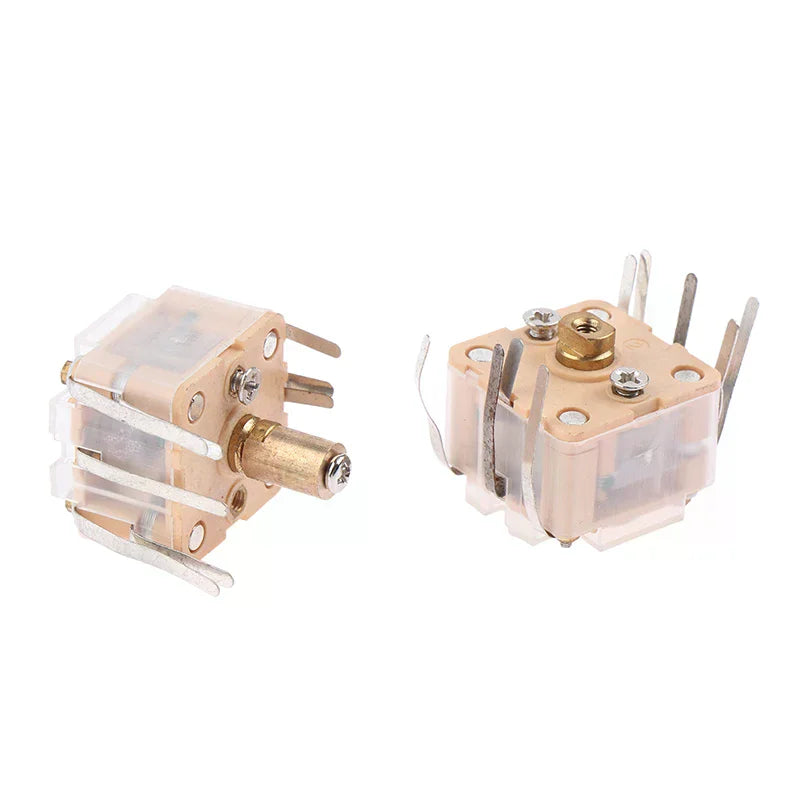

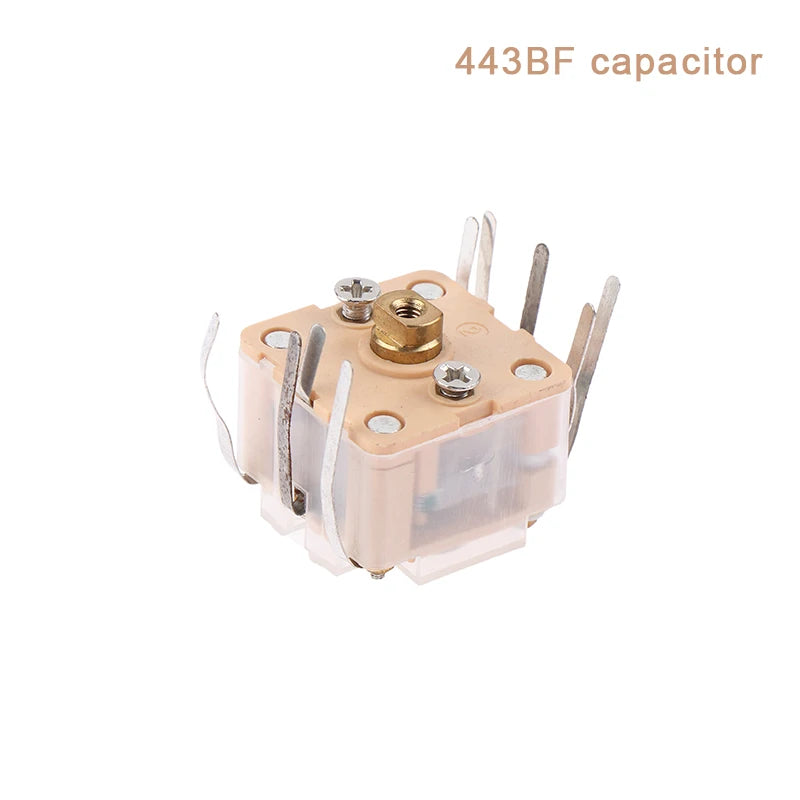

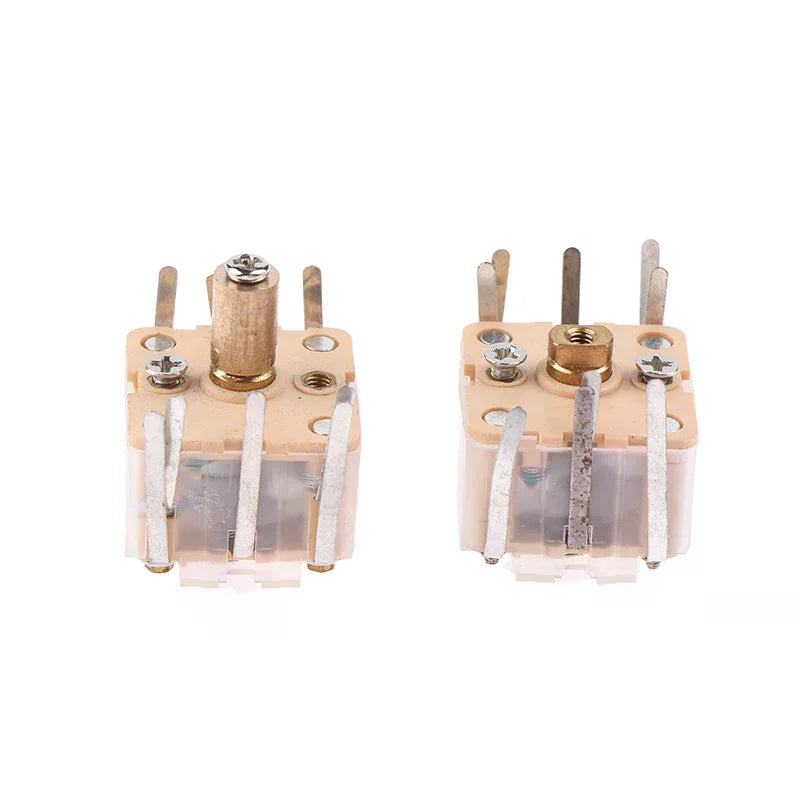

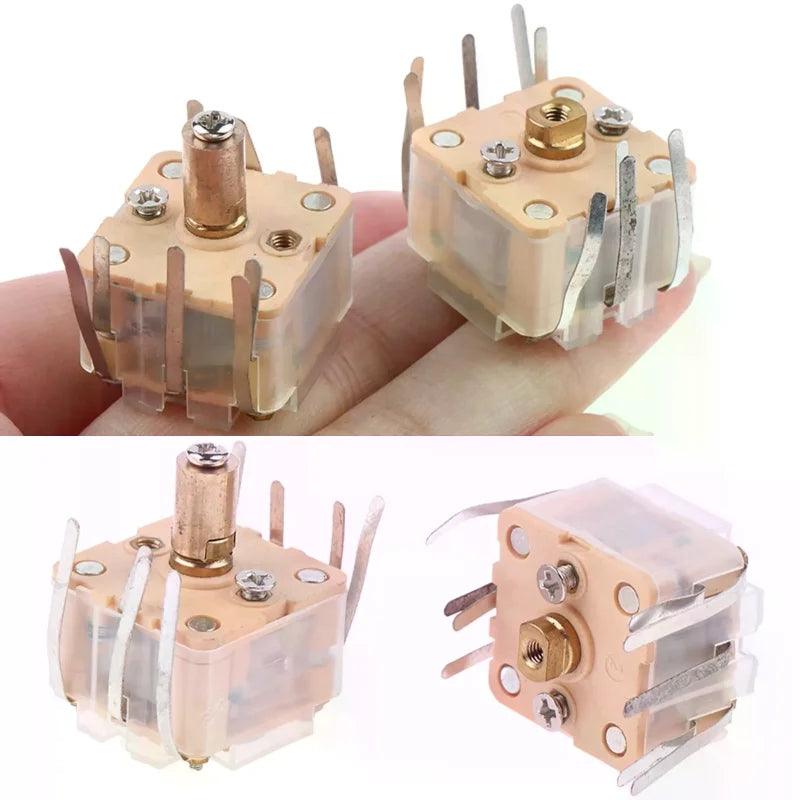

The CBM-443BF Thin Film Variable Capacitor is a precision electronic component designed for use in AM/FM radio tuning circuits. Featuring a 2×270PF dual variable capacitance for AM reception and a 2×20PF dual variable capacitor group for FM reception, this compact unit also includes 4 fine-tuning capacitors — making it a versatile solution for hobbyists, electronics enthusiasts, and DIY radio builders alike.

Made in Mainland China.

Key Features

• Model: CBM-443BF
• AM Section: 2×270PF dual variable capacitance (4×270PF total)
• FM Section: 2×20PF dual variable capacitance

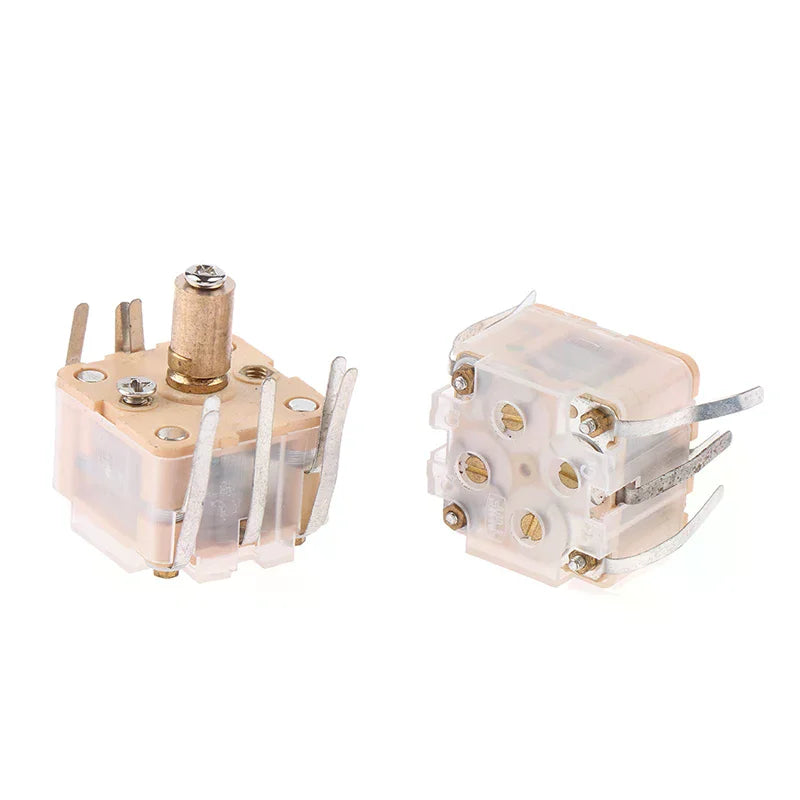

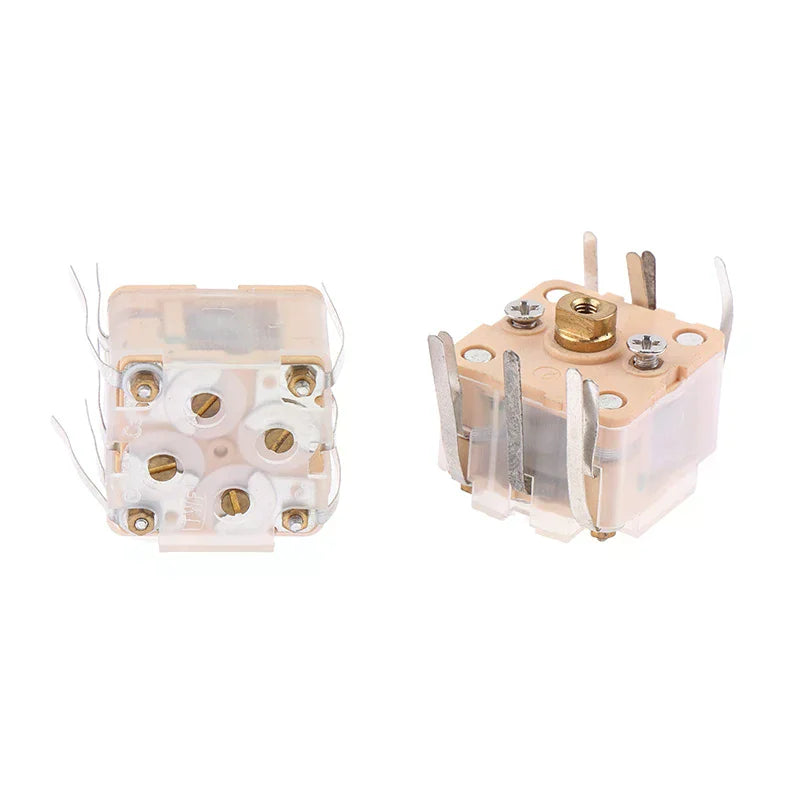

• Fine Tuning: 4 built-in fine-tuning capacitors
• Plastic Shell Dimensions: 21 × 21 × 17 mm

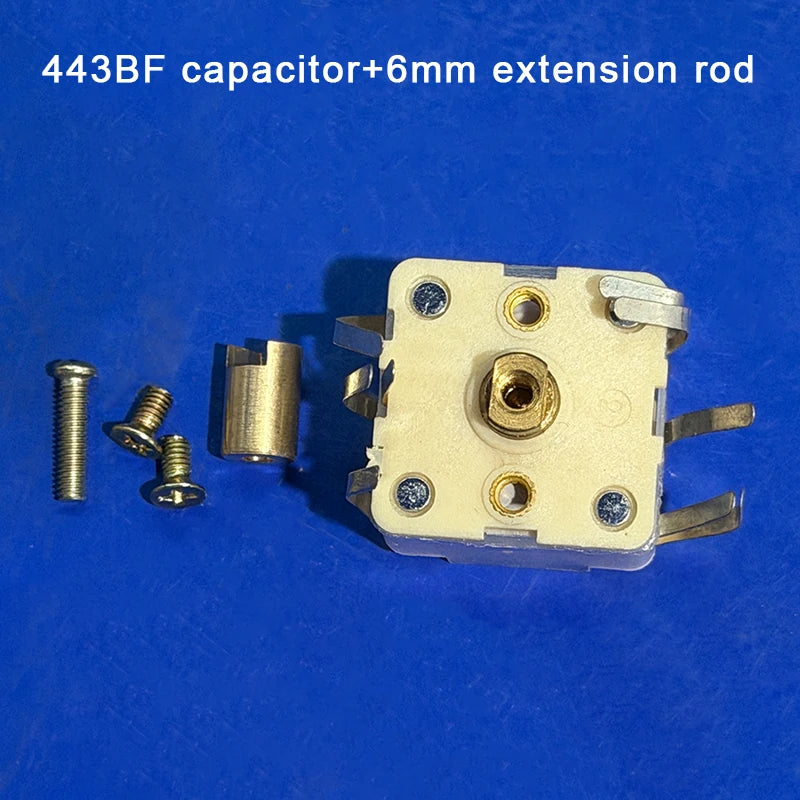

• Mounting Nut: M2.5
• Material: ABS plastic shell with PVC variable capacitor film
• Quantity: 1 piece

Applications

• Medium and short wave (AM) radio circuits
• FM radio tuning circuits
• Crystal/ore radio receiver builds
• DIY electronics and radio engineering projects

What's Included

• 1 × CBM-443BF Dual Variable Capacitor (AM+FM)

Important Notes

• Please allow ±1–2 mm tolerance due to manual measurement.
• Colors may appear slightly different on screen due to monitor calibration differences.
• The 2×20PF FM group can only be used in conjunction with the 2×270PF AM group.

Related Products You May Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What is the CBM-443BF variable capacitor used for?

A: The CBM-443BF dual variable capacitor is primarily used in AM/FM radio tuning circuits, including medium and short wave radios as well as crystal (ore) radio receiver builds. Its dual-gang design allows simultaneous tuning of two resonant circuits for improved selectivity.

Q: Can the FM (2×20PF) section be used independently?

A: No — the 2×20PF FM dual variable capacitor group is designed to work in combination with the 2×270PF AM group. It cannot be operated independently from the main capacitor assembly.

Q: What mounting hardware does the CBM-443BF use?

A: This variable capacitor uses an M2.5 mounting nut for secure installation onto your radio chassis or PCB project enclosure.

Q: What are the physical dimensions of this capacitor?

A: The ABS plastic shell measures approximately 21 × 21 × 17 mm. Please allow ±1–2 mm tolerance due to manual measurement.
