CDJ2B16 Mini Pneumatic Air Cylinder Double Acting 16mm Bore

CDJ2B16 Mini Double-Acting Pneumatic Air Cylinder – 16mm Bore, 10–150mm Stroke

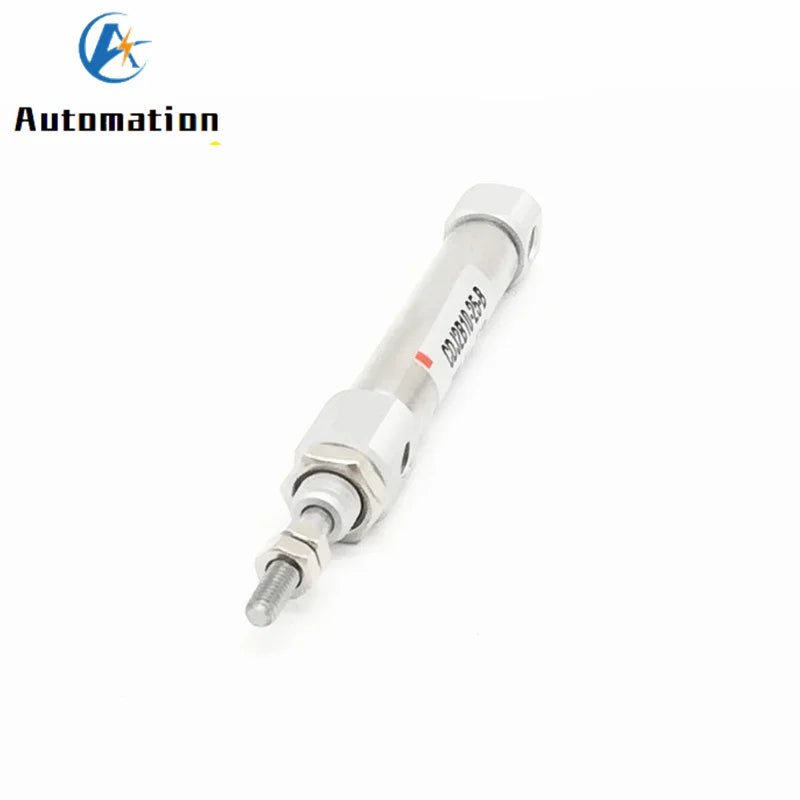

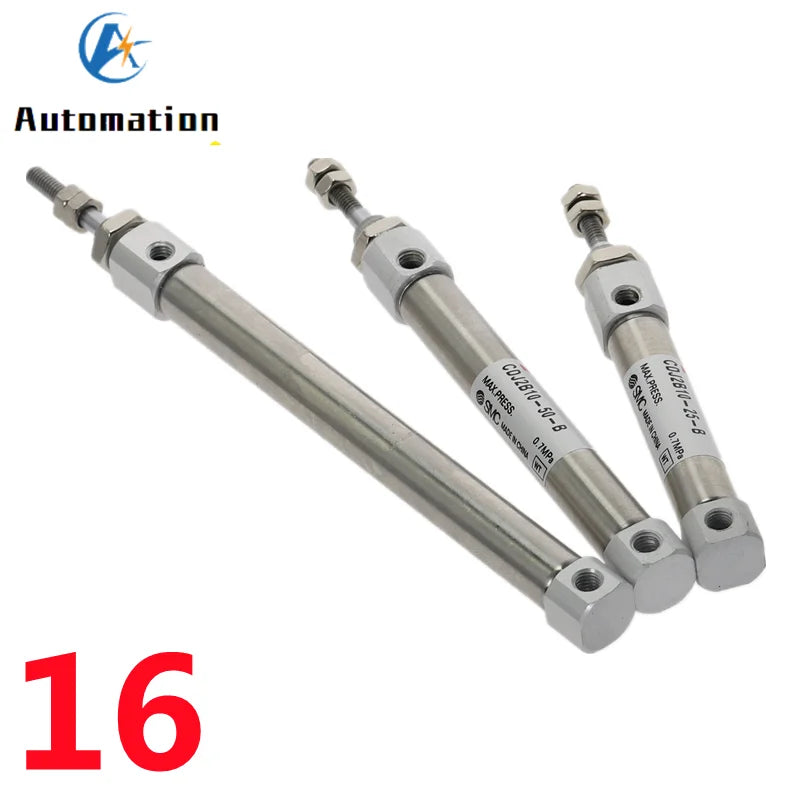

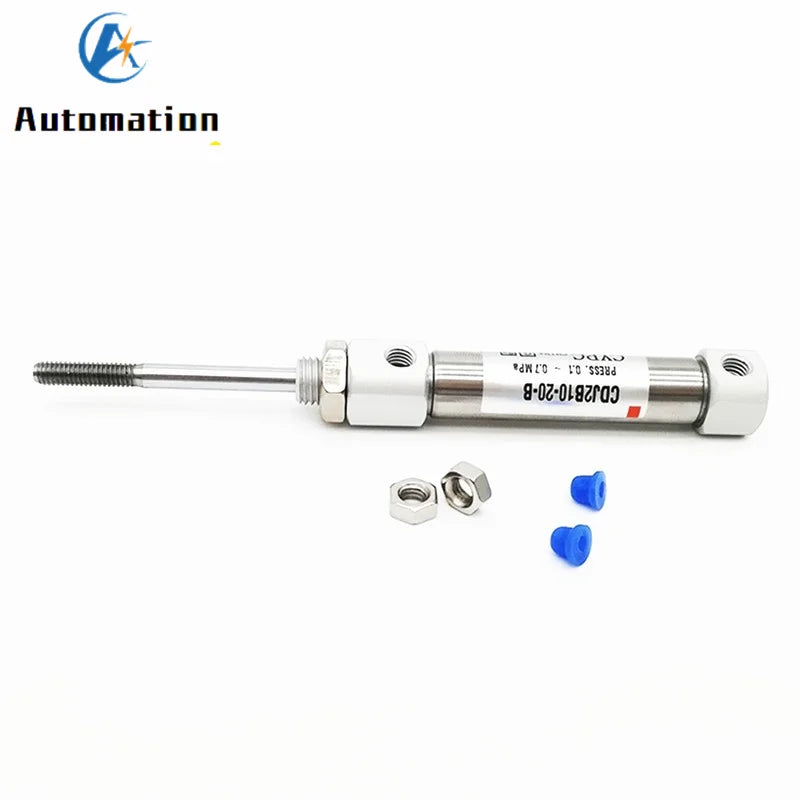

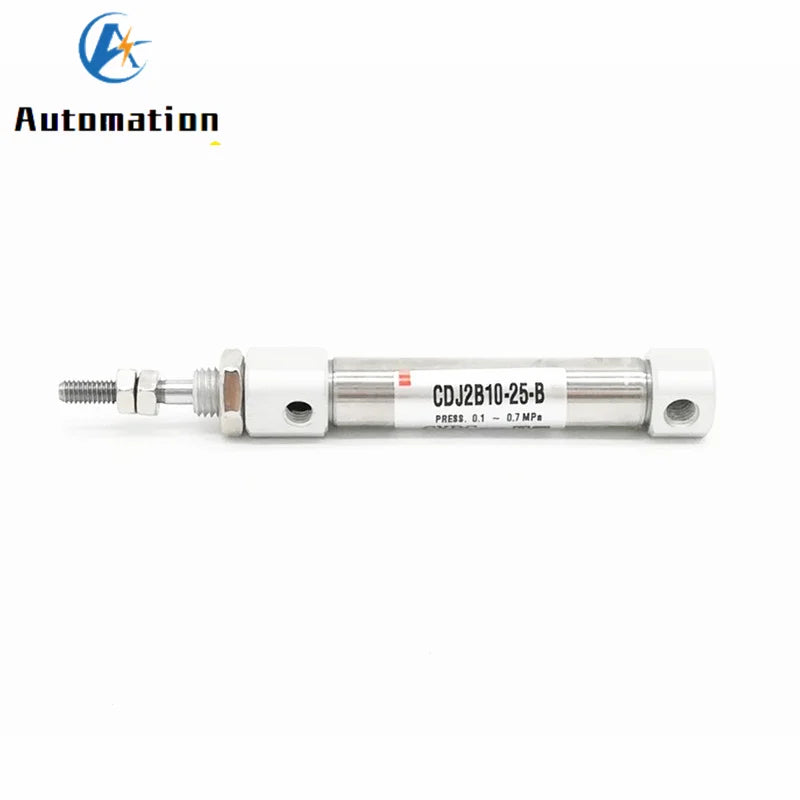

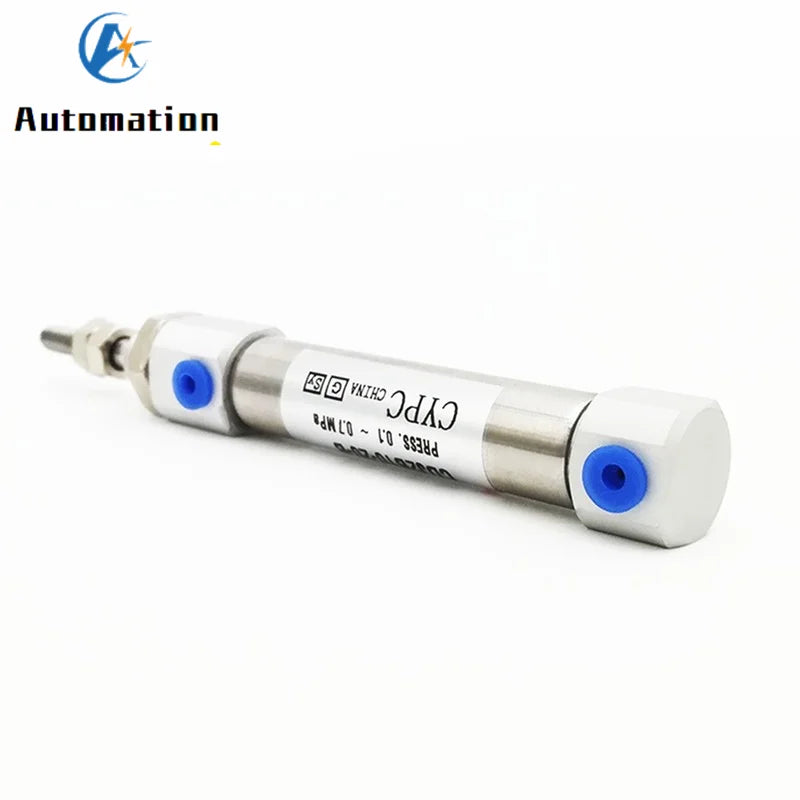

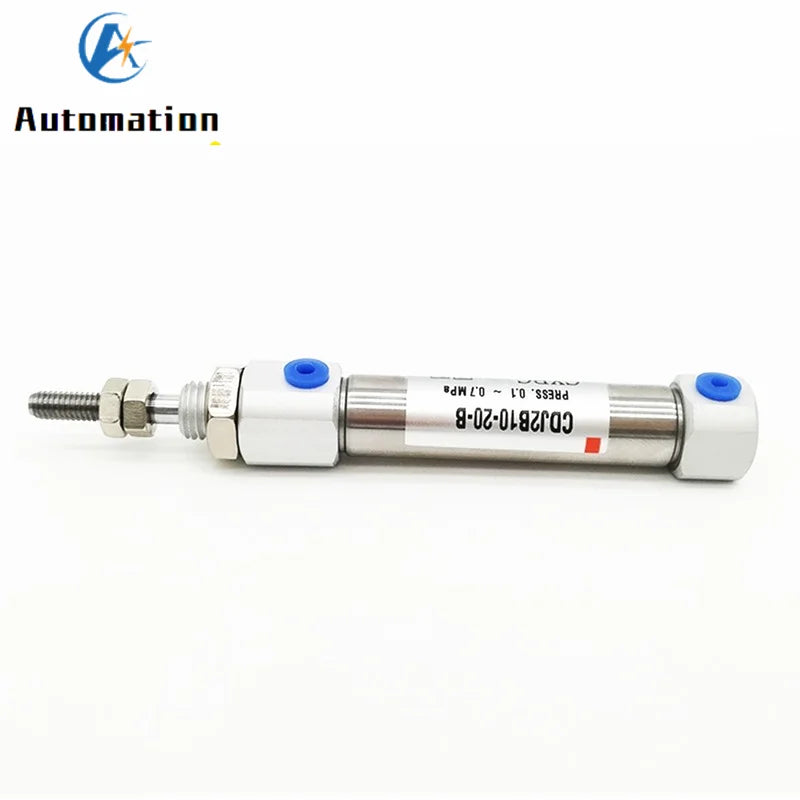

The CDJ2B16 Mini Pneumatic Air Cylinder is a compact, reliable double-acting single-rod cylinder designed for precision automation tasks. With a 16mm bore and selectable stroke lengths from 10mm to 150mm, this cylinder delivers consistent, controlled linear motion across a wide range of industrial, hobbyist, and DIY applications.

Key Specifications

• Model: CDJ2B16
• Bore: 16mm
• Stroke: 10mm – 150mm (select your required stroke)
• Action Type: Double Acting
• Rod Type: Single Rod
• Fluid Medium: Compressed Air
• Operating Pressure: 0.1 – 0.7 MPa
• Proof Pressure: 1.05 MPa
• Port Size: M5 × 0.8
• Package Contents: 1× Cylinder

Why Choose the CDJ2B16?

• Compact Mini Design: Space-saving form factor makes it ideal for tight installations and small-scale automation rigs.
• Double-Acting Operation: Uses air pressure on both sides of the piston for powerful, controlled extension and retraction strokes.
• Wide Stroke Range: Available in multiple stroke lengths (10mm to 150mm) to suit your specific motion requirements.
• Durable Construction: Built to withstand continuous duty cycles in workshop, manufacturing, and automation environments.
• Easy Integration: Standard M5×0.8 port sizing ensures straightforward connection to most pneumatic systems and fittings.
• Versatile Use Cases: Suitable for jigs, fixtures, clamping, pick-and-place mechanisms, robotics, and general pneumatic automation.

Applications

This mini air cylinder is ideal for use in automated assembly lines, small robotic systems, DIY pneumatic projects, machine tooling, clamping fixtures, and any application requiring reliable, repeatable linear actuation.

Made in Mainland China.

Related Products You May Like

• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What stroke lengths are available for the CDJ2B16 mini pneumatic air cylinder?

A: The CDJ2B16 is available in stroke lengths ranging from 10mm to 150mm. Be sure to select the specific stroke length that matches your application requirements when ordering.

Q: What operating pressure does the CDJ2B16 pneumatic cylinder require?

A: The CDJ2B16 mini air cylinder operates at pressures between 0.1 MPa and 0.7 MPa, with a proof pressure rating of 1.05 MPa. It is designed for use with standard compressed air systems.

Q: What port size does this double-acting cylinder use?

A: This cylinder features an M5×0.8 port size, which is a common standard in mini pneumatic systems, making it compatible with a wide range of fittings and pneumatic accessories.

Q: Is the CDJ2B16 suitable for DIY automation and robotics projects?

A: Yes! Its compact mini form factor, wide stroke range, and reliable double-acting operation make the CDJ2B16 an excellent choice for hobbyist robotics, DIY automation rigs, clamping fixtures, and small-scale industrial applications.
