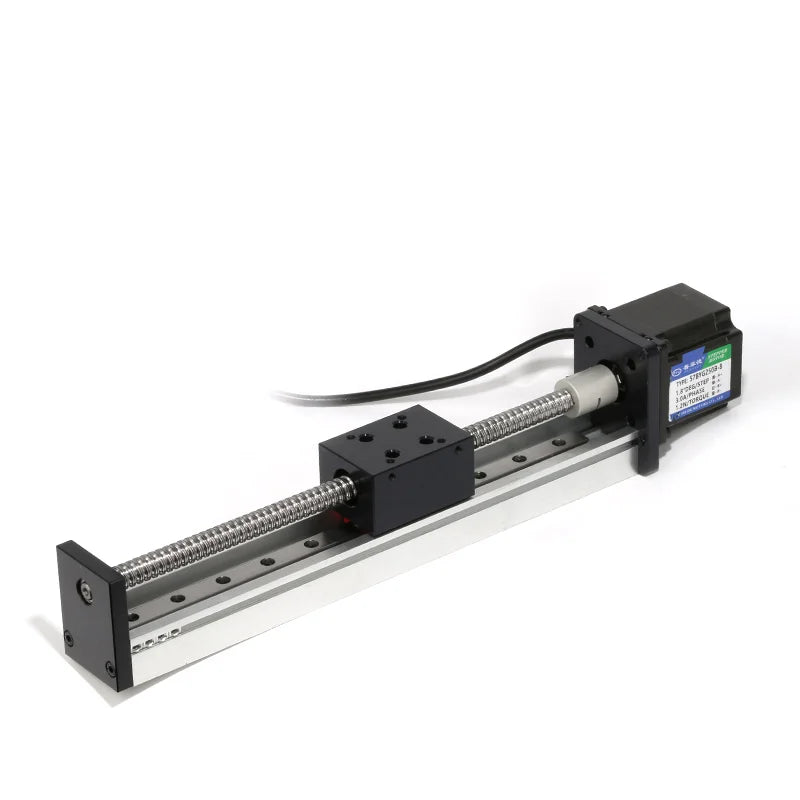

Custom SFU1605 Ball Screw Linear Guide Module + NEMA23 Motor

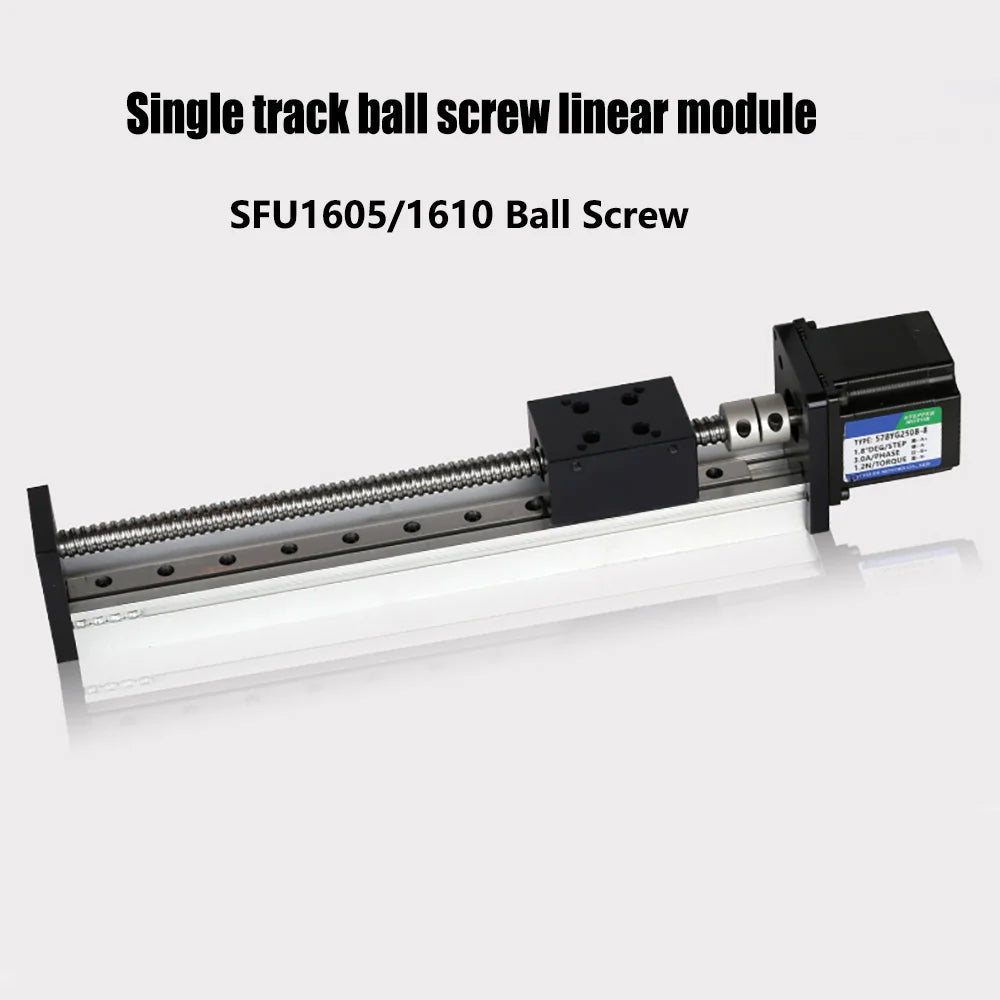

Custom SGX MGN Linear Guide with SFU1605 Ball Screw Linear Motion Module

Build your precision CNC or automation project with confidence. This fully customizable linear motion module combines an SGX/MGN linear guide rail, an SFU1605 ball screw, a NEMA23 stepper motor, and a flexible coupling — everything you need to achieve smooth, accurate, and repeatable linear movement. Available in strokes from 50mm to 1000mm to suit virtually any application.

Key Features

• Customizable Stroke: Choose any stroke length from 50mm to 1000mm to match your exact build requirements.
• SFU1605 Ball Screw: High-precision ball screw ensures smooth, low-backlash linear travel. Can be upgraded to SFU1610 at no extra cost — just request your preferred lead at checkout.
• MGN/SGX Linear Guide Rail: Single linear guide configuration delivers rigid, stable carriage movement for CNC routers, laser engravers, 3D printers, and automation equipment.
• NEMA23 Stepper Motor Included: Pre-wired stepper motor ready for connection to your driver board, saving you sourcing and assembly time.
• Flexible Coupling Included: Standard flexible jaw coupling included; spider coupling available as a free swap — just let us know your preference.
• Large Quantity Discounts Available: Ordering in bulk? Contact us for competitive pricing on larger orders.
• Made in Mainland China

Specifications

What's in the Package?

• 1× SGX/MGN Linear Guide Rail with carriage (custom stroke)
• 1× SFU1605 Ball Screw Assembly
• 1× NEMA23 Stepper Motor (pre-wired)
• 1× Flexible Coupling (or spider coupling upon request)

Great For

• CNC routers & milling machines
• Laser engravers & cutters
• 3D printers (linear axes)
• Automated pick-and-place systems
• DIY robotics & motion control projects

Related Products You May Like

• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories – Anti-Loosening Replacement Parts
• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: Can I customize the stroke length of this linear motion module?

A: Yes! This linear guide module is available in custom stroke lengths ranging from 50mm to 1000mm. Simply specify your required stroke at the time of ordering and the module will be built to your exact specification.

Q: Can I upgrade from SFU1605 to SFU1610 ball screw?

A: Absolutely. You can request a change from the SFU1605 to the SFU1610 ball screw (which offers a higher lead per revolution) at no additional cost. Just mention your preference when placing the order.

Q: Is this a single or double linear guide configuration?

A: This listing is for a single linear guide rail configuration. If you require a double linear guide setup for greater load capacity and rigidity, please check our other listings for the double-track version.

Q: What type of coupling is included, and can it be changed?

A: The package includes a standard flexible jaw coupling. If you prefer a spider coupling instead, this can be swapped out free of charge — simply request it when placing your order.

Q: Is the NEMA23 stepper motor ready to use?

A: Yes, the included NEMA23 stepper motor comes pre-wired and is ready to connect directly to your stepper motor driver. It is compatible with most standard CNC and motion control driver boards.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
