D23L32 S-Type Flexible Jaw Coupling – Motor & Encoder Coupler

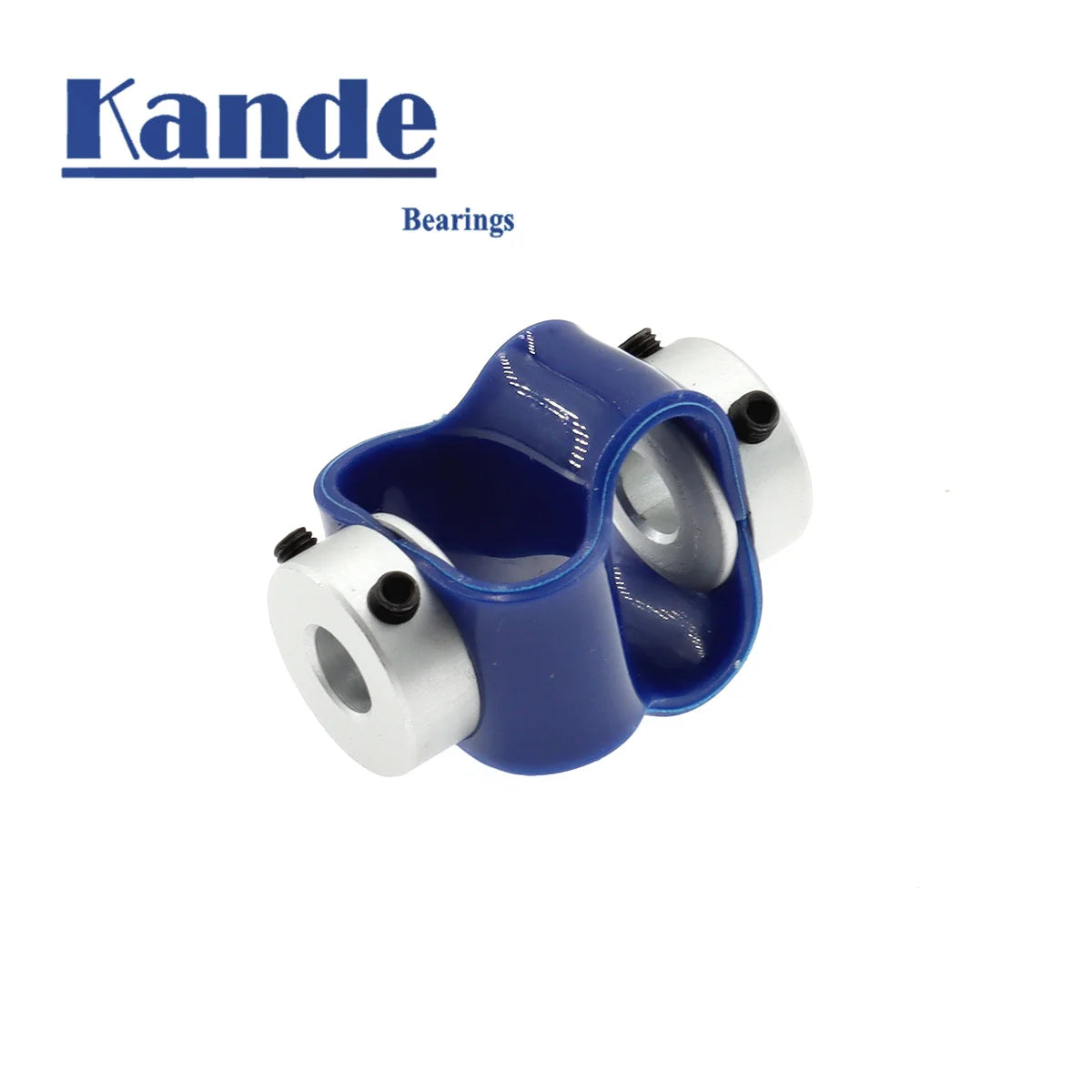

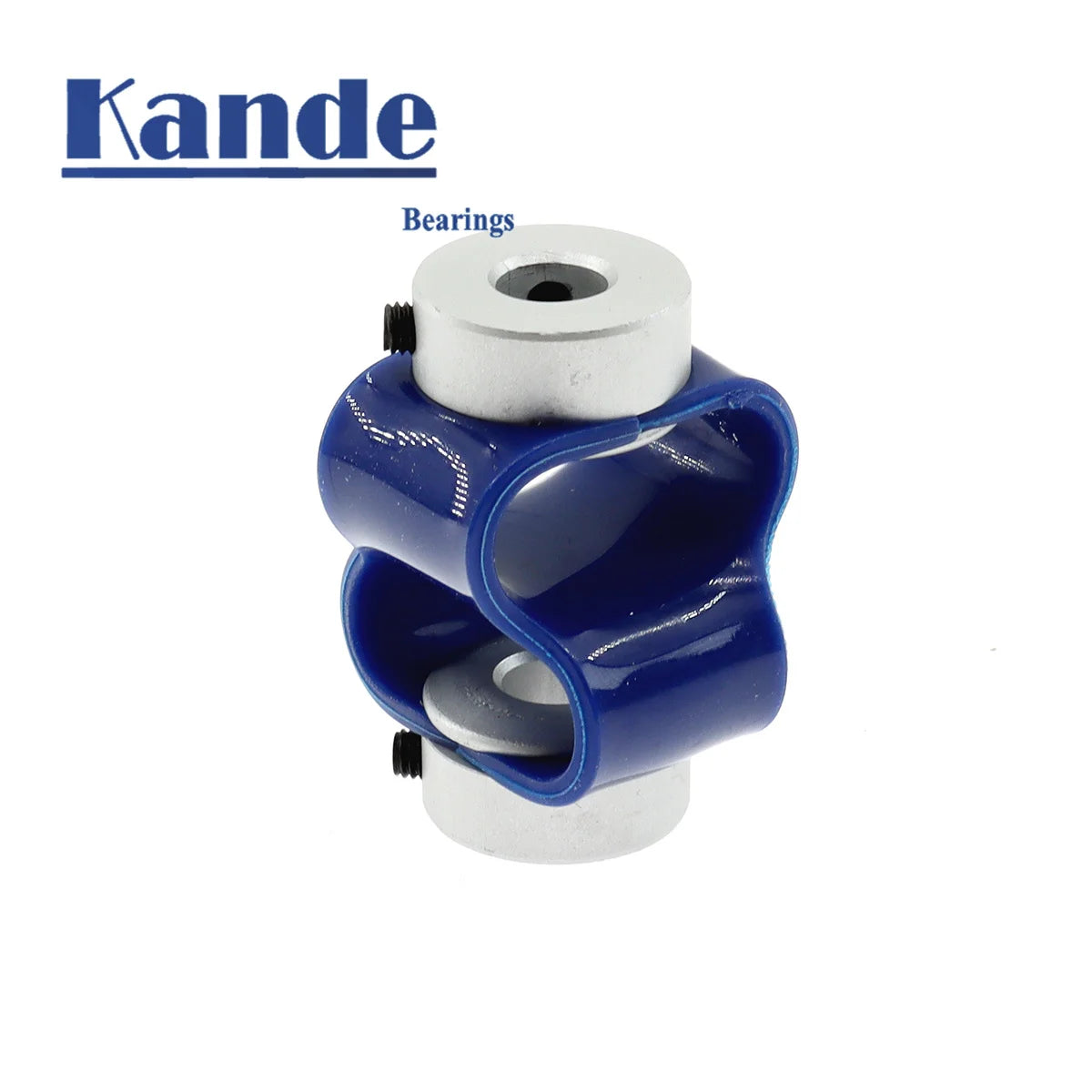

The D23L32 S-Type Flexible Jaw Coupling (Model LS) by KANDE BEARINGS is an 8-shaped, spider/jaw-style coupler engineered for precision motor and encoder shaft connections. Its unique S-type eccentric design accommodates angular, parallel, and axial misalignment, making it an ideal solution for CNC machines, robotics, stepper motors, servo motors, and optical encoders.
Key Features
- Flexible Jaw (Spider) Structure: The 8-shaped plastic elastic insert absorbs vibration and compensates for shaft misalignment, ensuring smooth and accurate torque transmission.
- Aluminium Body: Lightweight yet robust aluminium construction delivers excellent durability and corrosion resistance in demanding applications.
- Eccentric / Declination Compensation: Handles eccentric and angular declination between connected shafts without sacrificing transmission accuracy.
- RoHS Certified: Compliant with RoHS regulations — free from high-concern chemicals for safer use in electronic and industrial environments.
- Standard Design: Model LS follows standard coupling dimensions (D23 × L32 mm) for easy integration into existing systems.
- Versatile Application: Suitable for motor-to-encoder connections, lead screw drives, 3D printers, and precision automation equipment.
Specifications

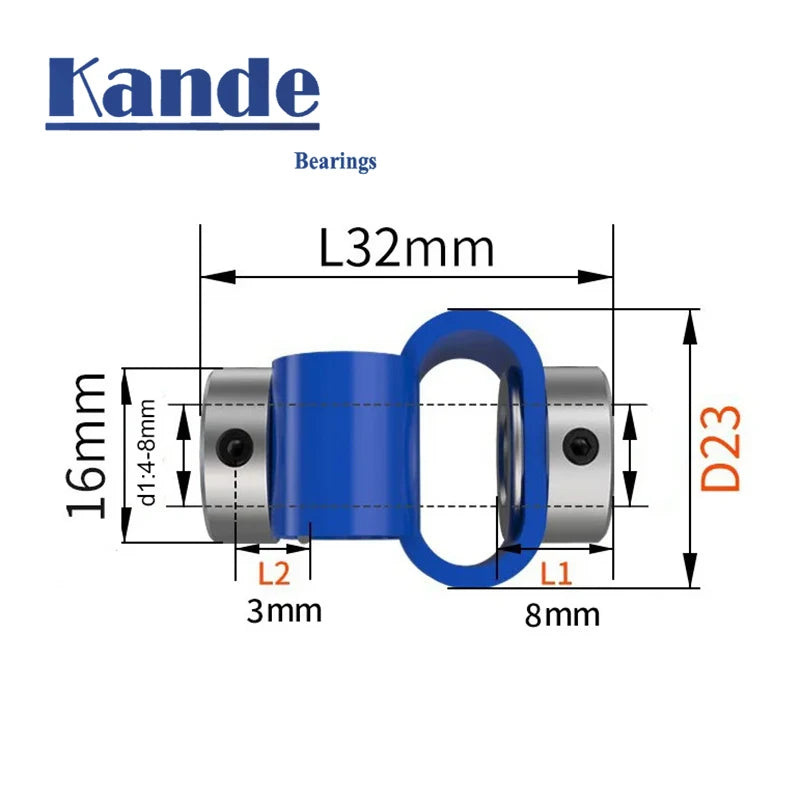

| Brand | KANDE BEARINGS |
| Model | LS (D23L32) |
| Type | S-Type Flexible Jaw / Spider Coupling |
| Material | Aluminium body with plastic elastic insert |
| Outer Diameter | 23 mm |
| Length | 32 mm |
| Flexibility | Flexible |
| Certification | RoHS |
| Origin | Made in Mainland China |
