DC 5V 2-Phase Stepper Motor Linear Actuator 8mm Screw Shaft

$25.38 $28.68

Shipping calculated at checkout.

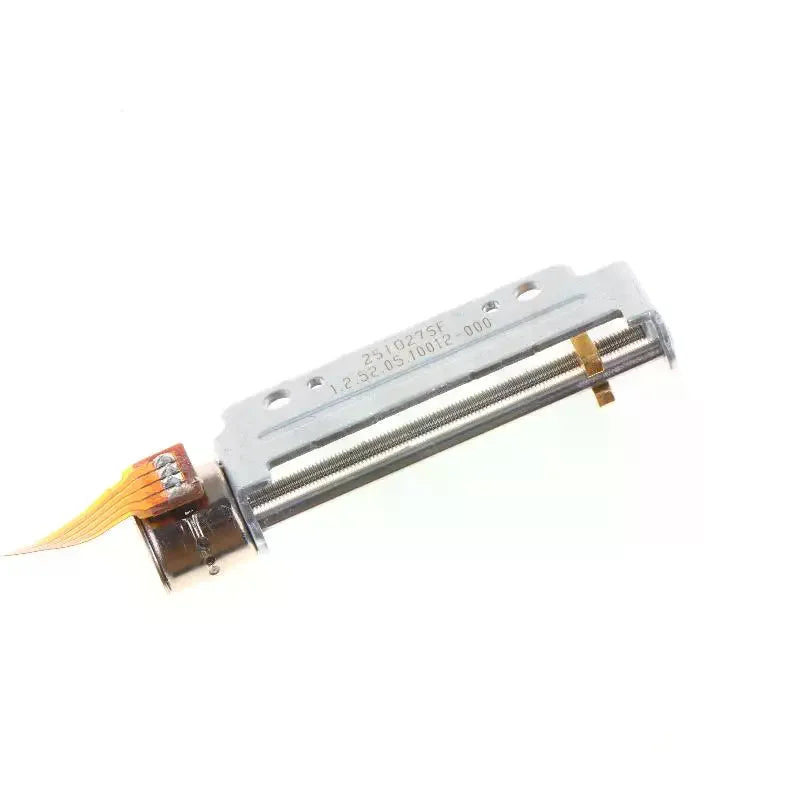

DC 5V Miniature Stepper Motor with Linear Actuator – Precision 8mm Screw Shaft

Upgrade your automation or DIY electronics project with this compact 2-phase, 4-wire stepper motor featuring an integrated 8mm precision linear actuator. Built with a metal screw rod, brass slider, and expert craftsmanship, this miniature motor delivers reliable, repeatable linear travel — ideal for industrial instrumentation, camera focus systems, lab automation, robotics, and more.

Made in Mainland China.

Key Features

Compact Form Factor: Overall size of approximately 10 × 1 cm (3.94 × 0.39 in) — fits into tight spaces without sacrificing precision.
Precise Linear Travel: 29.5 mm slider stroke (1,900 pulses) with a brass slider approximately 1.5 mm thick and an effective actuator length of ~31 mm.
2-Phase 4-Wire Design: Easy wiring and compatibility with standard stepper driver boards.
Stable Operating Specs: Phase resistance ~21.8 Ω; 5V short-circuit current ~0.21 A — smooth and controlled movement at low voltage.
Durable Metal Construction: Metal screw shaft (positive tube) and brass slider ensure long service life and consistent positioning accuracy.

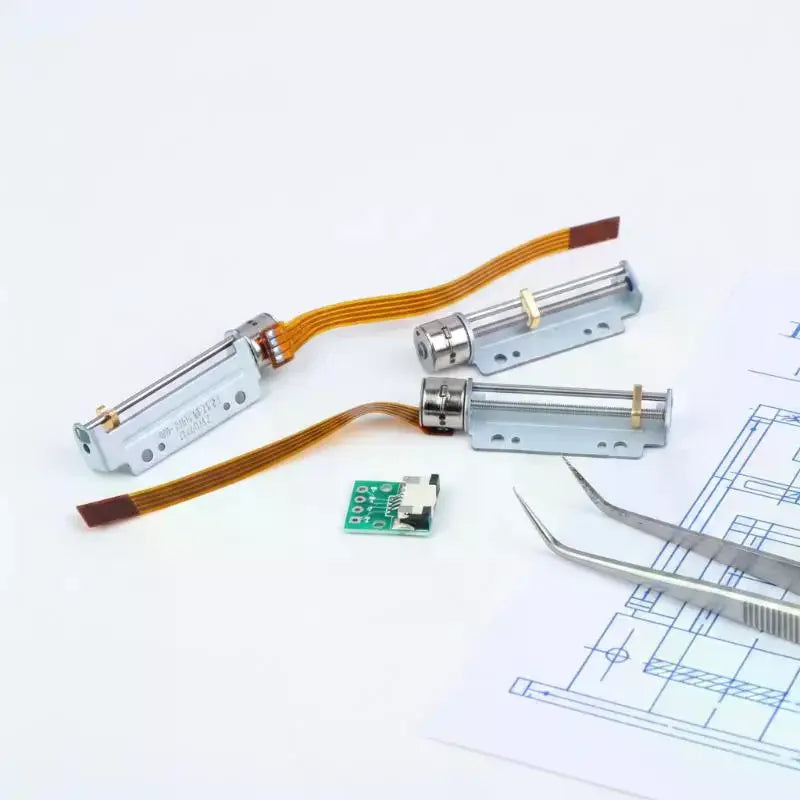

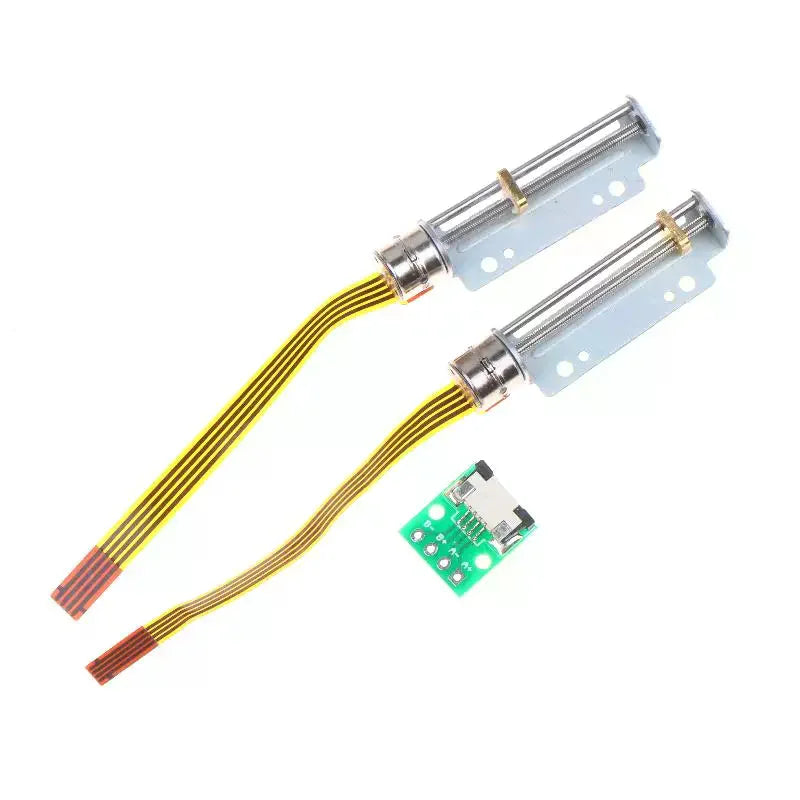

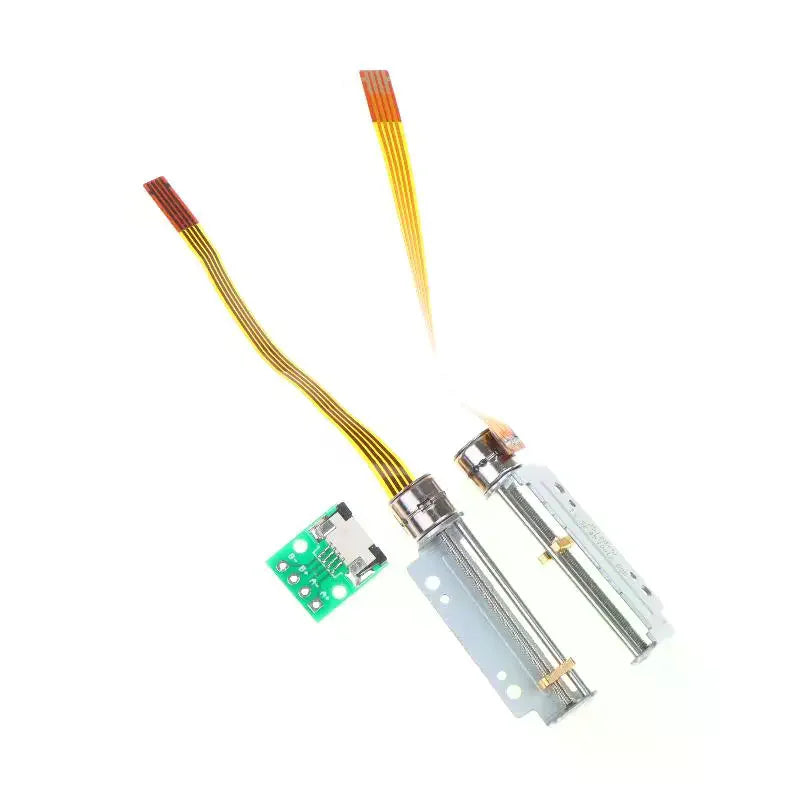

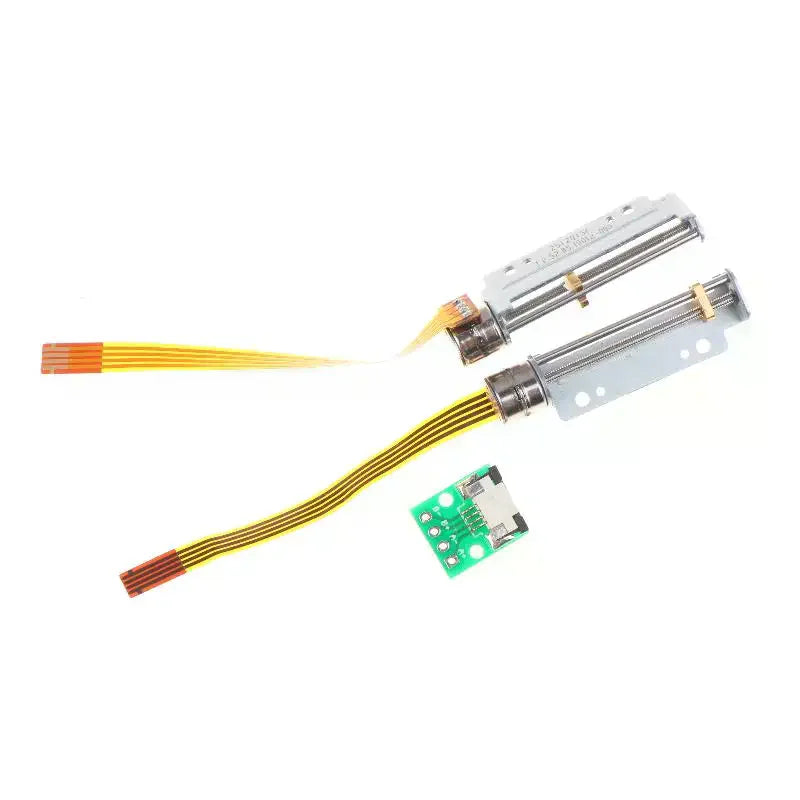

Optional Adapter Board: Available in two package options — motor only, or motor bundled with an adapter board for even faster integration.

Specifications

Operating Voltage	DC 5V
Phase Configuration	2-Phase, 4-Wire
Phase Resistance	~21.8 Ω
Short-Circuit Current (5V)	~0.21 A
Screw Shaft Diameter	8 mm
Actuator Effective Length	~31 mm
Slider Stroke	~29.5 mm (1,900 pulses)
Slider Thickness	~1.5 mm
Overall Size	~10 × 1 cm (3.94 × 0.39 in)
Material	Metal (rod), Brass (slider)
Color	As shown

Package Includes

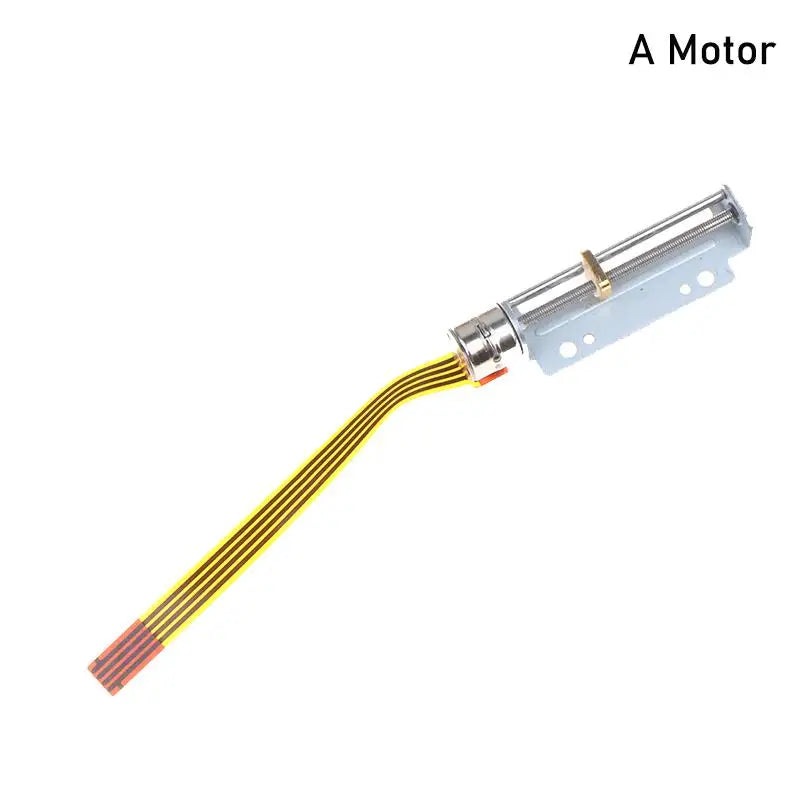

Option A: 1 × Stepper Motor with Linear Actuator

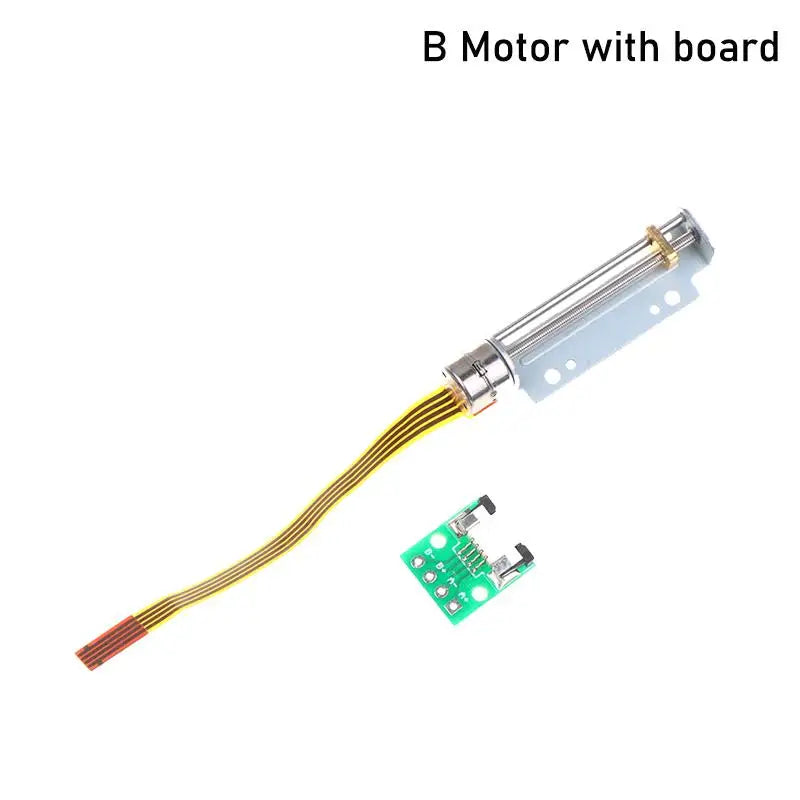

Option B: 1 × Stepper Motor with Linear Actuator + 1 × Adapter Board

Notes

Photos are for illustrative purposes; please refer to the specifications above for exact dimensions.
Slight size differences due to manual measurement are possible.
Actual color may vary slightly from monitor to monitor.

Frequently Asked Questions

Q: What voltage does this stepper motor linear actuator operate at?

A: This stepper motor is designed to operate at DC 5V. The phase resistance is approximately 21.8 ohms, and the short-circuit current at 5V is about 0.21A, making it suitable for low-voltage microcontroller and driver board setups.

Q: How much linear travel does the actuator provide?

A: The brass slider provides approximately 29.5 mm of stroke travel over 1,900 motor pulses. The effective actuator rod length is about 31 mm, with a slider thickness of approximately 1.5 mm.

Q: Is an adapter board included with the motor?

A: The motor is available in two package options: motor only, or motor plus adapter board. Please select your preferred option at checkout to ensure you receive the configuration that best suits your project needs.

Q: What applications is this stepper motor linear actuator suited for?

A: This compact 2-phase 4-wire stepper motor with linear actuator is well-suited for industrial instrumentation, robotic arms, camera autofocus mechanisms, 3D printer accessories, lab automation devices, and other precision positioning applications requiring controlled linear motion.
