Deep Groove Ball Bearings 6009–6015 RS 2RS RZ Chrome Steel
Deep Groove Ball Bearings 6009–6015 RS 2RS RZ Chrome Steel
Details

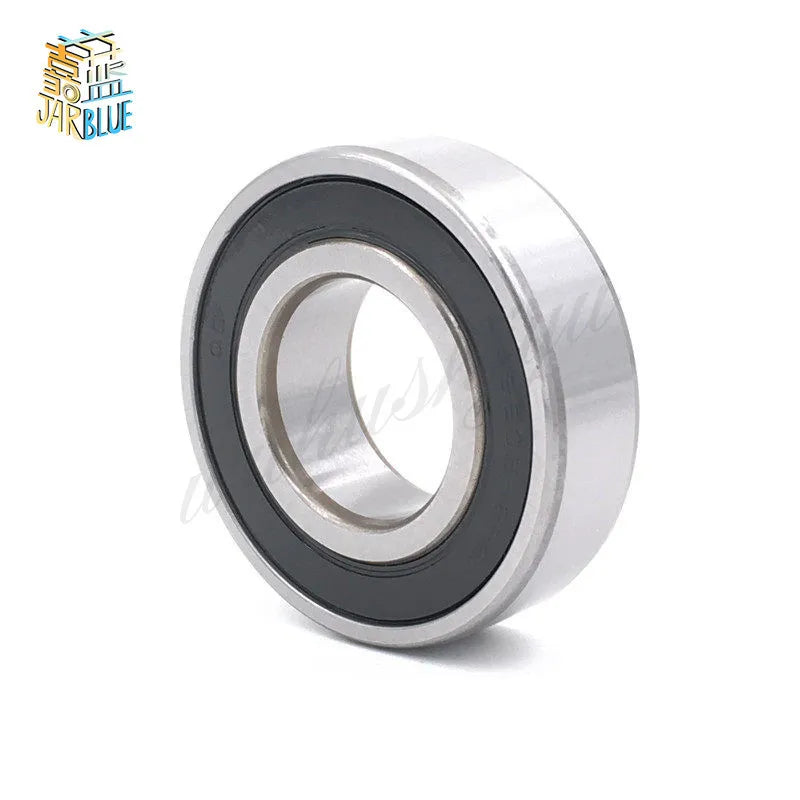

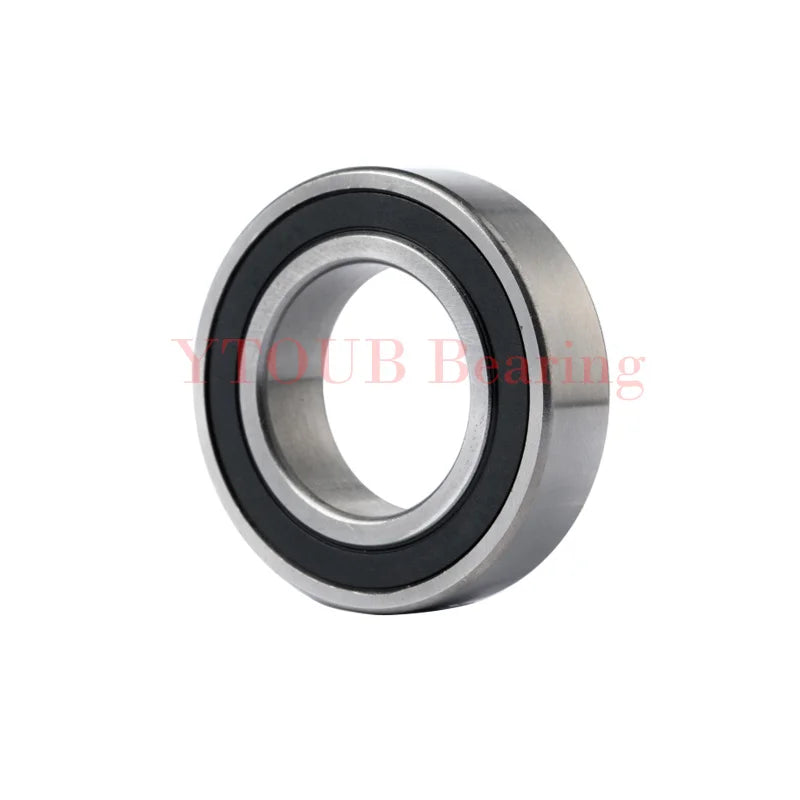

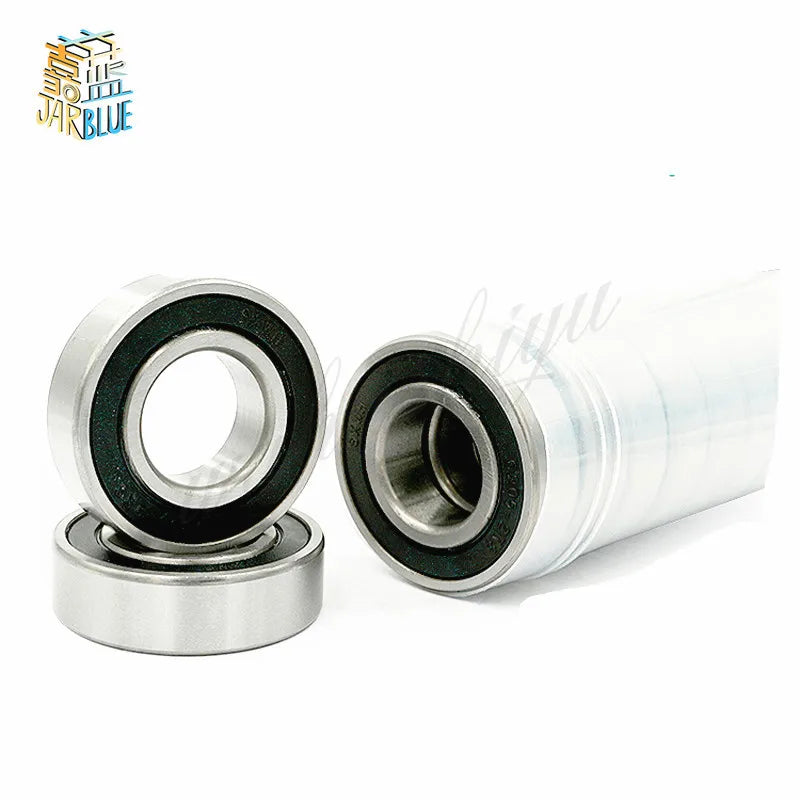

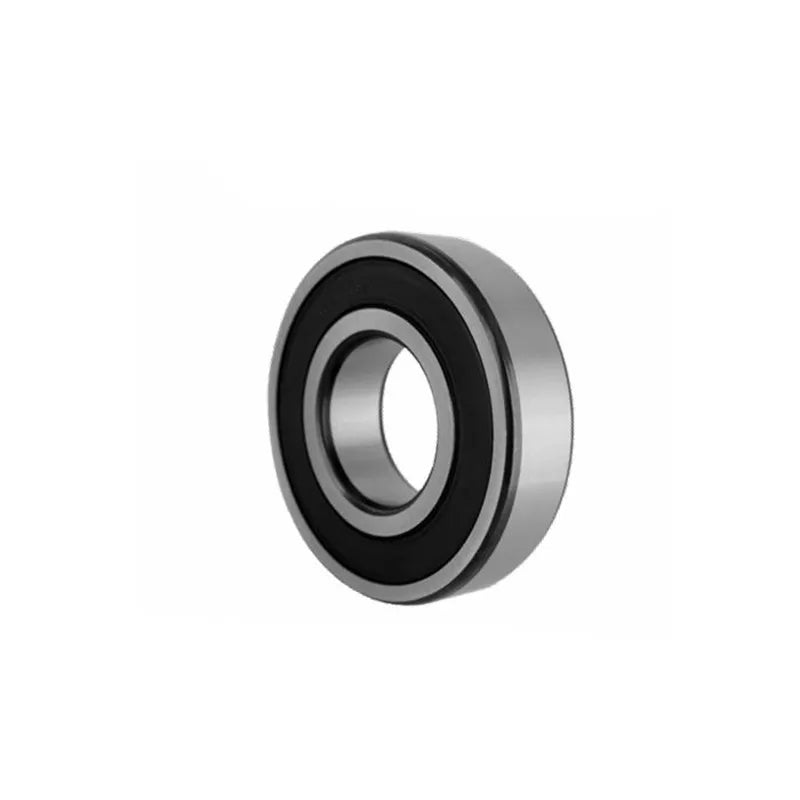

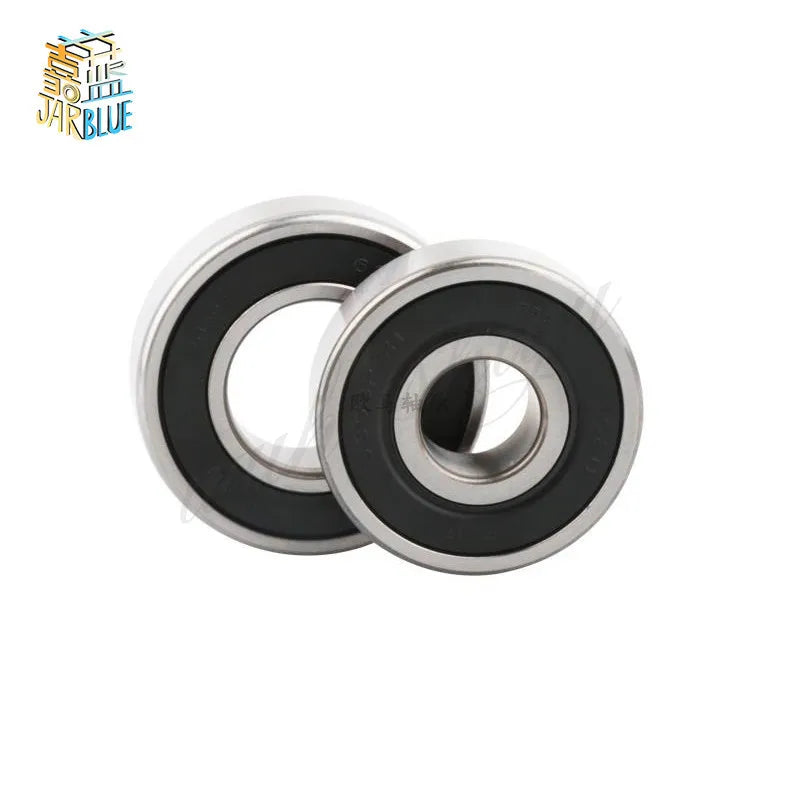

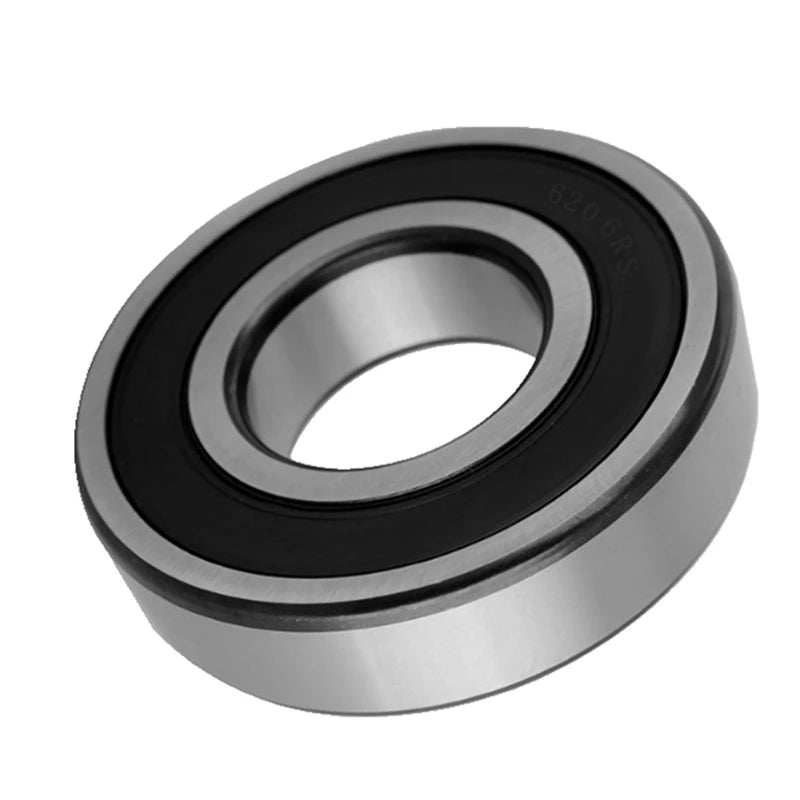

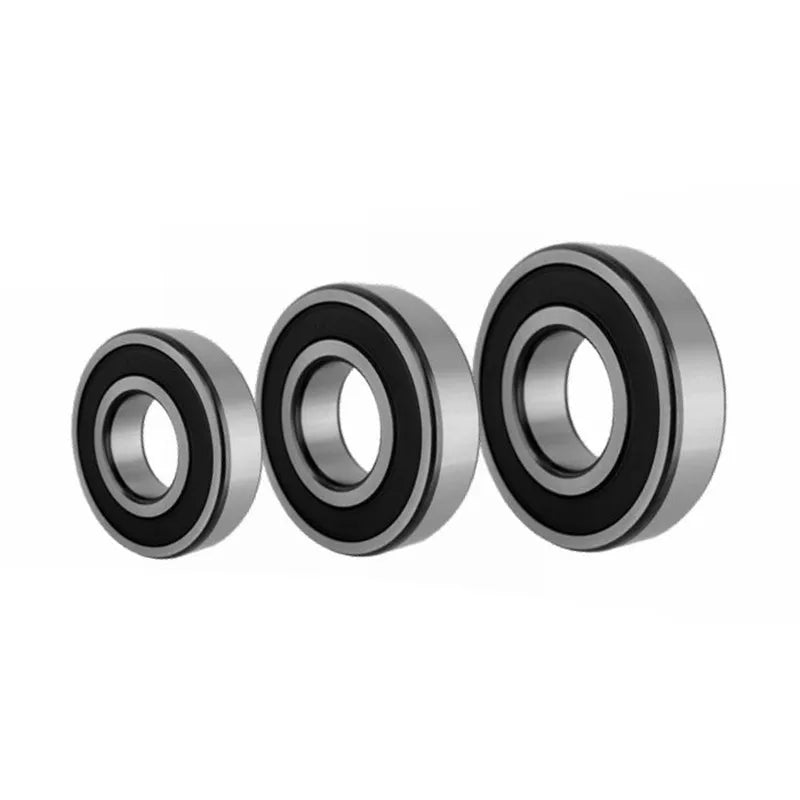

JARBLUE Deep Groove Ball Bearings — Models 6009 to 6015
Upgrade your machinery and mechanical assemblies with these precision-engineered JARBLUE Deep Groove Ball Bearings. Available in models 6009 through 6015 with RS, 2RS, and RZ seal configurations, these single-row bearings are crafted from high-grade Chrome Steel GCr15 and lubricated with oil grease for smooth, long-lasting rotation. Whether you're working on motors, pumps, conveyors, gearboxes, or industrial equipment, these bearings deliver consistent performance and durability. CE and RoHS certified. Made in China.
Model Dimensions
| Model | Inner Ø | Outer Ø | Width |
|---|---|---|---|
| 6009 | 45 mm | 75 mm | 16 mm |
| 6010 | 50 mm | 80 mm | 16 mm |
| 6011 | 55 mm | 90 mm | 18 mm |
| 6012 | 60 mm | 95 mm | 18 mm |
| 6013 | 65 mm | 100 mm | 18 mm |
| 6014 | 70 mm | 110 mm | 20 mm |
| 6015 | 75 mm | 115 mm | 20 mm |
Key Features
- Material: High-grade Chrome Steel GCr15 (Bearing Steel) for superior hardness and wear resistance
- Seal Types: RS (single rubber seal), 2RS (double rubber seal), RZ (metal shield) — choose the right seal for your environment
- Precision Rating: ABEC-1 / ABEC-5 — excellent dimensional accuracy and low noise operation
- Lubrication: Pre-lubricated with oil grease for immediate installation and extended service life
- Row Configuration: Single Row deep groove design accommodates both radial and axial loads
- Certifications: CE & RoHS compliant — meets international safety and environmental standards
- Customizable: Volume purchase quotes available — contact us for bulk pricing
- Quantity: 1 piece per order
Common Applications
- Electric motors and generators
- Pumps and compressors
- Gearboxes and transmissions
- Conveyor systems and rollers
- Agricultural and industrial machinery
- Automotive components and accessories
Specifications at a Glance
- Brand: JARBLUE
- Models: 6009, 6010, 6011, 6012, 6013, 6014, 6015
- Seal Options: RS, 2RS, RZ
- Material: Chrome Steel GCr15
- Precision: ABEC-1 / ABEC-5
- Certifications: CE, RoHS
- Origin: Made in China
You May Also Like
- 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
- 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is the difference between RS, 2RS, and RZ seal types on these deep groove ball bearings?
A: RS denotes a single rubber contact seal on one side of the bearing, offering good dust and moisture protection on that side. 2RS means both sides are fitted with rubber contact seals, providing full enclosure and maximum protection against contaminants — ideal for dirty or wet environments. RZ (also called LLB) uses a non-contact metal shield, which generates less friction and heat, making it well-suited for high-speed applications where some contamination exposure is acceptable.
Q: Which model number should I choose — 6009, 6010, 6011, 6012, 6013, 6014, or 6015?
A: Select the model based on your shaft diameter and housing bore. For example, the 6009 fits a 45 mm inner diameter shaft, while the 6015 accommodates a 75 mm shaft. Always match the inner diameter (ID), outer diameter (OD), and width to your existing equipment specifications before ordering.
Q: Are these bearings suitable for high-speed applications?
A: Yes. JARBLUE deep groove ball bearings are rated at ABEC-1 and ABEC-5 precision levels and are pre-lubricated with oil grease, making them suitable for a wide range of operating speeds. For the highest speed applications, the RZ (metal shield) variant typically offers lower friction than the rubber-sealed RS or 2RS options.
Q: Can I purchase these bearings in bulk?
A: Absolutely. Volume purchase quotes are available. Please contact us directly with your required models, quantities, and seal types, and we will provide a customized bulk pricing quote tailored to your needs.
