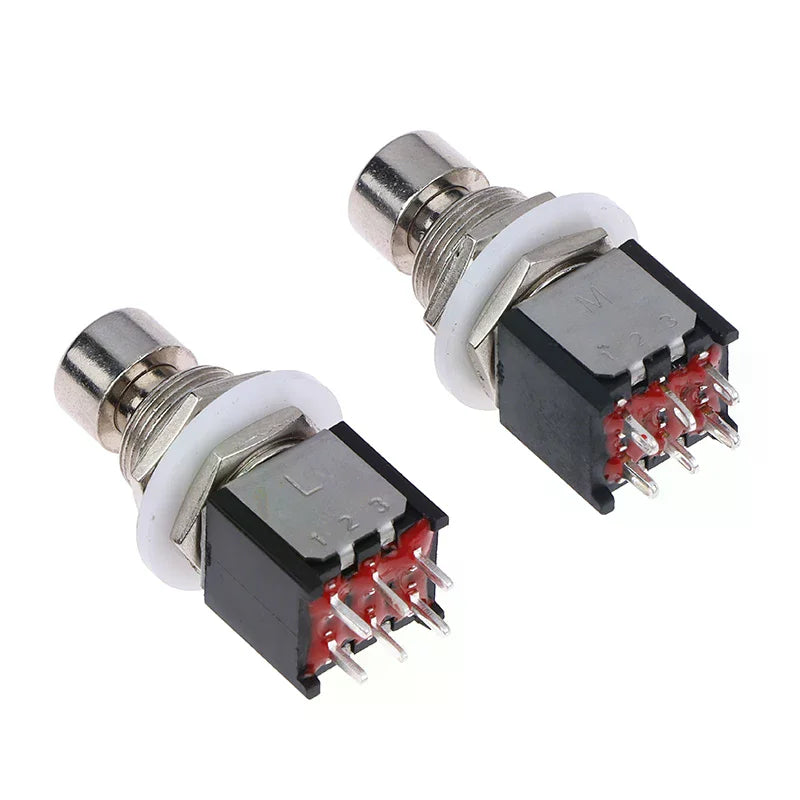

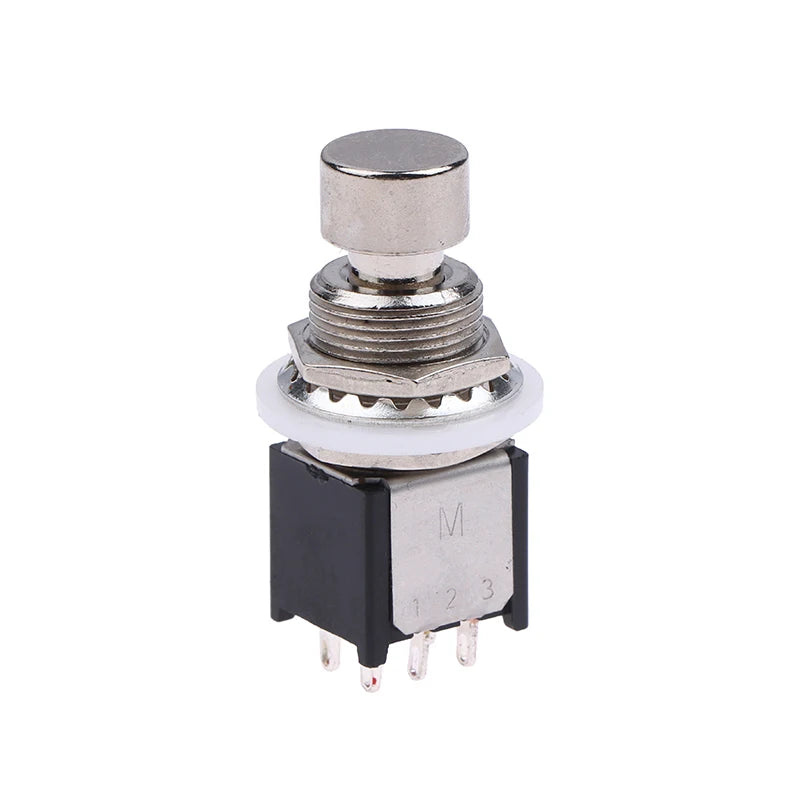

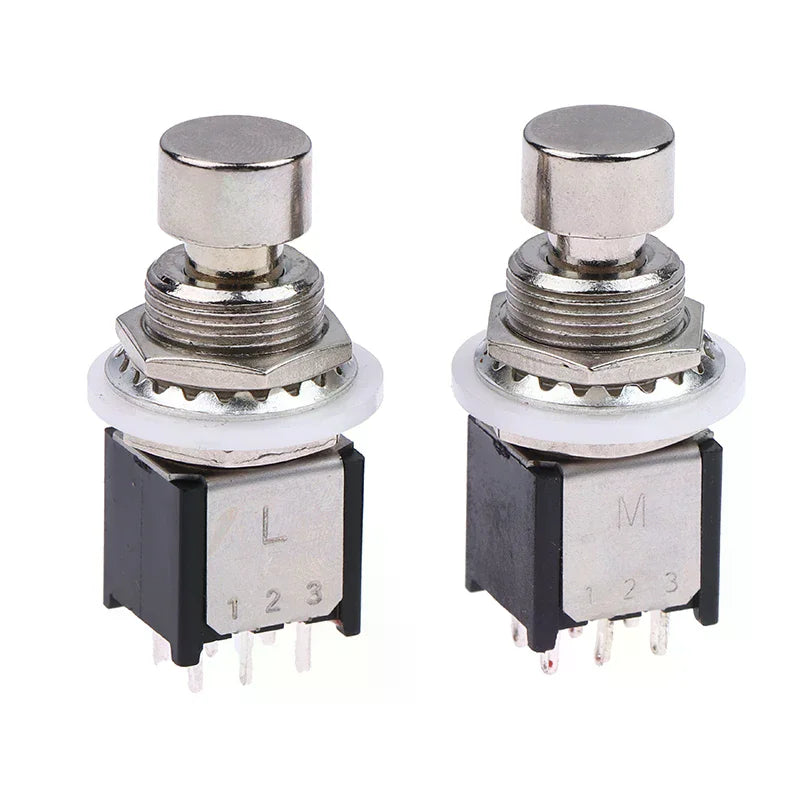

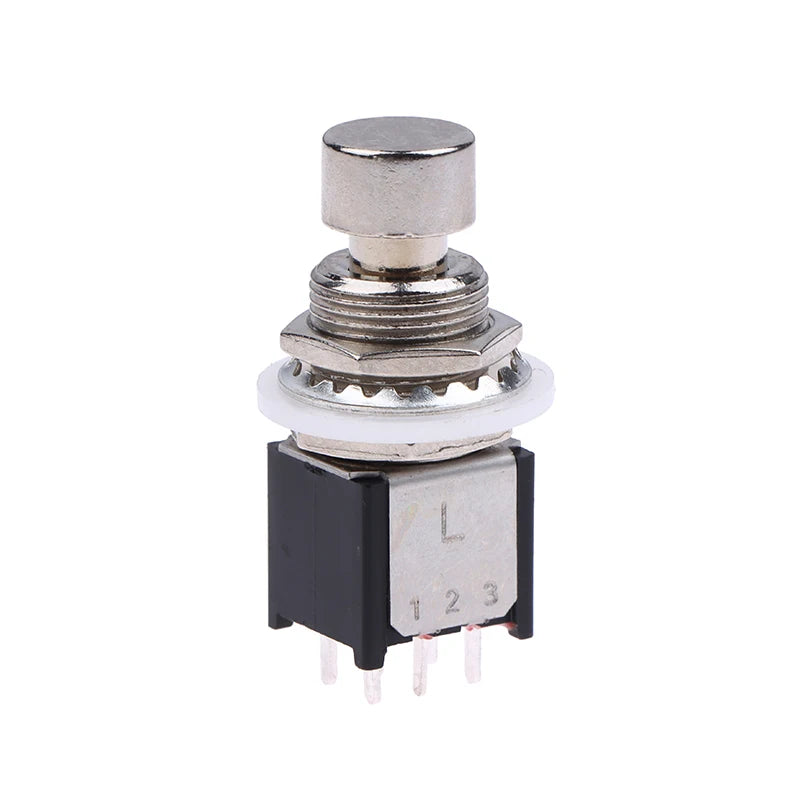

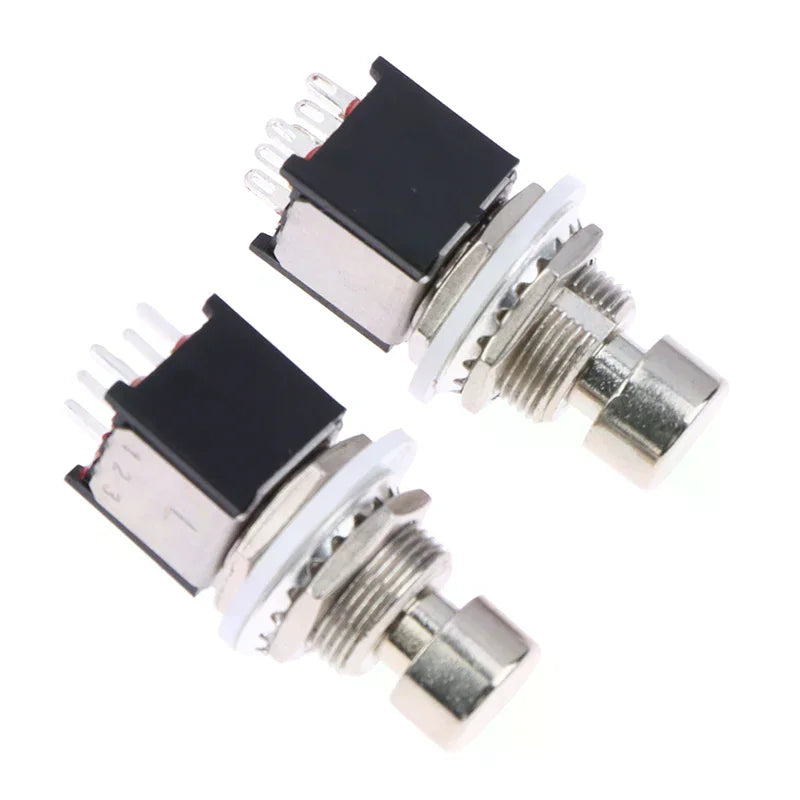

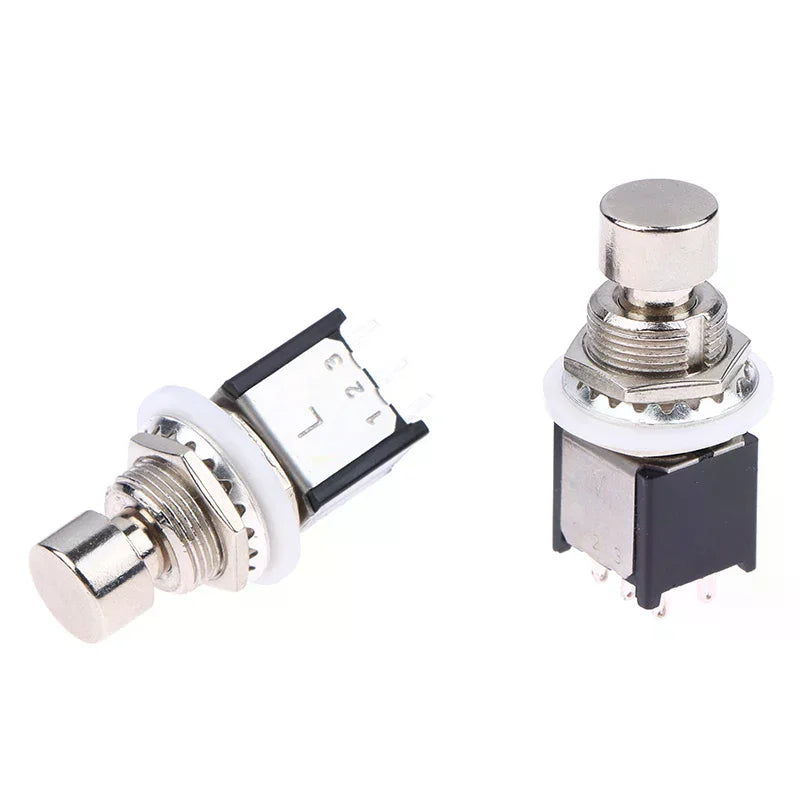

DPDT Latching/Momentary ON/ON Foot Switch – Guitar Effects Pedal Stomp Box
Take full control of your guitar signal chain with this versatile DPDT (Double Pole Double Throw) Foot Switch. Designed for guitarists, DIY pedal builders, and electronics enthusiasts alike, this stomp box push button switch delivers rock-solid performance in a compact, durable form factor. Whether you're building your own effects pedal from scratch or replacing a worn-out switch in an existing unit, this 6-pin solder lug design makes wiring clean and straightforward.
Made in Mainland China.
Key Features
- Dual Function: Supports both Latching and Momentary ON/ON operation for maximum versatility

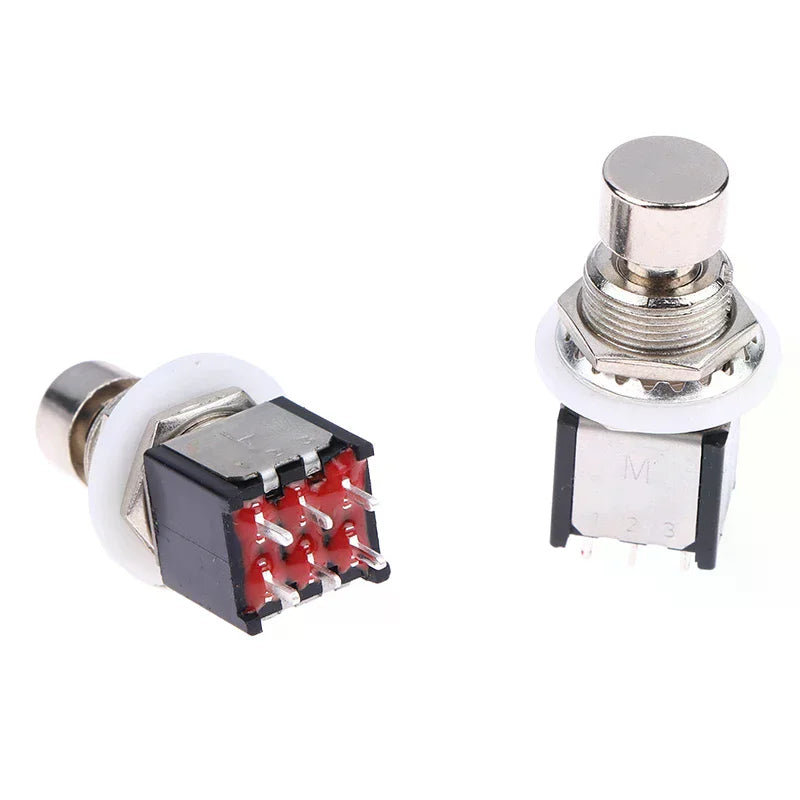

- DPDT Configuration: 6 solder lug terminals for easy, reliable wiring in DIY pedal projects
- Durable Construction: Plastic and metal (stainless steel) build for long-lasting use under heavy foot traffic
- High Electrical Life: Rated for over 10,000 switching cycles — built to endure gig after gig
- Wide Voltage Rating: 3A 250VAC / 6A 125VAC / 4A 30VDC — compatible with a broad range of circuits
- Low Contact Resistance: <50 MΩ contact resistance ensures a clean, uncolored signal path
- High Insulation Resistance: >100 MΩ at 500VDC for safe, reliable operation
Specifications
| Material | Plastic + Metal (Stainless Steel) |

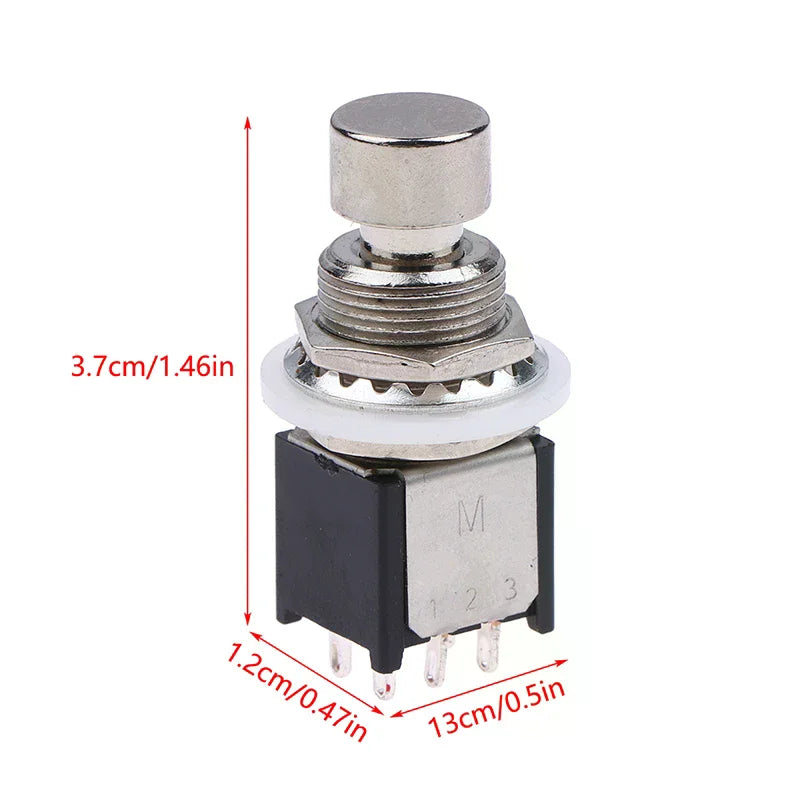

| Size | 0.5 × 0.47 × 1.46 in / 1.3 × 1.2 × 3.7 cm |
| Switch Type | DPDT Latching / Momentary ON/ON |
| Terminals | 6 Solder Lug Pins |
| Voltage/Current Rating | 3A 250VAC; 6A 125VAC; 4A 30VDC |
| Contact Resistance | < 50 MΩ |
| Insulation Resistance | > 100 MΩ @ 500VDC |
| Electrical Life | > 10,000 Cycles |
| Batteries Required | No |
What's in the Box
- 1 × DPDT Guitar Effects Pedal Foot Switch
Related Products You May Like
- 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
- 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is the difference between latching and momentary mode on this DPDT foot switch?
A: In latching mode, the switch stays in its new position after you press it — ideal for toggling an effect on or off and keeping it active. In momentary mode, the switch only activates while your foot is pressing it and returns to its original state when released. This DPDT stomp box supports both modes, making it highly versatile for different pedal-building applications.
Q: Can this foot switch be used to build a DIY guitar effects pedal?
A: Absolutely! This DPDT 6-pin solder lug switch is one of the most popular choices for DIY guitar effects pedal builds. The 6 solder lugs give you the connections needed for standard true-bypass wiring, allowing your guitar signal to pass through cleanly when the effect is disengaged.
Q: What circuits or pedals is this switch compatible with?
A: This switch is compatible with a wide range of DIY and commercial guitar effects pedals, stomp boxes, and general electronics projects that require a DPDT switching configuration. Its ratings of 3A at 250VAC and 6A at 125VAC make it suitable for most low-voltage audio and electronic applications.
