DPDT Latching Foot Switch Guitar Effects Pedal Stomp Box 6-Pin

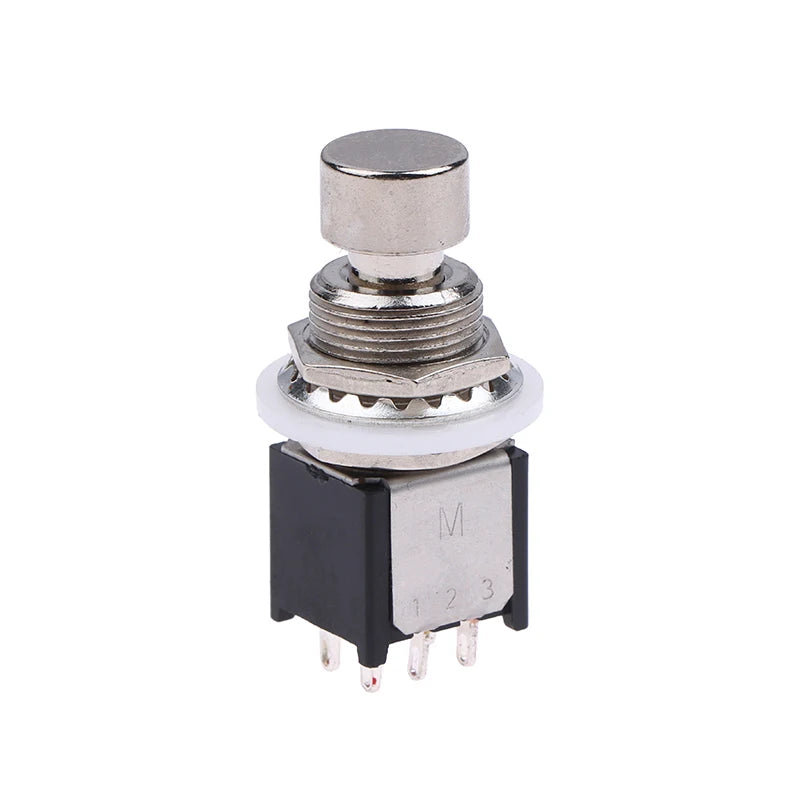

DPDT Latching / Momentary ON/ON Foot Switch – Guitar Effects Pedal Stomp Box

Upgrade your guitar rig or DIY electronics project with this versatile DPDT (Double Pole Double Throw) Latching & Momentary ON/ON Foot Switch. Engineered for guitar effects pedal stomp boxes, this 6-pin push button switch delivers reliable, click-confirmed switching with an impressive rated electrical life of over 10,000 cycles. Whether you're building a custom pedalboard, wiring a stomp box enclosure, or adding a heavy-duty control switch to an electrical project, this compact yet robust component gets the job done.

Made in Mainland China.

Key Features

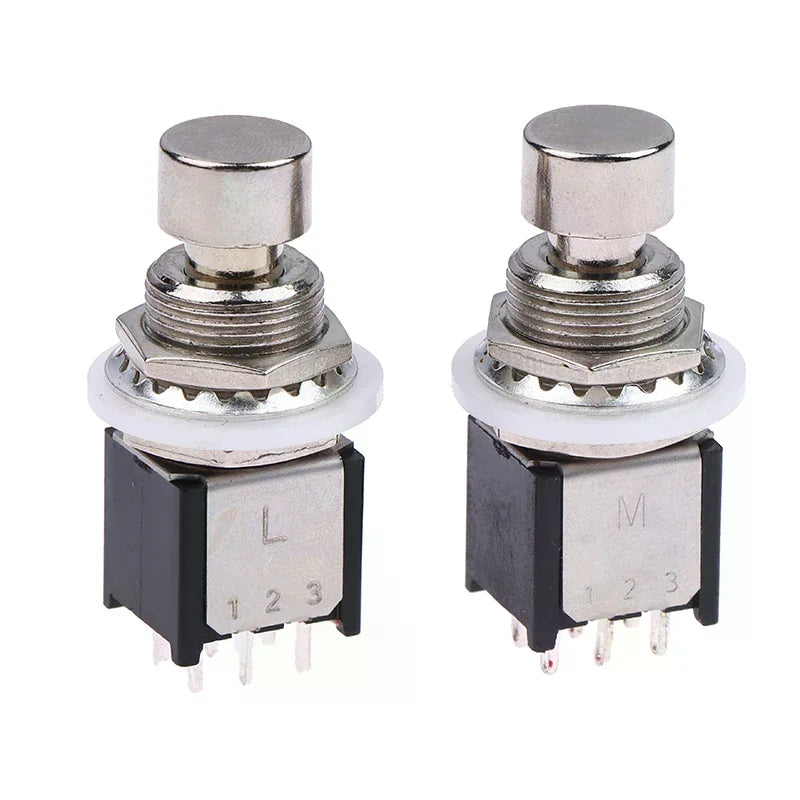

• Dual-Mode Operation: Functions as both a latching (stays in position) and momentary (returns on release) ON/ON switch — ideal for bypass switching in guitar effects pedals.

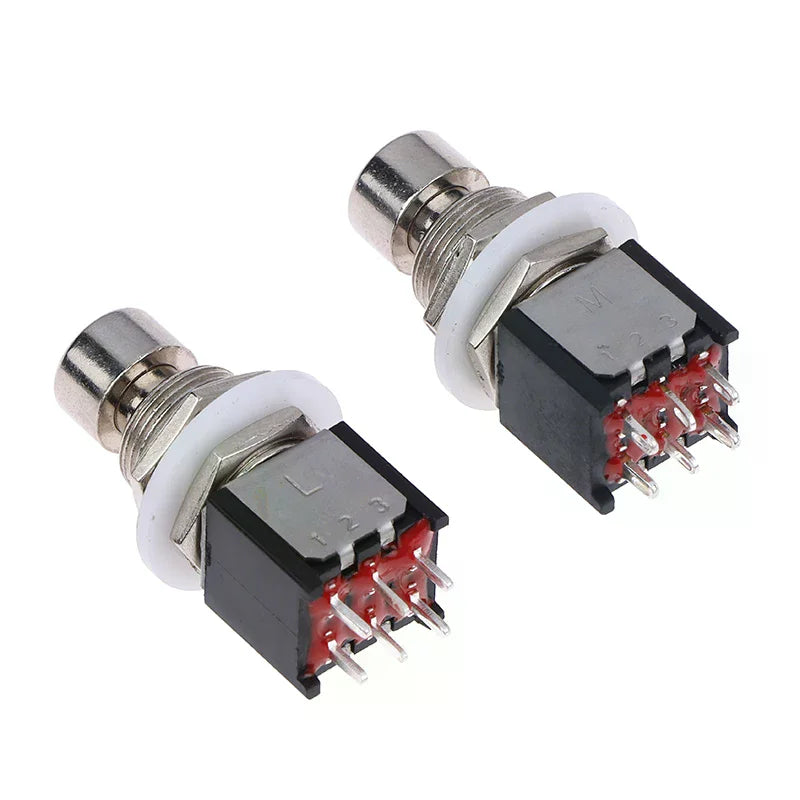

• DPDT 6-Pin Design: Six solder lug terminals provide flexible wiring options for complex signal routing in stomp boxes and DIY electronics.
• Heavy-Duty Ratings: Rated at 3A 250VAC / 6A 125VAC / 4A 30VDC — handles demanding electrical loads with ease.
• Long Service Life: Electrical life exceeding 10,000 cycles ensures lasting performance through countless gigs and sessions.
• Low Contact Resistance: Contact resistance <50MΩ for clean, uninterrupted signal transfer.
• High Insulation Resistance: >500VDC 100MΩ — excellent electrical isolation for safety and signal integrity.
• Durable Construction: Built from a combination of plastic and metal (stainless steel components) for strength and corrosion resistance.

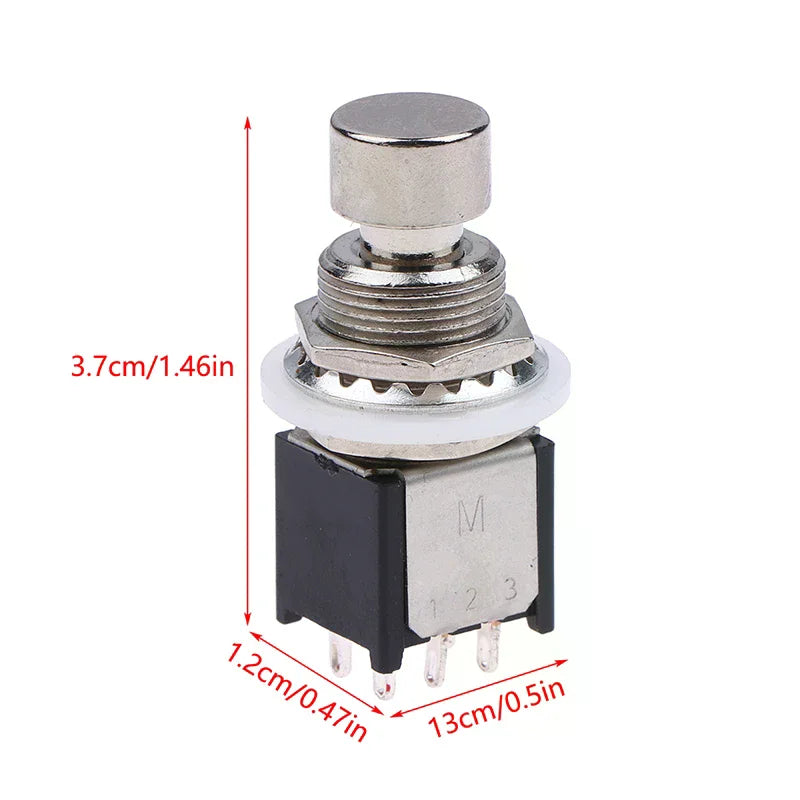

• Compact Form Factor: Measures just 1.3 × 1.2 × 3.7 cm (approx. 0.5 × 0.47 × 1.46 in) — fits standard stomp box enclosures effortlessly.

Specifications

What's in the Box

• 1 × DPDT Latching/Momentary ON/ON Guitar Effects Pedal Foot Switch

Related Products You May Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What is the difference between the latching and momentary modes on this DPDT foot switch?

A: In latching mode, the switch stays in its activated position when pressed — perfect for toggling an effect on or off and keeping it there. In momentary mode, the switch is only active while being held down and returns to its default position when released. This dual-function DPDT design makes it extremely versatile for guitar effects pedal stomp boxes and DIY electronics projects.

Q: Is this guitar pedal foot switch compatible with standard stomp box enclosures?

A: Yes. With its compact dimensions of 1.3 × 1.2 × 3.7 cm, this foot switch is designed to fit standard guitar effects pedal stomp box enclosures. Its 6 solder lug terminals allow straightforward wiring for both bypass and signal-routing applications.

Q: What electrical ratings does this DPDT stomp switch support?

A: This switch is rated at 3A 250VAC, 6A 125VAC, and 4A 30VDC, making it suitable for a wide range of guitar pedal and general electronics applications. With an insulation resistance of >100MΩ at 500VDC and contact resistance of <50MΩ, it maintains excellent signal integrity and safety.

Q: How long will this foot switch last?

A: The electrical life of this DPDT foot switch exceeds 10,000 cycles, meaning it's built to withstand heavy, regular use — whether on stage, in the studio, or on the workbench.
