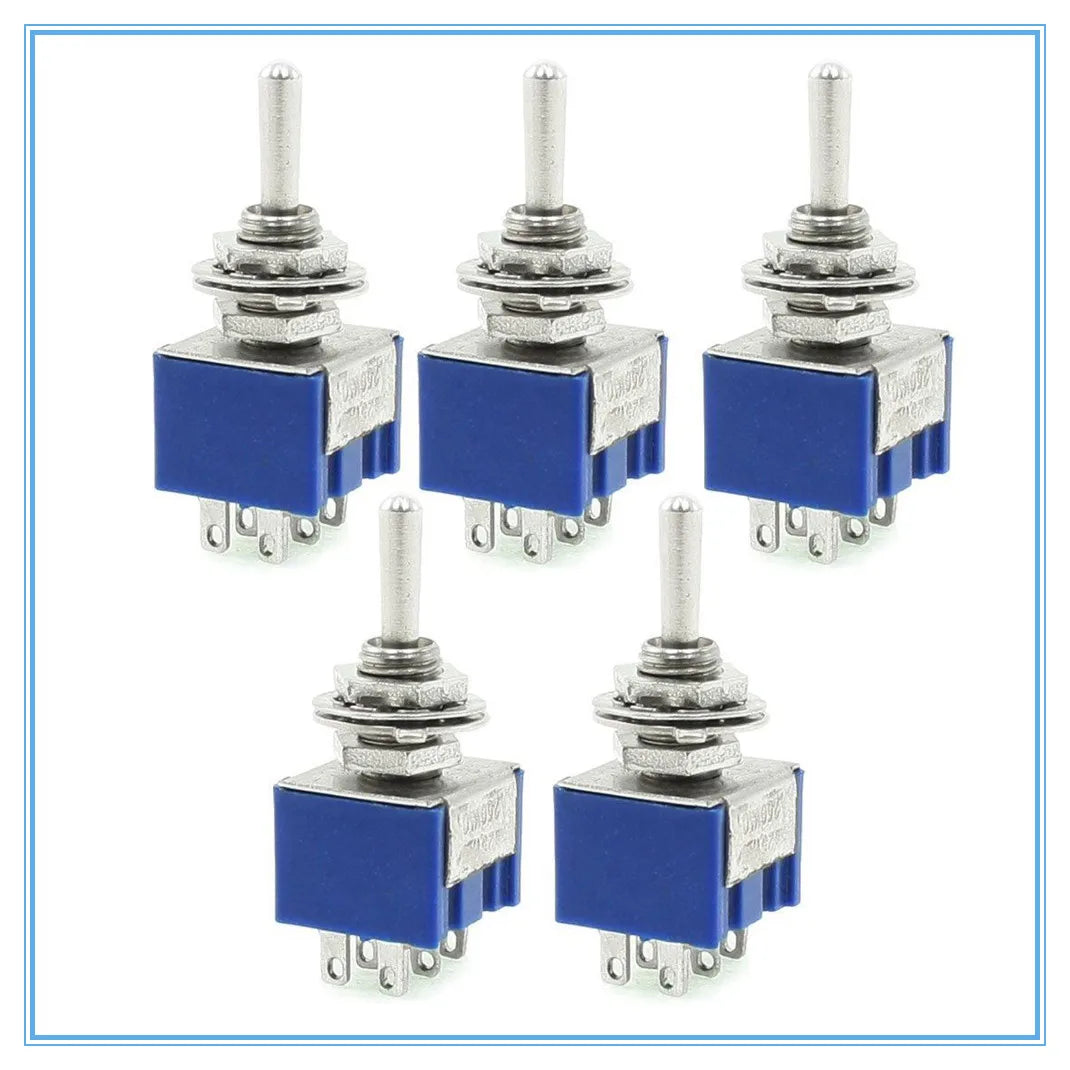

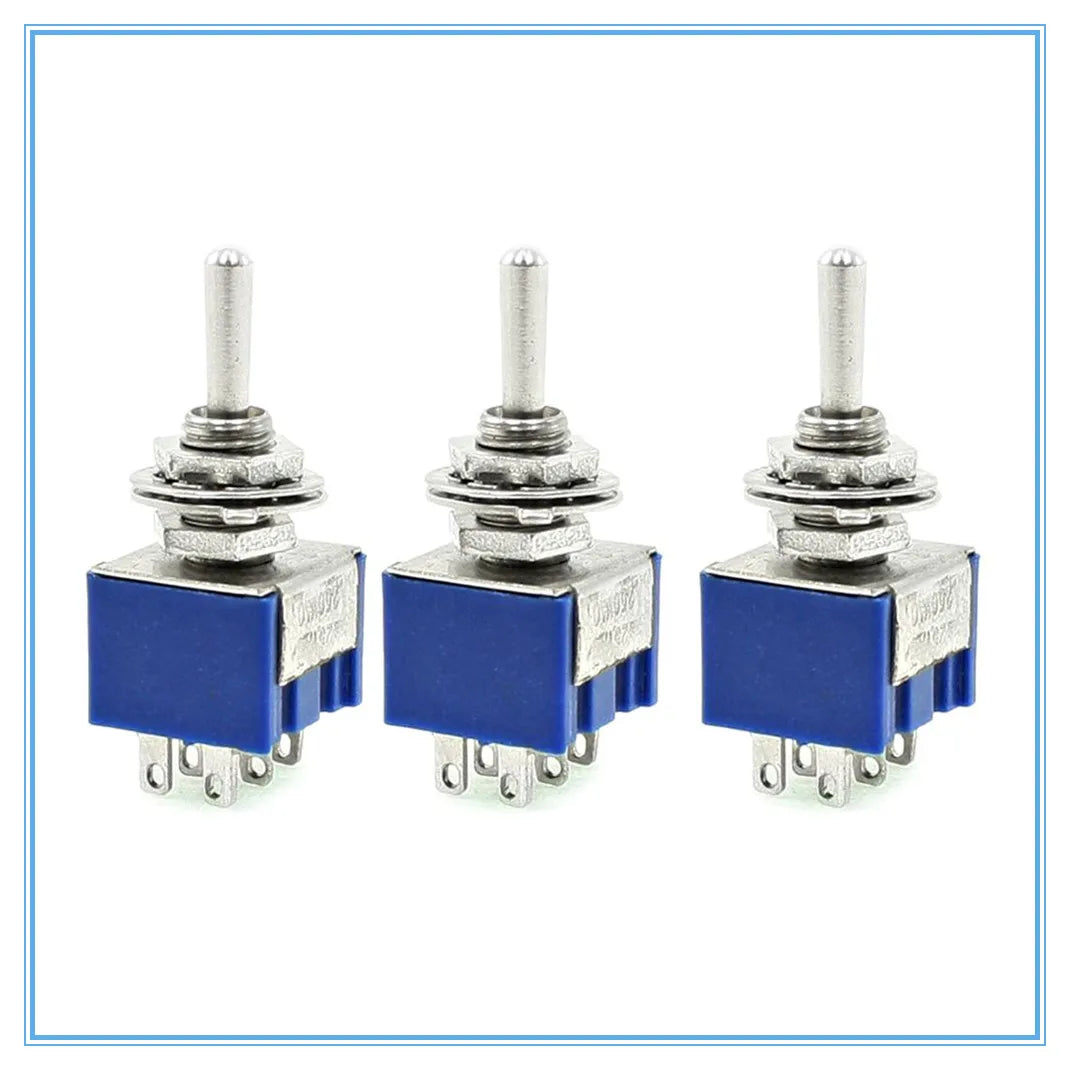

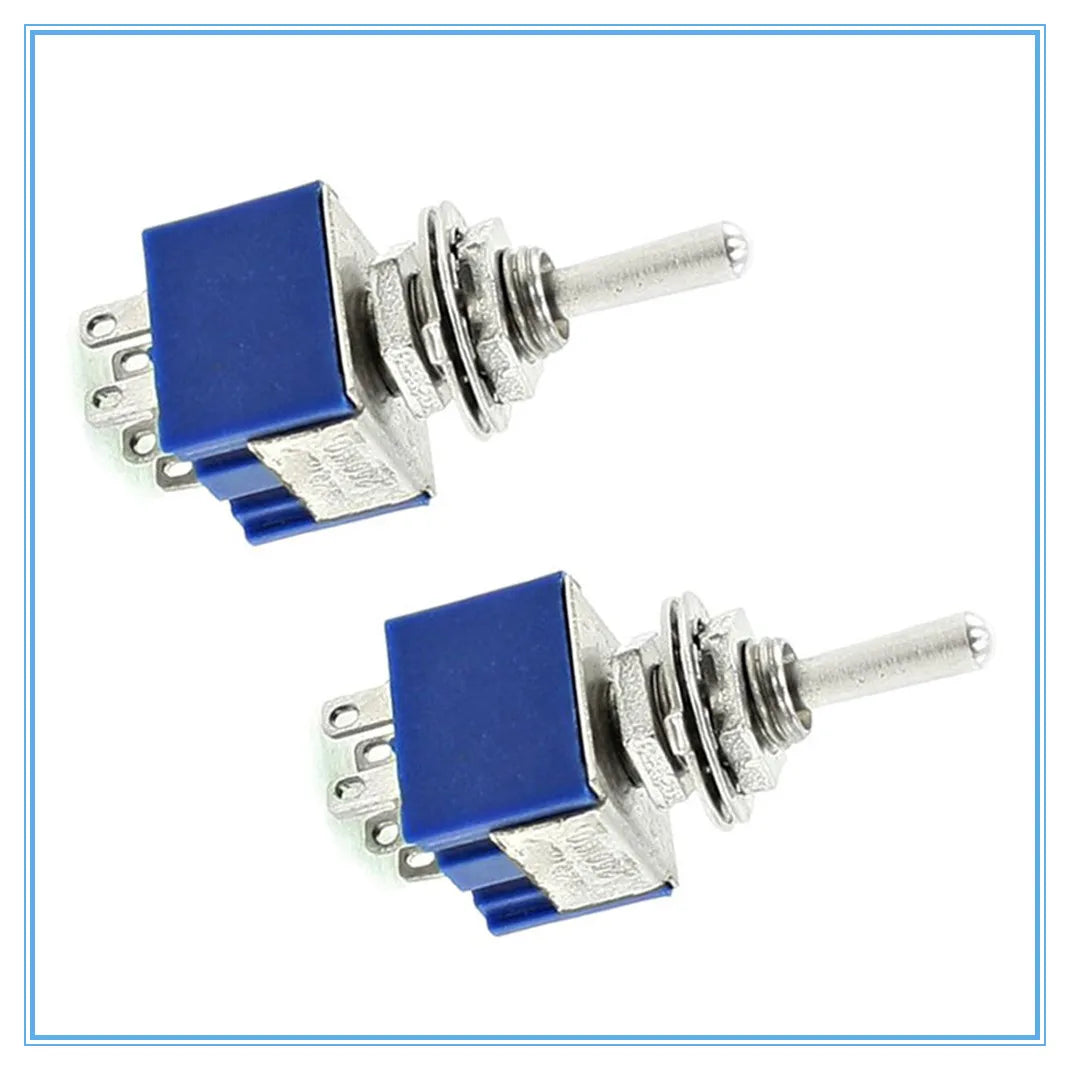

5-Pack DPDT ON-OFF-ON Toggle Switch 6A 125V AC 6-Terminal

5-Pack DPDT ON-OFF-ON Toggle Switch — 6A 125V AC

Get reliable, professional-grade switching performance with this set of five Double Pole Double Throw (DPDT) ON-OFF-ON toggle switches. Featuring a center-off latching action and six terminals, these switches are ideal for electronics projects, DIY wiring, control panels, automotive accessories, and hobby builds. Rated at 6A 125V AC, they deliver solid, dependable operation in a compact form factor.

Key Features

• Switch Type: DPDT (Double Pole Double Throw) — ON/OFF/ON with center-off position
• Action: Self-locking (latching) — stays in position until toggled
• Terminals: 6-terminal configuration for versatile circuit routing
• Rated: 6A at 125V AC
• Mounting Hole Diameter: 5.8mm / 0.23"
• Main Body Size: 15 × 13 × 13 mm (0.6" × 0.5" × 0.5")
• Overall Height: 35mm / 1.4"
• Material: Metal & Resin — durable and long-lasting
• Model: MTS-203
• Certification: CCC
• Pack: 5 toggle switches included

What's in the Box?

• 5 × DPDT ON-OFF-ON Toggle Switch (Model MTS-203)

Common Applications

• DIY electronics and hobby circuits
• Control panels and instrument dashboards
• Automotive and marine accessory wiring
• Light or motor direction switching
• Workshop and bench-top projects

Made in Mainland China.

Looking for more wiring accessories and electrical components? Check out these related items from our store:

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What does DPDT ON-OFF-ON mean for these toggle switches?

A: DPDT stands for Double Pole Double Throw. The ON-OFF-ON configuration means the switch has three positions: the center position is OFF (open circuit), while flipping up or down connects to one of two separate circuits. This allows you to independently control two circuits simultaneously, making it ideal for direction control, multi-circuit switching, and more complex wiring applications.

Q: What is the mounting hole size required to install these toggle switches?

A: These toggle switches require a panel mounting hole of 5.8mm (approximately 0.23 inches) in diameter. The main body measures 15 × 13 × 13 mm, and the overall height including the toggle lever is 35mm (about 1.4 inches).

Q: Are these switches suitable for 12V DC automotive or hobby use?

A: Yes. While rated at 6A 125V AC, DPDT toggle switches of this type are widely used in low-voltage DC applications such as automotive accessories, model wiring, and hobby electronics. Always verify your specific circuit's current and voltage requirements before installation.
