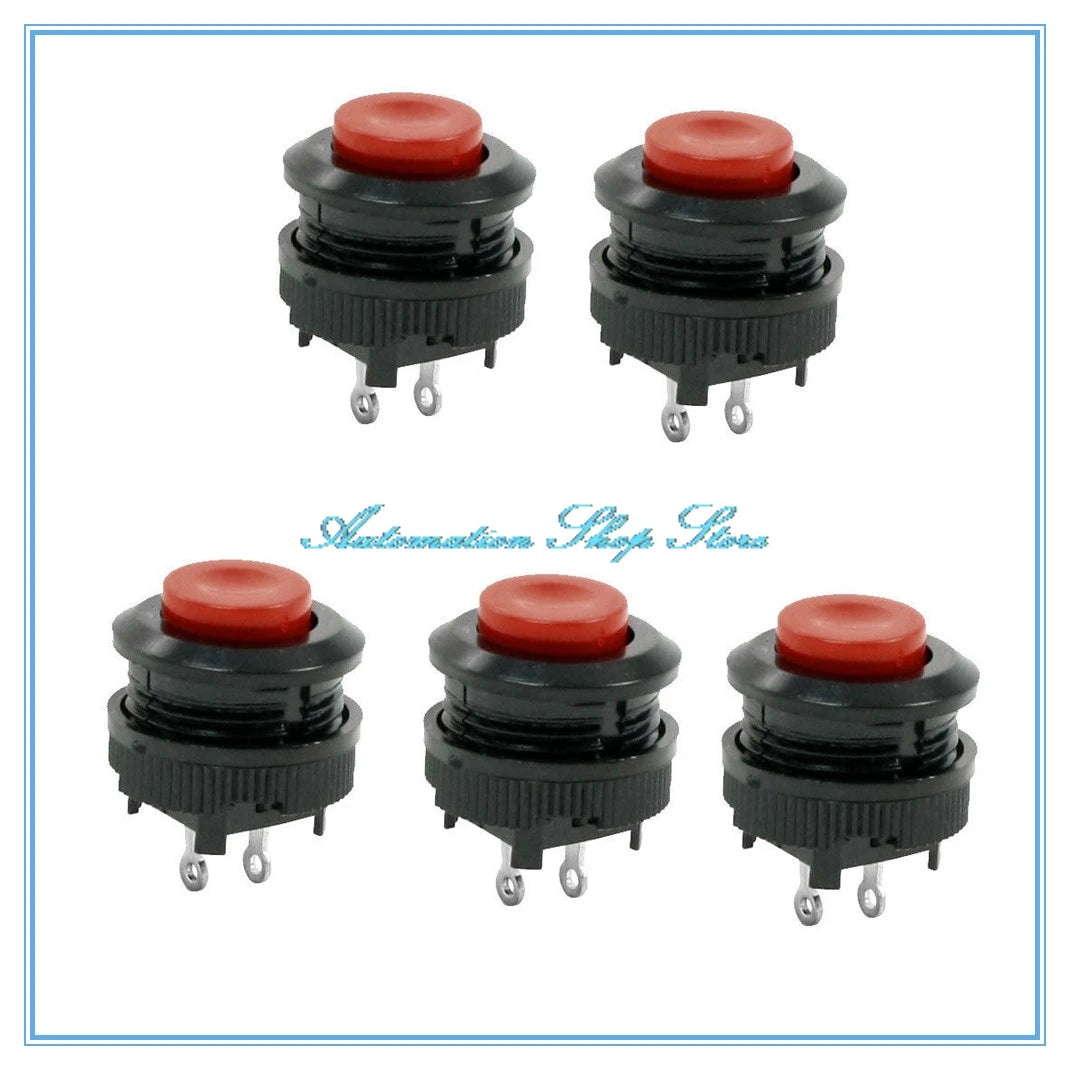

DS-501 14mm Arcade Push Button Switch – Red Cap Momentary

DS-501 14mm Arcade Game Push Button Switch – Red Cap

Upgrade or repair your arcade cabinet, DIY control panel, or electronics project with the DS-501 14mm Arcade Push Button Switch. Featuring a bold red cap and sturdy aluminium alloy construction, this compact SPST switch is built for responsive, reliable performance in both momentary and latching action modes. Its 14mm mounting hole diameter makes it a perfect fit for standard arcade machine panels, custom enclosures, and hobby electronics builds.

Made in Mainland China.

Key Features

• Action Type: Momentary / Latching – versatile for a wide range of applications
• Contact Type: SPST (Single Pole Single Throw)
• Rated Voltage & Current: AC 230V, 1A
• Terminal Number: 2
• Mounting Hole Diameter: 14mm / 0.55"
• Button Head Diameter: 9.5mm
• Total Size: 16 × 21mm / 0.63" × 0.8" (Max. D × H)
• Material: Aluminium alloy body with plastic cap
• Color: Red cap / Black body
• Certification: CCC
• Model Number: DS-501

What's in the Box

• 1 × DS-501 Arcade Game Push Button Switch (Red Cap)

Great For

• Arcade cabinet repairs and builds
• DIY fightstick / joystick control panels
• Custom electronics enclosures
• Hobby robotics and maker projects
• Industrial control panel prototyping

Related Products You May Like

• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What is the difference between the momentary and latching action on the DS-501 push button switch?

A: In momentary mode, the DS-501 arcade push button switch is only active while you press it — releasing the button breaks the circuit. In latching mode, pressing the button toggles it on and it stays on until you press it again. This makes the DS-501 switch suitable for a wider range of arcade game and electronics applications.

Q: What panel thickness and mounting hole size does the DS-501 push button require?

A: The DS-501 requires a 14mm (0.55") diameter mounting hole in your panel or enclosure. The total switch body dimensions are 16mm × 21mm (D × H), making it compact enough for most standard arcade control panels and DIY project boxes.

Q: Is the DS-501 arcade push button switch suitable for custom fightstick builds?

A: Yes! The DS-501's 14mm mounting hole diameter, aluminium alloy construction, and SPST contact type make it a popular choice for custom fightstick panels, arcade cabinet builds, and hobby electronics projects that need a compact, durable push button switch.
