Eachine TX02 Mini AIO FPV Camera 5.8GHz 40CH 200mW VTX RC Drone

Eachine TX02 Super Mini AIO FPV Camera & Video Transmitter for RC Drones

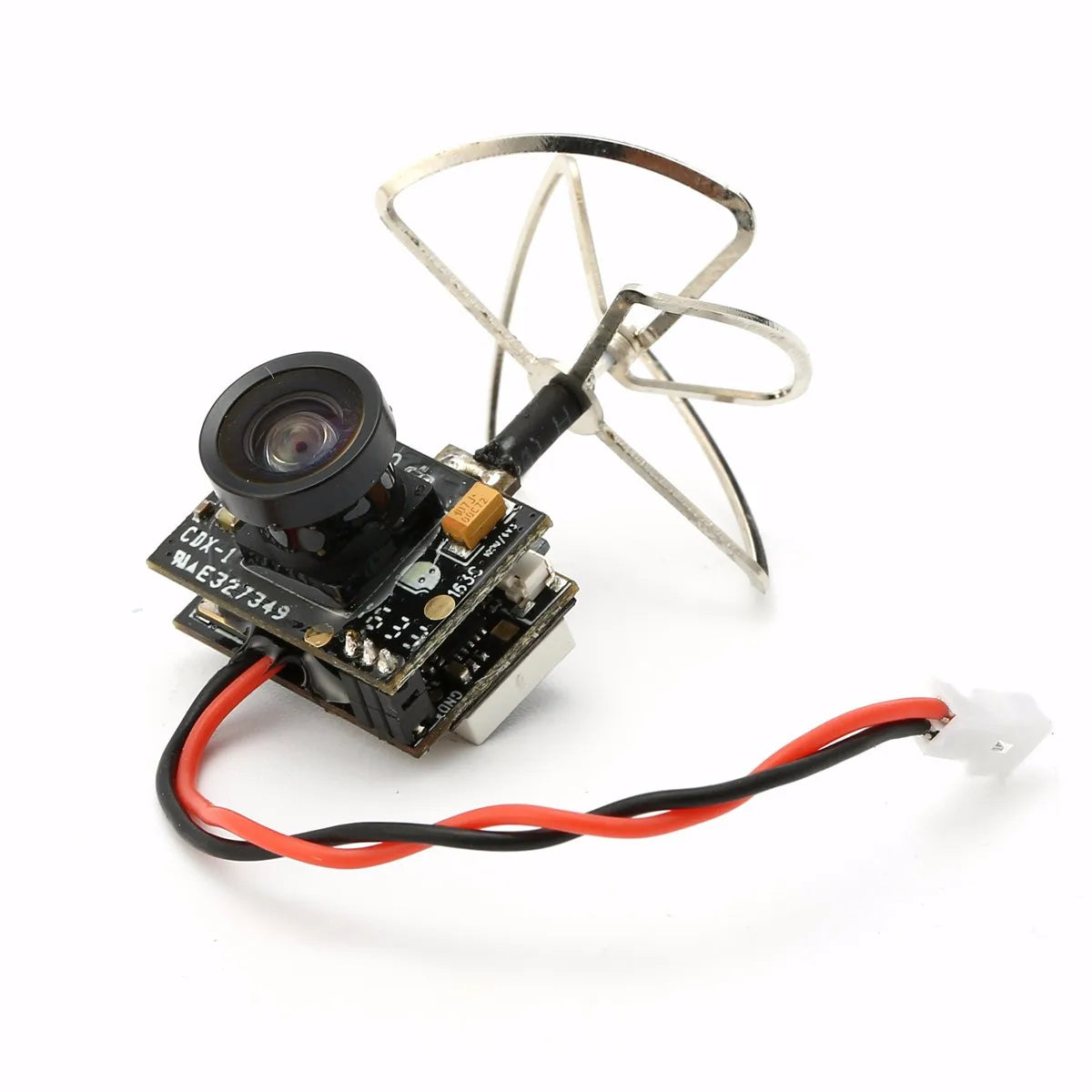

Take your FPV drone flying experience to the next level with the Eachine TX02 All-In-One FPV Camera and Video Transmitter. Packing a 600TVL CMOS camera and a 200mW 5.8GHz video transmitter into a tiny 20×13×6mm body weighing just 4.57g, the TX02 is purpose-built for micro and mini RC drone builds where every gram counts. Made in Mainland China.

Why Choose the Eachine TX02 AIO FPV System?

• Ultra-Compact & Lightweight: At just 20×13×6mm and 4.57g, this AIO unit fits virtually any micro drone frame without adding unnecessary bulk.
• 600TVL CMOS Camera: Delivers clear, smooth FPV footage with a wide 120° field of view and a minimum illumination of 1 lux for low-light flying.
• 200mW Output Power: Provides a strong, stable video link at 5.8GHz so you stay connected to your FPV goggles or monitor.
• 5 Bands, 40 Channels with Raceband: Covers all major FPV frequency channels including Raceband — perfect for group racing events where channel separation matters.

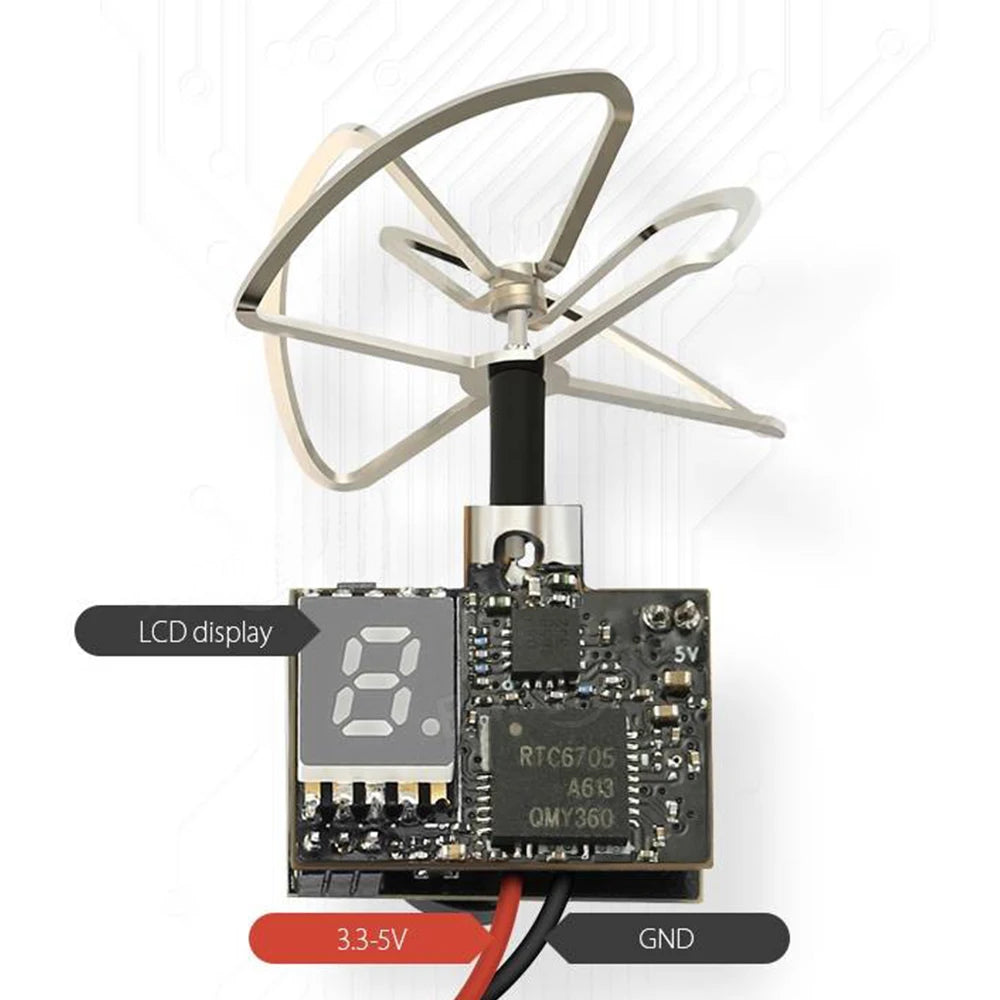

• LED Digital Display: Shows your selected band and channel at a glance, right on the unit.

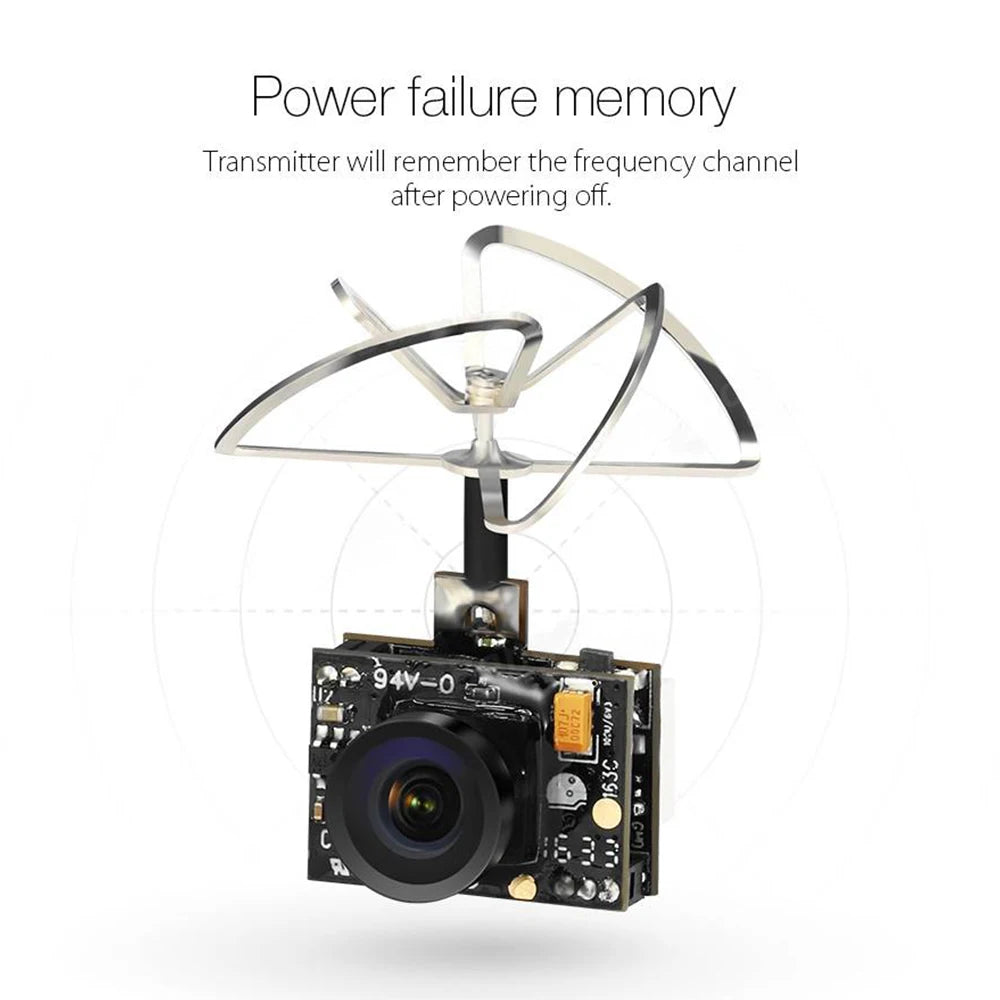

• Power Failure Memory: Remembers your last frequency channel after powering off — no need to re-select every session.

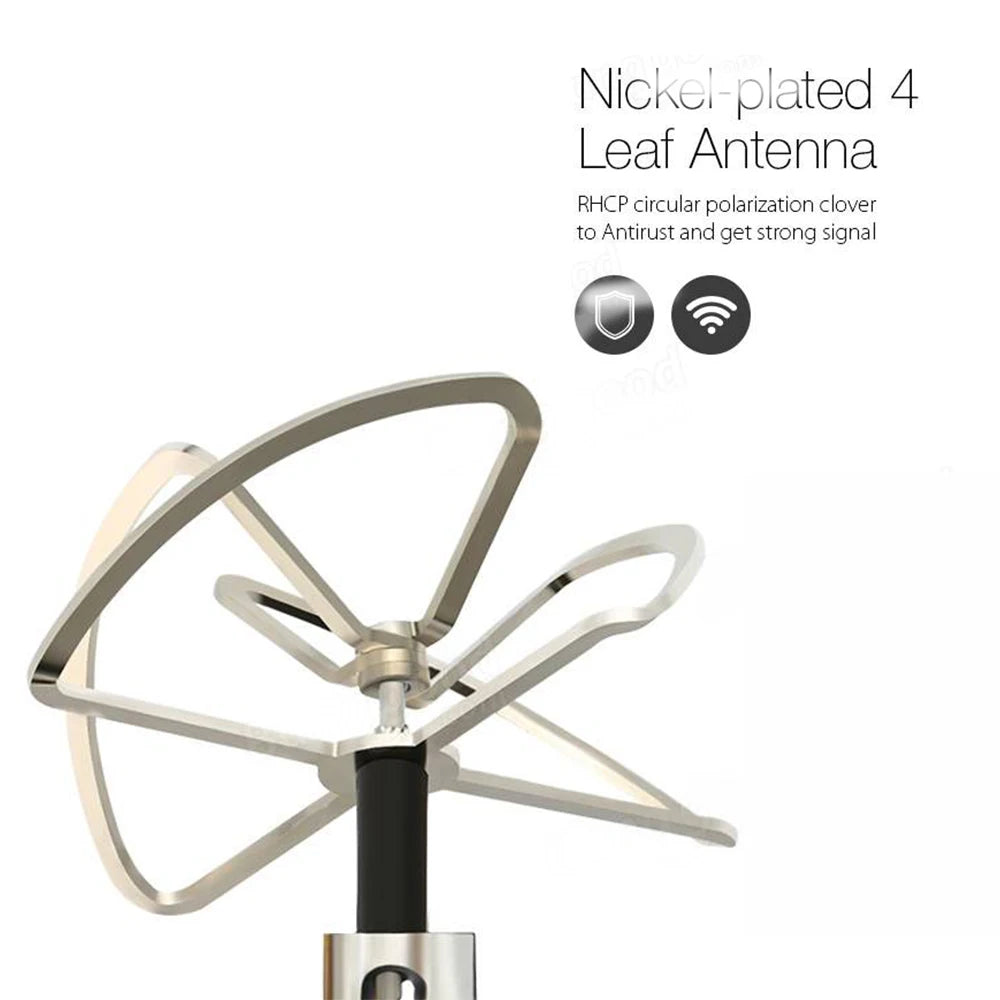

• Nickel-Plated 4-Lobe RHCP Antenna: The right-hand circular polarized antenna (22×29mm) delivers excellent signal quality and multipath interference rejection.
• Wide Input Voltage: Accepts 3.3–5V input (500mA typical), compatible with common micro drone power systems.
• NTSC Video Format: Standard NTSC output compatible with the vast majority of FPV goggles and monitors on the market.

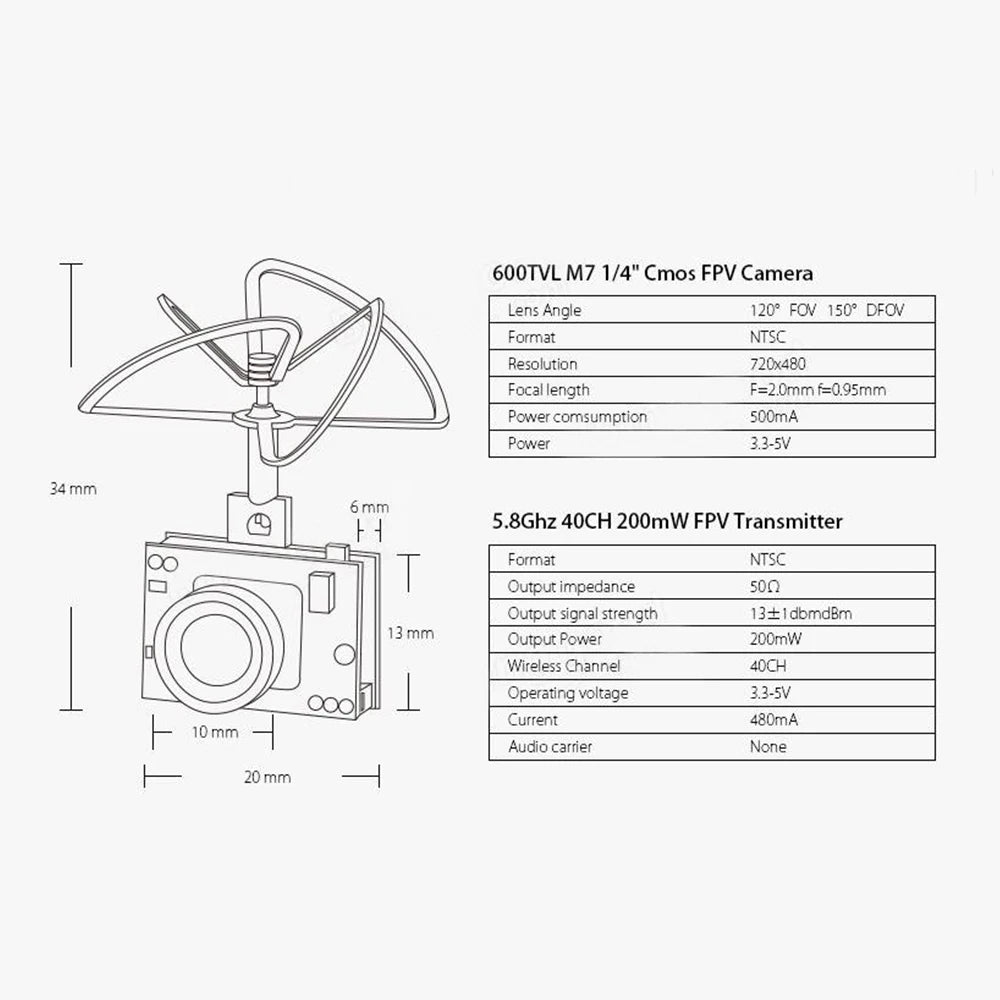

Technical Specifications

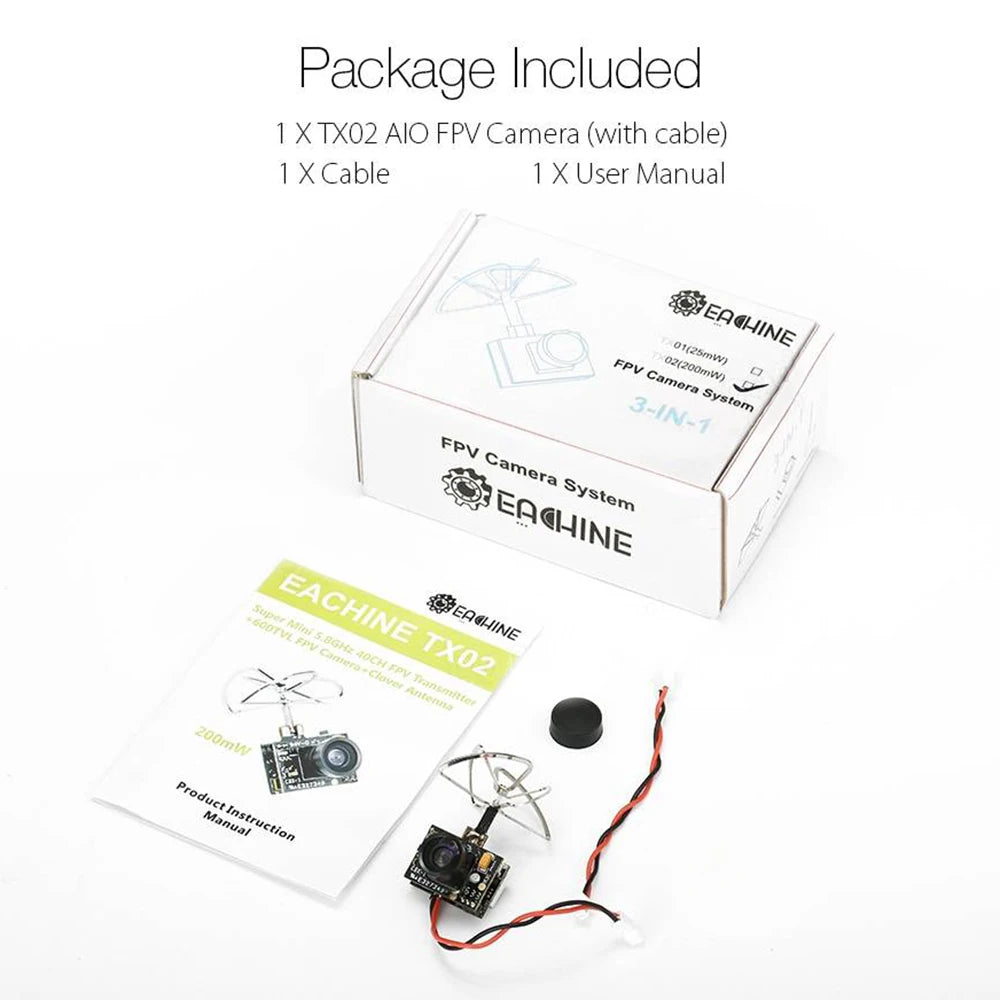

What's in the Box

• 1× TX02 AIO FPV Camera (with cable)
• 1× Additional Cable
• 1× User Manual

Note: Batteries are not included.

Pair It With These Related Products

• 1000D Tactical EDC Bag – Great for Carrying Your FPV Gear
• 100L Waterproof Storage Bag with Combination Lock – Secure Outdoor Equipment Storage

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: Is the Eachine TX02 compatible with standard FPV goggles and monitors?

A: Yes. The TX02 outputs a standard NTSC video signal over 5.8GHz, which is compatible with the vast majority of FPV goggles and monitors available today. Simply tune your receiver to the matching band and channel.

Q: Does the TX02 support Raceband frequencies?

A: Absolutely. The TX02 covers 5 bands and 40 channels, including Raceband (R1–R8), making it well suited for drone racing events where multiple pilots fly simultaneously and need clearly separated frequency channels.

Q: What size drones is the TX02 designed for?

A: The TX02 is specifically designed for micro and mini RC drones. Its ultra-compact 20×13×6mm footprint and 4.57g weight make it compatible with most micro drone frames, including popular 80mm–130mm builds and fixed-wing airplanes.

Q: Does the TX02 require any special power input?

A: The TX02 operates on 3.3–5V DC input at approximately 500mA, which aligns well with typical micro drone power systems. It does not come with a battery or charger — these are sold separately.
