FLYUEACE 60A Waterproof Brushed ESC Speed Controller RC Cars

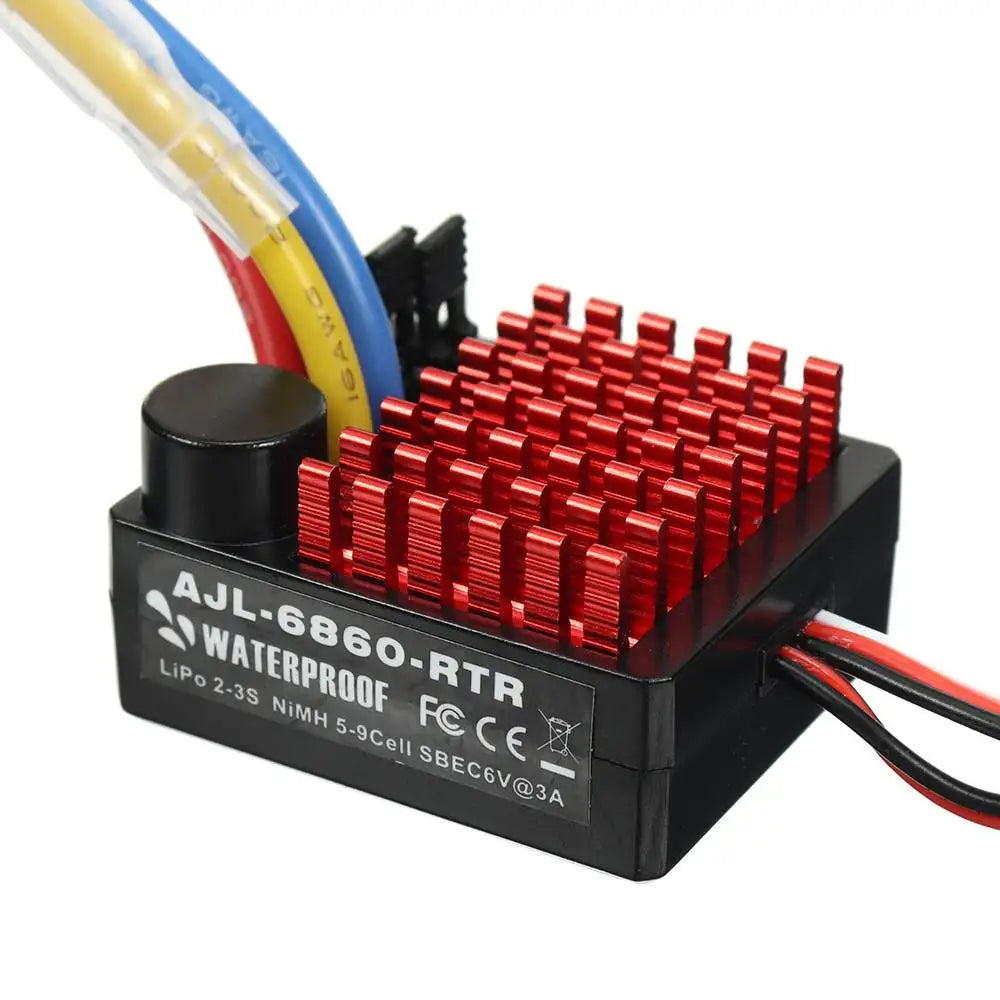

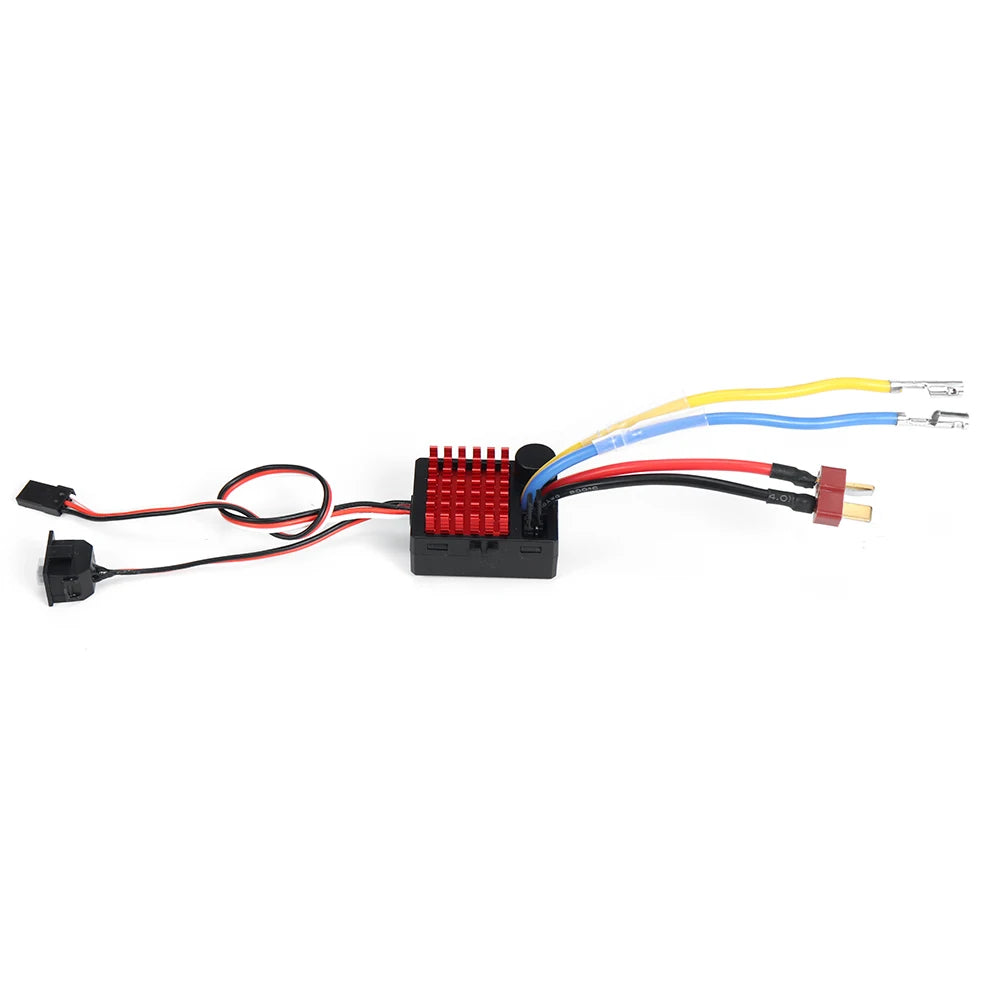

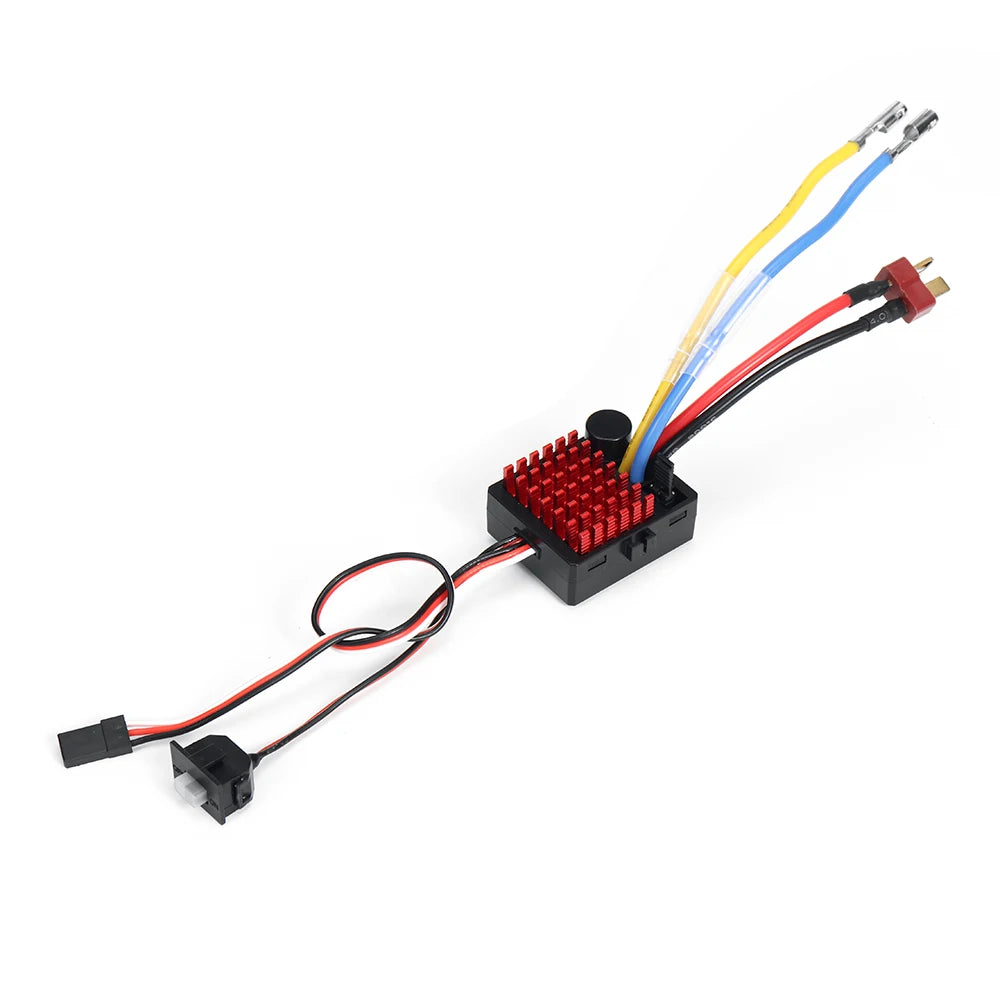

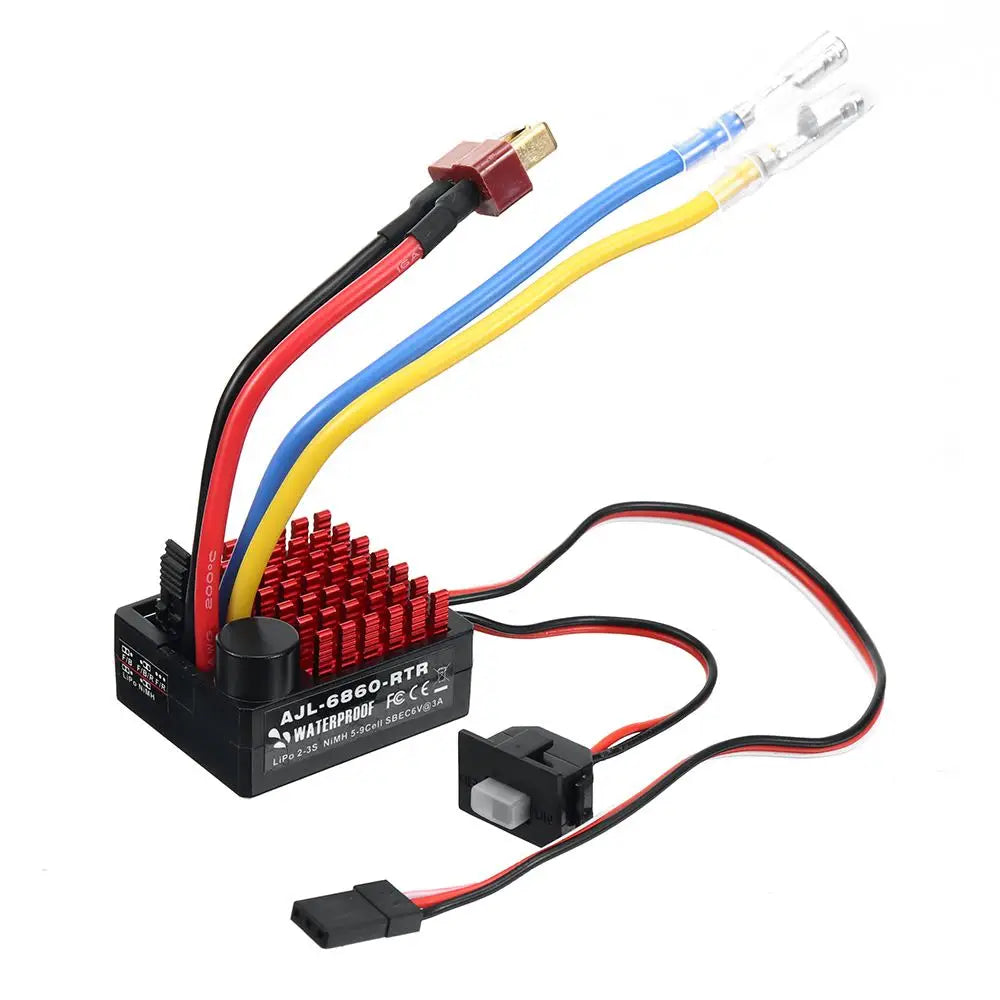

FLYUEACE 6860 Brushed ESC 60A Waterproof Speed Controller with BEC

Take your RC vehicle to the next level with the FLYUEACE 6860 Brushed ESC 60A Waterproof Speed Controller. Engineered for RC crawlers, rock trucks, on-road cars, boats, and tank models, this compact and rugged electronic speed controller (ESC) delivers precise throttle control and dependable performance across a wide range of terrains and conditions. With full waterproofing, a high peak current rating, and a built-in BEC output, it's the go-to upgrade part for RC enthusiasts aged 14 and up.

Made in Mainland China.

Key Features

• 60A Constant Current / 480A Peak Current: Handles demanding power loads from brushed motors without breaking a sweat.
• Fully Waterproof: Confidently run your RC vehicle through puddles, mud, and wet terrain without worrying about damage to the ESC.
• Built-In BEC Output (6V / 3A): Powers your receiver and servos directly — no separate battery eliminator circuit needed.
• Three Drive Modes: Choose between Forward/Brake/Reverse, Forward/Drag Brake/Reverse, and additional mode configurations to match your driving style and terrain.
• Wide Battery Compatibility: Works with 2S–3S LiPo or 5–9 cell Ni-MH battery packs for maximum flexibility.
• Broad Motor Compatibility: Supports RC540, RC550, and RC750 brushed motors.

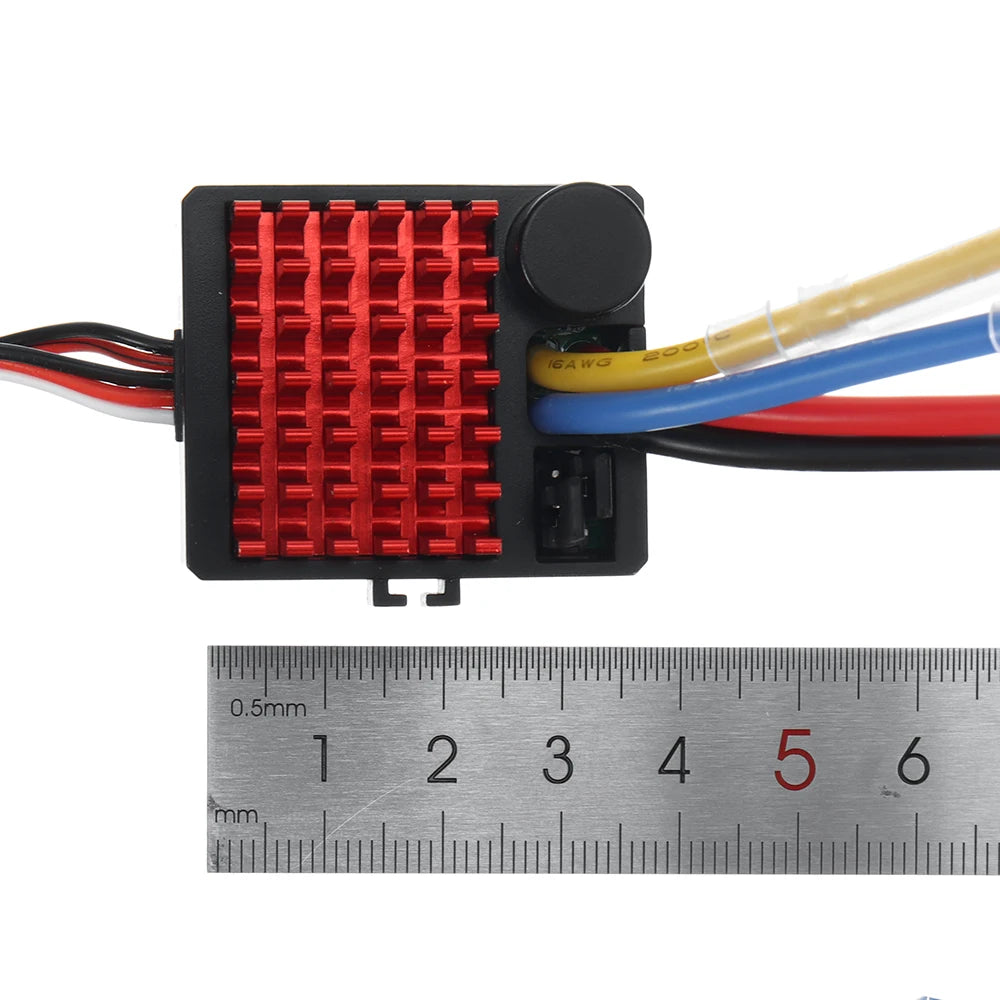

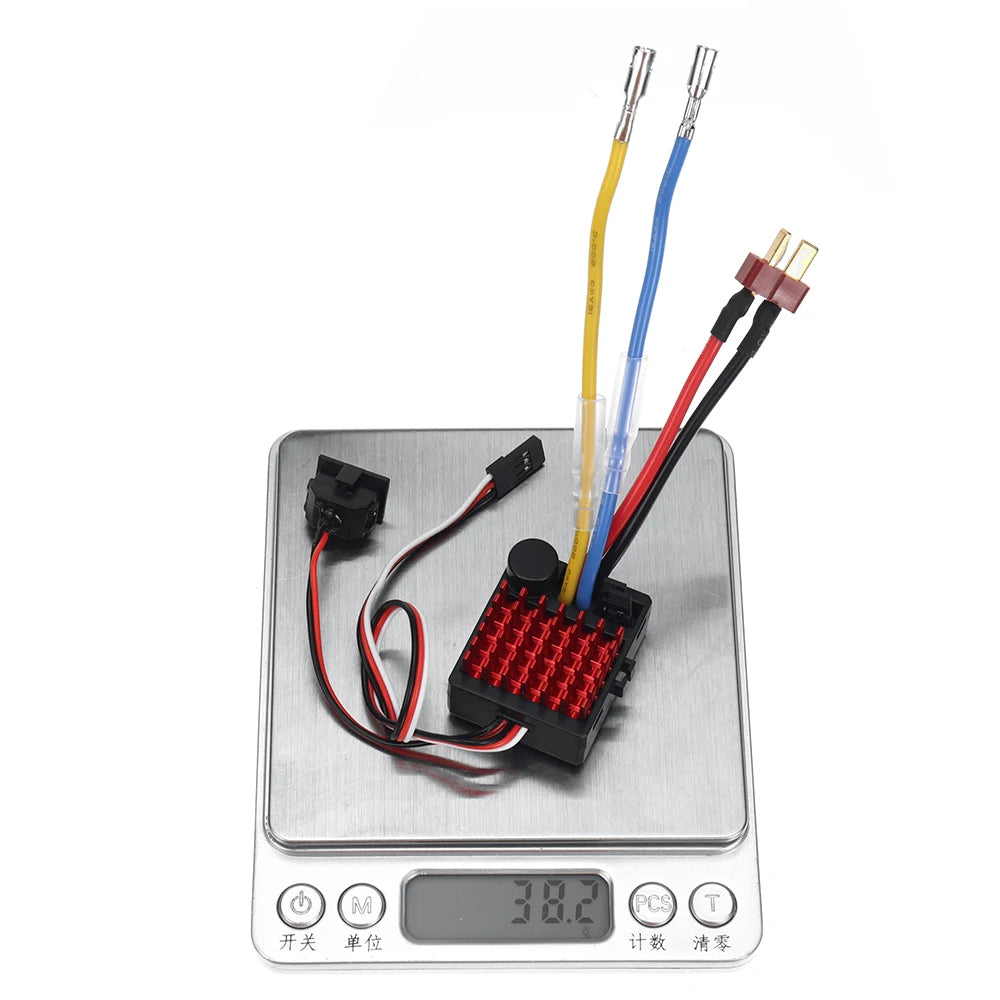

• Compact & Lightweight: Measures just 38 × 31.6 × 20.5 mm and weighs only 38.2 g — easy to fit in tight chassis spaces.
• Composite & Metal Construction: Durable composite housing with quality electronic internals for long-lasting use.

Specifications

Compatible Vehicles

• RC Crawler & Rock Trucks
• On-Road RC Cars
• RC Boats
• RC Tank Models

What's in the Box

• 1 × FLYUEACE 6860 Brushed ESC 60A

Note: Battery, motor, and RC vehicle are NOT included. This ESC requires a compatible brushed motor and battery pack (sold separately).

Related Products You May Like

• 1000D Tactical EDC Bag – Military Utility Storage
• 10pcs Durable Metal Universal Trimmer Replacement Parts
• 10PCS Stainless Steel Self-Tapping Screws – Phillips Head

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: Is the FLYUEACE 6860 ESC compatible with both LiPo and Ni-MH batteries?

A: Yes! The FLYUEACE 6860 Brushed ESC supports 2S–3S LiPo battery packs as well as 5–9 cell Ni-MH packs, giving you the flexibility to use whichever battery type your RC setup already runs on.

Q: What RC motors does this speed controller support?

A: This ESC is compatible with RC540, RC550, and RC750 brushed motors — among the most common motor sizes used in RC crawlers, on-road cars, and boats. Always confirm your motor's specifications before installing.

Q: Does this ESC include a BEC, and what does that mean for my RC build?

A: Yes, the built-in BEC (Battery Eliminator Circuit) outputs 6V at 3A, which powers your receiver and servos directly from the main drive battery. This eliminates the need for a separate receiver battery pack, simplifying your wiring and reducing overall weight.

Q: Is this speed controller truly waterproof for outdoor use?

A: The FLYUEACE 6860 ESC is fully waterproof, making it ideal for RC crawling through mud, puddles, and wet outdoor environments. This waterproof design helps protect internal electronics from moisture ingress during rugged off-road runs.
