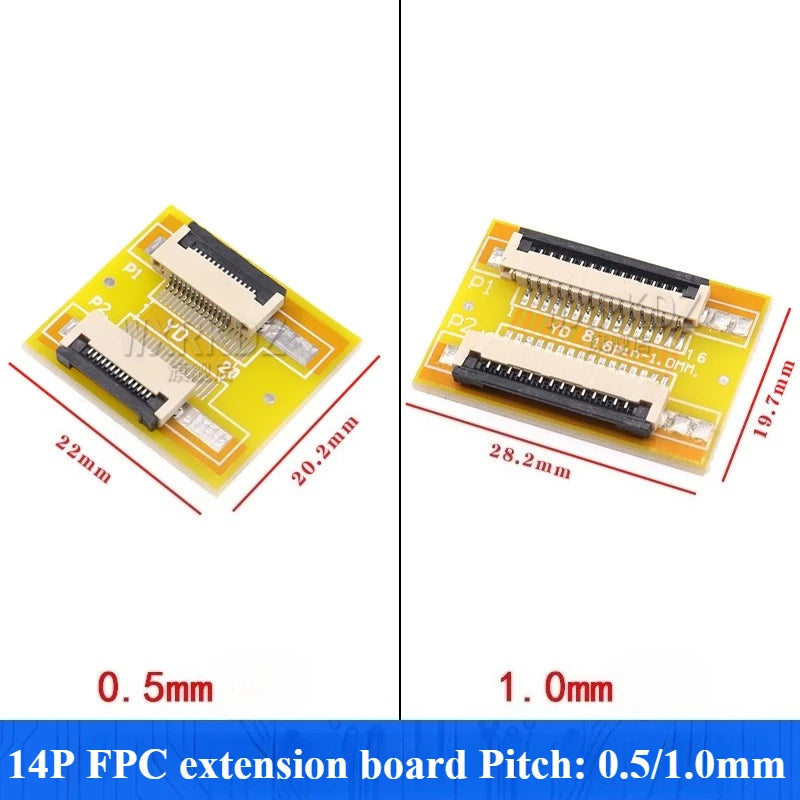

FPC FFC Flat Cable Adapter Board 1.0mm Pitch 4–60 Pin

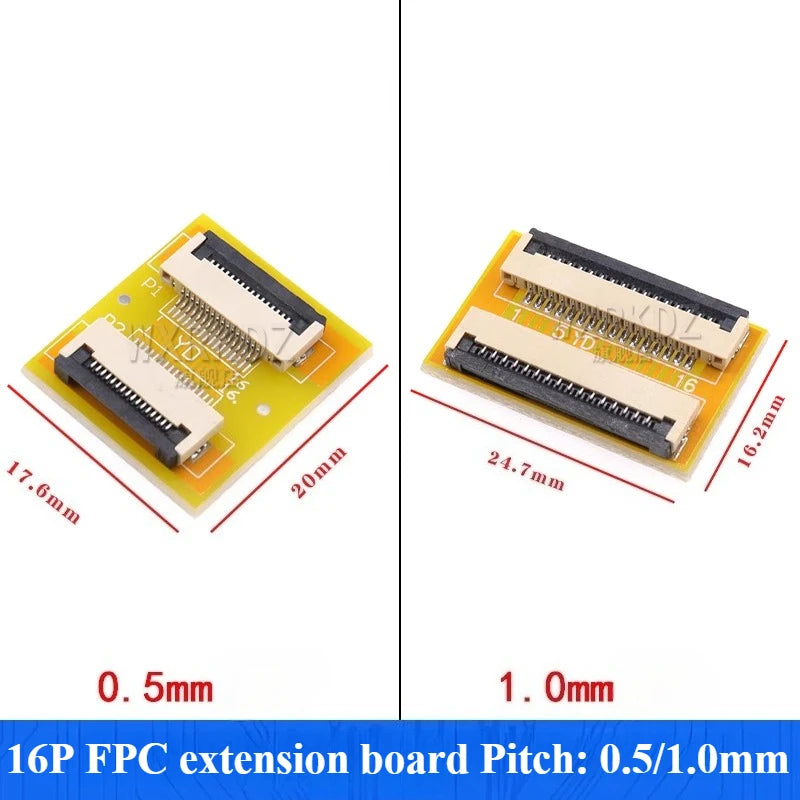

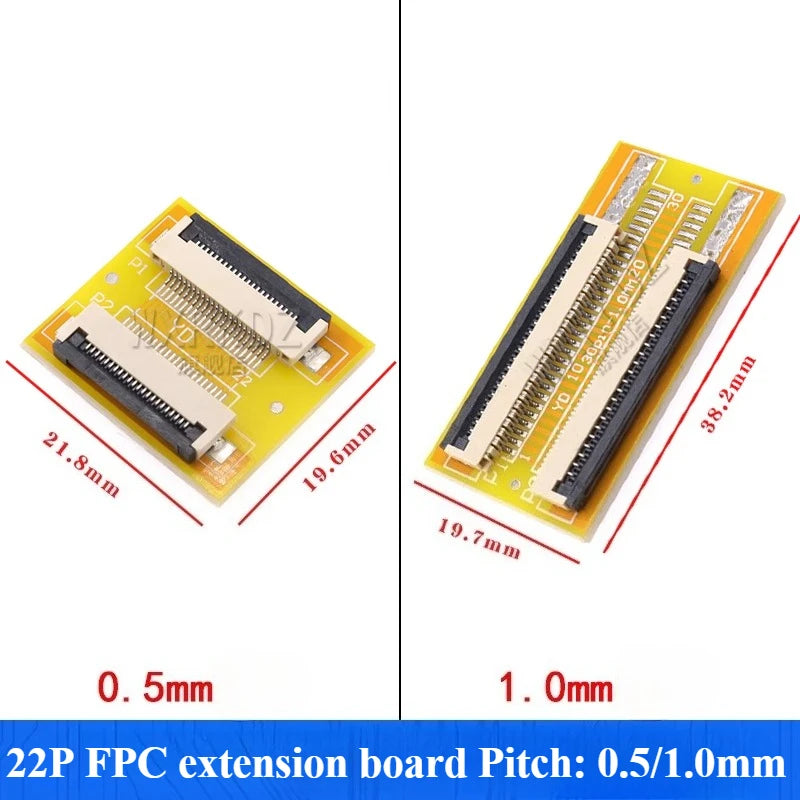

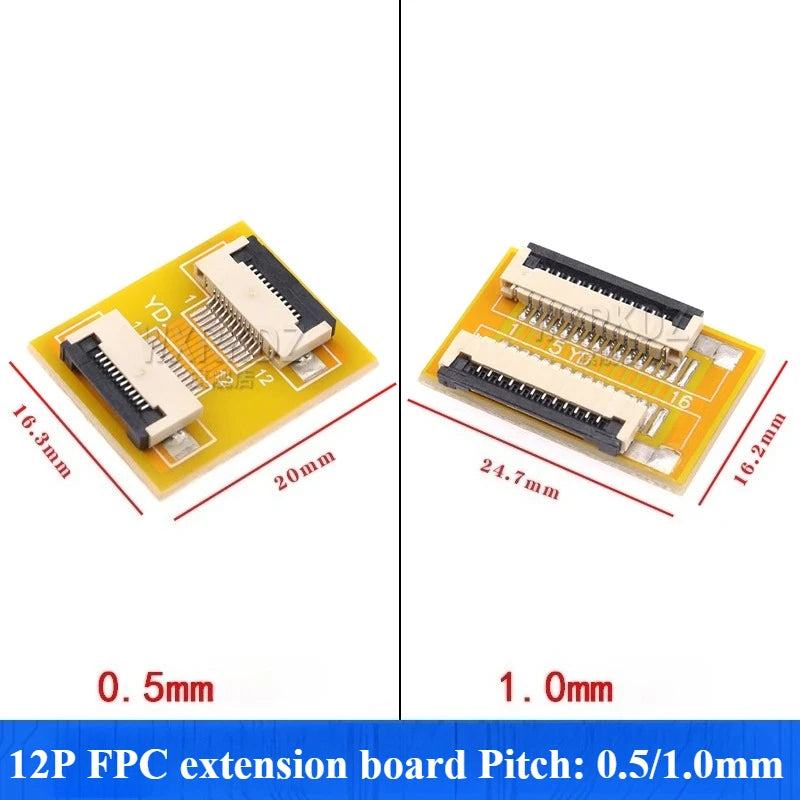

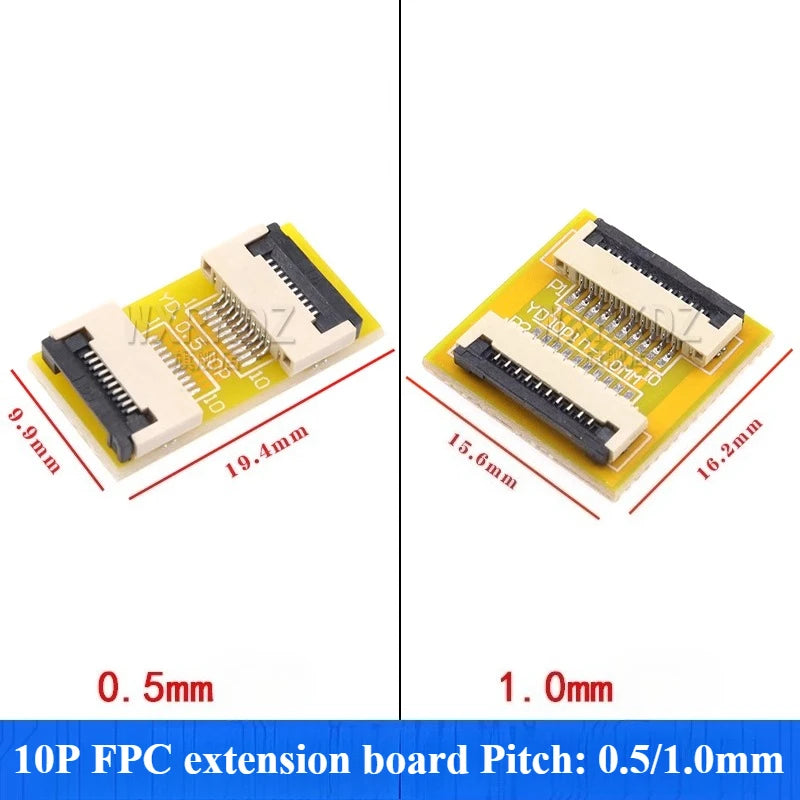

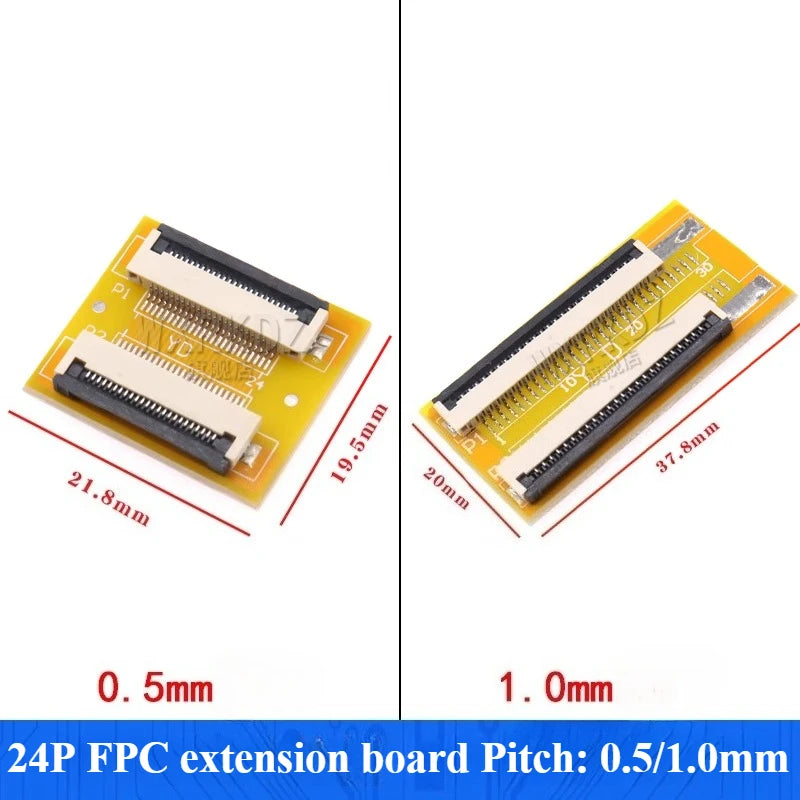

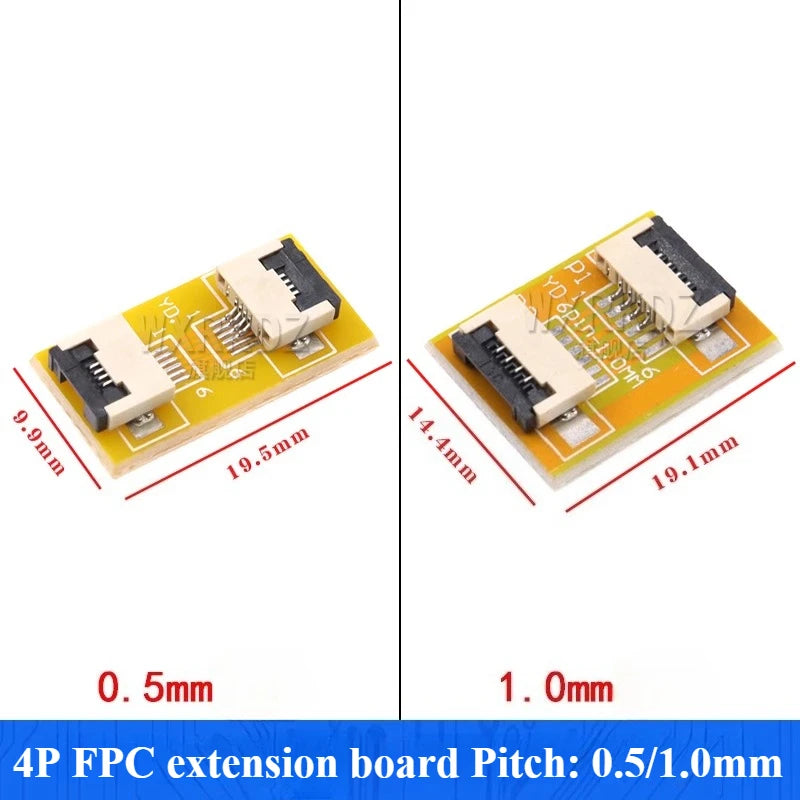

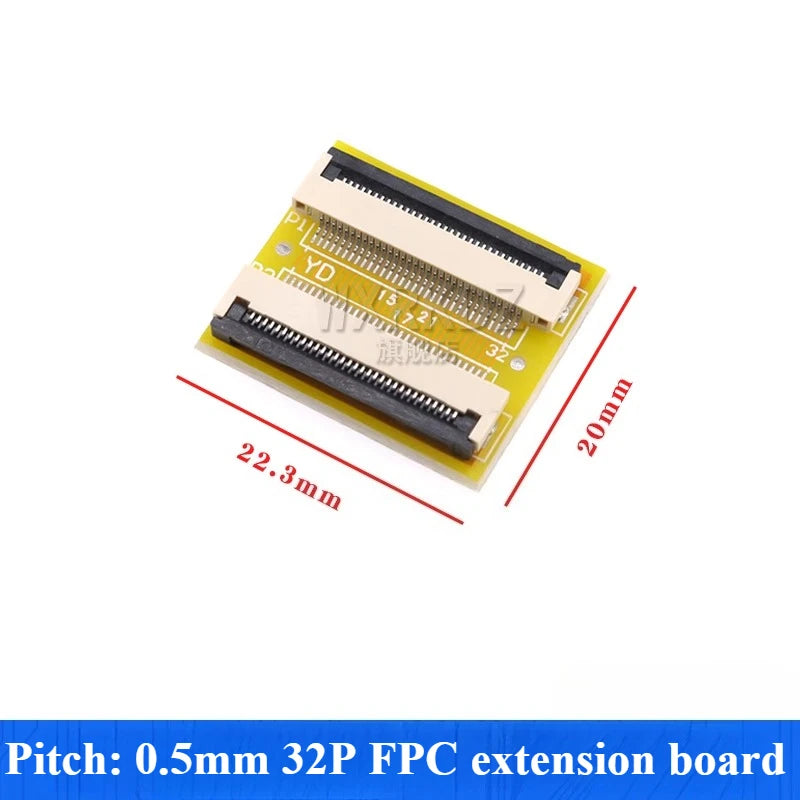

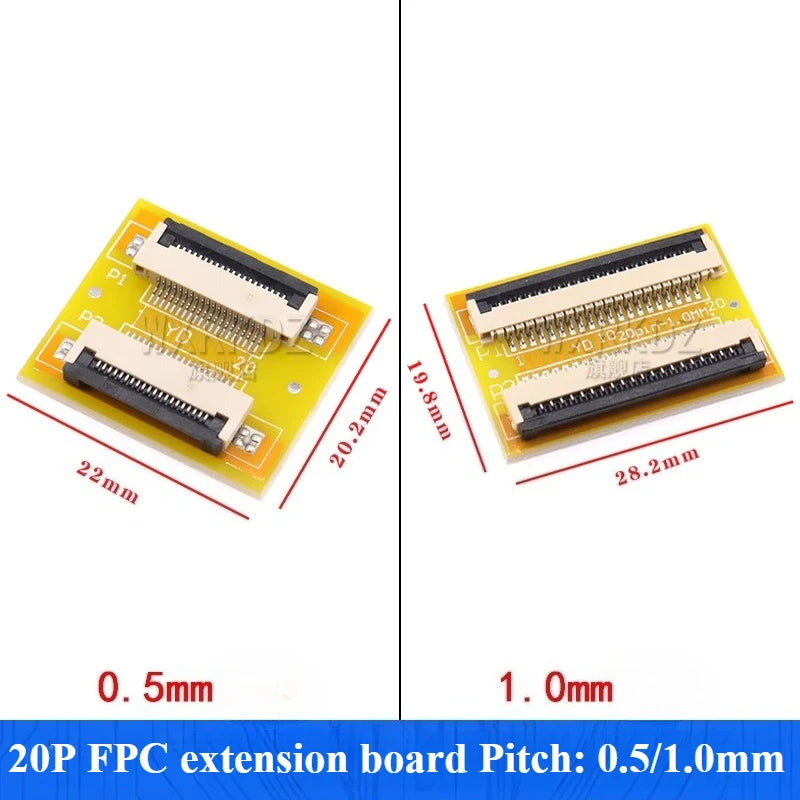

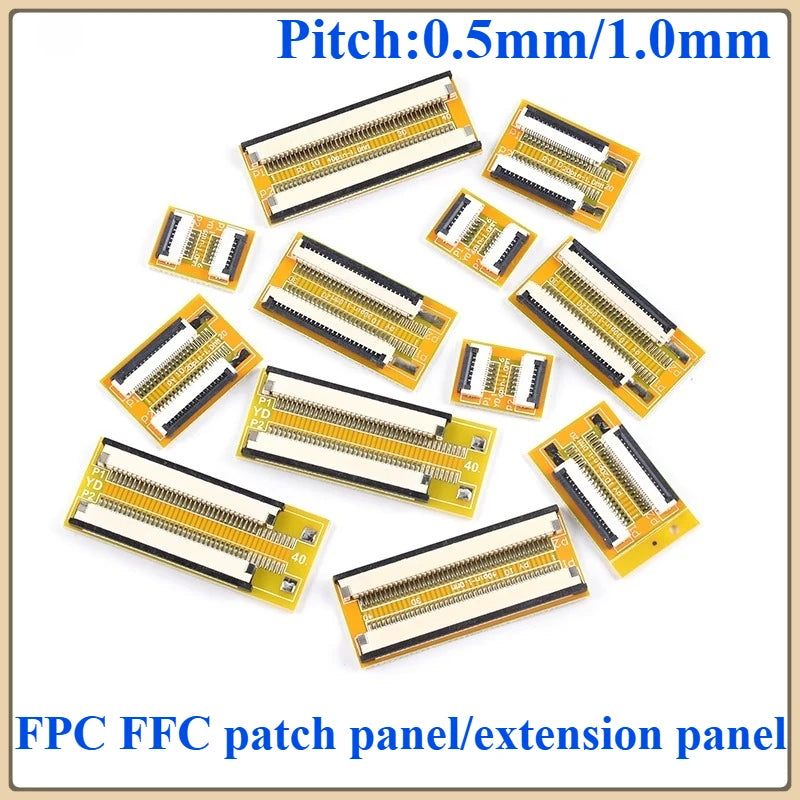

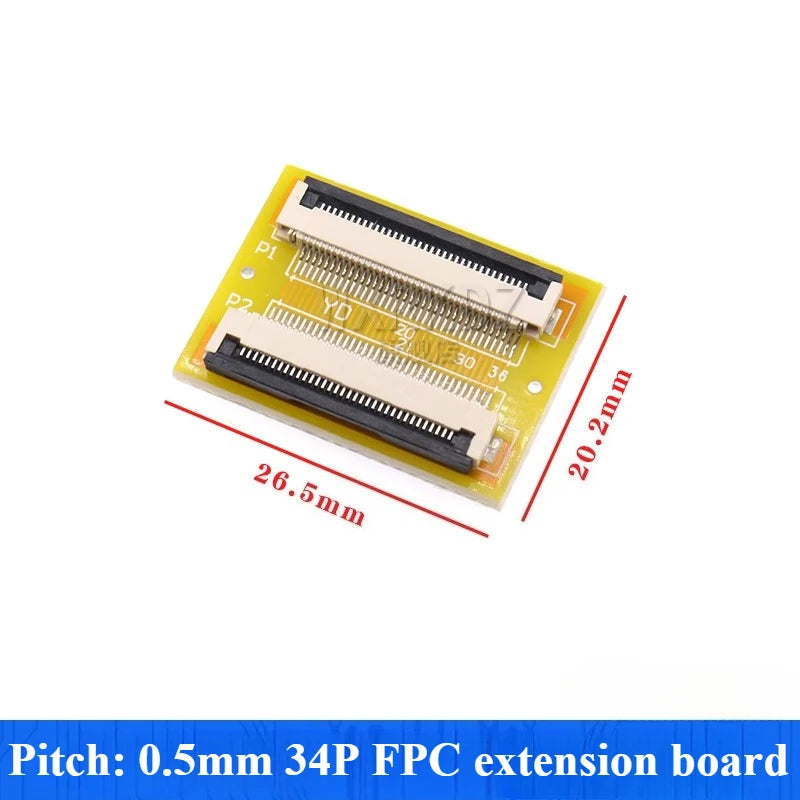

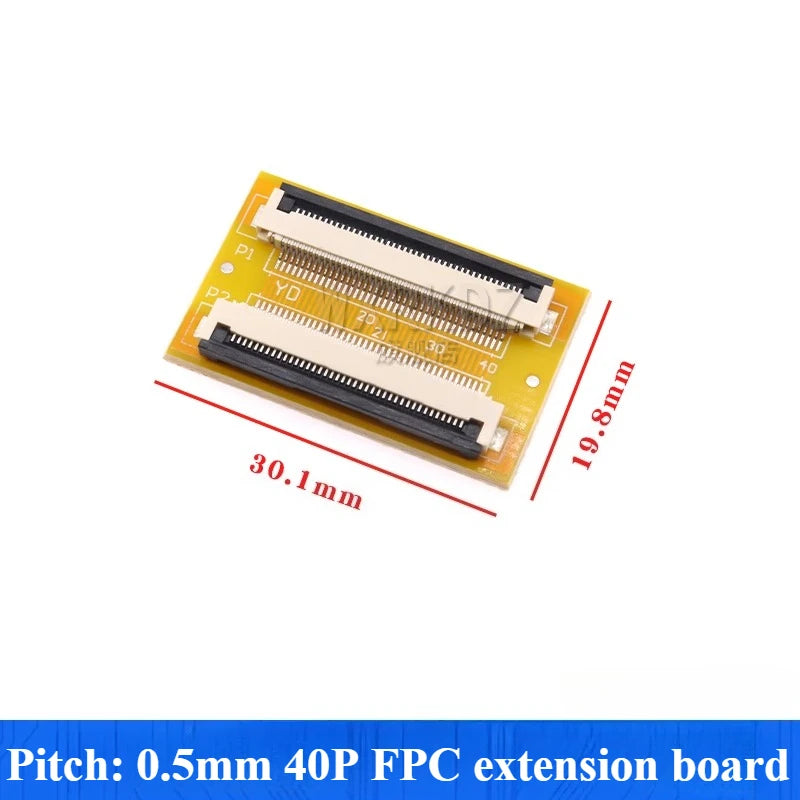

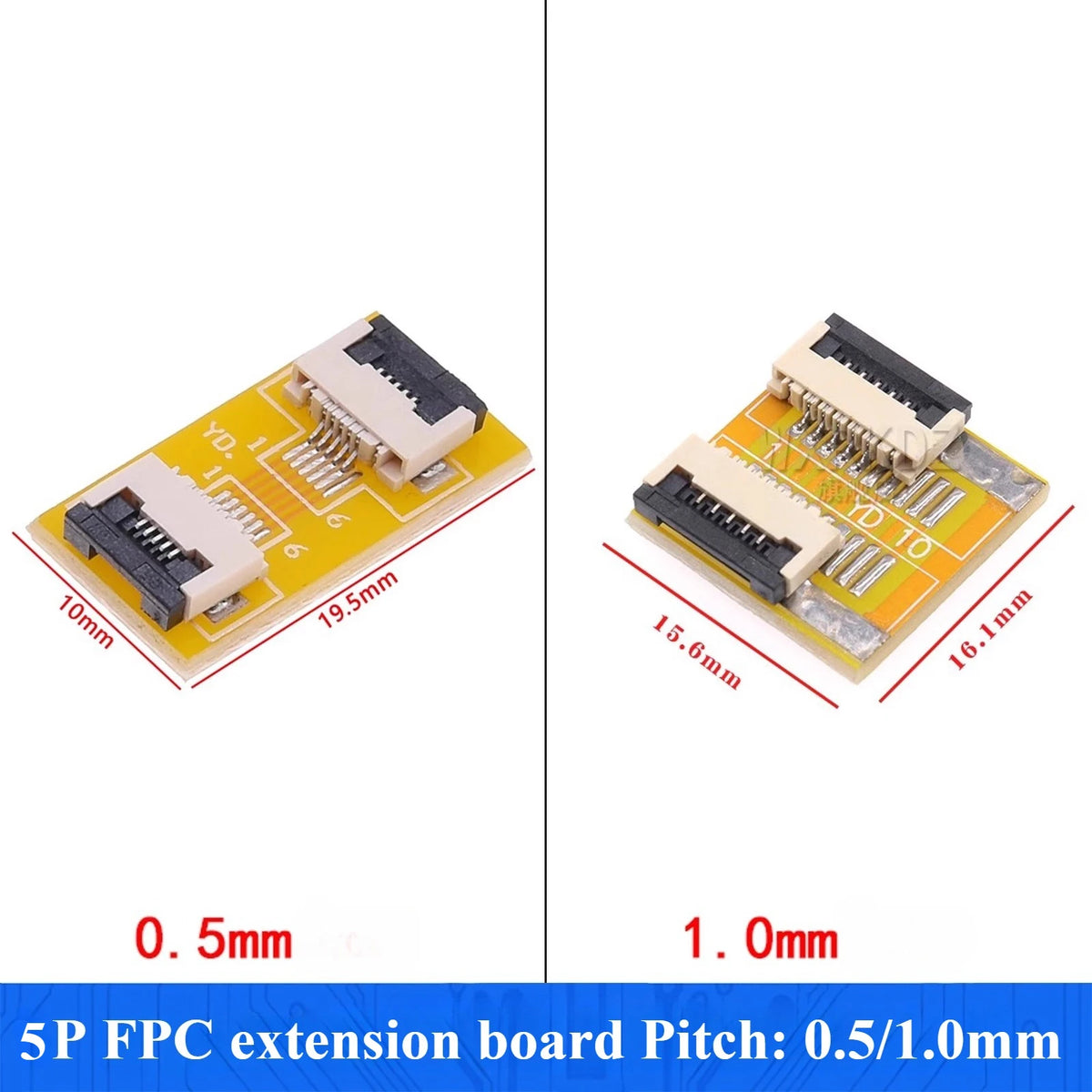

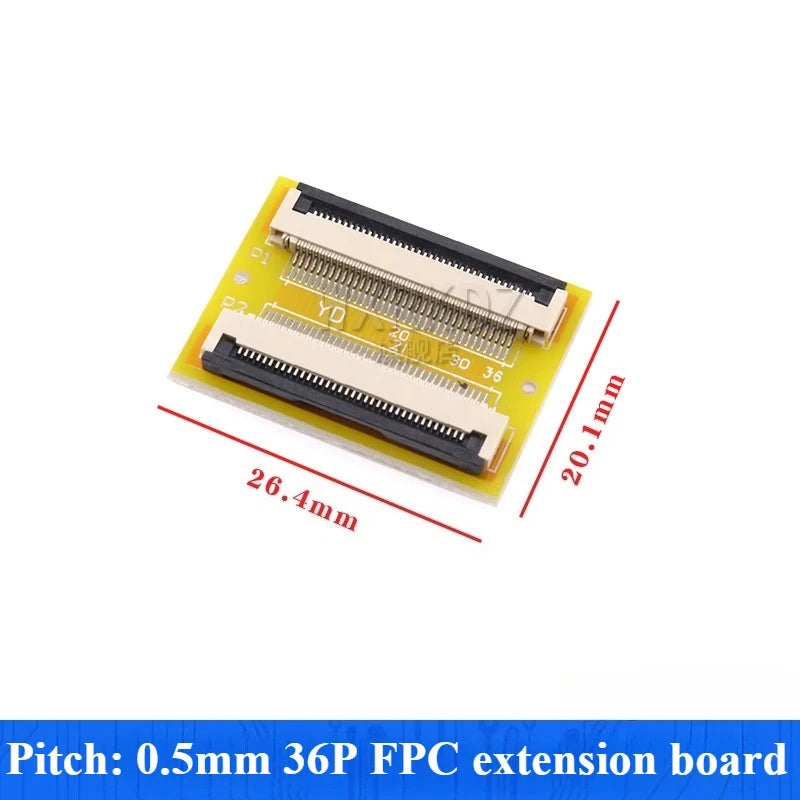

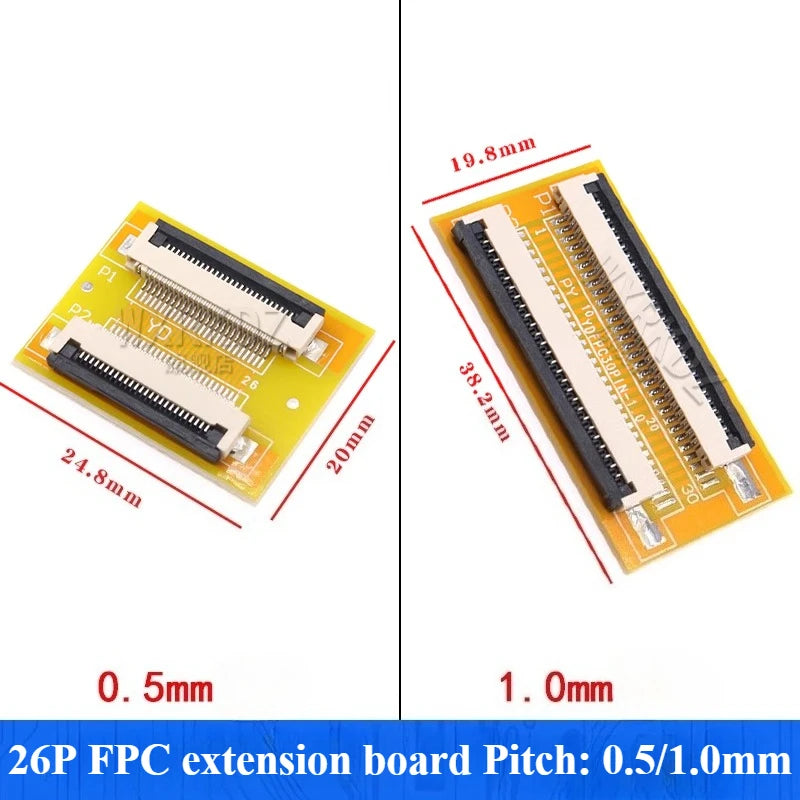

FPC FFC Flexible Flat Cable Extension & Terminal Board Adapter — 1.0mm Pitch, 4 to 60 Pin

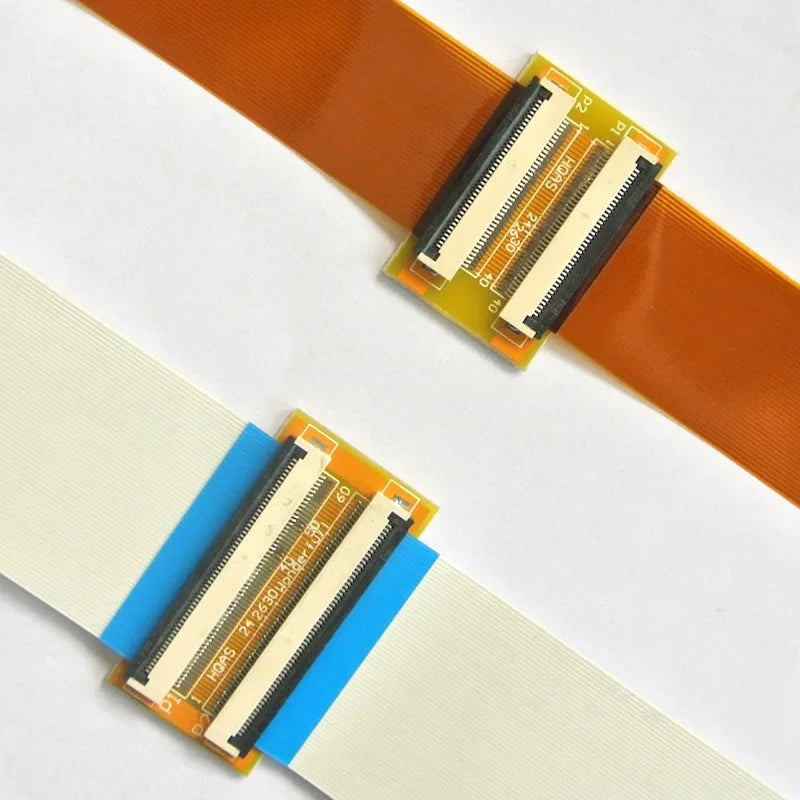

Upgrade your electronics projects with this precision-engineered FPC/FFC Flexible Flat Cable Extension Board Adapter. Featuring a 1.0mm pitch connector spacing, this versatile adapter supports a wide range of pin counts — from 4 all the way up to 60 pins — making it ideal for prototyping, repairs, and custom electronics builds. Whether you're routing signals in a tight space or extending a display ribbon cable, this compact board delivers reliable, secure connections every time.

Key Features

• Wide Pin Compatibility: Supports 4, 5, 6, 8, 10, 12, 14, 15, 16, 22, and up to 60 pin configurations to suit a broad range of FPC/FFC cables.
• 1.0mm Contact Pitch: Precisely spaced terminals ensure secure mating with standard 1.0mm pitch flat flexible cables.
• Multi-Voltage Support: Compatible with 5V, 12V, 20V, and 30V circuits, making it suitable for a variety of electronic applications.
• CE & RoHS Certified: Meets international safety and environmental standards — no high-concern chemicals included.
• No Battery Required: Purely passive adapter board; no wireless components or battery needed.
• Compact & Easy to Use: Slim, lightweight design fits into space-constrained enclosures and PCB layouts with ease.

Specifications

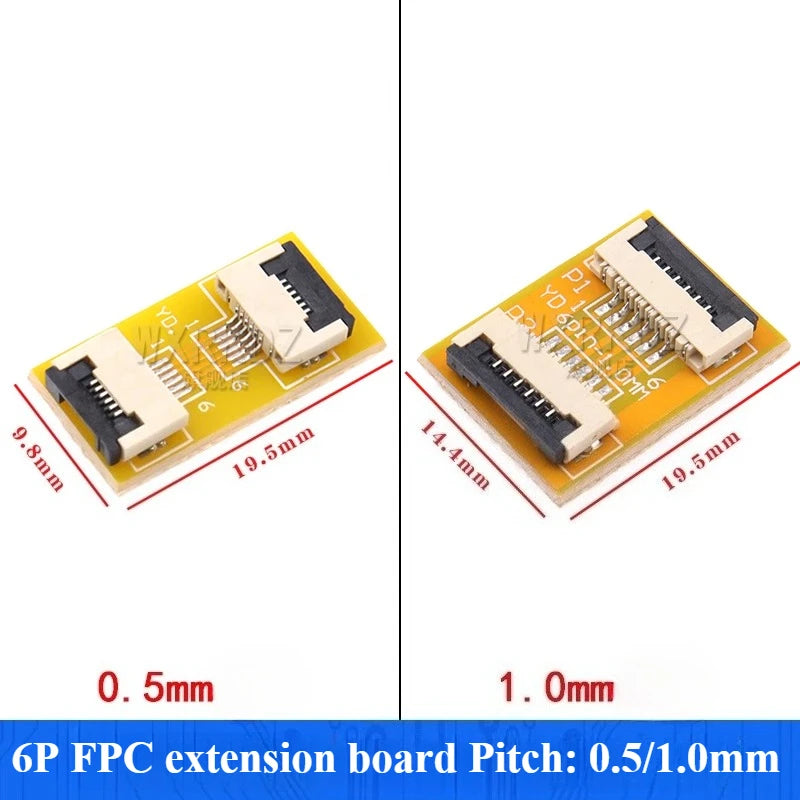

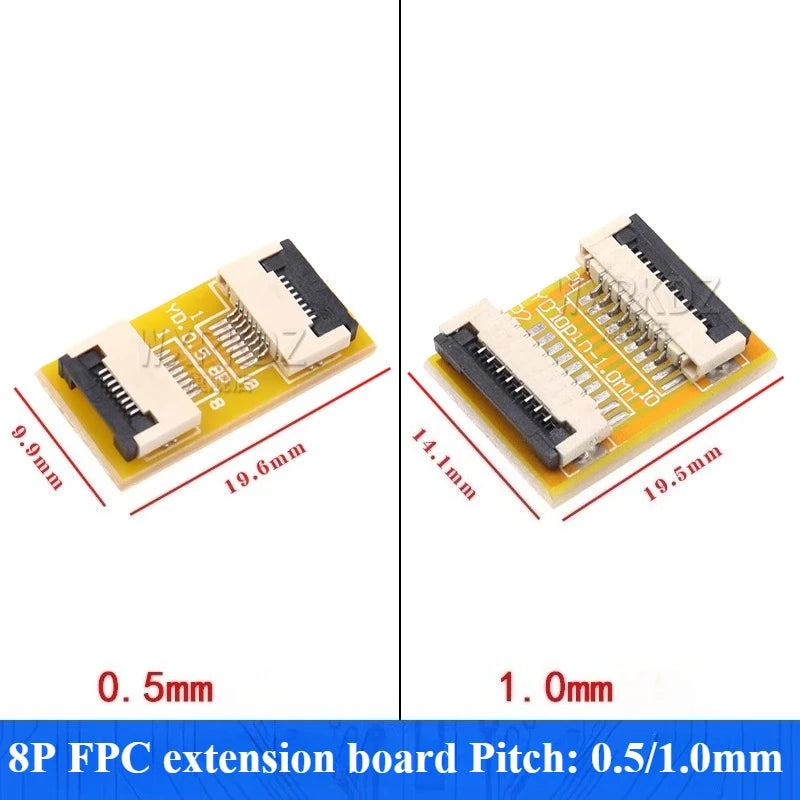

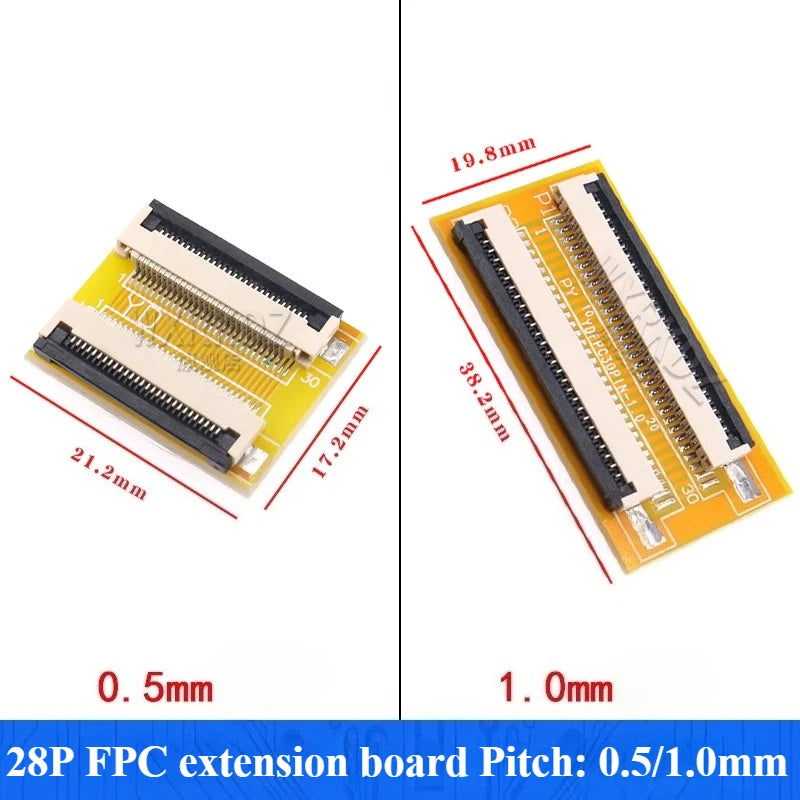

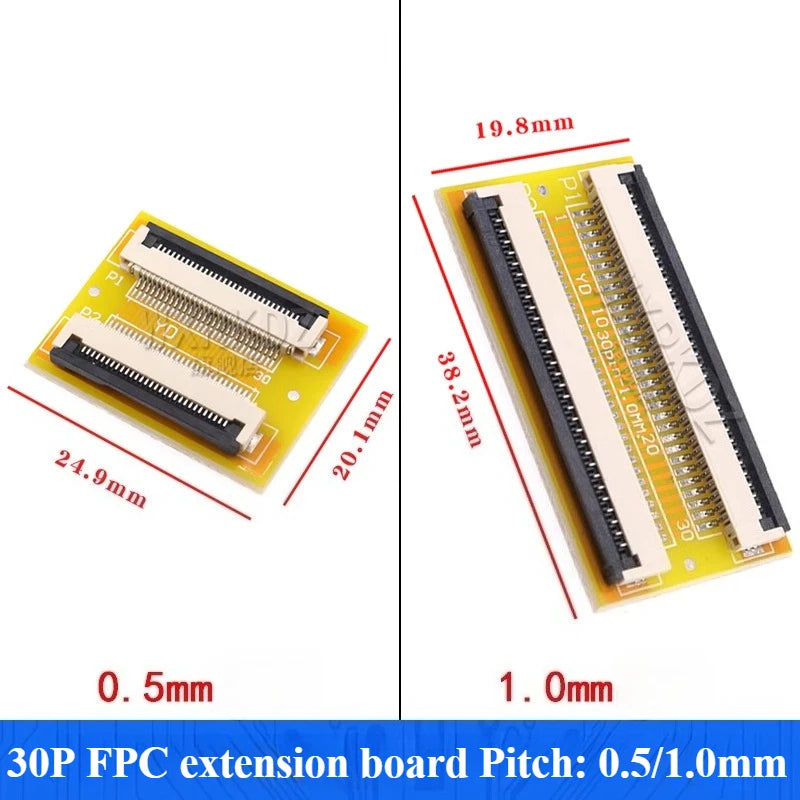

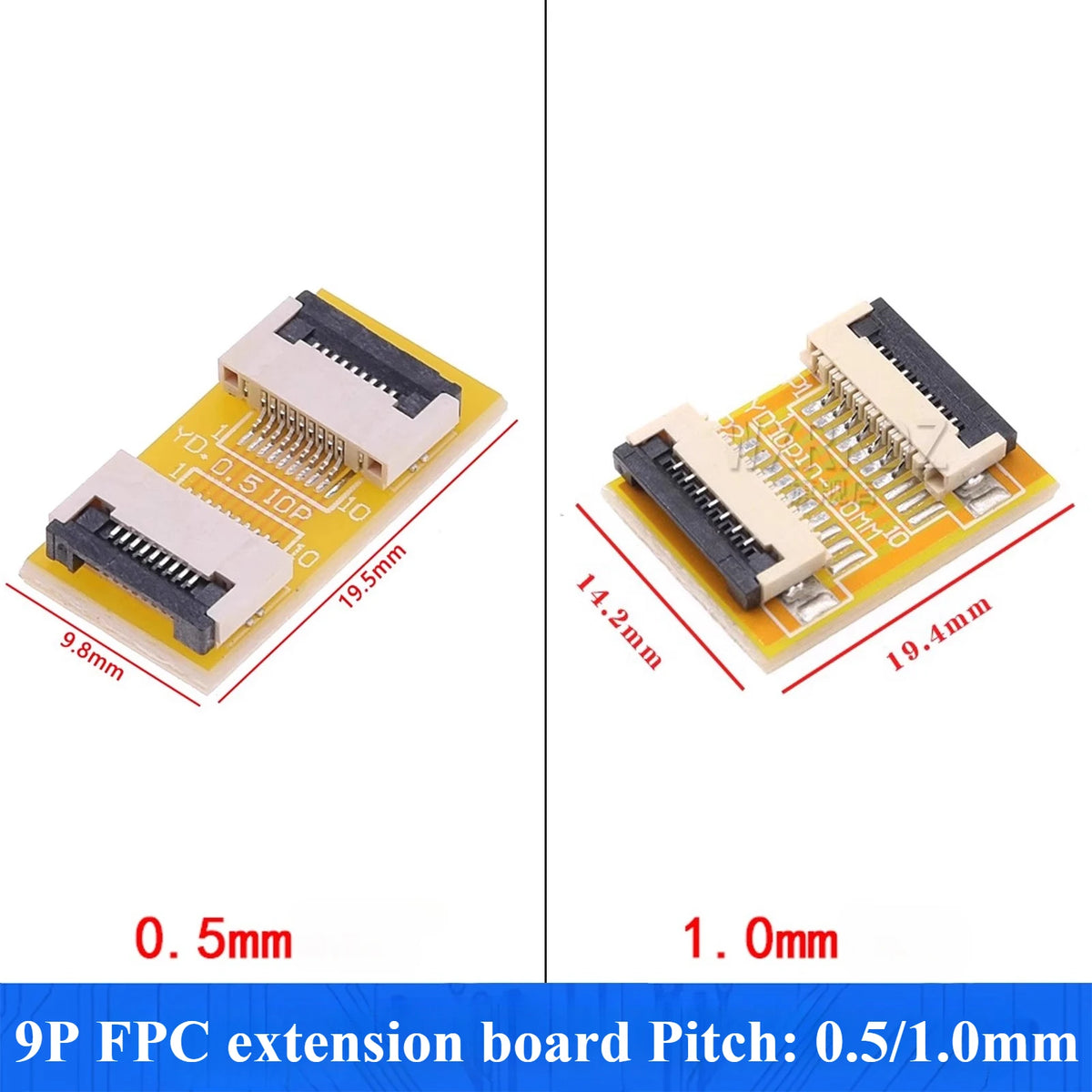

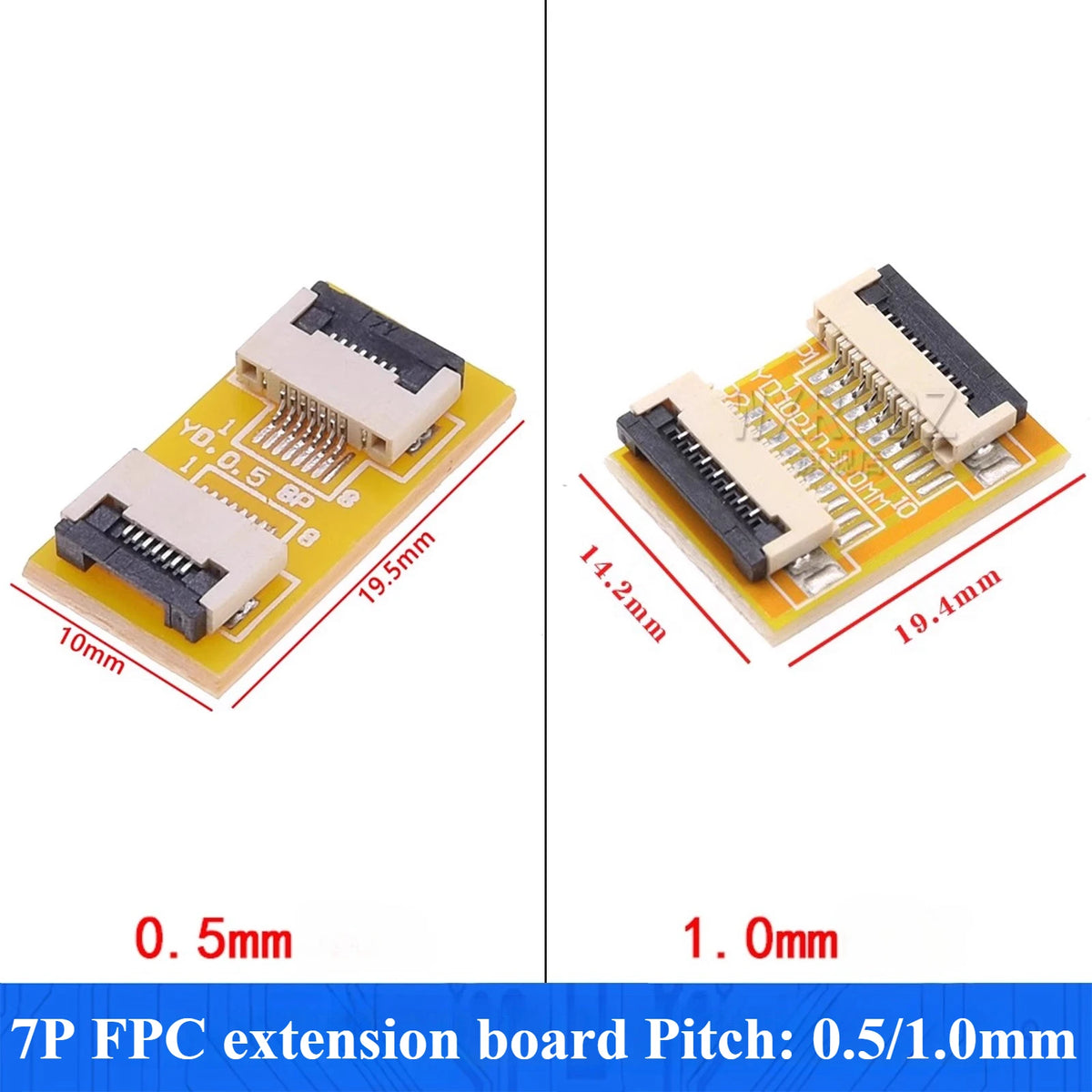

• Pin Count Options: 4, 5, 6, 8, 10, 12, 14, 15, 16, 22 ~ 60 Pins
• Contact Pitch: 1.0mm
• Supported Voltages: 5V / 12V / 20V / 30V
• EU LVD Rating: Below 50V AC or 75V DC (Low Voltage)
• Certifications: CE, RoHS
• Battery Included: No
• Wireless: No
• Country of Origin: Made in China

What's Included

• 1 × FPC/FFC Flexible Flat Cable Extension/Terminal Board Adapter

Great For

• PCB prototyping and electronics repair

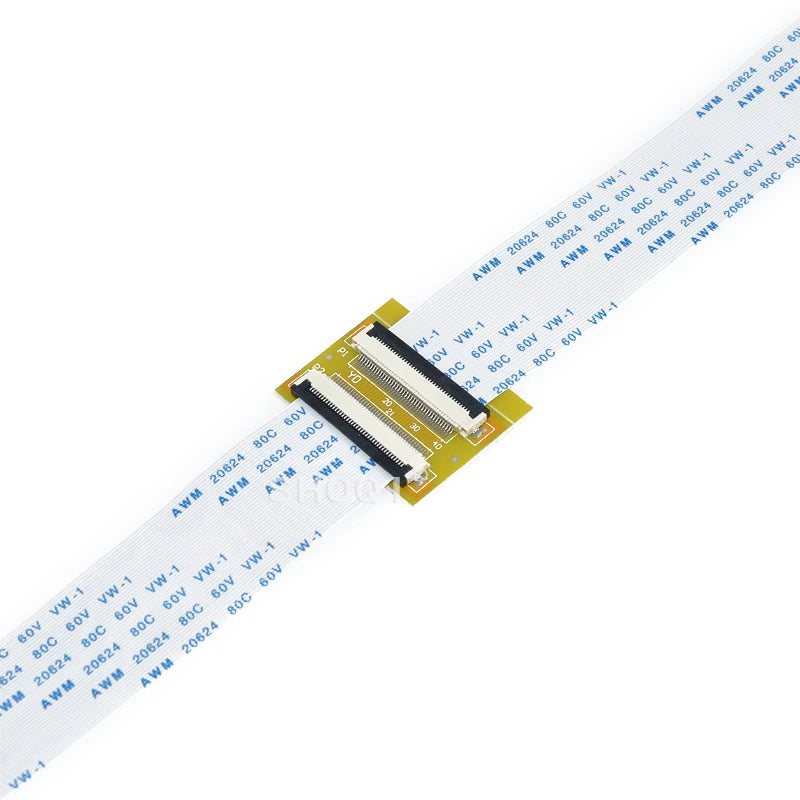

• Display ribbon cable extensions (LCD, TFT, OLED)
• Camera module and sensor connections
• DIY electronics and maker projects

Looking for more electronics components and wiring tools? Check out these related items in our store:

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What pin counts does this FPC FFC adapter board support?

A: This adapter supports a wide range of pin configurations including 4, 5, 6, 8, 10, 12, 14, 15, 16, and 22 up to 60 pins, all at a 1.0mm contact pitch. This makes it highly versatile for many FPC/FFC cable types used in electronics projects and repairs.

Q: Is this FPC/FFC adapter board compatible with standard flat flexible cables?

A: Yes. The adapter is designed for standard 1.0mm pitch FPC (Flexible Printed Circuit) and FFC (Flexible Flat Cable) connectors. It works with cables used in LCD displays, cameras, sensors, and other low-voltage electronic assemblies.

Q: What voltages does this adapter support?

A: This board supports circuit voltages of 5V, 12V, 20V, and 30V. Its EU LVD rating covers systems below 50V AC or 75V DC, making it suitable for a wide range of consumer and prototyping electronics applications.

Q: Does this adapter require any batteries or wireless setup?

A: No. This is a purely passive connection adapter — no battery, no wireless components, and no software configuration required. Simply connect your FPC/FFC cable and it's ready to use.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
