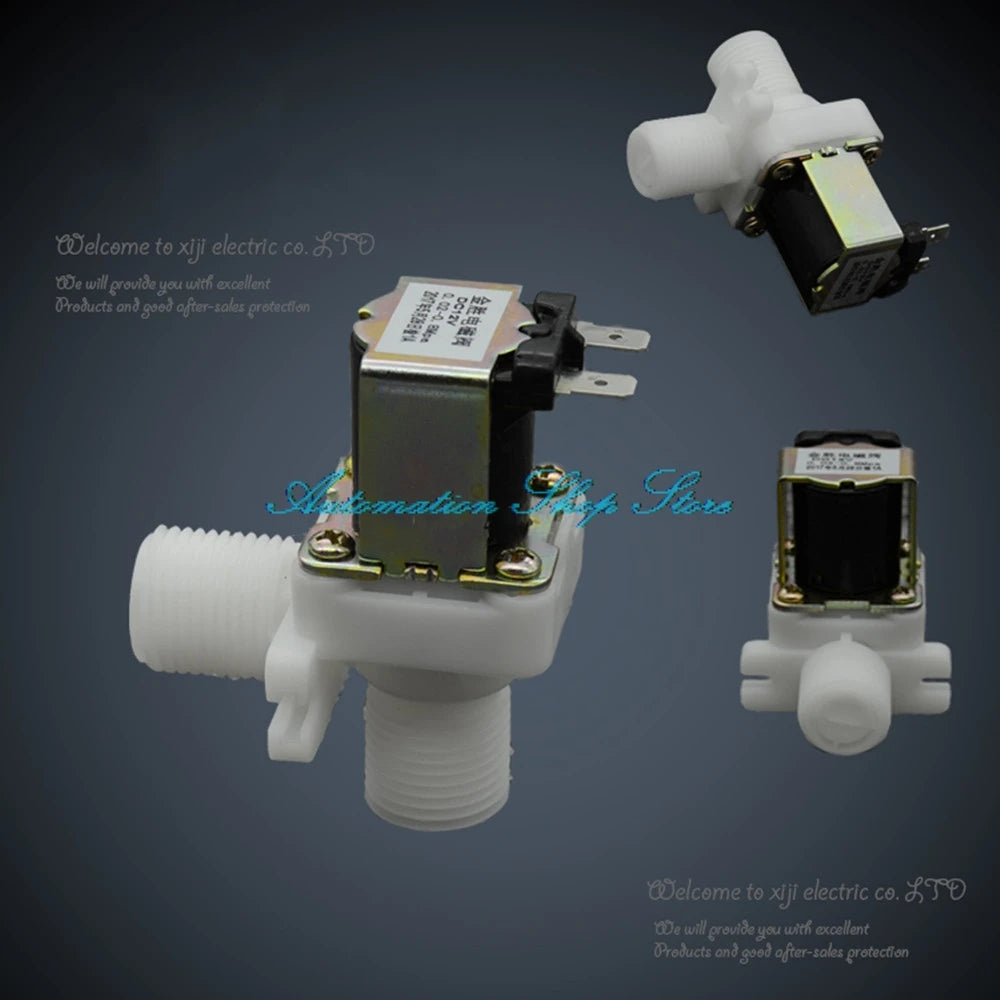

G1/2" Plastic Solenoid Water Valve 12V DC Right Angle NC/NO

G1/2" Plastic Solenoid Water Valve – 12V DC Right Angle Type

Take precise, automated control of your water flow with this durable G1/2" plastic solenoid water valve. Designed in a space-saving right-angle configuration, this 12V DC electric valve is ideal for water dispensers, washing machines, water purifiers, and other residential or light-commercial water control applications. Available in both Normally Closed (NC) and Normally Open (NO) configurations to suit your specific setup.

Made in Mainland China.

Key Specifications

• Port Size: G1/2" inlet × G1/2" outlet
• Voltage Options: DC 12V / DC 24V / AC 220V
• Type: Normally Closed (NC) or Normally Open (NO)
• Fluid Medium: Water
• Body Material: Durable Plastic
• Inlet Valve Pressure Range: 0.02 – 0.8 MPa
• Drain Valve Pressure Range: 0 – 0.1 MPa (up to 0.2 MPa)
• Operating Temperature Range: 0°C – 80°C
• Max Environment Temperature: 50°C
• Rated Lifespan: ≥ 300,000 cycles
• Configuration: Right Angle (90°) design
• Structure: Regulating / Standard

What This Valve Is Used For

• ✅ Water Dispensers – Reliable on/off water flow control
• ✅ Washing Machines – Functions as an inlet or drain water valve
• ✅ Water Purifiers & RO Systems – Compatible with standard G1/2" plumbing
• ✅ DIY Automation Projects – Easy integration with 12V control systems
• ✅ Irrigation & Fluid Control Systems – Low-pressure and pressurized lines

Important Notes

• Please specify your required voltage (DC12V / DC24V / AC220V) and valve type (NC or NO) when ordering.
• AC 220V drain water valves may produce minor vibration or operational noise during use — this is normal behavior.
• Inlet water valve: suitable for water pressure 0.02 – 0.8 MPa.
• Drain water valve: suitable for water pressure 0 – 0.1 MPa (up to 0.2 MPa).

You May Also Like

Looking for other useful accessories? Check out our 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals for easy wiring, or the Tactical EDC Tool Storage Handbag for keeping your tools organized on the job.

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What is the difference between a Normally Closed (NC) and Normally Open (NO) solenoid valve?

A: A Normally Closed (NC) solenoid valve remains closed when no electrical power is applied, and opens when powered. A Normally Open (NO) solenoid valve stays open when unpowered, and closes when energized. Choose NC for safety-off applications like water dispensers, and NO for systems that need water flow by default. Please specify your preference when ordering.

Q: Is this solenoid water valve compatible with standard washing machine plumbing?

A: Yes. This G1/2" plastic solenoid water valve features a standard G1/2" inlet and G1/2" outlet, making it directly compatible with most household washing machine inlet and drain plumbing connections. It operates on DC 12V, DC 24V, or AC 220V depending on your machine's requirements.

Q: What is the expected lifespan of this solenoid valve?

A: This plastic solenoid water valve is rated for a minimum of 300,000 operating cycles, ensuring long-lasting, dependable performance in continuous-use applications such as water dispensers, washing machines, and water purification systems.

Q: Can this valve handle hot water?

A: This valve supports a fluid temperature range of 0°C to 80°C, making it suitable for both cold and warm water applications. It is not recommended for boiling or steam applications beyond 80°C.
