HDC-HE Heavy Duty Connector 6–24 Core 16A 500V Aviation Plug

HDC-HE Heavy-Duty Connector Insert — Reliable Multi-Core Industrial Plug

Upgrade your electrical assemblies with the HDC-HE Heavy-Duty Connector — a robust, industrial-grade multi-core insert available in 6, 10, 16, and 24 pin configurations. Rated at 16A / 500V, this aviation-style plug insert is engineered for demanding environments, making it an excellent choice for control panels, automation systems, machinery wiring, and professional electrical installations.

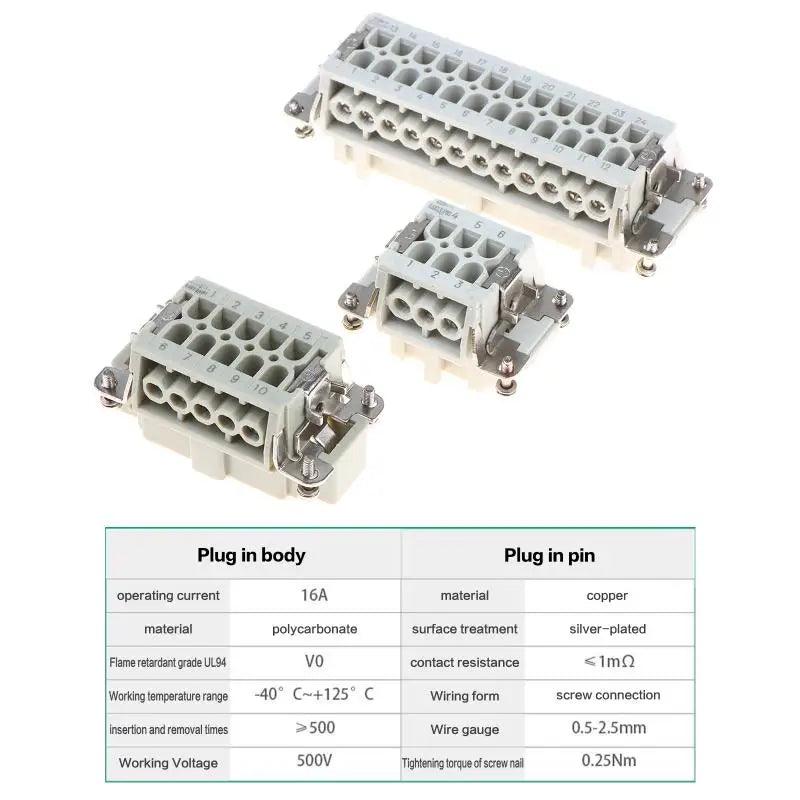

Key Specifications

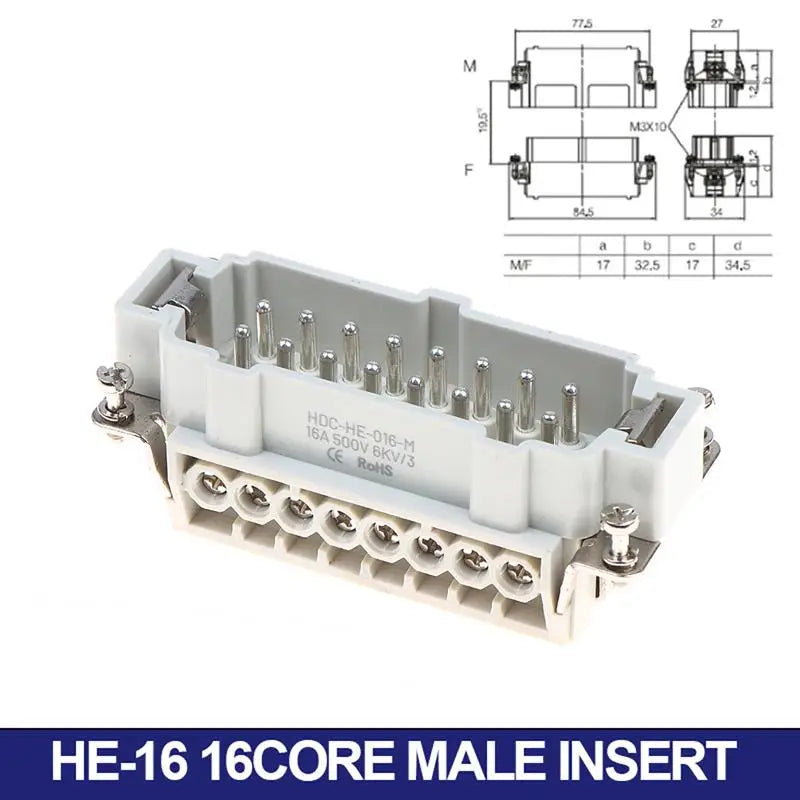

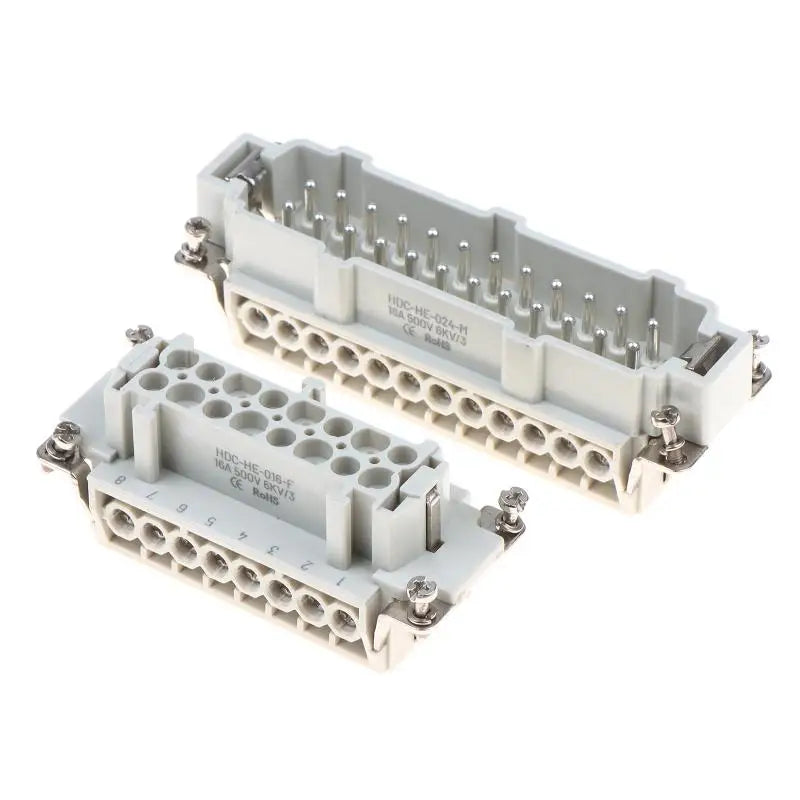

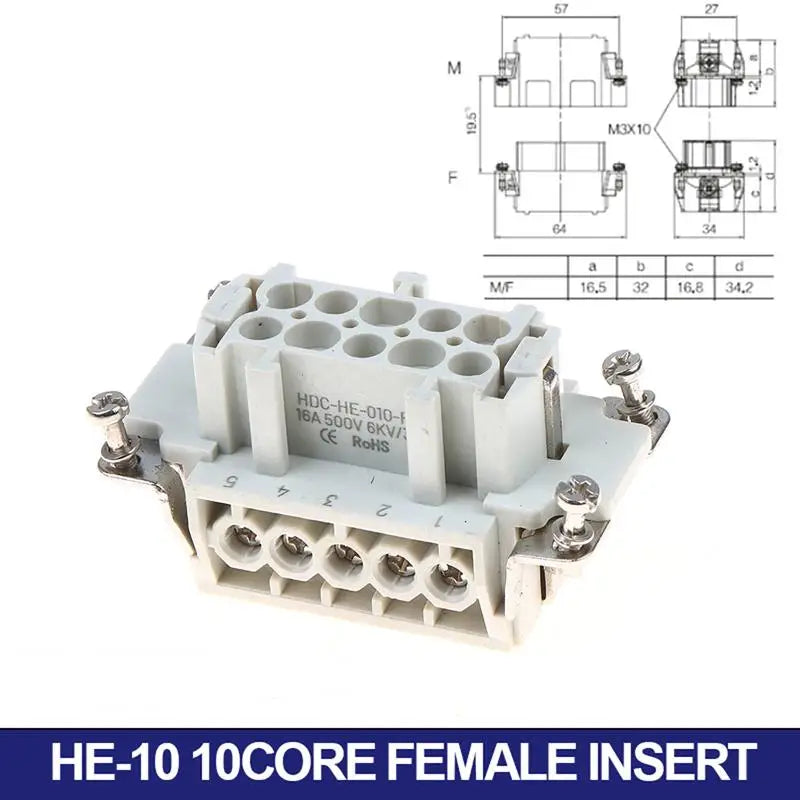

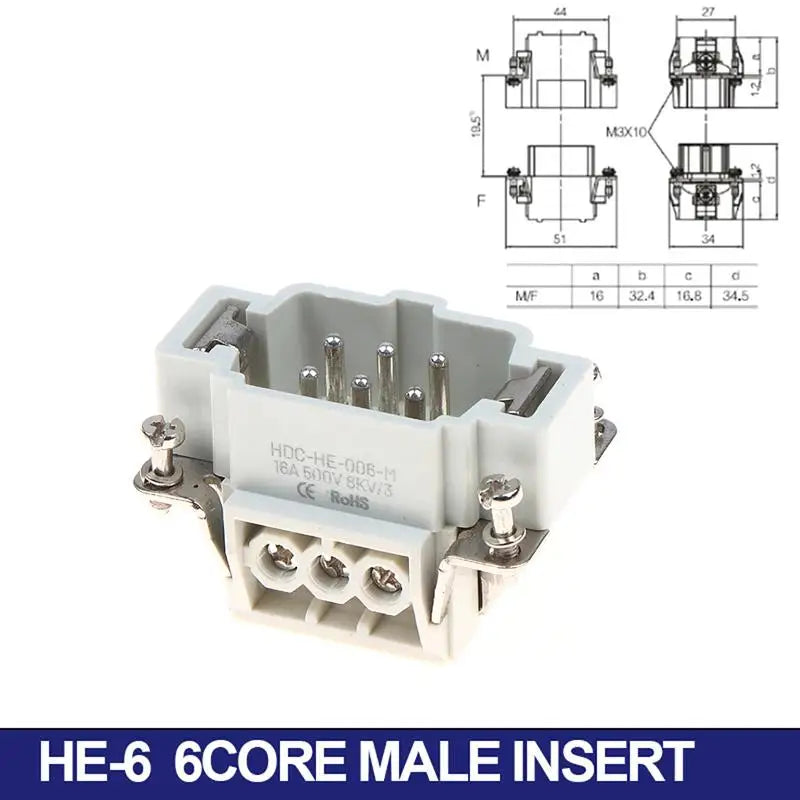

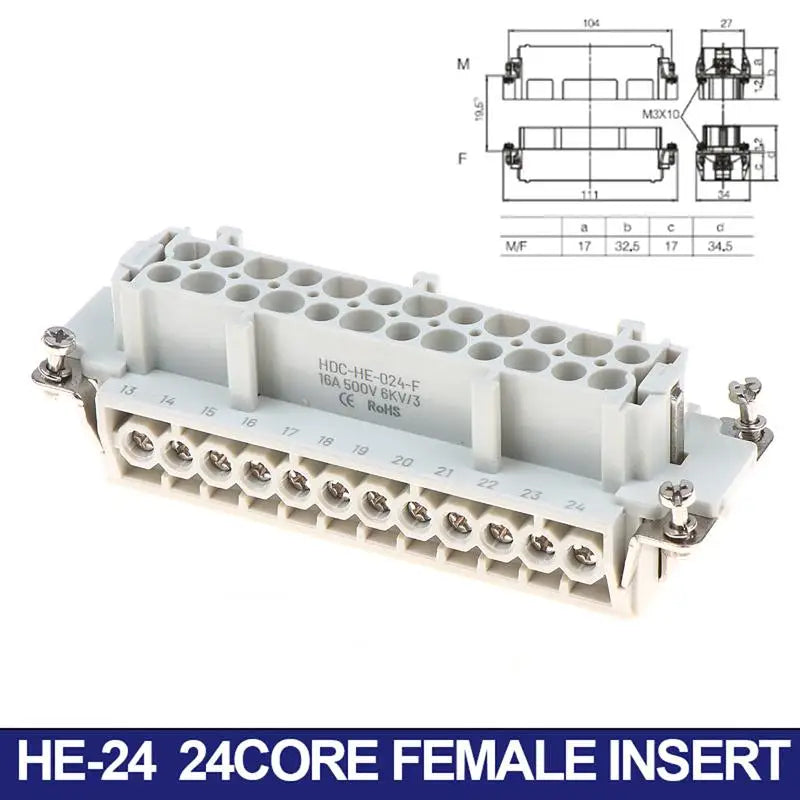

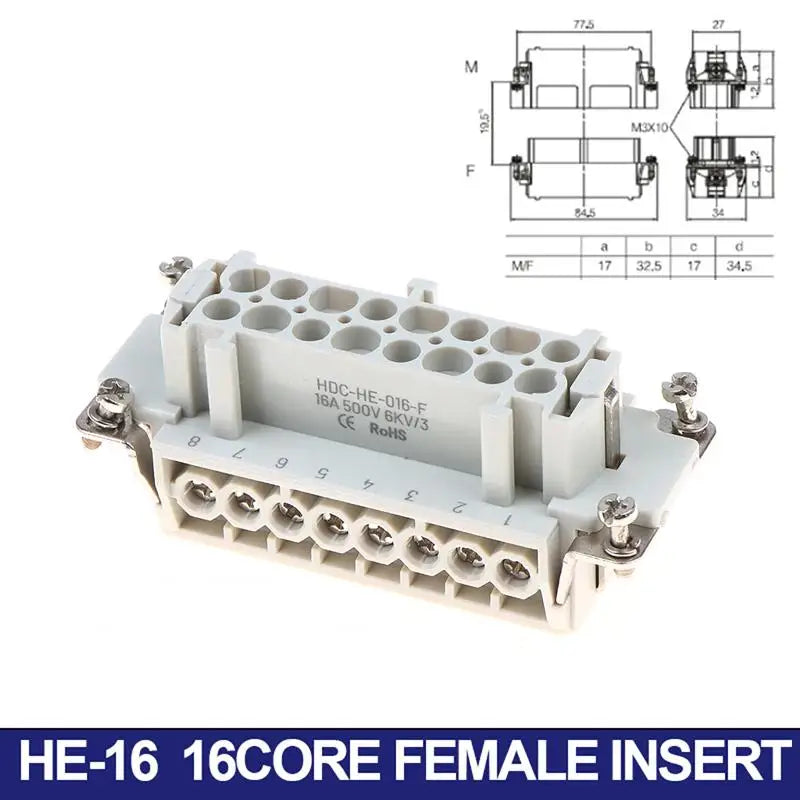

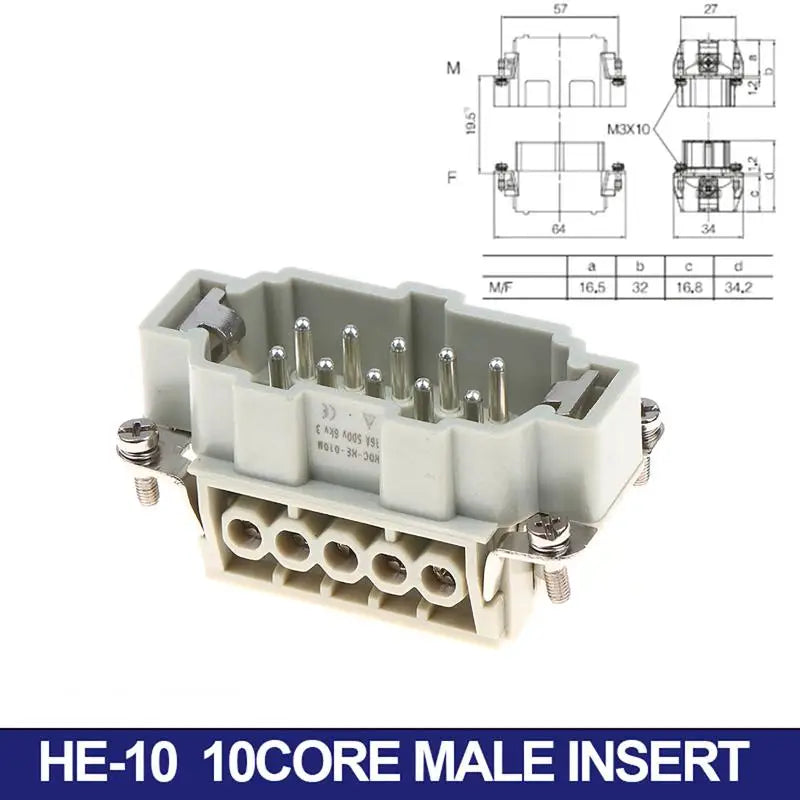

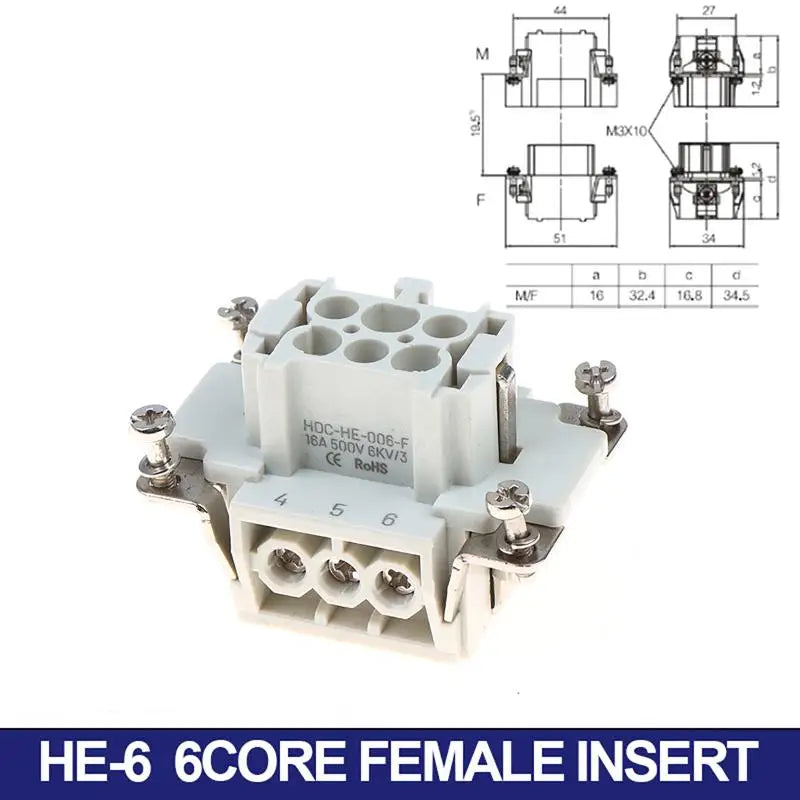

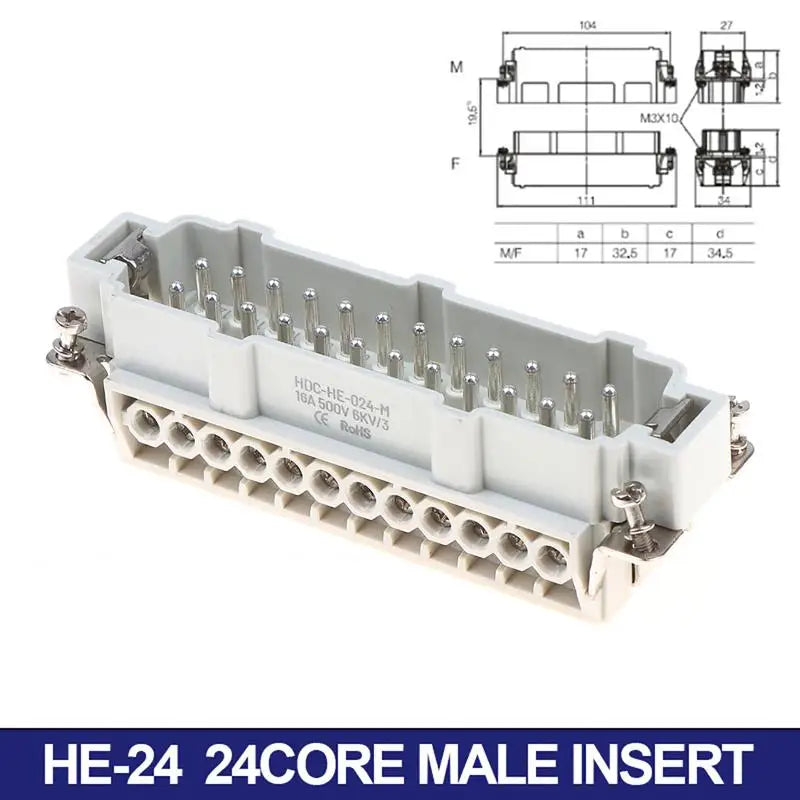

• Model: 6 / 10 / 16 / 24 Core (Connector pin options: 4 / 6 / 10 / 16 / 24)
• Rated Current: 16A
• Rated Voltage: 500V

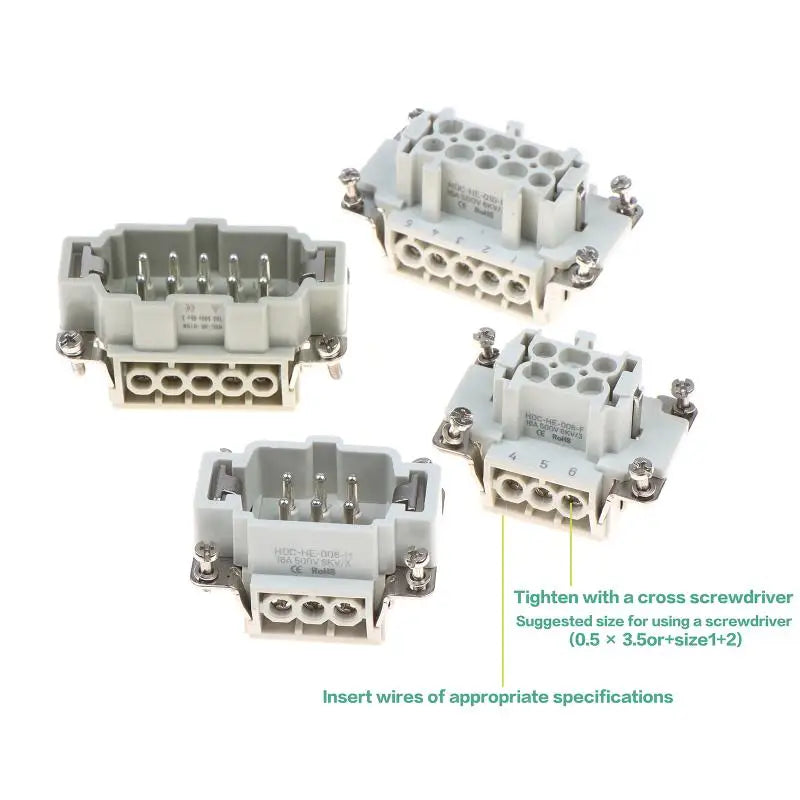

• Connection Type: Screw connection for a secure, vibration-resistant terminal bond
• Working Temperature: -40°C to +125°C — performs reliably in extreme conditions
• Material: High-quality Plastic housing + Copper contacts
• Color: Gray
• Package Quantity: 1 Piece (male or female insert, as selected)

Why Choose This Heavy-Duty Connector Insert?

• ✅ Wide Voltage & Current Rating — handles up to 500V and 16A for versatile industrial use
• ✅ Extreme Temperature Resistance — engineered to operate from -40°C to +125°C without degradation
• ✅ Screw-Type Terminals — ensures a firm, reliable electrical connection that won't loosen over time

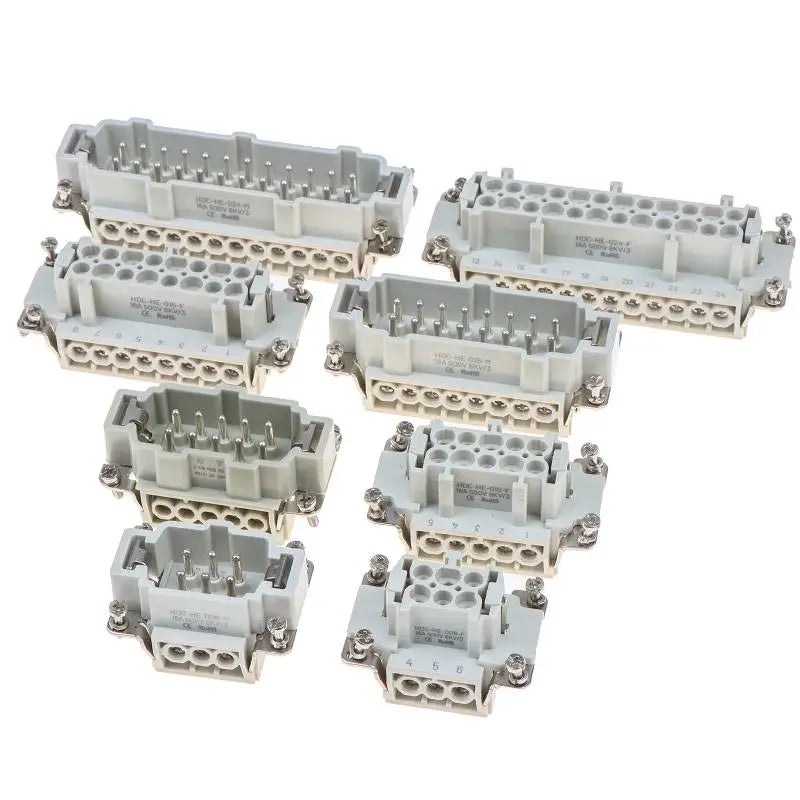

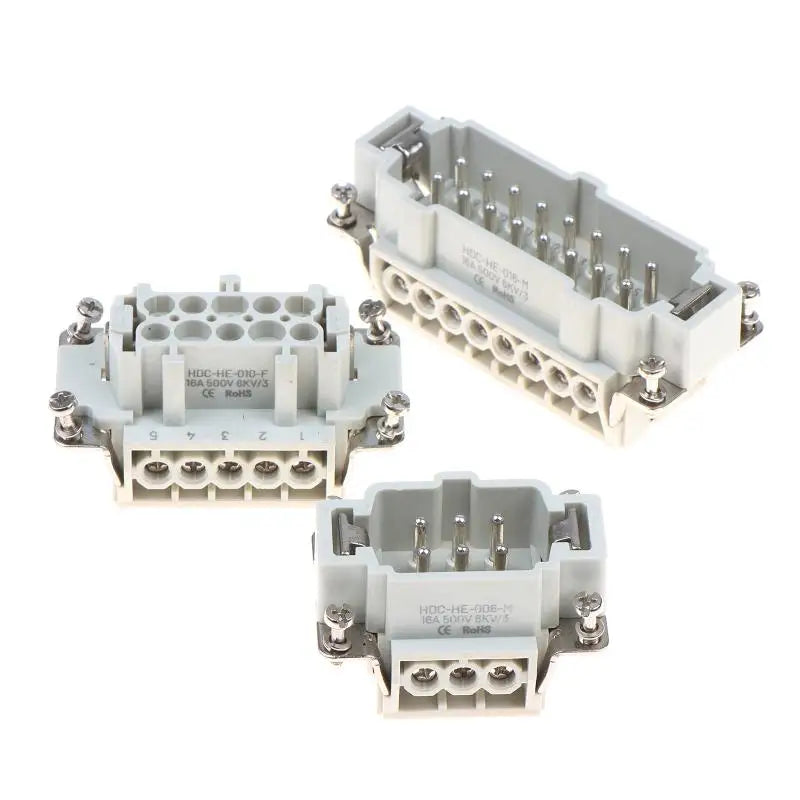

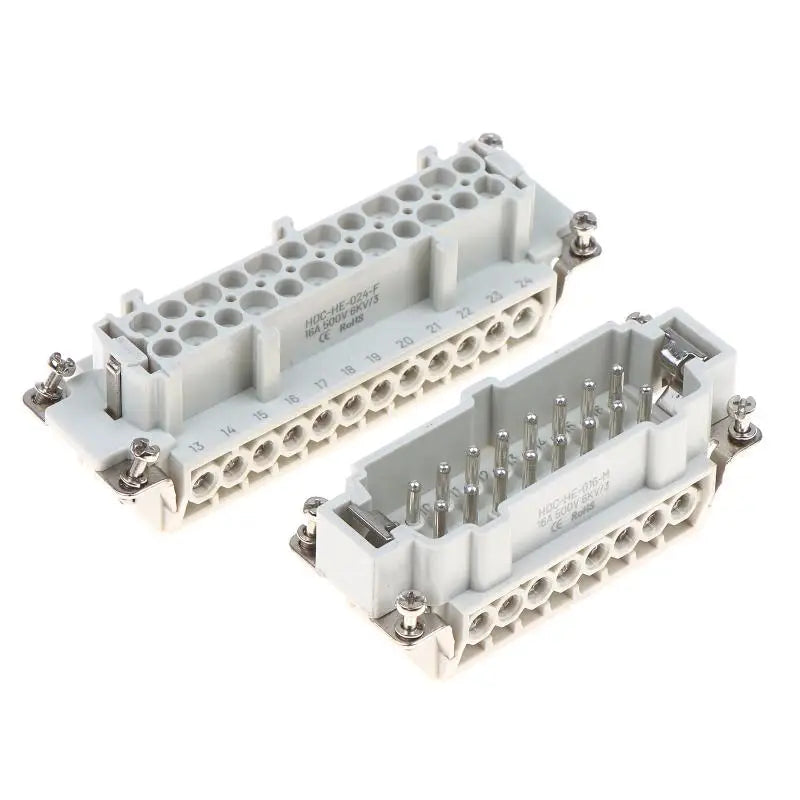

• ✅ Multiple Pin Configurations — choose 4, 6, 10, 16, or 24 pins to match your exact wiring needs
• ✅ Durable Copper Contacts — excellent conductivity and long service life
• ✅ Compatible with HDC-HE Standard Housings — drop-in fit for standard heavy-duty connector shells

Ideal Applications

This HDC-HE connector insert is perfectly suited for:

• Industrial machinery and control cabinet wiring
• Automation and robotics systems
• Power distribution panels
• Aviation and aerospace ground support equipment
• Marine and outdoor electrical installations
• DIY electronics projects requiring high-current, multi-pin connections

Made in Mainland China.

Note: Please allow 2–3% dimensional variance due to manual measurement. Actual product color may vary slightly from images due to monitor display differences.

You May Also Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What pin configurations are available for the HDC-HE heavy-duty connector insert?

A: This connector insert is available in 4, 6, 10, 16, and 24-pin configurations, covering a wide range of multi-core wiring needs for industrial and automation applications.

Q: Is this connector compatible with standard HDC-HE housing shells?

A: Yes. This insert is designed to be fully compatible with standard HDC-HE heavy-duty connector housings, making it a straightforward drop-in replacement or upgrade for existing assemblies.

Q: What is the maximum voltage and current rating for this connector?

A: The HDC-HE connector insert is rated for a maximum of 500V and 16A, making it suitable for a broad range of industrial power and control wiring applications.

Q: Can this connector be used in extreme temperature environments?

A: Absolutely. The connector is engineered to operate reliably across a working temperature range of -40°C to +125°C, ensuring dependable performance in both cold and high-heat industrial environments.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
