Height Marking Gauge 5–105mm – Woodworking Line Drawing Tool

Height Marking Gauge – Multi-Function Line Drawing Locator for Woodworking & DIY

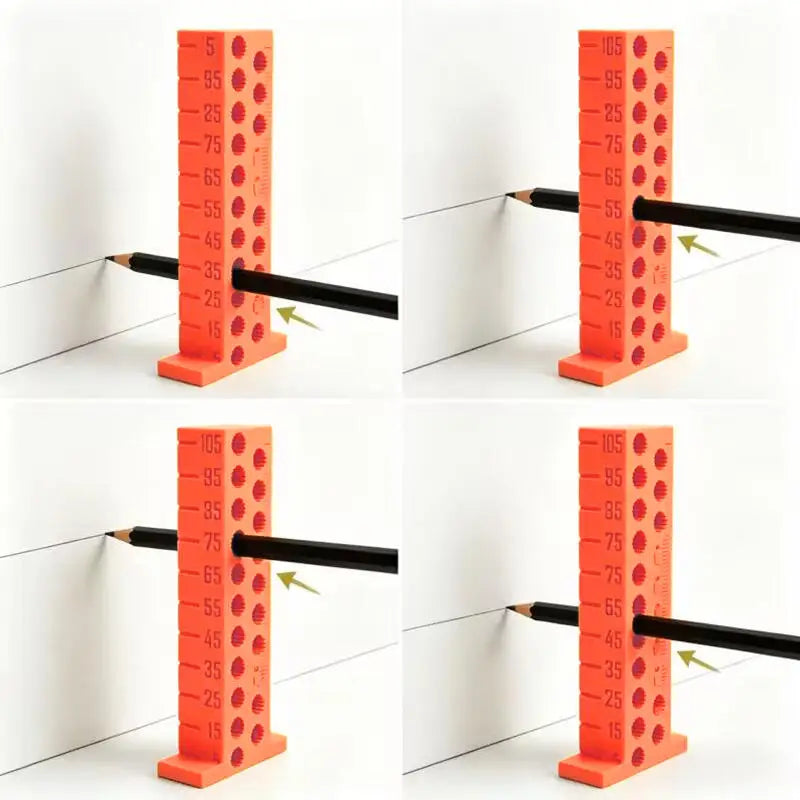

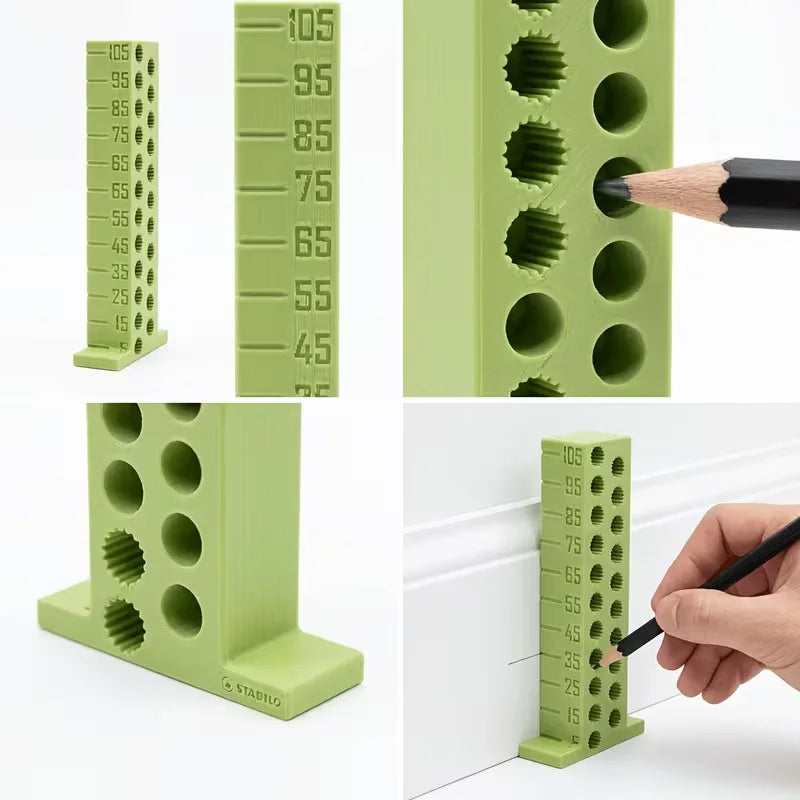

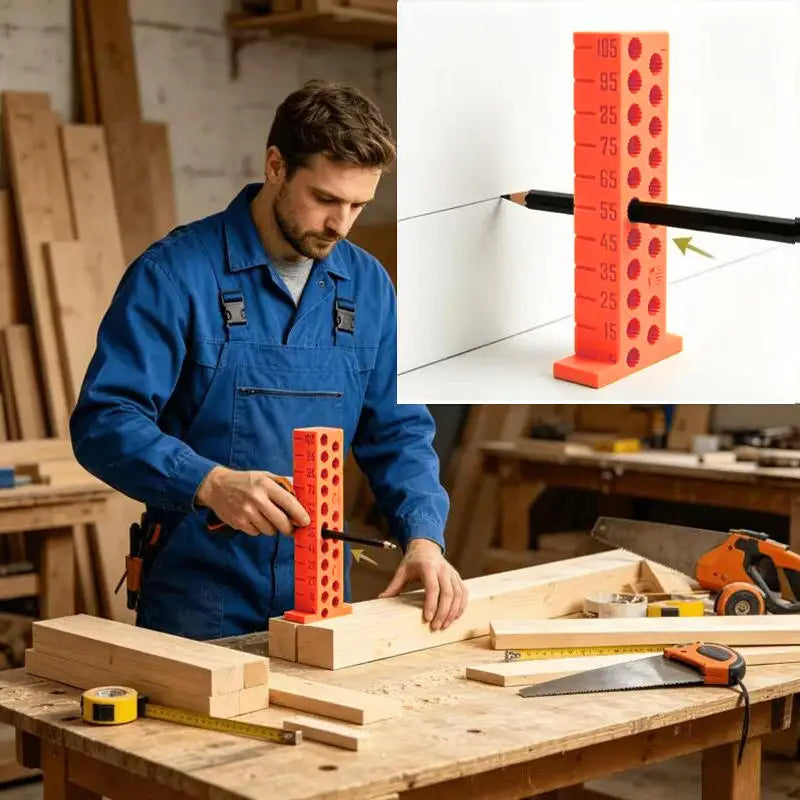

Take the guesswork out of your woodworking and DIY projects with this versatile Height Marking Gauge. With an adjustable range of 5 to 105 mm, this compact PP plastic tool lets you scribe precise parallel lines, mark consistent heights, and locate reference points quickly and accurately — every single time.

Key Features

• Wide Adjustment Range: 5–105 mm range covers a broad variety of marking tasks in woodworking, cabinetry, furniture making, and general DIY.
• Multi-Function Design: Serves as a height marker, line drawing locator, and scribing gauge all in one handy tool.
• Durable PP Plastic Construction: Lightweight yet sturdy polypropylene body holds up to repeated workshop use.
• Easy to Read & Use: Clear graduated markings make setting your desired height fast and simple, even mid-project.
• Compact & Portable: Slim profile fits comfortably in a tool belt, apron pocket, or toolbox.

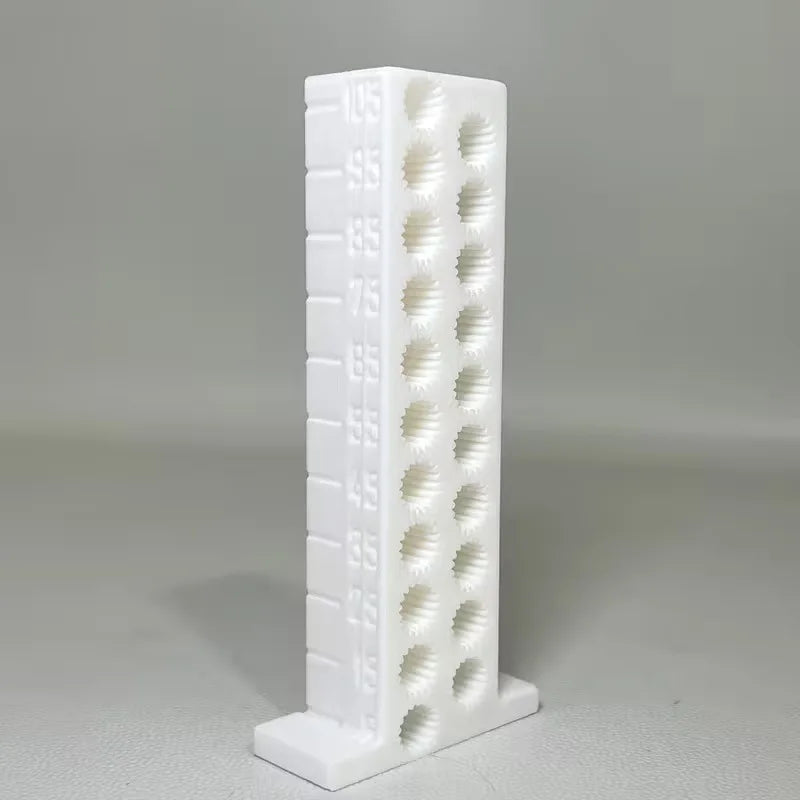

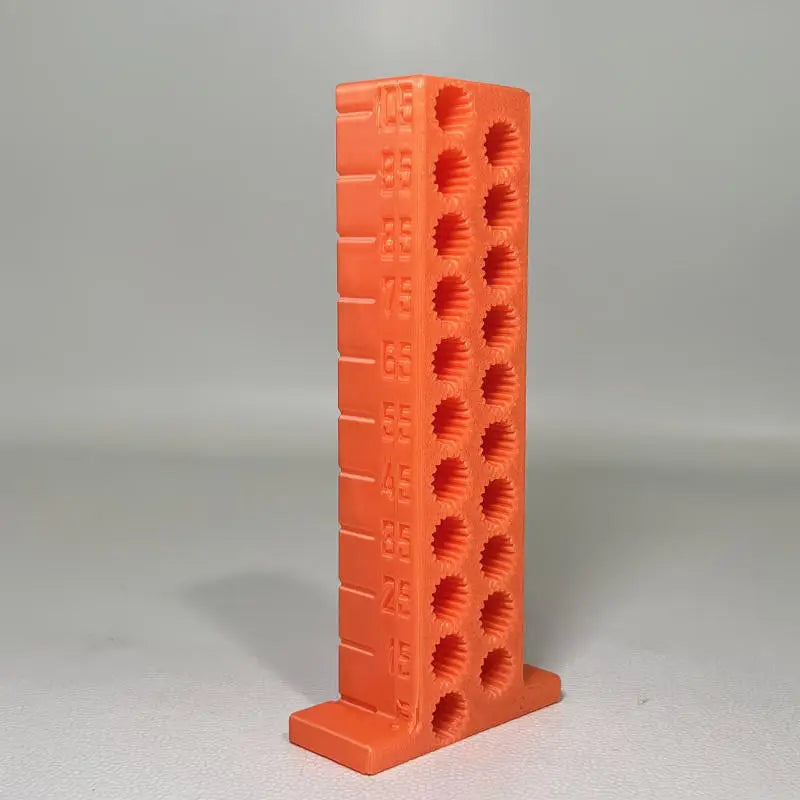

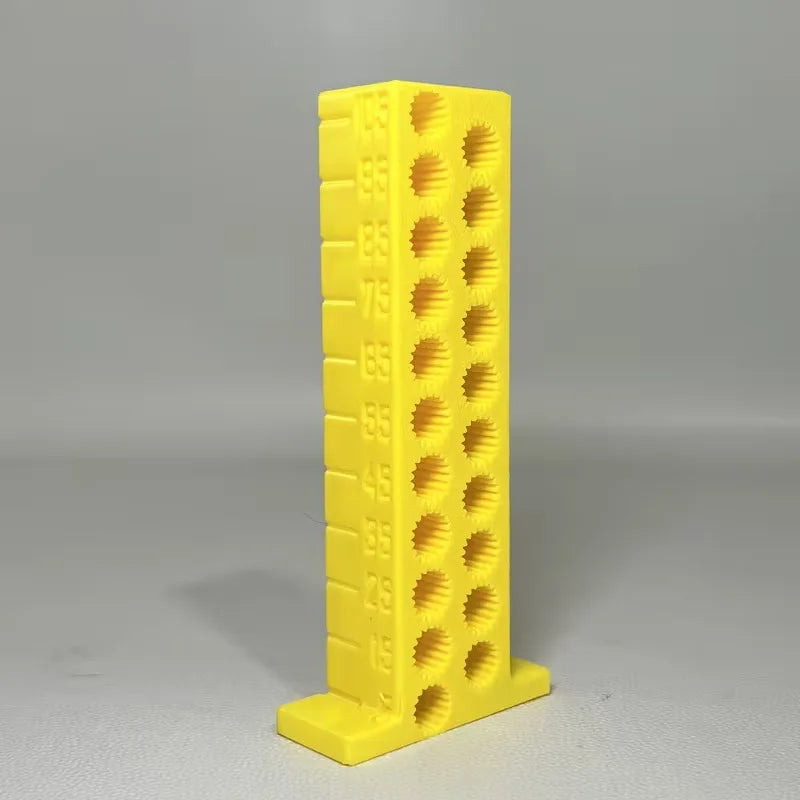

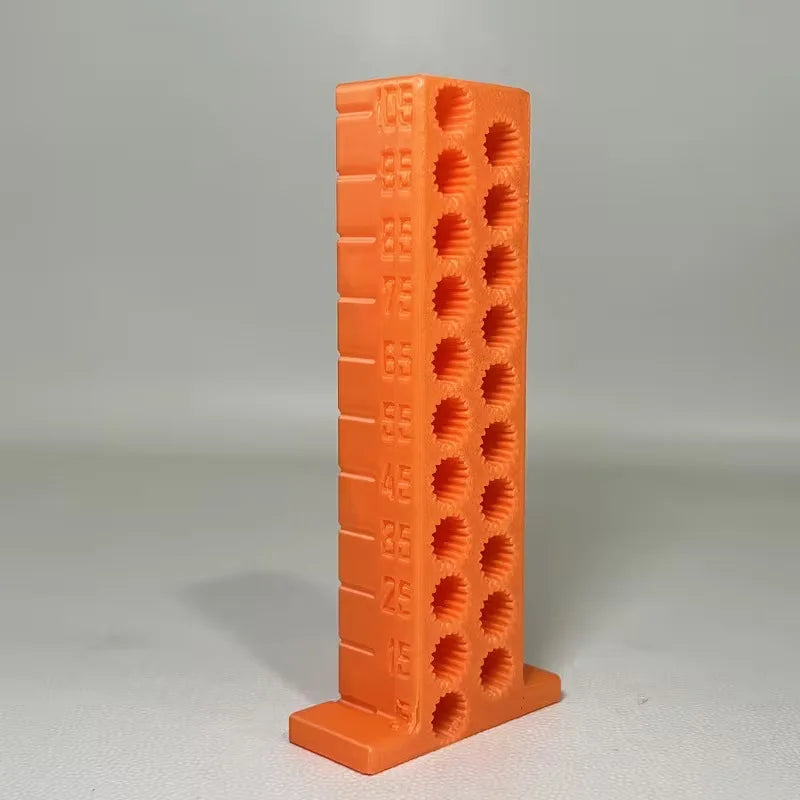

• Available in Multiple Colors: Orange, Yellow, and White — easy to spot on a busy workbench.

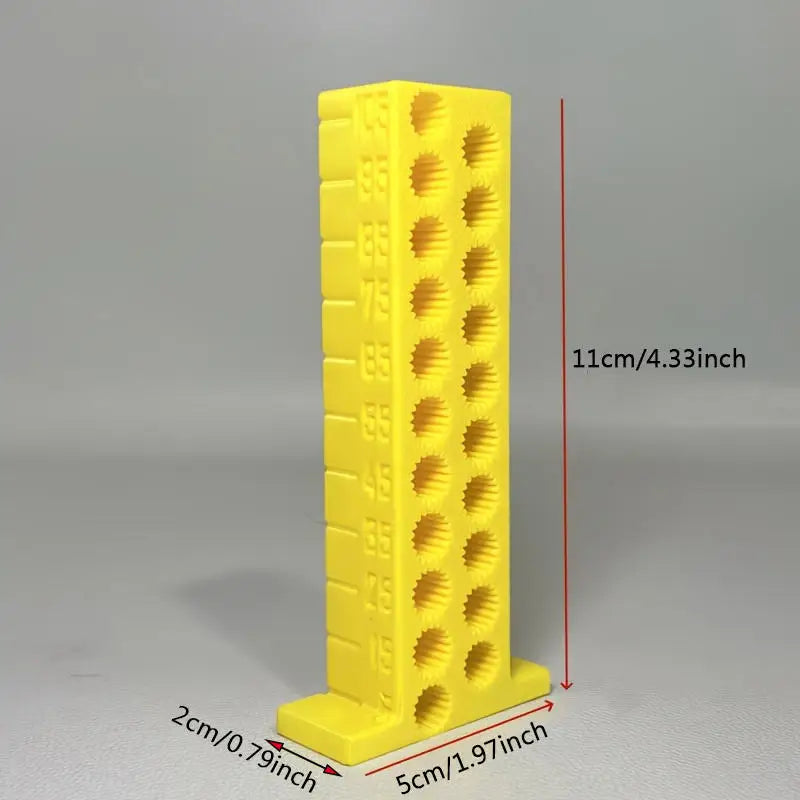

Specifications

• Material: PP (Polypropylene) Plastic
• Measurement Range: 5–105 mm
• Colors Available: Orange, Yellow, White
• Package Contents: 1 × Height Marking Gauge
• Country of Origin: Made in China

Who Is This For?

Whether you're a seasoned woodworker, a weekend DIY enthusiast, or a hobbyist crafter, this marking gauge delivers the precision you need for clean, consistent lines. It's ideal for marking tenons, mortises, dadoes, dowel positions, cabinet hardware placement, and much more.

Note on Measurements & Color

Please allow a tolerance of ±1–2 cm due to manual measurement. Colors shown on screen may vary slightly from the actual product due to monitor settings and lighting conditions.

You Might Also Like

• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
• 10Pcs Broom Handle Grip Sleeve 22mm High-Elasticity Nonslip

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What is the measurement range of this height marking gauge?

A: This marking gauge adjusts from 5 mm to 105 mm, giving you a wide range to handle most standard woodworking and DIY marking tasks with ease.

Q: What material is the marking gauge made from?

A: The gauge is made from PP (polypropylene) plastic — a durable, lightweight material that is resistant to workshop wear and easy to handle for extended periods.

Q: Can this tool be used for tasks other than woodworking?

A: Absolutely! While it is designed with woodworking in mind, this multi-function line drawing locator can be used for general DIY projects, furniture assembly, tile layout marking, cabinet installation, and other craft or home improvement tasks that require consistent, repeatable height measurements.

Q: What colors does the height marking gauge come in?

A: The gauge is available in Orange, Yellow, and White. Note that on-screen colors may appear slightly different from the actual product due to monitor brightness and contrast settings.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
