Hex Flange Nylon Insert Lock Nuts M3–M12 | Stainless & Carbon
Hex Flange Nylon Insert Lock Nuts M3–M12 | Stainless & Carbon
Details

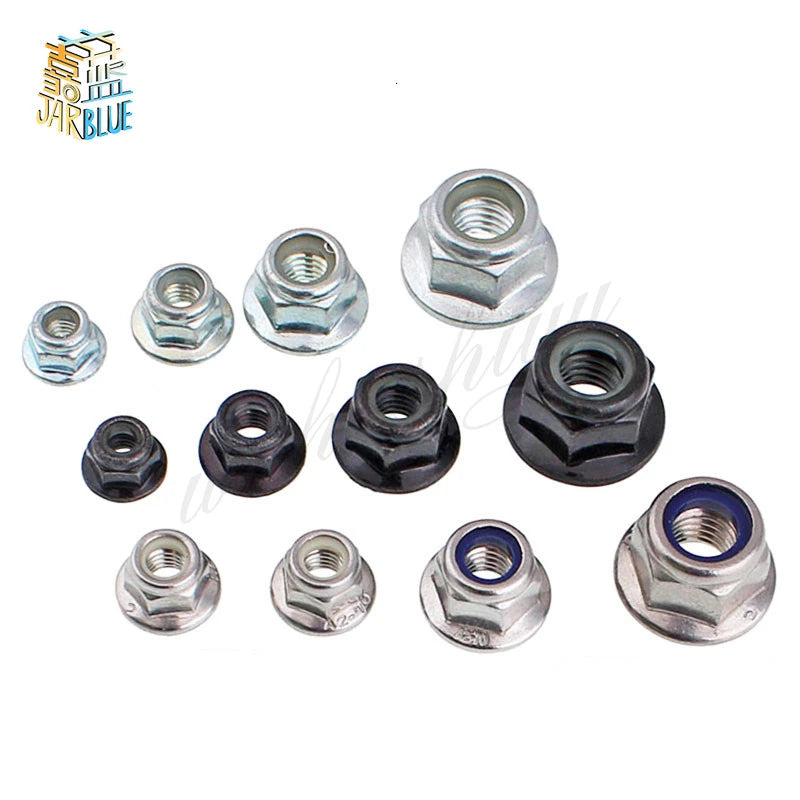

Hex Flange Nylon Insert Lock Nuts — M3 to M12
Keep your fasteners firmly in place with these high-quality hex flange nylon insert lock nuts (nylock locknuts). The integrated nylon insert creates a secure friction lock that resists loosening caused by vibration, thermal cycling, and dynamic loads — making them ideal for machinery, automotive assemblies, woodworking projects, electronics enclosures, and general DIY applications.

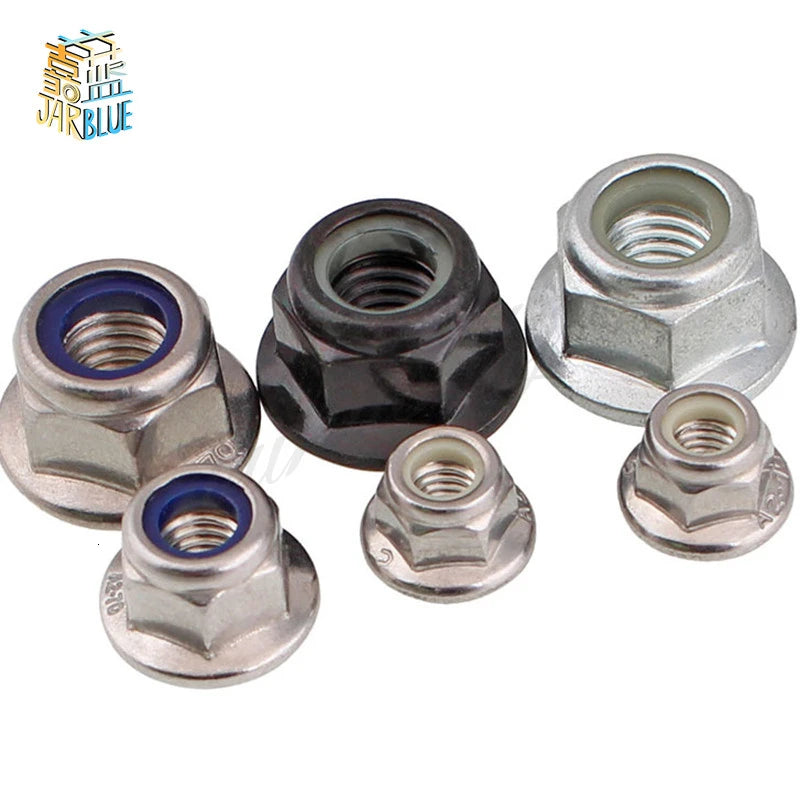

Material Options
- 304 Stainless Steel (A2-70) — Corrosion-resistant, CE & RoHS certified, suitable for outdoor and humid environments
- Carbon Steel — Black Zinc-Plated — Enhanced surface protection with a sleek black finish
- Carbon Steel — White Zinc-Plated — Classic zinc coating for everyday fastening needs

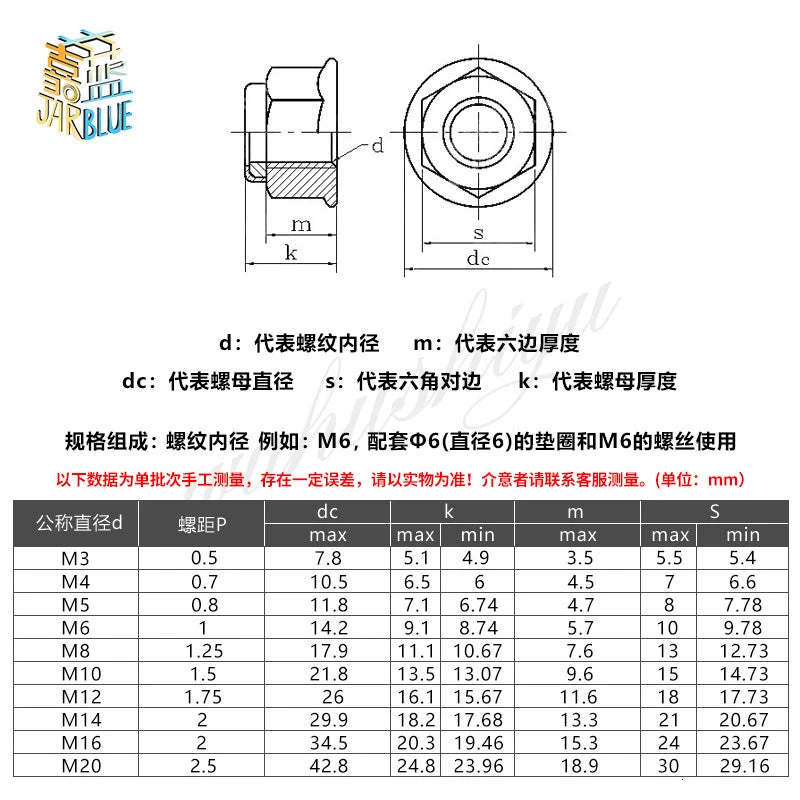

Thread Sizes & Pitches Available
| Size | Thread Diameter | Thread Pitch |
|---|---|---|
| M3 | 3 mm | 0.5 mm |
| M4 | 4 mm | 0.7 mm |
| M5 | 5 mm | 0.8 mm |
| M6 | 6 mm | 1.0 mm |
| M8 | 8 mm | 1.25 mm |
| M10 | 10 mm | 1.5 mm |
| M12 | 12 mm | 1.75 mm |
Key Features
- ✅ Nylon insert locking mechanism — prevents self-loosening under vibration
- ✅ Flanged bearing surface — distributes load evenly without a separate washer
- ✅ CE & RoHS certified (stainless steel variants)
- ✅ Customizable quantities — available in packs of 2, 5, or 10
- ✅ Metric standard threading — compatible with standard M-series bolts and screws
- ✅ Wide range of applications — machinery, automotive, DIY woodworking, electronics, and more
Specifications
- Brand: JARBLUE
- Type: Hex Flange Nylon Insert Lock Nut (Nylock)
- Materials: 304 Stainless Steel / Carbon Steel (Black or White Zinc-Plated)
- Sizes: M3, M4, M5, M6, M8, M10, M12
- Certification: CE, RoHS
- Country of Origin: Made in China
You Might Also Like
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
- 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
- 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is the difference between a nylon insert lock nut and a standard hex nut?
A: A nylon insert lock nut (nylock) features a nylon collar at the top of the nut. When tightened onto a bolt, the nylon collar grips the thread and creates additional friction that prevents the nut from vibrating loose over time. A standard hex nut relies solely on clamping force and can work loose under vibration without additional thread-locking measures.
Q: Can these hex flange nylon lock nuts be reused?
A: Nylon insert lock nuts can be reused a limited number of times, but the locking effectiveness of the nylon insert decreases with each use. For safety-critical or high-vibration applications, it is recommended to use a fresh nut. For general DIY and low-vibration applications, careful reuse is acceptable.
Q: What is the advantage of the flanged design over a standard hex nut?
A: The integrated flange acts as a built-in washer, spreading the clamping load over a larger surface area. This reduces the risk of the nut sinking into soft materials, helps prevent surface damage, and eliminates the need for a separate flat washer in most applications — saving assembly time and reducing part count.
Q: Are these lock nuts suitable for outdoor or corrosive environments?
A: Yes — the 304 stainless steel (A2-70) variants offer excellent corrosion resistance, making them well-suited for outdoor, marine-adjacent, or humid environments. The carbon steel zinc-plated variants provide moderate corrosion protection and are best suited for indoor or sheltered applications.
