HGLRC M100 Mini GPS Module – Precision Positioning for FPV Racing Drones
The HGLRC M100 Mini GPS Module packs cutting-edge 10th-generation M10 chip technology into an ultra-compact 15×15×5.2 mm footprint — making it the perfect GPS solution for 2–7 inch freestyle, long-range, and FPV racing drones. With multi-constellation satellite support and a built-in ceramic antenna, you get fast, accurate positioning wherever you fly. Made in China.
Why Choose the HGLRC M100 Mini GPS?
- 10th-Generation M10 Chip: Delivers lightning-fast satellite acquisition and highly accurate positioning right out of the box.
- Ultra-Compact Form Factor: At just 15×15×5.2 mm and 2.6 g, it fits seamlessly on any 2–7 inch FPV or racing drone without adding bulk.

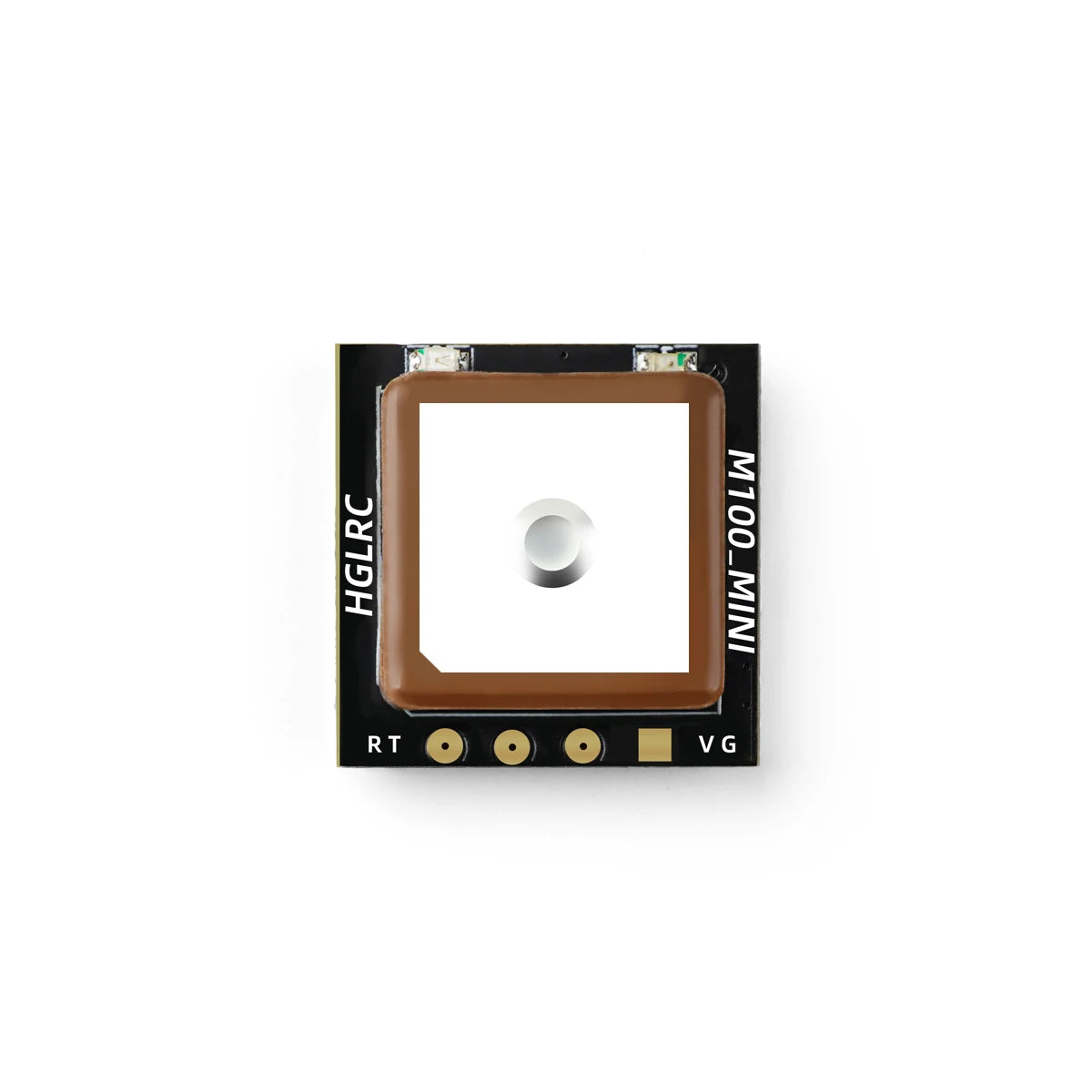

- Built-In Ceramic Antenna: The integrated ceramic antenna plus externally expanded PCB design maximises satellite signal reception even in challenging environments.
- 72-Channel Multi-Constellation Support: Simultaneously receives GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, and QZSS L1 signals for fast lock in any location worldwide.

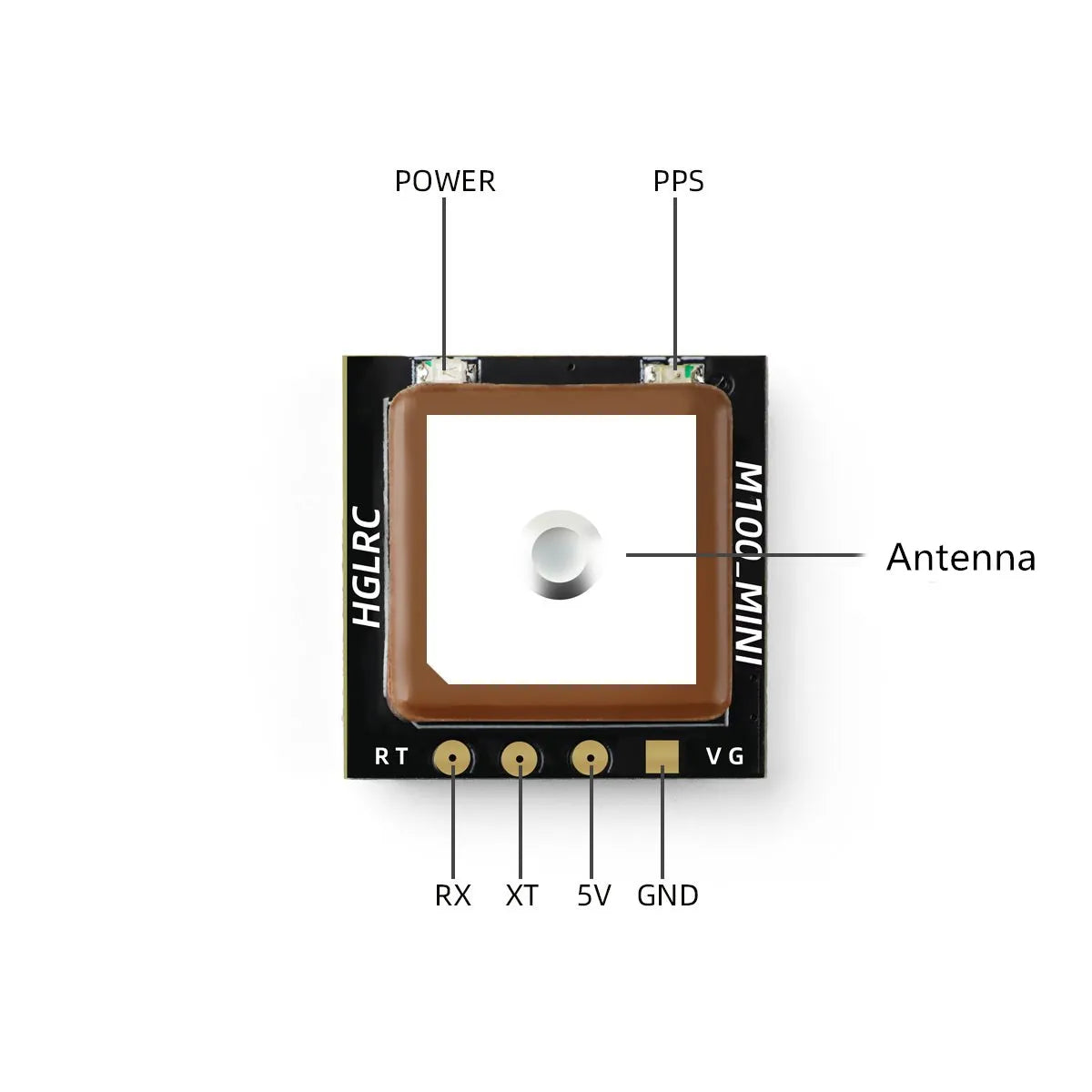

- Onboard LED Indicators: Dedicated POWER and PPS indicator LEDs let you monitor GPS working status at a glance — no guesswork needed.
- Wide Voltage Input: Compatible with 3.3V–5V DC power supplies, making integration with virtually any flight controller straightforward.
- High Output Frequency: 10 Hz update rate and 115200 bps baud rate ensure real-time, smooth positional data for demanding FPV applications.

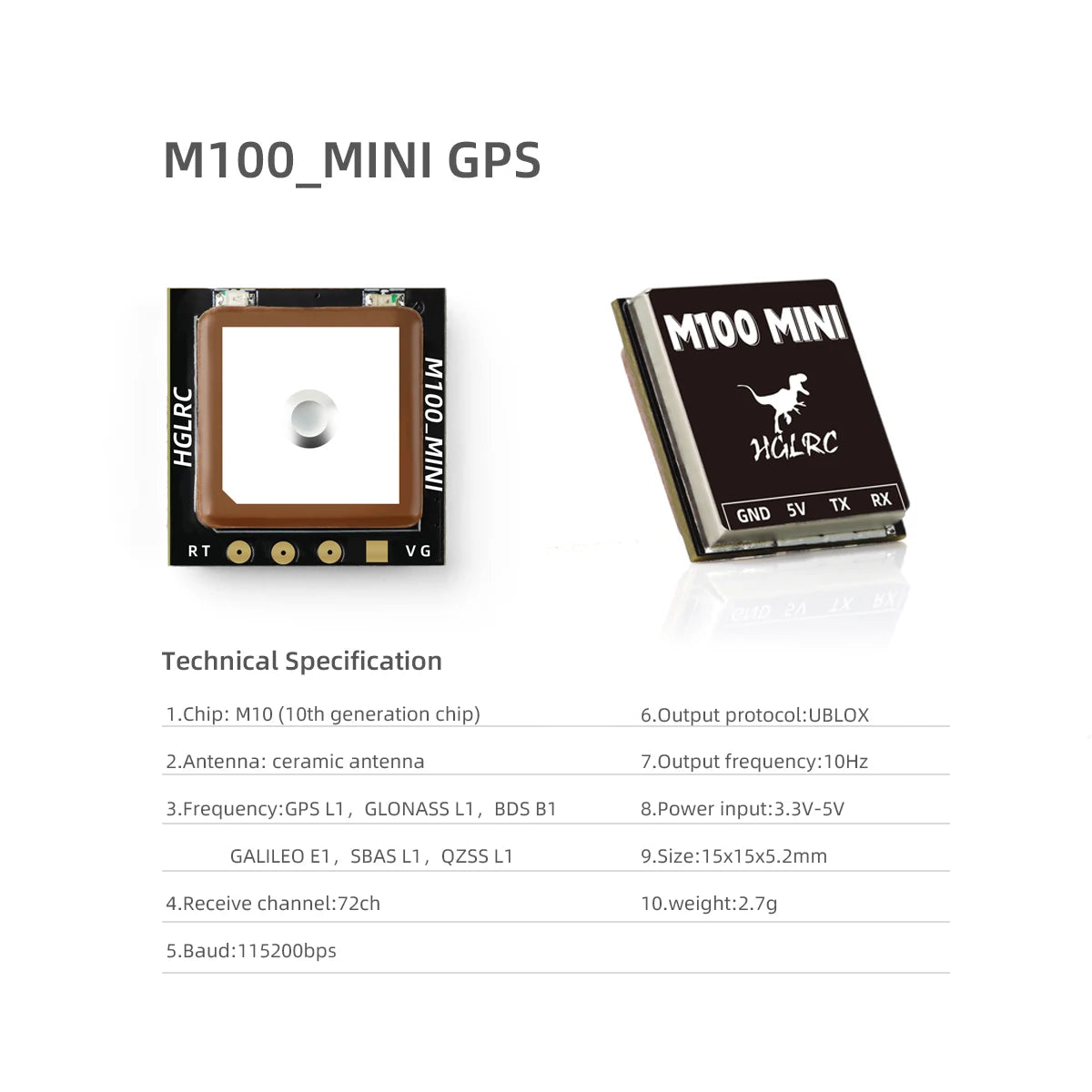

Full Specifications
| Chip | M10 (10th Generation) |
| Antenna | Ceramic Antenna |
| Frequency | GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1 |
| Receive Channels | 72 ch |
| Baud Rate | 115200 bps |
| Output Frequency | 10 Hz |
| Input Voltage | 3.3V – 5V DC |
| Size | 15 × 15 × 5.2 mm |
| Weight | 2.6 g |
| Speed Accuracy | 0.05 m/s |
| Horizontal Positioning Accuracy | 2D ACC 2.0 m (Outdoor) |
| Receiver Sensitivity (Tracking) | –166 dBm |
| Receiver Sensitivity (Acquisition) | –160 dBm |
| Max Altitude | 50,000 m |
| Max Speed | 500 m/s |
| Max Acceleration | 4G |
| Operating Temperature | –40°C to +85°C |
| Storage Temperature | –40°C to +105°C |
| Recommended Age | 14 years and above |

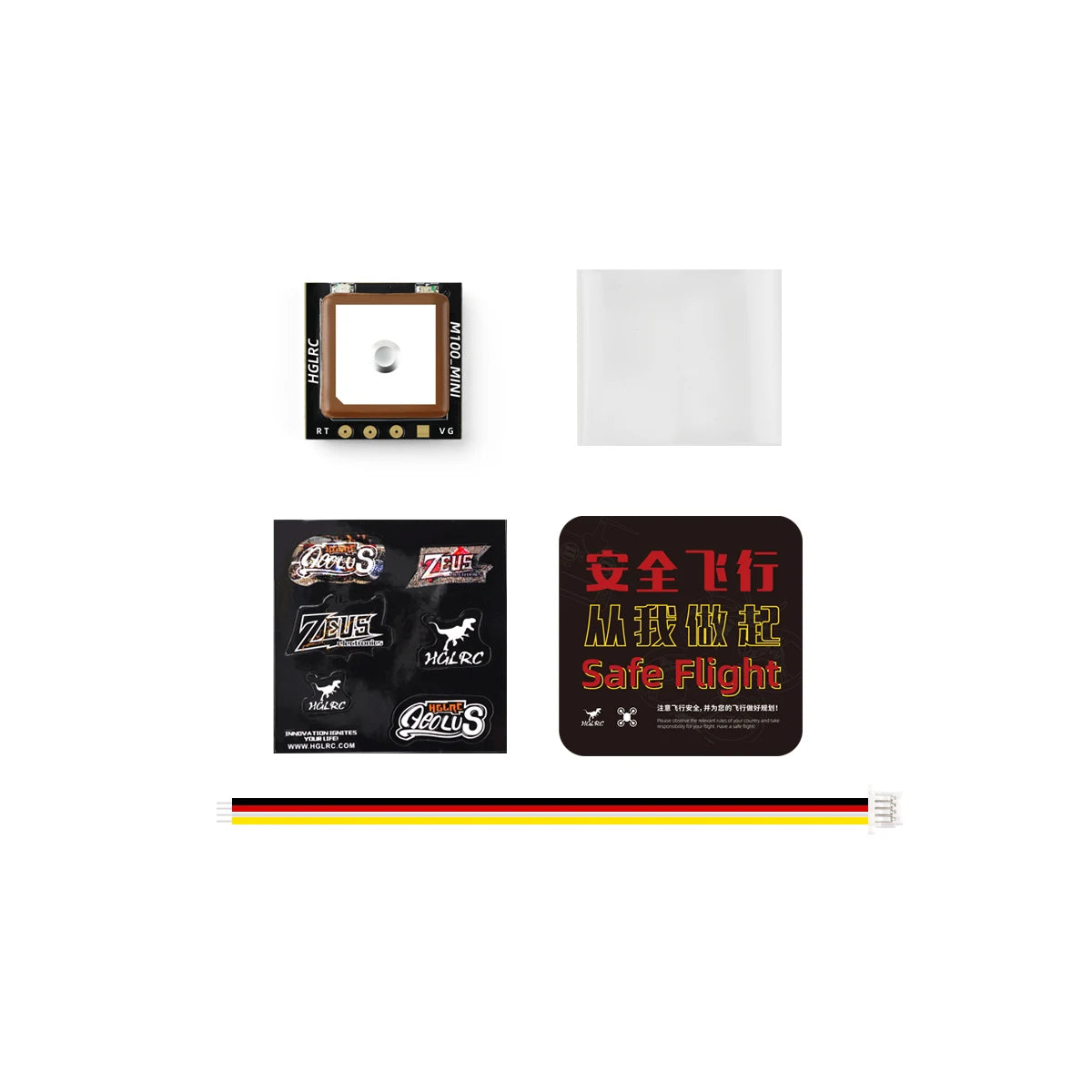

Package Contents
- 1× HGLRC M100 Mini GPS Module
You May Also Like
- 1000D Tactical EDC Bag – Military Utility Pouch & Tool Storage
- 100L Waterproof Tent Storage Bag with Combination Lock
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Which drones is the HGLRC M100 Mini GPS Module compatible with?
A: The HGLRC M100 Mini GPS Module is designed to fit 2–7 inch drones, covering the most popular freestyle, long-range, and FPV racing builds on the market. Its compact 15×15 mm footprint ensures it mounts easily on standard drone frames.
Q: Does the HGLRC M100 GPS support multi-constellation satellite systems?
A: Yes. The M100 uses a 72-channel receiver that simultaneously supports GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, and QZSS L1 — ensuring fast satellite lock and reliable positioning virtually anywhere in the world.
Q: What voltage does the HGLRC M100 Mini GPS Module require?
A: The module accepts a wide input voltage range of 3.3V–5V DC, making it compatible with the vast majority of FPV flight controllers and power setups without the need for additional regulators.
Q: Is the GPS module difficult to install on a flight controller?
A: Installation is straightforward. The module uses standard wiring connectors and communicates via UART at 115200 bps. Simply connect it to a spare UART port on your flight controller and configure it in your firmware (e.g., Betaflight or iNav) for immediate use.
