Professional HVLP Spray Gun Set for Automotive & Industrial Painting
Take your automotive and industrial coating projects to the next level with this professional-grade HVLP (High Volume Low Pressure) Spray Gun Set. Engineered for precision and efficiency, this spray gun delivers consistent atomization, smooth fan patterns, and outstanding finish quality — whether you're spraying base coats, clear coats, primers, or high-viscosity topcoats. Made in Mainland China.
Why Choose This HVLP Spray Gun?

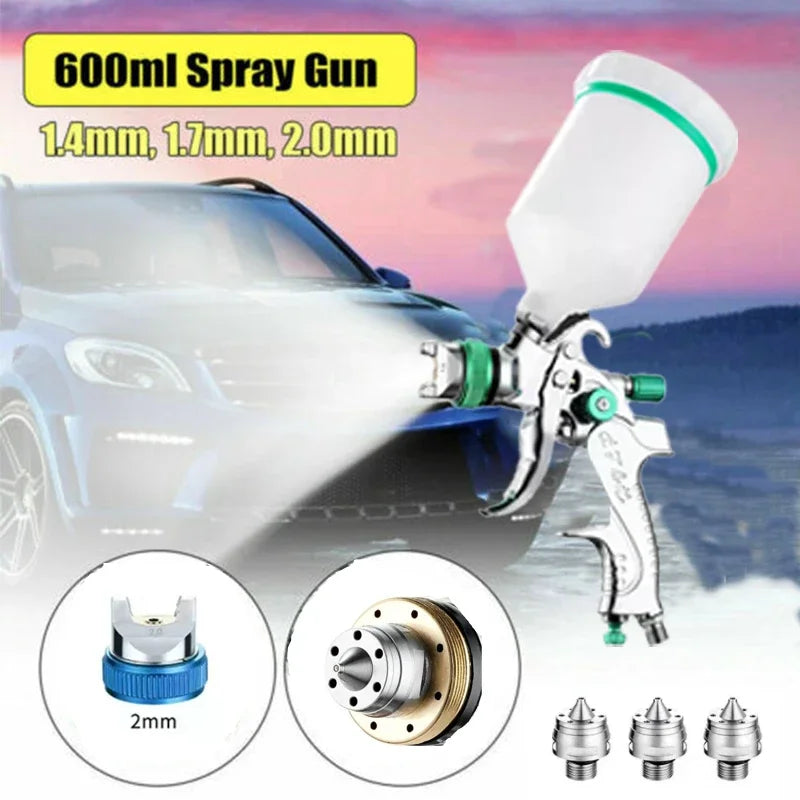

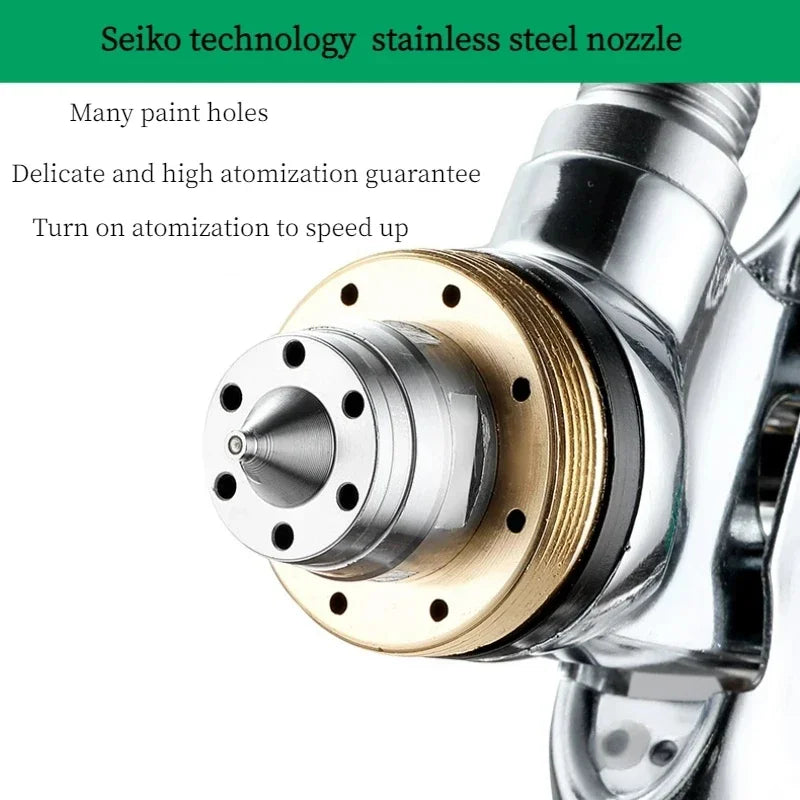

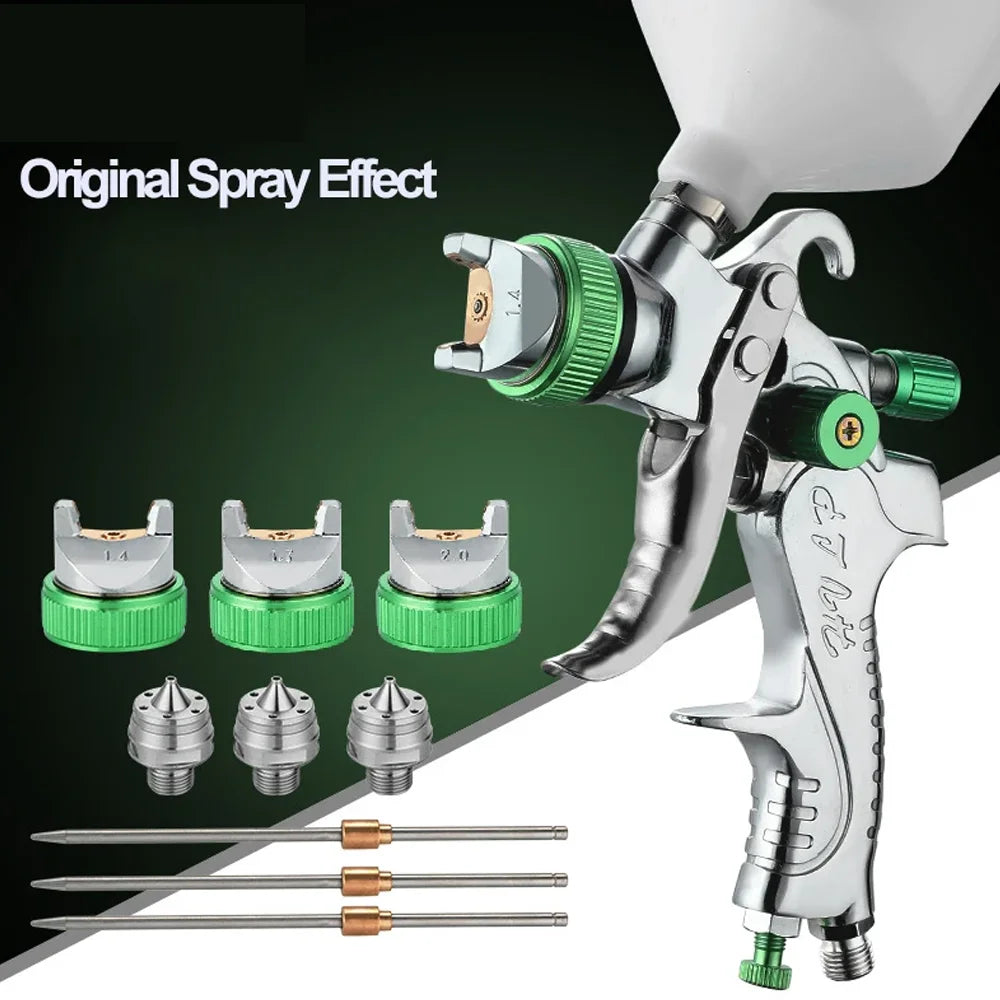

- Precise Stainless Steel Needle & Nozzle Set — Three interchangeable nozzle sizes (1.4mm, 1.7mm, 2.0mm) accommodate a wide variety of coatings, from thin lacquers to thick enamels.
- Uniform Atomization — Designed to deliver equal atomization and consistent particle size across all surface types for a flawless, professional finish every time.
- Paint-Saving Design — Optimized fluid delivery minimizes overspray and waste, saving you money on materials while maximizing coating performance.
- Conical Air Cap — The specially engineered conical air cap prevents paint from splashing and directs spray with precision for clean edges and even coverage.
- Triple Adjustable Controls — Independent fluid, spray pattern, and air pressure controls let you dial in perfect settings for any job.
- Built-in Mesh Filter — Removes dirt particles and debris from paint before it reaches the nozzle, preventing surface defects and clogging.
- Copper Diverter Valve — Ensures excellent air sealing performance for consistent, reliable output during extended use.

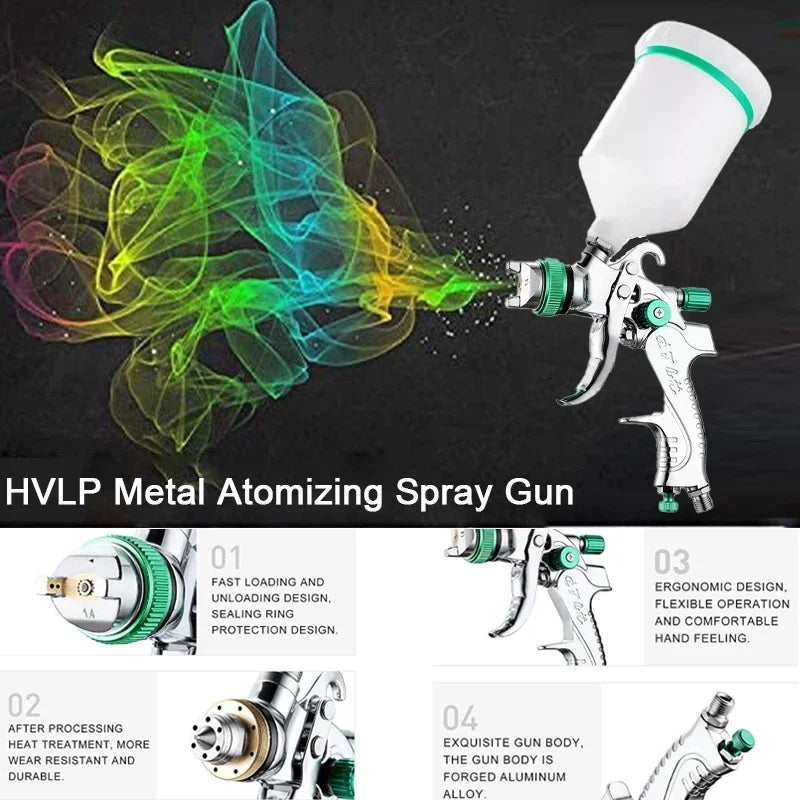

- Durable Aluminum Alloy Body with Chrome Plating — Lightweight yet rugged construction is easy to clean and built to withstand demanding professional use.
- Water-Based Paint Compatible — Stainless steel needles and nozzles are fully compatible with water-based and solvent-based paints.
- 600ml Transparent PVC Cup — See-through cup lets you monitor fluid levels at a glance and makes cleaning quick and hassle-free.
Ideal Applications
- Automotive base coats, clear coats & touch-up painting
- Furniture and cabinetry finishing
- Industrial equipment primer & topcoat applications
- Domestic and commercial painting projects
Technical Specifications
| Type | HVLP |
| Material | Aluminum Alloy + Copper + PVC |
| Nozzle Material | Stainless Steel |
| Power Type | Pneumatic (Air-Powered) |
| Nozzle Diameter Options | 1.4mm / 1.7mm / 2.0mm |
| Atomization Air Pressure | 0.35 MPa |
| Spraying Distance | 180–230mm (Best: 200mm / 7.87in) |
| Spray Width | 200–250mm |
| Inlet Thread | Standard 1/4"-19" BSP/NPT |
| Air Consumption | 7.5 / 8.8 / 10 CFM |
| Fluid Output | 70–140 ml/min |
| Air Hose Inner Diameter | 3/8" |
| Working Pressure | 35–45 PSI |
| Compressor Required | 2–3 HP |
| Cup Capacity | 600ml |
| Spray Gun Size | ~160 × 40 × 180mm (6.30 × 1.57 × 7.09in) |
| Cup Size (H × D) | 170 × 110mm (6.69 × 4.33in) |
| Spray Control | External Control |

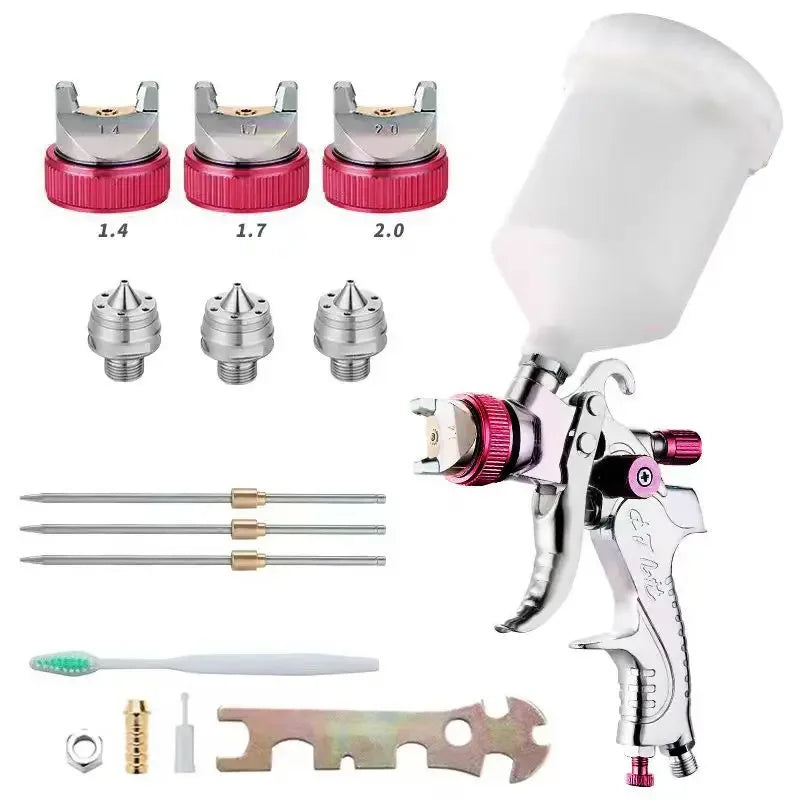

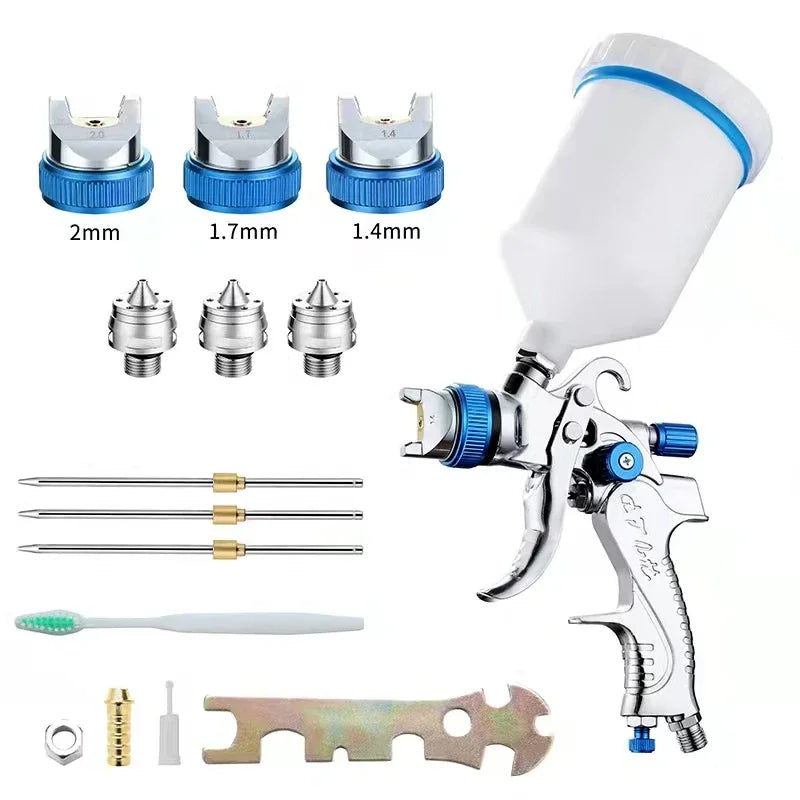

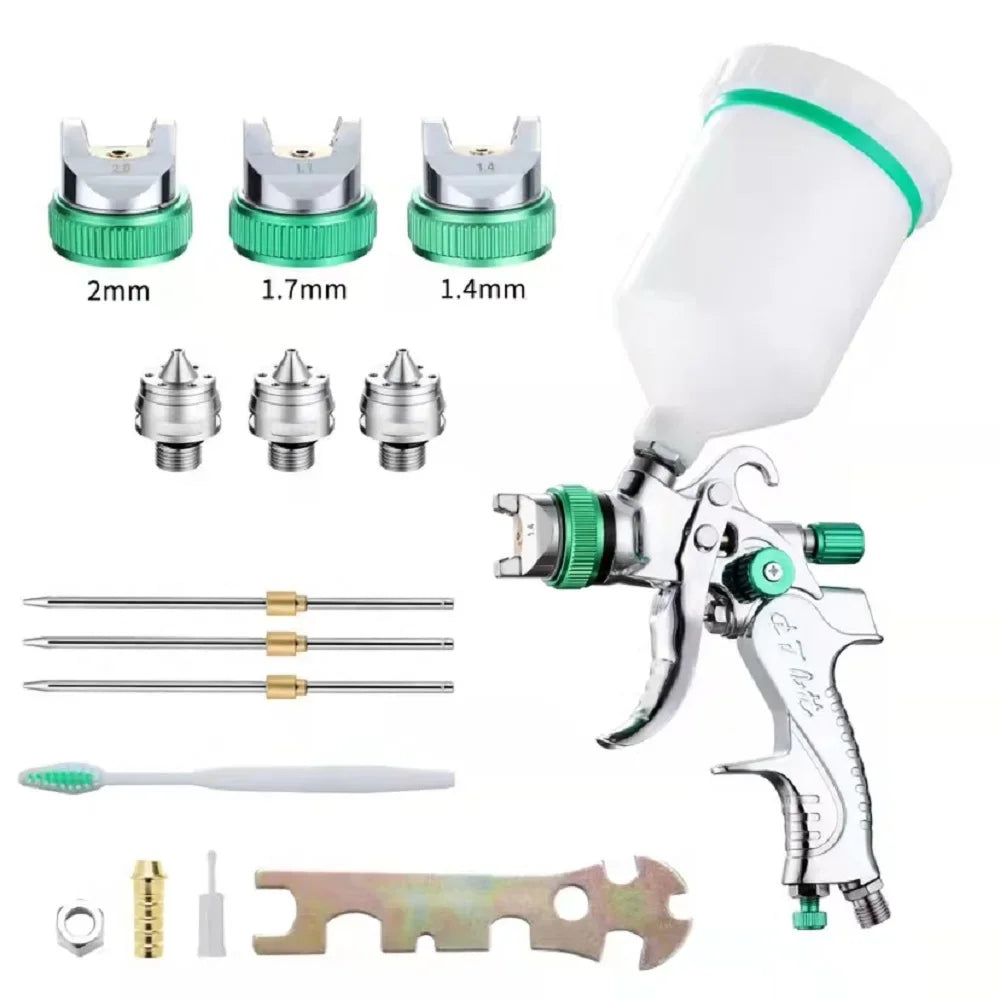

What's in the Box?
- 1× HVLP Spray Gun Set
- 1× User Manual
Related Products You May Like
- 1 Roll Car Molding Trim Tape – Decorative Auto Adhesive Strip
- 10/20mm Diamond Flat Grinding Wheel – Heavy Duty Concrete Grinder
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
Learn more: FuelEconomy.gov on vehicle maintenance
Frequently Asked Questions
Q: What compressor size do I need to run this HVLP spray gun?
A: This HVLP spray gun requires a compressor rated at 2–3 HP and capable of delivering adequate CFM (7.5–10 CFM depending on nozzle size). A standard workshop air compressor in this range will power the gun effectively at the recommended 35–45 PSI working pressure.
Q: Can this spray gun be used with water-based paints?
A: Yes! The stainless steel needles and nozzles are fully compatible with water-based paints as well as solvent-based coatings, primers, base coats, and clear coats, making this a versatile tool for a wide range of projects.
Q: How do I clean the spray gun after use?
A: The 600ml transparent PVC cup is easy to remove and rinse. Run the appropriate solvent (water for water-based paints, mineral spirits for solvent-based coatings) through the gun until it runs clear. The chrome-plated aluminum alloy body wipes down easily. Always clean the needle, nozzle, and air cap thoroughly after each use to maintain optimal performance.
Q: What is the difference between the 1.4mm, 1.7mm, and 2.0mm nozzles?
A: The 1.4mm nozzle is ideal for thin materials like lacquers and stains; the 1.7mm nozzle suits medium-viscosity coatings such as automotive base coats; and the 2.0mm nozzle handles thicker materials like high-build primers and heavy topcoats. Choosing the right nozzle ensures optimal atomization and finish quality for your specific coating.
