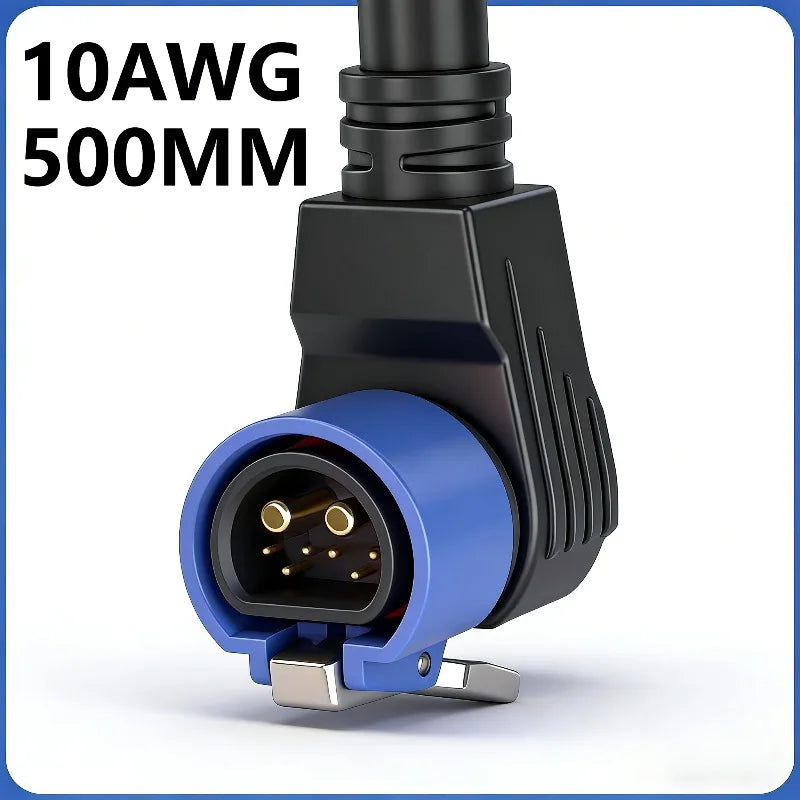

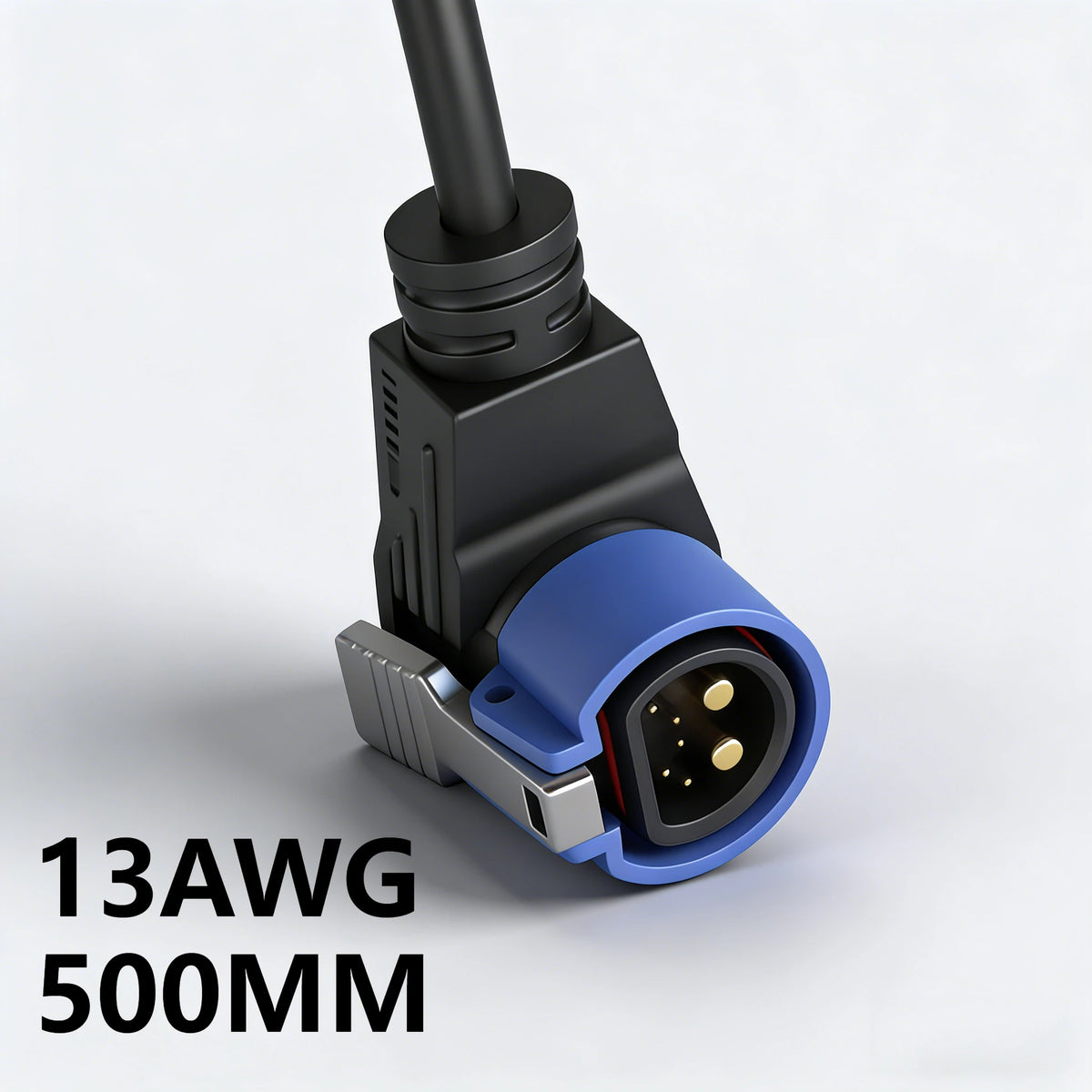

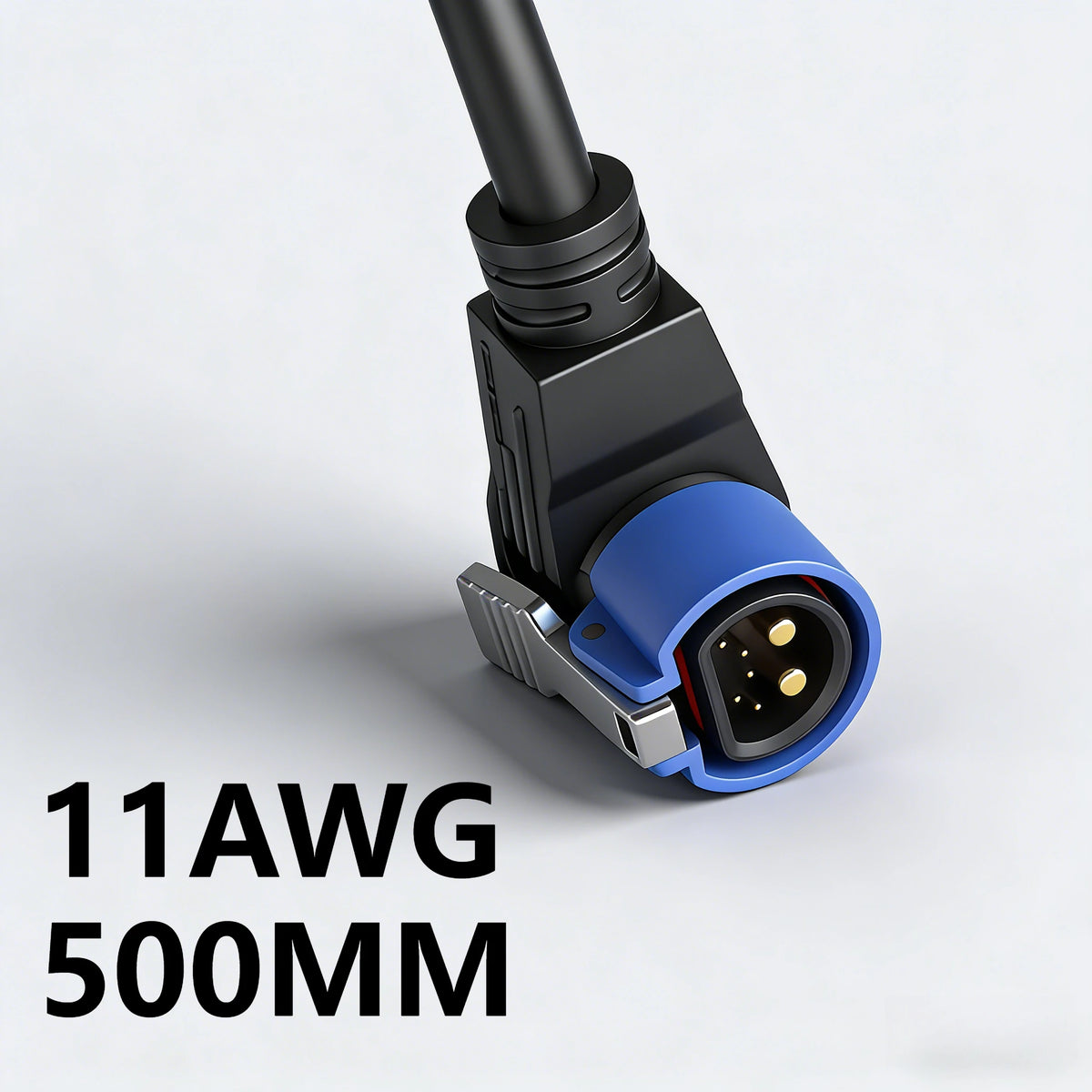

Iron Tower M28 Male Elbow EV Charging Waterproof Connector

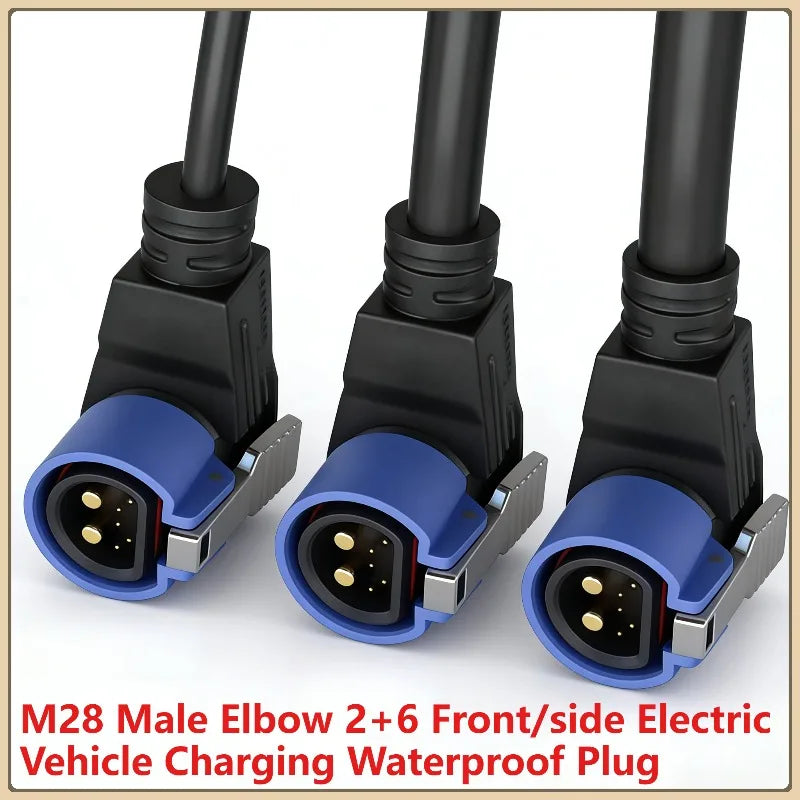

Iron Tower M28 Male Elbow Electric Vehicle Charging Waterproof Connector

Upgrade your electric vehicle charging setup with the Iron Tower M28 Male Elbow Waterproof Connector. Designed for both front and side entry configurations (2+6 pin), this quick-lock waterproof plug delivers a secure, reliable electrical connection for EV charging applications. CE and RoHS certified for safety and environmental compliance, this connector is built to handle a wide voltage range — from 5V to 30V — making it versatile across numerous low-voltage EV and industrial charging setups.

Key Features

• Model: Iron Tower M28 Male Elbow

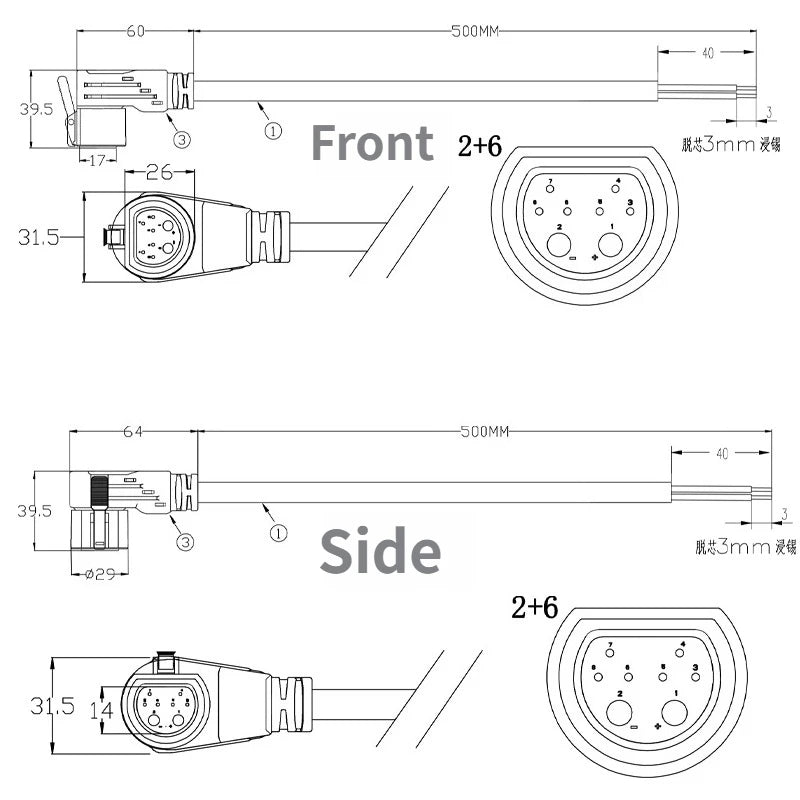

• Pin Configuration: 2+6 (Front & Side Entry)
• Quick-Lock Design: Fast, tool-free connection and disconnection for convenience
• Waterproof Rated: Sealed construction protects against moisture, dust, and environmental exposure
• Voltage Range: 5V, 12V, 20V, 30V (Low Voltage: Below 50Vac or 75Vdc)
• Certifications: CE, RoHS — meets European safety and environmental standards
• No Battery Included | No Wireless Functionality
• Made in Mainland China

Why Choose This Connector?

Whether you're wiring up an electric bicycle, scooter, e-bike, or light EV charging station, the M28 elbow connector offers a dependable, weather-resistant solution. The quick-lock mechanism ensures a firm, rattle-free connection every time, while the waterproof sealing keeps contacts protected even in wet or dusty environments. The dual front/side entry design gives you flexible cable routing options to suit different installation requirements.

Specifications at a Glance

You May Also Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What does the "2+6 pin" configuration mean for the M28 Male Elbow connector?

A: The 2+6 pin configuration means the connector has 2 power pins and 6 signal or auxiliary pins, totalling 8 contacts. This layout is common in electric vehicle charging connectors where separate pins handle power delivery and communication or control signals.

Q: Is the Iron Tower M28 connector suitable for outdoor or wet-weather use?

A: Yes. The M28 Male Elbow connector features a fully waterproof sealed design, making it suitable for outdoor installations and environments where exposure to moisture, rain, or dust is a concern. Its robust construction ensures reliable performance in demanding conditions.

Q: What voltage and applications is this connector compatible with?

A: This connector supports low voltages — 5V, 12V, 20V, and 30V — and is rated for below 50Vac or 75Vdc per EU LVD standards. It is ideal for electric bicycles, e-scooters, electric motorcycles, and other light electric vehicle charging systems within these voltage ranges.

Q: Does this connector require any tools to connect or disconnect?

A: No tools are needed. The quick-lock mechanism allows for fast, secure hand-tightened connections and easy disconnection, saving time during installation or maintenance.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
