JARBLUE HFL One-Way Needle Roller Bearing – Bearing Steel
JARBLUE HFL One-Way Needle Roller Bearing – Bearing Steel
Details

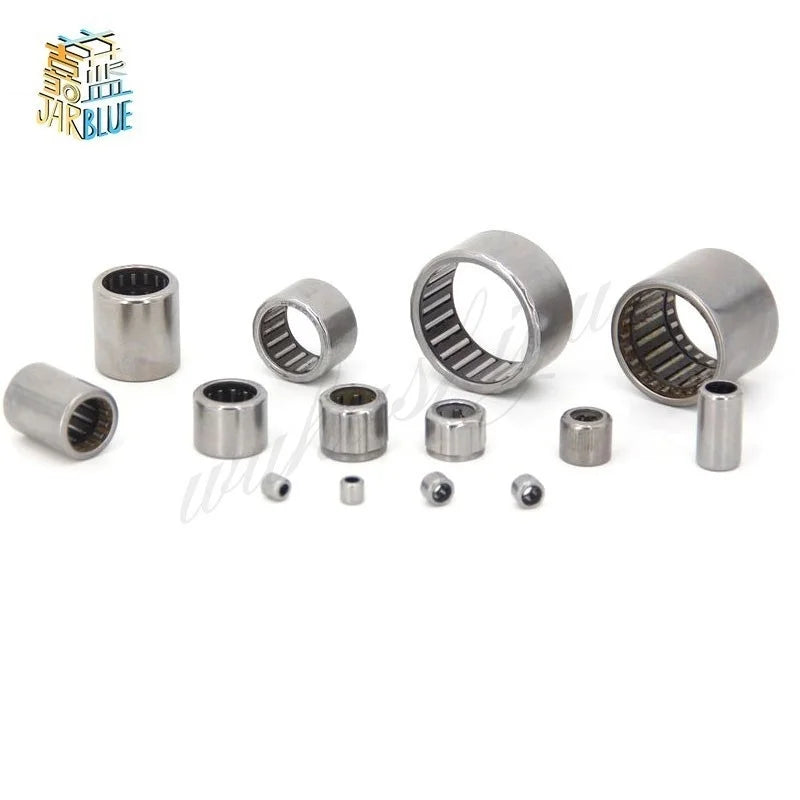

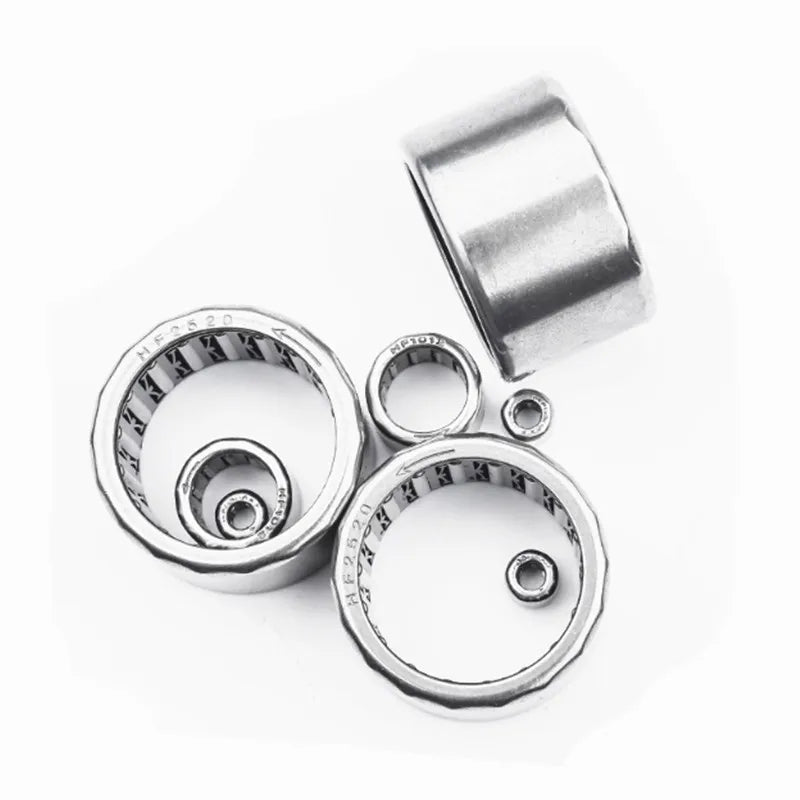

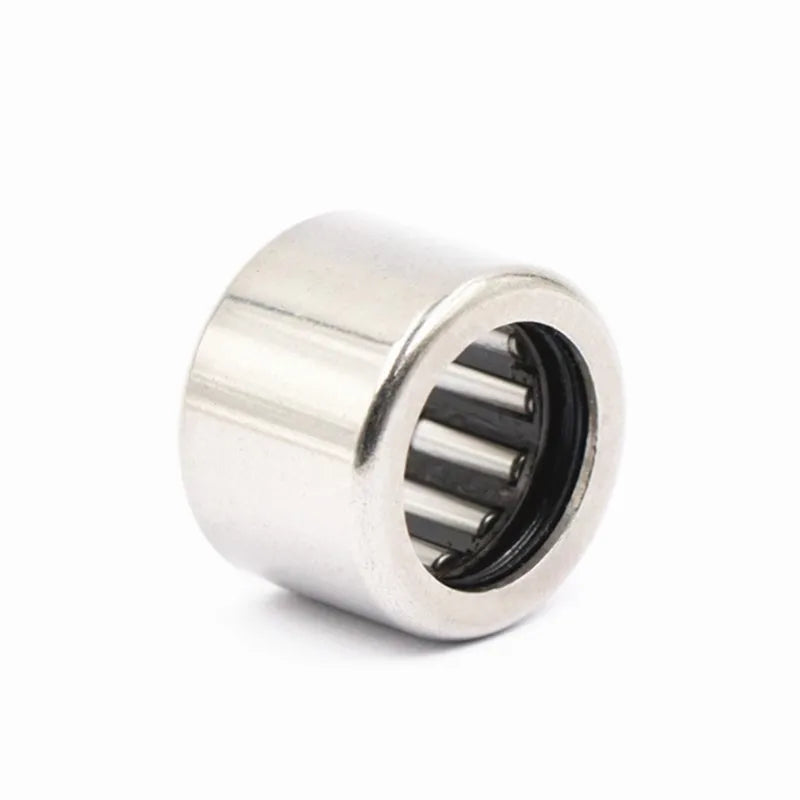

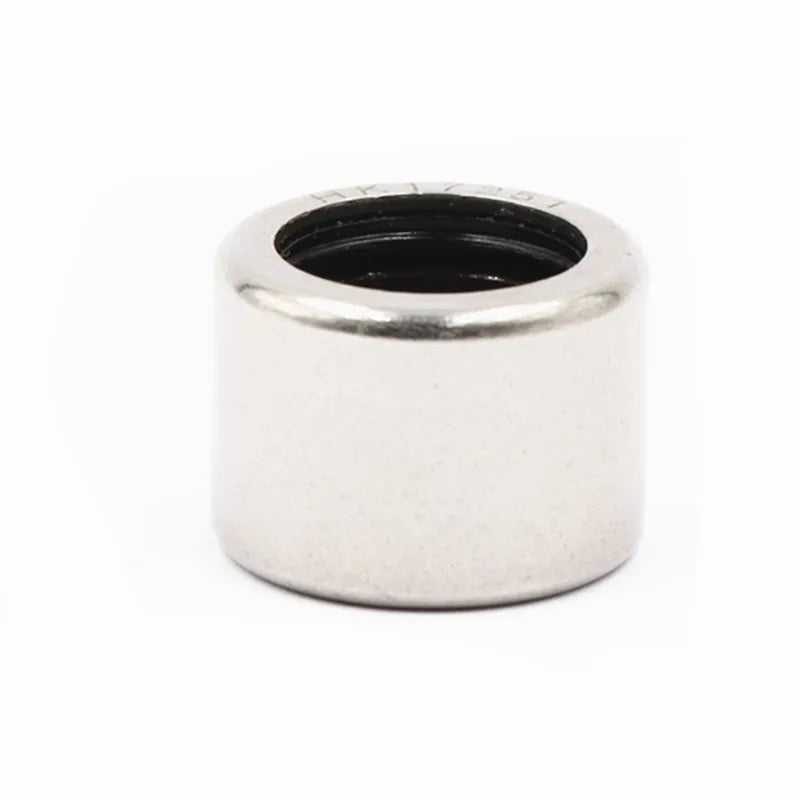

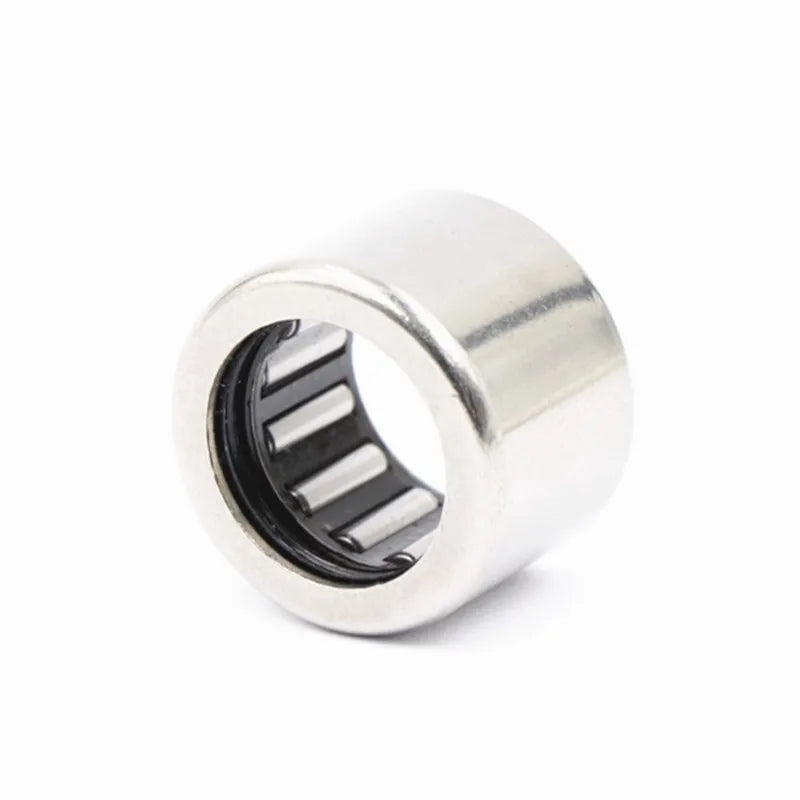

JARBLUE One-Way Needle Roller Bearing – HFL Series
Upgrade your mechanical assemblies with the JARBLUE HFL Series One-Way Needle Roller Bearing. Crafted from high-grade bearing steel and CE-certified, these precision bearings deliver smooth, reliable one-directional rotation ideal for a wide range of industrial and mechanical applications. Whether you're working on gearboxes, clutch mechanisms, conveyor systems, or power tools, this bearing provides consistent performance and extended service life.
Available Models & Dimensions
| Model | Dimensions (ID × OD × Width) |
|---|---|
| HFL0822 | 8 × 12 × 22 mm |
| HFL1022 | 10 × 14 × 22 mm |
| HFL1226 | 12 × 16 × 26 mm |

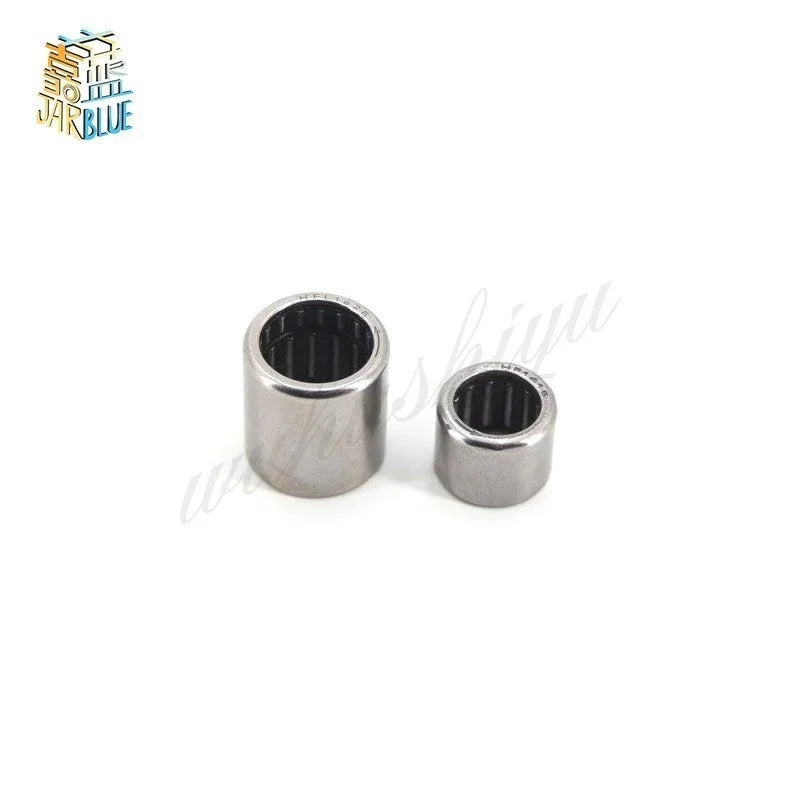

| HFL1426 | 14 × 18 × 26 mm |
| HFL1626 | 16 × 22 × 26 mm |
| HFL1826 | 18 × 24 × 26 mm |
| HFL2026 | 20 × 26 × 26 mm |
| HFL3030 | 30 × 37 × 30 mm |
| HFL3530 | 35 × 42 × 30 mm |
Key Features
- One-Way Operation: Allows rotation in one direction only, preventing back-drive and ensuring precise mechanical control.
- High-Grade Bearing Steel: Superior hardness and wear resistance for demanding, high-load applications.
- Compact Needle Roller Design: Space-saving profile with a high load-carrying capacity relative to its size.
- CE Certified: Meets European safety and quality standards for peace of mind.
- Customizable: Available in multiple sizes to fit your specific project or machinery requirements.
- Low Friction: Precision-ground rollers ensure smooth, efficient operation and reduced energy loss.
Specifications
- Brand: JARBLUE
- Material: Bearing Steel
- Type: One-Way Needle Roller Bearing
- Certification: CE
- Customized Sizes: Yes
- Country of Origin: Made in China
Common Applications
- Gearboxes and transmission systems
- Power tools and hand tools
- Conveyor and automation machinery
- Bicycle and motorcycle clutch mechanisms
- Printing and textile machinery
- Agricultural equipment
Related Products You May Like
- 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories – Anti-Loosening Replacement Parts
- 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
- 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is a one-way needle roller bearing and how does it work?
A: A one-way needle roller bearing (also called a one-way clutch bearing) uses precision needle rollers and an inner race designed to lock and transmit torque in one rotational direction while freeing-wheeling in the opposite direction. This makes HFL series bearings ideal for overrunning clutch, indexing, and backstop applications in machinery and power tools.
Q: Which HFL model size should I choose for my application?
A: Select the model based on your shaft diameter (inner diameter), housing bore (outer diameter), and available axial space (width). For example, HFL1626 fits a 16 mm shaft with a 22 mm housing bore and 26 mm width. Refer to the dimensions table above to match your requirements precisely.
Q: Are these bearings suitable for high-speed or high-load applications?
A: Yes. The JARBLUE HFL series is manufactured from high-grade bearing steel with precision-ground needle rollers, making them well-suited for moderate-to-high load and moderate-speed applications typical of gearboxes, clutches, and industrial machinery. Always verify speed and load ratings against your specific application requirements.
Q: Can I order a custom size not listed in the standard HFL range?
A: Yes, customization is available. Please contact us with your required inner diameter, outer diameter, and width specifications, and we will work with you to source or supply the appropriate bearing.
