JST Connector Kit – Multi-Pitch Male & Female Housing Terminal Set

JST Multi-Pitch Connector Housing Terminal Kit – 1 Box

This comprehensive connector kit brings together the most popular JST-style housing series in one convenient, organized box. Whether you're working on PCB prototyping, DIY electronics, RC hobby builds, LED lighting rigs, or circuit board projects, this kit gives you everything you need to create reliable, low-voltage wire-to-board connections with ease.

What's Included

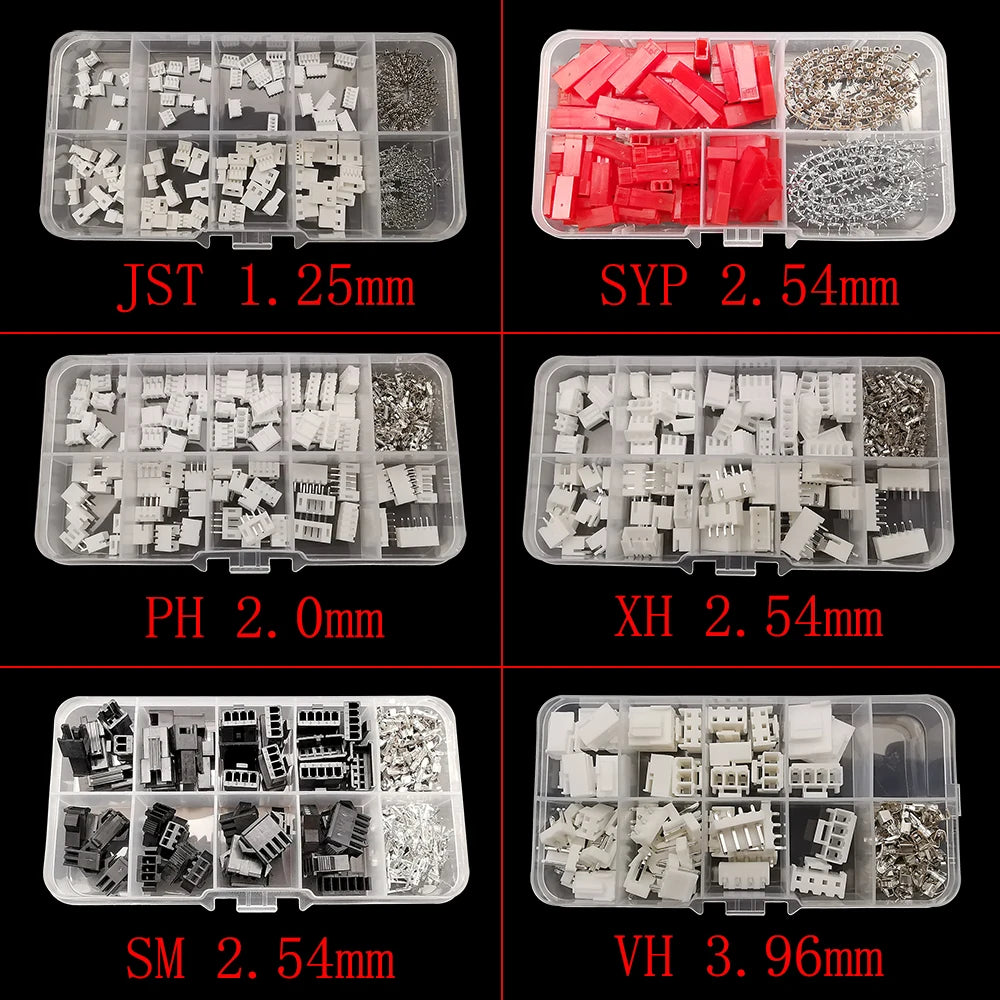

Each box contains male and female housing connectors plus crimp terminal pins across multiple pitch sizes and pin counts:

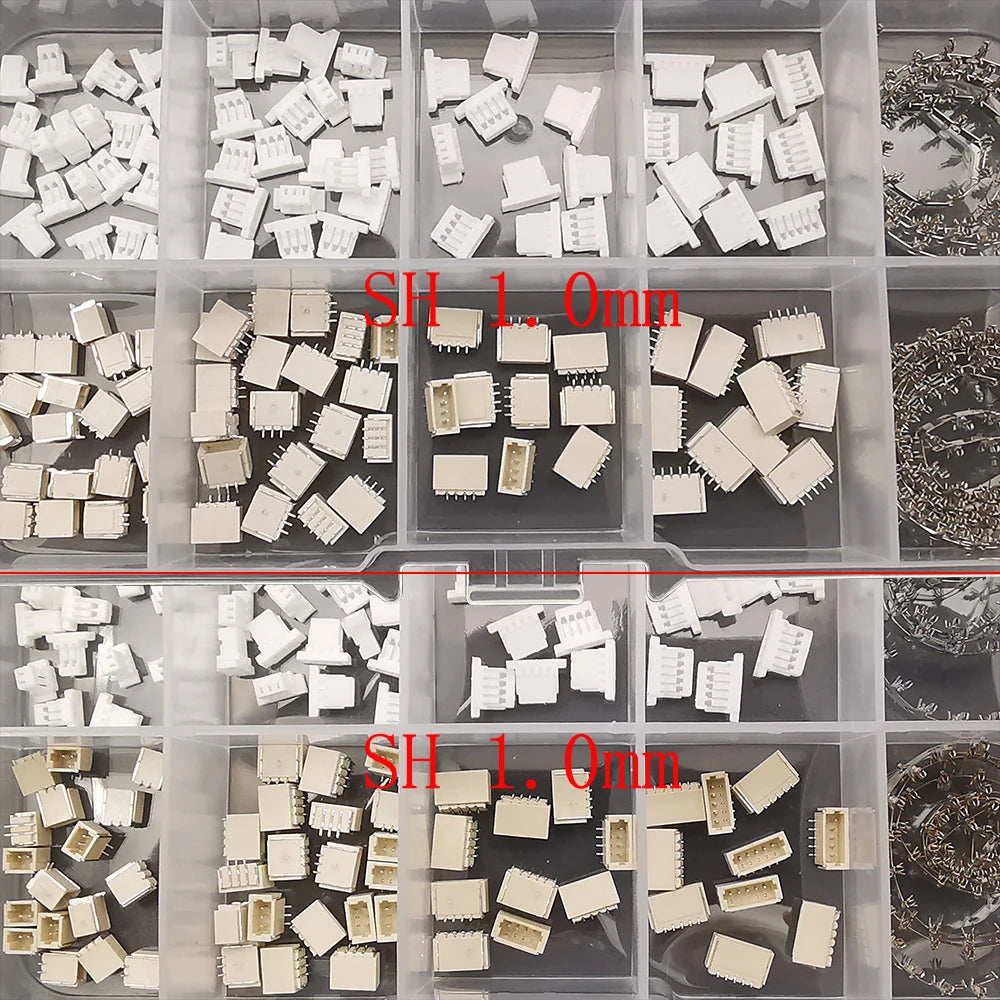

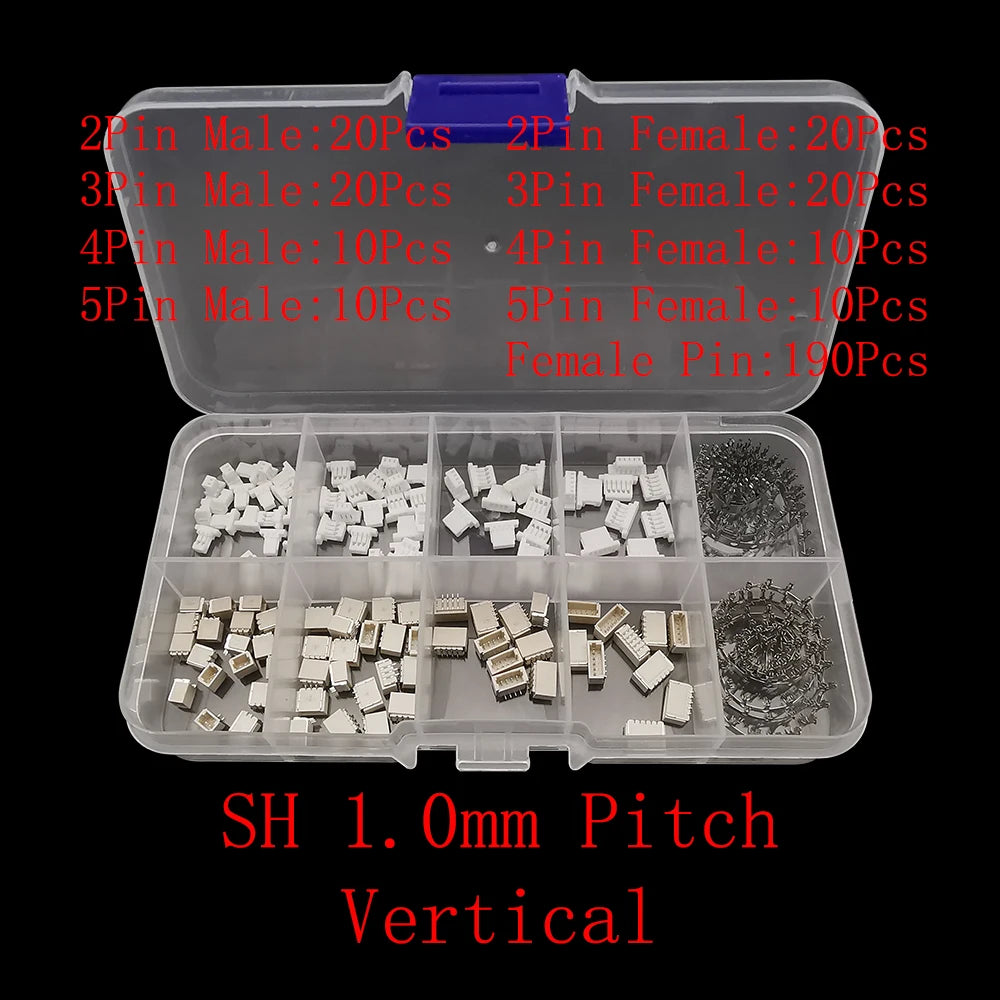

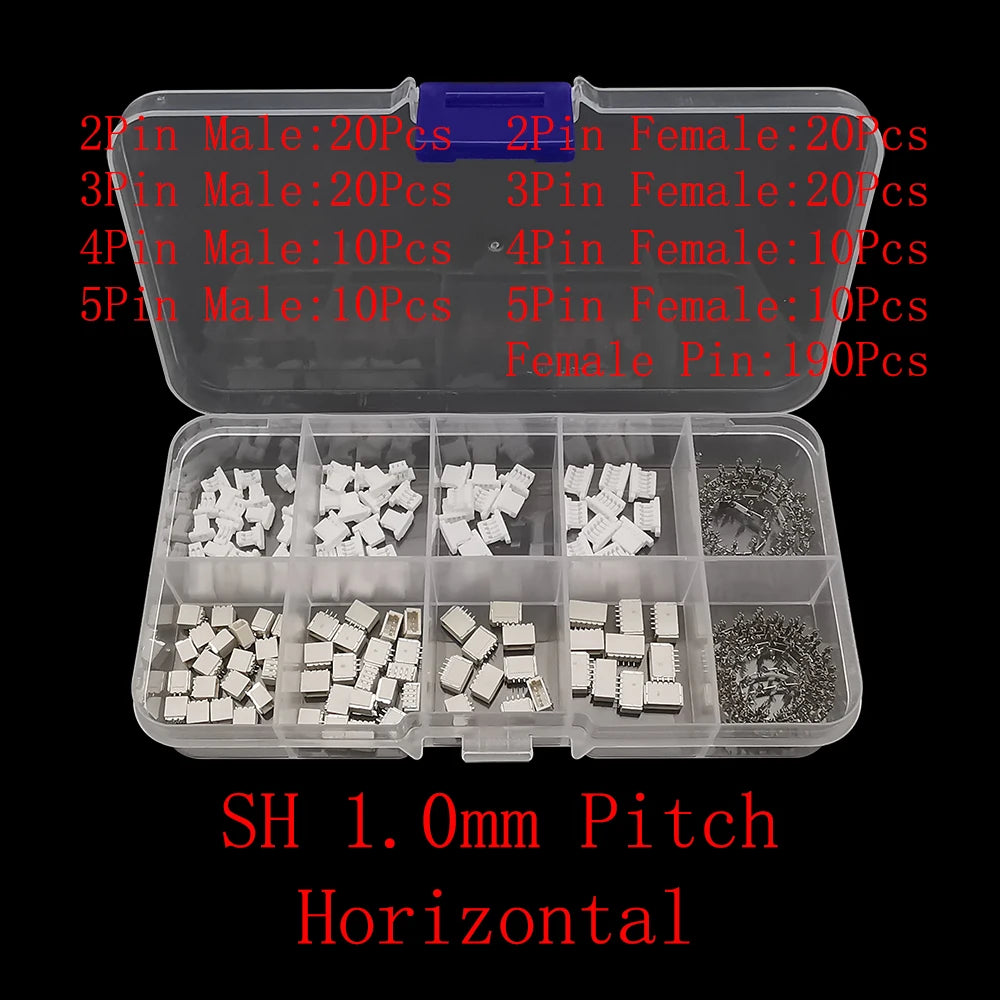

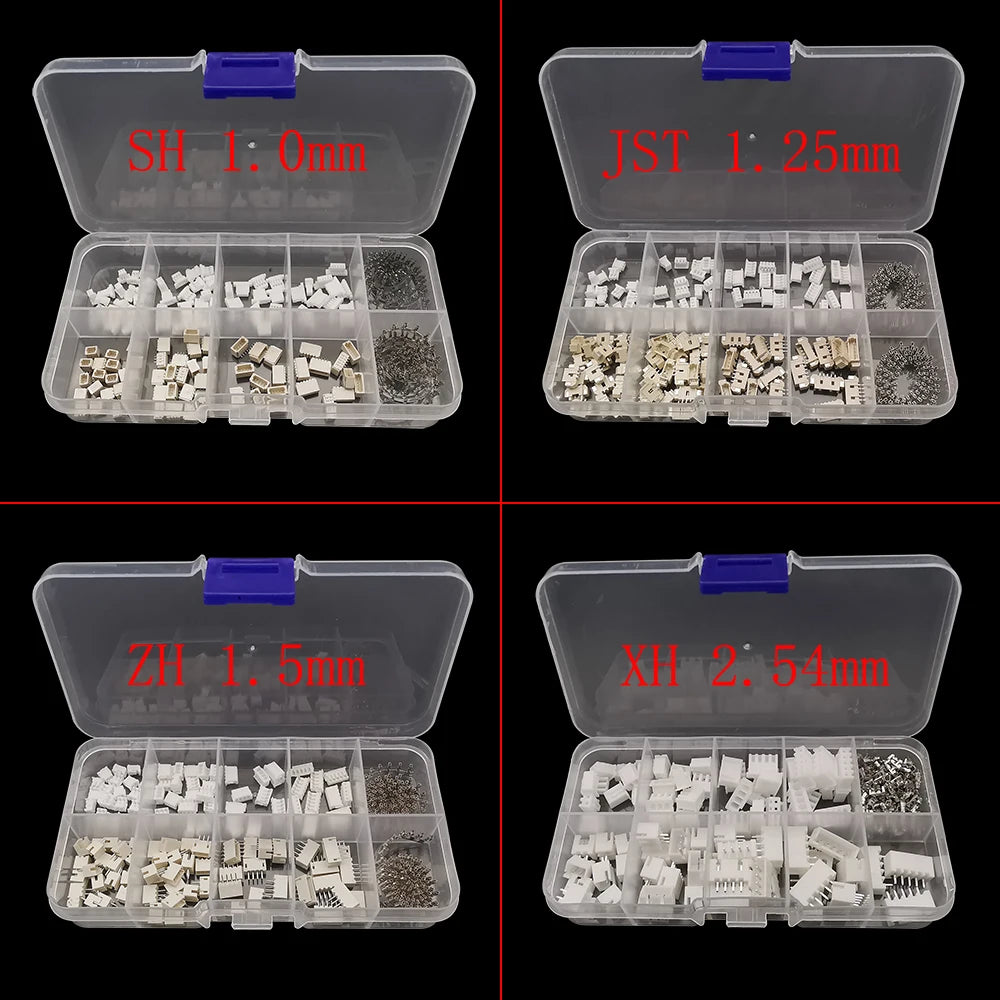

• SH 1.0mm – 60 Sets (2/3/4/5 Pin) + 190 Female Pins

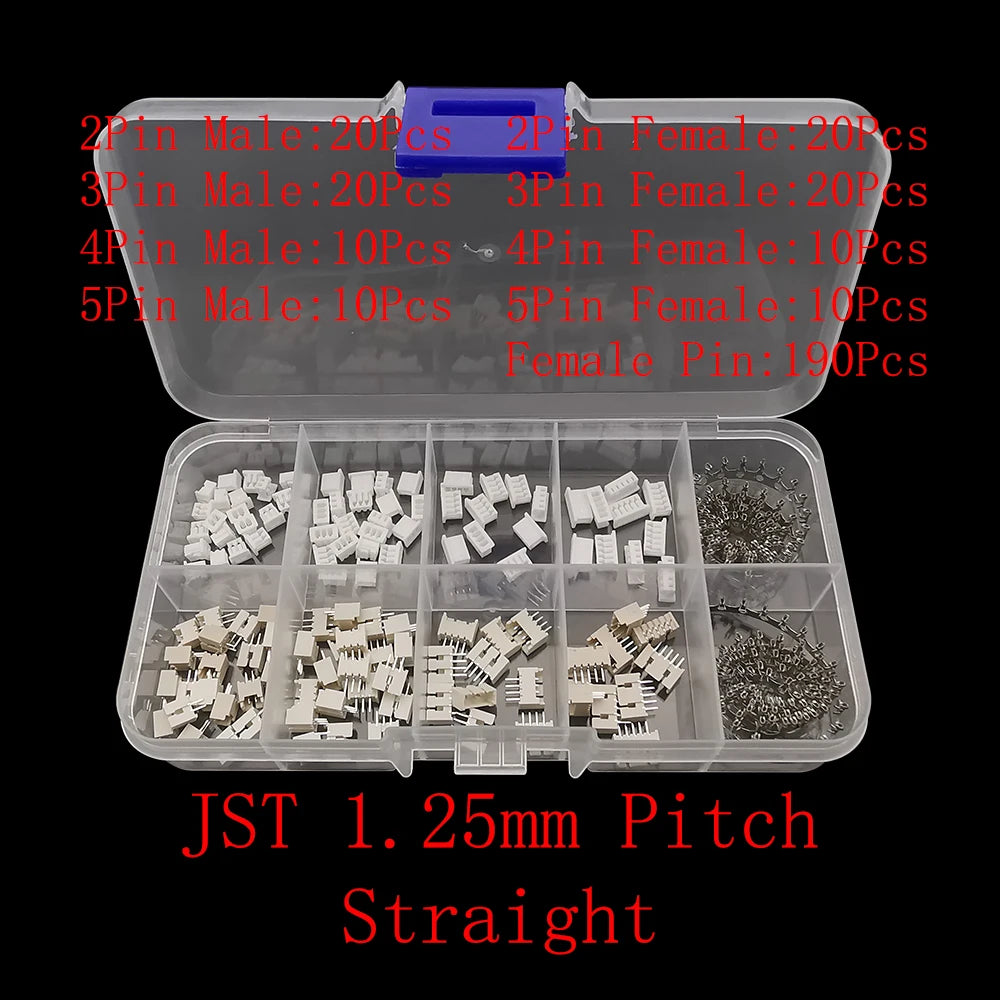

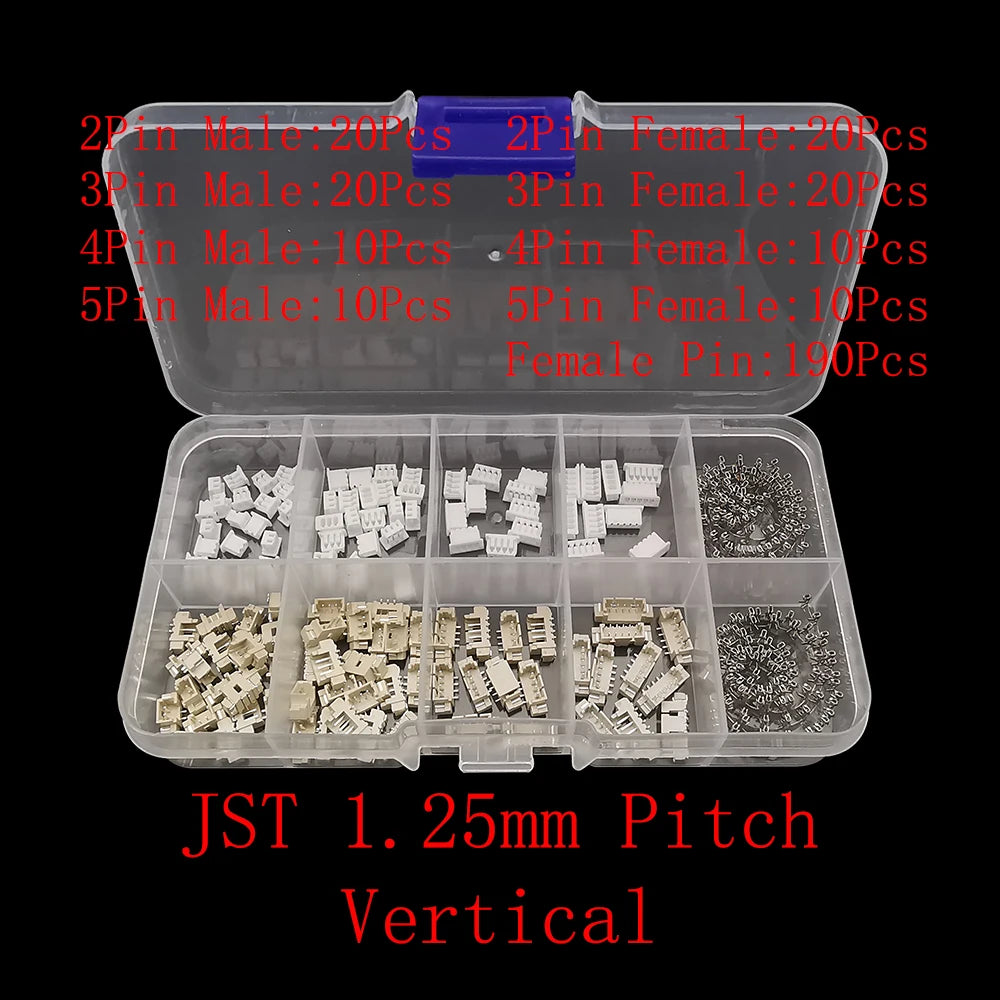

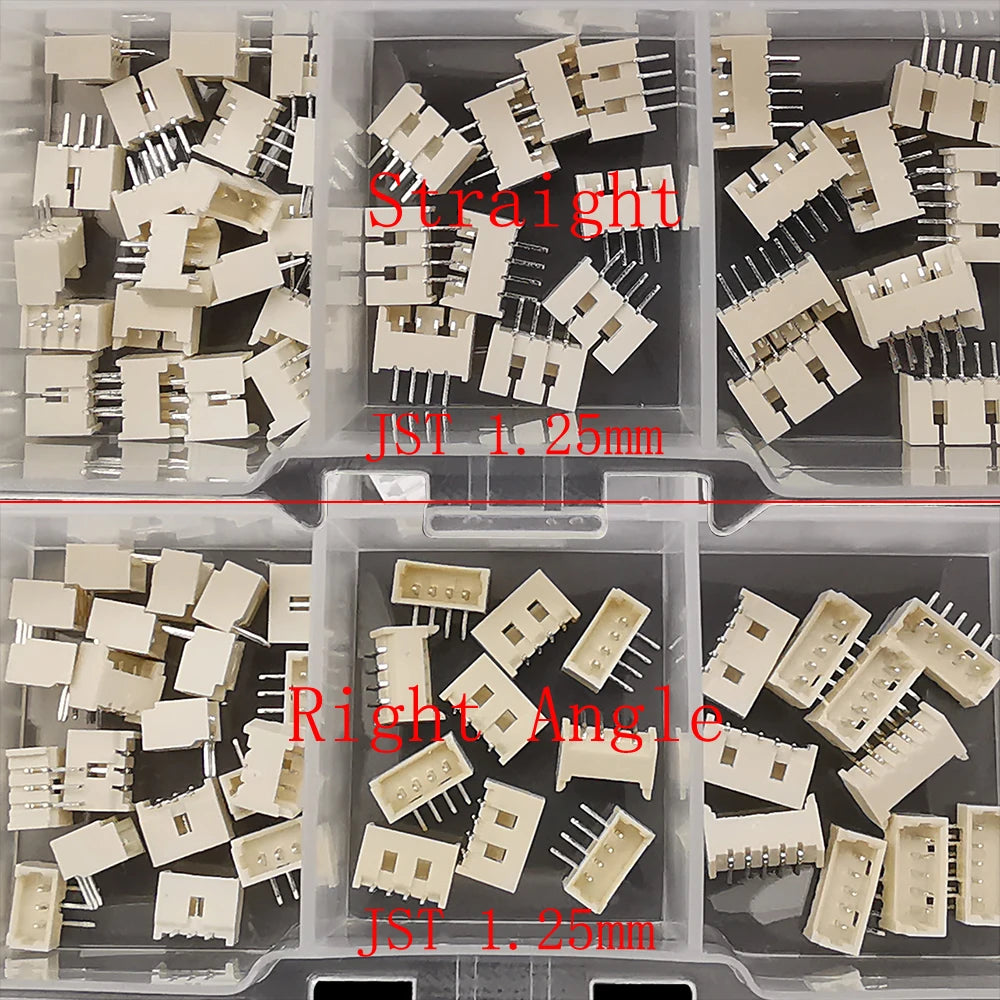

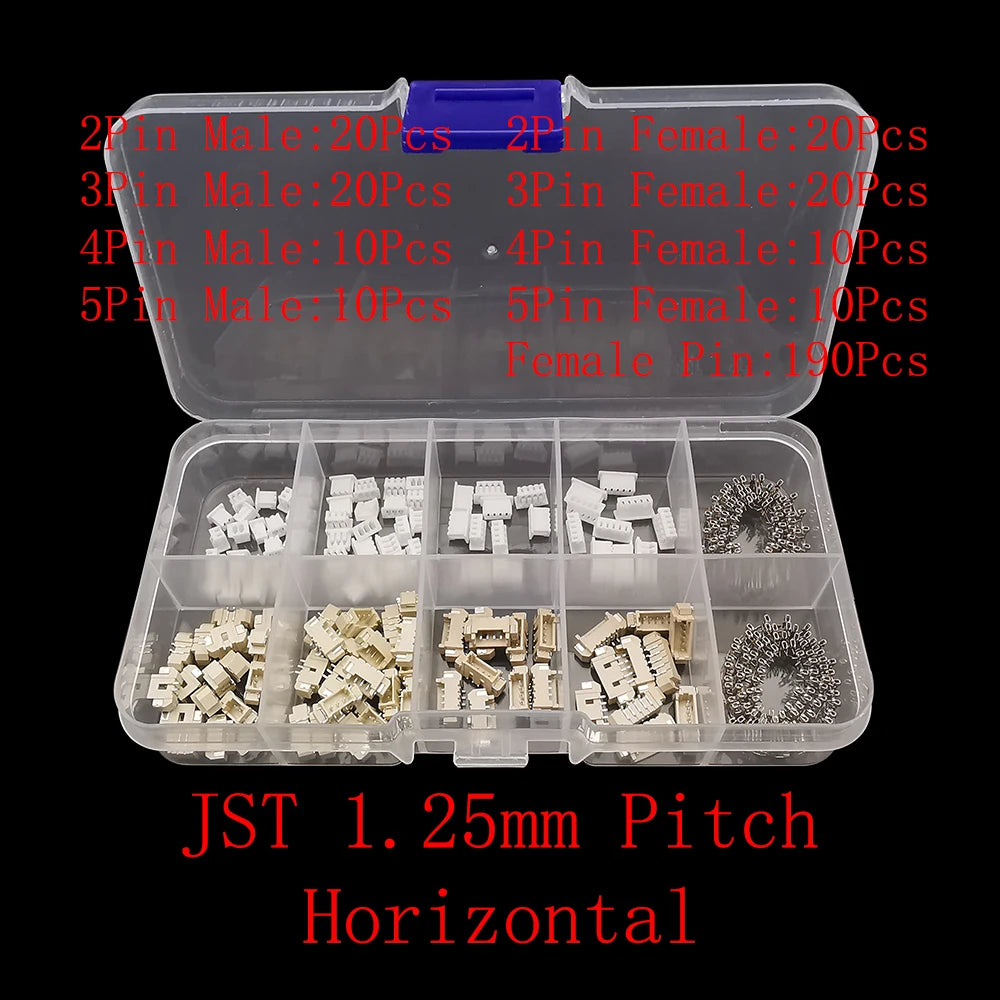

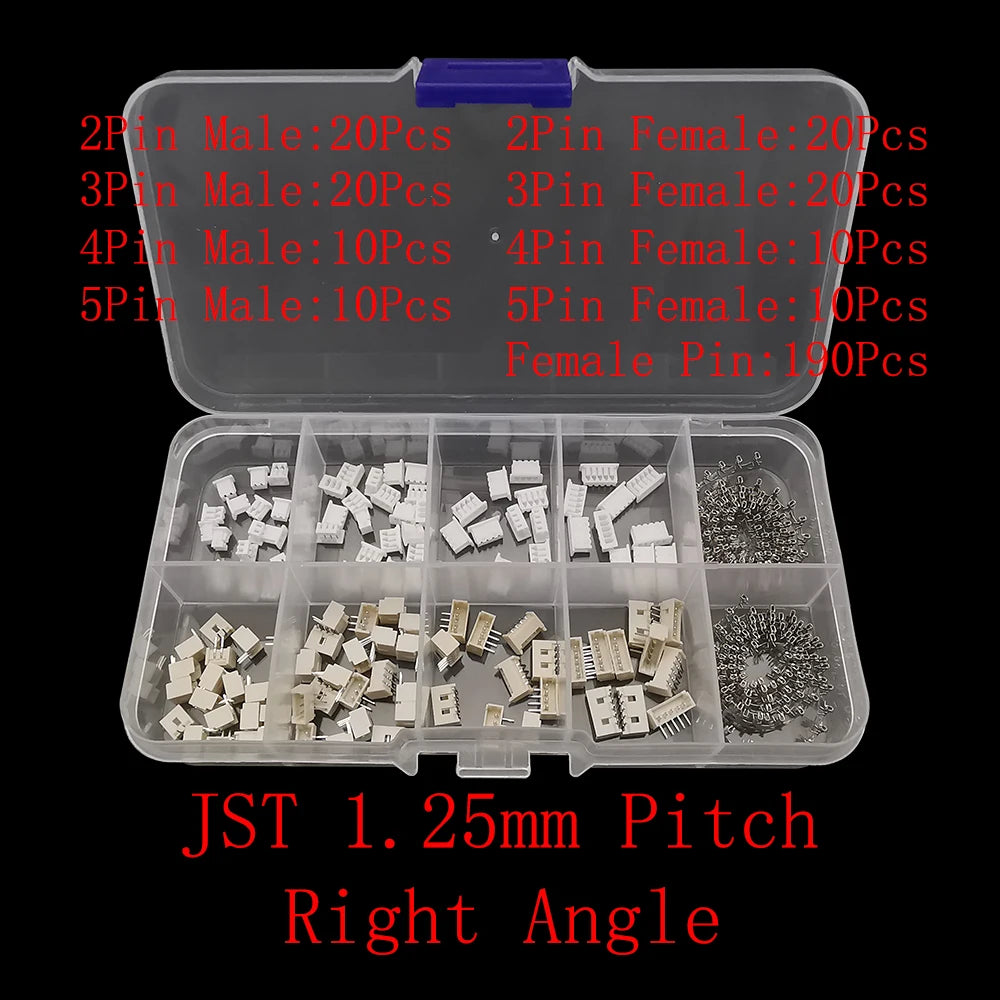

• JST 1.25mm – 60 Sets (2/3/4/5 Pin) + 190 Female Pins

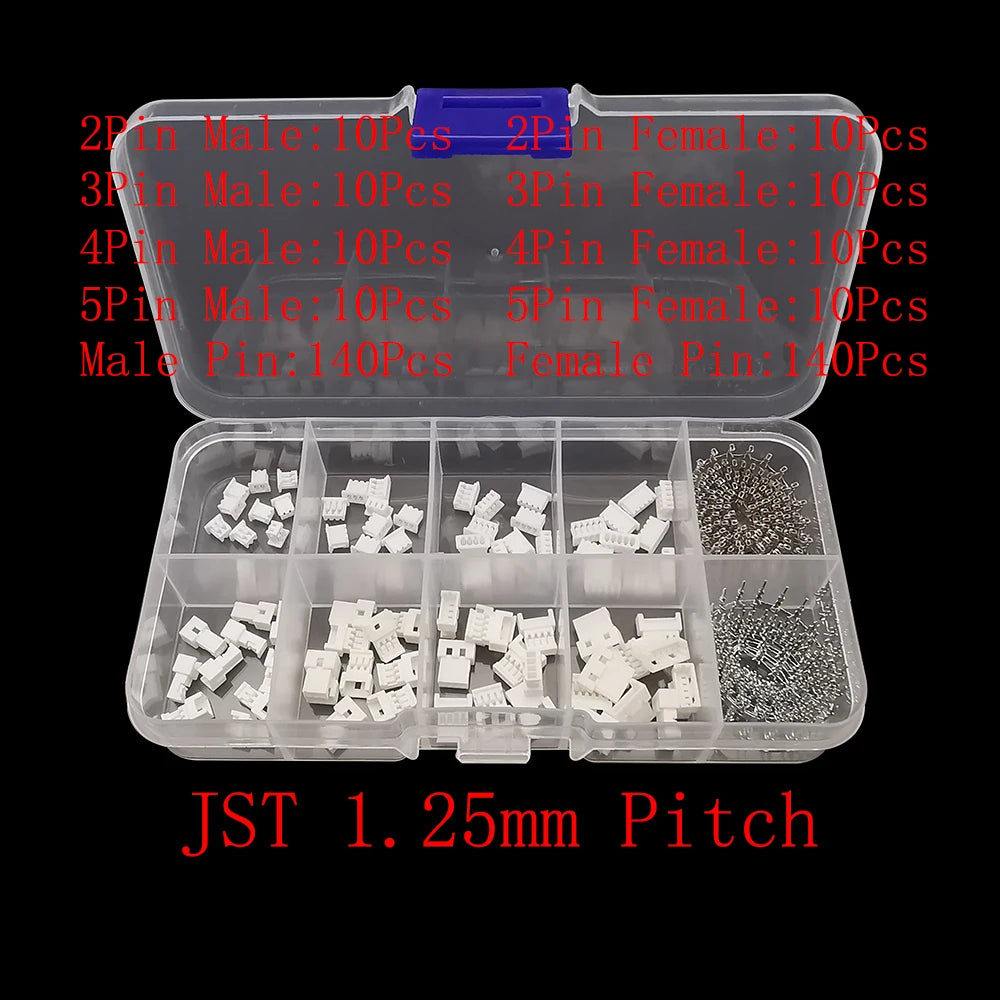

• JST 1.25mm – 40 Sets (2/3/4/5 Pin) + 140 Male & 140 Female Pins

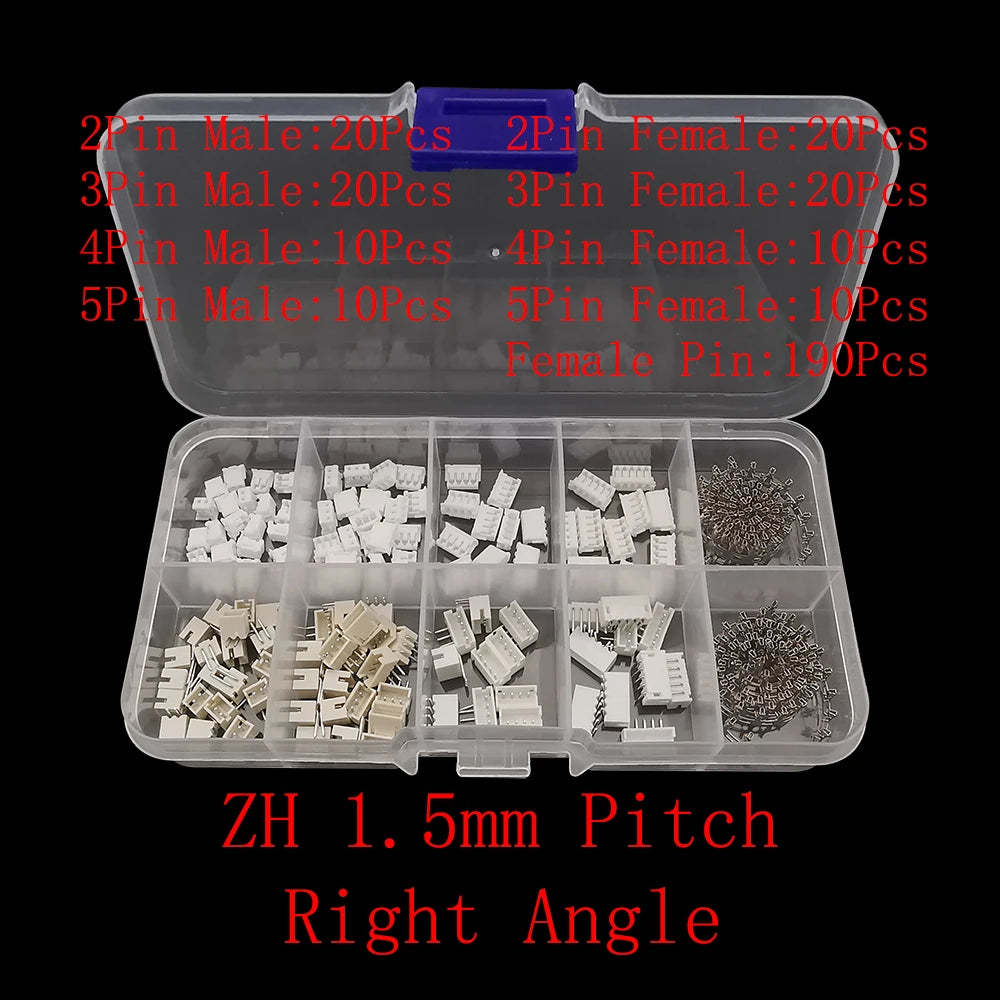

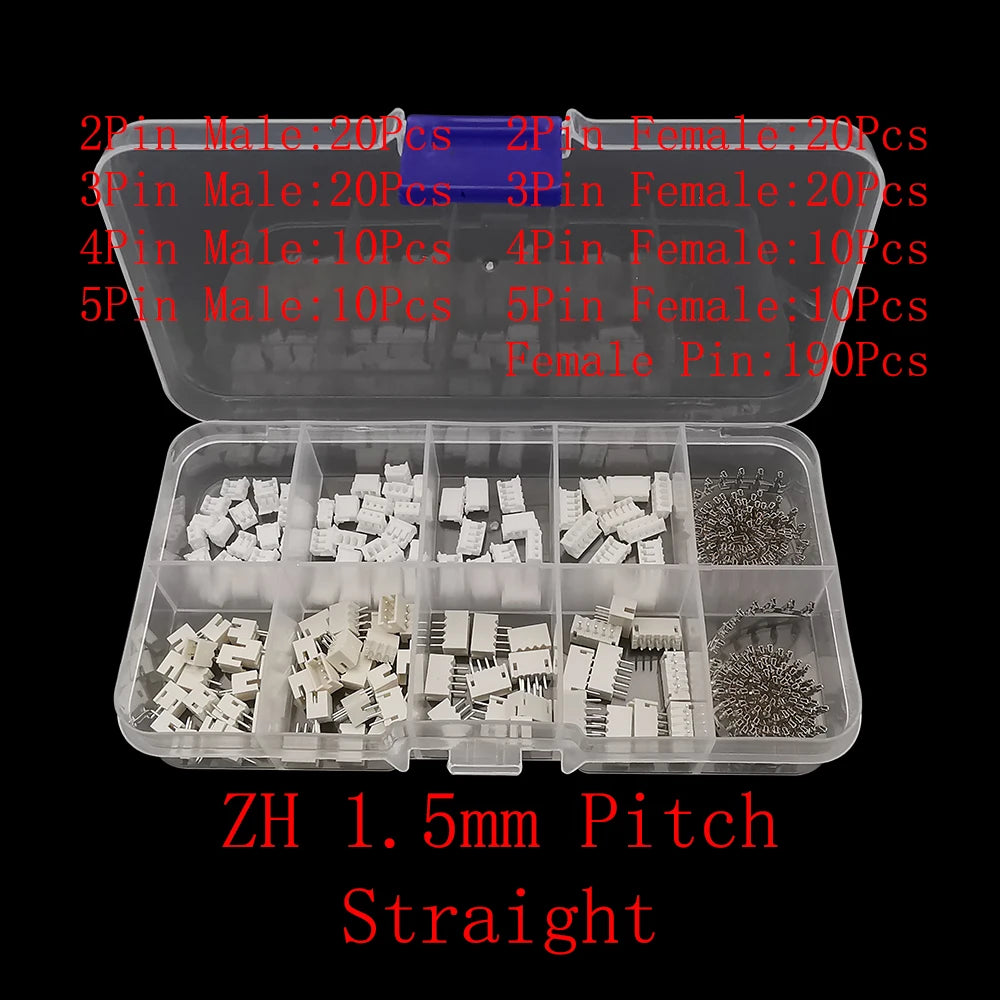

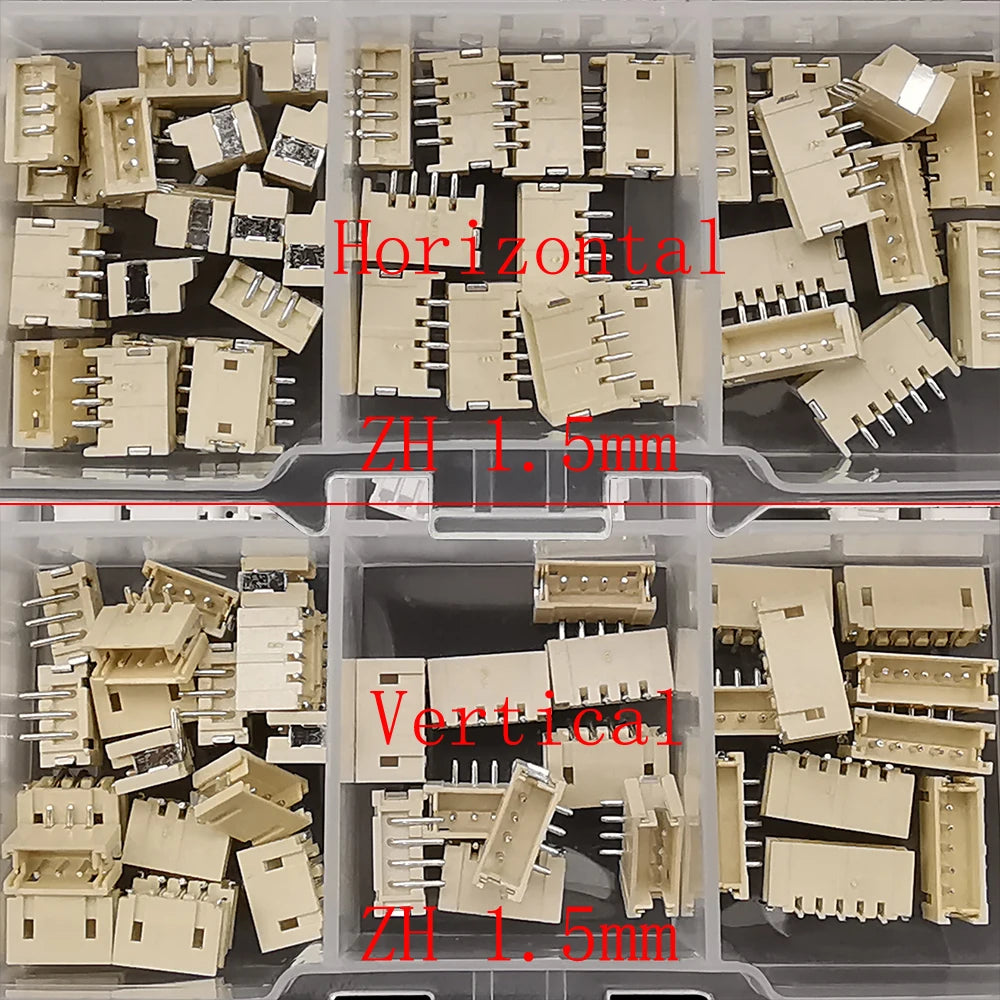

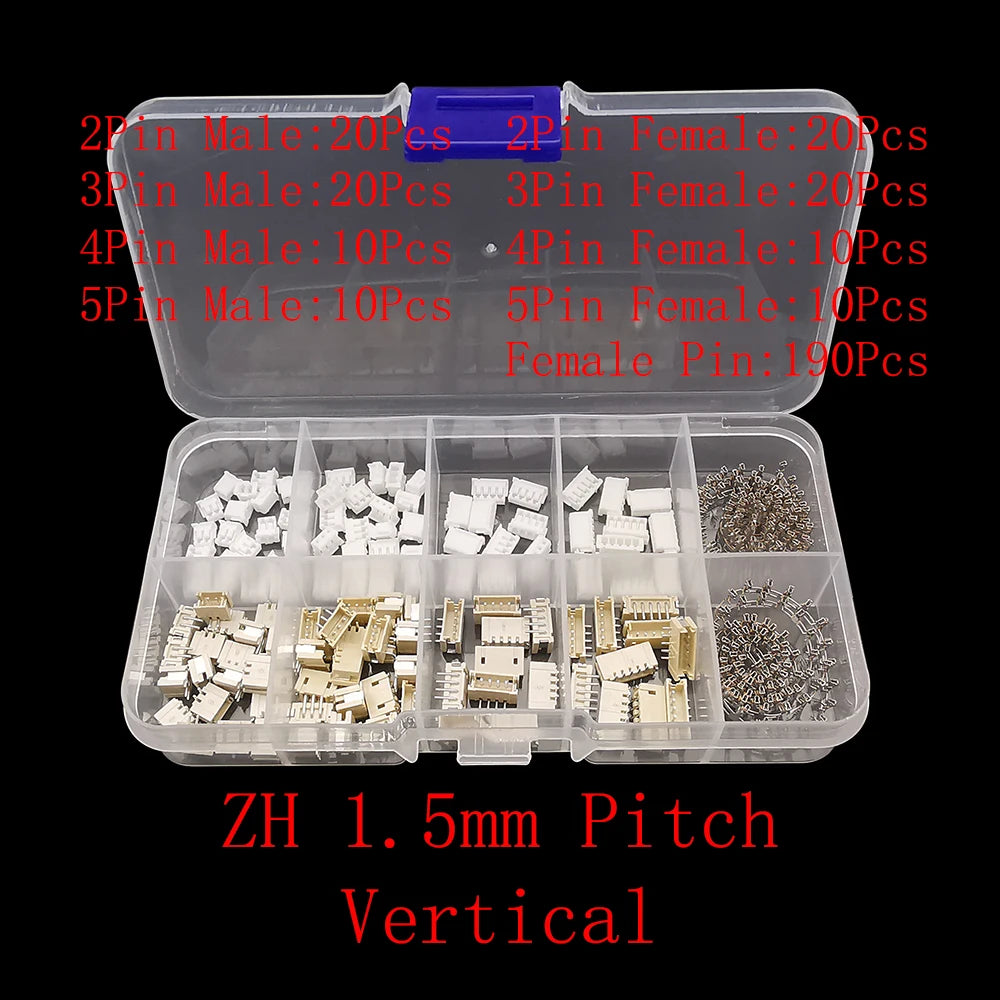

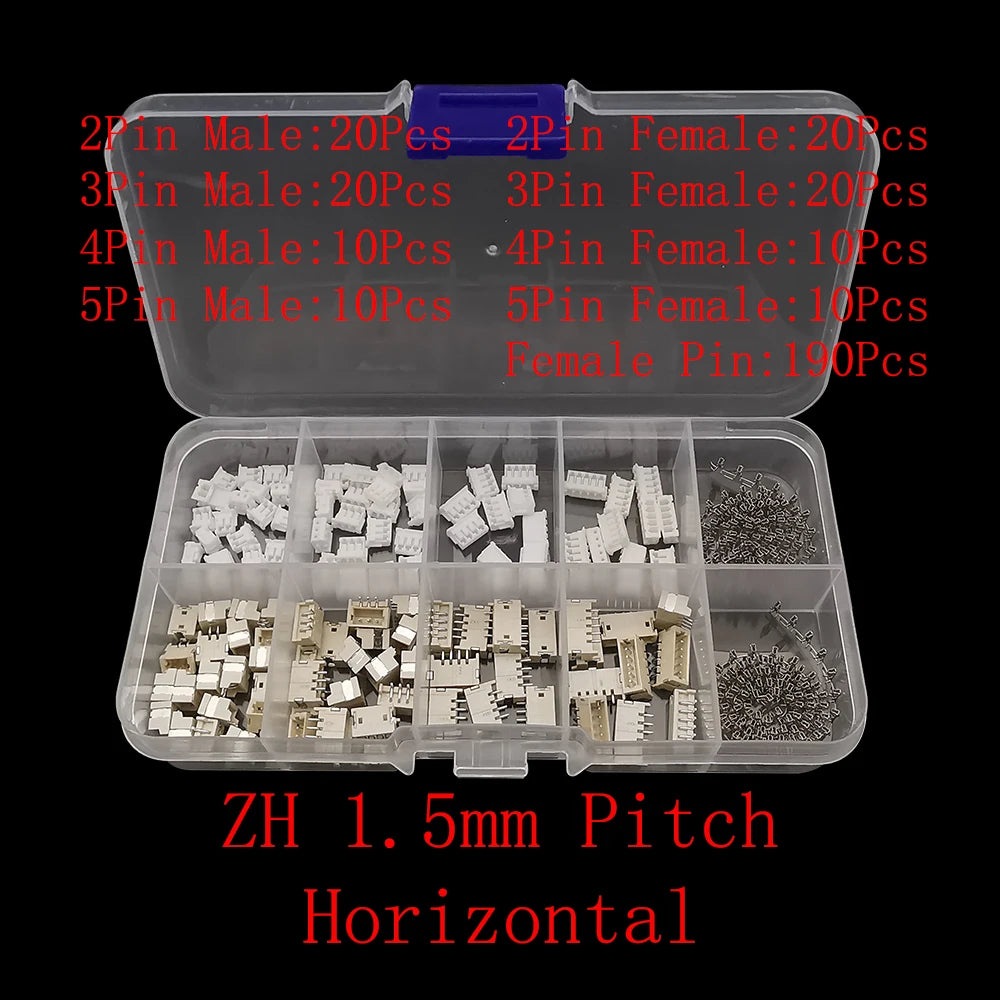

• ZH 1.5mm – 60 Sets (2/3/4/5 Pin) + 190 Female Pins

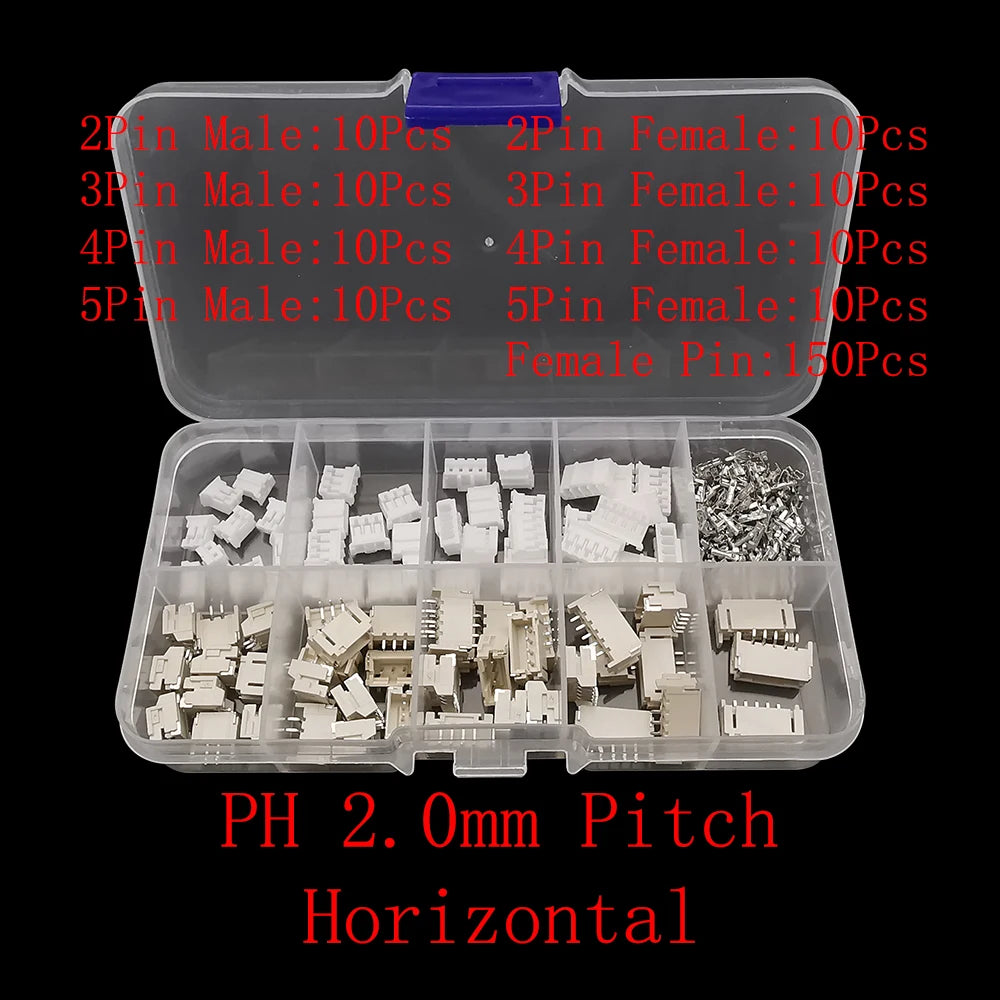

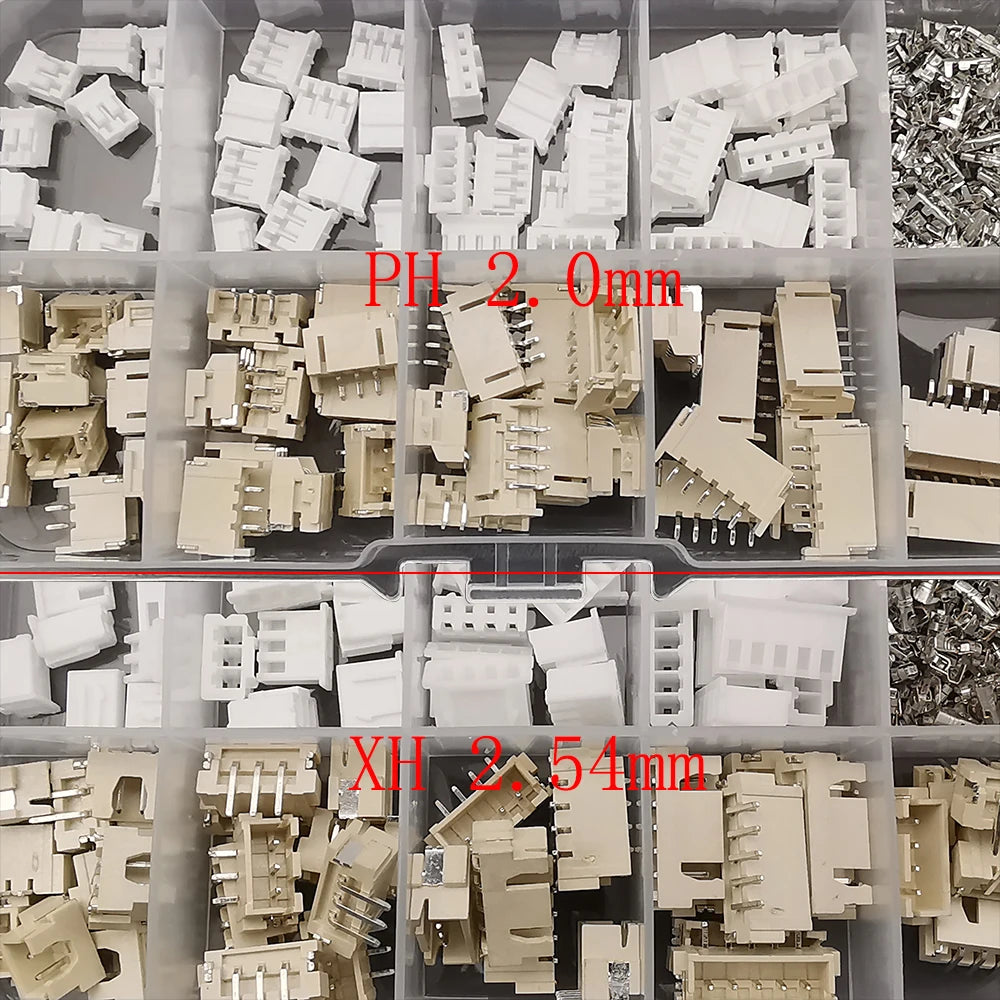

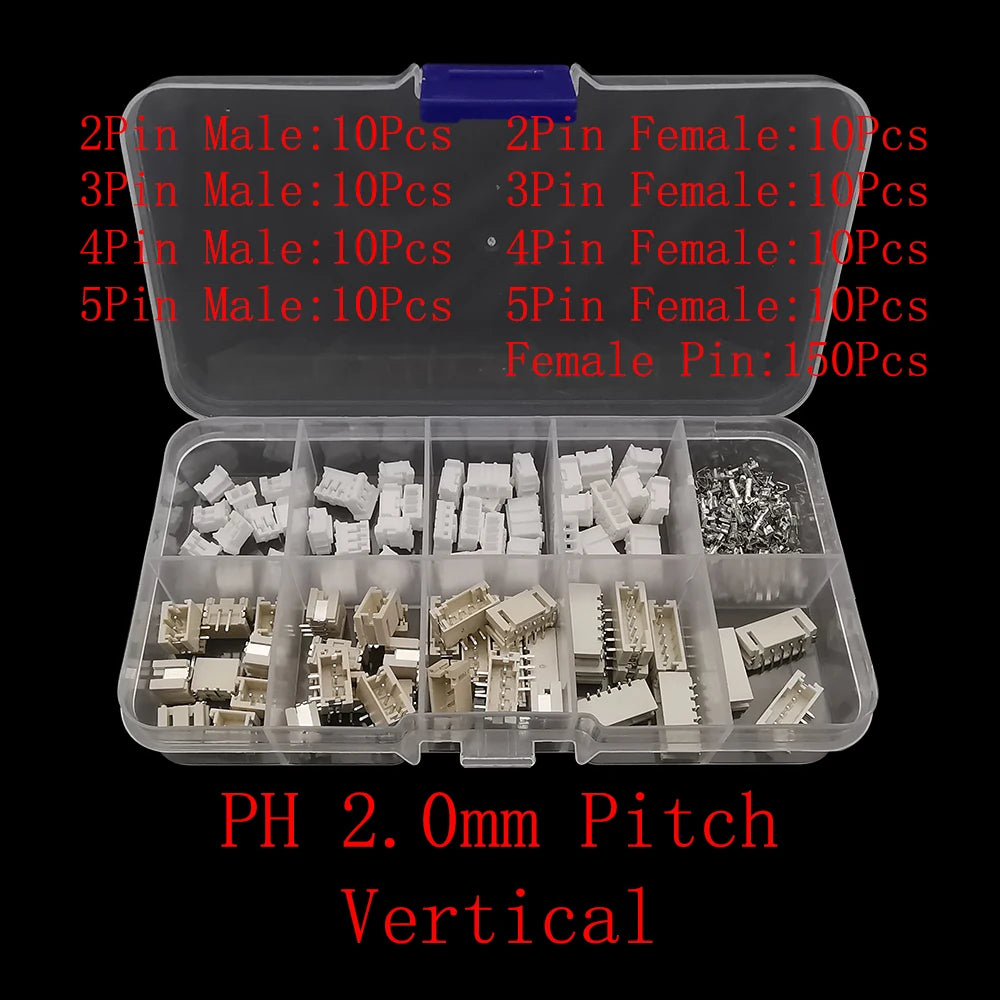

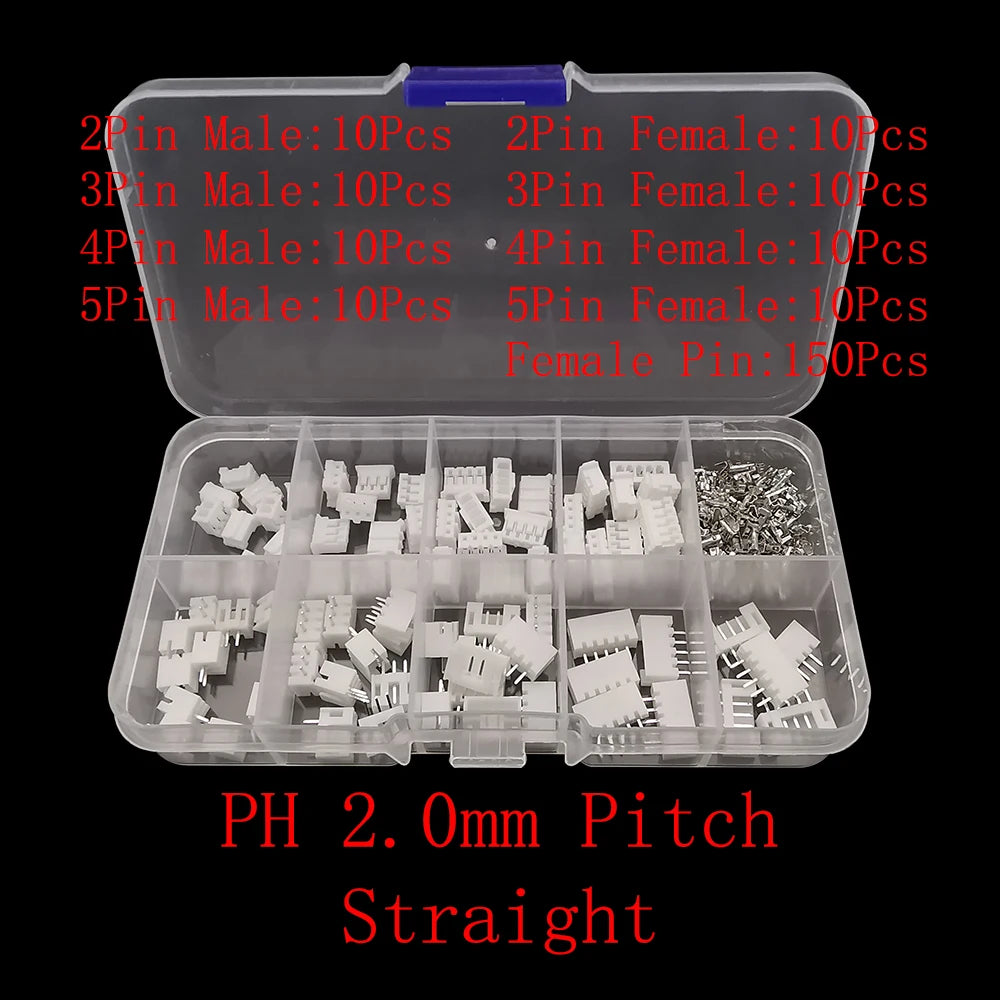

• PH 2.0mm – 40 Sets (2/3/4/5 Pin) + 150 Female Pins

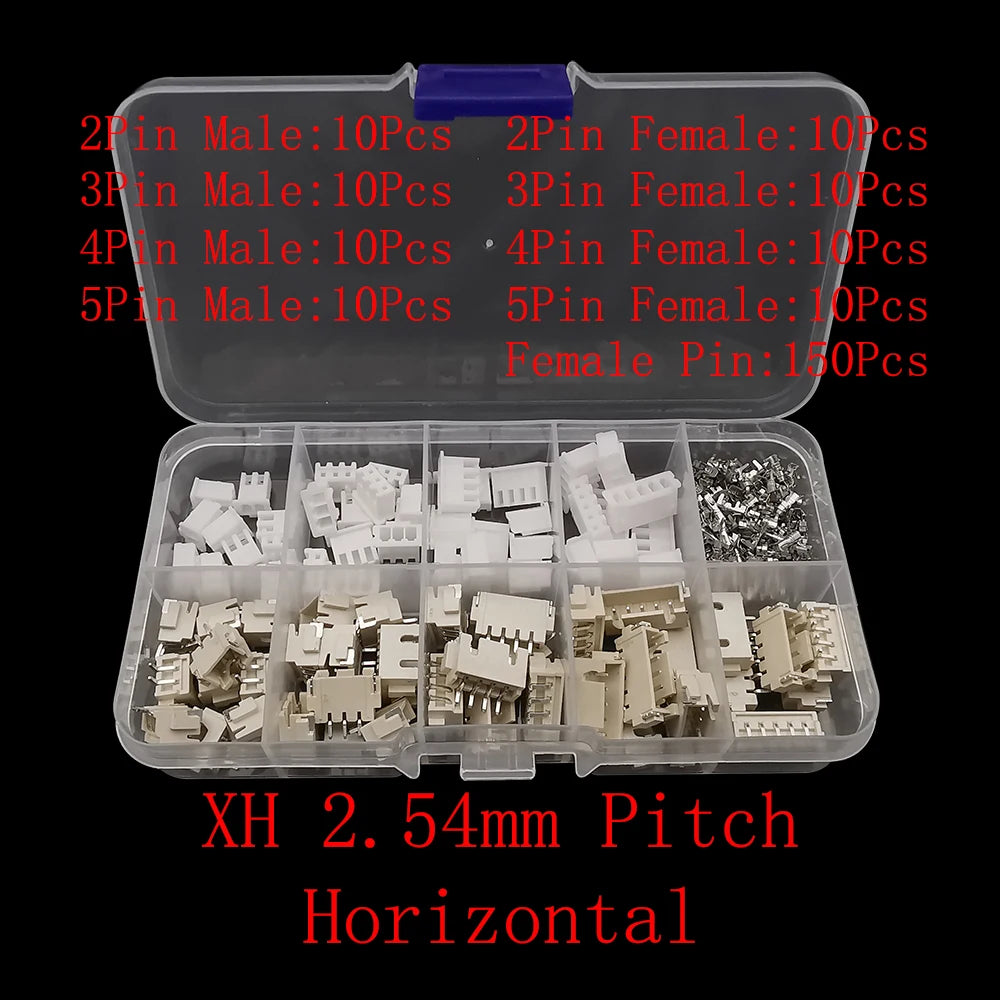

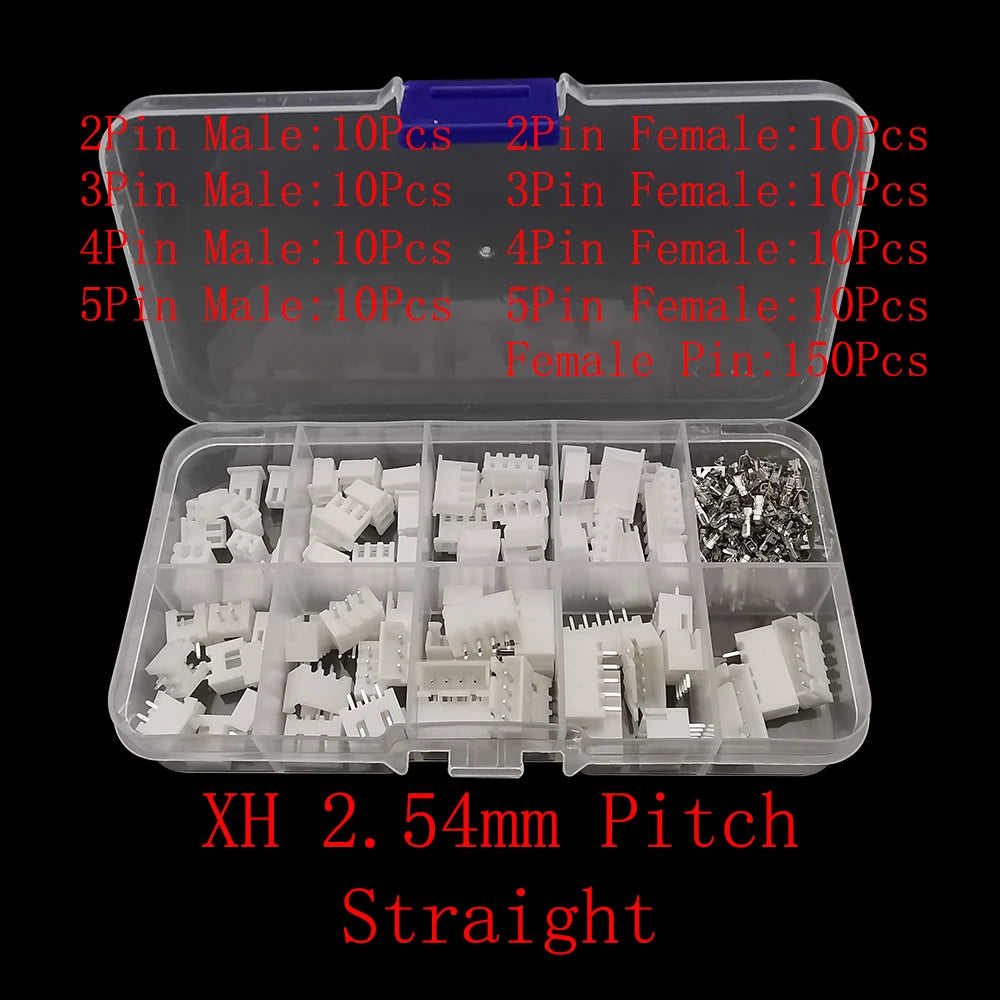

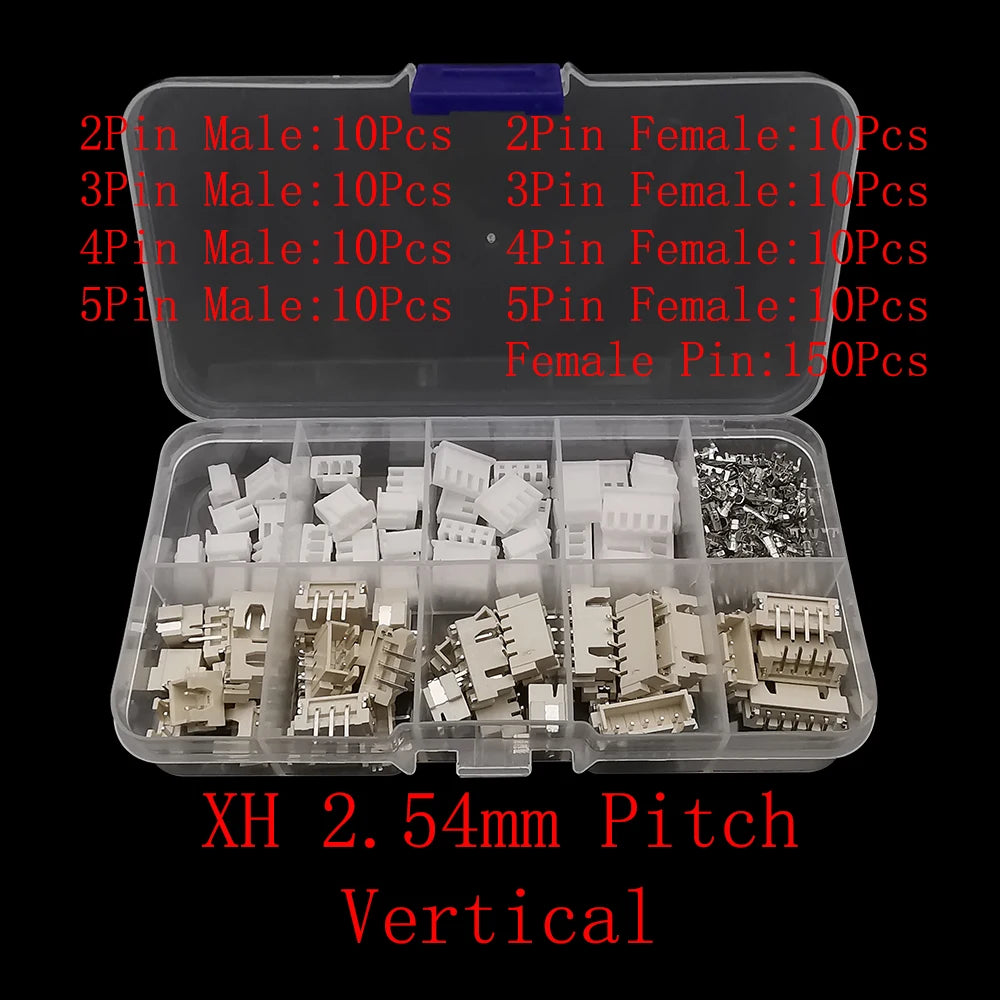

• XH 2.54mm – 40 Sets (2/3/4/5 Pin) + 150 Female Pins

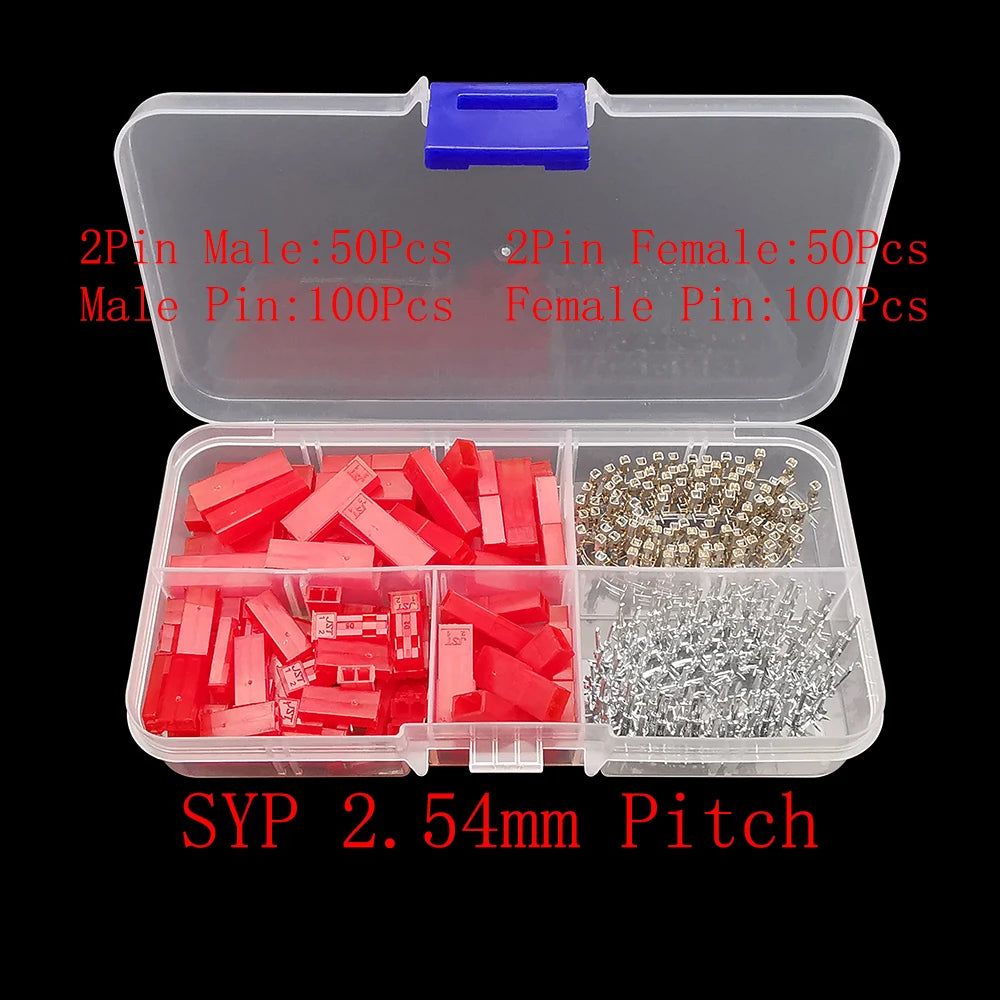

• SYP 2.54mm – 50 Sets (2 Pin) + 100 Male & 100 Female Pins

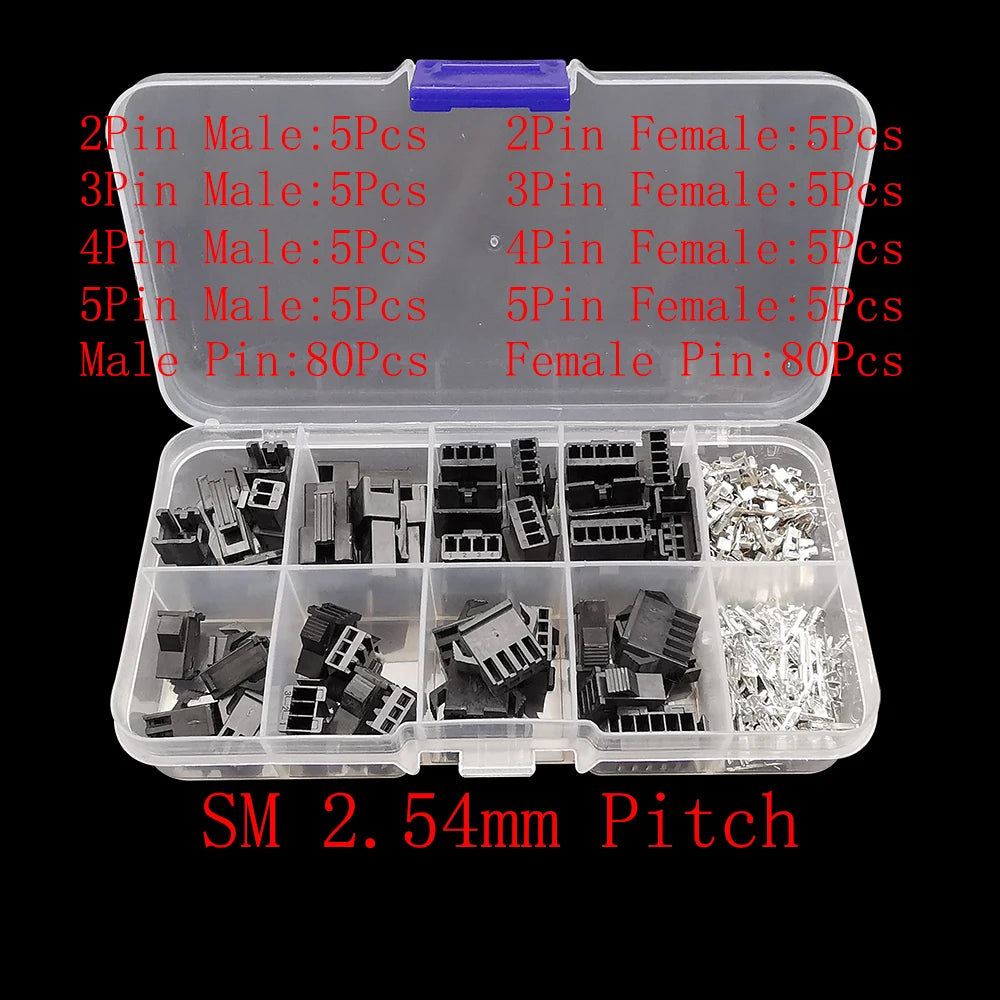

• SM 2.54mm – 20 Sets (2/3/4/5 Pin) + 80 Male & 80 Female Pins

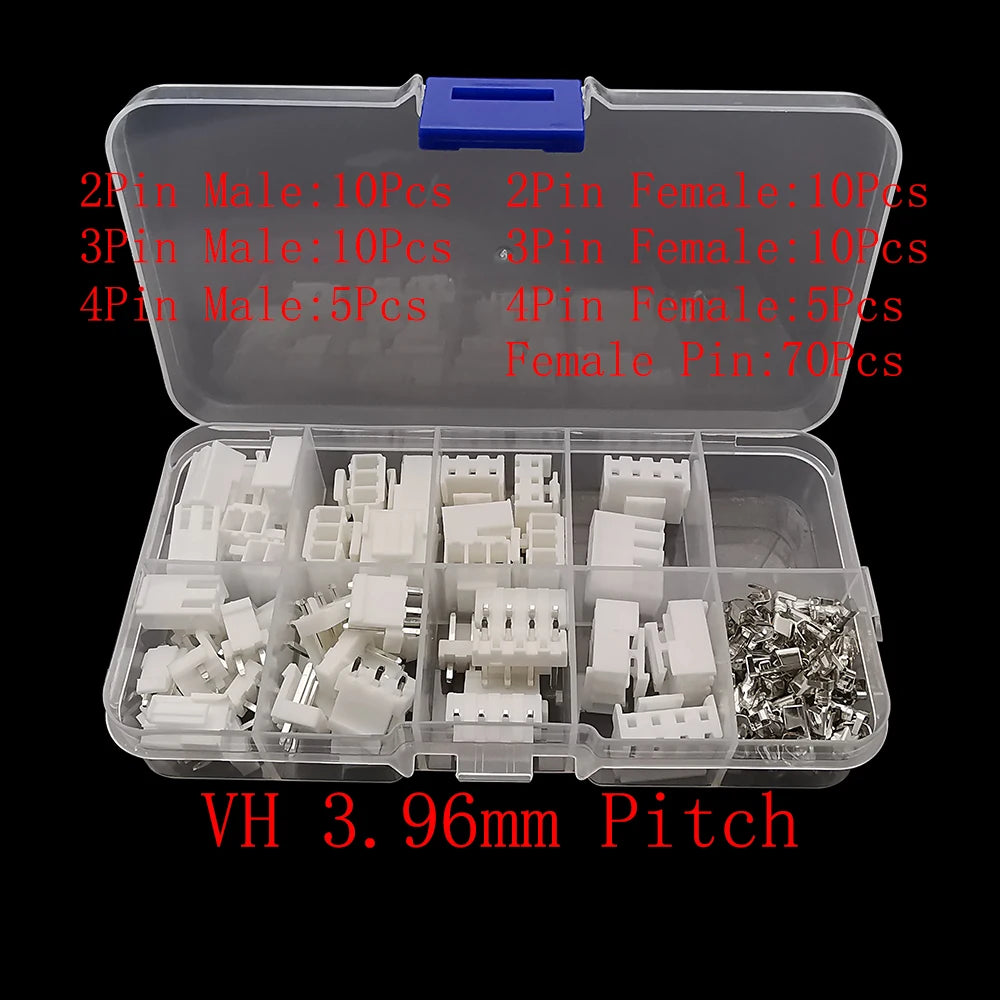

• VH 3.96mm – 25 Sets (2/3/4 Pin) + 70 Female Pins

Key Specifications

• Pitch Sizes: 1.0mm, 1.25mm, 1.5mm, 2.0mm, 2.54mm, 3.96mm
• Pin Counts: 2, 3, 4, and 5 Pin configurations
• Gender: Male Plug Housing & Female Socket Housing
• Style: Straight, Right Angle, Horizontal, Vertical
• Colors: White, Black, Red, Silver
• Material: Plastic Housing + Phosphorus Bronze Terminals
• Voltage Rating: Low voltage – Below 50Vac or 75Vdc
• Box Dimensions: Approx. 128 × 66 × 22mm

Ideal Applications

• PCB design & prototyping
• DIY electronics & hobby projects
• RC vehicles & LiPo battery connections
• LED lighting assemblies
• Arduino, Raspberry Pi & microcontroller wiring
• Toys, sensors & small electronic devices

Made in China.

Related Products You May Like

• 10pcs 2-Pin Spring Wire Connectors – Quick Splice Lock Terminals
• 12pcs 16mm Momentary Push Button Switch 1NO Metal 2-Pin Self-Reset
• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What connector series are included in this JST connector kit?

A: This kit includes connectors from nine popular series: SH 1.0mm, JST 1.25mm, ZH 1.5mm, PH 2.0mm, XH 2.54mm, SYP 2.54mm, SM 2.54mm, and VH 3.96mm — covering a wide range of pitch sizes and pin counts (2, 3, 4, and 5 pin) in both male and female housings.

Q: Are the terminal pins included, or do I need to buy them separately?

A: Yes! Phosphorus bronze crimp terminal pins are included with each connector series in the box. The quantity varies by series — for example, the SH 1.0mm set includes 190 female pins, and the SM 2.54mm set includes 80 male and 80 female pins. No additional purchases are needed to get started.

Q: What projects is this JST connector kit best suited for?

A: This kit is ideal for PCB prototyping, DIY electronics, RC hobby builds, Arduino and Raspberry Pi projects, LED lighting, sensor wiring, and any small electronic project requiring compact, reliable low-voltage wire-to-board connections.

Q: What is the voltage rating for these connectors?

A: These connectors are rated for low-voltage applications — below 50Vac or 75Vdc — making them suitable for most hobbyist and consumer electronics applications.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
