JST Connector Kit PH 2.0mm XH 2.54mm 230pcs Terminal Set

$29.33 $33.15

Shipping calculated at checkout.

JST Wire Connector Kit — PH 2.0mm & XH 2.54mm Pitch

This all-in-one 230-piece JST connector kit gives hobbyists, engineers, and electronics enthusiasts everything they need to build reliable, secure wire connections. The kit covers both the popular PH 2.0mm and XH 2.54mm pitch standards, with male/female housings and crimp pins in 2, 3, 4, and 5-pin configurations — perfect for circuit boards, LiPo batteries, LED lighting projects, computers, and electronic toys.

Kit Contents

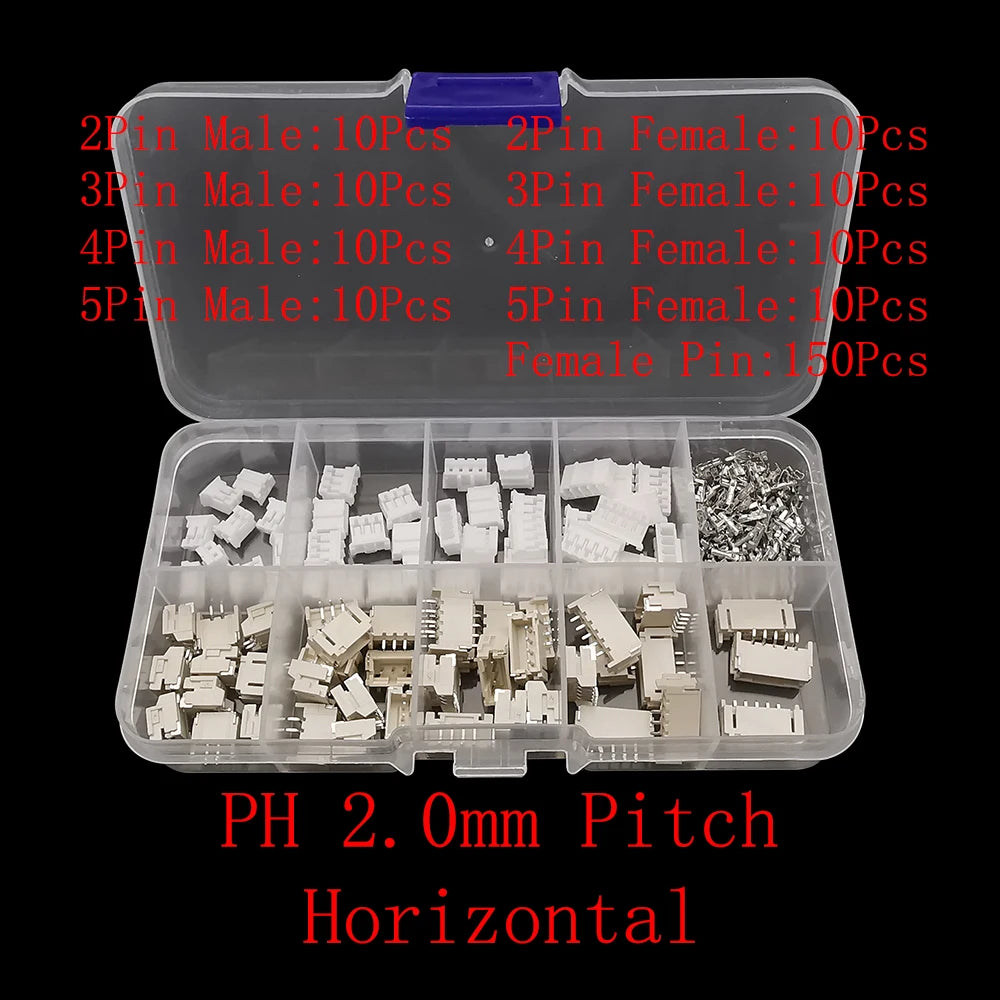

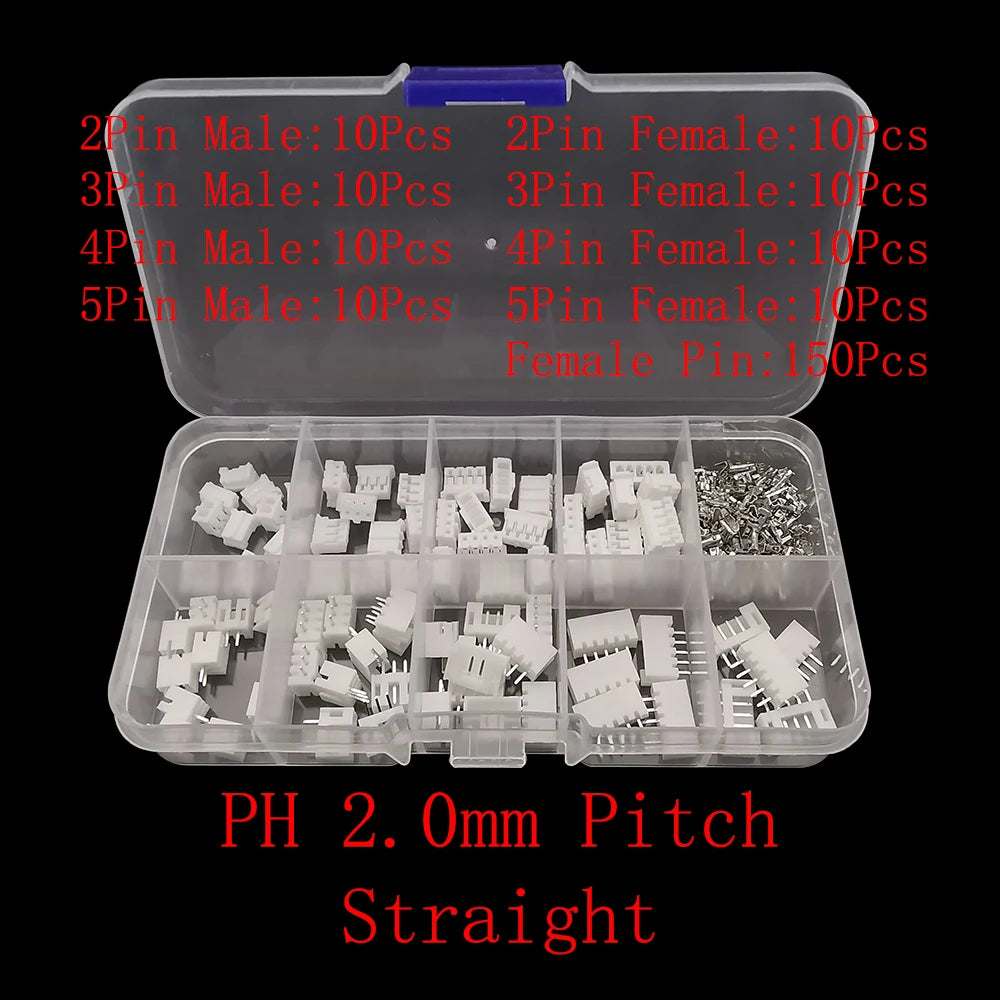

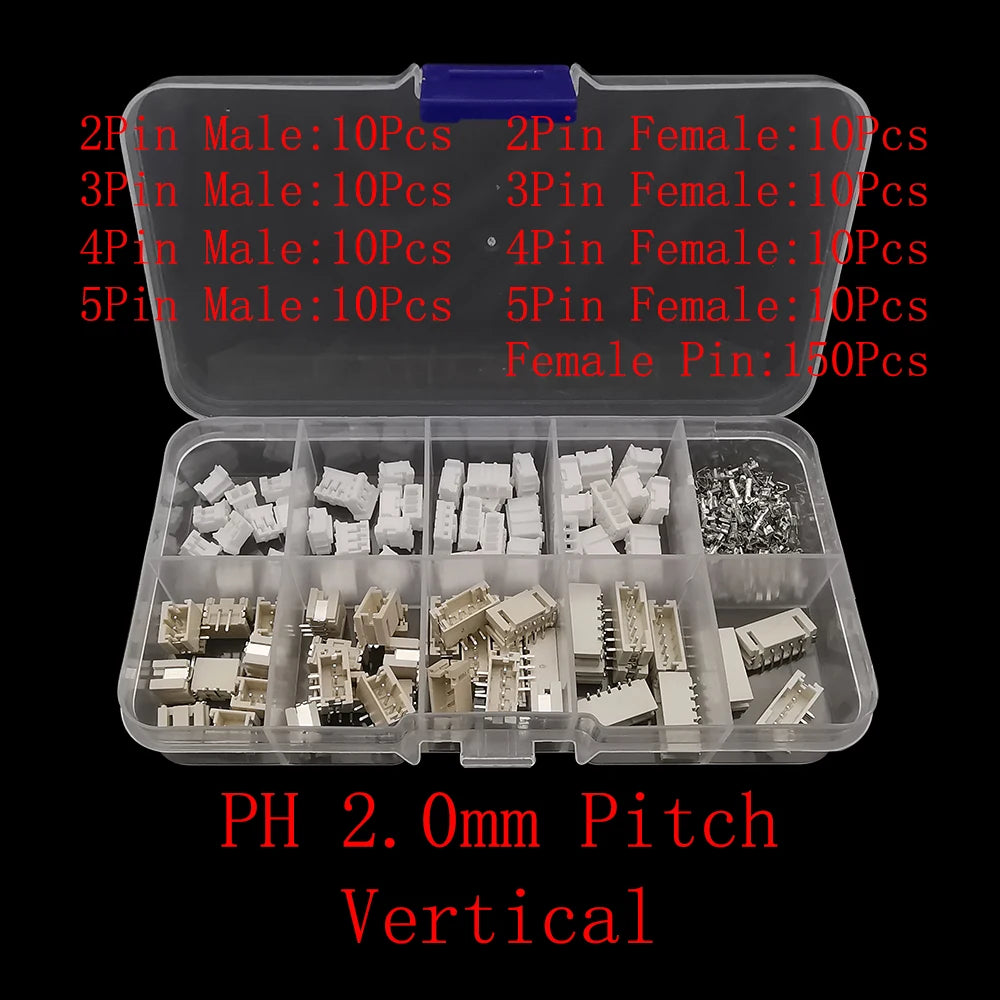

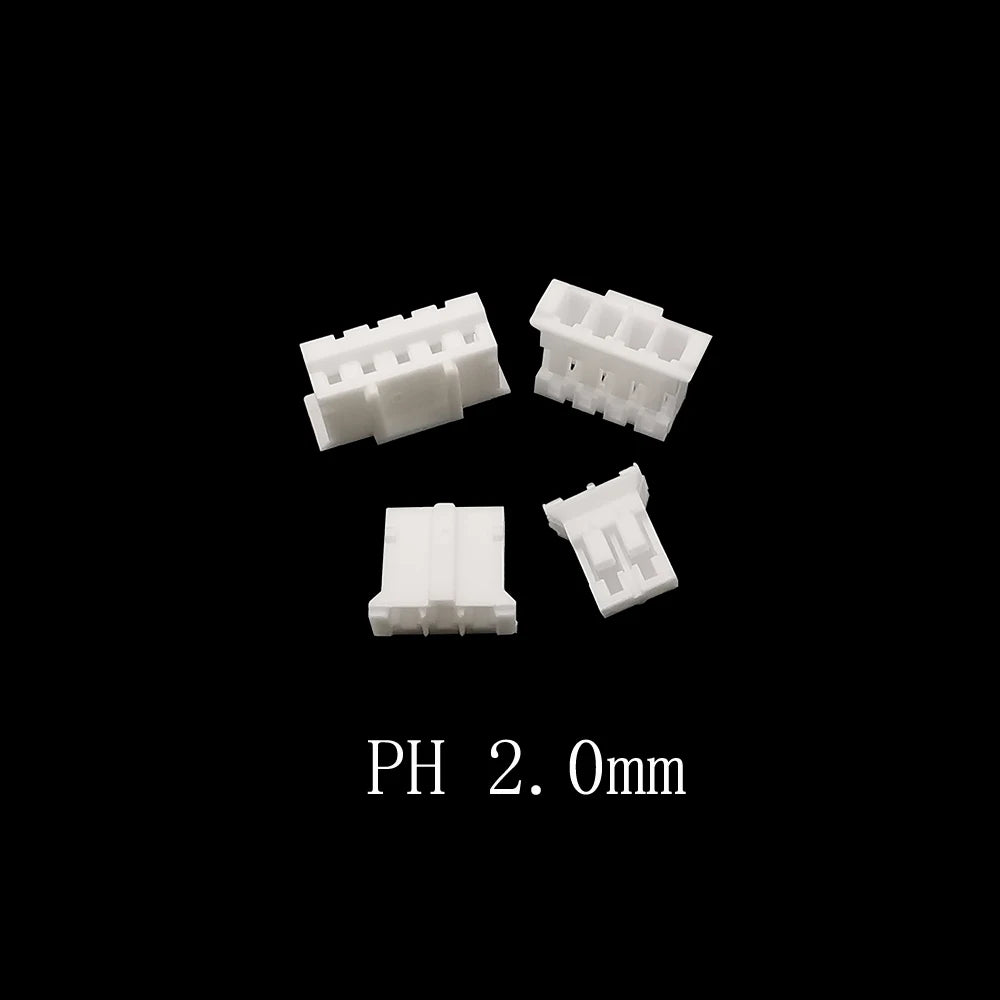

PH 2.0mm

2-Pin: 10 × Male Housing + 10 × Female Housing
3-Pin: 10 × Male Housing + 10 × Female Housing
4-Pin: 10 × Male Housing + 10 × Female Housing
5-Pin: 10 × Male Housing + 10 × Female Housing
Female Crimp Pins: 150 pcs

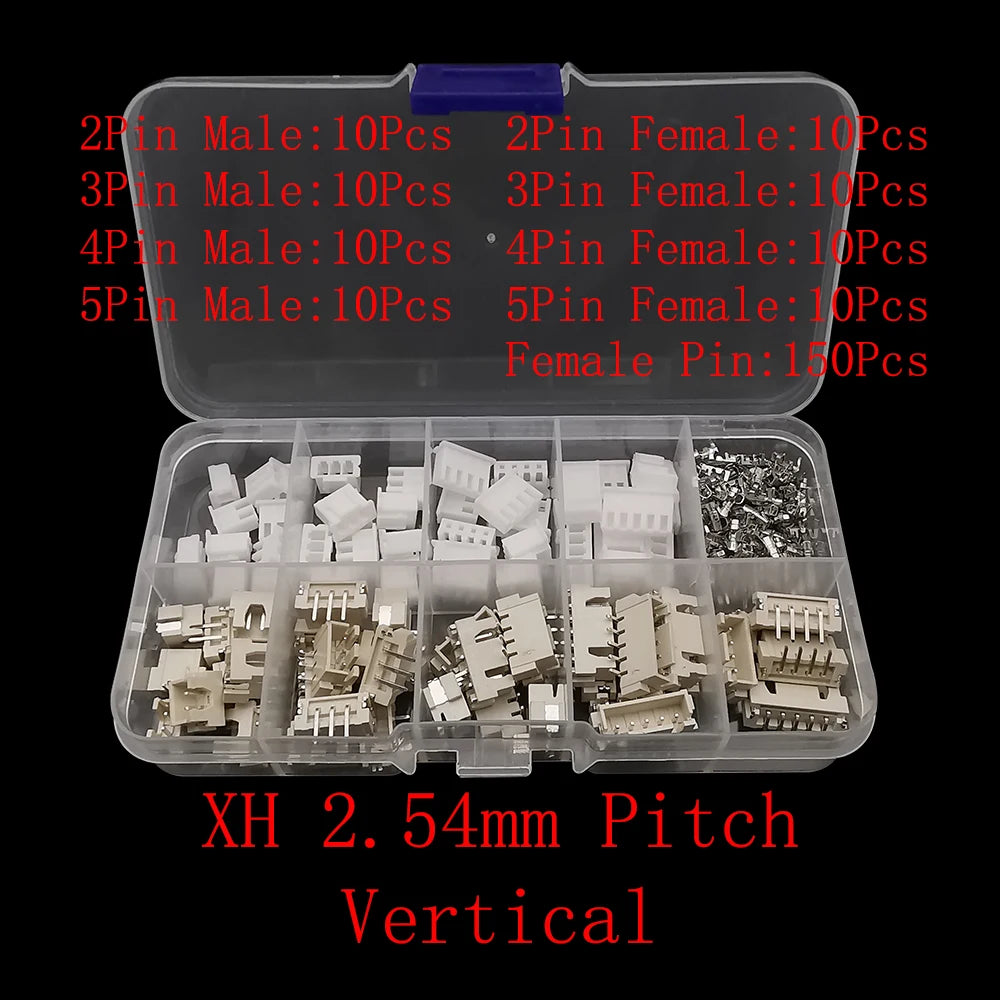

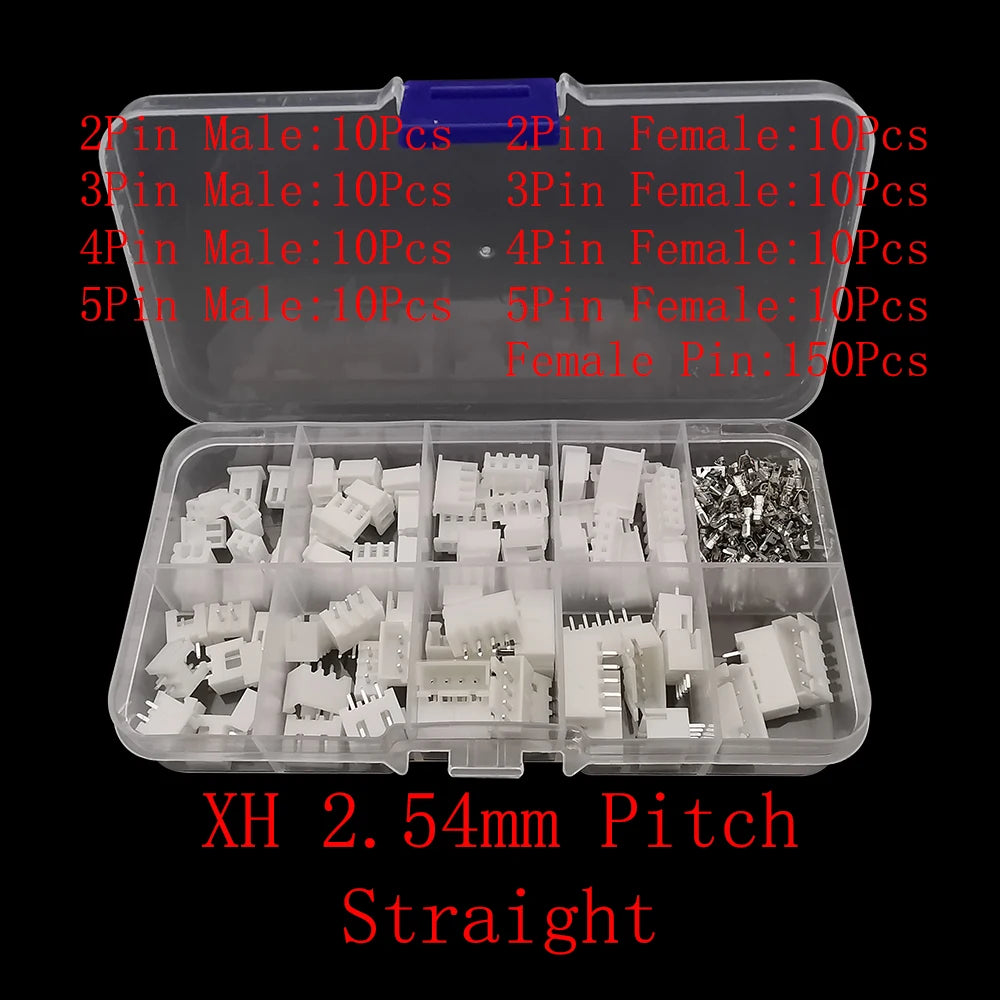

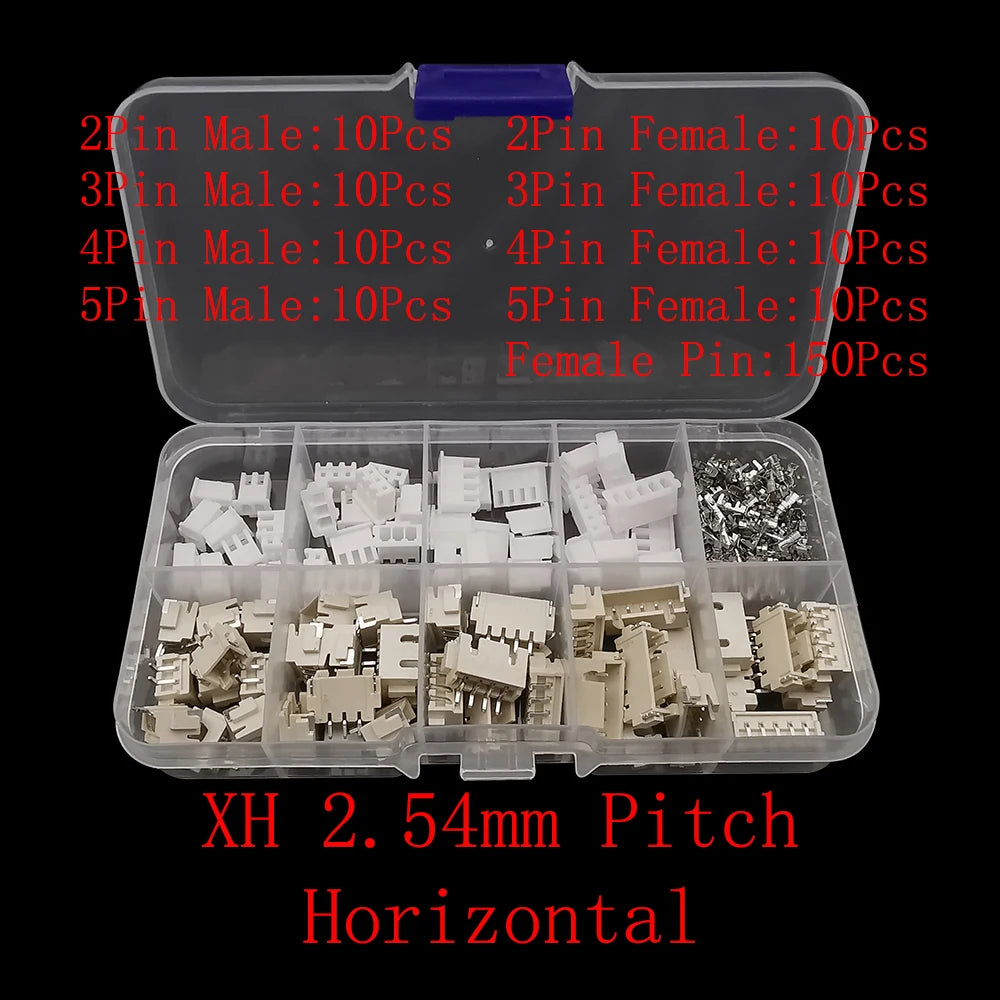

XH 2.54mm

2-Pin: 10 × Male Housing + 10 × Female Housing
3-Pin: 10 × Male Housing + 10 × Female Housing
4-Pin: 10 × Male Housing + 10 × Female Housing
5-Pin: 10 × Male Housing + 10 × Female Housing
Female Crimp Pins: 150 pcs

Product Specifications

Pitch	2.0mm (PH) / 2.54mm (XH)
Pins per Housing	2, 3, 4, 5
Gender	Male & Female
Material	Plastic (housing), Metal (pins)
Color	White / Silver

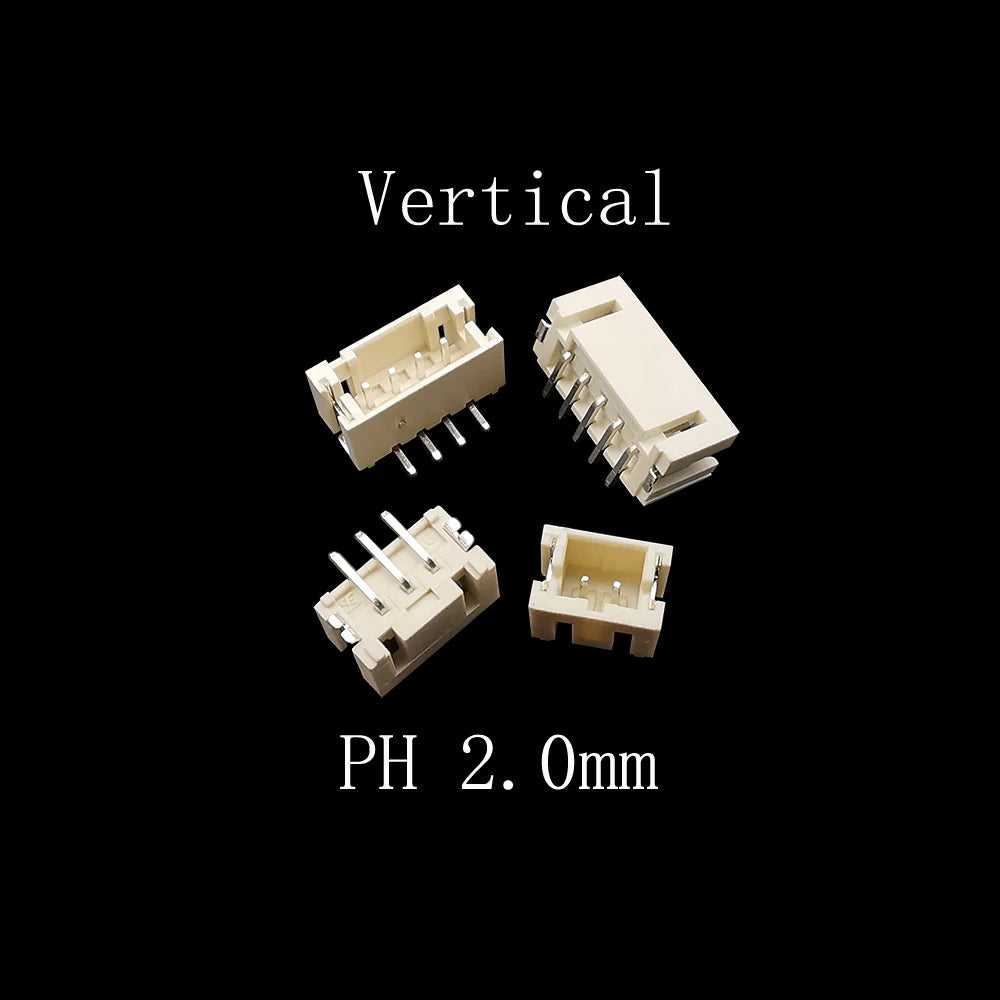

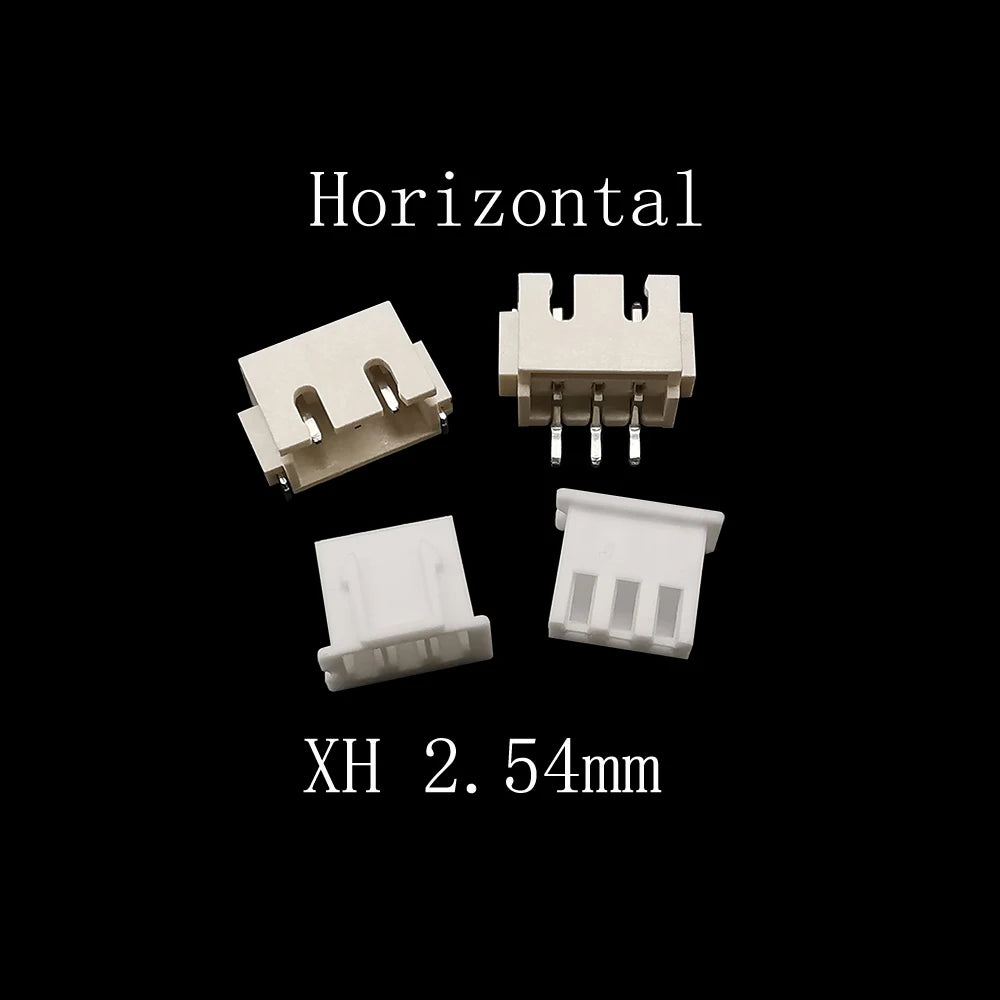

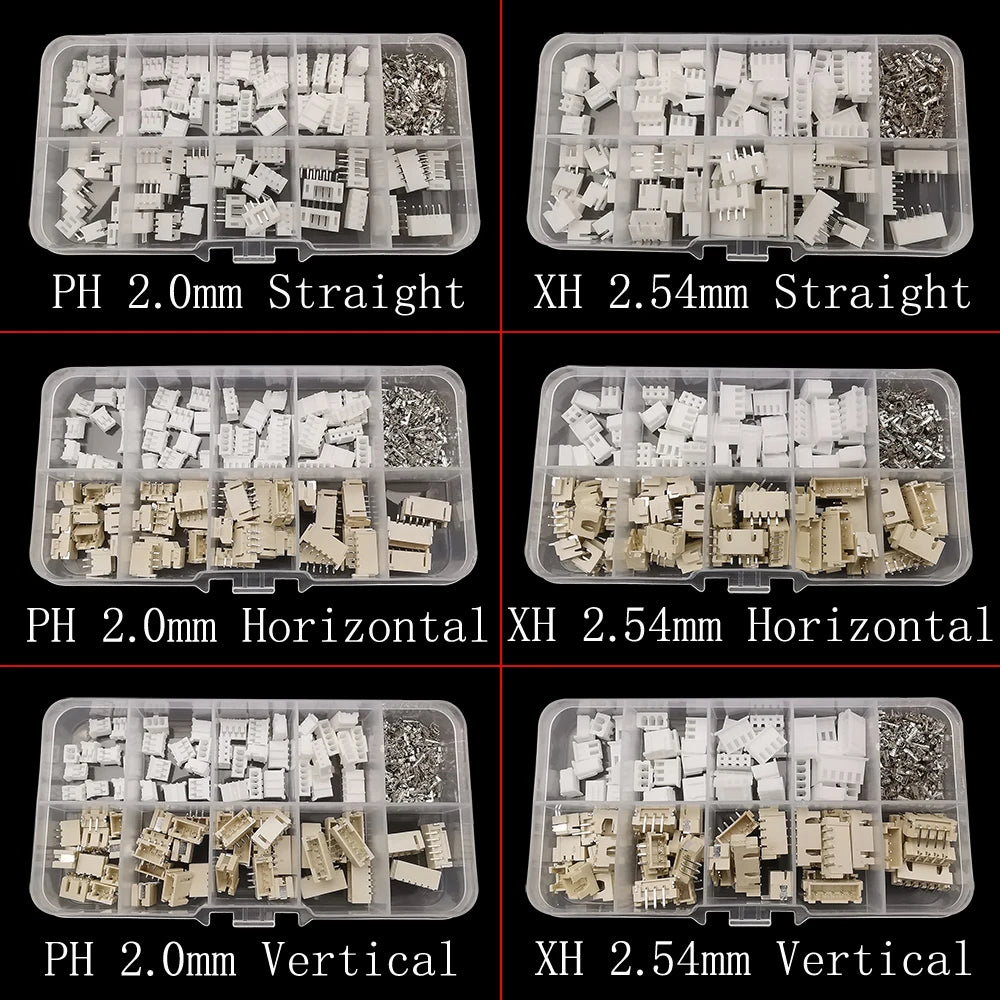

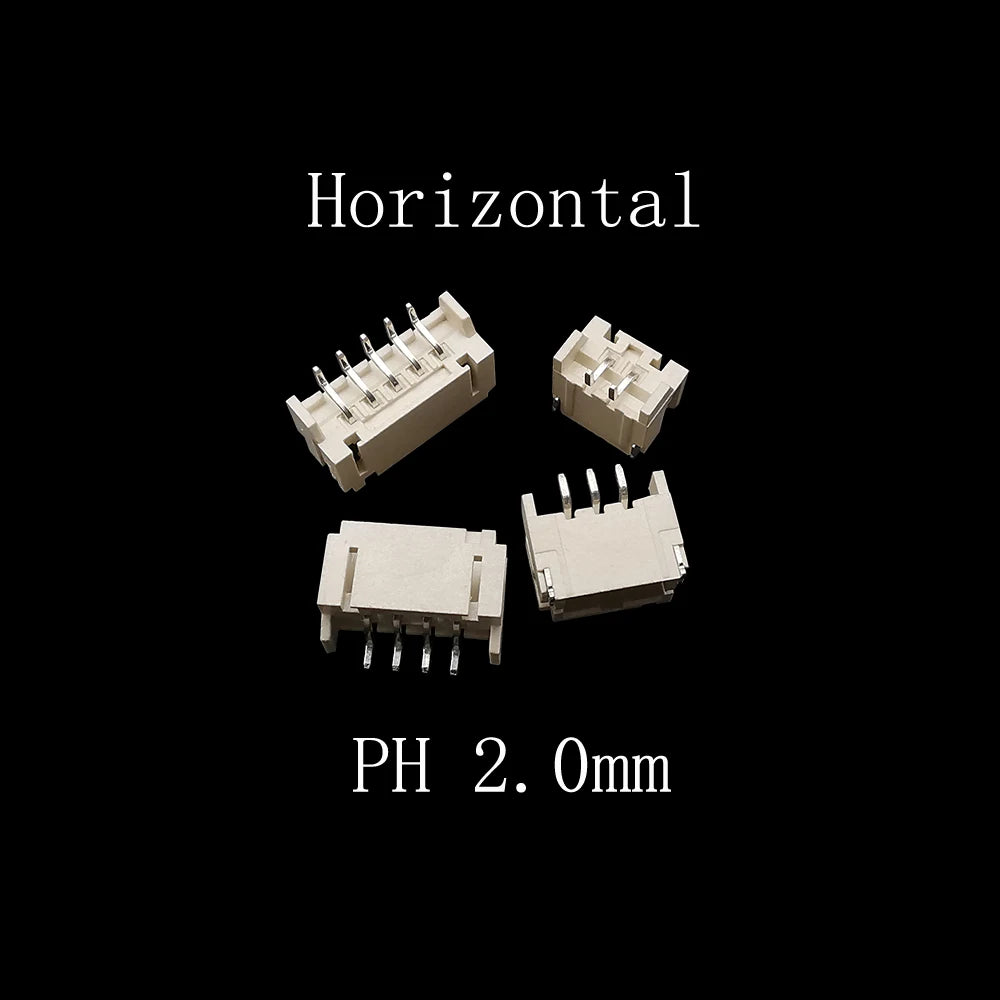

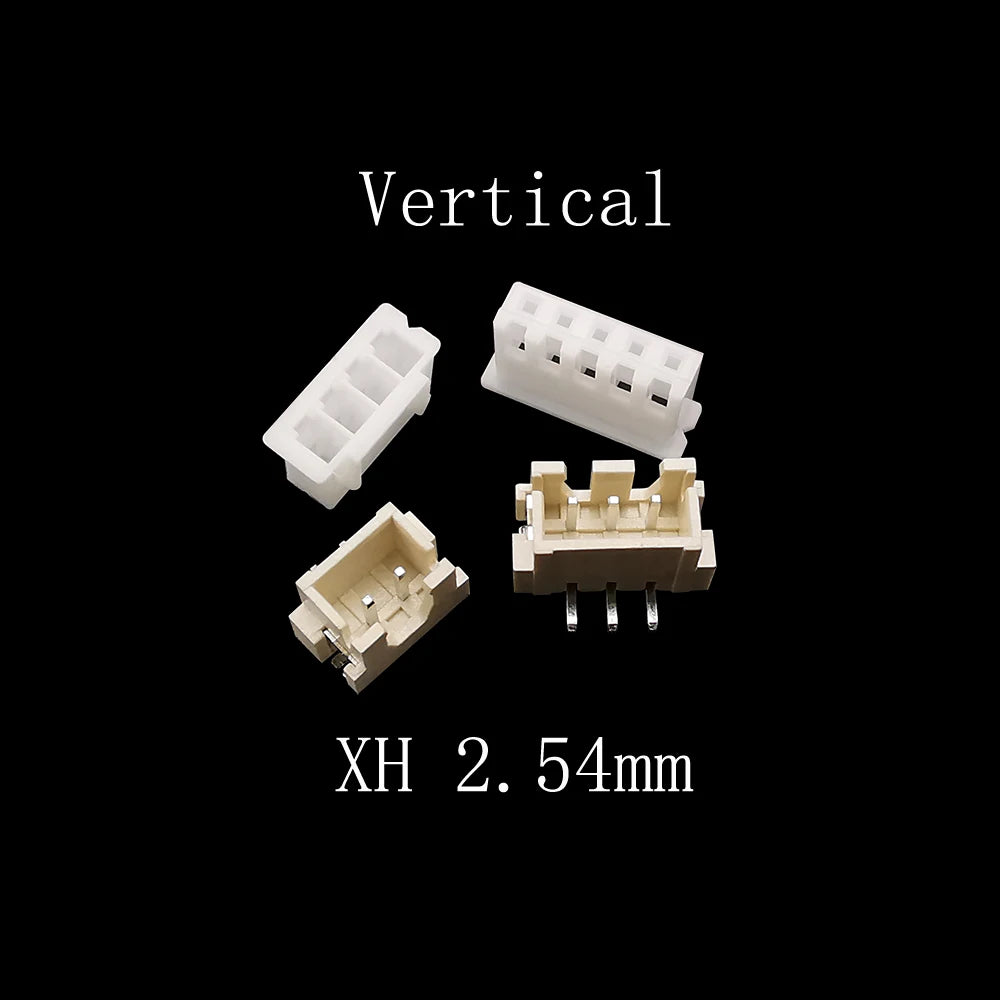

Style	Straight, Horizontal, Vertical
Total Pieces	230 pcs per box
Box Dimensions	Approx. 128 × 66 × 22 mm
Voltage Rating	Low Voltage — Below 50V AC or 75V DC
Country of Origin	Made in China

Key Features

Two industry-standard pitches in one kit — PH 2.0mm and XH 2.54mm covered
Complete terminal set — housings, pin headers, and crimp pins all included
Wide compatibility — ideal for RC models, Arduino projects, LED strips, LiPo battery packs, and more
Secure locking mechanism — latching housing keeps connections firm during use
Neatly boxed — compact organizer box keeps components sorted and accessible

⚠️ Safety Note: Small parts included. Keep out of reach of children to prevent swallowing.

Frequently Asked Questions

Q: What is the difference between PH 2.0mm and XH 2.54mm JST connectors?

A: The PH 2.0mm connector has a 2.0mm pitch (distance between pin centers), making it more compact — commonly used in LiPo battery packs and small electronics. The XH 2.54mm connector has a 2.54mm pitch, which is the standard breadboard spacing and is widely used in Arduino projects, circuit boards, and LED lighting. This kit includes both types so you're covered for most common applications.

Q: Are crimp tools required to use these connectors?

A: Yes, a JST-compatible crimp tool is recommended for properly securing the female crimp pins onto your wires before inserting them into the housing. While some users manage with needle-nose pliers, a dedicated crimp tool will give you a much more reliable and professional connection.

Q: What wire gauge is compatible with these JST connectors?

A: PH 2.0mm connectors are typically compatible with AWG 28–32 wire, while XH 2.54mm connectors work with AWG 22–28 wire. Always verify your wire gauge against the connector's datasheet for the best fit and electrical performance.

Q: Can these connectors be used for LiPo battery connections?

A: Yes — PH 2.0mm connectors are a popular standard in the RC hobby and drone community for LiPo balance leads. Please ensure your application stays within the low-voltage rating (below 50V AC or 75V DC) specified for this kit.
