Kande XL7 D118L160 Flexible Jaw Shaft Coupler 20–70mm CNC

Kande XL7 D118L160 Clamp-Type Flexible Jaw Shaft Coupler for CNC & Ballscrew Applications

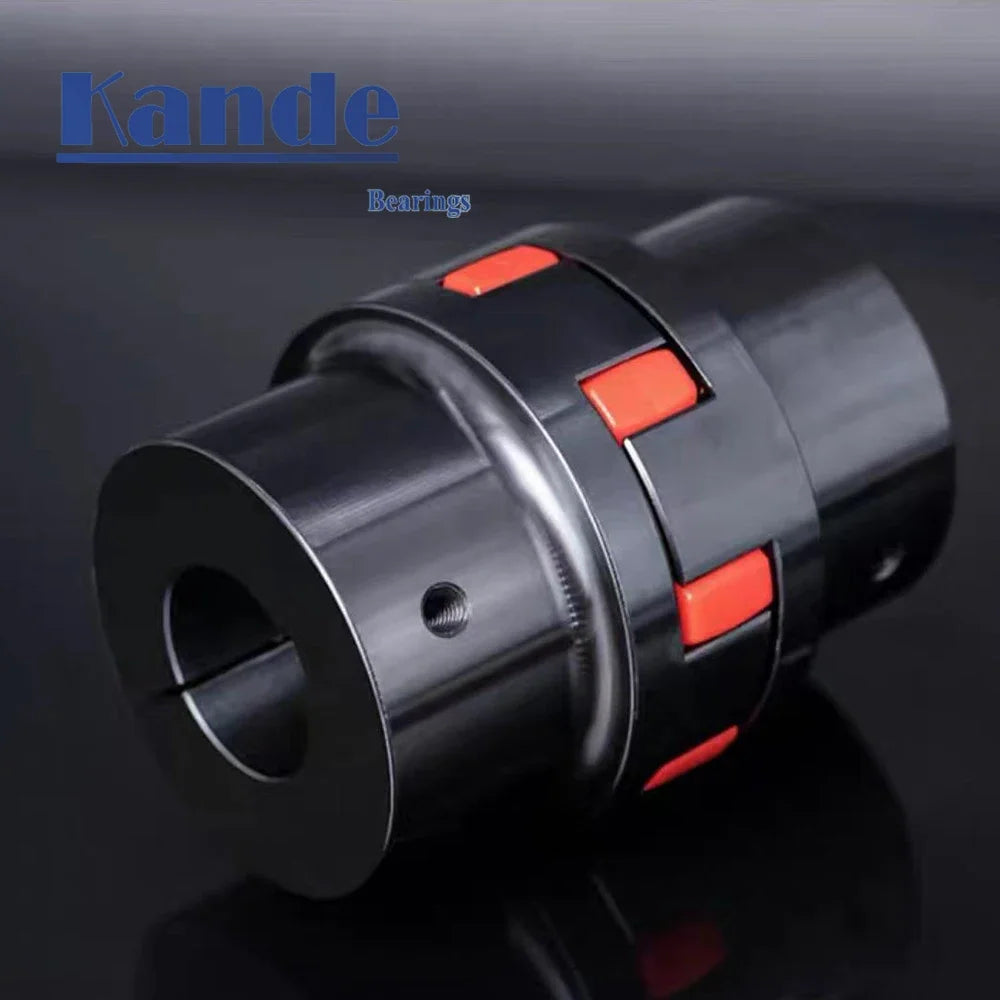

The Kande XL7 D118L160 is a heavy-duty, clamp-type flexible jaw (spider/plum) shaft coupling engineered for precision CNC machinery, motor-to-ballscrew connections, and industrial drive systems. Built from solid steel, this coupler delivers exceptional torque transmission, vibration dampening, and reliable shaft alignment across a wide bore range of 20, 30, 40, 45, 50, 60, and 70mm — making it a versatile solution for professional-grade automation and machining setups.

Made in Mainland China.

Key Features

• Model: XL7 D118L160 — Outer Diameter 118mm, Length 160mm

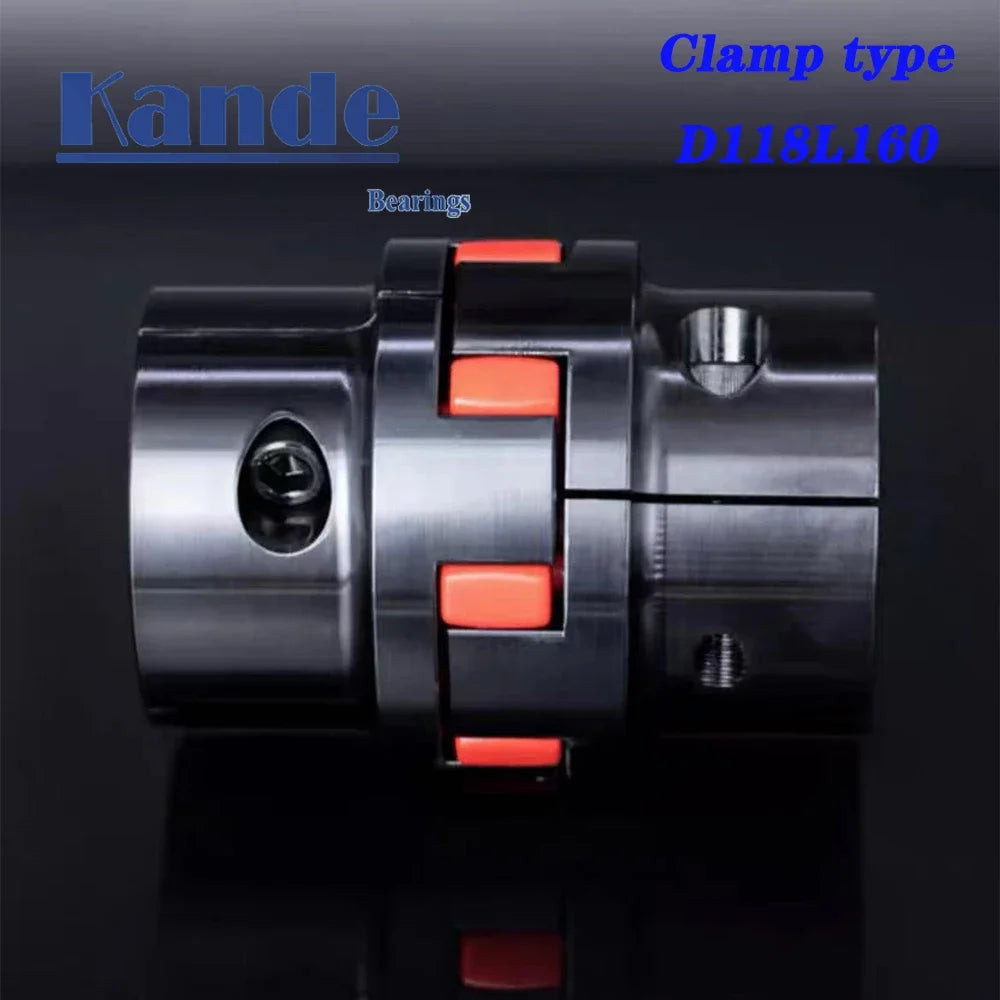

• Type: Clamp (Split) Design with Jaw / Spider (Plum) Insert
• Material: High-Grade Steel for maximum durability and torque capacity
• Bore Sizes Available: 20mm, 30mm, 40mm, 45mm, 50mm, 60mm, 70mm
• Flexibility: Flexible coupling absorbs shock loads and compensates for minor shaft misalignment (angular, parallel, and axial)
• Standard: Manufactured to standard specifications for broad compatibility
• Applications: CNC routers, CNC milling machines, servo/stepper motor drives, ballscrew assemblies, industrial automation equipment

Why Choose This Shaft Coupler?

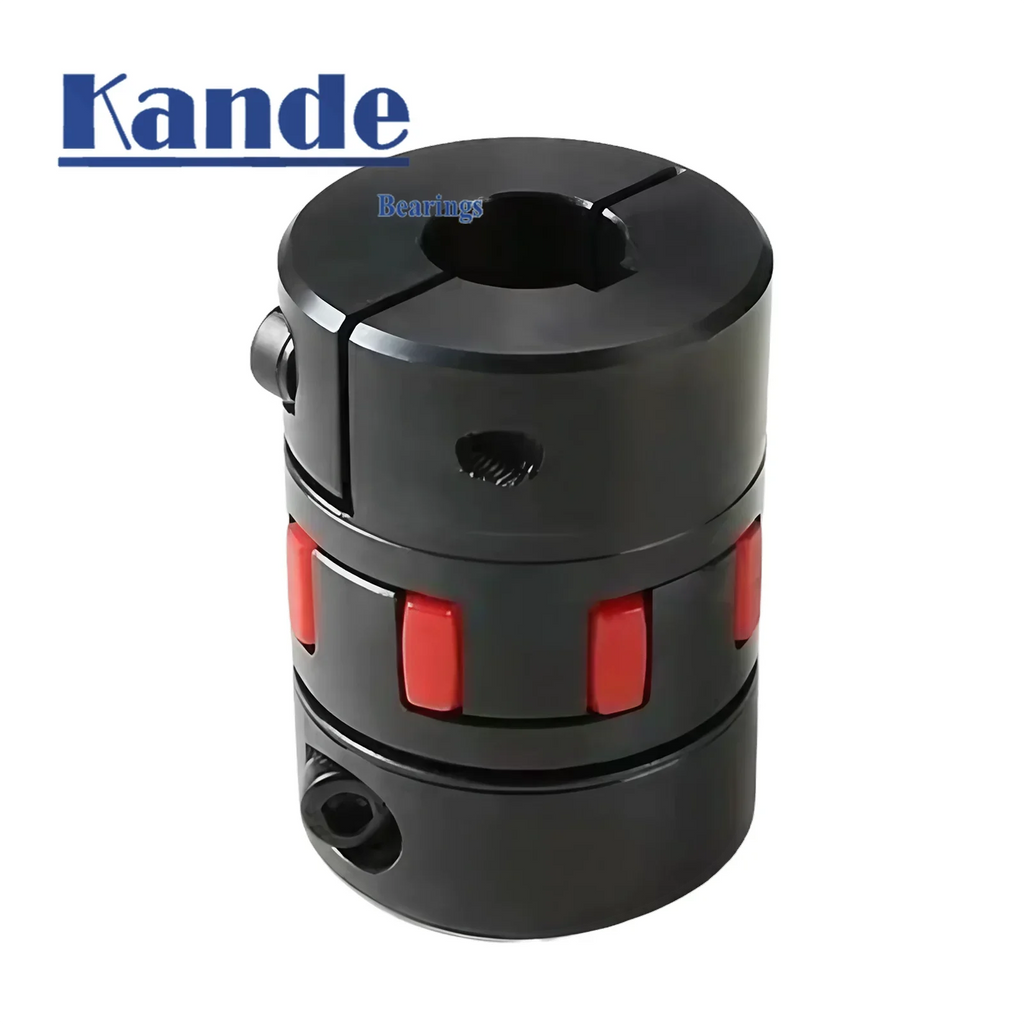

The jaw/spider coupling design uses a flexible elastomeric spider insert seated between two steel hubs, providing a forgiving connection that dampens vibration and cushions sudden torque spikes — critical in high-speed CNC environments where precision and longevity matter. The clamp-type fastening ensures a secure, backlash-minimizing grip on shafts without requiring keyways.

Specifications at a Glance

Related Products You May Also Need

• 10pcs Durable Gold Blade Nut Metal Universal Trimmer Accessories – Anti-Loosening Left Hand Thread Replacement Parts
• 10PCS Stainless Steel Self-Tapping Screws M2.2–M4.8 Phillips
• 10/20mm Diamond Flat Grinding Wheel – Dry & Wet Use Heavy Duty

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What bore sizes does the Kande XL7 D118L160 flexible jaw coupler support?

A: The Kande XL7 D118L160 shaft coupler is available in bore sizes of 20mm, 30mm, 40mm, 45mm, 50mm, 60mm, and 70mm, covering a wide range of CNC motor and ballscrew shaft diameters for flexible integration into most standard machine configurations.

Q: What is a jaw/spider (plum) flexible coupling and how does it work?

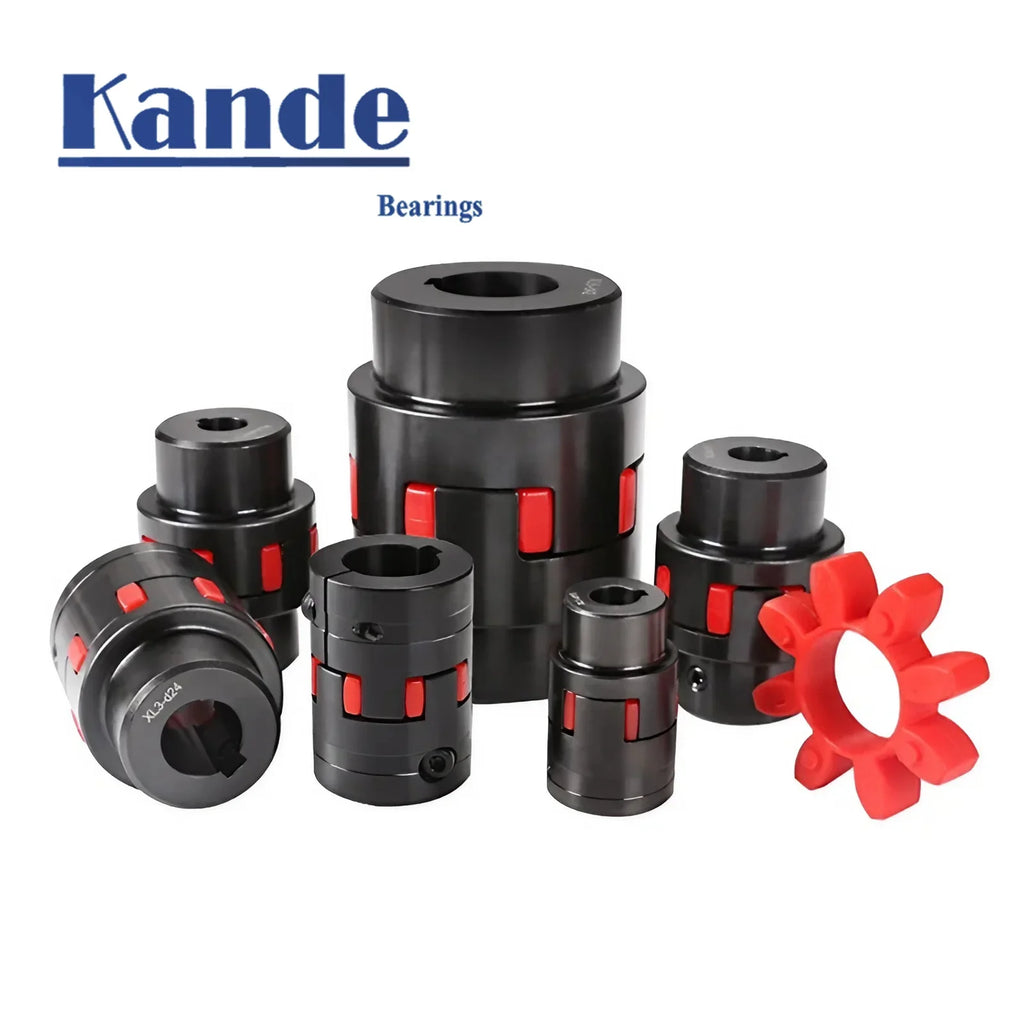

A: A jaw/spider coupling consists of two steel hubs and a flexible elastomeric spider insert (also called a plum or star insert) that fits between the jaws of each hub. This design transmits torque while absorbing vibration and accommodating minor angular, parallel, and axial shaft misalignment — making it ideal for CNC routers, servo motors, and ballscrew drive assemblies.

Q: Is this coupling suitable for both servo and stepper motor CNC applications?

A: Yes. The Kande XL7 D118L160 clamp-type flexible coupling is designed to connect servo motors, stepper motors, and ballscrews in CNC systems. The clamp design provides a secure, tool-tightened grip that minimizes backlash, ensuring precise motion transfer critical for CNC accuracy.

Q: What material is the Kande XL7 D118L160 shaft coupler made from?

A: The coupling hubs are manufactured from high-grade steel, providing excellent strength, durability, and torque capacity suitable for demanding industrial and CNC machining environments.
